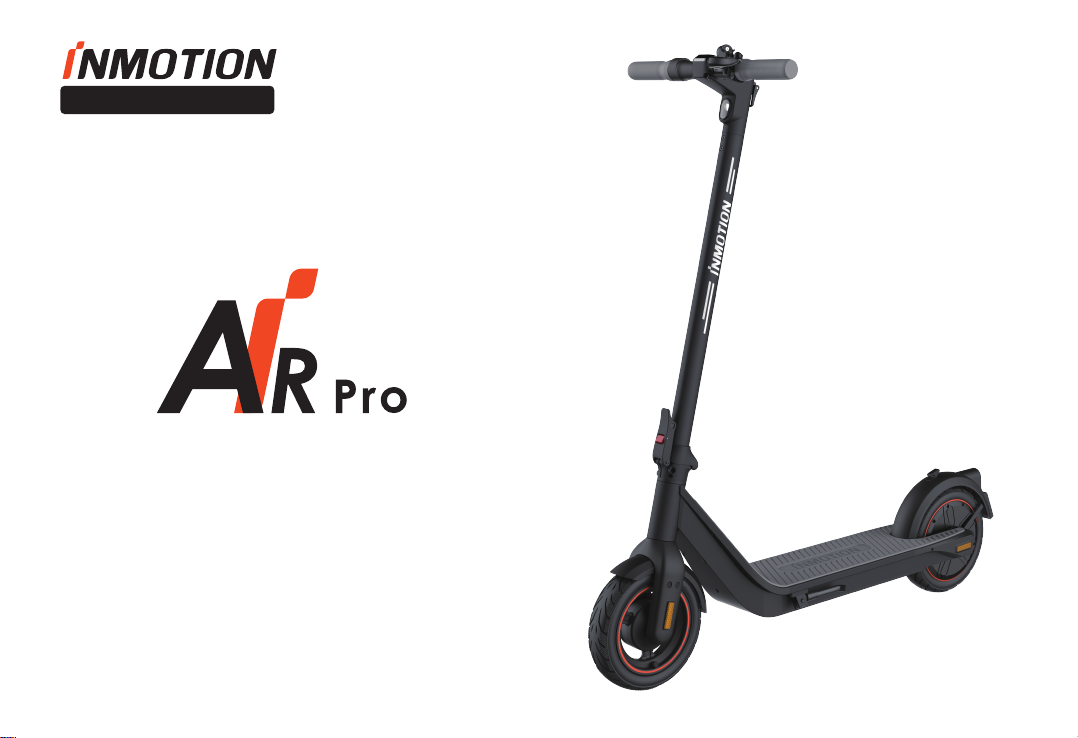

InMotion AIR Pro User manual

E-SCOOTER
USER MANUAL
ORIGINAL INSTRUCTIONS

Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Safety Instructions
Packing List
Product Function Diagram
Control Panel/Dashboard
Assembling Your KickScooter
First Ride
Charging
Learning to Ride
Security Tips
Folding and Carrying
Specifications
Maintenance
Before Your Ride
Safety Alerts & Error Messages
Trademarks and Legal Notices
Certifications
Contact
01
04
05
06
07
08
09
10
11
13
14
16
17
18
19
19
20

Electric scooter is a recreational device rather than a transporter. But once you ride it into a public community, it will also act as a transporter. Like
any riding products, an electric scooter can and is intended to move and it is therefore, of course, possible to get into dangerous situations.
Please understand that you can reduce the risks by following all the instructions and warnings in this manual, but you cannot eliminate all the risks.
Remember that whenever you ride the scooter you risk injury or death from loss of control, collisions, and falls. The electric scooter is intended for
use on flat pavement or level ground without bumps and obstacles. Be alert and slow down when entering unfamiliar areas.
Always wear a helmet when riding. Use an approved bicycle or scooter helmet that fits properly with the chin strap in place, and provides protection
for the back of your head. A long-sleeved shirt, long pants, and athletic shoes are recommended. Never ride in higheels sandals or barefooted. Long
hair or bangs that can affect vision should be tied up to avoid accidents caused by hair blocking vision.
Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential
hazards.
Respect the rights and property of others. Pass on the left whenever possible. When approaching a pedestrian from the front, stay to the right and
slow down. Be careful to avoid pedestrians, especially the old, children, the disabled, pregnant women. When approaching from behind, announce
yourself and slow down to walking speed when passing. Please obey local traffic laws and regulations if situation is different.
In places without laws comply with the safety guidelines outlined in this manual. INMOTION will not be responsible for any property damage, personal
injury/death, accidents, or legal disputes caused by violations of the safety instructions.
Do not allow anyone to ride your scooter on his/her own unless they have carefully read this manual and followed the riding guide video. The safety
of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the scooter. Make sure each new rider
wears a helmet and other protective gear.
Before each ride check for loose fasteners and damaged components. If the scooter makes abnormal sounds or signals an alarm, immediately stop
riding. Diagnose your scooter via the INMOTION App and contact after-sales service at [email protected].
Be alert! Scan both far ahead and in front of your scooter - your eyes are your best tool for safely avoiding obstacles and low traction surfaces
(including, but not limited to, wet ground, loose sand, loose gravel, and ice).
1. Safety Instructions
01
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

To reduce risk of injury, you must read and follow all “CAUTION" and “WARNING" notices in this manual. Do not ride at an unsafe speed. Under no
circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders aged between 14-60 years old and weigned less
than 120kg. People who should not ride the scooter include:
i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc-
tion concerning use of the appliance in a safe way and understand the hazards involved.
iv. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
v. Anyone who is severely overweighted (see Specifications).
vi. Pregnant women.
Vii. Riders under the age of 18 years old should ride under adult supervision.
Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
Do not ride your scooter in wet or icy weather, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles
such as sand, loose gravel, or sticks. Wet, slick, bumpy, uneven or rough surfaces may impair traction and contribute to a loss of balance or traction
and could cause a fall.
Do not ride at night when visibility is limited.
Sudden acceleration ordeceleration could lead to wheel slip, collision or falls.
Do not ride faster than the speed limit.
Do not attempt to charge your scooter if it, the charger, or the power outlet is wet.
Only use the INMOTION supplied charger. Use only with FY-4202000 supply unit. Do not use a charger from any other different product models.
Use only INMOTION approved parts and accessories. Do not modify your scooter. Modifications to your scooter could interfere with the operation
02
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.

of the scooter, could result in serious injury and/or damage, and could void the limited warranty.
Children should not use scooter or play with scooter parts. Cleaning and maintenance shall not be done by children without supervision. The vehicle
vibration will cause the driver's body vibration while riding.
Please park on flat pavement, such as on a slope, the scooter kickstand must be facing downhill to prevent capsizing. Please check whether the
scooter is parked stably to prevent it overturned.
Perform regular inspections of equipment and conduct regular cleaning on your scooter for better ride experience.This scooter contains batteries
that are not replaceable.
Use any battery charger other than the original.
detachable supply unit.
Any load attached to the handlebar will affect the stability of the vehicle.
Braking distances may be extended in wet weather.
LPA and LWA: Do not exceed 70dB(A).
In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk and the most vulnerable.
03
21.
22.
23.
24.
26.
25.
27.
28.
29.

Please carefully check whether the items in the packing box are complete and intact. If there is any part missing or damaged, please contact your point
of purchase or email to manufacturer.
Please retain the box and packaging materials at least 15 days in case you need to ship your E-Scooter in the future.
1*Power cable 1*Power adapter
Quick Start Guide
1*Handlebars
1*M5 Wrench 1*M6 Wrench 1*Inner tube
2. Packing List
04
Assembled E-Scooter
User Materials
Accessories
User Manual

3. Product Function Diagram
05
Dashboard
Power button
Throttle
Bell
Brake lever
Headlight
Stem
Folding mechanism
Front fork
Front mudguard
Front wheel
Head unit clip
Handlebar
Charging port
Head unit mount
Taillight
Plate
Bracket
Rear wheel
Rear reflector
Footrest
Kickstand
Front reflector
Air valve

4. Control Panel/Dashboard
06
For drive mode For sports mode
Speedometer
Battery level
Speed unit
Error indicator
Pedestrian mode Cruise mode
Light icon Bluetooth icon
On power-on state, click once to turn on/off the headlight
Double click to switch the riding mode
Power button: Long press for more than 2s to power on/off
The max. speed is 25km/h, suitable for general riders
The max. speed is 35km/h, suitable for skilled riders
Shows the speed of the scooter in real time, the speed will be shown as two short lines when the vehicle is locked
The battery level is indicated by 5 bars, the last bar flashing indicates a low-battery level
The light icon will be on after turning on the light, and it will go out after switch the light off
Cruise mode is activated automatically when the same speed is maintained. Press the brake or the throttle to go
back to the manual mode
The icon indicates that the scooter has detected an error. Refer to the error code table to find solutions
Press and hold the button for 2 seconds to turn the electric scooter on/off. When the scooter is on, press the
button to turn the headlight on/off, and press twice to switch modes
The max. speed is 6km/h
For drive mode
For sports mode
Speedometer
Battery level
Light icon
Cruise mode
Error
Pedestrian mode
Power button
Steps to change the unit between the Imperial System and the Metric one: Hold the handlebar, short press the power
button for 3 times
Speed unit
Km/h
mph

To avoid personal injury, please follow the instructions shown in the diagram for assembly operation and inspection.
Children are not allowed to involve in assembly operations.
NOTE: Use the M6 wrench to re-tight the folding part's nuts in case it's loosen after long time use.
(No need to tight it during assembling since it has been firmly installed)
5. Assembling Your E-Scooter
07
R
L
5
6
2. Unfold the stem and fasten the folding wrench. Make sure
the unlocking key springs up normally after fastening. Be sure
to buckle up properly.
4. Install the handles on the stem and firmly tighten it
according to the correct position and direction marked on
the label.
M5 Wrench
M6 Wrench
4
3
1. Open the package, take out the inner tray and scooter.
3. Place the brake lever on the handlebar, tighten it firmly with
hex wrench to be sure it won't loosen.

There are safety risks when learning to ride the scooter. For your safety, your new scooter is not activated and will beep
occasionally after Power ON. Until activated, the scooter maintains a riding speed at 5km/h and is not allowed to switch
the ride modes. Please download INMOTION App to activate your scooter to enjoy all features.
6. First Ride
08
1. Download and install the App,
register/login your account.
INMOTION APP
2. Power on the scooter, pair your scooter
with the INMOTION App. The scooter will
beep when the connection is successful.
3. Follow the App instructions to active
the scooter and learn how to ride safely.
You can now start to use your scooter.

7. Charging
Charger indicator light: Red (charging)
Green (charged)
1. Open the rubber cap. 2. Insert the battery
charger plug.
3. Remove the battery
charger and close
the rubber cap when
Charging finished.
Charging port
3
09
•
•
•
•
•
Do not charge if the charge port or power cord is wet.
Use only with the original changer, do not use battery packs of other models or brands.
Do not charge or stop using the battery immediately if it is damaged or flooded.
Please close charge port cover tightly when not in use or after charging.
Never charge indoors.

Wear an approved helmet, elbow pads,
knee pads and other protective gear to
minimize any possible injury.
1. Check the power level indicator after
powering on. Charge the scooter if the
battery level is low.
2. Stand on the footrest with one
foot and push off with another foot
to start gliding.
3. Stand on the footrest with both feet,
press the throttle on the right hand.
Note: For your safety, the motor will not
engage until the scooter reaches 3 km/h.
4. Slow down by releasing the throttle and
hold the braking lever lightly (Do not brake
suddenly and watch out for the road
conditions!).
5. When the car stops or slides
slowly, put down one foot and get
off.
When hard braking, you risk serious injury due to loss of traction and falls. Maintain a moderate speed and look out for potential hazards.
8. Learning to Ride
10

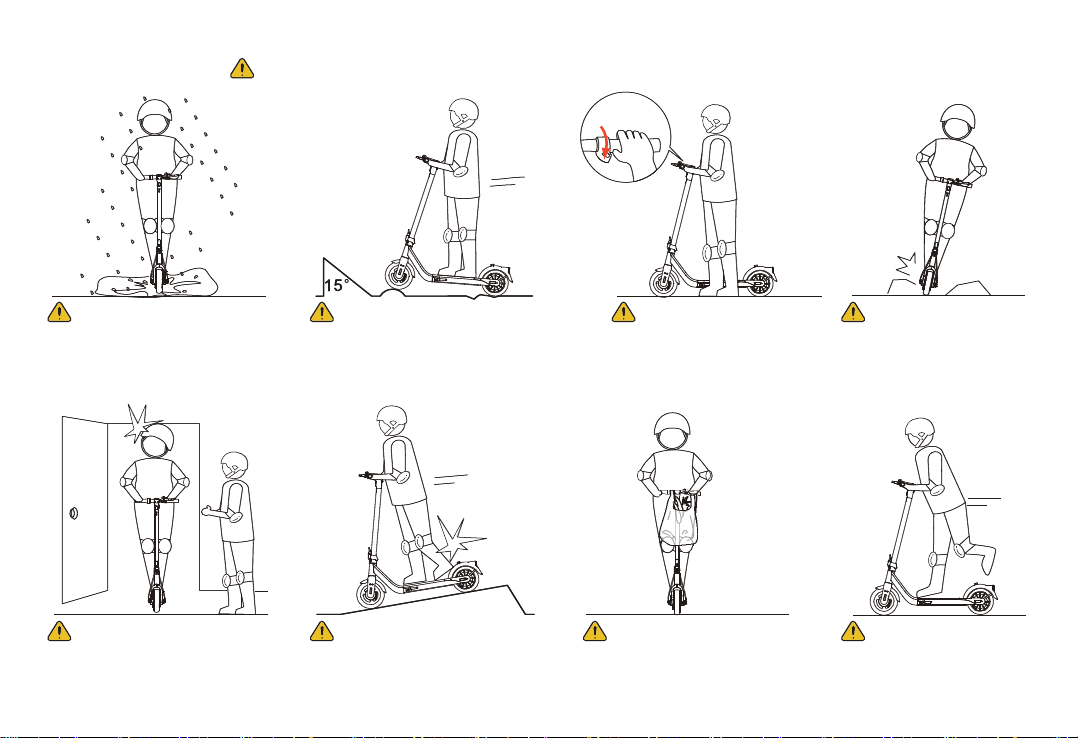

Failure to follow these instructions could lead to serious injury.
Do not ride the scooter in
the rain.
Do not ride at high speed
when you get over speed
bumps, thresholds etc.,
please ride at low speed on
rough roads.
Do not press the throttle
when walking with the
scooter.
Avoid contacting
obstacles and watch
out for the road
conditions.
Watch your head when
passing through doorways.
Do not step on the rear
fender.
Do not carry heavy objects
on the handlebar.
Do not ride the scooter
with only one foot or
one hand.

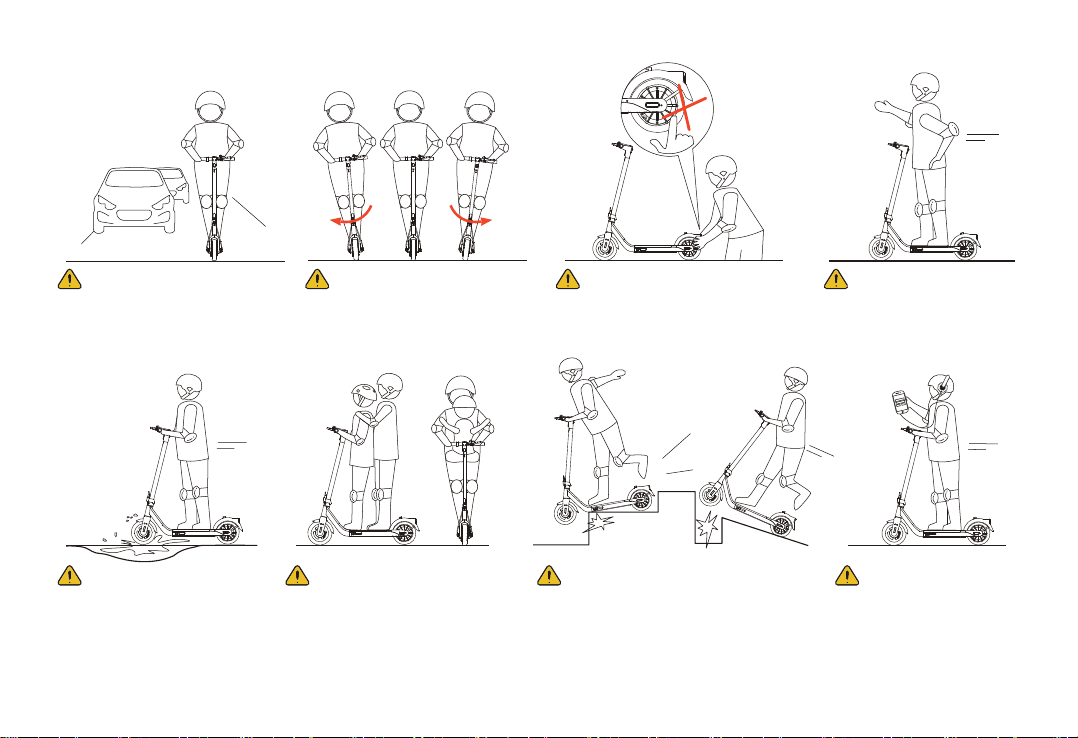

9. Security Tips
11

Do not ride on motorways,
public roads, or highways.
Do not rotate the handle
violently while driving at high
speed.
Do not touch the motor, it
may overheat after running.
Do not take your hands
off the handlebar while
riding.
Do not ride through puddles,
please go around at low
speed.
The scooter is for one rider
only. Do not carry any
passengers especially a child.
Do not ride when pregnant.
Do not ride up and down stairs or
jump over obstacles.
Do not use mobile phone
or wear earphones when
riding the scooter.
12

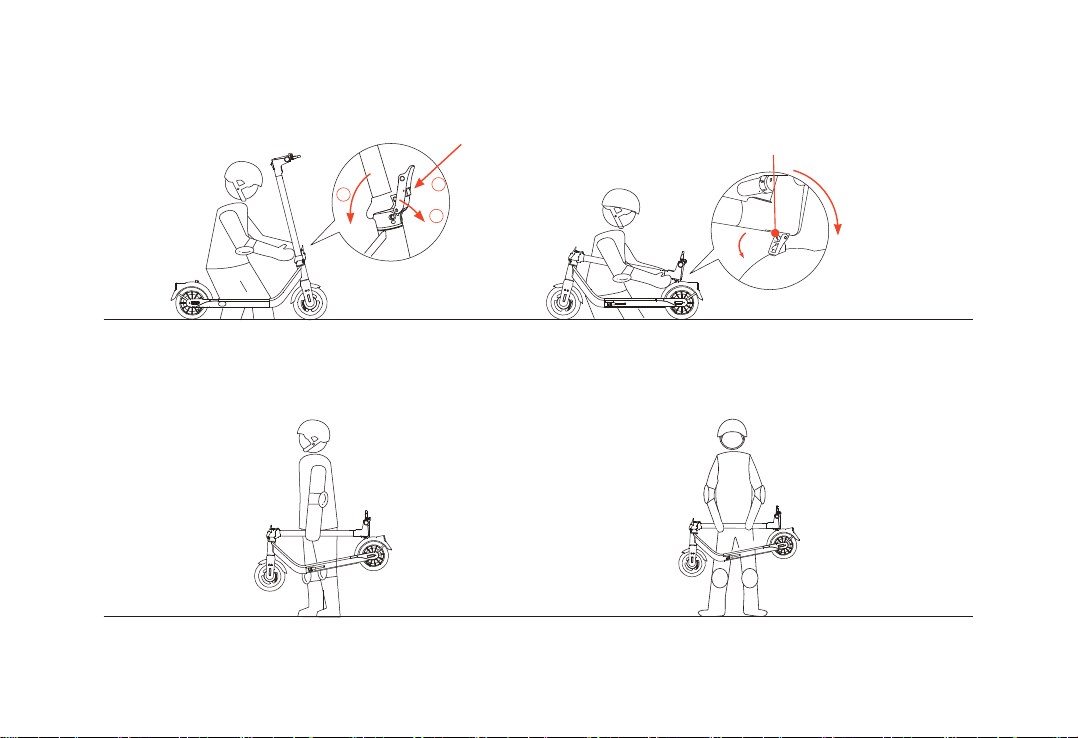

Power off the scooter, hold the stem, press the locking button
and pull the lever, bend the handlebar stem towards the footrest.
Hold the stem and pull the folding ring, attach the hook to the
locking clip on the side of the mudguard.
Carry the scooter by holding the handlebar stem. Watch out for bumps!
10. Folding and Carrying
Folding
Carrying
Press the locking button Press down the folding ring
Stem Wrench
1
3
2
13

11. Specifications
Index
Basic specs
Rider
Machine paramaters
Items
Model
Unfold dimensions (L x W x H)
Folded dimensions (L x W x H)
Net weight
Max. payload
Recommended age
Max. speed
Operating temperature
Storage temperature
IP rating
Charging time
C1 Pro
44.3″×17.5″×20.5″ (1125×445×1200mm)
44.3″×17.5″×47.2″ (1125×445×520mm)
Approx. 39.0lbs (17.7kg)
264.6lbs (120kg)
14-60
22mph (35km/h)
Approx. 30miles (48km)
-10℃ - +40℃
-20℃ - +50℃
IP55
Approx. 8.5h
Value
Approx. 20%
Typical range [1]
Max. slope [2]
14

Battery
Motor
Charger
Others
Tyre
Rating voltage
Max. Voltage
Ambient temperature
Nominal capacity
Battery management system
Rating power
Input voltage
Output voltage
Output current
Headlignt power
Tail light power
42V
0℃ - +40℃
438Wh
Overheat / short circuit / overcurrent / overcharge protection
400W
AC100-240V 50/60HZ
DC42V
2A
Front
Rear
10 inch, Air-filled low rolling resistance tire
10 inch, PU-filled soild tire
2.0W
0.8W
Ride modes
Maximum pressure of the tire
D-mode, S-mode
350kpa (50PSI)
36.5V
[1] Typical Range: tested while riding under full power, 165.3 lbs(75.0kg) load, 77℉ (25℃), 13 mph (21km/h) on average on pavement.
[2] Max slope measured under the following conditions: 165.3 lbs(75.0kg) load with 80% battery, riding 10 meter at a speed of 9 mph (15km/h)
from the bottom slope to the top at a speed greater than 4 mph (6km/h) .
15

12. Maintenance
Charging precautions
•
•
•
•
•
•
•
•
•
•
•
Do not charge the electric scooter in wet environment.
The best ambient temperature for charging is 0-40°C.
Keep out of reach of children and animals, keep away from flammable materials while charging.
Do not store the electric scooter in environments with a temperature ranging from -20 to 50°C. Do not put the battery pack into the fire. Doing so may
cause fire, heat generation, leakage or bursting.
After each use, fully recharge the battery to extend its useful life. Completely draining the battery may permanently damage the battery.
Do not charge or use the battery if it smells, overheats or leaks.
Do not open the battery pack or insert anything into the charging port as it contains hazardous substances.
Please only use the original battery and adapter for your scooter.
Always comply with local environmental protection laws about battery recycling.
Cleaning
Wipe the body of the electric scooter with a damp cloth. If stains persist, apply some toothpaste, brush with a toothbrush, then wipe with a damp cloth.
Note
When cleaning the electric scooter, make sure that it is turned off, that the charging cable is disconnected, and the rubber cap is closed, as a water leak
may cause a damage to electronic components.
Do not clean the electric scooter with alcohol, petrol, kerosene or other corrosive and volatile chemical solvents, to avoid serious damage. Do not wash
the electric scooter with jets of high pressure water.
Storage
When the electric scooter is not in use, store it in a cool, dry place. Do not store it outdoors for extended periods of time.
Note
Excessive sunlight, overheating, and excessive cold accelerate tire ageing and jeopardize the life of both the electric scooter and the battery.
Warnings
Only use original batteries, as other models or brands may pose a safety risk.
Please do not exceedthe specifiedtemperaturefor battery storage or charging. (See specifications)
16

13. Before Your Ride
•
•
•
•
•
•
•
•
Do not touch the battery contacts. Do not dismantle or puncture the outer casing. Avoid contact between metal objects and battery terminals to prevent
short circuits, physical harm or death.
Do not throw the battery into a fire as this could damage it, cause overheating or even a fire.
Do not charge or stop using the battery if it is damaged or flooded.
Do not attempt to remove the battery as you may damage the scooter.
Do not attempt to disassemble the battery to prevent fire hazards. Usersare nownot allowed to repair spare parts and components come with the
scooter.
Do not ride when the ambient temperature is higher than the operating temperature of scooter (see Specifications) because low/high temperature will
limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.
After each use, fully recharge the battery toextend its service life. Completely draining the battery may permanently damage the battery.
Improper disposal of used batteries seriously pollutes the environment. Follow local regulations regarding battery disposal. Follow battery disposal
regulations to protect the environment.
Typically, a fully charged battery should retain power for 120-180 days. A low-power battery should retain power for 30–60 days. Remember to recharge
it every 60 days to protect it from any damage. Electronics inside the battery record the charge-discharge condition of the battery, damage caused by
over-charging or under-charging will not be covered by the limited warranty.
A well-maintained battery can perform well even after many miles of riding. When used at room temperature 22°C, the battery range and performance is
at its best; whereas using it at low temperatures can decrease range and performance. Battery range will recover when temperature rises.
1. Read the product instructions carefully and do not attempt to ride the scooter if you cannot follow the instructions completely.
2. Please do not allow others to use your scooter without carefully reading this instruction or knowing how to use this product and safety precautions.
3. All parts of the scooter must be properly installed in accordance with the instructions. Improper installation may result in the risk of loss of control,
collision or fall. Before installation or maintenance, please power the scooter off, install the components with proper strength. Too loose or too tight
installation may cause damage or failure of the products.
4. Please purchase insurance in time after purchasing the product to minimize the risk.
5. Before each ride, please check all vehicle components are in place and securely fastened, the performance of wheels, the battery level, running
condition, etc., to ensure any parts including the handlebar, stem, tires, brakes, screw are not loose or damaged, and the vehicle is in good condition for
riding. Ifyou've noticed anythingunusual, please stop using immediately and contact after-sales service for technical support.
6. You are obligated to be aware of all laws, regulations and policies of scooter riding in your area and to strictly comply with the applicable laws, regula-
tions and policies.
17
