Inspire CR2.5 Installation and operating instructions

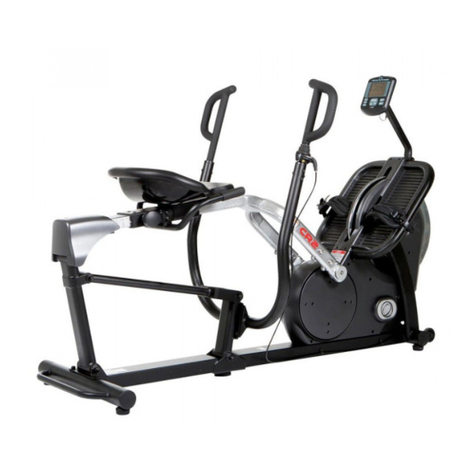

INSPIRE CROSSROWER CR2.5
ASSEMBLY & OWNER’S MANUAL
TABLE OF CONTENTS
TABLE OF CONTENTS__________________________________________________________________________________________ 2
BEFORE YOU BEGIN __________________________________________________________________________________________ 2
IMPORTANT SAFETY NOTICE ____________________________________________________________________________________ 3
WARNING LABEL PLACEMENT___________________________________________________________________________________ 4
ASSEMBLY AND SETUP ________________________________________________________________________________________ 5
ASSEMBLY INSTRUCTIONS _____________________________________________________________________________________ 6
CONSOLE LAYOUT____________________________________________________________________________________________ 8
USER DISPLAY METRICS _______________________________________________________________________________________ 9
DISPLAY AND NOTIFICATION ICONS______________________________________________________________________________ 10
CONSOLE CONTROL KEYS _____________________________________________________________________________________ 11
CONSOLE FEATURES _________________________________________________________________________________________ 12
USING THE WIRELESS HEART RATE RECEIVER_______________________________________________________________________ 12
OPERATIONAL MODES _______________________________________________________________________________________ 13
WORKOUT PROGRAMS – AN OVERVIEW __________________________________________________________________________ 15
WORKOUT PROGRAMS _______________________________________________________________________________________ 15
MAINTENANCE _____________________________________________________________________________________________ 20
GENERAL NOTES____________________________________________________________________________________________ 21
REGULATORY INFORMATION___________________________________________________________________________________ 21
WARRANTY ________________________________________________________________________________________________ 22
CR2.5 EXPLODED VIEW 1______________________________________________________________________________________ 24
CR2.5 EXPLODED VIEW 2______________________________________________________________________________________ 25
CR2.5 PARTS LIST ___________________________________________________________________________________________ 26
BEFORE YOU BEGIN
Thank you for selecting the INSPIRE CrossRow. For your safety and benefit, read this manual carefully before using the machine. As a
manufacturer, we are committed to providing you complete customer satisfaction. If you have any questions, or find there are missing or
damaged parts, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance to you.
Toll-Free Customer Service Number
1-877-738-1729
Mon. - Fri. 8 a.m. - 5 p.m. PST
www.inspirefitness.com

Page | 3
IMPORTANT SAFETY NOTICE
Precautions
This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise
equipment. Be sure to read the entire manual before you assemble or operate your machine. Please note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave children unattended in the same room with the
machine. The linkages on this machine can cause serious injury or death if used improperly.
2. Never place your hands or feet in the path of the linkages because injury may occur to you or damage may occur to the
equipment. Never allow children to come near or approach the moving linkages while in use.
3. Feet should be fully rested and securely strapped onto the foot plate during the entire workout.
4. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A
PHYSICIAN IMMEDIATELY.
5. Position the machine on a clear, leveled surface. DO NOT use the machine near water or outdoors.
6. Keep hands away from all moving parts.
7. Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in
the machine. Running or aerobic shoes are also required when using the machine.
8. Use the machine only for its intended use as described in this manual. DO NOT use attachments not recommended by the
manufacturer.
9. Do not place any sharp objects around the machine.
10. Disabled persons should not use the machine without a qualified person or physician in attendance.
11. Before using the machine to exercise, always do stretching exercises to properly warm up.
12. Never operate the machine if the machine is not functioning properly.
13. Maximum user weight 300 lbs.
Care and Maintenance
1. Keep seat slider clean.
2. Inspect and tighten all parts before using the machine.
3. The Frame and Seat Pad of the machine can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use
solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY
IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. Health In Motion,
LLC. DOES NOT ASSUME ANY RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

Page | 4
WARNING LABEL PLACEMENT

Page | 5
ASSEMBLY AND SETUP
Package Contents
CR2.5 Assembly Hardware Kit
NOTE: The parts shown are not drawn to scale. Please use your own
ruler or scale to measure the size.

Page | 6
ASSEMBLY INSTRUCTIONS
Assembly STEP 1
Attach the Left Handlebar
Assembly and Right Handlebar
Assembly to the main frame
using the provided M8x25 flat
head screws (35) and washers
(36). Take care to align the
sleeve inside the handlebar
pivot before attempting to
mount the arms.
Assembly STEP 2
Attach the right and left linkage
assemblies (33) to their
respective arms using the
provided M10x54mm hex bolt
(32), washer (34), and nut
(57) sets.

Page | 7
Assembly STEP 3
Join the console cable
connectors, taking care to pair
the correct wires before
making the connections.
Attach the console (13) by
inserting the bottom tabs into
their respective slots and
sliding the console downward
until the lower tab aligns with
the base plastics.
Fix the console in place with
the Phillips screw (16).
Attach the tablet mount (15)
with the three Phillips screws
(73).
Move the CR2.5 to an area
with adequate space for save
operation and easy ingress
and egress.
Level the unit by first raising
the five leveling feet counter-
clockwise (when viewed from
above). Inspect the feet and adjust any that are not touching the ground until the unit is stable and does not rock when force is applied.
Finally, perform the pre-workout safety check.
Congratulations, the Inspire CR2.5 is assembled and ready for use.

Page | 8
CONSOLE LAYOUT
Quick Launch
Program Keys Up / Down Arrow Keys
Time Display Panel
Stroke Display Panel
Calories, Distance, Pace,
Pulse & Watts Display
Panel
13x94 Brickyard Display
Muscle Group
Display Panel
Function Keys
Control Keys
25x25 Brickyard Display

Page | 9
USER DISPLAY METRICS
Time / Interval Display Panel
The Time / Interval Display Panel will provide display details for
the time metric as well as the Interval program details. Depending
upon the selected program, the Remaining or Elapsed banners
will light.
Strokes Display Panel
The Strokes Display offers the user
a customized choice for the strokes
metric to be displayed. By default,
the display will toggle between
posting Stroke Count or Strokes
per Minute every 5 seconds. To
stop the switching, press the UP
ARROW or DOWN ARROW key
while the desired metric is
displayed.
A speedometer-type scale will post the current strokes graphically.
25x25 Brickyard Display
Between workouts, the 25 x 25 Brickyard
Display will post QR codes for quick links
for downloading Inspire applications.
During the workouts directional arrows
will post to confirm the direction of the
flywheel rotation.
13x94 Brickyard Display
The 13 x 94 Brickyard Dispaly will post instructions to help
aid in the programing and setup of the console.
Messaging during the workout will display here as well.
Zones Display Panel
Muscle groups that are
engaged during the
workout will be identified
and lit. Varied movements,
programs and direction will
post different muscles.
Calorie, Distance, Pace, Pulse & Watts Display
Panel
The Calorie, Distance, Pace, Pulse & Watts cluster will post
real-time feedback and accumulated metrics throughout
the workout.
Workout results will also display in the appropriate fields
when the workout ends.
