KI Pirouette User manual

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Assembly Instructions
Pirouette™Tables
Fixed-Base with Villa, PowerUp or No Power
May 2019 Fixed Legs & Worksurface
Stiffener to Tabletop Installation

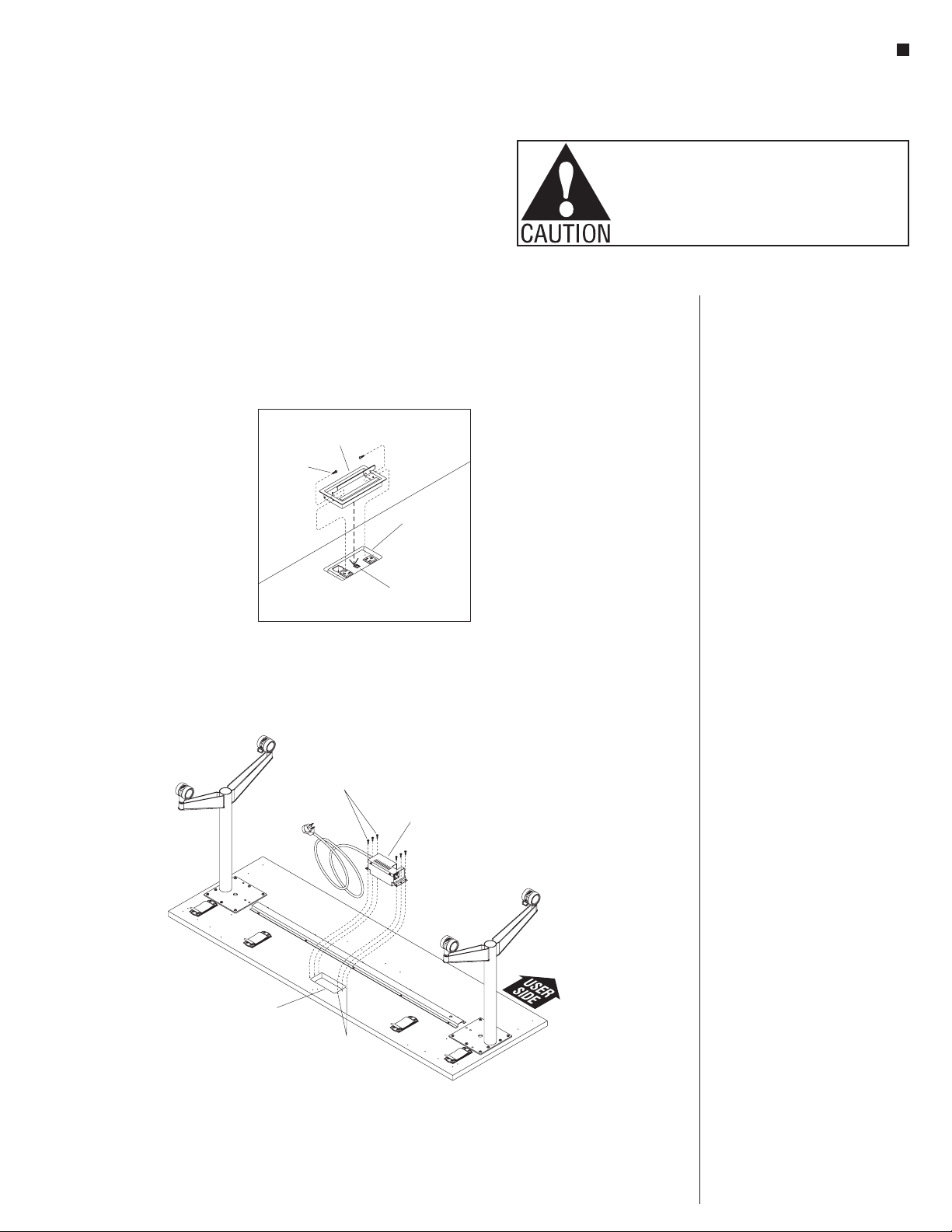

Note: If Pirouette Table Assembly
has a 36” x 84”-96” tabletop, skip
page 1 and reference “Fixed Legs to
36” x 84”-96” Tabletop Installation”
instructions on page 2. If Pirouette
Assembly has TT-Legs, reference
“Fixed TT-Legs to Tabletop
Installation” instructions on page 3.
If Pirouette Assembly has TT-Legs
and a two-piece tabletop, reference
“Fixed TT-Legs to Two-Piece
Tabletop Installation” instructions on
page 4.
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place tabletop upside down on a
soft, protective surface. To insure
stability, the following tables require
a worksurface stiffener channel
installed to the underside of the
tabletop:
• 72” Rectangular Training Tables
• 84” Conference Tables
• 84” Double Chevron Tables
• 96” Collaborative Tables
3. If tabletop requires a stiffener,
position stiffener channel onto the
center of the tabletop underside,
aligning the stiffener mounting holes
with the pre-drilled holes in the table.
Secure stiffener to top using
#10 x 3/4” screws through all stiffener
mounting holes provided (Figure 1).
4. Position each fixed table leg over
pre-drilled mounting holes in the
underside of the table as illustrated.
Secure the table legs to the top using
seven #12 x 1” screws through each
leg mounting plate (Figure 2).
5. Locking and non-locking casters
are provided. Locking casters are to
be installed to the front, user-side
of each leg and non-locking casters
should be installed to the rear of
each leg. Use a 19 mm open end
wrench to tighten casters to the foot
of each leg (Figure 2).
6. To attach glides, thread stem into
bottom of leg by hand (Figure 2).
#10 x /”
3
4
PPH screw
worksurface
stiffener channel
tabletop
Figure 1
glide
fixed
table leg
#12 x 1”
PPH screws
caster
(locking)
caster
(non-locking)
tabletop
Figure 2
#12 x 1”
PPH screws
Note: Longer tables require
worksurface stiffener channels.
See step 2 for details.

2
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - 36” x 84”-96” Tabletop Installation
Assembly Instructions
fixed table
outer leg
#12 x 1”
PPH screws
caster
(locking)
caster
(non-locking)
tabletop
(36”x84”-96”)
#12 x 1”
PPH screws
glide
Figure
3
fixed table
outer leg
fixed table
inner leg

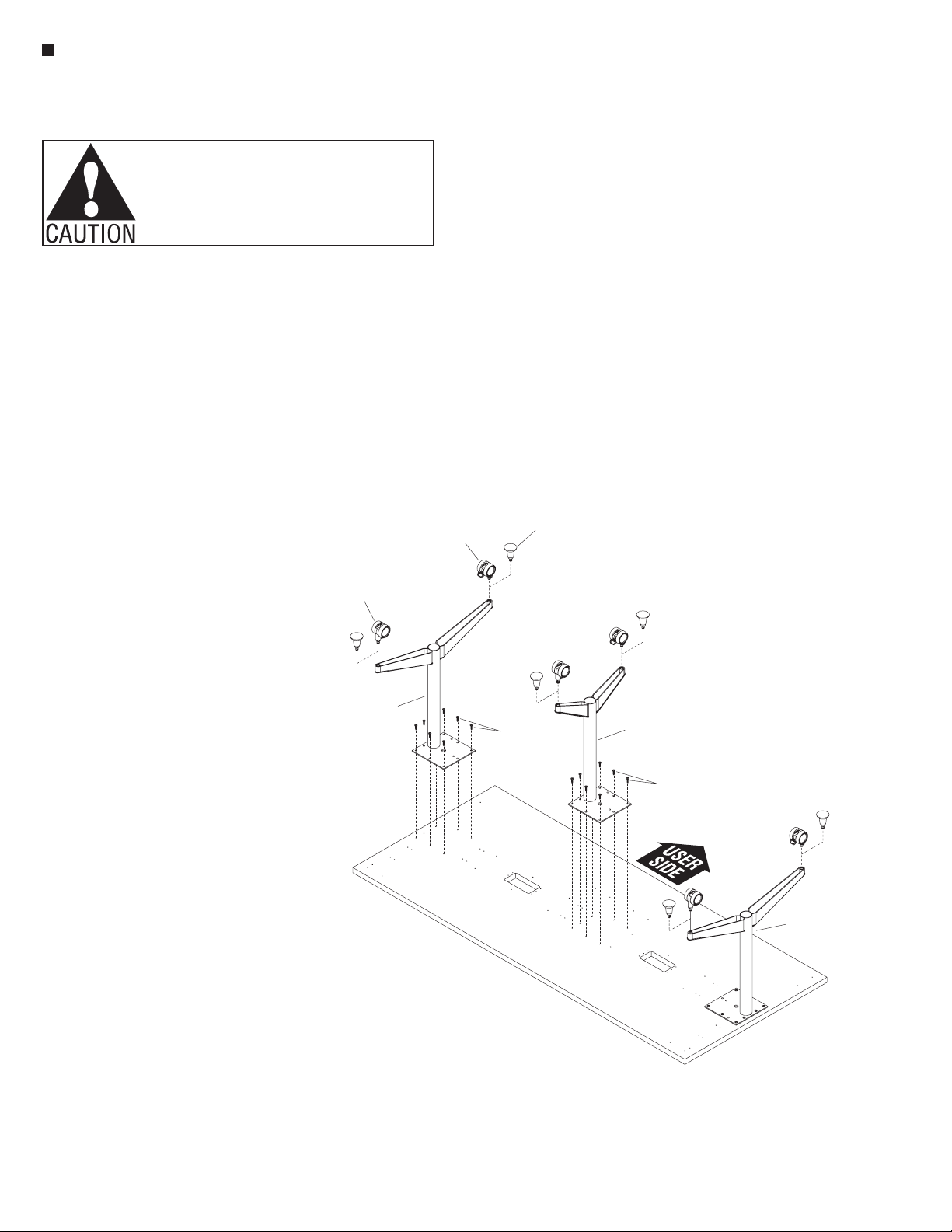

Fixed Legs to 36” x 84”-96”
Tabletop Installation
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place tabletop upside down on a
soft, protective surface. Tables
36” x 84”-96” require a fixed table
inner leg installed to the underside
of the tabletop to insure stability. If
tabletop is 36” x 84”-96”, position
fixed table inner leg onto the center
of the tabletop underside, aligning
the leg mounting holes with the
pre-drilled holes in the table. Secure
leg to top using #12 x 1” screws
through the eight leg mounting holes
as illustrated (Figure 3).
3. Position each fixed table outer leg
over pre-drilled mounting holes
in the underside of the table as
illustrated. Secure the table legs to
the top using eight #12 x 1” screws
through each leg mounting plate
(Figure 3).
4. Locking and non-locking casters
are provided. Locking casters are to
be installed to the front, user-side
of each leg and non-locking casters
should be installed to the rear of
each leg. Use a 19 mm open end
wrench to tighten casters to the foot
of each leg (Figure 3).
5. To attach glides, thread stem into
bottom of leg by hand (Figure 3).

3
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Fixed TT-Legs to Tabletop Installation
Assembly Instructions
glide
glide
fixed table
TT leg
#12 x 1”
PPH screws
fixed table
TT leg
tabletop
Figure
4

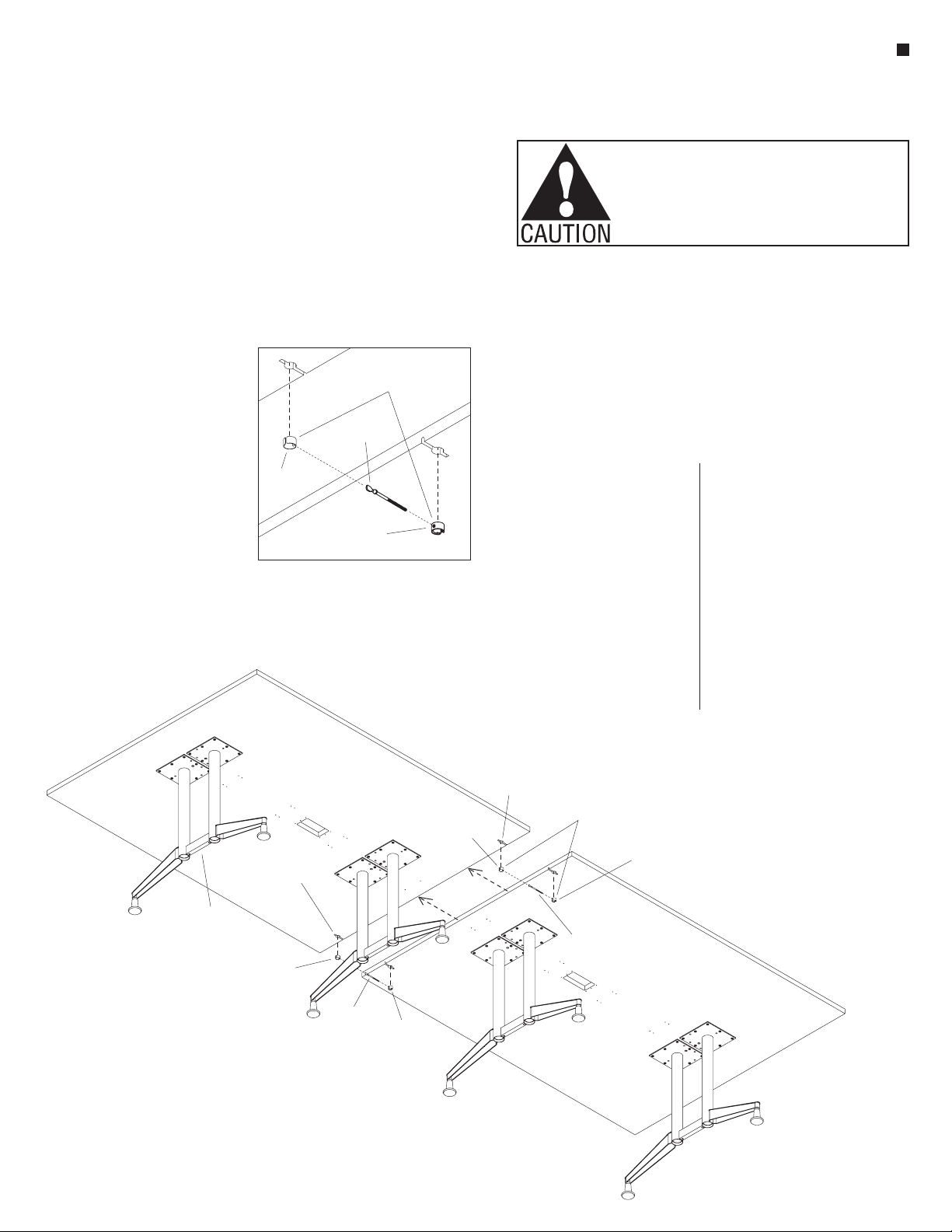

Fixed TT-Legs to Tabletop
Installation
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place tabletop upside down on a soft,
protective surface (Figure 4).
3. Position each fixed table TT-leg over
pre-drilled mounting holes in the
underside of the table as illustrated.
Secure the table legs to the top using
all sixteen #12 x 1” screws through
the TT-leg’s mounting plates
(Figure 4).
4. To attach glides, thread stem into
bottom of leg by hand (Figure 4).

4
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - TT-Legs to Two-Piece Tabletop Installation
Assembly Instructions
#12 x 1”
PPH screws
Figure 5
two-piece
tabletop
glide
fixed table
TT leg
fixed table
TT leg
two-piece
tabletop
#12 x 1”
PPH screws
glide

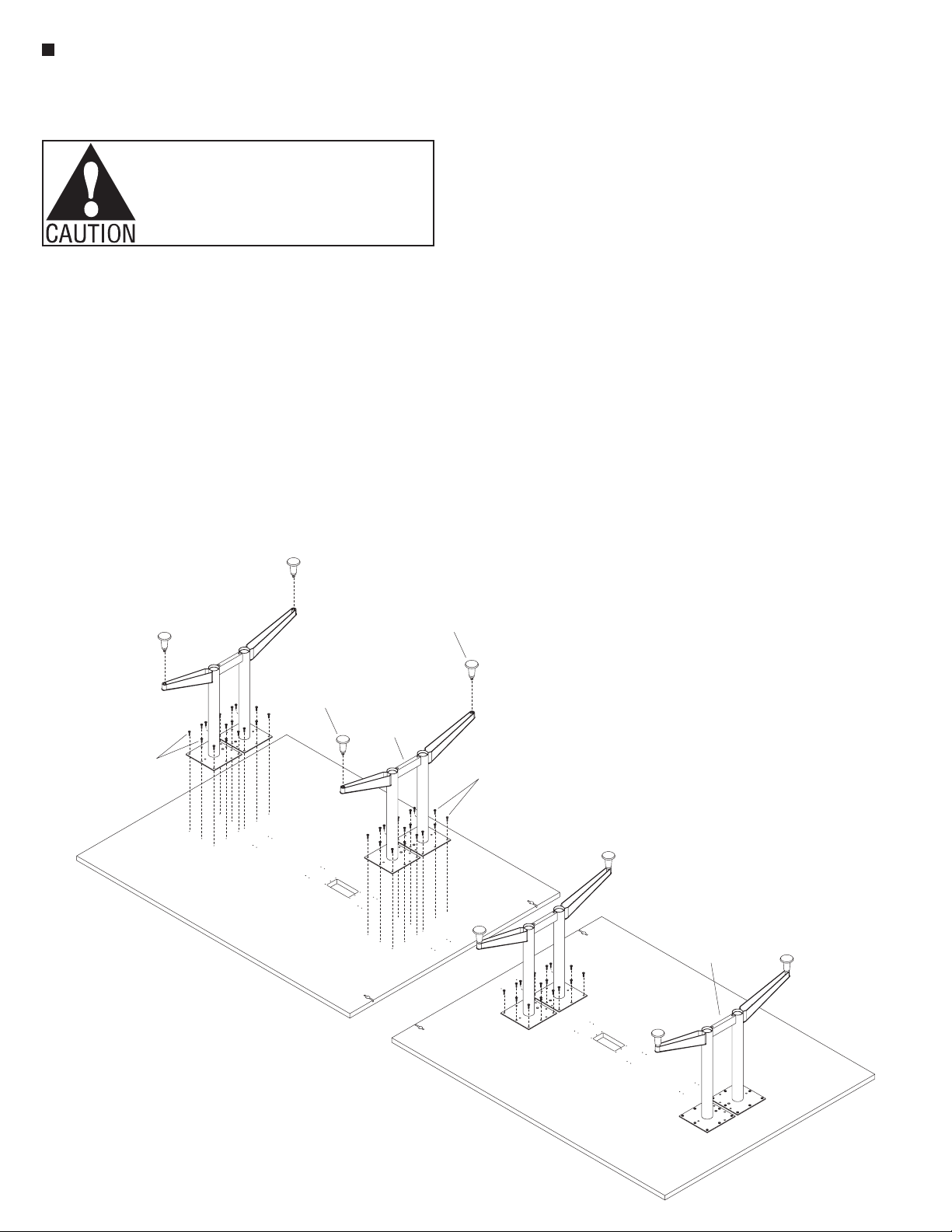

Fixed TT-Legs to Two-Piece
Tabletop Installation
1. Carefully remove contents from
shipping cartons and identify parts
and hardware supplied.
2. Place both pieces of the two-piece
tabletop upside down on a soft,
protective surface making sure the
holes for the joint-fasteners face each
other (Figure 5).
3. Position each fixed table TT-leg over
pre-drilled mounting holes in the
underside of the table as illustrated.
Secure the table legs to the tops
using all sixteen #12 x 1” screws
through the TT-leg’s mounting plates
(Figure 5).
4. To attach glides, thread stem into
bottom of leg by hand (Figure 5).

5
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - TT-Legs to Two-Piece Tabletop Installation
Assembly Instructions
locking
sleeve
draw
bolt
tightening
nut
KV
joint-fastner
set
draw
bolt tightening
nut
fixed TT-leg
two-piece tabletop
assembl
fixed table
TT leg
fixed TT-leg
two-piece tabletop
assembly
locking
sleeve
KV
joint-fastener
slot
KV
joint-fastener
slot
Figure 6
Detail
A
locking
sleeve
draw
bolt
tightening nut
KV joint
fastner set
5. Carefully turn both tables in the
upright position. Move both tables
together making sure the holes for
the KV joint-fasteners face each other
(Figure 6).
Important: For step 6 below, it is
important that the KV joint fastener
slots in the undersides of the
tabletops to be joined are aligned
perfectly.
6. Assemble KV fasteners by first
twisting a draw bolt into each
tightening nut a few turns, then press
each pair into a 7/8” hole and slot in
the underside of the tabletops to be
joined. The flat-end of each draw bolt
will be visible in the 7/8” hole on one
side of the units being joined. One at
a time, position each locking sleeve
as illustrated and insert locking
sleeves into the 7/8” holes so that the
slotted sleeve engages the rounded
collar on the bolt (Figure 6 &
Detail A).
7. Tighten the nut with a tightening tool
or a nail-set. Check the side edges
for proper alignment. The side edges
should be smooth and level with no
gaps. Adjust as necessary to achieve
a “seamless” look (Figure 6).
Important: Each pound of pressure
on the tightening tool exerts 500
pounds of force on the joint.
Overtightening the KV fasteners will
cause the tops to delaminate.

6
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Velcro®Wire Managers
Assembly Instructions
Velcro®Wire Managers
Installation
Note: If optional wire trough is to be
installed on table length of 60”-72”,
install only two Velcro wire managers
closest to the side edges of the
tabletop.
1. Position the two Velcro®wire
managers, four if table length is
60”-72”, unless wire trough is to be
installed (Figure 7), over the
pre-drilled holes in the underside
of the tabletop where illustrated. If
Pirouette Table assembly is for a
36” x 84”-96” tabletop, an optional
fifth Velcro®wire manager is
recommended, and must be ordered
separately. The fifth Velcro®wire
manager is installed next to the fixed
table inner leg (Detail C). Locate and
place two steel position tabs, one at
each end over the mounting holes
in the wire manager, then secure
using four #10 x 5/8” screws, through
the two position tabs, wire manager
mounting holes and into the tabletop.
Do not over-tighten (Figure 7).
Velcro®wire managers must be
rotated 90 to mount onto the
underside of the 18” depth tabletop
(Detail B).
tabletop
#10 x /”
screws
3
4
Velcro
wire manager
®
Figure 7
steel
position tab
#10 x
/”
screws
3
4steel
position
tab
Velcro
wire manager
®
Velcro
wire manager
®
tabletop
Detail B - Velco Wire Manager
(18” tabletop only)
Velcro
wire manager
®
table top
fixed table
inner leg
Detail C - V
elco Wire Manager
(36”x84”-96”
tabletops)

7
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
tabletop
Figure 8
Villa power
module with
3-prong plug
#8 x /”
screws
3
4
worksurface
cutout
pre-drilled
holes
Detail D
Villa
grommet
tabletop
cutout
tabletop
Villa power
module with
3-prong plug
#6 x /”
screw
1
2

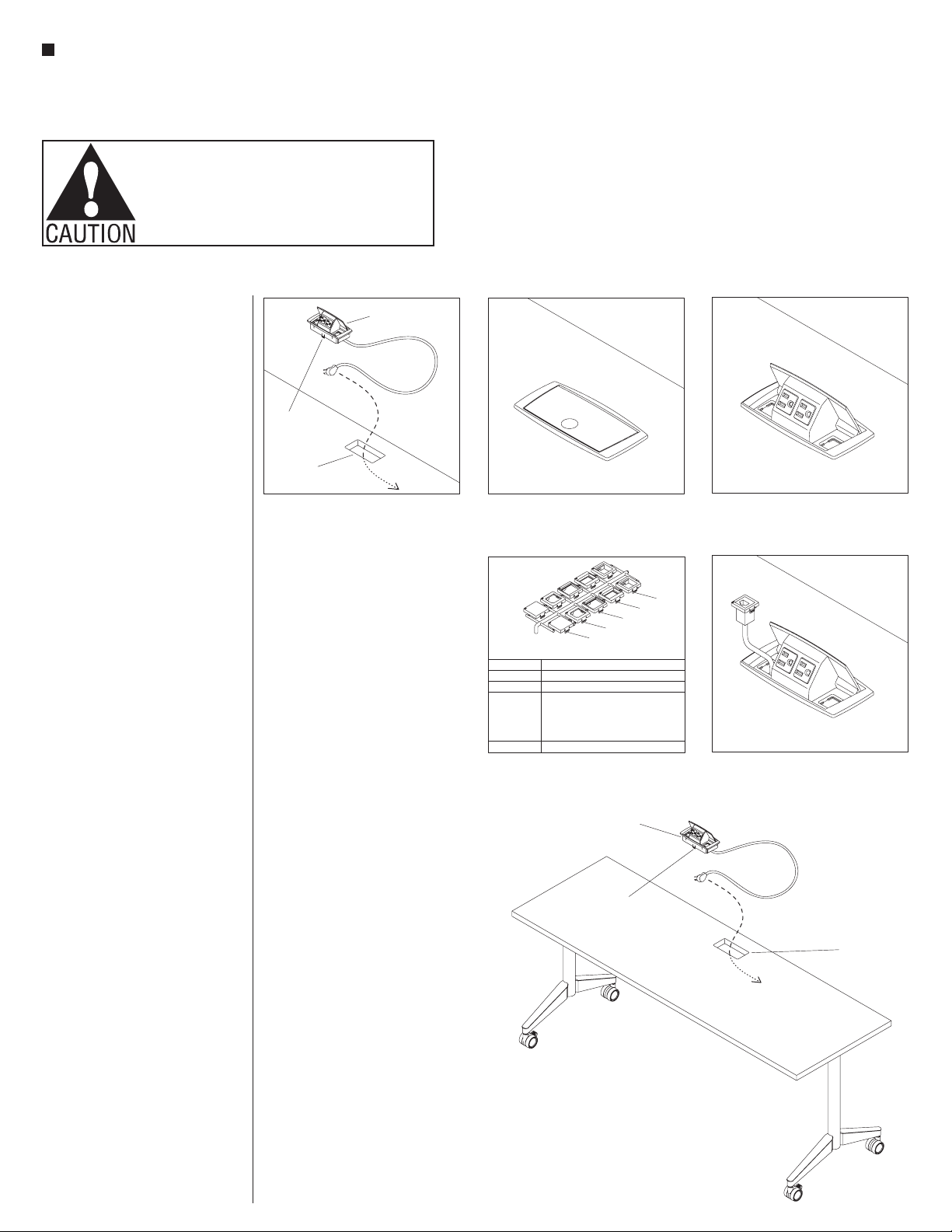

Pirouette Table with Villa Power
Module with 3-Prong Plug
Note: If tables are configured
table-to-table or back-to-back, tables
must be mechanically connected with
gangers or splice plates.
1. Position the Villa power module
(with 3-prong plug) on the underside
of the tabletop above the cutout.
Orient the notch in the module to
face the user side (Figure 8).
2. Align the six mounting holes on the
power module with the six pre-drilled
holes in the tabletop, then secure
the bracket to the underside of the
tabletop with the six #8 x 3/4” screws
provided (Figure 8).
Pirouette Table with Villa
Grommet
1. Position the Villa grommet above the
tabletop cutout with the lid opening
towards the user (Detail D).
2. Push the grommet into the cutout,
tap lightly with a rubber mallet
if required, use caution to avoid
scratching the grommet (Detail D).
3. Secure the grommet to the tabletop
by inserting two #6 x 1/2” screws
through the holes on the inside of the
module into the cut edge of the top
(Detail D).
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Villa Power Module
Assembly Instructions

8
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - PowerUp Module
Assembly Instructions
Pirouette Table with PowerUp
Module
Note: If tables are configured
table-to-table or back-to-back, tables
must be mechanically connected with
gangers or splice plates.
1. With the assembled table in the
upright position, orient the PowerUp
module as shown and route the
3-prong plug end down through
the tabletop cutout in the tabletop.
Press the module down firmly into
the cutout to secure in place, making
sure the front and rear snaps catch
under the cutout bottom edge of the
tabletop (Figure 9 & Detail E).
2. To open the PowerUp module, push
down lightly on the lid dimple and
release. To close module, push
lid down until slightly recessed in
module body and release. Open and
close the module to ensure smooth
operation (Details F & G).
3. Select the appropriate data plate
adapter for the phone/data jack to
be used and carefully remove from
injection molded tree (Detail H).
Note: Jacks are sold by separate
companies and are not supplied with
the module.
4. Wire the jack appropriately to the
data plate and snap the data plate
assembly into the module grommet
opening as shown (Detail I).
Note: Depending on style of data
jack used, it may be necessary to
route the phone/data cord through
the module grommet opening and
data plate to install. Each installation
may vary.
5. The PowerUp Module may be
removed without tools by squeezing
the front and rear snaps located on
the module under the tabletop while
pushing up the module
(Figure 9).
tabletop
cutout
snap
Figure
9
tabletop
PowerUp module
with 3-prong plug
tabletop
cutout
snap
PowerUp module
with 3-prong plug
Detail
E
Detail F
Detail
G
ABCDE
Data Adapter Plates
Detail H
Blank Plate
Panduit “CJ”
Othonics “Trackjack”
AT&T
Panduit “KJ and KJA”, Amp CAT-3
and CAT-5, Hubble “Hd5”,
Ortronics “OR-6295003-T568B”
and “OR-6295004-T568A”
Krone, Leviton “41108-RE5”
A
B
C
D
E
Detail I

9
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Vertical Wire Manager
Installation
1. If the PowerUp or Villa power module
was installed, make sure the cover
is closed, then carefully rotate the
table to be upside down on a soft,
protective surface.
2. Strap in the module cord using the
installed Velcro®wire managers
(Figure 10).
3. To install vertical wire manager, route
the power module cord along the
leg, then snap the wire manager to
the post with the cord in between.
Vertical wire manager easily
snaps on and off the leg, to add or
reconfigure cords (Figure 10).
Figure 10
tabletop power
cord
vertical
wire manager
power module with
3-prong plug
(PowerUp shown)
Velcro
wire manager
®
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Vertical Wire Manager
Assembly Instructions

10
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Wire Trough
Assembly Instructions
Wire Trough Installation
Note: The wire trough is an optional
accessory which must be ordered
separately.
1. If the PowerUp or Villa power module
was installed, make sure the cover
is closed, then carefully rotate the
table to be upside down on a soft,
protective surface.
2. If wire trough is provided, position
the wire trough over the underside
of the power module as illustrated,
with the two smaller rectangular RPT
mounting holes facing the back edge
of the table. Route the power cord
out of the end of the trough. Align the
wire trough mounting holes with the
pre-drilled holes in the underside of
the tabletop, and secure wire trough
to tabletop using six #14 x 3/4”
self-tapping screws. Do not
over-tighten (Figure 11).
3. Strap in the power module cord
using the installed Velcro®wire
manager (Figure 11).
Wire Trough Installation for
36” x 84”-96” Tabletops
Note: The wire trough is an optional
accessory which must be ordered
separately.
1. If the PowerUp or Villa power
modules were installed, make sure
the covers are closed, then carefully
rotate the table to be upside down on
a soft, protective surface.
2. If wire troughs are provided, position
the wire troughs over the underside
of the power modules with the
smaller rectangular RPT mounting
holes facing the back edge of the
table, then route the power cords out
of the ends of the troughs. Align the
wire trough mounting holes with the
pre-drilled holes in the underside of
the tabletop, and secure wire troughs
to tabletop using six #14 x 3/4”
self-tapping screws. Do not
over-tighten (Figure 12).
3. Strap in the power module cords
using the installed Velcro®wire
managers (Figure 12).
Figure 11
#14- /
self-tapping
screw
3
4
wire
trough
tabletop
power module with
3-prong plug
(PowerUp shown)
Velcro
wire manager
®
tabletop
(36”x84”-96”)
Figure 12
fixed table
outer leg
#14- /
self-tapping
screw
3
4wire
trough
power module with
3-prong plug
(PowerUp shown)
Velcro
wire managers
®
wire
trough

11
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Modesty Panel Installation
Note: 18” to 24” deep tables which
are 72” long or less may have
modesty panels installed to them,
but 30”-36” deep and 84”-96” long
tables do not allow that option.
1. With table upside down on a soft,
protective surface, position the
modesty panel down near the back
edge of the tabletop where it will
install. The wire manager on the
modesty panel should face up, and
the notches exposing the pivot rod in
the panel should face the back edge
of the table as illustrated (Figure 13).
2. Locate the mounting clips and
position them over the weld bump
on the pivot rod as illustrated. The
tabs with the mounting holes must
face away from the modesty panel, or
disassembly and reassembly will be
required (Figure 13 & Detail J).
3. Move the modesty panel with clips
up to align the mounting holes of the
clips with the pre-drilled holes in the
table. The mounting holes will be
close to the edge. Screw each clamp
to the underside of the table with a
#10 x 3/4” wood screw per clamp as
illustrated (Figure 13 & Detail J).
Note: Pirouette Tables less than 72”
in length will use two clamps per
modesty panel, but 72” long tables
will use three clamps to the tabletop.
Figure 13
table
top
Detail J
modesty
panel
#10 x /”
screw
3
4
clamp
weld
bump
wire
manager
clamp
#10 x /”
screw
3
4
weld
bump
pivot
rod
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Modesty Panel
Assembly Instructions
CAUTION: If Channels (Wire Troughs)
are used they are not to be used for routing
extension cords. Power supply cords are
not to be routed across or through more
than one complete unit/tabletop.
WARNING: Assembly of all table
components must be completed before
making any electrical connections. All
electrically connected furnishings must
also be mechanically connected.

12
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - 24”, 30” & 36” Table-to-Table Ganging
Assembly Instructions
CAUTION: If Channels (Wire Troughs)
are used they are not to be used for routing
extension cords. Power supply cords are
not to be routed across or through more
than one complete unit/tabletop.
WARNING: Assembly of all table
components must be completed before
making any electrical connections. All
electrically connected furnishings must
also be mechanically connected.
Table-to-Table Ganging, 24”,
30” & 36” Pirouette Fixed-Base
Tables
Note: Take note of correct ganging
hook and peg mounting locations to
assure proper latching for each type
of installation. The instructions on
this page detail ganging of 24”, 30”
& 36” deep fixed-base tables
table-to-table. For table-to-table
ganging of 18” deep tables, see
instructions on page 14.
1. Carefully turn tables to the upright
position. As illustrated, and based
on the table depth, position the two
ganging hooks as shown, at the
underside of the first table. Install the
two hooks to the first table using two
pegs and #14 x 11/2” wood screws.
Next, install four pegs at the other
illustrated locations on the first table
for future use to store ganging hooks
(Figure 14).
2. At the second table, install two pegs
inline with the first set of pegs with
installed ganging hooks and four
pegs for future use to store ganging
hooks (Figure 14).
3. Move tables together and swing the
ganging hooks of the first table to
securely engage the pegs under the
second table (Figures 14 & 15).
Figure 14 - 24 & 30” Fixed-Base Tables with Table-to-Table Ganging
#14 x 1 /”
wood screws
1
2
peg
ganging
hook
first
table
second
table
peg
pegs
peg
(for storage)
ganging
hook
pegs
(for storage)
Figure 15 - 24 & 30” Fixed-Base Tables with Table-to-Table Ganging
peg
ganging
hook
first
table
second
table
ganging
hook
pegs
(for storage)

13
Figure 16 - Fixed-Base T
ables with Back-to-Back Ganging
peg
ganging hook
(engaged)
peg
(for storage)
first table
second table
#14 x 1 /”
1
2
wood screw peg
(for storage)
ganging
hook
Back-to-Back Ganging, Pirouette
Fixed-Base Tables
Note: Take note of the correct
orientation of ganging hooks and peg
mounting locations to assure proper
latching for back-to-back ganging
(Figure 16).
1. Carefully turn tables to the upright
position. As illustrated, and based
on the table depth, install two hooks
to the first table using two pegs
and #14 x 11/2” wood screws for
back-to-back ganging of two tables.
Next, install four pegs at the other
illustrated locations on the first table
for future use to store ganging hooks
(Figure 16).
2. At the second table, install two pegs
inline with the first set of pegs with
installed ganging hooks and four
pegs for future use to store ganging
hooks (Figure 16).
3. Move tables together and swing the
ganging hooks of the first table to
securely engage the pegs under the
second table (Figure 16).
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Back-to-Back Ganging
Assembly Instructions
CAUTION: If Channels (Wire Troughs)
are used they are not to be used for routing
extension cords. Power supply cords are
not to be routed across or through more
than one complete unit/tabletop.
WARNING: Assembly of all table
components must be completed before
making any electrical connections. All
electrically connected furnishings must
also be mechanically connected.

14
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - 18” Table-to-Table Ganging
Assembly Instructions
CAUTION: If Channels (Wire Troughs)
are used they are not to be used for routing
extension cords. Power supply cords are
not to be routed across or through more
than one complete unit/tabletop.
WARNING: Assembly of all table
components must be completed before
making any electrical connections. All
electrically connected furnishings must
also be mechanically connected.
Table-to-Table Ganging, 18”
Pirouette Fixed-Base Tables
Note: Take note of correct ganging
hook and peg mounting locations to
assure proper latching for
table-to-table installation. The
instructions on this page describe
hook and peg installation for ganging
of 18” deep tables table-to-table. For
24”, 30” & 36” deep tables, see
page 12 instructions.
1. Carefully turn tables to the upright
position. As illustrated, position the
two ganging hooks as shown, at the
underside of the first table. Install the
two hooks to the first table using two
pegs and #14 x 11/2” wood screws.
Next, install four pegs at the other
illustrated locations on the first table
for future use to store ganging hooks
(Figure 17).
2. At the second table, install two pegs
inline with the first set of pegs with
installed ganging hooks and four
pegs for future use to store ganging
hooks (Figure 17).
3. Move tables together and swing the
ganging hooks of the first table to
securely engage the pegs under the
second table (Figures 17 & 18).

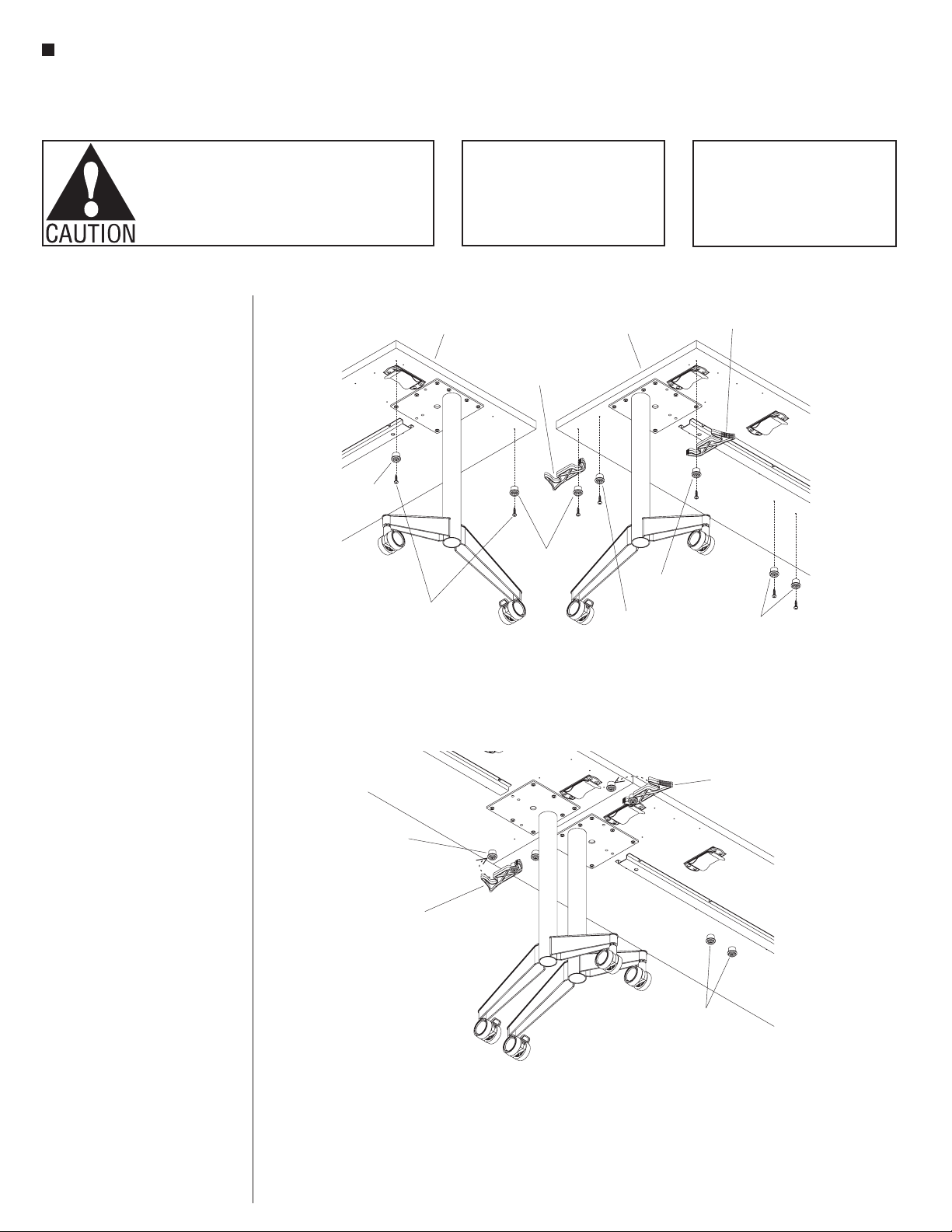

Figure 17 - 18” Fixed-Base Tables with Table-to-Table Ganging
first
table
second
table
peg
(for storage)
#14 x 1 /”
wood screws
1
2
ganging
hooks
peg
#14 x 1 /”
wood screw
1
2
peg
Figure 18 - 18” Fixed-Base Tables with Table-to-Table Ganging
ganging hook
(engaged)
peg
(for storage)
ganging hook
(engaged)

15

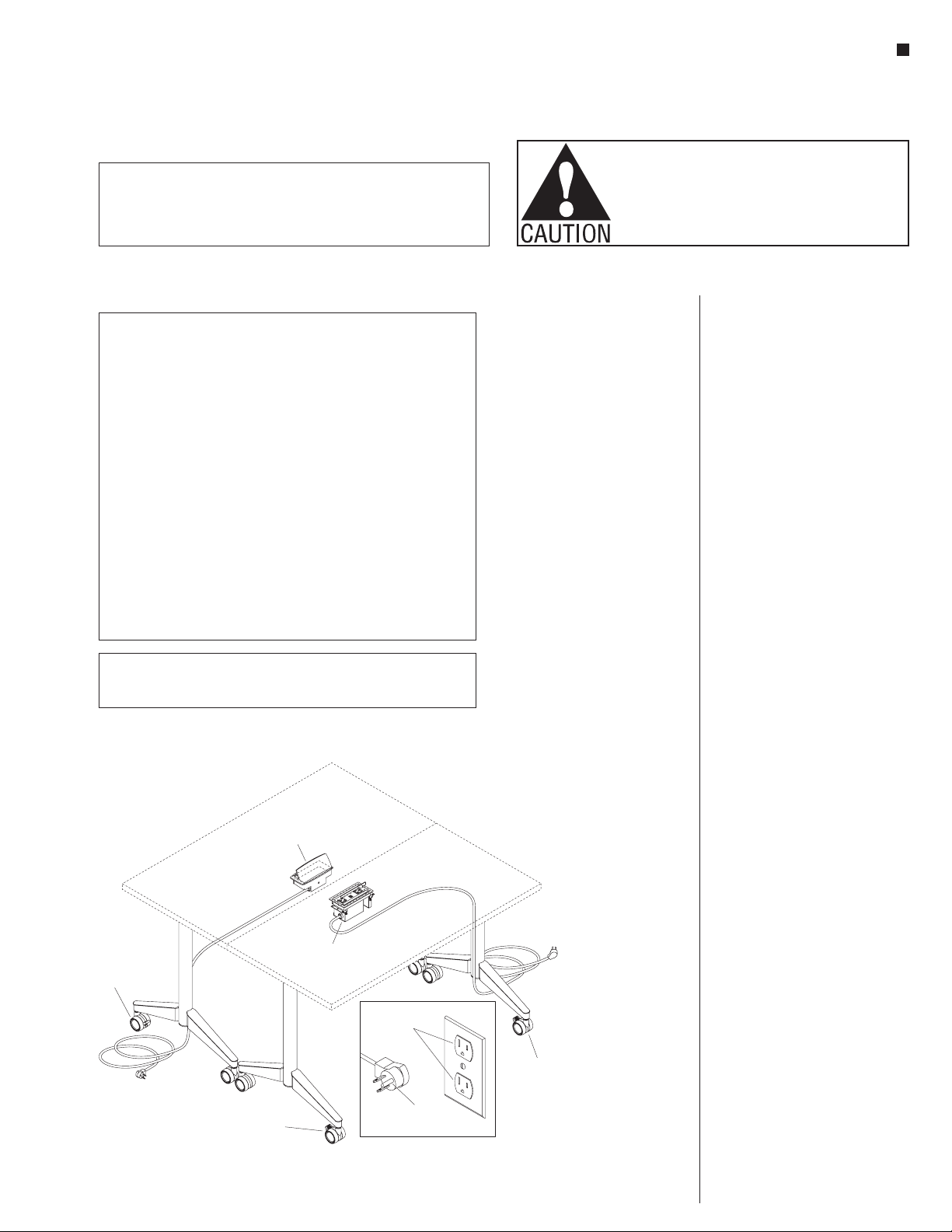

Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power - Connections with Source Power
Assembly Instructions
Pirouette Fixed-Base Tables -
Villa/PowerUp Connections with
Source Power
1. Place tables in final location and lock
the two front, user side casters in
place on each table (Figure 19).
2. Plug the power module into an
appropriate location only after
all other components have been
installed.
3. When tables are un-ganged, on the
back user side, detach the ganging
hook and snap both ends to the two
installed pegs for storage near the
center of the tabletop.
This product is for use on a nominal 120-volt circuit and has a grounding plug
that looks like the plug illustrated in Detail K. Make sure that the product is
connected to an outlet having the same configuration as the plug. No adapter
should be used with this product.
GROUNDING INSTRUCTIONS
Detail K
grounding
pin
grounded
outlet
Figure 19
locking
caster
locking
caster
locking
caster
power module
with 3-prong cord
(PowerUp shown)
power module
with 3-prong cord
(Villa shown)
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be
followed, including the following:
Read all instructions before using (this furnishing).
DANGER: To reduce the risk of electric shock:
1. Always unplug this furnishing from the outlet before cleaning.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to
persons:
1. Unplug from outlet before putting on or taking parts off parts.
2. Close supervision is necessary when this furnishing is used by, or near
children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these
instructions. Do not use attachments not recommended by the manufacturer.
4. Do not use outdoors.
5. WARNING: Risk of Electric Shock-Connect this furnishing to a properly
grounded outlet only. See Grounding Instructions.
SAVE THESE INSTRUCTIONS
Electrical Rating: 120V 12 A
WARNING: Risk of Injury-Maximum Load 4.7 lb per inch width.
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

1330 Bellevue Street • P.O. Box 8100 • Green Bay, WI 54308-8100 • Tel [phone] • www.ki.com
© 2019 Krueger International, Inc. All Rights Reserved • Code KI-62602R2/KI/PDF/0519
Pirouette™ Tables Fixed-Base with Villa, PowerUp or No Power
Assembly Instructions
