Kramer VIA GO2 User manual

P/N: 2900-301300 Rev 4 www.kramerav.com
USER MANUAL
MODEL:
VIA GO²
Wireless Presentation Solution (for
Firmware Version 3.3)

Kramer Electronics Ltd.
VIA GO² –Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 3
Glossary 3
Supported Devices 6
Defining VIA GO² Wireless Presentation Solution 7
For Installer: Mounting VIA GO² 8
For Installer: Connecting VIA GO² 9
Connecting Device 9
Connecting Main Display 10
For Web Administrator: Configuring Settings –Gateway Management Pages 11
Logging in to Gateway Management Pages 12
User Management 14
Managing Network Settings 15
VIA Pad Configuration 20
Site Management 22
VIA Screen Editor 23
Configuring VIA Settings Template 36
Configuring Display Controller 48
Integrating Third Party Calendar 49
Configuring Digital Signage 52
Maintaining Your VIA Unit 60
For Web Administrator: Configuring Settings –Gateway Dashboard 65
Logging in to Gateway Dashboard Settings 65
Changing LAN Settings 66
Accessing System Controls 66
For User: Running Kramer VIA App 68
Running Kramer VIA App for PC and Mac 68
Running Kramer VIA App for Tablets & Smartphones 69
Running Kramer VIA App from a Web Browser 69
Running Kramer VIA App Using an Installation File 69
For User: Participating in a VIA Meeting 70
Joining a VIA Meeting 70
Mirroring Your Device Screen 74
Technical Specifications 81
VIA App Android Permissions 82

Kramer Electronics Ltd.
VIA GO² –Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/VIA GO² to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer VIA GO² away from moisture, excessive sunlight and dust.
Safety Instructions
Caution:
•This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
•For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified
personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating
specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.
VIA GO² –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/il/quality/environment.
Overview
Congratulations on purchasing your Kramer VIA GO² Wireless Presentation Solution.
VIA GO² gives iOS, Android, Chromebook, PC, and Mac users instant wireless connectivity
with 4K advanced presentation capabilities. The product features content streaming with
crystal-clear mirrored images and stunning video playback and includes iOS mirroring via
AirPlay™, Windows & Android mirroring via Miracast™, as well as ChromeBook mirroring.
VIA GO² is super-compact (7x7cm) and flexible to install, with both built-in Wi-Fi and LAN
connectivity and includes industry-leading 1024-bit encryption for secure use on the internal
network.
Key Features
•Quick and Reliable Wireless Connectivity –A simple and intuitive user interface enables
iOS, Android, Chromebook, PC, and Mac device users to instantly connect to a main
display either using VIA Pad or Bluetooth. 2.4GHz/5GHz Wi-Fi and MIMO antennas
establish and maintain a fast and reliable connection.
•Clientless Connectivity –Airplay, Miracast, Join Through Browser.
•High Quality Video Streaming –Supports up to 4K@30Hz resolution (using the VIA app
Multimedia feature).
•Auto Discover and Auto Join –A user can find neighboring VIA devices using the BLE
tab and Auto Join in the case of a single discovery. If more than one nearby device is
found, click Join on desired IP address.
•Built-In Wi-Fi, LAN, and Bluetooth.
•Smooth Network transition within the same gateway while switching from wireless
Network to LAN connection.
•Preview –In Active Directory moderator Mode, the moderator can preview the content of
presentation before allowing it to present.
•Simultaneous Display –Two participants can simultaneously present content on main
display.
•Cloud-Based Management –VIA Site Management (VSM) cloud-based web application
used to manage and configure large numbers of VIA devices from anywhere.
•Easy and Flexible Installation –With a super-compact 7x7cm form factor, it can be
discreetly installed on the back of a display, projector or almost anywhere.

Kramer Electronics Ltd.
VIA GO² –Introduction
3
•Do Not Disturb (DND) Feature –Allows the presenter to continue the presentation
without being interrupted.
•Pause/Resume Presentation –Present at your convenience.
Typical Applications
•Presentation environments.
•Small to mid–size meeting rooms.
•Classrooms.
•Huddle spaces.
Glossary
The following are definitions of some common terms found in this User Manual.
Screenshots in this section are representative only and may not accurately reflect the
features associated with your VIA device.
•VIA Meeting –A session where one or more users are logged into your VIA unit using
the Kramer VIA app.
•Gateway –A VIA device such as VIA GO².
•Main Display –Video display connected to the HDMI™output of the gateway. This is
where presentation and collaboration during the meeting happens.

Kramer Electronics Ltd.
VIA GO² –Introduction
4
•VIA App User Dashboard –Main interface for meeting participants using the VIA app.
This dashboard appears after logging into a VIA meeting.
Figure 1: User Dashboard

Kramer Electronics Ltd.
VIA GO² –Introduction
5
•VIA Gateway Dashboard –VIA app interface used from the main display by either a
keyboard and a mouse connected to the gateway. Click the VIA icon in the lower left
corner of the main display to open this interface.

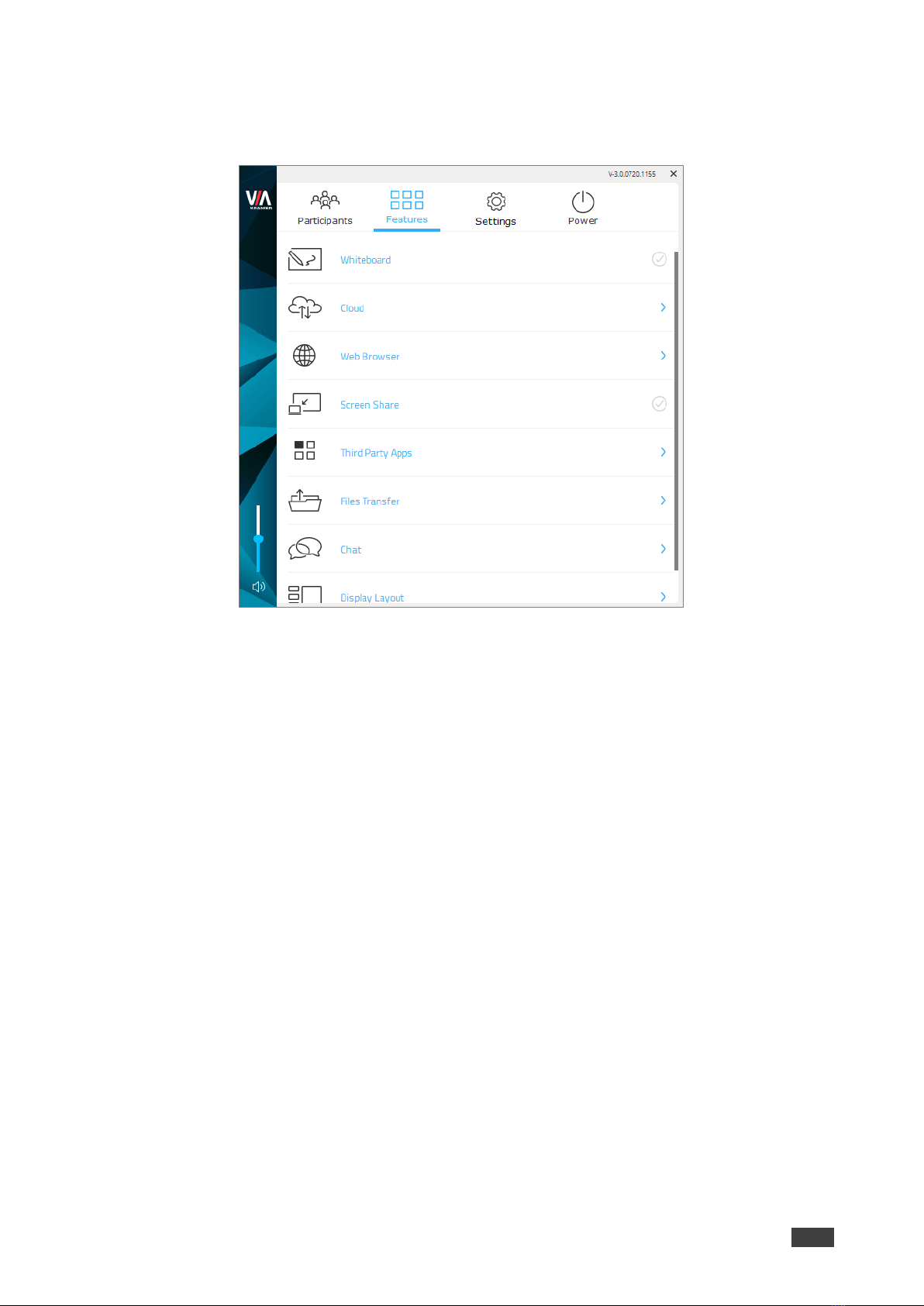

Figure 2: Gateway Dashboard

Kramer Electronics Ltd.
VIA GO² –Introduction
6
•Taskbar Menu –A menu of features that appears in your computer taskbar when you
are logged into a VIA meeting using the Kramer VIA app.

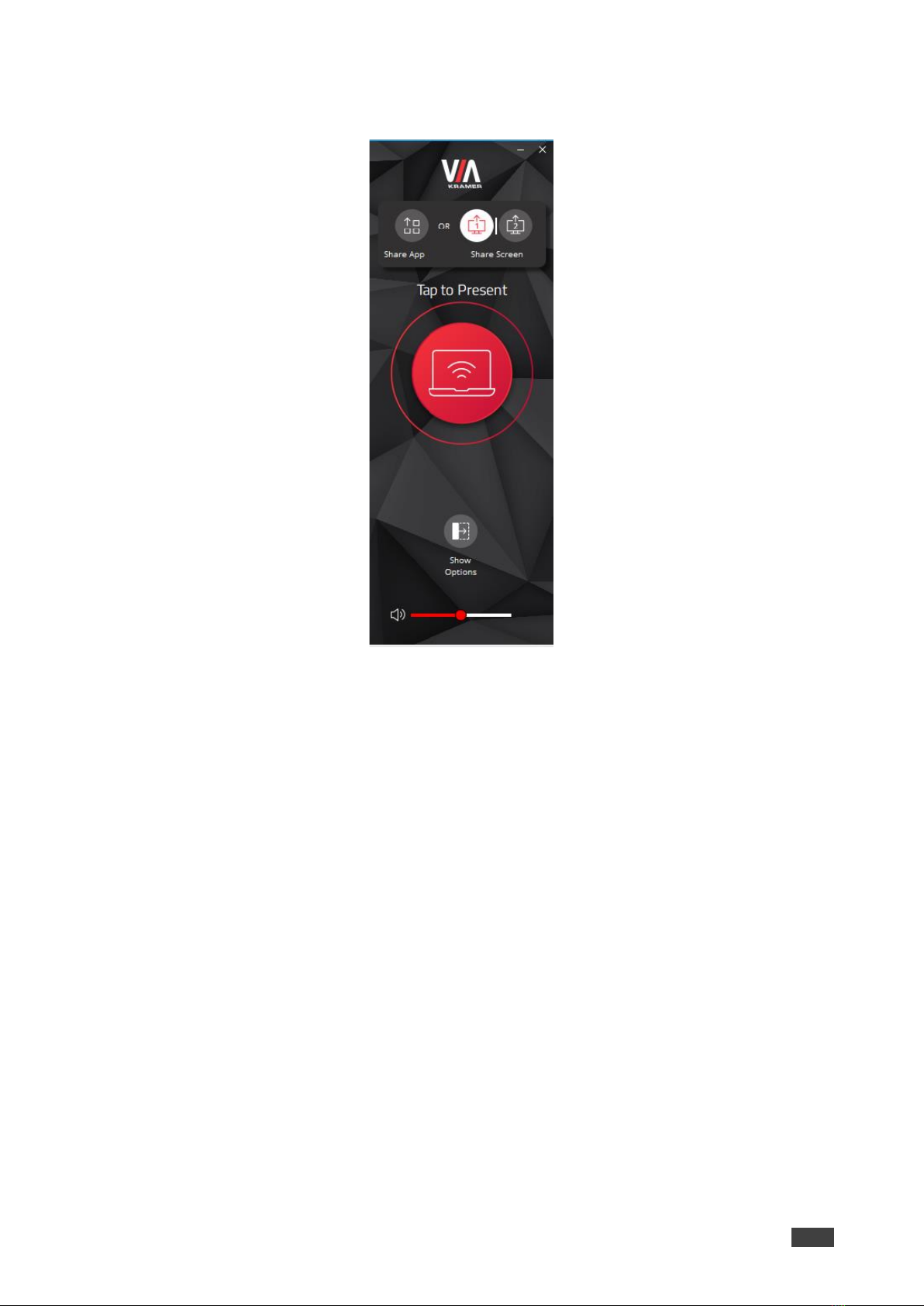

Figure 3: Kramer VIA Taskbar Menu
•Gateway Management Web Pages –Web pages embedded in your VIA GO² gateway
that enable you to configure this gateway. The Gateway Management Web Pages are
accessed from any computer connected to the same network as the gateway.
Supported Devices
The following user devices are supported by the VIA GO² Wireless Presentation Solution:
•Windows 8/10®(32-bit/64-bit) computer.
•Macintosh®computer, using OSX 10.12.x or newer.
•Chromebook.
•iPad/iPhone®tablet/smartphone (iPad 2 or later, iOS 12 or later).
When using the Airplay service, no Kramer VIA application is needed. However, we
recommend using iOS12, Mojave OS X, or higher, for a better experience.
•Android®OS 5. x tablet/smartphone or newer.
The minimum system requirement for using the Kramer VIA mirroring feature for
an Android device is Android 5.1.

Kramer Electronics Ltd.
VIA GO² –Defining VIA GO² Wireless Presentation Solution
7
Defining VIA GO² Wireless
Presentation Solution
This section defines VIA GO².

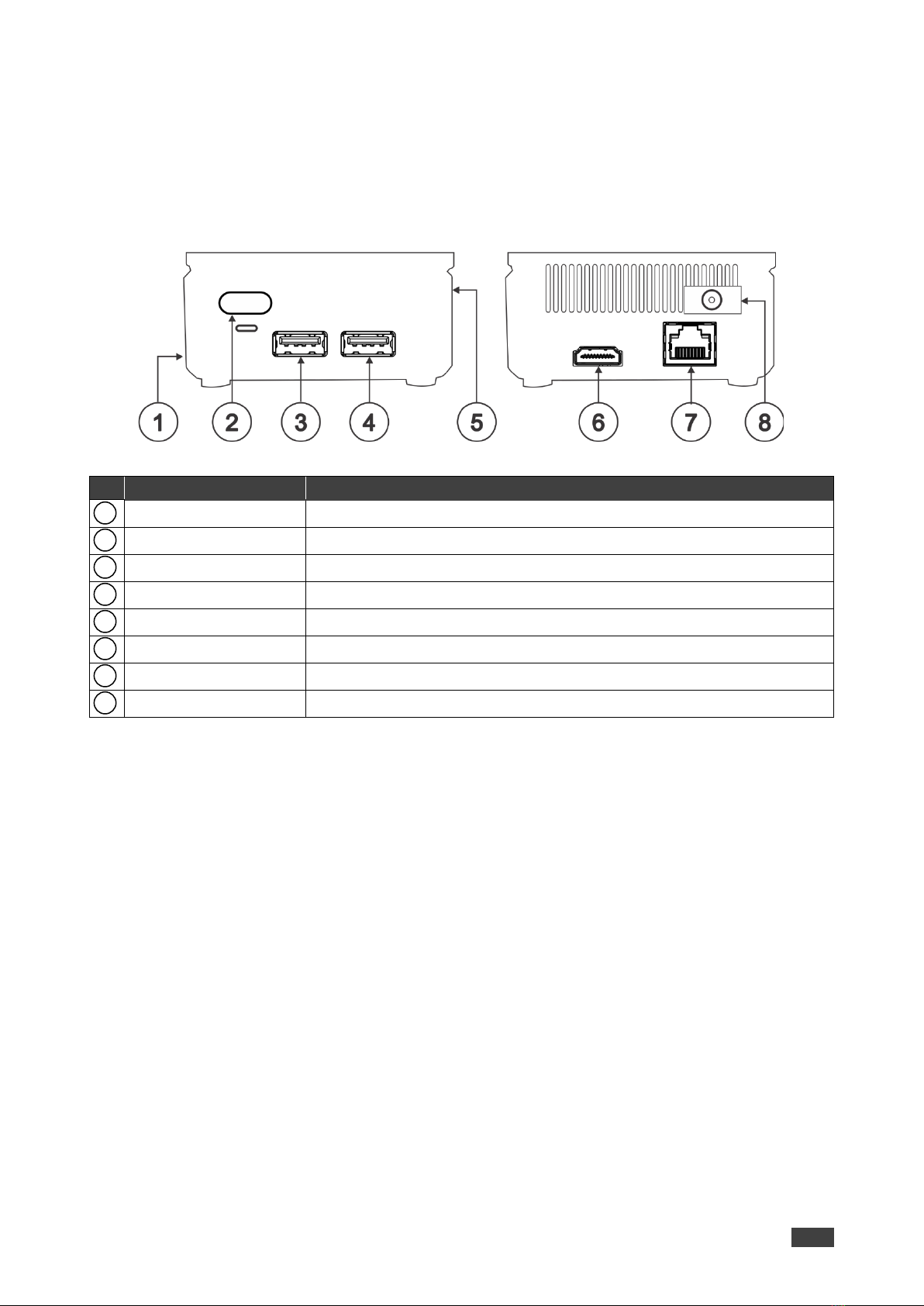

Figure 4: VIA GO² Wireless Presentation Solution
#
Feature
Function
Micro SD Card Slot
Not in use.
Power Button with LED
Press to power ON or turn OFF the device.
USB 3.0 Connector
Connect to a USB device, for example, a keyboard or mouse.
USB 2.0 Connector
Connect to a USB device, for example, a keyboard or mouse.
Lock Opening
Connect to a security locking cable.
HDMI™Connector
Connect to an HDMI sink.
RJ-45 Connector
Connect to a LAN (default mode).
Power Connector
Connect to the 12V DC power supply.
1
2
3
4
5
6
7
8

Kramer Electronics Ltd.
VIA GO² –For Installer: Mounting VIA GO²
8
For Installer: Mounting VIA GO²
This section provides instructions for mounting VIA GO². Before installing, verify that the
environment is within the recommended range:
•Operation temperature –0to 40C (32 to 104F).
•Storage temperature –-40to +70C (-40 to +158F).
•Humidity –10% to 90%, RHL non-condensing.
Caution:
•Mount VIA GO² before connecting any cables or power.
•The device is intended to be installed at a height of 2 meters or less.
Warning:
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.
You can install VIA GO² using one of the following methods:
▪Place the device on a flat surface.
▪Place the device on a flat surface.

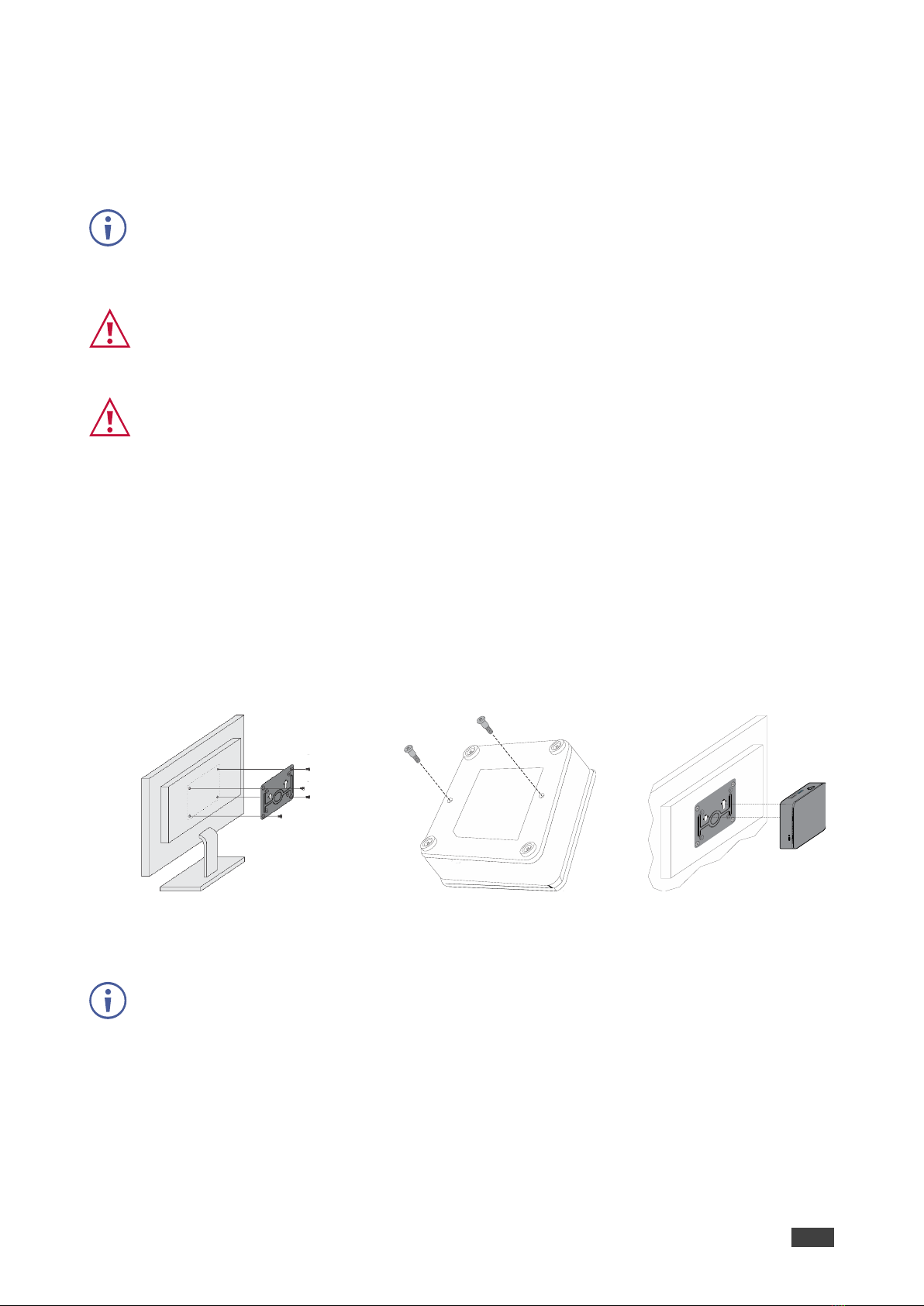

▪Mount on a wall or the back of a display using the included VESA mounting bracket:
1. Attach the VESA mounting bracket
to the back of the display with 4
screws.
2. Fasten two screws to the bottom
of
VIA GO².
3. Insert the screws on the
bottom of
VIA GO² into the slots on
the mounting bracket.
When mounting the device on a display, the installer MUST secure the display to prevent
instability.

Kramer Electronics Ltd.
VIA GO² –For Installer: Connecting VIA GO²
9
For Installer: Connecting VIA GO²
Always switch off the power to each device before connecting it to your VIA GO². After
connecting your VIA GO², connect its power and then switch on the power to each device.
Connecting Device
If you wish to use a Kramer active optical pluggable HDMI cable with your VIA GO², contact
your local Kramer office to assist in purchasing the correct cable.
Figure 5: Connecting VIA GO²
To connect VIA GO² as illustrated in the example in (Figure 5):
1. Connect a keyboard and mouse to the USB 3.0 Connector and the USB 2.0
Connector .
2. Connect an HDMI display to the HDMI Connector to be used as the main display for
the meeting (see Connecting Main Display on page 10).
3. Connect the LAN (Local Area Network) cable to the RJ-45 connector
-OR-
Connect to your network using a commercial wireless router.
4. Connect wirelessly with a supported device (see Supported Devices on page 6) after
installing the Kramer VIA app (see For User: Running Kramer VIA App on page 68).
To enable participation in a presentation session (send and receive content), connect
VIA GO² and all participant devices (PCs/ MACs/ smartphones/tablets) to the same
network (LAN or WLAN).
For a list of supported devices, see Supported Devices on page 6.
Eth
KeyboardKeyboard Mouse
USB USB
Display
HDMI
LAN
3
4
6
6

Kramer Electronics Ltd.
VIA GO² –For Installer: Connecting VIA GO²
10
Connecting Main Display
The main display is the screen connected directly to VIA GO². When VIA GO² is booted up,
the VIA gateway screen appears on the main display. All collaboration activity is then
displayed here.
VIA GO² enables connecting the following display type:
VIA GO²’s internal video card reads the EDID (Extended Display Identification Data) for any
connected display and sets the optimum display resolution and image refresh rate
automatically through the display connectors.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
11
For Web Administrator:
Configuring Settings –Gateway
Management Pages
VIA GO² enables users with Web Administrator access to configure settings for your VIA GO²
unit.
VIA GO² enables you to do the following:
•Logging in to Gateway Management Pages on page 12.
•User Management on page 14.
•Managing Network Settings on page 15.
•VIA Pad Configuration on page 20.
•Site Management on page 22.
•VIA Screen Editor on page 23.
•Configuring VIA Settings Template on page 36.
•Configuring Display Controller on page 48.
•Integrating Third Party Calendar on page 49.
•Configuring Digital Signage on page 52.
•Maintaining Your VIA Unit on page 60.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
12
Logging in to Gateway Management Pages
The Gateway Management Pages enable you to configure your VIA GO² gateway device.
The Gateway Management Pages are accessed from any computer connected to the same
network as your gateway.
To log in to the VIA GO² Gateway Management Pages:
1. Connect your computer to the same network to which VIA GO² is connected.
2. Open a Web browser and go to the IP address for your VIA GO² unit.
The Gateway Management Pages Welcome page appears.
Figure 6: Gateway Welcome Page

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
13
3. Click Manage Gateway Settings in the upper right corner.
The Administrator Login page appears.
Figure 7: Administrator Login Page
4. Type a Web Administrator Username (default = su) and Password (default = supass).
You must log in as a user with Web Administrator user role to access settings through the
Gateway Management Pages (see User Management on page 14).
5. Type the two Captcha Text strings with a space between them in the text box.
To disable the Captcha, see Security on page 45.
6. Click Login.
The Gateway Management Pages appear with the Dashboard open.
Figure 8: Gateway management Page
Click the tabs in the navigation pane on the left to display the VIA web pages.
Click the arrow in the upper right corner to select a different language for the web pages.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
14
User Management
This section describes how to add user accounts to the database of your VIA GO² device. A
user account is required to access the Gateway Management Pages (see Logging in to
Gateway Management Pages on page 12) and, when your VIA GO² is in Database mode
(see Moderator Mode on page 41), a user account is required to join a VIA meeting.
To add a user account to your VIA GO² database:
1. Click User Management on the Gateway Management Pages navigation pane.
The User List page appears.
Figure 9: User Management Page
2. Click Add User.
The Add User pane appears.
Figure 10: Add User Panel
3. Enter the new Username, Password and then Confirm Password.
4. Under User Role, select from the following administrative levels:
▪Web Administrator –Access to change all system settings, including Digital Signage.
▪Digital Signage –Able to configure the Digital Signage only (see Configuring Digital
Signage on page 52).

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
15
5. Select one of the following participation levels:
These options are enabled only when Moderator Mode is enabled (see Moderator
Mode on page 41).
•Moderator –User is able to become a moderator and has access to moderator features
(seeBecoming Meeting Moderator on page 79).
•Participant –User can join a meeting as a participant but cannot access moderator
features.
6. Click Save.
A new user is added, and the User List tab appears with the new user added to the list.
Managing Network Settings
VIA GO² enables you to do the following:
•Changing Device IP Address on page 15.
•Setting Up Secure Wireless Guest Access Point on page 16.
•Connecting VIA GO² to Network Wirelessly on page 17.
•Connecting VIA GO² to 802.1x Network on page 19.
•Uploading an SSL Certificate (see Certificate on page 46).
Changing Device IP Address
The default IP setting is DHCP that assigns an automatic IP address to your VIA GO² device.
This enables easy plug and play setup when connecting your VIA GO² to the network. The
following explains how to change a static IP address.
When changing these settings, please contact your IT administrator. Incorrect values can
cause a loss of communication.
To change the IP address of your VIA GO² unit:
1. Click Device Management > Network Settings.
The LAN setting tab in the Network Settings page opens.
2. Under Connection Type, select Static.
3. Under Network Information, rename the Gateway IP.
4. Click Apply.
The IP address of your VIA GO² unit is changed.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
16
Setting Up Secure Wireless Guest Access Point
Using the built-in Wi-Fi module, VIA GO² enables you to set up a secure access point for
users to connect to your VIA GO² network. This setup is ideal for guest users whom you may
not want to connect directly to your network.
Figure 11: LAN Setting Page
To set up a secure wireless guest access point:
1. Click Device Management > Network Settings.
The Network Settings page appears.
2. Click WiFi.
The WiFi tab appears.
Figure 12: WiFi setting Tab
3. Click the Switch On or Off Wifi switch.
The switch turns green, and the WiFi settings appear.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
17
4. Click AP Mode and enter a new name in the SSID field and a new password.
Figure 13: AP Mode Setting Page
5. Select Enable Internet if your VIA GO² device is connected to a network with internet.
-OR-
Select Activate Standalone Wifi to create an autonomous network without Internet
access.
6. If you selected Enable Internet, you can also select Enable Guest Mode to let meeting
participants enable Access Point mode from the VIA taskbar menu.
When in Moderator Mode (see Moderator Mode on page 41), only the moderator can
enable the Access Point.
7. Click Apply.
The secure wireless guest access point is set up.
Connecting VIA GO² to Network Wirelessly
VIA GO² enables you to wirelessly connect your VIA GO² device as a client device to your
main network.
To set up Client Wi-Fi mode:
1. Click Device Management > Network Settings.
The Network Settings page appears.
2. Click WiFi.
The WiFi tab appears.
3. Click the Switch On or Off Wifi switch.
The switch turns green and the WiFi settings appear.

Kramer Electronics Ltd.
VIA GO² –For Web Administrator: Configuring Settings –Gateway Management Pages
18
2. Click Client Mode.
3. Click OK for the notification.
The Client Mode tab appears.
Figure 14: Client Mode Tab
4. If you do not see the desired network in the dropdown, click Click Here to Scan all
Networks.
5. Select an available network from the drop-down.
6. Enter the network password and click Apply.
Figure 15: Client Mode Setting Page
7. Disconnect the LAN cable (if connected) and reboot the device.
Client Wi-Fi Mode is set up.
