Kramer VP-554X User manual

P/N: 2900-301360 Rev 1 www.kramerAV.com
USER MANUAL
MODEL:
VP-554X
Presentation Switcher/Scaler

Kramer Electronics Ltd.
VP-554X –Contents
i
Contents
Introduction 1
Getting Started 1
Overview 2
Typical Applications 4
Defining VP-554X Presentation Switcher/Scaler 5
Mounting VP-554X 8
Connecting VP-554X 9
Connecting the Output to a Balanced/Unbalanced Stereo Audio Acceptor 10
Connecting a Balanced/Unbalanced Stereo Audio Source to the Input 11
Connecting to VP-554X via RS-232 11
Wiring RJ-45 Connectors 11
Operating and Controlling VP-554X 12
Routing an input to an output 12
Routing a USB input to the USB output 12
Storing (STO) and Recalling (RCL) Outputs Via the Front Panel 12
Resetting the Resolution 13
Locking the Front Panel 13
Controlling Device Operation Via the OSD Menu 13
Operating via Ethernet 27
Using Embedded Web pages 30
Browsing Web Pages 30
Switching and Setting Ports 32
Adjusting the Output Image 39
Changing Device Settings and Upgrading Firmware 41
Routing the USB Switcher 42
Defining Audio Parameters 44
Managing EDID 49
Setting Ethernet Data Routing 51
Setting up for RS-232 External Device Control 53
Configuring a Video Wall 55
Viewing System Diagnostics 57
Setting Webpage Access 58
Setting Timeout 60
Viewing About Page 61
Technical Specifications 62
Default Communication Parameters 64
Default EDID 64
Protocol 3000 67
Understanding Protocol 3000 67
Protocol 3000 Commands 68
Result and Error Codes 85

Kramer Electronics Ltd.
VP-554X –Introduction
1
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and affordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
•Review the contents of this user manual.
Go to www.kramerav.com/downloads/VP-554X to check for up-to-date user manuals,
application programs, and to check if firmware upgrades are available (where appropriate).
Achieving Best Performance
•Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
•Do not secure the cables in tight bundles or roll the slack into tight coils.
•Avoid interference from neighboring electrical appliances that may adversely influence
signal quality.
•Position your Kramer VP-554X away from moisture, excessive sunlight and dust.
Safety Instructions
Caution:
•This equipment is to be used only inside a building. It may only be connected to other
equipment that is installed inside a building.
•For products with relay terminals and GPI\O ports, please refer to the permitted rating
for an external connection, located next to the terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified
personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating
specified on the product label which is located on the bottom of the unit.

Kramer Electronics Ltd.
VP-554X –Introduction
2
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/support/recycling.
Overview
Congratulations on purchasing your Kramer VP-554X Presentation Switcher/Scaler.
The VP-554X is a high-performance presentation scaler/switcher with 4 pairs of independent
and scaled outputs. It includes multiple HDMI and HDBaseT inputs –supporting resolutions
up to 4K –as well as a legacy VGA input, and each of the 4 outputs is mirrored on both HDMI
and HDBT.
VP-554X supports embedded and balanced analog stereo audio, up to 2 microphone inputs,
DSP audio features and a built-in stereo power amplifier. It includes a built-in Ethernet switch
and supports legacy RS-232, and IR, Ethernet and RS-232 tunneling over HDBT.
VP-554X provides exceptional quality, advanced and user-friendly operation, and flexible
control.
Exceptional Quality
•Pix-Perfect™ Scaling Technology – Kramer’s precision pixel mapping and high-quality
full up - and down-scaling technology.
•High-Performance Switcher/Scaler –Scales the video and provides constant output sync
to prevent signal disruption when switching between inputs and when no video is
detected.
•HDCP 2.3 Compliance –The HDCP (High Definition Content Protection) license
agreement allows copy-protected data on the HDMI input to pass to HDCP compliant
outputs.
•Resolutions –Up to 4K60 4:4:4 on the HDMI ports; up to 4K60 4:2:0 on the HDBaseT
ports; and up to 1080p60 on the VGA input.
•System Range for the HDBT inputs and outputs –up to 100m for 4K; 180m for 1080p.
•4x1 USB Switcher –Can be set to follow the switching of the video layer or as an
independent switcher.
•Audio DSP Features, including input and output level adjustments, microphone talkover,
mixing, and EQ.
•Analog & Embedded Audio Support
•Built-in Power Amplifier –2x20W.

Kramer Electronics Ltd.
VP-554X –Introduction
3
•Built-in Video ProcAmp –Color, hue, sharpness, noise, contrast, and brightness.
•Option for video wall output mode.
•Multiple Control Options –Front panel buttons with OSD, RS-232, Ethernet and built-in
Web pages.
•Includes numerous filters and algorithms for eliminating picture artifacts.
•Converts to 4K60 4:2:0 on HDBaseT outputs when its corresponding mirrored HDMI
output resolution is 4K60 4:4:4 (similarly for 4K50).
•HDMI Support –HDR10, CEC, xvYCC color (on input), Dolby TrueHD/DTS-HD Master
Audio (by-pass), as specified in HDMI 2.0 as specified in HDMI 2.0.
•Multiple aspect ratio selections.
•Advanced EDID management per input.
•Includes non-volatile memory that retains the last settings, after switching the power off
and then on again.
Advanced and User-friendly Operation
•Multiple aspect ratio selections.
•STO and RCL buttons, a RESET TO XGA/1080P button (to hardware-reset the output
resolution); and a PANEL LOCK button.
•Built-in video Proc-Amp –color, hue, sharpness, contrast, and brightness are set
individually for each output.
•An OSD (On-Screen Display) –for making adjustments –that can be located anywhere
on the screen.
•Efficient power-saving features.
•Field upgradable firmware.
•Advanced EDID management per input.
•Includes non-volatile memory that retains the last settings, after switching the power off
and then on again.
Flexible Connectivity
•11 input buttons for switching a selected input to an output.
•Scaled video outputs –4 pairs of mirrored HDMI and HDBT outputs.
•Embedded audio on the HDMI and HDBT inputs and outputs.
•One stereo speaker output, 20W per channel into 4Ω, on a 4-pin terminal block
connector.

Kramer Electronics Ltd.
VP-554X –Introduction
4
Typical Applications
VP-554X is ideal for the following typical applications:
•Presentation and multimedia.
•Projection systems in conference rooms, boardrooms, auditoriums, hotels and churches,
production studios, rental and staging.
•Any application where high quality conversion and switching of multiple and different
video signals to graphical data signals is required for display or projection purposes.
Controlling your VP-554X
Control your VP-554X directly via the front panel push buttons (with on-screen menus), or:
•By RS-232 serial commands transmitted by a touch screen system, PC, or other serial
controller.
•Via the Ethernet using built-in user-friendly web pages or serial commands.

Kramer Electronics Ltd.
VP-554X –Defining VP-554X Presentation Switcher/Scaler
5
Defining VP-554X Presentation
Switcher/Scaler
This section defines VP-554X.
Figure 1: VP-554X Presentation Switcher/Scaler Front Panel
#
Feature
Function
To USB OUT Buttons
(1 to 4)
Press a USB button to switch a USB input (1 to 4) to the USB output.
OUT Buttons (1 to 4)
Press an OUT button followed by an IN button to switch an input to a
selected output.
IN Buttons
HDMI
INPUTS
Press an HDMI INPUT button to switch an HDMI input to a selected
output.
HDBT
INPUTS
Press an HDBT INPUT button to switch an HDBT input to a selected
output.
PC IN
Press to switch the PC (VGA) input to a selected output.
STO Button
Press and hold (until button flashes once) to store the current
configuration of the unit.
RCL Button
Press and hold (until button flashes once) to recall the stored
configuration.
OSD OUT LEDs
Indicates on which output the OSD is currently displayed (OUT 1 to OUT
4).
OSD SELECT Button
Press to select the output on which the OSD will be displayed (cycles
through OUT 1 to OUT 4).
MENU Button
Press to display the OSD menu.
Navigation
Buttons

Press to decrease numerical values or select from several definitions.

Press to move up the menu list values.

Press to increase numerical values or select from several definitions.

Press to move down the menu list.
ENTER
Press to accept changes and change the SETUP parameters.
RESET TO XGA/1080p
Button
Press and hold for about 2 seconds to set the output resolution to XGA
(1024x768).
Press and hold for about 5 seconds to set the output resolution to 1080p.
PANEL LOCK Button
Press and hold for about 3 seconds to lock/unlock the front panel
buttons.
ETH RJ-45 Port
Connect to a PC via a LAN to control the device and for firmware
upgrade.
1
2
3
4
5
6
7
8
9
10
11
12
13
14

Kramer Electronics Ltd.
VP-554X –Defining VP-554X Presentation Switcher/Scaler
6

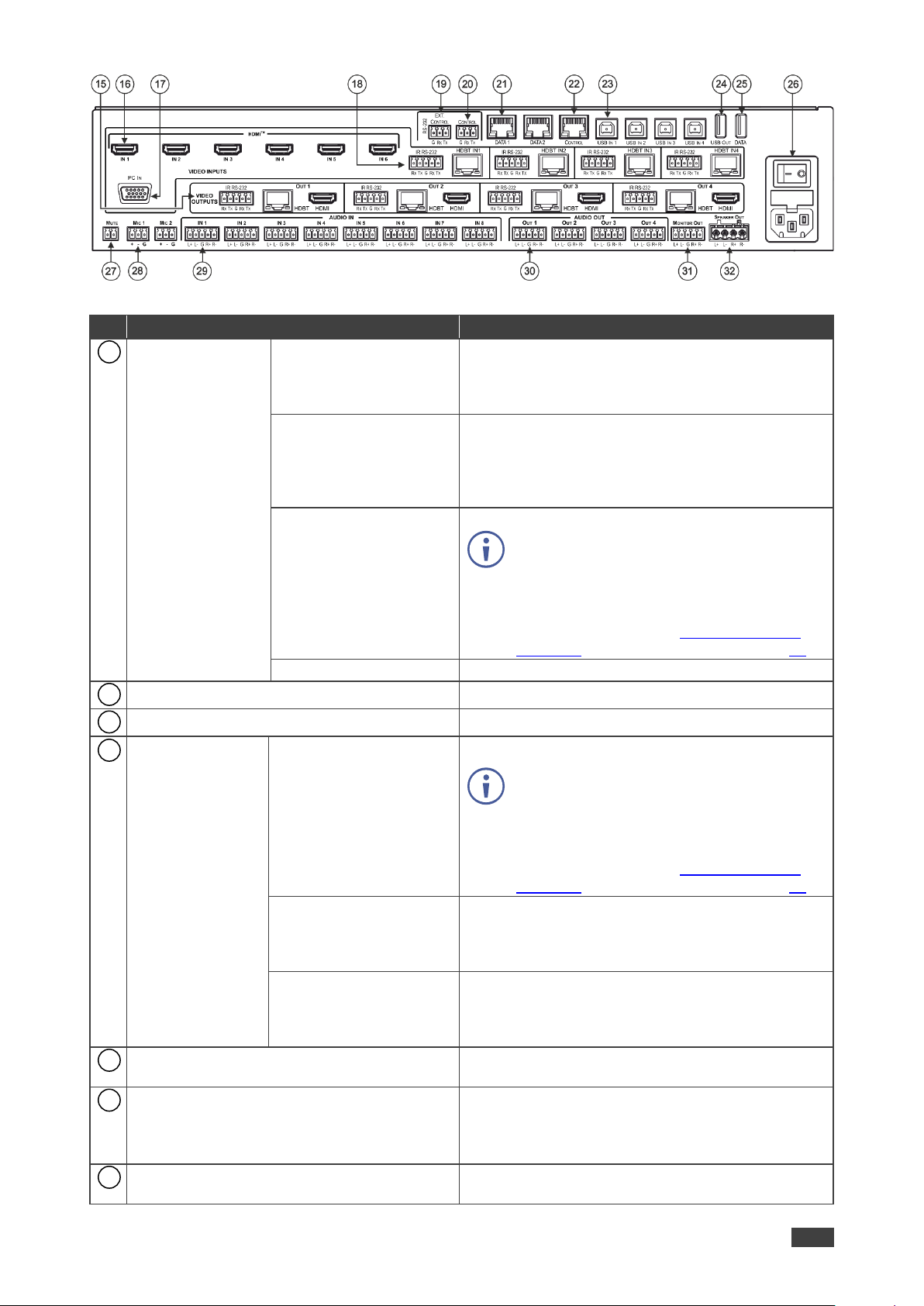

Figure 2: VP-554X Presentation Switcher/Scaler Rear Panel
#
Feature
Function
VIDEO OUTPUT
Connectors
(OUT 1 to OUT 4)
IR (Rx, Tx) left 2-pins on
a 5-pin Terminal Block
Connector
Connect to the IR connector of an HDBT input (Tx
to Rx and Rx to Tx), to tunnel IR data between an
HDBT receiver on an output and an HDBT
transmitter on an input.
RS-232 (G, Rx, Tx) right
3-pins on a 5-pin
Terminal Block
Connector
Tunnel RS-232 data between the HDBT port and
the HDBT receiver: Connect to serially control a
device connected to the HDBT receiver; or to
serially control a local device using a controller
connected to the HDBT receiver.
HDBT RJ-45 Connector
Connect to an HDBT receiver.
When connecting a device to the HDBT port,
in some cases, RS-232 data may not pass
from the connected device to the HDBT port.
To fix and configure this, go to the Setting
tab in the Data routing page and change
Data Channel to 4 (see Setting the HDBT
Port Data Routing Parameters on page 52).
HDMI
Connect to an HDMI acceptor.
HDMI IN Connectors
Connect to an HDMI source (IN 1 to IN 6).
PC IN 15-pin HD Connector
Connect to a VGA computer graphics source.
VIDEO INPUT
Connectors
(HDBT IN1 to
HDBT IN4)
HDBT IN RJ-45
Connector
Connect to an HDBT transmitter (IN 1 to IN 4).
When connecting a device to the HDBT port,
in some cases, RS-232 data may not pass
from the connected device to the HDBT port.
To fix and configure this, go to the Setting
tab in the Data routing page and change
Data Channel to 4 (see Setting the HDBT
Port Data Routing Parameters on page 52).
IR (Rx, Tx) left 2-pins on
a 5-pin Terminal Block
Connectors
Connect to the IR connector of an HDBT output (Tx
to Rx and Rx to Tx), to tunnel IR data between an
HDBT transmitter on the input and HDBT receiver
on an output.
RS-232 (G, Rx, Tx) right
3-pins on a 5-pin
Terminal Block
Connectors
Connect to a serial controller or RS-232 controlled
device for RS-232 link extension via the HDBT input
(for HDBT IN 1 to IN 4).
EXT. CONTROL (G, Rx, Tx) 3-pin Terminal
Block Connector
Connect to an external RS-232 device to be
controlled (for example, a projector).
CONTROL (G, Rx, Tx) 3-pin Terminal Block
Connector
Connect to a PC or remote controller to control
VP-554X via Protocol 3000 commands.
The port includes echoing when changes are made
to the machine.
DATA RJ-45 Connector
Connect to a PC or other controller through
computer networking. (Data 1 and Data 2).
15
16
17
18
19
20
21

Kramer Electronics Ltd.
VP-554X –Defining VP-554X Presentation Switcher/Scaler
7
#
Feature
Function
CONTROL RJ-45 Connector
Connect to a PC or other controller through
computer networking.
USB Type B IN Connectors
Connect to USB hosts (from 1 to 4).
USB OUT Type A Connector
Connect to a USB client.
DATA USB Type A Connector
For upgrading firmware.
Mains Power Connector, Fuse and Switch
Connect to the mains supply.
REMOTE MUTE 2-pin Terminal Block
Connector
Remote switch to mute the audio signals. Enables
easy integration of the audio system with PA
systems, usually used for alarms or other public
audio messages.
MIC 3-pin Terminal block Connectors
Connect to microphones (Mic 1 and Mic 2).
AUDIO IN 5-pin Terminal Block Connectors
Connect to stereo audio balanced sources (IN 1 to
IN 8).
AUDIO OUT 5-pin Terminal Block Connectors
Connect to stereo balanced audio acceptors (1 to 4
and Monitor Out).
MONITOR OUT 5-pin Terminal Block
Connector
Connect to a stereo balanced audio acceptor (for
example, active speakers or an audio power
amplifier).
SPEAKER OUT 4-pin Terminal Block
Connector
Connect to a pair of loudspeakers.
22
23
24
25
26
27
28
29
30
31
32

Kramer Electronics Ltd.
VP-554X –Mounting VP-554X
8
Mounting VP-554X
This section provides instructions for mounting VP-554X. Before installing, verify that the
environment is within the recommended range:
•Operation temperature –0to 40C (32 to 104F).
•Storage temperature –-40to +70C (-40 to +158F).
•Humidity –10% to 90%, RHL non-condensing.
Caution:
•Mount VP-554X before connecting any cables or power.
Warning:
•Ensure that the environment (e.g., maximum ambient temperature & air flow) is
compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be used for avoiding
overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.
Mount VP-554X in a rack:
•Attach both rack ears by removing the screws from each
side of the machine and replacing those screws through
the rack ears.

Kramer Electronics Ltd.
VP-554X –Connecting VP-554X
9
Connecting VP-554X
Always switch off the power to each device before connecting it to your VP-554X. After
connecting your VP-554X, connect its power and then switch on the power to each device.
Figure 3: Connecting to the VP-554X Rear Panel
To connect VP-554X as illustrated in the example in Figure 3:
1. Connect an HDMI source (for example, a Blu-ray player or laptop) to the HDMI IN
connector (from 1 to 6).
Alternatively, you can, for example, connect the DVI connector on a DVD player to the
HDMI connector on the VP-554X via a DVI-HDMI adapter. When using this adapter, you
can connect the audio signal via the terminal block connector
2. Connect a VGA source to the PC IN 15-pin HD connector .
3. Connect an HDBT IN transmitter (for example, TP-580Txr) to the HDBT IN RJ-45
connectors (from 1 to 4).
4. Connect the USB IN ports (from 1 to 4) (for example, laptops) and USB OUT port
(for example, a smart whiteboard).
5. Connect the audio inputs (see Connecting a Balanced/Unbalanced Stereo Audio Source
to the Input on page 11) to the:
▪Audio input 5-pin terminal block connectors (from 1 to 8).
▪Up to 2 microphones to the MIC 3-pin terminal blocks (1 to 2).
6. Connect OUT 1 to OUT 4:
▪OUT HDMI and/or HDBT output to an HDMI acceptor (for example a display / smart
whiteboard) and/or an HDBT receiver (for example, TP-580Rxr).
16
17
18
23
24
29
28

Kramer Electronics Ltd.
VP-554X –Connecting VP-554X
10
7. Connect the audio outputs:
▪AUDIO OUT 5-pin terminal block connector (1 to 4) to an analog stereo audio
acceptor (for example, a power amplifier/active speakers).
▪MONITOR OUT line out 5-pin terminal block connector to active speakers.
▪SPEAKER OUT 4-pin terminal block connector to speakers.
Connect to a pair of loudspeakers, by connecting the left loudspeaker to the “L+” and
the “L-” terminal block connectors, and the right loudspeaker to the “R+” and the “R-”
terminal block connectors. Do not Ground the loudspeakers.
8. Connect the:
▪RS-232 EXT CONTROL 3-pin terminal block connector port to an RS-232
controlled device to control it via commands sent from the VP-554X.
▪RS-232 CONTROL 3-pin terminal block connector port to a PC to control the
unit.
9. Connect the MUTE 2-pin terminal block contact-closure remote-control pins to a switch
to mute/unmute the audio output by momentarily pressing the switch (not shown in
Figure 3).
10.Connect the ETHERNET port (on the front panel), DATA port and/or CONTROL
port (on the rear panel), to the Network (see Operating via Ethernet on page 27).
11.Connect the power cord to the power socket.
Connecting the Output to a Balanced/Unbalanced
Stereo Audio Acceptor
The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:
Figure 4: Connecting to a Balanced Stereo Audio
Acceptor
Figure 5: Connecting to an Unbalanced Stereo Audio
Acceptor
30
30
31
19
20
14
21
22

Kramer Electronics Ltd.
VP-554X –Connecting VP-554X
11
Connecting a Balanced/Unbalanced Stereo Audio
Source to the Input

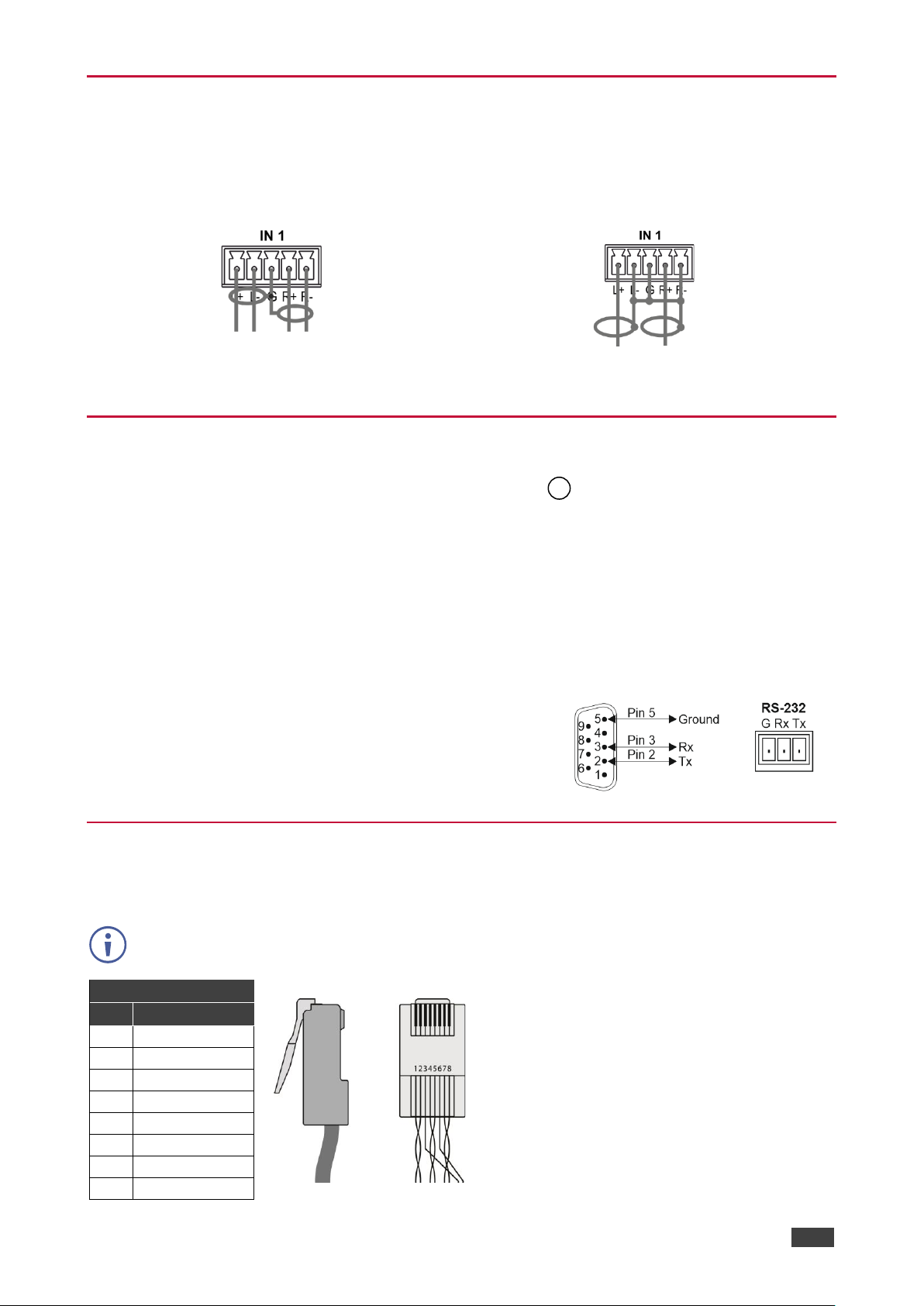

The following are the pinouts for connecting a balanced or unbalanced stereo audio source to
the balanced input:
Figure 6: Connecting a Balanced Stereo Audio
Source to the Balanced Input
Figure 7: Connecting an Unbalanced Stereo Audio
Source to the Balanced Input
Connecting to VP-554X via RS-232
You can connect to VP-554X via an RS-232 connection using, for example, a PC.
VP-554X features an RS-232 3-pin terminal block connector allowing the RS-232 to control
VP-554X.
Connect the RS-232 terminal block on the rear panel of VP-554X to a PC/controller, as
follows:
From the RS-232 9-pin D-sub serial port connect:
•Pin 2 to the TX pin on the VP-554X RS-232 terminal block
•Pin 3 to the RX pin on the VP-554X RS-232 terminal block
•Pin 5 to the G pin on the VP-554X RS-232 terminal block
RS-232 Device VP-554X
Wiring RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.
EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
13

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
12
Operating and Controlling
VP-554X
VP-554X front panel buttons enable performing the following actions:
•Routing an input to an output on page 12.
•Routing a USB input to the USB output on page 12.
•Storing (STO) and Recalling (RCL) Outputs Via the Front Panel on page 12.
•Resetting the Resolution on page 13.
•Locking the Front Panel on page 13.
•Controlling Device Operation Via the OSD Menu on page 13.
•Operating via Ethernet on page 27.
Routing an input to an output
To route an input to an output via the front panel:
1. Press an OUT button (1 to 4).
2. Press an HDMI input (1 to 6), an HDBT input (1 to 4) or a PC IN button.
Routing a USB input to the USB output
To route a USB input to the USB OUT port via the front panel, press a USB button
next to “To USB OUT” on the front panel.
Storing (STO) and Recalling (RCL) Outputs Via the
Front Panel
VP-554X enables storing and recalling the current device setup.
Storing the Current Configuration
To store the current configuration:
1. Set the required device configuration.
2. Press and hold STO until button flashes once.
The current configuration is stored.
2
3
4
5
24
1
6

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
13
Recalling a Configuration
To recall the stored configuration:
•Press and hold RCL until button flashes once.
The stored configuration is recalled.
Resetting the Resolution
To reset the resolution:
•Press and hold for about 2 seconds to set the output resolution to XGA (1024x768).
•Press and hold for about 5 seconds to set the output resolution to 1080p.
Setting the outputs to one of these common resolutions may be useful if VP-554X outputs at
a resolution which the display cannot recognize, in which case, it is impossible to select a
new resolution via the OSD menu.
Locking the Front Panel
To unlock/lock the front panel buttons:
•Press and hold for about 3 seconds to lock/unlock the front panel buttons.
Controlling Device Operation Via the OSD Menu
VP-554X enables controlling and defining the device parameters via the OSD, using the front
panel MENU buttons.
Each OUTPUT OSD includes output specific features, such as selecting the source for the
specific output, adjusting the image on the output, selecting the resolution and so on, as well
as general features (such as OSD settings, factory reset and INFO).
Before accessing the OSD menu, you need to select the OSD for a specific output.
Accessing the OSD Menu
To enter and use the OSD menu buttons:
1. On the front panel button, press OSD SELECT to cycle through the outputs, to select the
output to control via OSD (the OSD output). The LED lights next to the selected output.
2. Press MENU.
7

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
14
3. Press:
▪ENTER to accept changes and to change the menu settings.
▪Arrow buttons to move through the OSD menu, which is displayed on the video
output.
▪MENU to go back to the previous menu list.
The default OSD timeout is set to 10 seconds.
Use the OSD menu to perform the following operations:
•Accessing the OSD Menu on page 13.
•Selecting an Input Signal on page 15.
•Selecting the Image Size on page 15.
•Setting Output Resolution on page 15.
•Selecting Screen Color When No Signal Is Present on page 16.
•Setting Screen Freeze on page 16.
•Setting Screen Blank State on page 17.
•Adjusting PC Image Parameters on page 17.
•Adjusting the Image on page 17.
•Setting Audio Parameters on page 18.
•Setting Audio Output Monitor Out and Speaker Parameters on page 20.
•Adjusting the Input Volume on page 21.
•Defining Microphone Settings on page 21.
•Defining USB Settings on page 21.
•Setting OSD Parameters on page 22.
•Setting HDCP on page 23.
•Setting Sleep Mode on page 23.
•Setting Switching Mode on page 24.
•Accessing the Video Wall mode on page 24.
•Managing EDID via OSD on page 24.
•Defining Daily Reset Time on page 25.
•Setting the HDBT Input Range on page 26.
•Viewing Device Information on page 26.
•Performing a Reset on page 26.
•Defining Network Parameters on page 26.

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
15
Selecting an Input Signal
Select the VP-554X input source for the selected OSD output.
To set the input source:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO then select SOURCE.
3. Press ENTER and select HDMI (1 to 6), HDBT (1 to 4) or PC.
4. Press ENTER.
An input signal is selected.
Selecting the Image Size
Set the image size on the selected OSD output.
To set the image size:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO then select SIZE.
3. Press ENTER and select FULL, BEST FIT, PAN SCAN, LETTER BOX, UNDER 2,
UNDER 1, FOLLOW IN or OVER SCAN.
4. Press ENTER.
The image size is selected.
Setting Output Resolution
VP-554X enables setting the resolution on the selected OSD output via the OSD MENU
buttons.
The resolution is set only for the output that is selected (via the front panel OSD
SELECT button) to show the OSD.

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
16
To set the output resolution:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO, then select OUTPUT to define the output resolution.
Menu Item
Function
Resolution
Select the output resolution (default, NATIVE):
640x480 @60Hz
1600x1200 @60Hz
3440x1440 @30Hz RB
1920x1080P @25Hz
800x600 @60Hz
1680x1050 @60Hz
3440x1440 @60Hz RB
1920x1080P @30Hz
1024x768 @60Hz
1920x1200 @60Hz RB
720x480P @60Hz
2560x1080P @50Hz
1280x768 @60Hz
2560x1600 @60Hz RB
1280x720P @60Hz
2560x1080P @60Hz
1280x800 @60Hz
1920x1080 @60Hz
1920x1080P @60Hz
3840x2160P @24Hz
1280x1024 @60Hz
1280x720 @60Hz
720x576P @50Hz
3840x2160P @25Hz
1360x768 @60Hz
2048x1080 @50Hz
1280x720P @50Hz
3840x2160P @30Hz
1400x1050 @60Hz
2048x1080 @60Hz
1920x1080P @50Hz
3840x2160P @50Hz
1440x900 @60Hz
2560x1440 @60Hz RB
1920x1080P @24Hz
3840x2160P @60Hz
3. Press ENTER.
Output parameters are defined.
To recover if the unit outputs at a resolution which cannot be displayed, press and hold the
front-panel RESET TO XGA/1080P button.
Selecting Screen Color When No Signal Is Present
Select the VP-554X screen color on the selected OSD output when no signal is detected on
that output.
To set the no-signal screen color:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO, then select NO SIGNAL COLOR.
3. Press ENTER and select BLACK, WHITE, BLUE, RED or GREEN.
4. Press ENTER.
The No Signal screen color is selected.
Setting Screen Freeze
Select the VP-554X screen freeze state.
To set the no-signal screen color:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO, then select FREEZE.
3. Press ENTER and select ON or OFF.
4. Press ENTER.
The screen freeze state is set.

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
17
Setting Screen Blank State
Select the VP-554X screen freeze state.
To set the blank screen state:
1. On the front panel press MENU. The menu appears.
2. Select VIDEO, then select BLANK.
3. Press ENTER and select blank (5v low), blank or OFF.
4. Press ENTER.
The screen freeze state is set.
Adjusting PC Image Parameters
VP-554X enables adjusting the VGA position and synchronization parameters.
To adjust the PC parameters:
1. On the front panel press MENU. The menu appears.
2. Click VIDEO then select PC SETUP.
Menu Item
Function
AUTO SETUP
auto adjusts the image (centers it correctly on the screen) every
time the input is switched to VGA or when the input resolution
changes.
PC setup messages appear as follows: INCOMPLETE,
COMPLETE or EXECUTING.
PC H-POSITION
Set the horizontal position of the picture.
PC V-POSITION
Set the vertical position of the picture.
PC PHASE
Set the clock phase.
PC CLOCK
Set the clock frequency.
RESET
Reset settings to their default values.
PC MODE
Select PC resolution mode.
PC parameters are adjusted.
Adjusting the Image
VP-554X enables adjusting the selected OSD output image parameters such as contrast,
brightness and so on.
To adjust the image parameters:
1. On the front panel press MENU. The menu appears.
2. Click PICTURE.

Kramer Electronics Ltd.
VP-554X –Operating and Controlling VP-554X
18
3. Click a menu item as described in the following table:
Menu Item
Function
COLOR GAIN for R, G and B
Set the Red, Green and Blue shades.
COLOR OFFSET for R, G and B
Set the color offset level for red, green and blue.
Brightness
Set the brightness.
Contrast
Set the contrast.
HUE
Set the color hue.
SATURATION
Set the color saturation.
SHARPNESS
Set the sharpness of the picture.
NR (Noise Reduction)
Select the noise reduction filter: Off (default), Low, Middle or
High.
RESET PICTURE
Reset image parameters to their default value.
Image parameters are adjusted.
Setting Audio Parameters
VP-554X enables defining the audio parameters for the selected OSD output.
To set the audio parameters:
1. On the front panel press MENU. The menu appears.
2. Select AUDIO.
3. Select an audio parameter from the list below and adjust as needed.
4. For each adjusted parameter, press ENTER.
Menu Item
Function
SOURCE
Select any of the following audio sources: HDMI (1 to 6), HDBT (1to 4),
ANALOG (1 to 8), MIC1, MIC2, MIC 1+2, FOLLOW VIDEO (default).
EMBEDDED
HDMI (1 to 6)
Select EMBEDDED, ANALOG, or AUTOMATIC (default).
EMBEDDED selects the embedded HDMI audio source; ANALOG
selects the analog audio corresponding to the input; and AUTOMATIC
(default) selects the embedded audio when an HDMI source is detected,
or the analog audio when a DVI input is detected.
HDBT (1 to 4)
AUDIO
MAPPING
HDMI (1 to 6)
When the EMBEDDED menu is assigned to ANALOG (or AUTOMATIC,
if a DVI source is connected).
Select NONE (default) for no analog signal to be assigned to the
selected source, or select an analog source (ANALOG 1 to ANALOG 8)
to assign to a video source:
After selecting an analog source, that specific source is unavailable for a
different source.
For example, if HDMI 1 Mapping is ANALOG 7, ANALOG 7 will not be
available for the other inputs for mapping.
HDBT (1 to 4)
PC
AUDIO BYPASS
Select ON to “bypass” an embedded audio input to the output (for
example, to support multi-channel, compressed audio formats, Dolby,
DTS, etc.). (Default, OFF)
HDMI VOLUME
Set the HDMI output volume.
0 to 100 (Default: 80).
LINE VOLUME
Set the analog audio volume.
0 to 100 (Default: 80).
HDMI HARDSTOP
Set HDMI volume hard stop.
0~100 (Default: 80). (Use this feature to limit the maximum HDMI output
volume level).
LINE HARDSTOP
Set the analog audio hard stop.
