KRESS KA3713 Installation manual

SAFETY AND OPERATING MANUAL
Battery Charger KA3713

Battery Charger KA3713
2
TABLE OF CONTENTS
Introduction......................................................................................................................................................2
Component List.............................................................................................................................................3
Safety Instructions........................................................................................................................................4
Charging Procedure.....................................................................................................................................6
Maintenance....................................................................................................................................................7
Problem Solution...........................................................................................................................................7
Technical Data................................................................................................................................................8
Environmental Protection..........................................................................................................................8
Declaration of Conformity...........................................................................................................................8
INTRODUCTION
Dear Customer,
Thank you for buying this Kress product. We are dedicated to developing high quality
products to meet your landscaping requirements.
The Kress brand is synonymous with premium quality service. Over the years of
your products life, if you have any questions or concerns about your product, please
contact your location of purchase or our Customer Service Team for assistance.
We are condent you will enjoy working with your Kress product for years to come.

3
Battery Charger KA3713
COMPONENT LIST
1. CHARGER
2. CHARGE INDICATOR LIGHT
3. BATTERY PACK *
4. WALL-MOUNT HOLES
* Not all the accessories illustrated or described are included in standard delivery.
2
3*
1
4

Battery Charger KA3713
4
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock,
re and/or serious injury.
Save all warnings and
instructions for future
reference.
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent or similarly qualied
persons in order to avoid a
hazard.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY CHARGER
1. Before charging, read the
instructions.
2. Do not charge a leaking
battery.
3. Do not use chargers for
works other than those for
which they are designed.
4. Before charging, ensure
your charger is matching
the local AC supply.
5. For indoor use, or do not
expose to rain.
6. The charging device must
be protected from moisture.
7. Do not use the charging
device outdoors.
8. Do not short out the
contacts of battery or
charger.
9. Respect the polarity “+/-“
when charging.
10.Do not open the unit and
keep it out of the reach of
children.
11.Do not charge the batteries
of other manufactures or
ill-suited models.
12.Ensure that the connection
between the battery
charger and battery is
correctly positioned and is
not obstructed by foreign
bodies.

5
Battery Charger KA3713
13.Keep battery charger’s
slots free of foreign objects
and protect against dirt and
humidity. Store in a dry and
frost-free place.
14.When charging batteries,
ensure that the battery
charger is in a well-
ventilated area and away
from inammable materials.
Batteries can get hot
during charging. Do not
overcharge any batteries.
Ensure that batteries
and chargers are not
left unsupervised during
charging.
15.Do not recharge non-
rechargeable batteries,
as they can overheat and
break.
16.Longer life and better
performance can be
obtained if the battery pack
is charged when the air
temperature is between
18°C and 24°C. Do not
charge the battery pack
in air temperatures below
0°C, or above 40°C. This is
important as it can prevent
serious damage to the
battery pack.
17.Charge only battery pack
of the same model provided
by Kress and of models
recommended by Kress.
SYMBOLS
Read the operator’s manual.
Warning
Indoor use only
T 5A Fuse
Double insulation
Positive terminal
Negative terminal
Waste electrical products must
not be disposed of with household
waste. Please recycle where
facilities exist. Check with your local
authorities or retailer for recycling
advice.

Battery Charger KA3713
6
CHARGING PROCEDURE
NOTE: Before using the tool, read the
instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
WARNING: The charger and battery pack are
specically designed to work together so do
not attempt to use any other devices. Never
insert or allow metallic objects into your charger or
battery pack connections because an electrical
failure and hazard will occur.
2. BEFORE USING YOUR CORDLESS TOOL
Your battery pack is partly charged and needs to be
fully charged before rst use.
3. HOW TO CHARGE YOUR BATTERY
CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet (220-
240 V).
2) Slide the battery pack into the charger as shown
in illustration A, the LIGHT will become green and
ash to show charging has started.
3) After charging approx. 40 mins (2.0Ah)/ 50 mins
(2.5Ah)/80 mins (4.0 Ah)/100 mins (5.0Ah), the
light will stay green without ashing, which
means the battery is fully charged.
WARNING: When battery charge runs out
after continuous use or exposure to direct
sunlight or heat, allow time for the battery
to cool down before re-charging to achieve the
full charge.
A
CHARGING INDICATOR
This charger is a “smart charger” that is designed to
provide you information on the status of your battery
charge. Indicator lights n the table below will show
the charging status.
If you receive a defective battery indication light (red
on), insert a new battery to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned to
a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.
Light ON/Flash Status
Red on
Defective Battery
Red ash
----------
Battery Temperature
Protection.
The temperature of
battery pack is less than
0 0C or more than 60 0C.
Green on
Fully Charged
Green ash
---------- Charging
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection
feature. When the charger detects a battery pack
that is too hot (the light will be red and ash), its
internal fan will rapidly cool the battery to the
correct temperature. When the charger detects a
battery pack that is too cold (the light will be red
and ash), it automatically activates the protection
circuit, and suspends charging until the battery pack
has reached the correct temperature.The charging
process will then automatically begin (the light will
be green and ash). This feature ensures maximum
battery life.
LEAVING THE BATTERY PACK IN THE
CHARGER
If a fully charged battery pack is left in the charger,
the Light will remain green. The battery pack will
remain charging with a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack.
When a defective battery pack is inserted into the
charger, the charger will try to repair it. This process
will last about 30mins (the light will be green and
ash). If the repair is successful, the charger will
automatically begin to charge the battery pack to
the highest capacity possible (the light will be green
and ash). If the light becomes solid red, the battery
pack is dead.
NOTE: Repaired battery packs are still usable but
should not be expected to perform as much work as

7
Battery Charger KA3713
new battery packs.

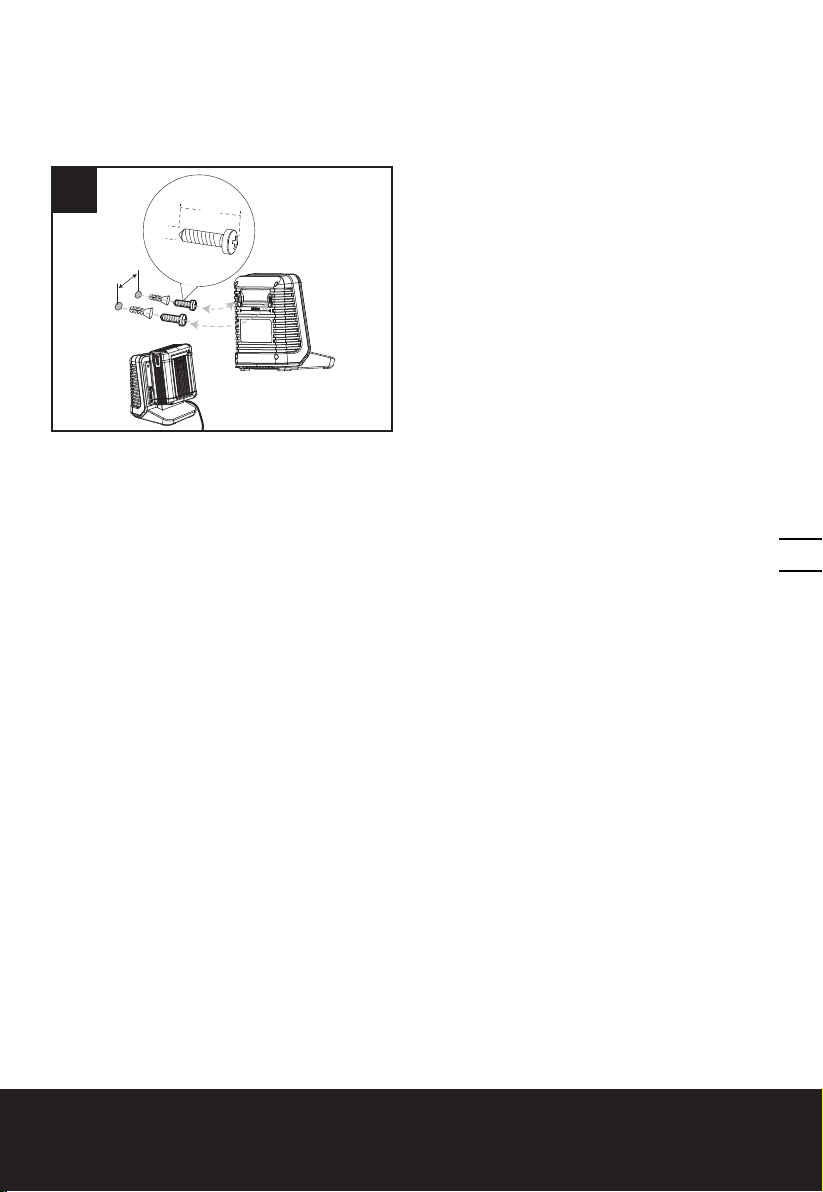

MOUNTING CHARGER ONTO THE WALL
Install screws (not provided ) in the wall .Use screws
sufciently strong to hold the combined weight of
the charger and battery pack. (See Fig. B)
B
>20MM
5-6MM
IMPORTANT CHARGING NOTES:
1. For a new battery or a battery that has been
in storage for sometime, please recharge the
battery before use. If you want to store the
battery for a long time, please fully charge the
battery pack to ensure maximum battery life.
2. Longer life and better performance can be
obtained if the battery pack is charged when
the air temperature is between (180C-240C). Do
not charge the battery pack in air temperatures
below 00C, or above 400C. This is important as it
can prevent serious damage to the battery pack.
3. Never freeze your charger or immerse charger in
water or any other liquid.
4. When the battery pack fails to produce
sufcient power on jobs that were previously
done easily, please recharge your battery, do
not continue to use under this condition. You
may charge a partially used pack whenever
you desire with no adverse affect on the battery
pack.
5. When charging it is normal that the charger and
battery pack may become warm to touch.
6. If the battery pack does not charge properly:
a. Check current at power outlet by plugging in
another appliance.
b. Plug and unplug to check whether the charger is
ok.
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 180C-240C.
e. If the charging problem persists, take the tool,
battery pack and charger to an authorized
service center.
f. Under certain conditions, when the charger is
plugged into the power supply, the exposed
charging contacts inside the charger can be
shorted by foreign material. Foreign materials of
a conductive nature such as metallic particles
should be kept away from charger cavities.
Always unplug the charger from the power
supply when there is no battery pack in the
charger or before attempting to clean.
MAINTAIN TOOLS WITH
CARE
Remove the plug from the socket before carrying
out any adjustment, servicing or maintenance.
Your tool requires no additional lubrication or
maintenance. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.
PROBLEM SOLUTION
1. I CANNOT FIT THE BATTERY INTO THE
BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are
specically designed for working together.
b) The battery can be inserted into the charger only
in one direction. Turn the battery around until it
can be inserted into the slot, the indicator light
should be green and ash when the battery is
charging.
2. REASONS FOR DIFFERENT CHARGING
TIMES
The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it
may be re-charged in less than rated charging
time.
b) If the battery pack and ambient temperature are
very cold/ hot, it may take longer to re-charge.
Please nd an appropriate environment with
proper air temperature to start charging.

Battery Charger KA3713
8
TECHNICAL DATA
Rated Input voltage 220-240 V~50/60 Hz
Output voltage 60 V
Charging current 3 A
Power Input 215 W
Charge battery Li-Ion
Battery model KA3000/KA3001/KA3002/
KA3008
Battery capacity 2.0 Ah / 2.5 Ah /4.0 Ah/
5.0 Ah
Number of battery pack 1
Charging
time(approx.)
2.0 Ah 40 mins
2.5 Ah 50 mins
4.0 Ah 80 mins
5.0 Ah 100 mins
Protection class /II
Machine weight 1.5 kg
For the technical data of the types, the number of
cells and the rated capacity of the batteries that can
be charged, please refer the nameplate of the battery
pack supplied by Kress.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.
PLUG REPLACEMENT(ONLY
FOR REWIRABLE PLUG OF
UK & IRELAND)
If you need to replace the tted plug then follow the
instructions below.
IMPORTANT
The wires in the mains lead are colored in
accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows. The wire which is colored blue
must be connected to the terminal which is marked
with N. The wire which is colored brown must be
connected to the terminal which is marked with L.
WARNING! Never connect live or neutral wires to
the earth terminal of the plug. Only t an approved
BS1363/A plug and the correct rated current fuse
which is used in the plug.
NOTE: If a moulded plug is tted and has to be
removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent
engaging into a socket.
C
onnect
Blue to N
(neutral)
Outer sleeve
firml
y
clam
p
ed
Cable grip
Brown L (live)
Fuse

9
Battery Charger KA3713
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery Charger
Type KA3713
Complies with the following Directives,
2014/35/EU
2014/30/EU
2011/65/EU&(EU)2015/863
Standards conform to
EN 60335-1
EN 60335-2-29
EN 62233
EN 55014-1
EN 55014-2
EN IEC 61000-3-2
EN 61000-3-3
2022/10/20
Allen Ding
Deputy Chief Engineer Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Battery Charger KA3713
10
DECLARATION OF
CONFORMITY
We,
Positec (UK & Ireland) Ltd.,
PO Box 6242, Newbury, RG14 9LT, UK
On behalf of Positec declare that the product
Description Battery Charger
Type KA3713
Complies with the following regulations,
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment Regulations
Standards conform to
BS EN 60335-1,
BS EN 60335-2-29,
BS EN 62233,
BS EN 55014-1,
BS EN 55014-2,
BS EN IEC 61000-3-2,
BS EN 61000-3-3
2022/10/20
Allen Ding
Deputy Chief Engineer Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Copyright © 2022 Positec. All Rights Reserved.
AR03057801
