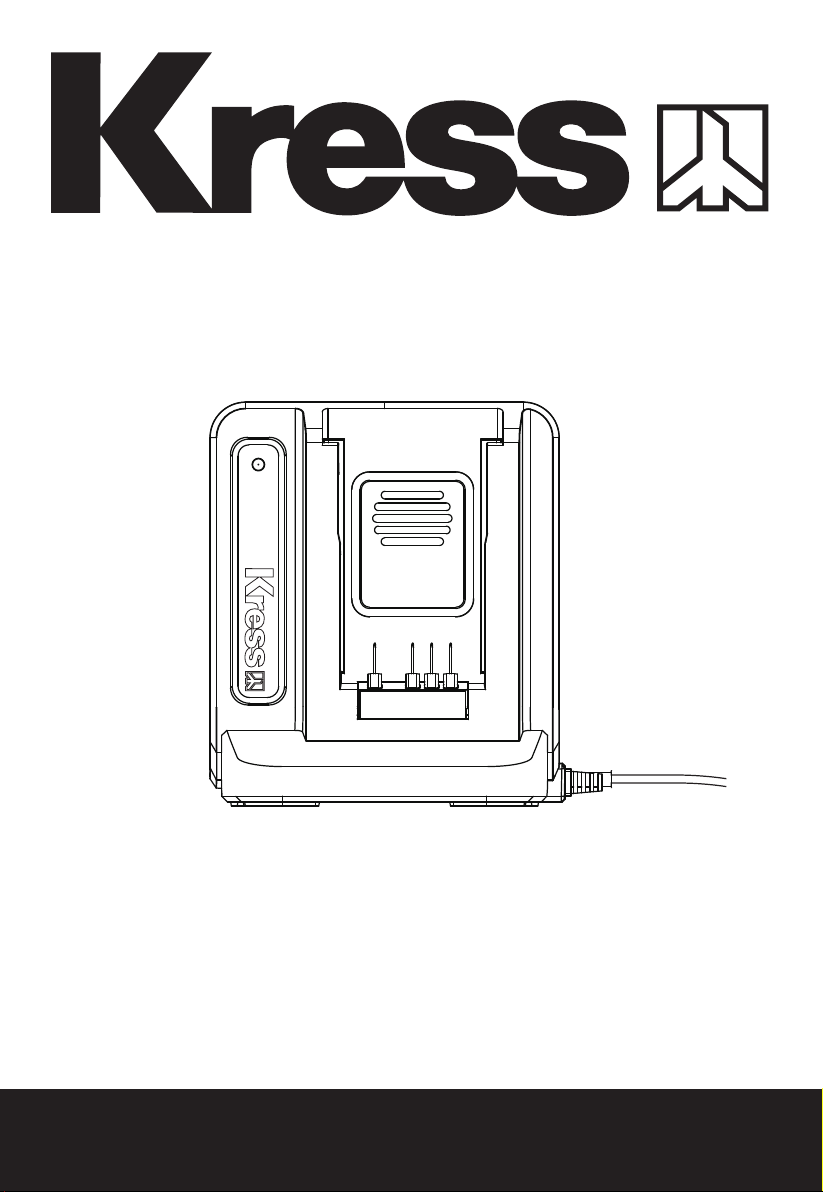

KRESS KA3714 Installation manual

SAFETY AND OPERATING MANUAL
Battery Charger KA3714

2
3*
1
4
>20MM
5-6MM
A B

3
Battery Charger KA3714
PRODUCT SAFETY
GENERAL SAFETY
WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock, re
and/or serious injury.
Save all warnings and
instructions for future
reference.
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
Children shall not play with
the appliance. Cleaning and
user maintenance shall not
be made by children without
supervision.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service
agent or similarly qualied
persons in order to avoid a
hazard.
ADDITIONAL SAFETY
INSTRUCTIONS FOR
YOUR BATTERY
CHARGER
1. Before charging, read the
instructions.
2. Do not charge a leaking
battery.
3. Do not use chargers for
works other than those for
which they are designed.
4. Before charging, ensure your
charger is matching the local
AC supply.
5. For indoor use, or do not
expose to rain.
6. The charging device must be
protected from moisture.
7. Do not use the charging
device outdoors.
8. Do not short out the contacts
of battery or charger.
9. Respect the polarity “+/-“
when charging.
10.Do not open the unit and
keep it out of the reach of
children.
11.Do not charge the batteries
of other manufactures or ill-
suited models.
12.Ensure that the connection
between the battery charger
and battery is correctly
positioned and is not
obstructed by foreign bodies.
13.Keep battery charger’s

4
Battery Charger KA3714
slots free of foreign objects
and protect against dirt and
humidity. Store in a dry and
frost-free place.
14.When charging batteries,
ensure that the battery
charger is in a well-
ventilated area and away
from inammable materials.
Batteries can get hot during
charging. Do not overcharge
any batteries. Ensure that
batteries and chargers are
not left unsupervised during
charging.
15.Do not recharge non-
rechargeable batteries, as
they can overheat and break.
16.Longer life and better
performance can be
obtained if the battery pack
is charged when the air
temperature is between
18 °C and 24 °C . Do not
charge the battery pack
in air temperatures below
0 °C , or above 40 °C . This is
important as it can prevent
serious damage to the
battery pack.
17.Charge only battery pack
of the same model provided
by Kress and of models
recommended by Kress.
SYMBOLS
Read the operator’s manual.
Warning
Indoor use only
5 Fuse
Double insulation
Positive terminal
Negative terminal
Waste electrical products must not be
disposed of with household waste.
Please recycle where facilities exist.
Check with your local authorities or
retailer for recycling advice.

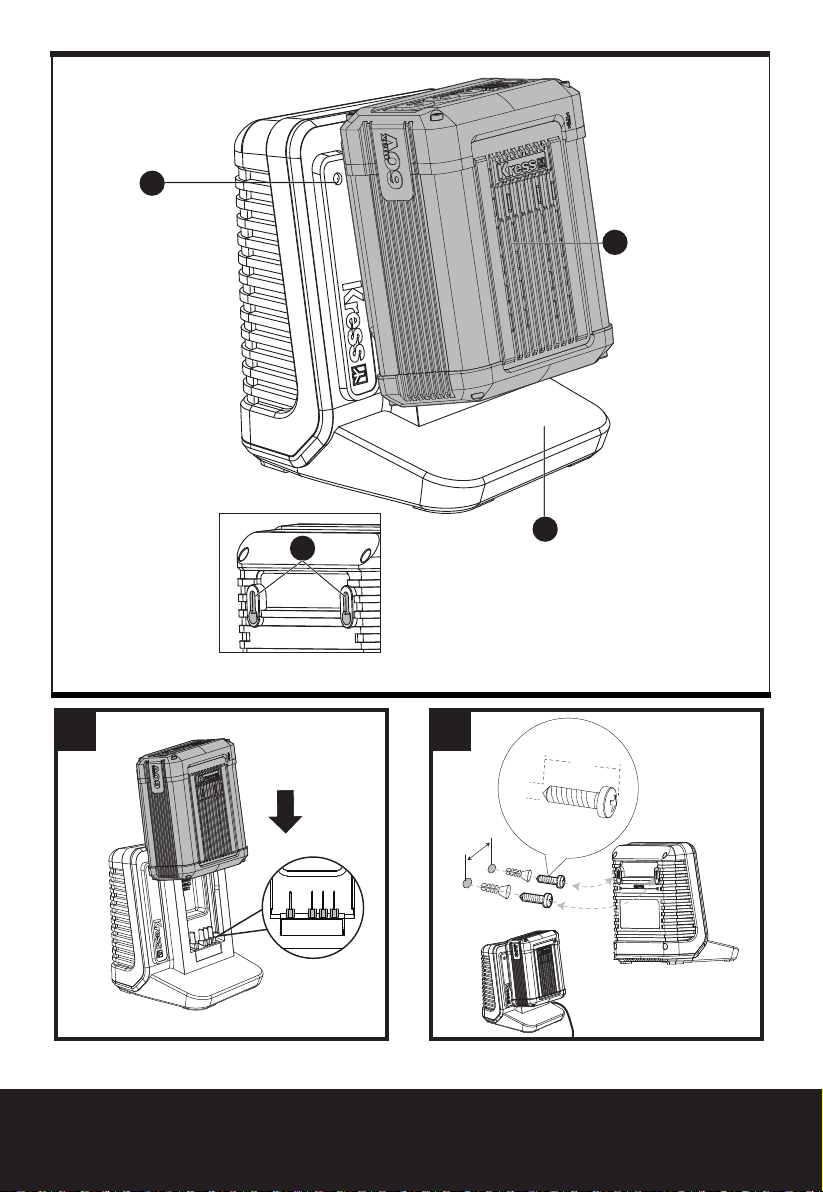

COMPONENT LIST
1. CHARGER
2. CHARGE INDICATOR LIGHT
3. BATTERY PACK *
4. WALL-MOUNT HOLES
Not all the accessories illustrated or described
are included in standard delivery.
We recommend that you purchase your accessories
listed in the above list from the same store that sold you
the battery charger. Refer to the accessory packaging
for further details. Store personnel can assist you and
offer advice.
TECHNICAL DATA
Rated Input voltage 220-240 V~50 Hz
Output voltage 60 V

5
Battery Charger KA3714
Charging current 5 A
Power Input 350 W
Charge battery Li-Ion
Battery model KA3000/KA3001/KA3002/
KA3008
Battery capacity 2.0 Ah / 2.5 Ah /4.0 Ah/5.0
Ah
Number of battery pack 1
Charging
time(approx.)
2.0 Ah 25 mins
2.5 Ah 30 mins
4.0 Ah 50 mins
5.0 Ah 60 mins
Protection class /II
Machine weight 1.5 kg
For the technical data of the types, the number of cells
and the rated capacity of the batteries that can be
charged, please refer the nameplate of the battery pack
supplied by Kress.
CHARGING PROCEDURE
NOTE: Before using the tool, read the
instruction book carefully.
CHARGING INSTRUCTIONS
1. CHARGING YOUR BATTERY PACK
WARNING: The charger and battery pack are
specically designed to work together so do not
attempt to use any other devices. Never insert or
allow metallic objects into your charger or battery pack
connections because an electrical failure and hazard will
occur.
2. BEFORE USING YOUR CORDLESS TOOL
Your battery pack is partly charged and needs to be fully
charged before rst use.
3. HOW TO CHARGE YOUR BATTERY
CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet(220-240
V).
2) Slide the battery pack into the charger as shown
in illustration A., the LIGHT will become green and
ash to show charging has started.
3) After charging approx. 25mins (2.0Ah)/ 30mins
(2.5Ah)/50mins (4.0 Ah)/60mins (5.0Ah), the light
will stay green without ashing, which means the
battery is fully charged.
WARNING: When battery charge runs out
after continuous use or exposure to
direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.
CHARGING INDICATOR
This charger is a “smart charger” that is designed to
provide you information on the status of your battery
charge. Indicator lights n the table below will show the
charging status.
If you receive a defective battery indication light (red on),
insert a new battery to determine if the charger is OK. If
the new battery charges correctly, then the original pack
is defective and should be returned to a service center
or recycling service center. If the new battery pack
displays the same problem as the original Battery Pack,
have the charger tested at an authorized service center.
Light ON/Flash Status
Red on
Defective Battery
Red ash
----------
Battery Temperature
Protection.
The temperature of
battery pack is less than
0 0C or more than 60 0C.
Green on
Fully Charged
Green ash
---------- Charging
BATTERY TEMPERATURE PROTECTION
This charger has a battery temperature protection feature.
When the charger detects a battery pack that is too hot (the
light will be red and ash), its internal fan will rapidly cool the
battery to the correct temperature. When the charger detects
a battery pack that is too cold (the light will be red and ash),
it automatically activates the protection circuit, and suspends
charging until the battery pack has reached the correct
temperature .The charging process will then automatically
begin (the light will be green and ash). This feature ensures
maximum battery life.
LEAVING THE BATTERY PACK IN THE CHARGER
If a fully charged battery pack is left in the charger, the Light
will remain green. The battery pack will remain charging with
a maintenance trickle current.
DEFECTIVE BATTERY PACKS
This charger will detect a defective battery pack. When
a defective battery pack is inserted into the charger, the
charger will try to repair it. This process will last about
30mins (the light will be green and ash). If the repair is
successful, the charger will automatically begin to charge the
battery pack to the highest capacity possible (the light will be
green and ash). If the light becomes solid red, the battery
pack is dead.
NOTE: Repaired battery packs are still usable but should
not be expected to perform as much work as new battery
packs.
MOUNTING CHARGER ONTO THE WALL
Install screws (not provided) in the wall .Use screws
sufciently strong to hold the combined weight of the
charger and battery pack. (See Fig. B)

6
Battery Charger KA3714
IMPORTANT CHARGING NOTES:
1. For a new battery or a battery that has been in
storage for sometime, please recharge the battery
before use. If you want to store the battery for a
long time, please fully charge the battery pack to
ensure maximum battery life.
2. Longer life and better performance can be
obtained if the battery pack is charged when the air
temperature is between (180C-240C). Do not charge
the battery pack in air temperatures below 00C,
or above 400C. This is important as it can prevent
serious damage to the battery pack.
3. Never freeze your charger or immerse charger in
water or any other liquid.
4. When the battery pack fails to produce sufcient
power on jobs that were previously done easily,
please recharge your battery, do not continue to
use under this condition. You may charge a partially
used pack whenever you desire with no adverse
affect on the battery pack.
5. When charging it is normal that the charger and
battery pack may become warm to touch.
6. If the battery pack does not charge properly:
a. Check current at power outlet by plugging in
another appliance.
b. Plug and unplug to check whether the charger is ok
c. Check whether the battery has been damaged
d. Move the charger and battery pack to a location
where the surrounding air temperature is
approximately 180C-240C.
e. If the charging problem persists, take the tool,
battery pack and charger to an authorized service
center.
f. Under certain conditions, when the charger is
plugged into the power supply, the exposed
charging contacts inside the charger can be
shorted by foreign material. Foreign materials of a
conductive nature such as metallic particles should
be kept away from charger cavities. Always unplug
the charger from the power supply when there is no
battery pack in the charger or before attempting to
clean.
PROBLEM SOLUTION
1. I CANNOT FIT THE BATTERY INTO THE
BATTERY CHARGER. WHY?
a) Check if the charger and the battery pack are
specically designed for working together.
b) The battery can be inserted into the charger only in
one direction. Turn the battery around until it can be
inserted into the slot, the indicator light should be
green and ash when the battery is charging.
2. REASONS FOR DIFFERENT CHARGING TIMES
The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it may
be re-charged in less than rated charging time.
b) If the battery pack and ambient temperature are
very cold/ hot, it may take longer to re-charge.
Please nd an appropriate environment with proper
air temperature to start charging.
MAINTAIN TOOLS WITH
CARE
Remove the plug from the socket before carrying out
any adjustment, servicing or maintenance.
Your tool requires no additional lubrication or
maintenance. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.
PLUG
REPLACEMENT(ONLY FOR
REWIRABLE PLUG OF UK
& IRELAND)
If you need to replace the fitted plug then follow the
instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance
with the following code:
BLUE = NEUTRAL
BROWN = LIVE
As the colors of the wires in the mains lead of this
appliance may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows.
The wire which is colored blue must be connected to
the terminal which is marked with N. The wire which is
colored brown must be connected to the terminal which
is marked with L.
WARNING! Never connect live or neutral wires to the
earth terminal of the plug. Only fit an approved BS1363/A
plug and the correct rated current fuse which is used in
the plug.
NOTE: If a moulded plug is fitted and has to be removed
take great care in disposing of the plug and severed
cable, it must be destroyed to prevent engaging into a
socket.
C
onnect
Blue to N
(neutral)
Outer sleeve
firml
y
clam
p
ed
Cable grip
Brown L (live)
Fuse

7
Battery Charger KA3714
DECLARATION OF
CONFORMITY
We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany
On behalf of Positec declare that the product
Description Battery Charger
Type KA3714
Complies with the following Directives,
2014/35/EU
2014/30/EU
2011/65/EU&(EU)2015/863
Standards conform to
EN 60335-1
EN 60335-2-29
EN 62233
EN 55014-1
EN 55014-2
EN IEC 61000-3-2
EN 61000-3-3
2021/01/27
Allen Ding
Deputy Chief Engineer Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

8
Battery Charger KA3714
Copyright © 2022 Positec. All Rights Reserved.
AR01551102
DECLARATION OF
CONFORMITY
We,
Positec (UK & Ireland) Ltd.,
PO Box 6242, Newbury, RG14 9LT, UK
On behalf of Positec declare that the product
Description Battery Charger
Type KA3714
Complies with the following regulations,
Electrical Equipment (Safety) Regulations
2016
Electromagnetic Compatibility
Regulations 2016
The Restriction of the Use of Certain
Hazardous Substances in Electrical and
Electronic Equipment Regulations
Standards conform to
BS EN 60335-1,
BS EN 60335-2-29,
BS EN 62233,
BS EN 55014-1,
BS EN 55014-2,
BS EN IEC 61000-3-2,
BS EN 61000-3-3,
2021/01/27
Allen Ding
Deputy Chief Engineer Testing & Certication
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China
