LuxaFlex Timber User manual

Timber & Woodmates
Venetian Blinds
Product Manual

2 | P a g e
MEASURING & LIMITATIONS
ARCHITRAVE & REVEAL FACE & REVEAL
CORNERS BAYS
OPTIONS & LIMITATIONS
Timber Venetians
50mm Slats
Woodmates Blinds
63mm & 50mm Slat
Maximum Width
2700mm
2400mm
Minimum Width
Fixed Control
160mm
60mm
Minimum Width
Tilt Only
250mm
250mm
Minimum Width
Split Control
300mm
300mm
Minimum Width
Combined/Adjacent Control
470mm
470mm
Minimum Control
Cord Length
500mm
500mm
Maximum drop
3500mm
3000mm
Maximum Area
If frequently raised & lowered
5.8m²
4m²
3.6m²
4.0m²
Shade Stack
Height
.08 x Drop + 67
.08 x Drop + 67
SUPPLIER INFO
Timber Venetian Blind material is sourced from Vinawood in Vietnam.

3 | P a g e
REDUCING LIGHT GAPS IN CORNERS, BAYS &
BUTTING BLINDS
The following codes should be used to indicate that slats should be extended 5mm past the
headrail on the side indicated. This will reduce light gaps between blinds.
OIE = extend slats 5mm on the idle end of the blind (i.e. opposite end to controls)
OCE = extend slats 5mm on the control end of the blind
OBE = extend slats 5mm on both ends
The projection of the headrail including brackets is 60mm. When measuring for corners, bay
windows and multiple blinds, large gaps are experienced in the above areas.
1. CORNERS
Increasing the blades on the butting blind
by 5mm will help to reduce the gap.
2. BAYS
Increasing both side blinds by 5mm and centre
blinds by 10mm reduces the gap.
3. MULTIPLE BLINDS - 2 BLINDS
Reduces gap by 5mm between both blinds.
4. MULTIPLE BLINDS - 3 BLINDS
Reduces gaps between the three blinds by 5mm
each.
INSTRUCTION FOR MEASURING & ORDERING
1. Measure window.
2. Take off normal deductions: this is your ordered size.
3. Indicate which end slats are to be extended using the code OIC, OCE or OBE as
appropriate.
4. In “Special Instructions” section, indicate which blinds are side by side so that the
factory will ensure slats are aligned and blinds are matching in colour.

4 | P a g e
MULTIPLE BLINDS ON ONE HEADRAIL
NOTE: If you require a separate tilter for each blind, it is cheaper, easier to manufacture and
easier to fit separate blinds. There is no advantage in ordering multiple blinds on a common
headrail.
ON ORDER FORM YOU MUST SPECIFY:
•Overall headrail width (= window width -10mm)
•Blind 1 width
•Blind 2 widths (= overall width - blind 1 -10mm)
•Single tilter or separate tilter
•Tilt side (must be LHS on blind 1 or RHS on blind 2 for single tilter)
•Cord lock side on each blind (each blind must have a separate cord lock) \
•Pelmet code Size Limitations
•Individual blinds must be within usual limits
Overall headrail width must not exceed 5m
SIZE LIMITATIONS
•Individual blinds must be within usual limits
•Overall headrail width must not exceed 5m

5 | P a g e
SIZING
STANDARD FACE BLINDS
Top View SF
STADARD REVEAL BLINDS

6 | P a g e
MULTIPLE BUTTING BLINDS
MULTIPLE BLINDS

7 | P a g e
OPTIONS
STANDARD BLIND
•All blinds fitted with colour co-ordinating valance and bottom rail
•Control lengths supplied as per price grid
OPTIONS
•Brass plated hold down brackets. Add per pair
•Pelmet covers on back of headbox. Add per metre
•Cut-outs. Add per cut-out
•Fabric Tapes
•Motorised
•Operating sloping top, sloping bottom options
WOODMATES BLINDS
•Made from advanced engineered polymers
•Designed to resist peeling, fading and cracking
•Recommended for areas of high humidity such as kitchens and bathrooms
•Easy to clean

8 | P a g e
SPECIALTY SHAPES
FIXED SPECIALTY SHAPES - 50MM ONLY
Special Note: Deduct 10mm on overall width and drop when trimming template to size, for
reveal fit. T = Tilt location
*No fabric tape available
*50mm slat only

9 | P a g e
FIXED SPECIALTY SHAPES - 50MM ONLY

10 | P a g e
FIXED SPECIALTY SHAPES - 50MM ONLY
Templates Make the Difference
Templates are required with all specialty
shaped orders. Easy-to-use guidelines for
preparing templates appear on this page.
NOTE: ONE TEMPLATE REQUIRED FOR EACH
WINDOW.

11 | P a g e
FIVE STEPS TO AN ACCURATE TEMPLATE
1. Tape cardboard (thin sheet or corrugated) or heavy wrapping paper over the window
opening, allowing plenty of overlap. Use paper that has never been folded; a template
can have no folds or creases.
2. Draw an exact outline of the window opening by carefully tracing over the inside edge
of the window frame.
3. Remove the paper from the window opening. If the shade is an outside mount, add the
desired amount of overlap to the window outline and draw a second outline around it
to match the shape of the finished shade.
4. Mark the shade dimensions on the template. Check that the template dimensions match
your measurements of the actual window opening. It is easiest to verify by cutting out the
template and repositioning in the window opening.
5. Identify the template and its orientation. Write the customer’s name on the template and
mark the ROOM SIDE and TOP. Send the template to the factory: If possible, roll the
template and use a packaging tube to protect it against any damage. Use an
authorization for return (AFR) document for dispatch, the AFR number has to be written
on the order, so in that way the number is entered into the computer system.

12 | P a g e
BRACKET OPTIONS

13 | P a g e
PELMET OPTIONS

14 | P a g e

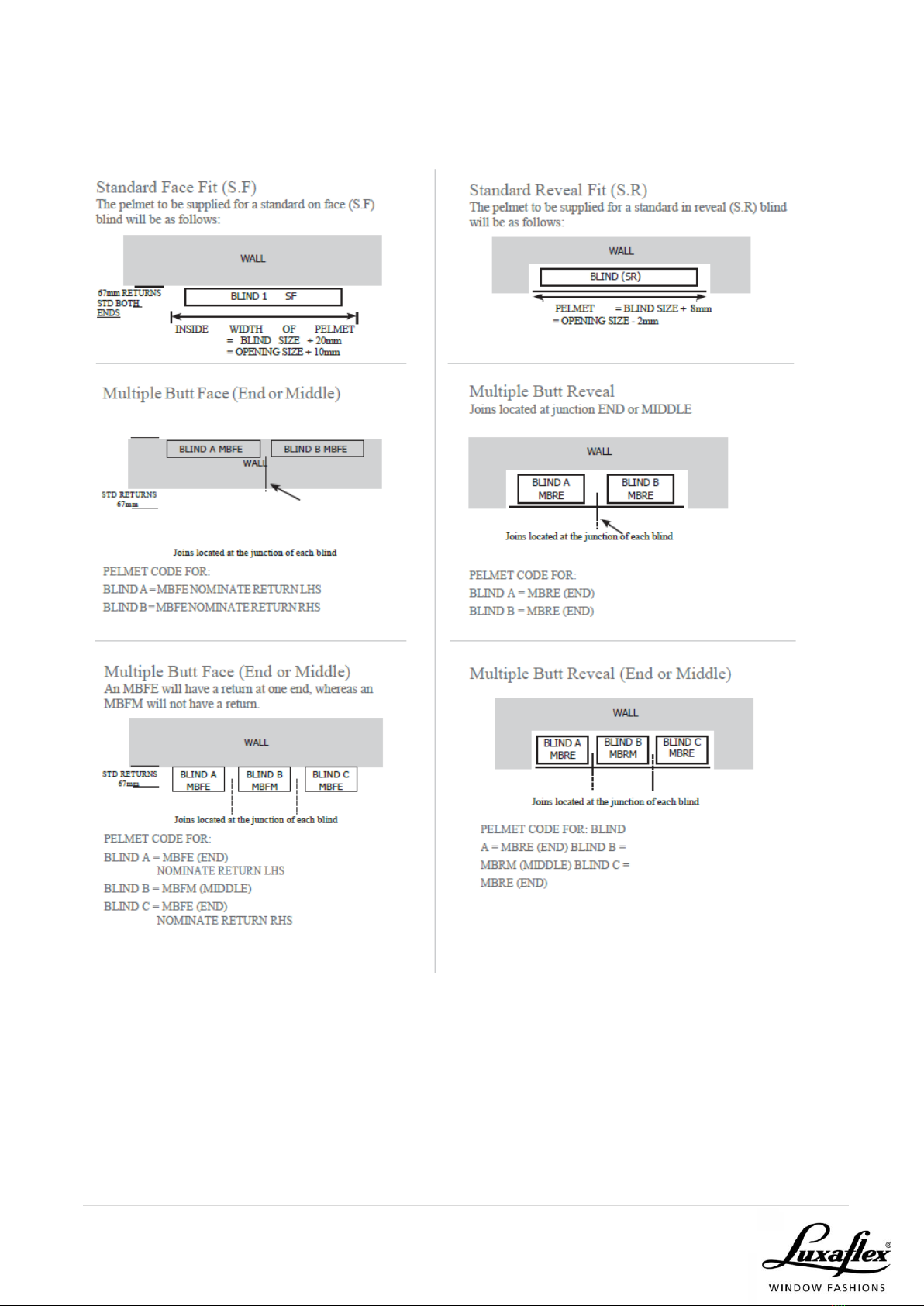

PELMET CODES

15 | P a g e

16 | P a g e
REDUCING LIGHT GAPS IN CORNERS, BAYS &
BUTTING BLINDS
The following codes should be used to indicate that slats should be extended 5mm past the
headrail, on the side indicated. This will reduce light gaps between blinds. There is a small
surcharge for this option (see price grids).
OIE = extend slats 5mm on the idle end of the blind (i.e. opposite end to controls)
OCE = extend slats 5mm on the control end of the blind
OBE = extend slats 5mm on both ends
The projection of the headrail including brackets is 60mm. When measuring for corners, bay
windows and multiple blinds, large gaps are experienced in the above areas.
INSTRUCTIONS FOR MEASURING & ORDERING
1. Measure window
2. Take off normal deductions: this is your ordered size
3. Indicate which end slats are to be extended using the code OIC, OCE or OBE as
appropriate
4. In the “Special Instructions” section, indicate which blinds are side by side so that the
factory will ensure slats are aligned and blinds are matching in colour

17 | P a g e
INSTALLATION INSTRUCTIONS
MATERIALS & TOOLS
Each Venetian Blind ordered should include:
•1 left and 1 right hand hinged cover mounting
bracket
•Support bracket(s) if needed
•2 screws for each bracket (20mm x 6# Panhead)
•1 pair hold down brackets and pins (if ordered)
TOOLS REQUIRED
•Steel measuring tape
•Carpenter’s level
•Power or battery drill and bits
•Flat blade and Phillips head screwdrivers
MOUNTING THE BRACKET
The installation brackets may be Reveal (inside the window frame) or
Face (outside the window frame) or ceiling (top) mounted. In all cases,
level mounting is critical to the operation of the blind (use carpenter’s
level). To open the end mount bracket, press up on the bottom side of
the bracket to release the locking safety cover.
IMPORTANT: Please read these instructions thoroughly before installing
INSIDE FIT
Attach the two installation brackets inside the window frame, flush
against each side and the top of the window frame. Align the front
edges of the installation brackets. Pack down if necessary, to ensure the
brackets allow level mounting of the headrail. Two screws (20mm x 6#
Panhead) are used to attach each bracket. For the most secure
installation, fasten one screw to the top and one screw to the side of the
frame as indicated.

18 | P a g e
FACE FIT
First, measure the blind and mark on the face or
architrave where to attach the two installation
brackets.
NOTE: 5mm past each end of headrail.
Attach the installation brackets to the wall or architrave
using 2 screws (20mm x 6# Panhead), (25mm x 6#
Panhead for render fix). Position the screws diagonally
as shown above, however not too close to the edge of
render to avoid break away.
CEILING FIT
As with face fit, measure the blind and mark on the
ceiling where to attach the two installation brackets,
noting this should be 5mm past the end of the headrail.
With the front edges of the brackets aligned, attach the
brackets to the top of the reveal or ceiling with the
screws supplied (20mm x 6# Panhead), (25mm x 6#
Panhead for render fix).
CENTRE SUPPORT BRACKETS
Blinds over 1200mm wide and blinds 1000mm-1200mm
wide and with a drop greater than 2000mm must have
1 support bracket, blinds over 1801mm wide must have 2 support brackets and blinds greater
than 2200mm must have 3 support brackets. Space the support brackets as evenly as
possible between the two end brackets. There should be no more than 1200mm between
any two brackets.
IMPORTANT: Avoid positioning support brackets in line with the tape drums.
Blinds over 2900mm in height and multiple blinds on one headrail over 2400mm require an
additional support bracket to be positioned 200mm from the cord lock end of the headrail.
Use 2 screws to attach each support bracket, positioned diagonally wherever possible.
Ensure brackets are aligned with end mount brackets.

19 | P a g e
EXTENSION BRACKETS (OPTIONAL)
Extension brackets can be used with face fit (outside) to project the
brackets away from the mounting surface to allow the blind to clear
obstructions, such as window winders, locks etc.
NOTE: A full width piece of timber may be the better option to pack
out blind, as it is more stable than individual pieces of timber.
INSTALLING THE BLIND
IMPORTANT: In the case of Timber Venetian Blinds and Woodmates Blinds
- attach the pelmet (valance) clips before installing the headrail in reveal.
HEADRAIL INSTALLATION
Simply slip the headrail into the end mount brackets and snap the locking
covers shut. After fitting the headrail, attach the pelmet.
NOTE: If a centre support bracket has been installed, a 12mm x 6# screw
must be screwed through a hole in the bottom of the bracket into the
headrail.
ATTACHING THE PELMET
If face fit, first attach returns by using the snap on brackets provided. Timber and Woodmates
Venetian Blind Pelmets have magnets attached to the back of the pelmet which snaps onto
the head rail.

20 | P a g e
HOLD DOWN BRACKETS(OPTIONAL) - TIMBER VENETIANS BLINDS
Hold-down brackets are used to keep the bottom of the blind from swaying
when mounted on doors or exposed to the wind. The hold-down brackets
are inside or outside mounted at the bottom of the window opening. With
the blind fully lowered, place the hold-down brackets onto the pins on the
end of the bottom rail and mark mounting hole locations. Attach hold-down
brackets with screws provided. With the bottom rail attached
to the hold-down brackets, the slats may be opened or closed. Disconnect
the rail from the brackets to raise and lower the blind.
PROTECT YOUR CHILDREN
Be aware that it is possible for children to strangle in window covering cords. To reduce
the possibility of such an accident, all cords must be kept out of the reach of children,
including infants. Cord cleats are an effective way to implement this essential
precaution.
Attach the cord cleats 153mm to 305mm apart at a height where they will be out of
the reach of children. Take into account that a child may stand on a baby cot or other
furniture in an attempt to reach the cords. Once the cleats are attached, simply wrap
the excess cord around them after each use of the shade, as shown. It’s fast, easy and
safe.
OPERATION
CORD TILT: Pulling on one of the single cords will tilt the slats in one direction and pulling the
other cord will tilt the slats in the opposite direction.
RAISING AND LOWERING OF THE BLIND: Important:
Standard Blinds: whenever raising or lowering the blind, the slats should be in the open
position.
The cord lock has a locking device that holds the cords in place when they hang vertically
down. To raise or lower the blind, pull the double cords towards the middle of the blind, out
at about 45o and slightly down. When the blind is at the desired height, return the cord to
the side of the blind to re-engage the cord lock.
