FEATURES & BENEFITS
FEATURE BENEFIT
Unique S-Vane Can be opened of closed for
variable light and privacy control
–only in the fully lowered position
UV Protection Limits UV, to protect furnishings
from fading
Choice of control Consumer has choice of standard
EasyRise & UltraGlide operating
systems. Child Safety. One cord
operates tilt & lift
PowerView Automation Easy to operate, child safe, low
voltage, easy to install & no wiring
options
Choice of fabrics Colours that co-ordinate with
customers decor
Choice of vane size 65mm & 75mm vanes
Choice of opacity Translucent or room darkening
Heat reflection White backing reduces heat
transmission
Easy cleaning Anti-static & anti-dust properties -
a light dusting takes care of
cleaning
Shade rolls up into cassette box Aesthetically designed so the
fabric is completely concealed

3 | P a g e

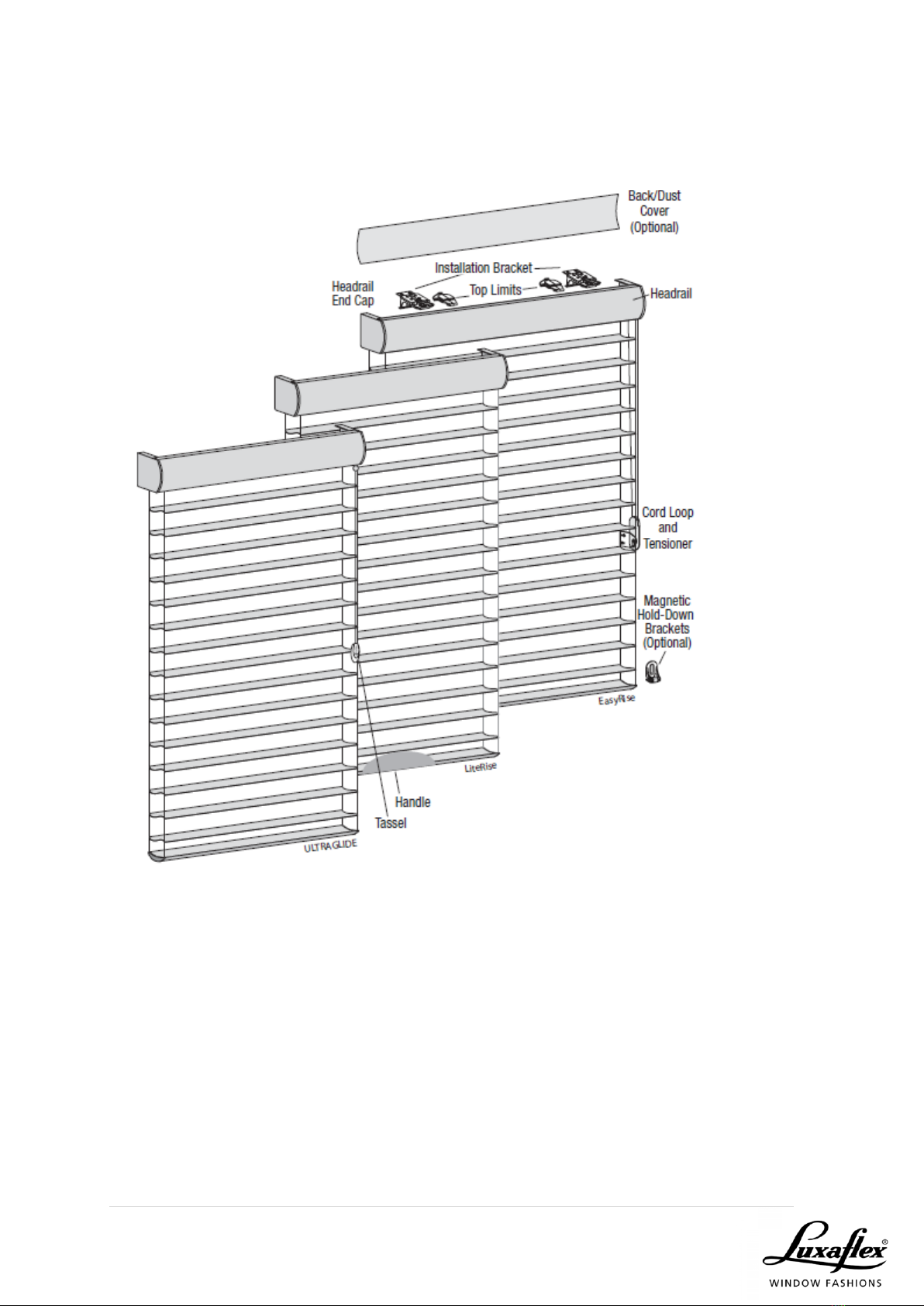

PRODUCT VIEW

4 | P a g e

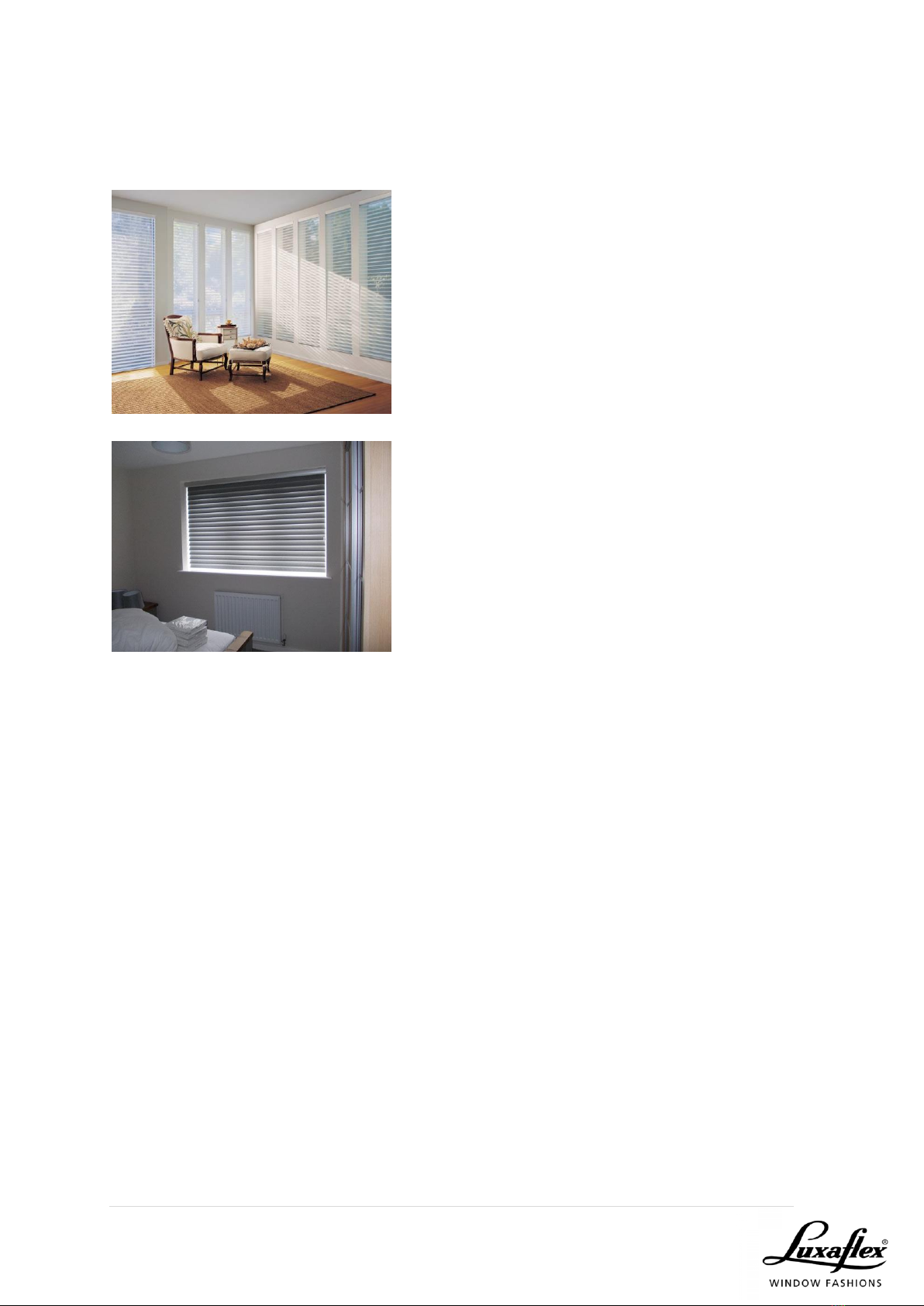

OPACITY & VANE SIZE
TRANSLUCENT
Silhouette shades made with translucent fabric
diffuse light to provide soft filtered light. When
the vanes are tilted open, the view is still
visible.
ROOM DARKENING
When room darkening fabric is selected the
shades close to achieve complete privacy
and room darkening but not complete
blockout.

5 | P a g e
CONTROL OPTIONS
EASYRISE LOOPED CORD CONTROL
•A continuous loop and clutch assembly with low
ratio gear to ensure easy operation
•Cord tensioning devise to enhance child safety
comes standard
ULTRAGLIDE RETRACTABLE CORD CONTROL
•Retractable cord for effortless operation to raise
and lower the shade
•Single cord length for improved aesthetics and
child safety
POWERVIEW AUTOMATED CONTROL
•Perfect for hard to reach windows
•Powered by battery wand or DC power supply
that plugs into a standard power point
•Hand-held or wall mounted remote control
options
•Control via smartphone & voice control
NOTE: Silhouette Powerview Shades can only be manufactured with the
manual control button on the right-hand side

6 | P a g e
LIMITATIONS
Limitations

7 | P a g e
MEASURING
All measurements should be wood to wood or opening sizes. Factory will make
deductions.

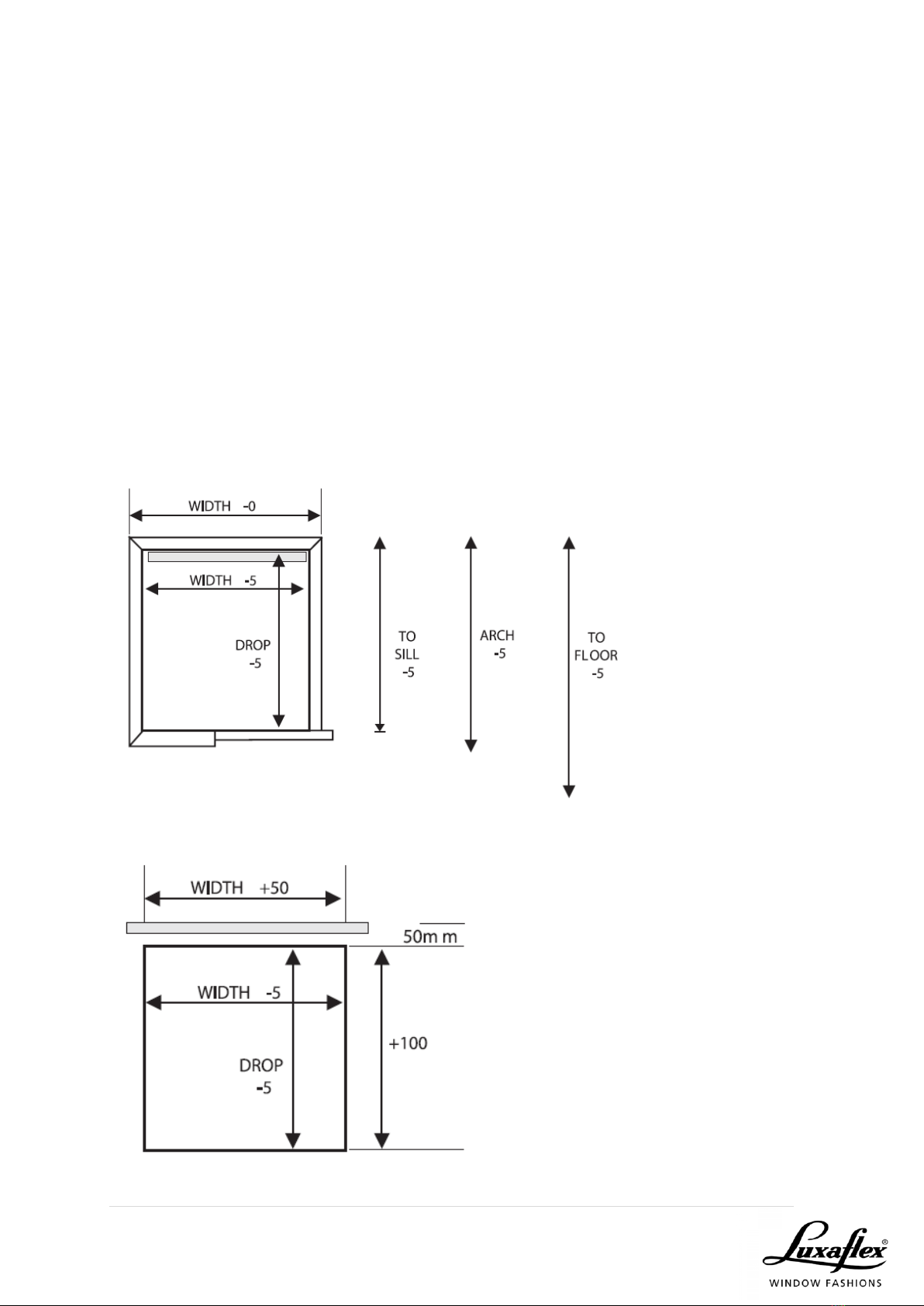

FACTORY DEDUCTIONS:
Inside fitting
Width -5mm
Drop -5mm
Outside fitting
Width As per given measurement
Drop -5mm
ARCHITRAVE & REVEAL
FACE & REVEAL

8 | P a g e

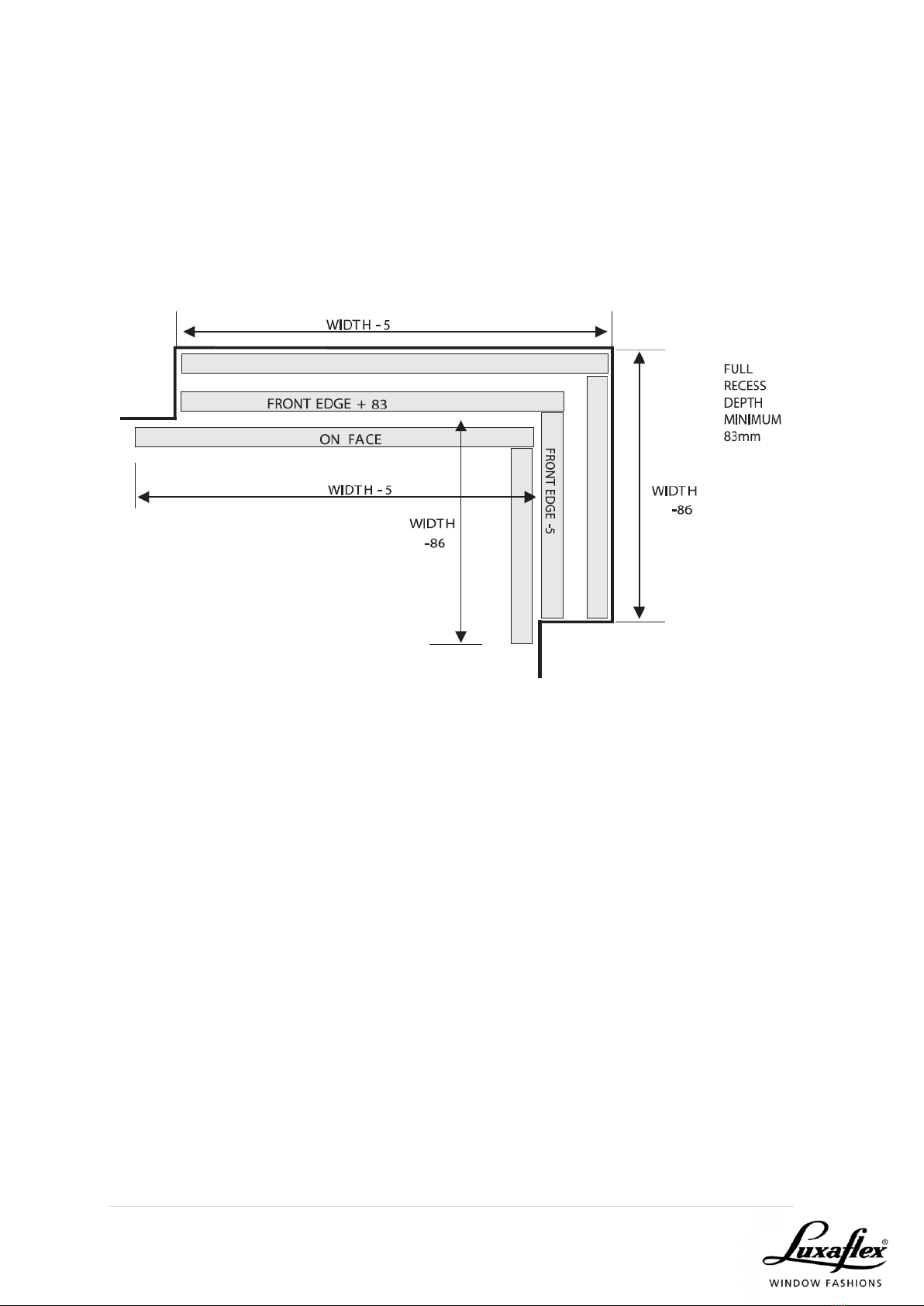

CORNER DETAIL
•Blind No. 1 is through blind
•Blind No. 2 is butting blind
•Measure to back corner and deduct 86mm
•State on order whether you have made the corner deduction or not
•The installation bracket does not protrude past the back of the headrail

9 | P a g e
BAY WINDOW
•For all bay windows that are not 90-degree right angles
•Determine where in the reveal the blind will sit (83mm required)
•Measure at the front edge where the headrails meet record and write
down butting
•There will be approximately 30mm gaps between fabrics with vanes in an
open position & 50mm in a closed position
MULTIPLE SHADES

10 | P a g e
PRODUCT CHARATERISTICS
Light Gaps
Control End
13mm
Idle End
7mm
Light Gaps (side-by-side shades)
Right/Right Controls
20mm
Left/Left Controls
20mm
Right/Left Controls
26mm
Left/Right Controls
14mm
Minimum Recess
Without Back Cover
25mm
Mount Depth
With Back Cover
30mm
Minimum Fabric Clearance
3mm
Cord Loops
White
300mm
600mm
1800mm
2100mm
2400mm
3000mm
3600mm
All Colours (limited range)
900mm
1200mm
1500mm
*Colours include: White, Light Alabaster, Ivory, Cameo Pink, Manilla, Stone,
Skyline Blue & Squirrel Grey

11 | P a g e

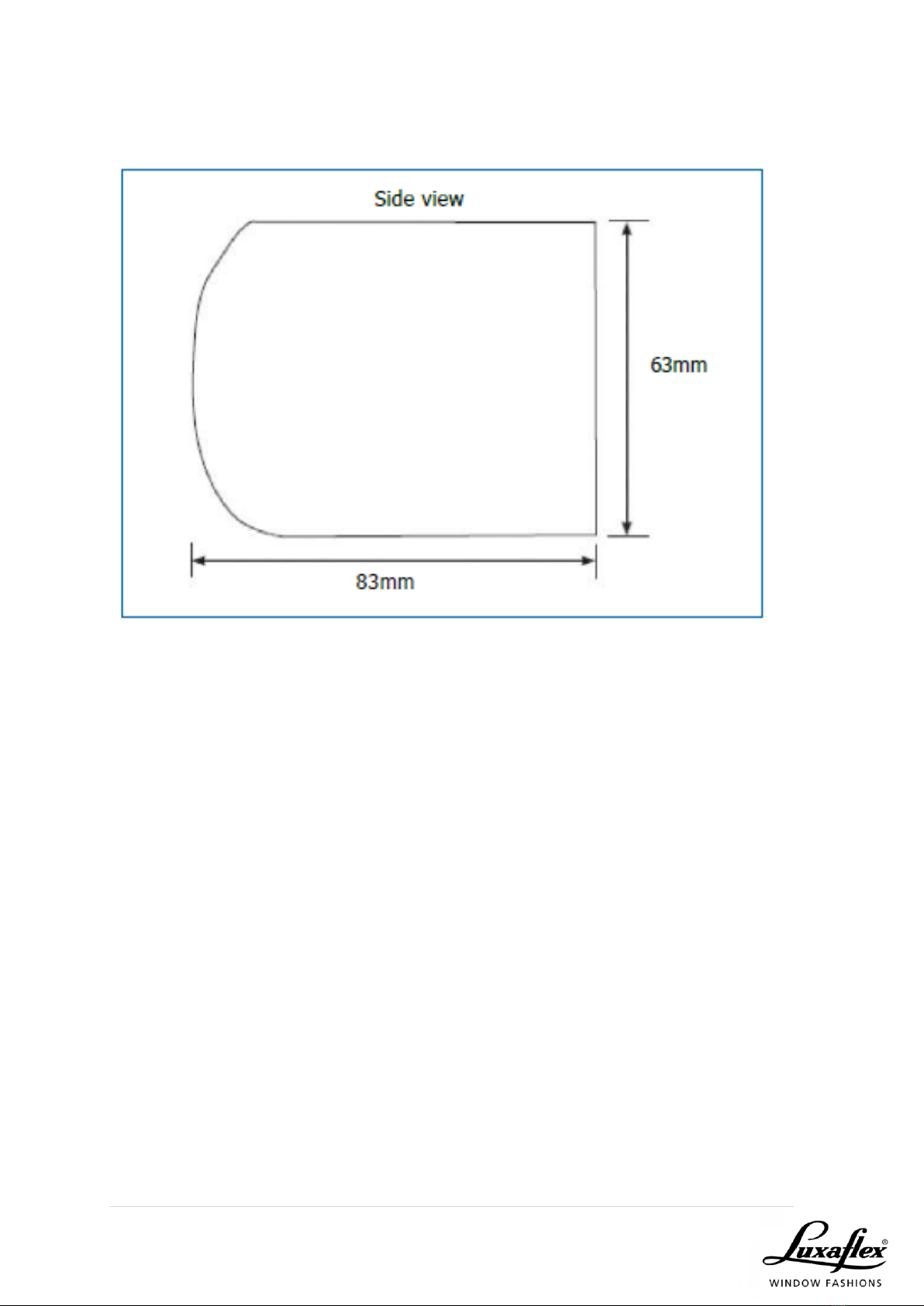

HEADRAIL SIDE ELEVATION

12 | P a g e

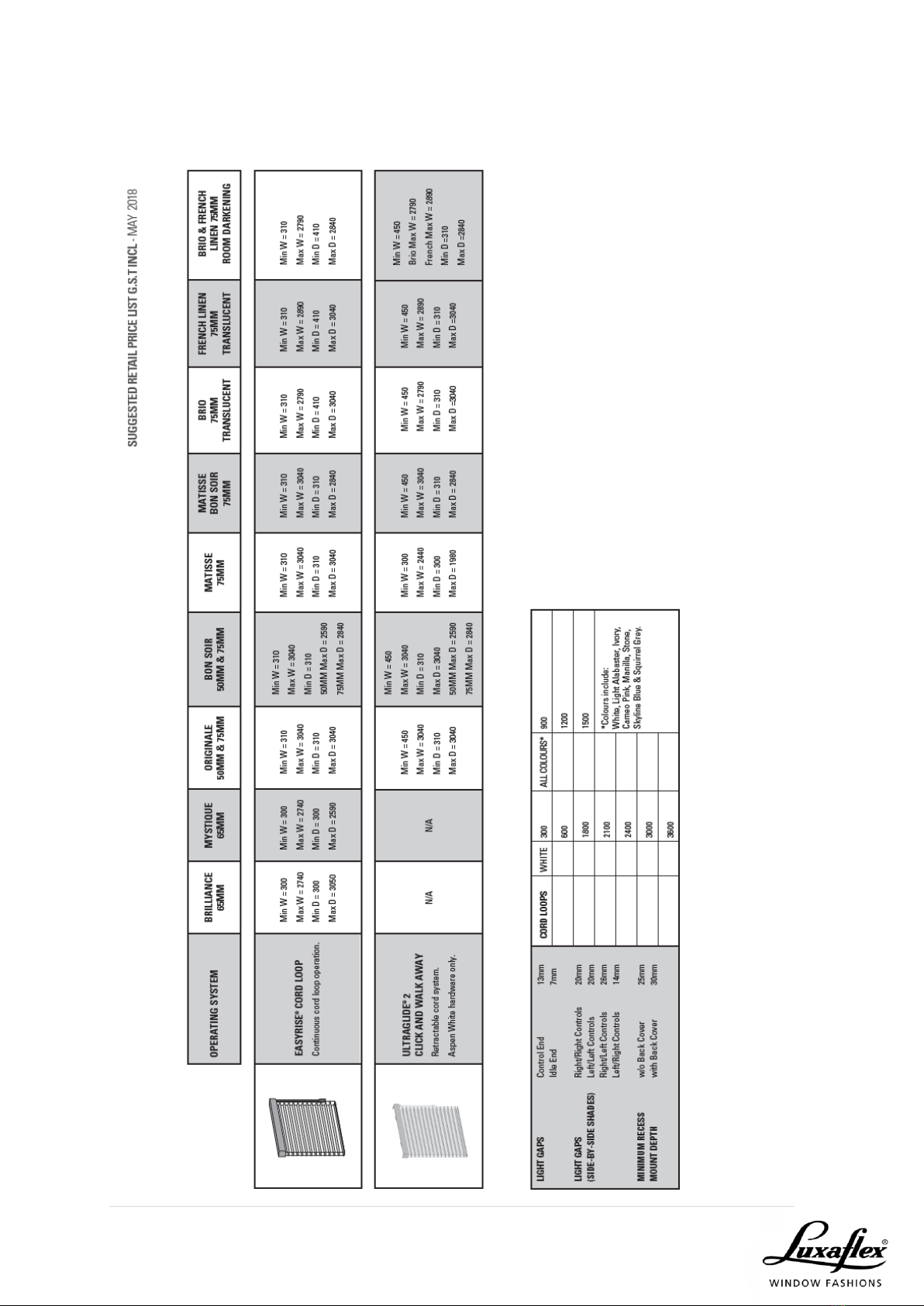

OPTIONS & LIMITATIONS
EASYRISE (CONTINUOUS CORD)
Silhouette EasyRise
Originale
50mm
Originale 75mm
Voila 75mm
Sunscreen
Privacy
Shadings 75mm
Matisse
Collection
75mm
Bon Soir
50mm
Nouveau
75mm
Matisse
Collection
Bon Soir
75mm
Bon Jour
50mm &
75mm
Minimum Width
300mm
Maximum Width
2740mm
3040mm
3040mm
3040mm
3040mm
Minimum Drop
300mm
Maximum Drop
3050mm
3050mm
2590mm
2840mm
2440mm
Light (Control Side)
Gaps (Idle End)
13mm
7mm
Minimum Rear Fabric
Clearance
3mm
Minimum Recess
Depth Oversize
Headrail Depth
25mm
83mm
Fully Recessed Box Mount
110mm
Face Mount Min/Height
20mm
Face Mount Min Above
Opening
57mm
Aluminium Cover Strip
PVC Cover Strip
Full Face Fit
Partial Face Fit
Cord Loops
White: 300, 600, 1500, 1800, 2100, 2400, 3000, 3600
All Colours: 900, 1200, 1500
Back Cover Min Recess
Mounting Depth
w/o Back Cover 25mm
with Back Cover 30mm
Tilt Only Min Width
150mm

13 | P a g e
POWERVIEW
NOTE: Silhouette Powerview Shades can only be manufactured with the
manual control button on the right-hand side
Silhouette Powerview
Originale
50mm
Originale 75mm
Voila 75mm
Sunscreen
Privacy
Shadings 75mm
Matisse
Collection
75mm
Bon Soir
50mm
Nouveau
75mm
Matisse
Collection
Bon Soir
75mm
Bon Jour
50mm &
75mm
Minimum Width Battery
Operated
510mm
Minimum Width DC Power
Supply
310mm
Maximum Width
2760mm
3040mm
3040mm
3040mm
3040mm
Minimum Drop
300mm
Maximum Drop
3040mm
2590mm
2840mm
2440mm
3040mm
Light (Control Side)
Gaps (Idle End)
13mm
7mm
Minimum Rear Fabric
Clearance
3mm
Minimum Recess
Depth Oversize
Headrail Depth
25mm
108mm
Fully Recessed Box Mount
110mm
Face Mount Min/Height
20mm
Face Mount Min Above
Opening
57mm
Aluminium Cover Strip
PVC Cover Strip
Full Face Fit
Partial Face Fit
Satellite Infra Red Eye Cord
Lengths
400mm
1200mm
2400mm
Back Cover Min Recess
Mounting Depth
w/o Back Cover 25mm
with Back Cover 30mm

14 | P a g e

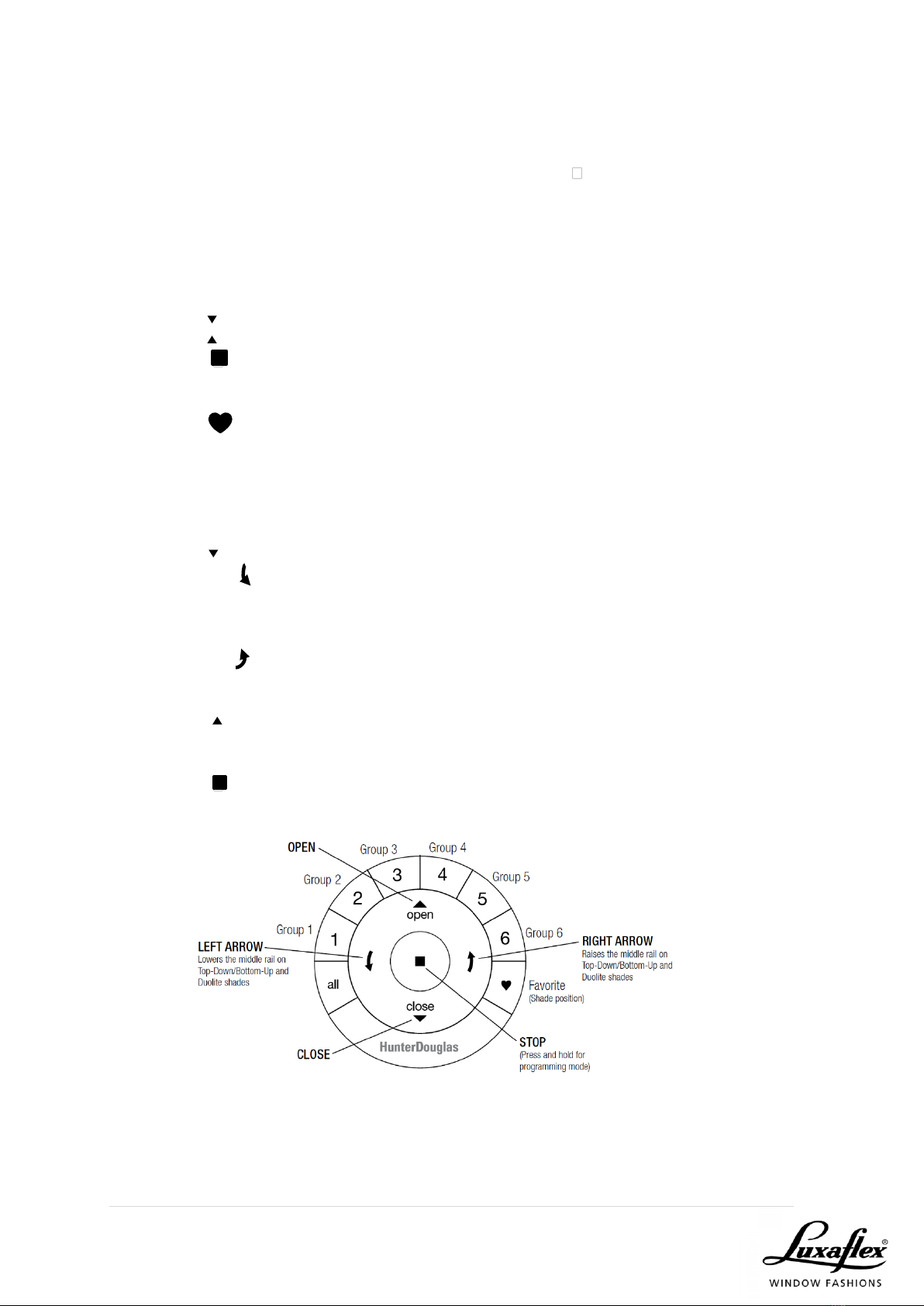

BASIC OPERATION
1. To wake up the remote, simply pick it up or press STOP. The last group(s)
selected will be highlighted and active.
2. Press “all” or groups 1 – 6 to select specific shade(s) to move. Selected
group button(s) will light to show they are selected.
3. Multiple group buttons may be selected at a time.
4. To deselect a group, press the group button again. The backlight for that
group button will go out.
5. Press CLOSE to lower the selected shade(s).
6. Press OPEN to raise the selected shade(s).
7. Press STOP to stop the shade’s movement anywhere along its travel.
8. While a shade is in motion, press the opposite of shade motion (OPEN or
CLOSE) to reverse direction
9. Press FAVORITE to send selected shade(s) to your preset “favourite”
position. Refer to the PowerView® Motorization Remote Control Guide on
how to set a favourite position
TOP DOWN/BOTTOM UP & DAY/NIGHT OPERATION
1. Press CLOSE to lower the bottom rail, closing the shade.
2. Press the left arrow to lower the middle rail. This opens the shade top-
down on a Top-Down/Bottom-Up shade or covers the window with the top
fabric panel on a Day/Night shade. (If the bottom rail is not fully lowered,
pressing this button will lower the bottom rail first then lower the middle rail.)
3. Press the right arrow to raise the middle rail. This closes the shade bottom-
up on a Top-Down/Bottom-Up shade or covers the window with the
bottom fabric panel on a Day/Night shade.
4. Press OPEN to raise the bottom rail, opening the shade bottom-up. (If the
middle rail is not fully raised, pressing this button will raise the middle rail first
then raise the bottom rail.)
5. Press STOP to stop shade movement anywhere along the shade’s travel.

15 | P a g e
CONTROL OPTIONS
Remote Control Scene Controller (in conjunction with
PowerView Hub)
PowerView Pebble (Can house either Remote or Scene Controller)
Surface Wall Mount (Can house either Remote or Scene Controller)
PowerView Hub Kit (Includes PowerView Hub, USB Power Supply, USB Power
Supply Cable, Ethernet Cable and Repeater Kit)
Accessories

16 | P a g e
INSTALLATION
MATERIALS & TOOLS
Each SILHOUETTE® Shading ordered should
include:
•Installation brackets (see chart)
•2 hold-down brackets (optional)
•2 screws for each bracket (20mm x
6#Panhead)
TOOLS REQUIRED
•Steel measuring tape
•Carpenter’s level
•Power or battery drill and bits
•Flat blade and Phillips head screwdrivers

17 | P a g e

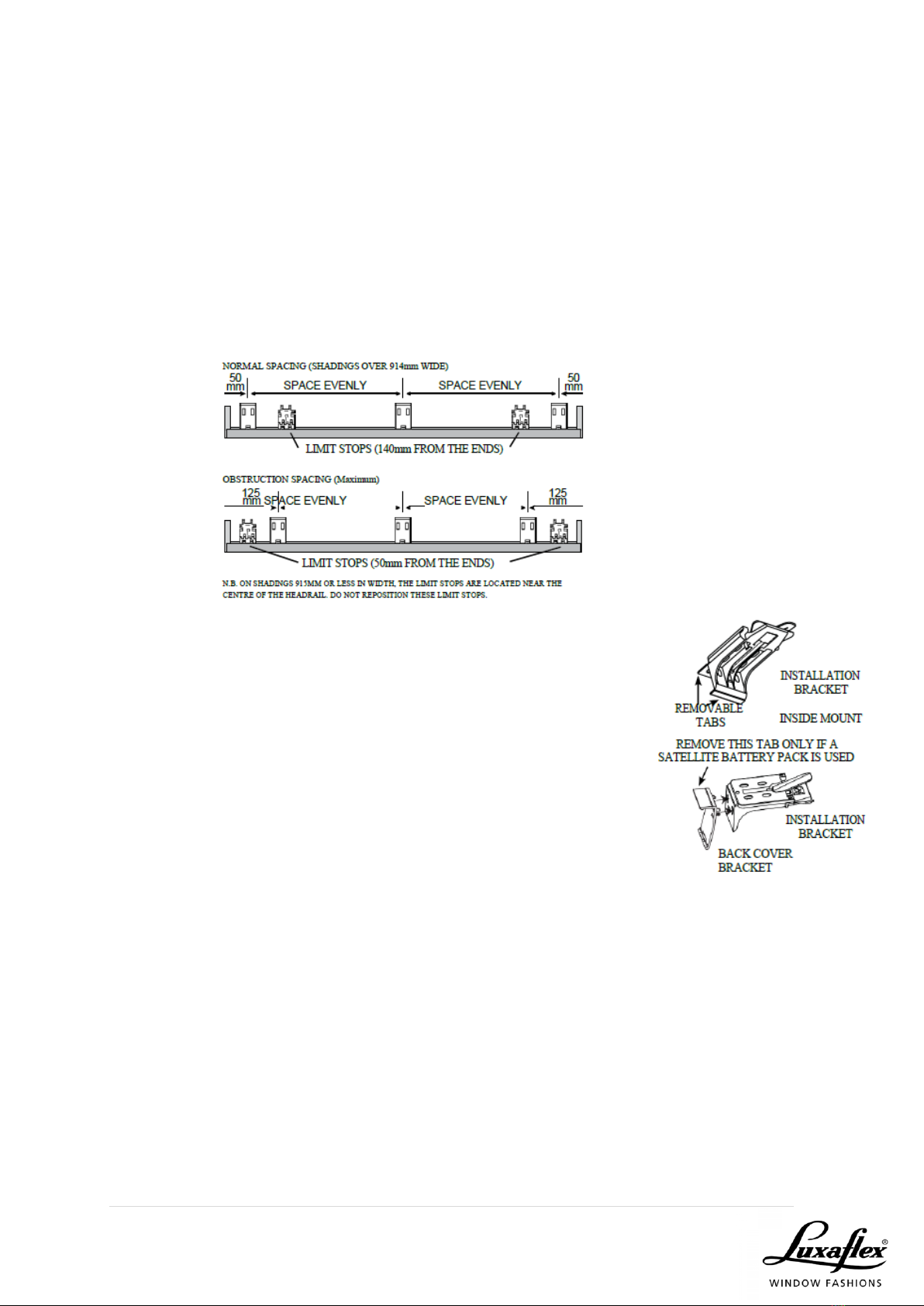

ATTACH THE INSTALLATION BRACKETS
Bracket spacing is the same for both inside and outside mounts. Two installation
brackets are positioned on mounting surface so that their centrelines will be
located 50mm from the ends of the headrail. If more than two brackets are
required, additional brackets are spaced evenly between them. Measure and
mark all bracket centrelines on the mounting surface.
On the headrail of shadings over 915mm wide, the centrelines of the limit stops
should be located 140mm from the ends of the headrail. On shadings 915mm or
less in width, the limit stops should be located near the centre of the headrail.
Should an obstruction prevent the end installation brackets from
being mounted at the 50mm location, the brackets can be
moved further from the ends of the headrail, to a maximum
distance of 125mm. If the final location of the bracket
centrelines is 100mm or more from the ends of the headrail, the
limit stops must be moved. Reposition the limit stops so that their
centrelines are 50mm from the ends of the headrail. The
installation bracket has a tab on the bottom to prevent the
fabric from snagging on the bracket. Do not break off the tab
unless it interferes with bracket attachment. To remove the tab,
simply twist it off with your fingers.
INSIDE MOUNT APPLICATIONS
To inside mount a Silhouette Shading, attach the tops of the installation brackets
to the top sill of the window opening. The flat surface of the sill must be at least
22mm deep. To fully recess the headrail assembly, the flat surface must be at
least 73mm deep. Add to these minimum depth requirements the dimension of
any obstruction to the bottom rail, such as a window crank or handle.
Two screws are used to attach each bracket. Position the brackets on the
centrelines you marked and then attach them with the appropriate fasteners. Be
sure their front edges are aligned

18 | P a g e
INSTALLATION
•Attach a back-cover bracket to each of the installation brackets.
•Break off the removable tabs on the back of the installation bracket.
•Insert the prongs on the back-cover bracket into the holes on the back of
the installation bracket.
•If a satellite battery pack or AC transformer is used, break off the tab at the
top of the back-cover bracket.
Insert the back cover into the back-cover brackets.
•Refer to drawings below to determine the proper positioning of the back
cover.
OUTSIDE MOUNT APPLICATIONS
Mount the ends of the installation brackets on a flat vertical
surface at least 20 mm high. Two screws are used to attach
each bracket. Position the brackets on the centrelines you
marked and then attach them with the appropriate fasteners.
Be sure all the installation brackets are attached at exactly
the same height, and use a Carpenter’s level to check
that the tops of the brackets are perfectly horizontal.
SPACER BLOCKS
Spacer blocks are used to project the installation bracket
away from the mounting surface when additional clearance
is required. Each spacer block increases clearance by
12mm. Use a maximum of three blocks, with the solid sides
facing the mounting surface. Check to be sure your
mounting screws are long enough for a secure installation.

19 | P a g e
EXTENSION BRACKETS
Extension brackets can project the installation bracket up to
70mm from the mounting surface. Position the brackets on
the centrelines you marked and use two screws to attach
them. Be sure to align the tops of the brackets on the same
level. Connect the installation brackets with the machine
screws and nuts included with the extension brackets. Use
the same holes on all the extension brackets so that each
installation bracket projects the same distance from the
mounting surface. Indentations are stamped into the
extension brackets between each hole. If desired, the
unneeded length of a bracket may be cut off. This should be done before mounting
the bracket.
INSTALL THE WINDOW SHADING
With the front of the headrail facing you, push the top edge of the headrail into
the installation brackets, as shown. The headrail should click into position at each
bracket location.
When necessary to remove the window shading, insert a flat blade screwdriver
into the slot behind the locking tab on the installation bracket. Push up and twist
the screwdriver. This will move the rail just far enough forward to disengage the
locking tab. Note: The shading may need to be partially lowered to allow the
screwdriver to fit between the headrail and fabric roll.
END MOUNT APPLICATIONS
Two extension brackets can be used to end mount the headrail where
conventional inside or outside mounting techniques will not work.

20 | P a g e
OPTIONAL DUST COVER INSTALLATION

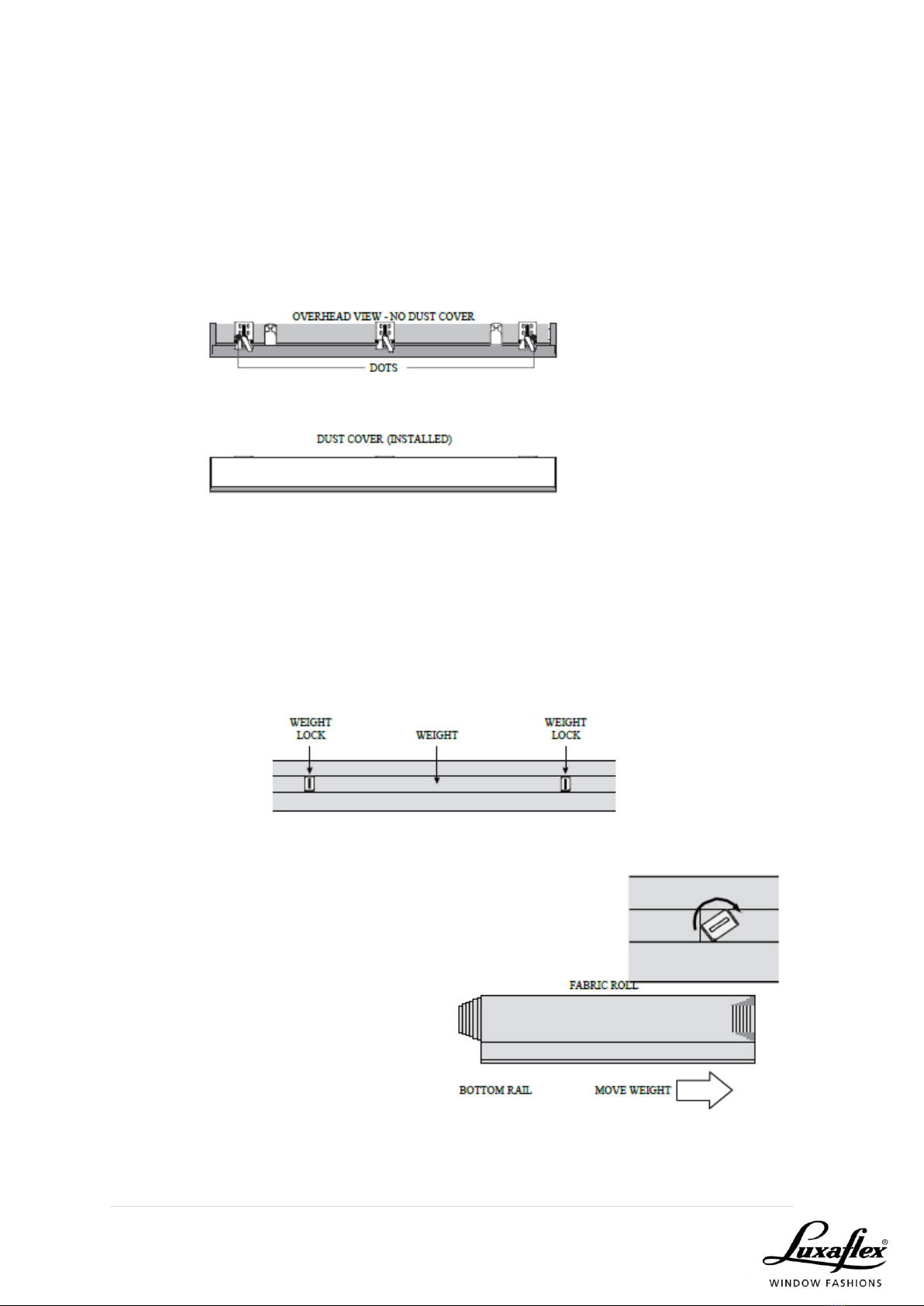

The dust cover is used to protect the top of the headrail from exposure to dust on
face fit installations. To attach the dust cover, remove the backing from one side
of the Velcro dots. Apply the dots to the installation brackets on each end of the
shade and remove the remaining paper from the dots. Centre the dust cover
over the top of the shade, above the previously placed dots and press down to
secure.
ADJUSTMENT
Raise the window shading very slowly the first time and carefully watch how the
fabric winds on the roll. It should wind evenly and not gather on either side. If the
fabric roll becomes uneven or starts to rub against one end of the headrail, stop
raising the shading immediately and adjust the balance weight on the bottom
rail.
To release the weight, insert a coin in
the right-side weight lock and turn it
clockwise. You can then release the
left-side weight lock, again turning it
clockwise. Adjust the weight by
moving it in 25mm increments toward
the side where the fabric is gathering.
After making the adjustment, lock the
weight locks in position by turning
them counter-clockwise. Lower the
window shading all the way and
again raise it slowly, watching how the
fabric winds. If necessary, readjust the
weight in 25mm increments, being careful not to over-adjust.
