LuxaFlex LUMINETTE Dimensional drawing

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 1 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
LUMINETTE
PRIVACY SHEERS

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 2 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 2 OF 25

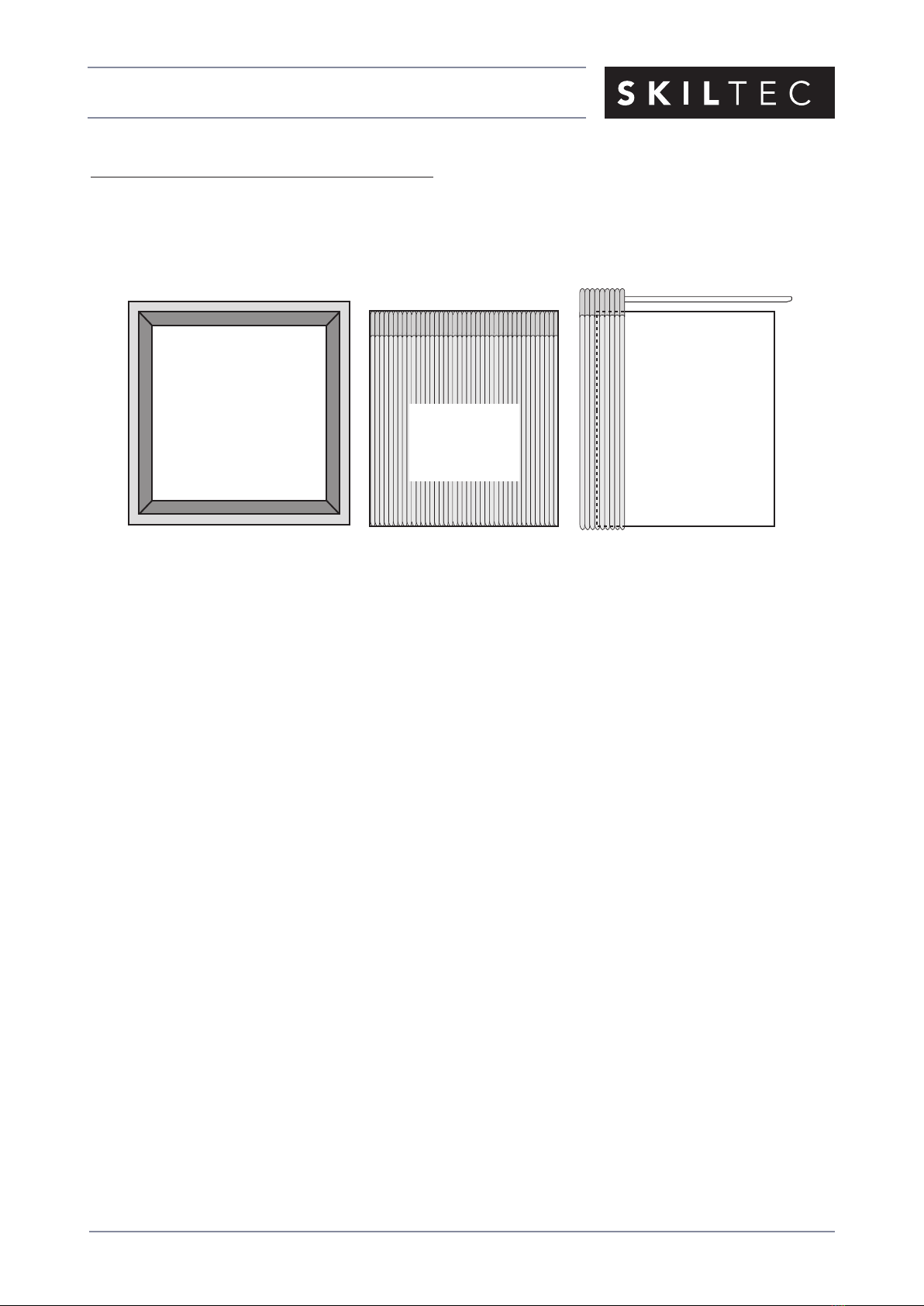

LUMINETTE®Privacy Sheers - Diagram
Standard Parts
201802S12V01

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 3 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 3 OF 25

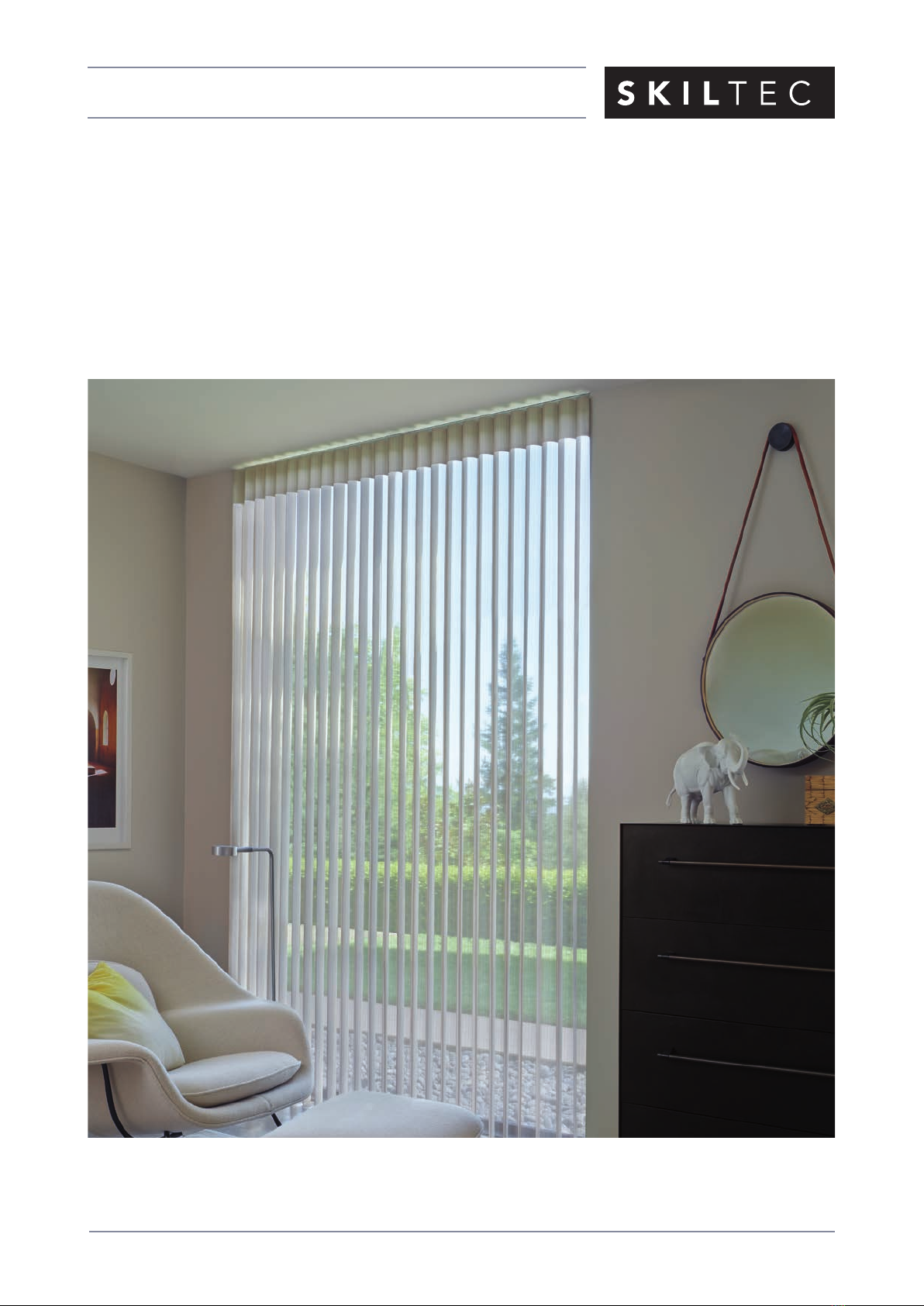

LUXAFLEX®LUMINETTE®
Privacy Sheers offer an
inspired, elegant alternative to
the traditional curtain with its
innovative design.
Luminette Privacy Sheers are a patented window covering
providing a unique take on light and privacy control. The sheer
fabric face diffuses light coming into the house and soft fabric
vanes rotate for privacy and light control. Perfect for large windows
and sliding glass doors.
CLEARLY APPEALING

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 4 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 4 OF 25
Luminette®Privacy Sheers Hardware Colours
The exclusive SOFTTRAK®Scissor Hardware System provides incredibly smooth and reliable operation. The header conceals the
patented operating system as the Luminette Privacy Sheers traverse along the sleek, low profile headrail.
With 6 on-trend hardware colours to coordinate with the wide variety of Luminette fabric colours. This provides the perfect finish
that enhances the overall look of your Luminette Privacy Sheers.
126 White Diamond
437 Mushroom Sparkle
530 Silver
534 Champagne
580 Graphite
528 Bronze

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 5 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 5 OF 25

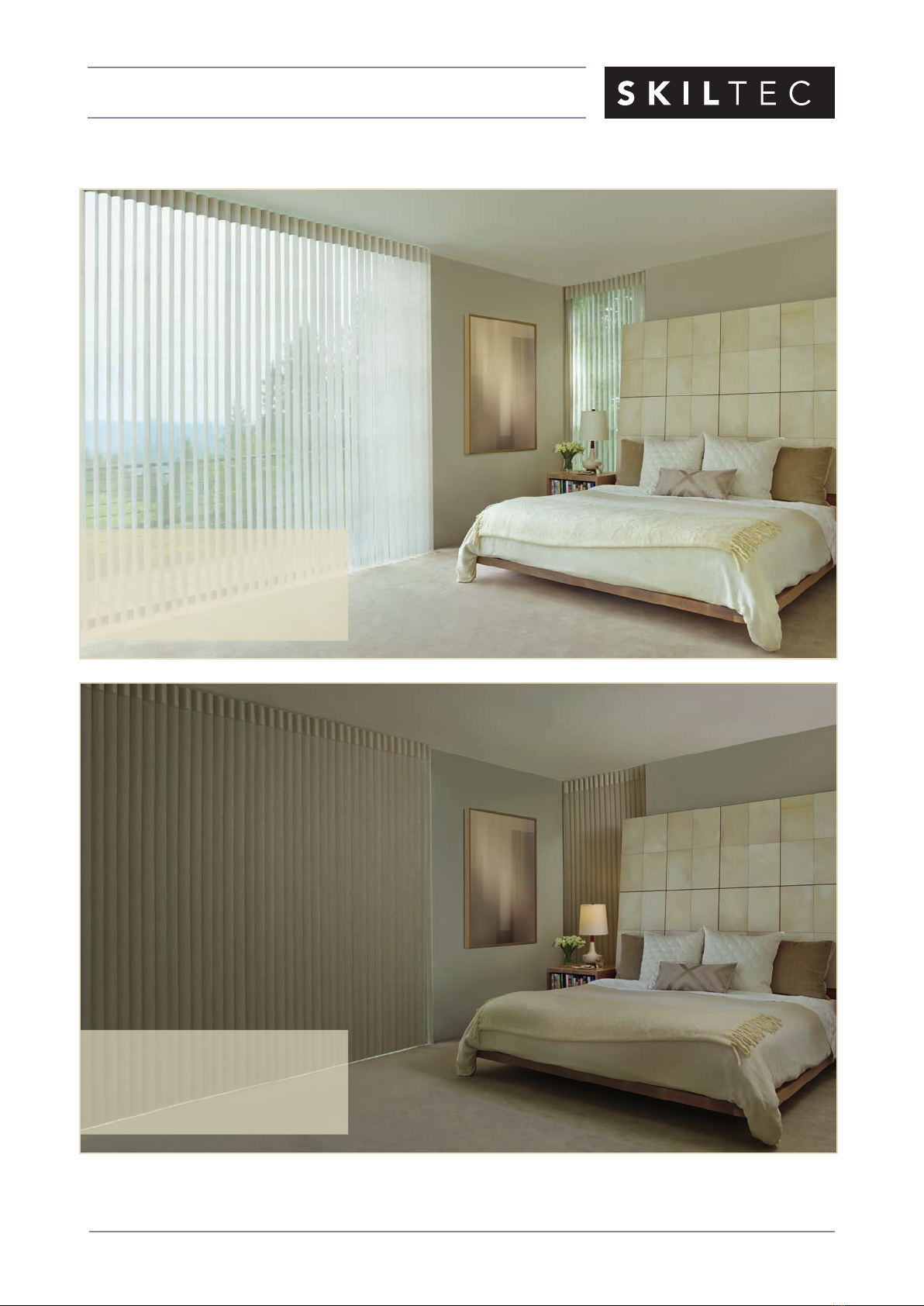

The beautiful nature of the vanes
diffuse light to provide a warm glow
when closed, ideal for living rooms
whilst still preserving outside views
through the sheers as shown when
the vanes are open.
Luminette Privacy Sheers fabric vanes
darken any room and provide privacy
without total blockout, making them ideal
for bedrooms.
Translucent
Room Darkening

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 6 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 6 OF 25
You decide between the safety-minded wand/cord combination,
Travelling Wand or motorised Platinum Technology with its sleek,
single-touch remote.
COMBINATION WAND / CORD
Combine the tilt and traverse functions into
one control, the combination wand/cord
system makes opening, closing and rotating
the vanes quick and easy.
• Pullcordtotraversesheer.
• Twistwandtorotatevanes.
• Sheerstacksonthesamesideaswand/cord.
TRAVELLING WAND
Perfect for sliding glass doors, the Travelling
Wand system is a simple solution for easy,
one-handed access. Simply push or pull the
wand to traverse the product and twist to
rotate the vanes.
• Perfectforslidingglassdoors.
• Pushorpullwandtotraversesheer.
• Twistwandtorotatevanes.
• Sheerstacksonoppositesideofwand.
POWERVIEW WITH
PLATINUM TECHNOLOGY
Thanks to its wireless technology, PowerView
controls incoming light and energy usage
throughout the home with the simple press of
a button.
• Perfectsolutionforlargeorhard-to-reach
windows and doors.
• Nocordsforenhancedchildandpet
safety.
• Batterypoweredremotecontroleasily
traverses sheer and rotates vanes.
AVAILABLE IN 2016

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 7 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Control Placement
• Combination Wand/Cord: sheers stack on same side as wand/cord; for split stack, choose left or right control.
• Travelling Wand: sheers stack on side opposite wand; available with face mount side stack only.
• PowerView: sheers stack on same side as motor; for split stack, choose left or right motor.
Softrak™ System
• An exclusive system that is reliable and easy to
operate.
• Scissors expand when the sheer is drawn closed and
compress when the sheer is drawn open.
• Vane realignment is easy — rotate the vanes first to
one side and then the other.
• The Traveling Wand™ system is a cordless wand
control system that traverses the fabric and rotates
the vanes.
• With the Combination Wand/Cord system, pull the
cord to traverse the fabric, and twist the wand to
rotate the vanes. Use two hands to avoid twisting the
cord.
Tenting
• When sheers are stacked, it is normal for them
to flare out or “tent” at the bottom, or to stack
irregularly due to the heavier fabric.
• To minimize tenting, the consumer can simply
close the sheer less tightly.
Tiltback
• Additional weight of the face fabric in front
causes the sheer to hang at a slight angle, called
“tiltback”. This is an inherent characteristic of the
product and may be more noticeable on shorter
panels.
Luminette®Privacy Sheers - Product Details
Vane Closure Gap
• Closed Privacy Sheers vanes are designed to overlap for privacy when viewed straight on.
• Light leakage may occur due to the vane closure gap, which may increase with the length of the sheer.
• The vane closure gap is most visible when viewed from the side. It is a normal, inherent characteristic of the product and should not
be considered a defect.
• Vane closure is tighter in one direction than the other when the vanes are rotated closed.
Split Stack Centre Gap
• The maximum distance between fabric panels of a split stack design is 6mm.
Vane Closure Gap
Traveling Wand Operation Combination Wand
Cord Operation
Split Stack Centre Gap up
to 6mm

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 8 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Options & Limitations
LUMINETTE
®Privacy Sheers Classic 89mm Vane Size
COMBINATION WAND/ CORD TRAVELLING WAND
SIDE STACK SPLIT STACK SIDE STACK ONLY
MINIMUM WIDTH 300mm 300mm
MAXIMUM WIDTH 4875mm 3660mm
MINIMUM DROP 610mm 610mm
MAXIMUM DROP
3045mm 2540mm
MAXIMUM WIDTH
- End Mount
910mm N/A
MAXIMUM WIDTH
- Side by Side
Drapes
9750mm 7320mm
REVEAL FIT
Minimum Depth
Fully Recessed
25mm
160mm
N/A
N/A
FACE FIT
Minimum Mounting Surface
Overlap Each Side
Past Sill
Floor Clearance
29mm
100mm
50mm
16mm
29mm
100mm
50mm
16mm
END MOUNTING
Minimum
Mounting Depth
32mm 32mm
STANDARD
WANDS/CORDS
FABRIC DROP
610-1018mm
1019-1526mm
1527-2161mm
2162-2415mm
2416-2667mm
2668-3070mm
WAND/CORD
540mm
845mm
1150mm
1455mm
1760mm
1910mm
FABRIC DROP
610-1216mm
1217-2130mm
2131-2540mm
TRAVELLING
WAND
585mm
760mm
1015mm
NON-STANDARD
WANDS/CORDS
760mm 2490mm
1520mm 3045mm
2030mm 3655mm
2285mm
N/A

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 9 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 9 OF 25

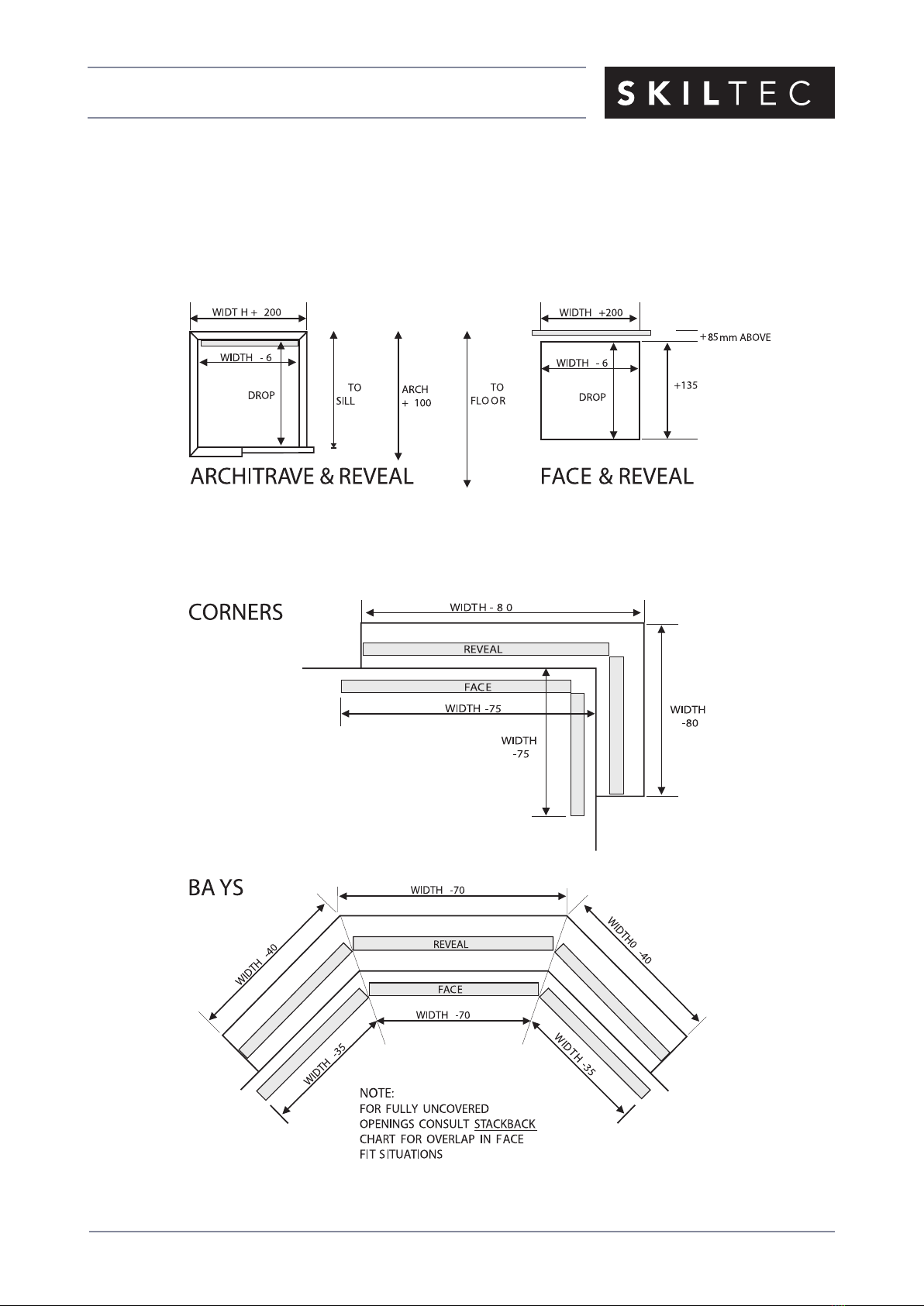

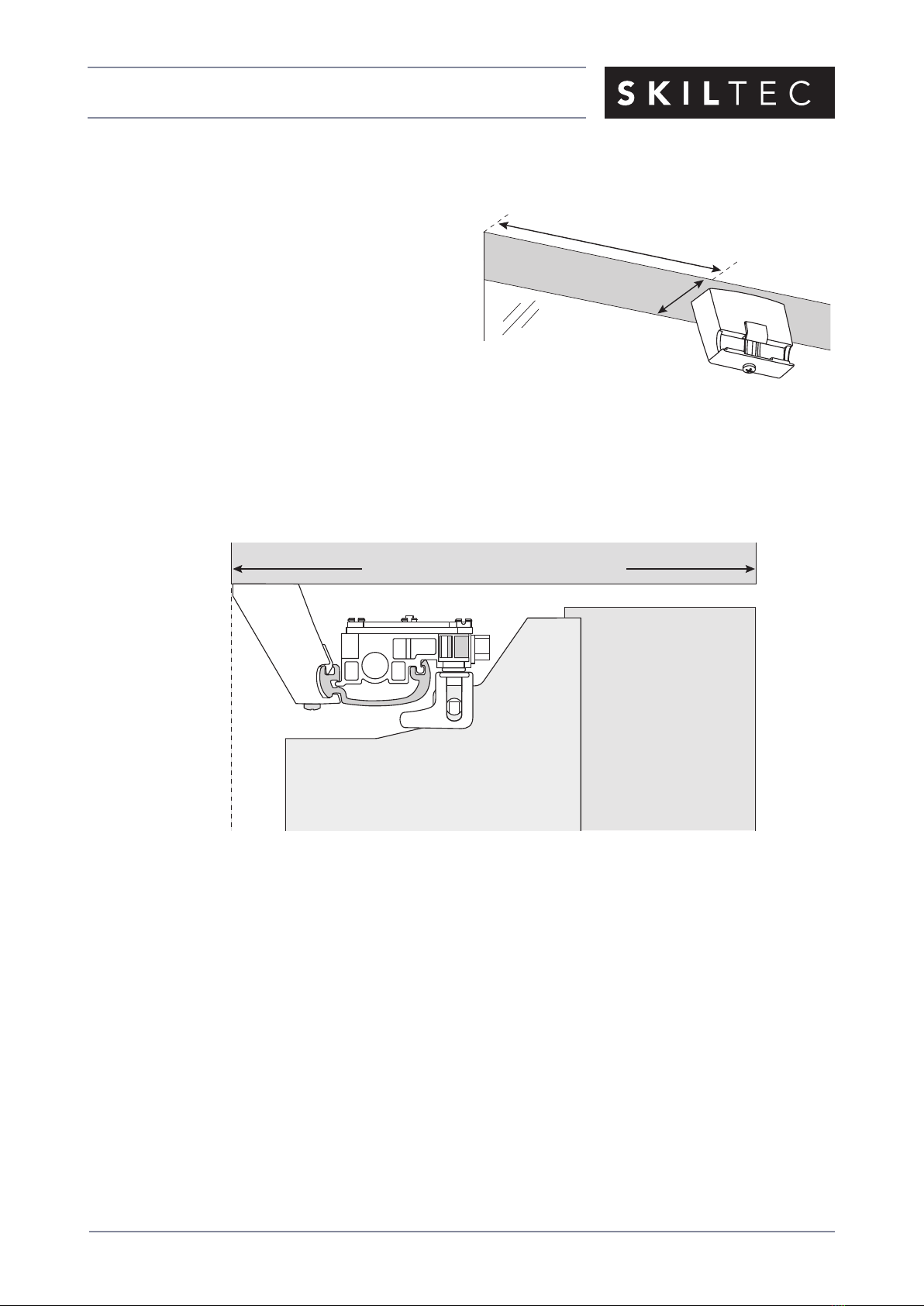

LUMINETTE®Privacy Sheers Measuring
- Classic 89mm Vane Size -
- 5 - 5
- 5
-5

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 10 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
ISSUE DATE: NOVEMBER 2015 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: JANUARY 2011 APPROVED BY: S. GONZALEZ PAGE 10 OF 25
STACKBACK CHARTS
(FACE MOUNTS ONLY) - 89MM

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 11 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
LUMINETTE®PRIVACY SHEERS
PowerView™Motorisation
Installation •Operation •Care

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 12 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS

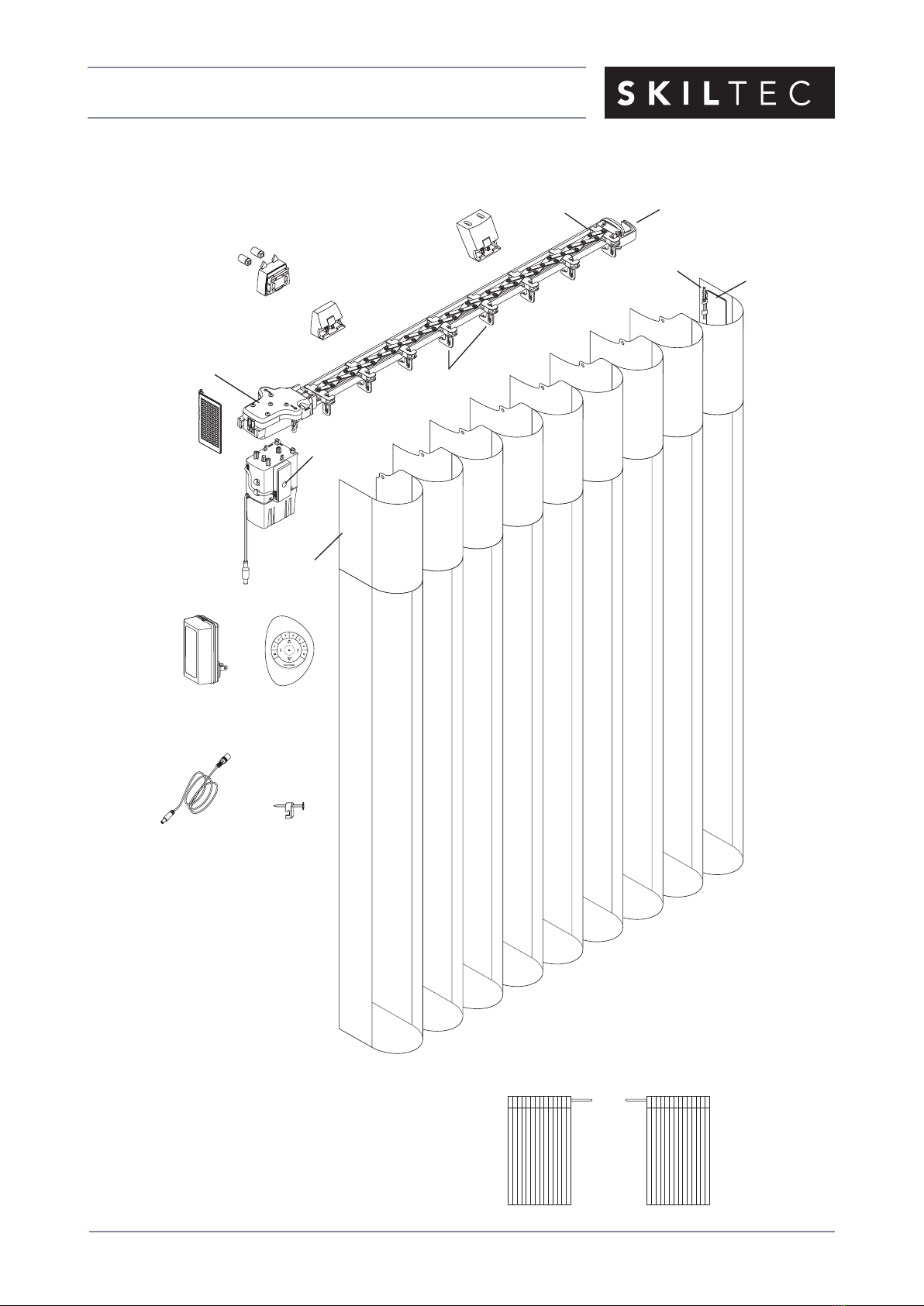

Product View
Left Stack Right Stack
SofTrak™
Headrail
Swivel
Plate
Rivet
Swivel
Arm
Left Stack Shown
Inside/Ceiling
Mount Bracket
Installation Bracket
Faceplate
DC Power
Supply
DC Power
Supply Cable
C-Clip
Modular
Motor
Assembly
Manual
Control
Button
PowerView
™
Remote
Drive Assembly
Spacer Block
with Bushings
Pinion
Clips
Swivel
Plate
End
Treatment

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 13 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Thank you for purchasing LUXAFLEX®LUMINETTE®Privacy Sheers with PowerView™Motorisation. With
proper installation, operation, and care, your new sheers will provide years of beauty and performance.
Please thoroughly review this instruction booklet and the packing list included with your order before
beginning the installation.

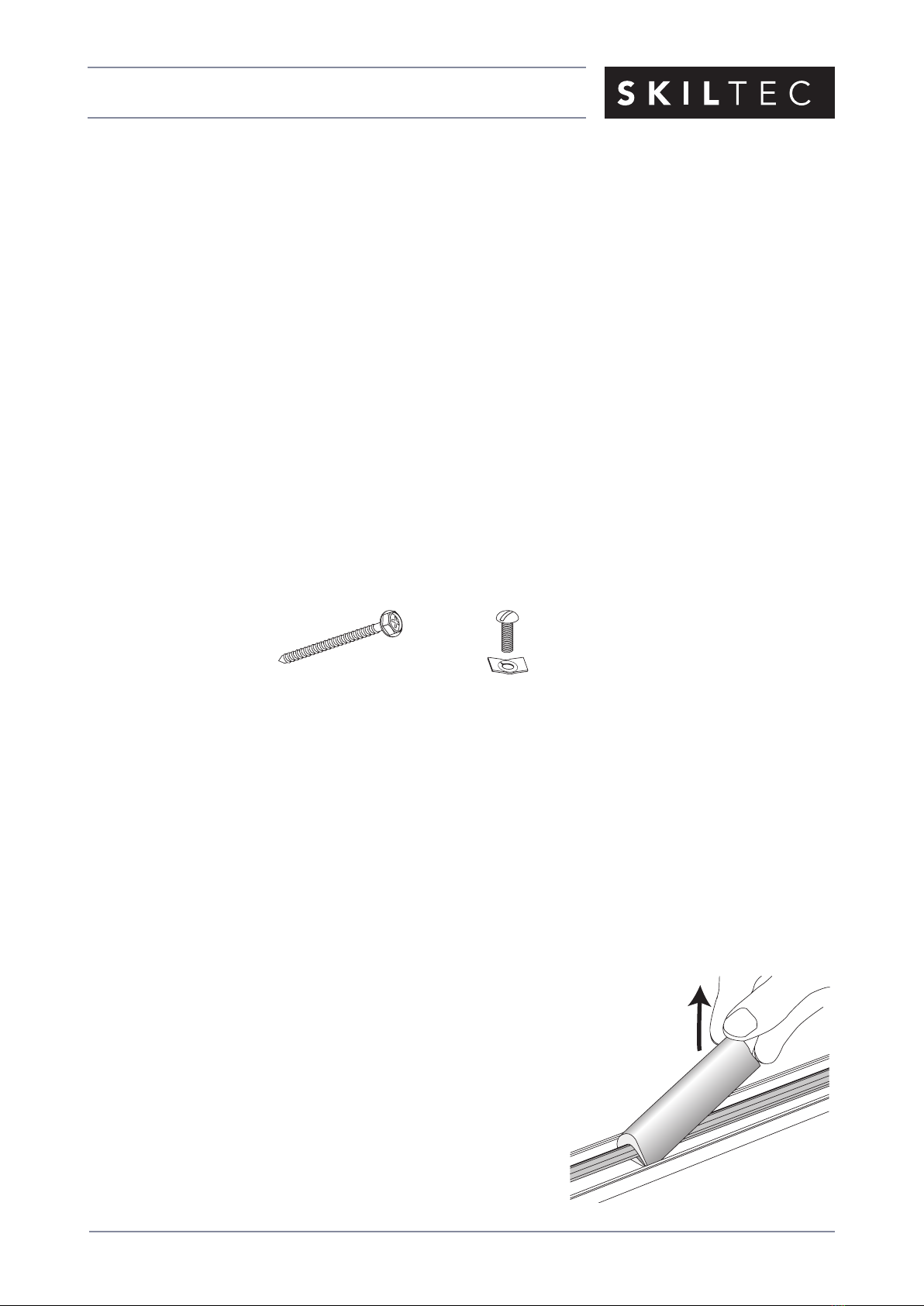

Tools and Fasteners Needed
■Flat blade and Phillips screwdrivers
■Measuring tape and pencil
■Power drill, 3mm drill bit,
and 6mm hex driver
In addition, you will need fasteners designed to work with your specific mounting surface(s).
■#6 Hex Head Screws (Provided). Two 38mm screws are provided per installation bracket.
■Speed Nuts and Screws (Provided). Extension brackets come with screws and speed nuts.
■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.
Unpack the Components
■Make sure you have clean hands or wear disposable gloves when handling Luminette fabric. To avoid
wrinkling the fabric, do not fold it or drape it over furniture.
■One or more fabric panels may be packaged in a carton.
■The fabric panels are rolled around a cardboard tube. Do not remove the protective wrapping until
starting the “Attach the Fabric Panel(s)” step on page 16.
■Remove the SofTrak™headrail system and installation hardware from inside the carton.
■Remove the foam supports from the tilt shaft inside the
headrail. Rotate the supports in either direction until they can
be pulled off.
IMPORTANT: With wider fabrics, the SofTrak headrail may
be shipped separately.
Remove
Foam Supports
■Level (laser level is recommended)
■Needlenose pliers
■Utility knife and scissors
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 38mm
Hex Head Screw
(Provided)

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 14 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows easily. To
prepare for this important first step, review the mounting types and basic window terminology illustrated
below.
■For proper operation, the fabric must clear all obstructions, including window cranks, handles, and
moldings.
➤Replace protruding window cranks with T-cranks, as needed.
■Refer to the appropriate page below based on your order:
➤Reveal/Ceiling Fit — Page 4
➤Face Fit — Page 7
Collectively, the sill and
jambs are called the
“window casement.”
Molding (or Wall)
Head Jamb
Sill (or Floor)
Jamb Jamb
Reveal Fit
Sheer fits
within window
or door opening.
Face Fit
Sheer mounts
outside window
or door opening.
Recommended
Installation

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 15 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS

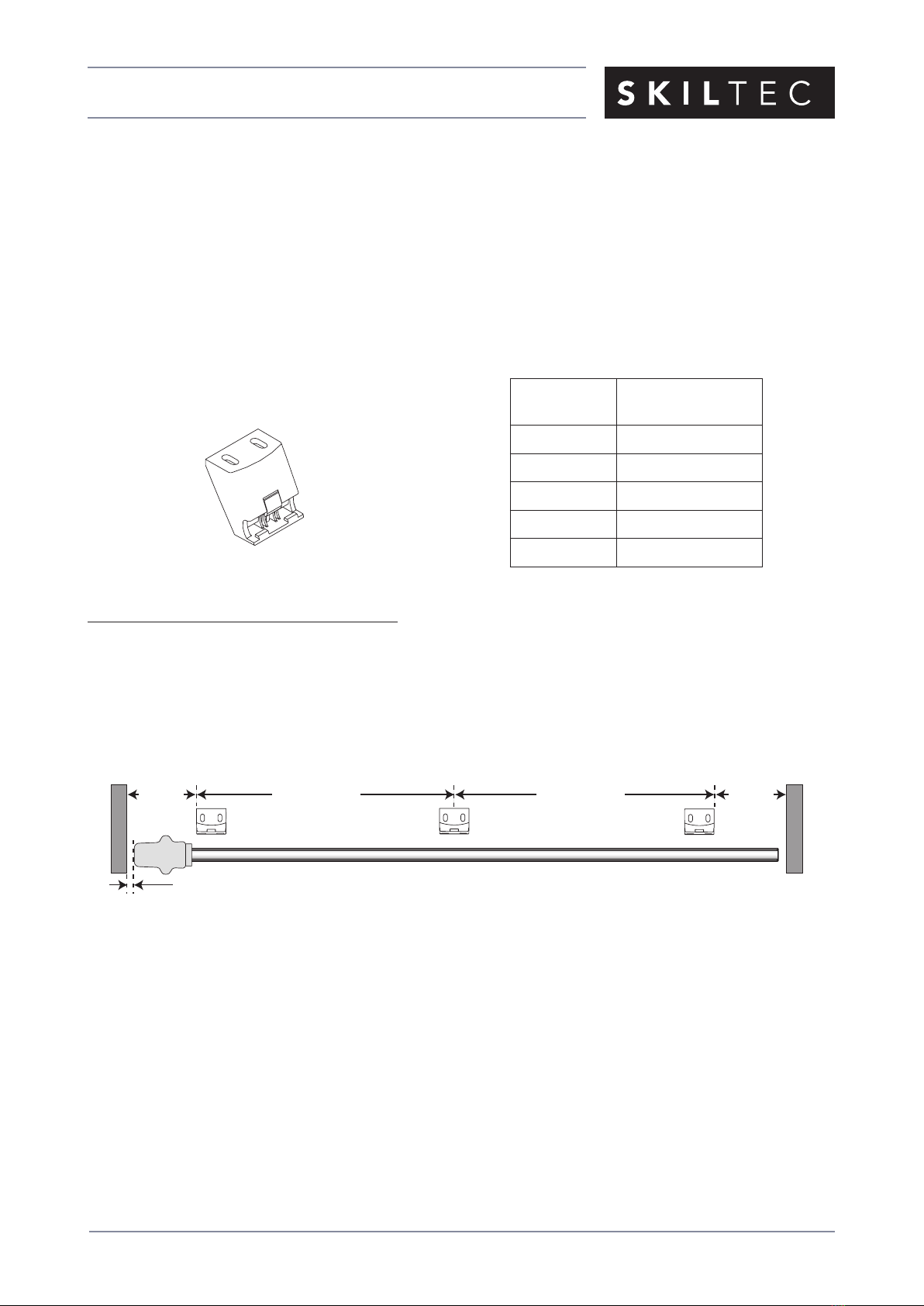

Mount the Installation Brackets — Reveal/Ceiling Fit
If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay Windows” on
page 11 for specific bracket locations. Return to this page after identifying
the bracket locations.
■Your order will include the appropriate number of inside/ceiling mount installation brackets. The number
of installation brackets required varies with headrail width, as shown below.
Measure and Mark Bracket Locations
■Mark 130mm from each jamb on the mounting surface.
➤If more than two installation brackets are required (see table above), mark the locations of additional
bracket(s) spaced evenly between the two end brackets.
CAUTION: Installation brackets should be fastened into wood whenever possible. Use drywall anchors
when mounting into drywall. When attaching brackets into drywall, additional brackets may be required to
keep the headrail level after the fabric is attached.
Inside/Ceiling Mount
Installation Bracket
Headrail
Width (mm)
Brackets Required
Up to 1016 2
1017 - 1778 3
1779 - 2438 4
2439 - 3937 6
3938 - 4875 8
Top View
Bracket
Jamb
Jamb
SofTrak™Headrail
Space EvenlySpace Evenly
130mm
16mm Gap Required
Motor
130mm

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 16 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
■Mark where to drill holes for the screws.
IMPORTANT: The front edges of the brackets must align to each other.
➤Align the outside edge of the end brackets
on your marks, then mark each of the screw
holes. Center additional brackets on the marks
to mark their screw holes.
➤The minimum mounting depth required is
25mm.
➤To fully recess the fabric in the window
casement, the mounting depth required
is 160mm. See the illustration below.
Bracket Headrail
Stacked
Fabric
Vane
160mm Minimum Fully Recessed Depth
Reveal Fit
Fully Recessed Mounting Depth
Window
Side
25mm Minimum
130mm

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 17 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Mount the Brackets
■Drill the screw holes using a 3mm drill bit.
CAUTION: Use drywall anchors when mounting into
drywall.
■Attach the installation brackets using the screws provided.
IMPORTANT: For proper operation, the headrail must be mounted
level. Use a laser level to check that the installation brackets are
level and aligned. Shim the brackets if necessary. The brackets
may also need to be shimmed if the mounting surface is heavily
textured.
To Shim the Brackets:
■Snap off the top of the shim for use with inside/ceiling mount brackets.
■Use the shims, as needed, between the mounting
surface and the reveal/ceiling fit brackets.
Use a laser level as reference.
■To make further adjustments, you may add or remove shims by loosening
the installation bracket screws.
Proceed to “Install the SofTrak™Headrail” on page 23.
Level and
Aligned
Snap Off
Shim
Loosen
screws
to add or
remove shims.

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 18 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS

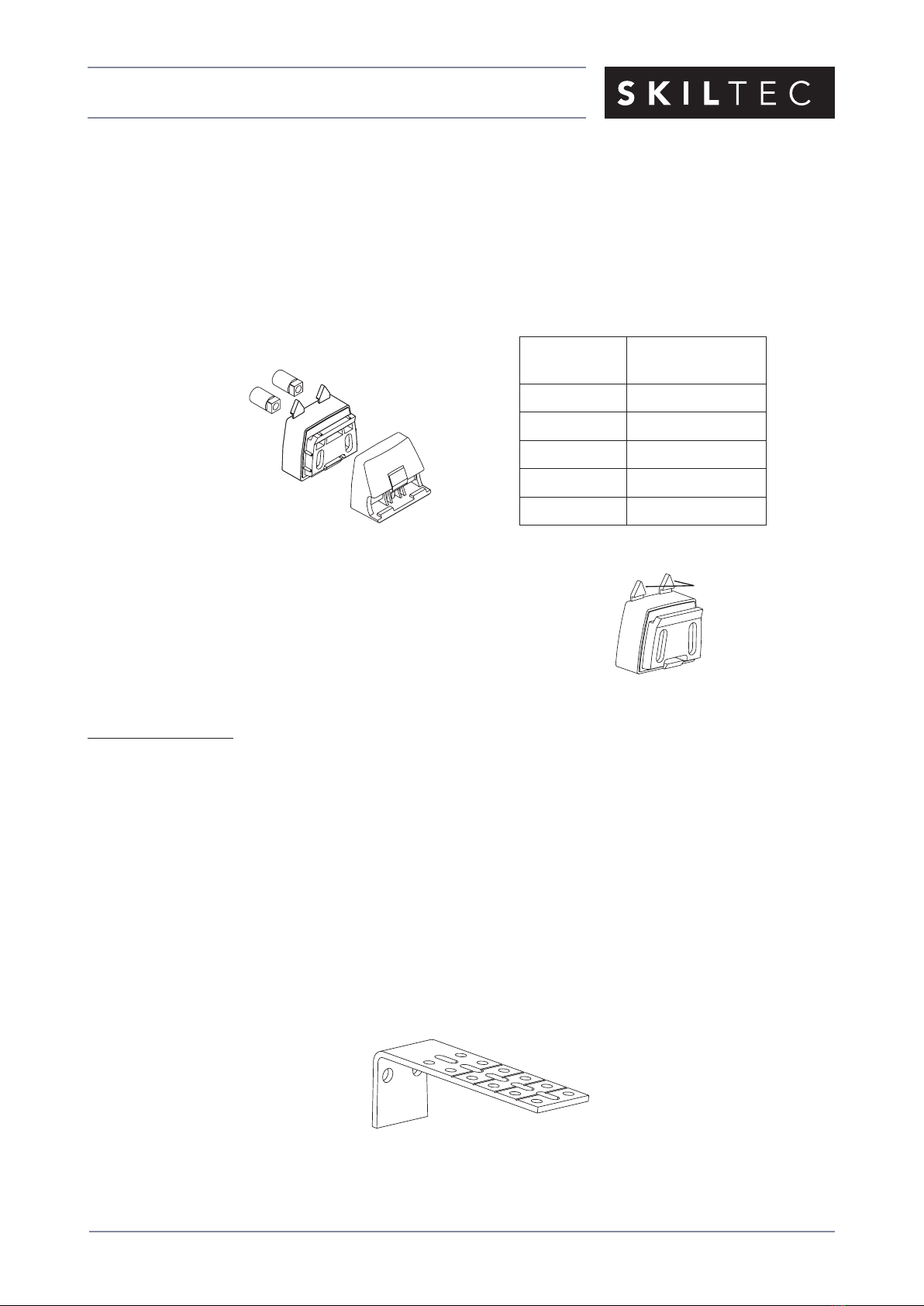

Mount the Installation Brackets — Face Fit
If you are mounting on corner or bay windows, refer to “Bracket Locations — Corner and Bay Windows” on
page 11 for specific bracket locations. Return to this page after identifying the bracket locations.
■Your order will include the appropriate number of installation bracket assemblies. The number of
assemblies required varies with headrail width, as shown below.
IMPORTANT: The spacer blocks have tabs that prevent the
brackets from being mounted too close to the ceiling. If the sheer
will not be mounted at ceiling level, the tabs can be removed.
Adding Clearance
■Use spacer blocks to add additional clearance. Spacer blocks add clearance in 13mm increments.
➤One spacer block is used with the faceplate for standard installation. Three additional spacer blocks
may be added for an extra 38mm clearance.
■Use optional extension brackets to add more clearance.
➤Extension brackets can provide up to 90mm clearance.
➤Indentations are stamped into the extension brackets between each set of holes. Using the
indentations as a guide, you may cut off any unneeded length before mounting the extension
brackets. Each two-hole section is 13mm length.
Headrail
Width (mm)
Bracket Assemblies
Required
Up to 1016 2
1017 - 1778 3
1779 - 2438 4
2439 - 3937 6
3938 - 4875 8
Removable
Tabs
Faceplate
Spacer
Block
Bushings
Outside Mount
Bracket Assembly
Extension
Bracket

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 19 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
Measure and Mark Bracket Locations
■Position the SofTrak™headrail over the window or door opening at the ordered height, found on the
headrail label. Use a pencil to lightly mark each end of the headrail.
➤Alternatively, measure the width of the headrail and use that width to mark the headrail end points
over the opening.
IMPORTANT: Typically, split stack designs are centered over the opening. However, side stack designs
may be offset to one side if the fabric was intended to stack partially or completely off the window or
door opening. The intended stackback must be taken into account when marking the headrail end
points.
■Mark 130mm from each end of the headrail.
➤If more than two installation brackets are required (see table on previous page), mark the locations
of additional bracket(s) spaced evenly between the two end brackets.
CAUTION: Installation brackets should be fastened into wood whenever possible. Use drywall anchors
when mounting into drywall. When attaching brackets into drywall, additional brackets may be required to
keep the headrail level after the fabric is attached.
■Mark the bracket mounting height to allow proper floor clearance for the fabric when attached to the
headrail. This method provides a minimum of 13mm floor clearance.
➤Locate the ordered height on the headrail label.
➤Spacer Blocks: Measure the ordered height minus
6mm from the floor surface. Mark this height at each
bracket location.
➤Extension Brackets: Measure the ordered height plus
6mm from the floor surface.
Mark this height at each bracket location.
IMPORTANT: Mount the screws at the height indicated,
or higher for additional floor clearance. Be sure to clear
all floor obstructions such as carpet, vents, rugs, etc.
Floor Surface
Ordered
Height – 6mm
Ordered
Height + 6mm
Spacer
Block
Extension
Bracket
Headrail End Marks
Window Opening
Space Evenly Space Evenly
130mm 130mm

ISSUE DATE: FEBRUARY 2018 ORIGINATOR: SKILTEC
REPLACES ISSUE DATE: NOVEMBER 2015 APPROVED BY: S. GONZALEZ PAGE 20 OF 38
PRODUCT INFORMATION MANUAL
SECTION: 12 LUMINETTE PRIVACY SHEERS
■Mark where to drill holes for the installation screws.
➤A minimum of 30mm flat vertical surface is required for spacer block installation and
33mm flat vertical surface is required for installation with extension brackets.
➤Align the spacer blocks or extension brackets on your height marks.
➤Align the outside edge of the end spacer blocks or extension brackets on your bracket
location marks, then mark each of the screw holes. Center any additional brackets on
the bracket location marks to mark their screw holes.
CAUTION: The rear of the spacer blocks or extension brackets must be flush against a flat
mounting surface. Do not mount blocks/brackets oncurved molding.
Mount the Spacer Blocks or Extension Brackets
■Drill the screw holes using a 3mm drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
■Attach the spacer blocks or extension brackets using the screws
provided.
➤For the spacer block installation, first insert the square end
of the bushings into the slots in the spacer block. Insert the
screws through bushings.
IMPORTANT: With spacer blocks, place the screws in the
middle of the slots to make aligning the brackets easier.
Bushings
Bushings Inserted
130mm
Headrail
End Mark
Headrail
End Mark
Screw
Height
Mark
Screw
Height
Mark
130mm
