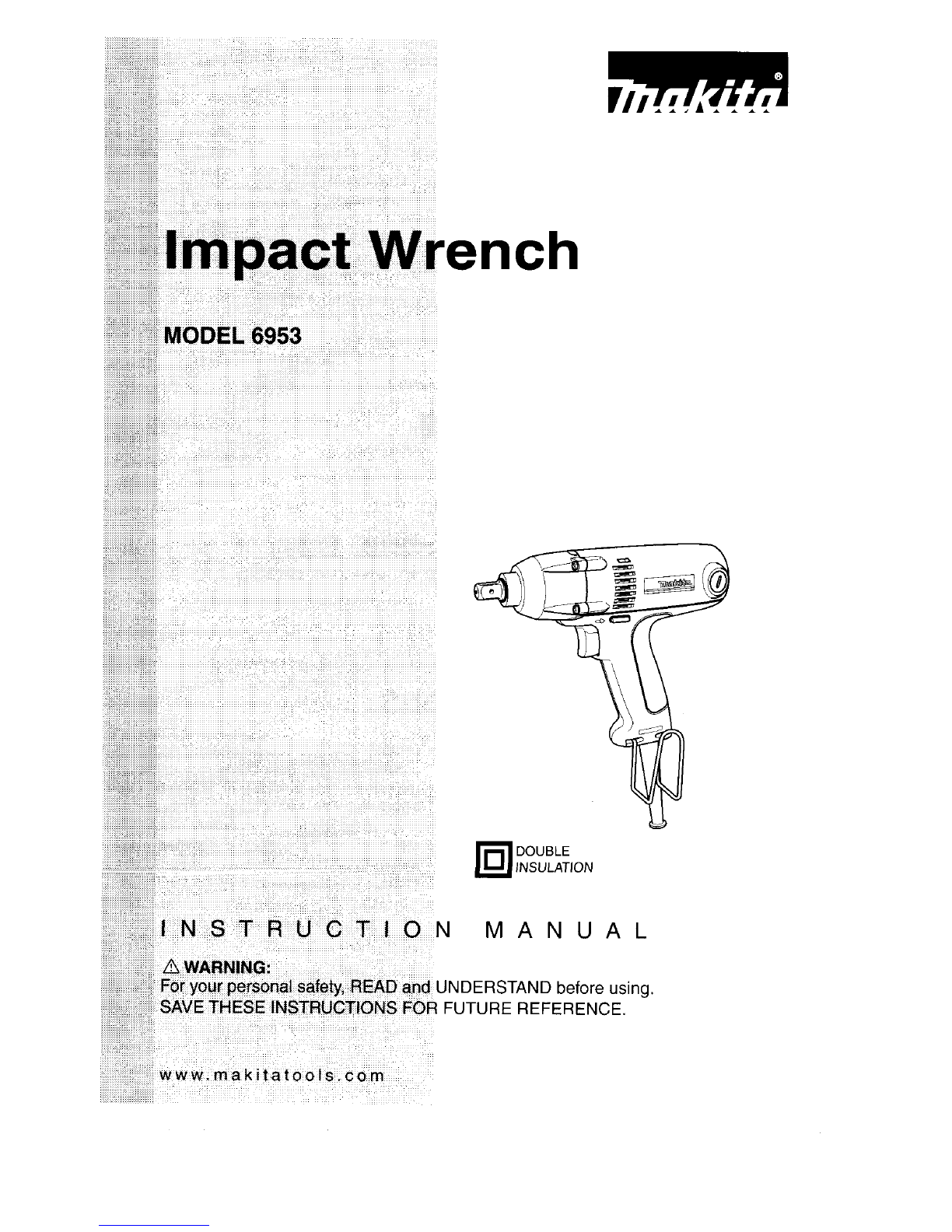

Makita 6953 User manual

DOUBLE
lol INSULATION
MANUAL
using.
;E.

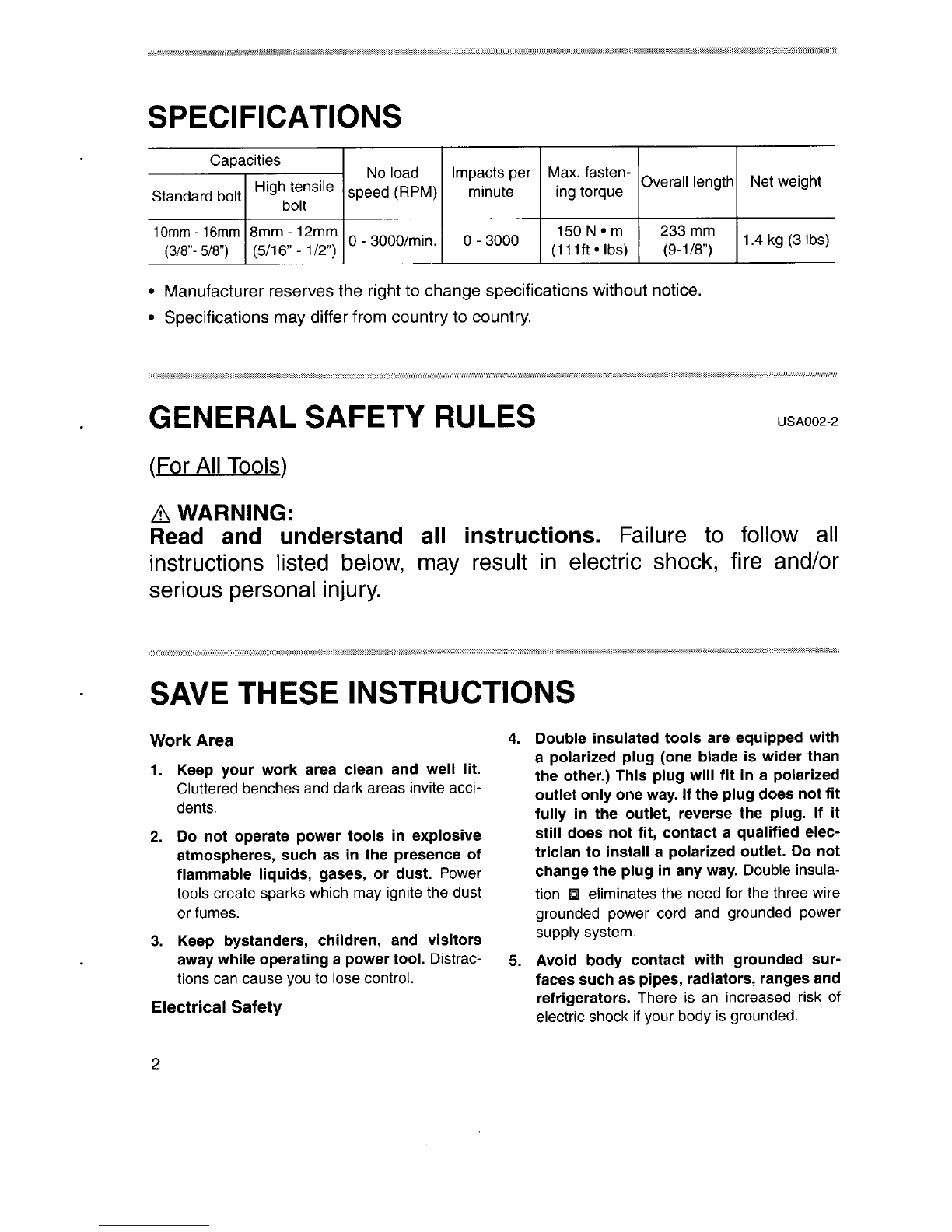

SPECIFICATIONS
10" - 16mm
(3/8- 5/8")
233 mm
1.4kg (3Ibs)
8mm - 12" 150N.m
0 - 3000/min. 0 - 3000 (1, lft. Ibs) (9-1/8)
(5/16
- 1 /2)
Manufacturer reservesthe rightto change specificationswithout notice.
Specifications maydiffer from countryto country.
GENERAL SAFETY RULES USA002-2
(For All Tools)
A WARNING:
Read and understand all instructions. Failure to follow all
instructions listed below, may result in electric shock, fire and/or
serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
1. Keep your work area clean and well lit.
Clutteredbenchesand dark areas inviteacci-
dents.
2. Do not operate power tools in explosive
atmospheres, such as
in the presence of
flammable liquids, gases, or dust. Power
tools create sparkswhich may ignitethe dust
or fumes.
3. Keep bystanders, children, and visitors
away whileoperating a powertool. Distrac-
tions can causeyou
to losecontrol.
Electrical Safety
4. Double insulatedtools are equipped with
a polarized plug (one blade iswider than
the other.) This plug will fit ina polarized
outlet only oneway. Ifthe plugdoes notfit
fully
in the outlet, reverse the plug. If it
still does not fit, contact a qualified elec-
trician to install a polarized outlet. Do not
changethe plug
in any way. Doubleinsula-
tion
H eliminatesthe needfor the three wire
grounded power cord and grounded power
supply system.
5. Avoid body contact with grounded sur-
faces suchas pipes, radiators, rangesand
refrigerators. There is an increased risk
of
electric shock if your body isgrounded.
2

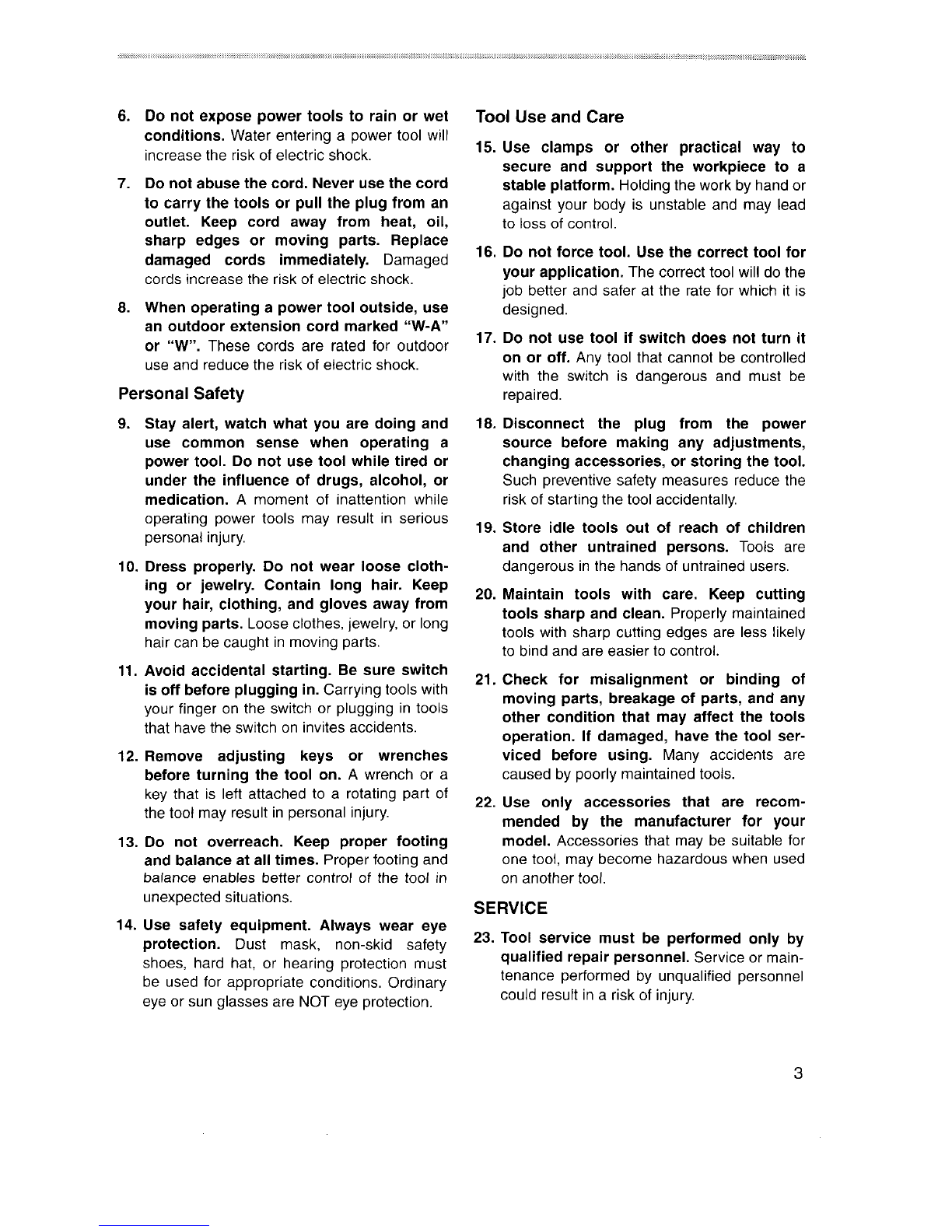

Do not expose power tools to rain or wet
conditions. Water entering a power
tool will
increase the risk of electric shock.
Do notabuse the cord. Never usethecord
to carry the tools or pull the plugfrom an
outlet. Keep cord away from heat, oil,
sharp edges or moving parts. Replace
damaged cords immediately. Damaged
cords increase the risk of electric shock.
When operating a power tool outside, use
an outdoor extension cord marked “W-A”
or
“W”. These cords are rated for outdoor
useandreduce the risk of electric shock.
Tool Use and Care
15. Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holdingthe work by handor
against your body is unstable and may lead
to lossof control.
16. Do not force tool. Use the correct tool for
your application. The correct
tool will do the
job better and safer at the rate for which it is
designed.
17. Do not use tool if switch does not turn it
on or
off. Any tool that cannot be controlled
with the switch is danaerous and must be
u
Personal Safety repaired.
9. Stay alert, watch what you are doing and 18. Disconnect the plug from the power
use common sense when operating a source before making any adjustments,
power tool. Do not use tool while tired or changing accessories, or storingthe tool.
under the influence of drugs, alcohol, or Such preventivesafety measures reduce the
medication. A moment of inattention while risk of starting the
tool accidentally.
operating power
tools may result in serious
personalinjury.
19. Store idle tools out of reach of children
and other untrained persons. Tools are
10. Dress properly. Do not wear loose cloth- dangerous in the hands of untrained users
ing
Or jewelry. Contain long hair’ Keep
20. Maintain tools with care. Keep cutting
your hair, clothing, and gloves away from
movingparts. Looseclothes,jewelry, or long
hair can becaught in moving parts.
11. Avoid accidental starting. Be sure switch
your finger on the switch or plugging in
tools
that havethe switch on invites accidents.
tools sharp and clean. Properly maintained
tools with sharp cutting edges are less likely
to bindandareeasier to control.
2,. Check for misalignment or binding of
other condition that may affect the tools
oDeration. If damased, have the tool ser-
is
off beforeplugging in. Carrying took with
moving parts, breakage of parts, and any
-.
12. Remove adjusting keys or wrenches viced before using. Many accidents are
before turning the tool on. A wrench or a causedby poorly maintained
tools.
key that is leftattached to a rotating part of
the tool may result in personal injury.
22, Use only accessories that are recom-
mended by the manufacturer for your
13. Do not overreach. Keep proper footing
andbalanceat alltimes. Proper footing and
balance enables better control of the
tool in
unexpectedsituations.
14. Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must
be used for appropriate conditions. Ordinary
eye or sun glasses are NOTeye protection.
model. Accessories that may be suitable for
one
tool, may becomehazardous when used
on another
tool.
SERVICE
23. Tool service must be performed only by
qualified repair personnel. Service or main-
tenance performed by unqualified personnel
could result in a risk of injury.
3

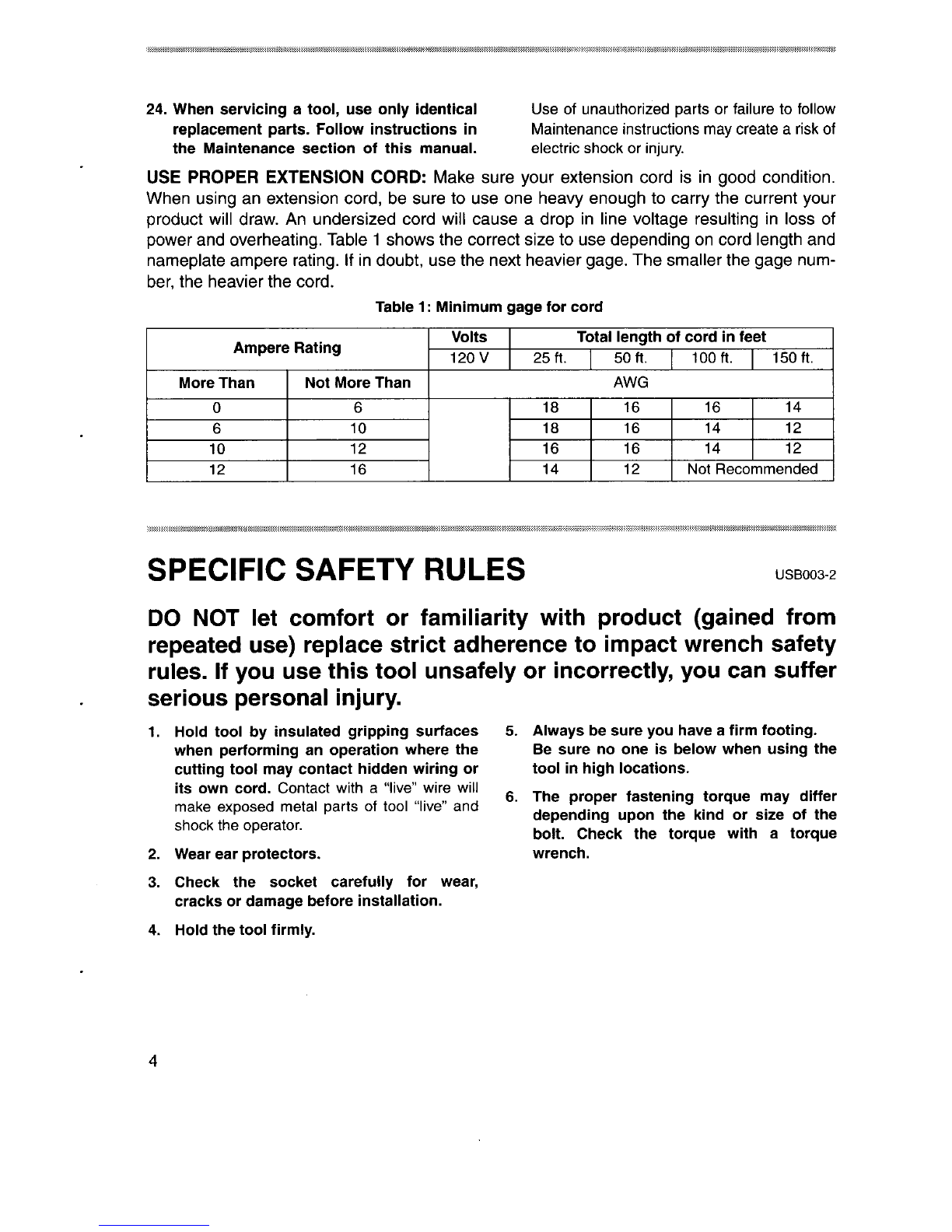

24. When servicing a tool, use only identical
replacement parts. Follow instructions
in
the Maintenance section of this manual.
Use
of unauthorized parts or failure to follow
Maintenanceinstructionsmay create a risk of
electric shock or injury.
USE PROPER EXTENSION CORD: Make sure your extension cord is in good condition.
When using an extensioncord, be sure to use one heavy enough to carry the current your
product will draw. An undersized cord will cause a drop in line voltage resulting in
loss of
power and overheating.Table 1 shows the correct size to use dependingon cord lengthand
nameplateampere rating.
If indoubt, use the next heaviergage.The smaller the gage num-
ber, the heavierthe cord. Table
1 : Minimumgagefor cord
MoreThan Not MoreThan
0 6
Volts
I Total lengthof cord in feet
120V
I 25R. I 50R. I 100R. I 150R.
AmpereRating
I I I I
AWG
I 18 I 16 I 16 I 14
I
6 10
10
I 12 18
I 16 I 14 I 12
16
I 16 I 14 I 12
I
12 16
SPECIFIC SAFETY RULES USBOO3-2
I I I
14 I 12 I Not Recommended 1
DO NOT let comfort or familiarity with product (gained from
repeated use) replacestrict adherence to impact wrench safety
rules.
If you usethis tool unsafely or incorrectly,you can suffer
serious personal injury.
1. Hold tool by insulated gripping surfaces
when performing an operation where the
cutting tool may contact hiddenwiring or
5. Always be sure you have afirm footing.
Be sure no one is below when using the
tool
in high locations.
its own cord. Contact with
a “live” wire will
make exposed metal parts of tool “live” and
shock the operator.
6. The proper fastening torque may differ
depending upon the kind or size of the
bolt. Check the torque with a torque
2. Wear ear protectors. wrench.
3. Check the socket carefully for wear,
cracks or damage before installation.
4. Holdthe toolfirmly.
4

SAVE THESE INSTRUCTIONS
A WARNING:
MISUSE or failure to follow the safety rules stated in this
instruction manual may causeserious personal injury.
SYMBOLS USD202-2
The followings show the symbols used for tool
v ....................... volts
A ....................... amperes
Hz ..................... hertz
'L ................ alternatingcurrent
no .................... no loadspeed
IEl .................... Class II Construction
... lmin ................ revolutions or reciprocationper
minute
& ................ number of blow
5

A CAUTION:
Alwavs be sure that the tool is switched off and
FUNCTIONAL
DESCRIPTION
unpligged before adjusting or checking function on the
tool.
Switch action
A CAUTION:
Before plugging in the tool, always check to see that the
switchtrigger actuates properlyand returnsto the
"OFF"
positionwhen released.
To start the tool, simply pull the switch trigger.Tool speed is
increased by increasing pressure on the switch trigger.
Releasethe switch trigger to stop.
001642
1. Switch trigger
Reversingswitch action
A CAUTION:
Always checkthe directionof rotationbeforeoperation.
Use the reversing switch only after the tool comes to a
complete stop. Changing the direction of rotationbefore
the tool stops may damage the tool.
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A side
for clockwise rotationor from the
B side for counterclockwise
001643
1. Reversing switch lever
2. A side
3. B side
4. Clockwise
5. Counterclockwise
6

ASSEMBLY
A CAUTION:
Always be sure that the tool is switched off and
unpluggedbefore carrying
out any work on the tool.
Selecting correct socket
Always use the correct size socket for bolts and nuts. An
incorrect size socket will result in inaccurate and inconsistent
fastening torque and/or damage to the bolt
or nut.
Installingor removing socket
A CAUTION:
Always be sure that the tool is switched off and
unpluggedbefore installing or removingthe socket.
To install the socket, push it onto the anvil of the tool until it
locks into place. To removethe socket, simply pull it off.
1. Socket
2. Anvil
Hook
The hook is convenient for temporarily hangingthe tool. This
can be removedwithout usinga tool. This can be installedon
either side of the tool.
Installingand removing hook
Expand the upper part of the hook in both directions and
remove
it. To installthe hook, followthe removalprocedure in
reverse.
001645
1. Hook
2. Expand
7

OPERATION
001656
Standard bolt
"
(If IbI1
M12,112'/
1141
Seconds
123
Fastening lime
001659
I:r
High tensile bolt
120
129
Fastening time
The proper fastening torque may differ depending upon the
kindor size of the bolt. The relationbetweenfastening torque
andfastening time is shown in the figures.
Holdthe tool firmly and placethe socket over the bolt or nut.
Turn the tool on and fasten for the proper fastening time.
NOTE:
When fastening screw M8 (5/16) or smaller, carefully
adjust pressureon the switch trigger
so that the screw is
not damaged.
Hold the
tool pointed straight at the bolt or nut without
applyingexcessive pressureon the tool.
If you fasten the bolt for a time longer than shown in the
figures, the bolt or the socket may be overstressed,
damaged,etc. Before starting your job, always perform a
test operation
to determinethe properfastening time for
your bolt. Especially for the bolt over than
M8 (5/16"),
perform the above test operation to prevent the trouble
on socket or bolt, etc.
The fastening torque is affected by a wide variety of factors
including the following. After fastening, always check the
torque with
a torquewrench.
1. Socket
Failure to use the correct size socket will cause a
reductionin the fastening torque.
A worn socket (wear on the hex end or square end)
will cause a reductionin the fastening torque.
2. Bolt
Even though the torque coefficient and the class of
bolt are the same, the proper fastening torque will
differ accordingto the diameter of bolt.
Eventhoughthe diameters of bolts are the same, the
proper fastening torque will differ according
to the
torque coefficient, the class of bolt and the bolt
length.
3. The manner of holdingthe tool or the material of driving
positionto be fastenedwill affect the torque.
4. Operatingthe tool at low speed will cause a reduction in
the fastening torque.
8

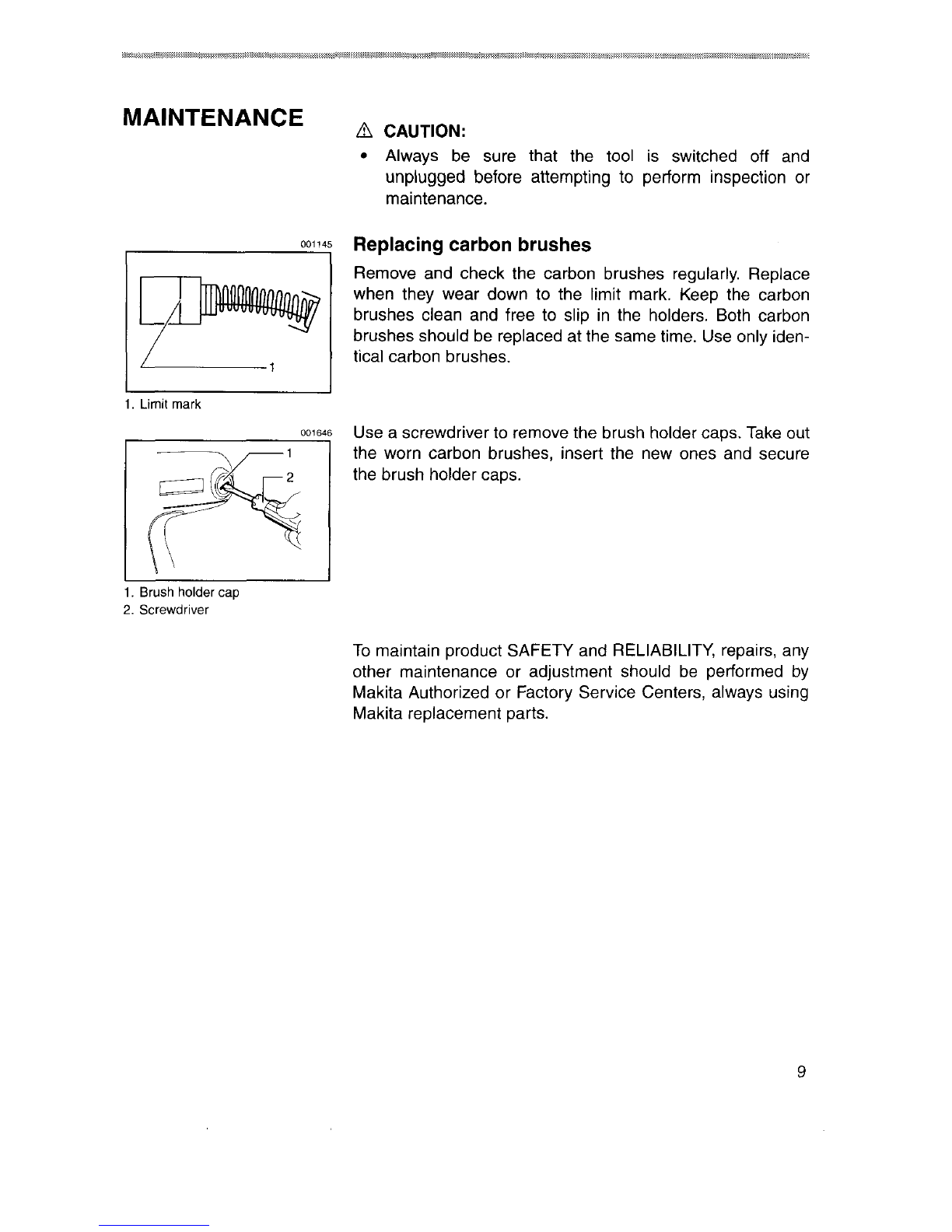

MAINTENANCE
1. Limit mark
001646
1. Brush holder cap
2. Screwdriver
A CAUTION:
Always be sure that the tool is switched off and
unplugged before attempting to perform inspection or
maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes regularly. Replace
when they wear down to the limit mark. Keep the carbon
brushes clean and free
to slip in the holders. Both carbon
brushesshouldbe replacedat the same time. Useonly iden-
tical carbonbrushes.
Usea screwdriver to removethe brush holder caps. Take out
the worn carbon brushes, insert the new ones and secure
the brush holder caps.
To maintainproduct SAFETY and RELIABILITY, repairs, any
other maintenance or adjustment should be performed by
MakitaAuthorized or Factory Service Centers, always using
Makitareplacement parts.
9

ACCESSORIES
CAUTION:
These accessoriesor attachments are recommendedfor
use with your Makita
tool specified in this manual. The
use
of any other accessories or attachments might
present a risk of injury to persons.Only use accessory
or attachmentfor its stated purpose.
If you need any assistancefor more details regarding these
accessories,ask your local Makitaservice center.
Extensionbar
Universaljoint
Bit adapter
Phillipsbits (#2, #3)
10

Memo
.....................................
..... ........................
....
... ._ - .. _.... -. . .. ._.. .- . .
.................................................................... .........
..
..........
......... .-. .. ....
. -. ..
11

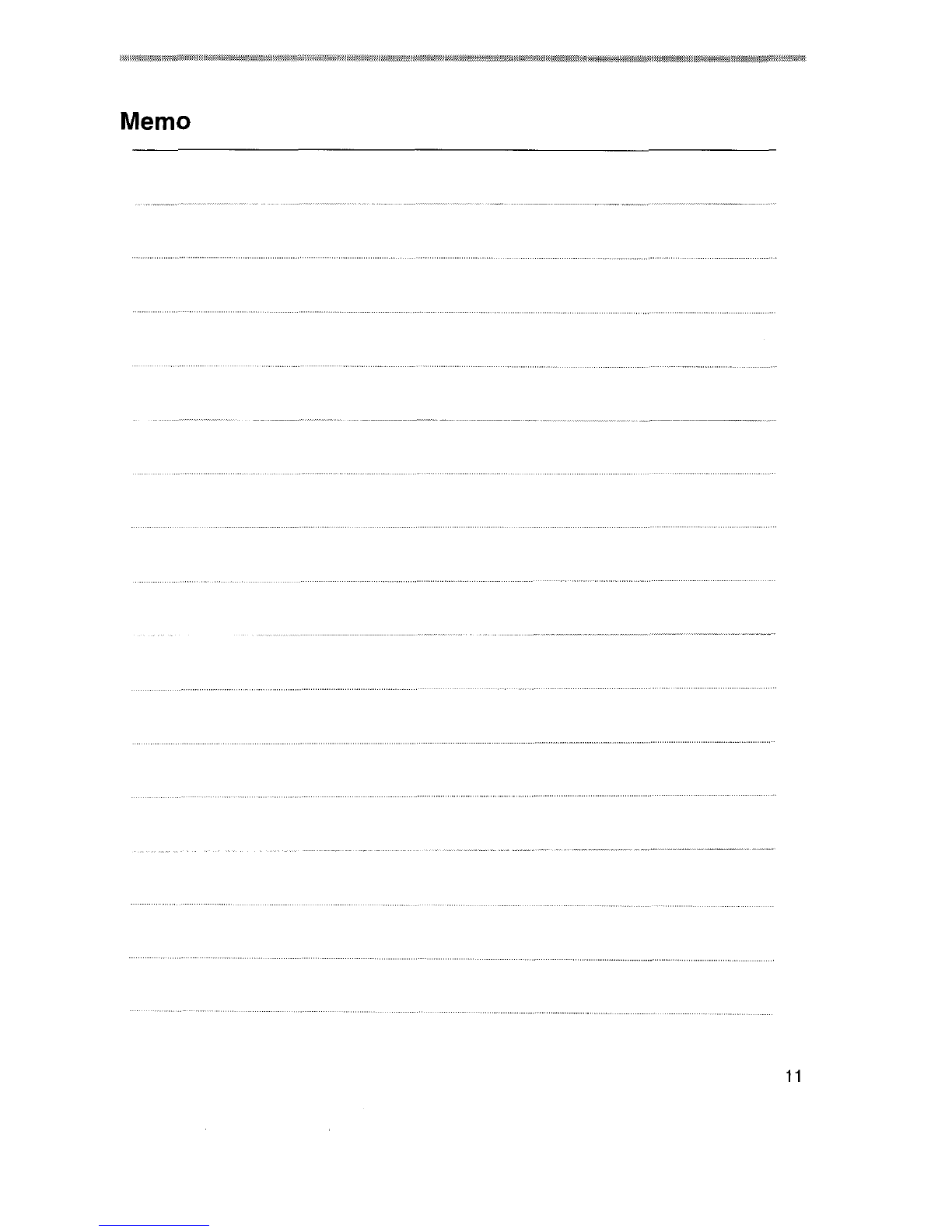

Memo
______.. . .__- ...... __ ............ -___
....................
12

I
I
I
I
3
0
c
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
Makita U.S.A., Inc.
!
I
I
I
14930 Northam Street
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
IIIIIIII
IIIIIIIIIIIIIIIIIIIIII
I
I I
La Mirada, CA 90638-5753
IIIIIIIIIIII I II I I I I
postage
Required
not deliver I
withom proper
I
I
I
I
I
I
I
I
I
I
I
I
I
I

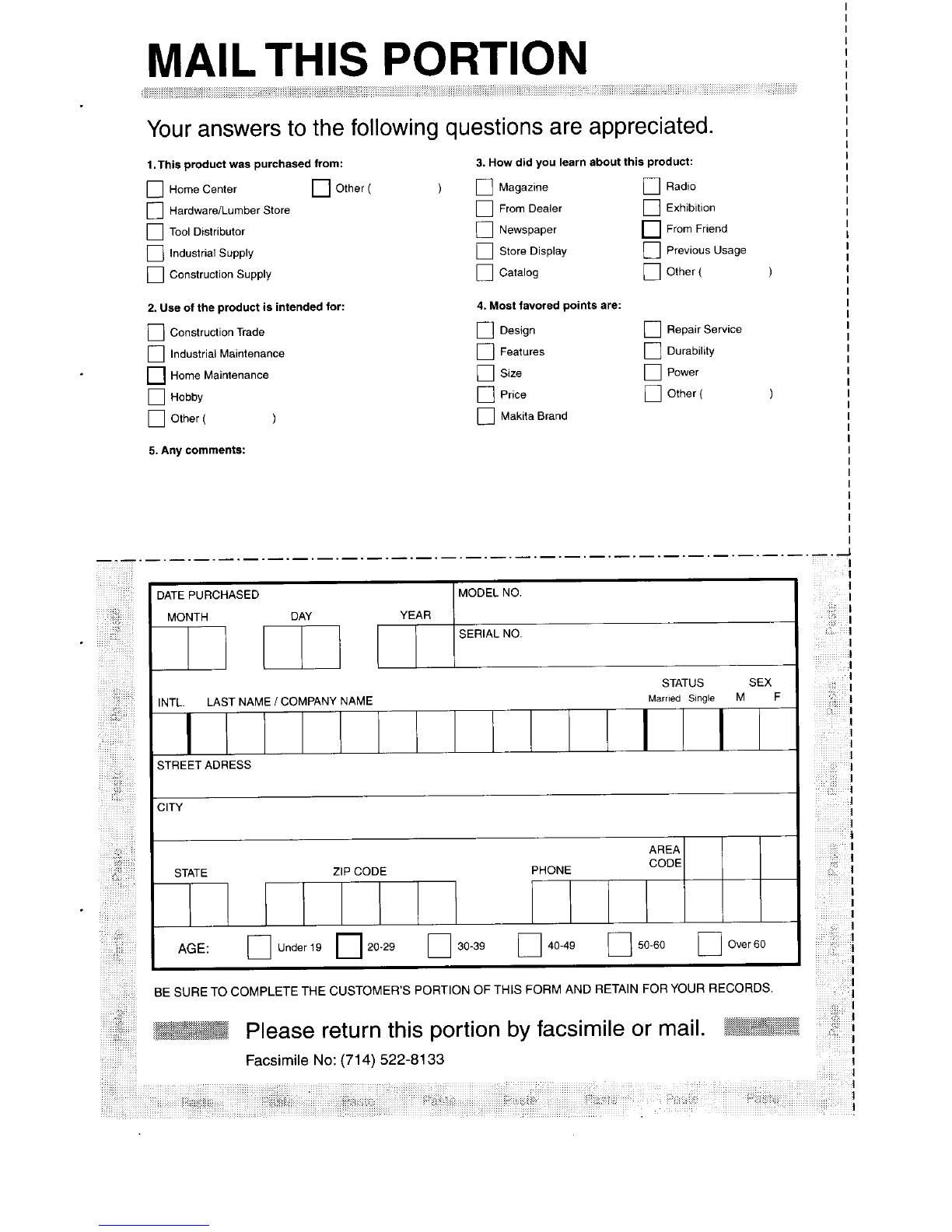

MAIL THIS PORTION
Your answers to the following questions are appreciated.
1.Thisproductwas purchasedfrom:
0 Home Center Other ( ) 0 Magazine 0 Radio
0 HardwareiLumber Store 0 From Dealer 0 Exhibition
0 Tool Distributor 0 Newspaper From Friend
0 Industrial Supply 0 Store Display 0 Previous usage
3. Howdid you learnabout this product
0 Construction supply 0 Catalog 0 Other ( 1
2. Useof the product is intendedfor:
0 ConstructionTrade
0 Industrial Maintenance
Home Maintenance
0 Hobby
0 Other ( )
5. Any comments:
4. Mostfavored pointsare:
0 Design 0 Repair Service
0 Features 0 Durability
0 Size 0 Power
0 Makita Brand
0 Price 0 Other ( )
DATE PURCHASED MODEL NO.
YEAR SERIAL NO.
STATUS SEX
Married Single M F
INTL. LAST NAME
/ COMPANY NAME
STREETADRESS
AREA
CODE
STATE ZIP CODE PHONE
AGE: 0 Under 19 20.29 0 30-39 0 40-49 0 50-60 0 Over 60
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
BESURETO COMPLETETHE CUSTOMER'S PORTIONOFTHISFORM AND RETAIN FOR YOUR RECORDS
Please return this portion by facsimile or mail.

FACTORY SERVICE CENTERS
1 -800-4-MAKITA
RETAINTHIS PORTIONFORYOUR RECORDS
ALABAMA
2365 Pelham Parkway
Pelham At35124
12051820 1791
ARIZONA
3707 E Broadway Rd Ste 6
Phoen8x AZ 85040
16021 437 2850
ARKANSAS
Shacklelard Shoppiny Center
240 South ShacklelordRd
ste c
Llrle Rock AR 72211
(5011224 1733
CALIFORNIA
41850 Christy S1
Fremonl CA 94538 5107
(SlOj 657 9881
1421N Clovis Ave Sfe 112
Fresno. CA 93727
15591252.5186
14930Northam S!
La Mirada CA 90636 5753
17141522.8088
1970 Fulton Avenue
Sacramenta CA 95825
(9161 462-5197
1440 South E Street
Sa" Bernardlno CA 92608
19091 885 1289
7674 Cia8remont Mesa Bivd
16581 278-4471
1714 E McFadden 4ve Un8t M
Santa Ana, CA 92705
ill41 667 5066
1565 Winchester B
Campbell CA 95008 0501
14081379-0377
16735Saficoy S1 Sfe 105
18161 182 2440
sannmgo ~~92111
"an Nuyr CA 9,406
COLORADO
11839E 5lefAve
(3031 371 2850
nenver co 80239 2709
CONNECTICUT
Windsor Locks CT 06096
[phone]
508 spmg s1
FLORIDA
620 DOUglaE Ave Suite 1302
Altamonle Springs FL 32714
[phone]
750 East Sample Road
Pompano Beach FL 33064
(9541781 6333
Thompson Center Waters
5501 W Walers Awe, Sfe 406
Tampa FL 33634
18131886-8292
GEORGIA
4680 River Green Parkway
DUlulh. GA 30096-2566
(7701478 8911
HAWAII
4510 Sal! Lake Blvd Suite A7
Honolulu HI 96818
18081 847-0038
ILLINOIS
,450 Fsehanville Dr
Mt Prospect It 60056 601 1
[phone]
INDIANA
8403 MNchigan Road Unit 1
Indianapol85 IN 46268
13171334-9980
KANSAS
8819 IV 95th S1
Overland Park KS 55212
19131642 flli
CUSTOMER'S RECORD
KENTUCKY
1215 S HurslbourneParkway
Lou8svlIle KY 40222
15021326 3740
LOUSUNA
5826 Jenei~on Hwy
Hatahan LA 70123
15041 733 4138
MARYLAND
7541 .45 Ritchie Highway
Glen Burnie MD21061
1410) 580-0160
MASSACHUSETTS
232 Providence Hwy
Westwwd MA 02090
1617) 461-9754
MICHIGAN
37454 Ann Arbor Tm
Limnia MI 488150
[phone]
MINNESOTA
6427 Pen" AVB South
RlChfleld MN 55423
16121869-5199
MISSOURI
9876 Watson Road
S1 Loos. MO 63126 2221
13141 904-9889
NEBRASKA
4129 S 84th S1
Omaha NE 68127
14021 597-2925
NEVADA
3375 S Dscalur Blvd
Suilea 22 24
Las Vegas NV 89102
(7021368.4277
NEW JERSEY
251 Herrod Blvd
Dayfon. NJ 08810-1539
[phone]
NEW MEXICO
5805 Menaul Blvd NE
Albuquerque NM 871 10
15051881-4619
NEWVORK
4917 Gsnessee Street
Cheekfowaya. NY 14225
17161685-9503
131 -35 31 st Ave
Flushtng NY 11354
(7191888 0971
NORTHCAROLINA
3501-G S Tryon SI
Charlone. NC 28217
17041527-061 I
OHIO
6253 E Main St
1814) 860-0222
~oiumbus on 43213
6379 Pearl Road
Parma Heights OH 44130
(4401843-7555
161iE KempsrRd
Sharonvllle
OH 45246
15131771-0788
OKLAHOMA
552 E Memorial Road
Oklahoma Cily, OK 73114
14051 752 2655
OREGON
828 19th Avenue N W
Portland. OR 97209
[phone]
PENNSYLVANIA
384 Wllminglon W Cheslei
Pike
Glen Mills PA 19342
16101 459-4122
8200 BabCoCk Blvd
Pimburgh. PA 15237
11121 366-6363
spr,ngwater Plaza
PUERTO RlCO
200 Guayama SI
Halo Rey PR 00917
[phone]
TENNESSEE
4655 N01ens~tIUeAd
Nashville TN 37211
16151331 9922
TEXAS
12801 Stemmons Fwy Sle 809
Farmers Branch TX 75234
19721 243-1150
12701 Directors Dr
Slaltord. TX 77477.3701
1281)565 8665
3453 In-35 North Sle 101
San Antonio. TX 78219
[phone]
UTAH
145E 13005 Ste 101
Salt LakeCily UT84115
(80i)350-3410
VIRGINIA
5760 Northampfan Blvd Ste
102
Virginia Beach. VA 23455
17571460-0280
WASHINGTON
22220 84th Ave So, Bldy A
Kent WA 98032
(2531395 8055
WISCONSIN
Lincoln Plaza Shopping Ctr
2245 S l08fh St West All15 Wl
53227
141415414778
When you needservice Send
complete tool (prepaid)to one
of the Makita Factory Service
Centers listed,
or to an Authorized
Makita Service Center Be sure
to attach a letter to the outside of
the carton detailing the problem
with yourtooi
DatePurchased
Dealer's
Name 8 Address
Model
No.
Serial No.
15

WARNING
Somedust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
leadfrom lead-based paints,
crystalline silicafrom bricks and cement and other masonry products,and
arsenic and chromium from chemically-treated lumber.
Your risk from these exposuresvaries, depending on how often you
do this
type of work.
To reduceyour exposureto these chemicals:work in a well
ventilatedarea, and work with approvedsafety equipment, such as those
dust masksthat are specially designed to filter out microscopic particles.
MAKITA LIMITEDONEYEAR WARRANTY
Warranty Policy
EveryMakita tool is thoroughly inspected and tested before leavingthe factory. It iswarranted to be free of
defectsfrom workmanshipand materialsfor the period of ONEYEAR from the date of original purchase.
Shouldany trouble developduring this one-year period, return the COMPLETE
tool, freight prepaid,to one of
Makita'sFactoryor Authorized Service Centers. If inspection shows the trouble iscaused by defective
workmanshipor material, Makita will repair (or at our option, replace)without charge.
ThisWarranty does not apply where:
repairshave been madeor attempted by others:
repairs are required because of normal wear and tear:
the tool has been abused, misused or improperly maintained:
alterationshave been made to the tool.
IN NO EVENTSHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES FROMTHE SALE
OR USEOFTHE PRODUCT. THIS DISCLAIMERAPPLIES BOTH DURING
AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMSLIABILITY
FOR ANY IMPLIEDWARRANTIES, INCLUDING IMPLIEDWARRANTIES OF
THISWARRANTY.
ThisWarranty givesyou specific legal rights, and you may also have other rights which vary form state to state.
Some statesdo not allow the exclusionor limitatlon of incidentalor consequentialdamages,
so the-above
limitationor exclusion may not apply
to you. Some states do not allow limitation on how long an implied
warranty lasts,
so the above limitationmay not apply to you.
"MERCHANTABILITY"AND "FITNESS FOR A SPECIFIC PURPOSE,"AFTER THE ONE-YEARTERM OF
MakitaCorporation
3-1 1-8, Sumiyoshi-cho,
Anjo, Aichi
446-8502 Japan
884372-061
