Malmbergs io-DS-BLE User manual

Malmbergs Elektriska AB
PO Box 144, SE-692 23 Kumla, SWEDEN
EN
INSTRUCTION MANUAL
Door and Window
Sensor Bluetooth
Art.No.: 99 190 57
2 3
www.malmbergs.com
TECHNICAL SPECIFICATIONS
Product type Door and window
sensor Bluetooth
Wireless
connection Bluetooth
Operating temp. Ta: -20ºC - +45ºC
Case temp. Tc: +50ºC (Max.)
Dims (WxDxH) 60x27x10 mm
35x10x10 mm
Battery type CR2032 3V DC
(Included)
Anywhere
APP
APP
99 190 59
T&H sensor
99 190 58
PIR Sensor
Door sensor
99 190 57
99 190 59
T&H sensor
99 190 58
PIR Sensor
Door sensor
99 190 57
Device Sharing
Apps
APP
Router
Gateway 99 190 42
(Example)
Gateway
99 190 42
(Example)
Control your Smart Home wherever you are
Model No.: io-DS-BLE
EMC Standard (RED)
ETSI EN 301 489-1 V2.2.3(2019-11),
ETSI EN 301 489-17 V3.1.1(2017-02),
EN 55032:2015, EN 55035:2017
Safety Standard (RED)
EN 62368-1:2014+A11:2017, EN 60598-
2-12:2013, EN 60598-1:2015 +A1:2018,
EN 62471: 2008, EN 62493:2015,
EN 62031: 2008+A1:2013+A2:2015,
EN 61347-1:2015, EN 61347-2-
13:2014+A1:2017
RoHS Standard (RoHS)
(EU)2015/863, 2011/65/EU
Radio Equipment (RED)
EN 300 328 V2.2.2
Health Standard (RED)
EN 50663:2017
REACH Standard (RED)
(EC) No 1907/2006
54
Product size
INSTALLATION
Warnings:
• This device does not support standalone
application and it must work together
with the Bluetooth gateway (Example
99 190 42 optional accessories) under
the same WIFI network configuration.
• Indoor use only.
• Keep the device out of reach of children.
• Keep the device away from water, damp
or hot environment.
• Do NOT exceed the recommended
electrical ratings.
• Install the device away from strong signal
sources such as microwave ovens, which
may lead to signal interruption resulting
in abnormal operation of the device.
• Obstruction by concrete wall or metallic
materials may reduce the range of the
device and should be avoided.
• Do NOT attempt to disassemble, repair
or modify the device.
Wiring Instructions and Diagrams
The device can only be installed indoors.
The correct installation should meet the
following conditions:
1. Ensure that the device is within the
range of the Bluetooth gateway
network.
2. The device detects the opening or clos-
ing of the door and window, and works
in conjunction with other devices to
implement smart home application.
3. Ensure that the door magnet is located
on the side of the alignment mark.
AF/BC-JA/YL-210305
Malmbergs Elektriska AB (publ)
PO Box 144, SE-692 23
Kumla, SWEDEN
Phone: [phone]
[email protected]
www.malmbergs.com 27 mm 10 mm
60 mm
35 mm10 mm
Door/Window
Sensor
Bluetooth Gateway
99 190 42
(Example)

9 10 11
DECLARATION OF CONFORMITY
We hereby certify that the device
satisfies the provisions for CE/Intertek
markings in accordance with the EU
directives EMC Directive 2014/30/EU, RE
Directive 2014/53/EU, RoHS Directive
(EU)2015/863) as described in this manual.
For and on behalf of:
Malmbergs Elektriska AB, Sweden.
Mr. Anders Folke / Product Manager
Date: 05/03/2020
SYSTEM REQUIREMENTS
• WIFI Router
• 99 190 42 Bluetooth gateway (Example)
• iPhone (iOS 9.0 or higher)
• Android 5.0 or higher
FAQ
Q1: What should I do if I can’t configure
the device?
a. Please check whether the device is
powered on.
b. Make sure your mobile and the device
are in the same 2.4GHz WIFI network.
c. Please check if the WIFI signal is strong
enough.
d. Make sure the password entered in the
App is correct.
e. Make sure the wiring is correct.
Q2: What happens if the WIFI goes off?
You will not be able to control your device
until the WIFI resumes normal.
Q3: What should I do if I change the WIFI
network or change the password?
You can connect the module to the WIFI
network according to the App User Manual.
Q4: How do I reset the device?
Press and hold the reset button until the red
indicator light is flashing rapidly.
Q5: Other technical problems?
Please contact our technical support by
e-mail: [email protected].
Note: Contents, icons and symbols
shown in the mobile app may be subject
to change without prior notice due to con-
tinuous upgrading and improvement.
7 86

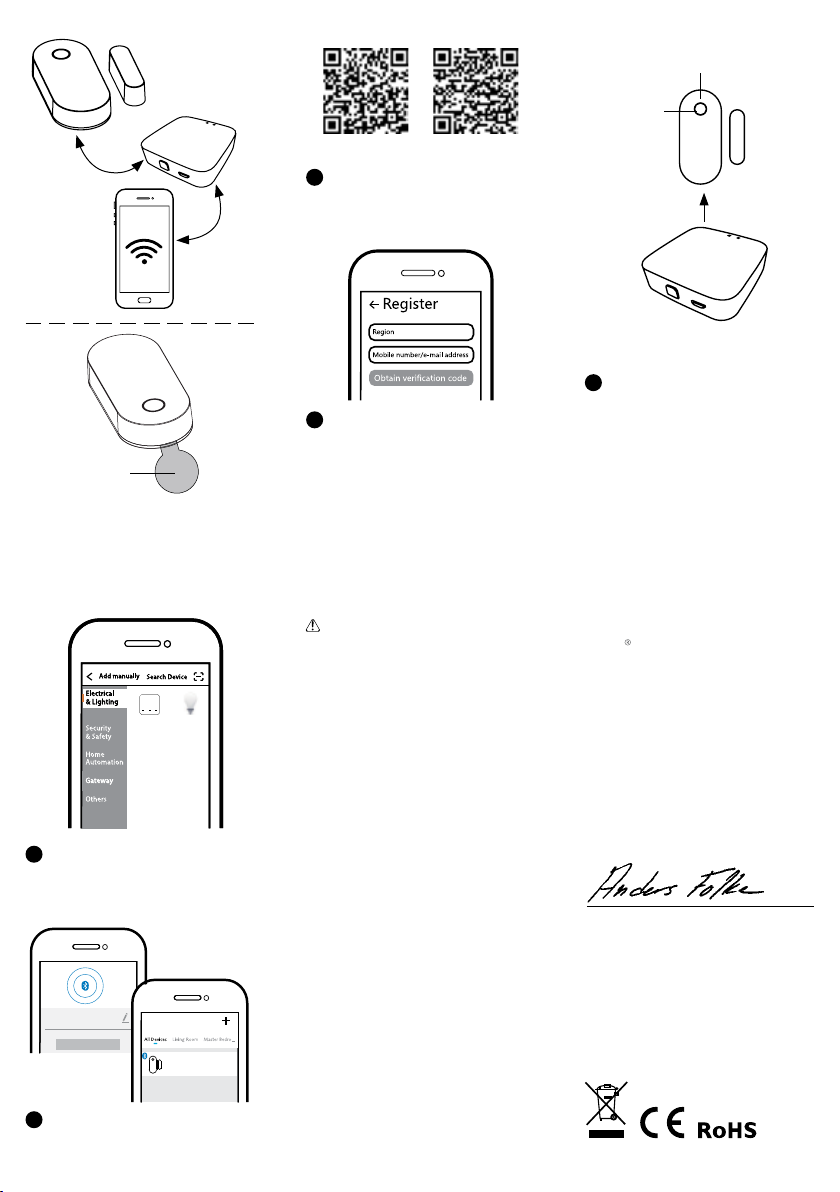

APP USER MANUAL
Scan the QR code to download the
MALMBERGS App. You can also search
the keyword “MALMBERGS”at App
Store or Google Play to download
the App.
Register your account with your mobile
number or e-mail address, wait a
few minutes for verification code (by
text message or e-mail) and enter it
where required to set a password, and
“Create Family”. If you already have
an account, please log in directly with
your mobile number or e-mail address
and password to open the App.
2
1
iOS APP/Android APP
5
3Make sure the Bluetooth gateway is
added and installed to the WIFI net-
work. Ensure that the product is within
the range of the Bluetooth gateway
network.
Bluetooth Gateway
99 190 42
(Example)
When pairing is done, the device will
be shown in the App.
4Click “+” (Add sub-device) to select
the suitable product category and
follow the on-screen instruction
for pairing.
Reset button
Indicator light (Red): Working mode
Bluetooth
Device
WIFI Devices
DIMMER
Door Sensor
Done
Door Sensor
Plastic insert
Important:
Remove plastic insert before installation.
