Malmbergs io-TH-BLE User manual

Malmbergs Elektriska AB
PO Box 144, SE-692 23 Kumla, SWEDEN
EN
INSTRUCTION MANUAL
Temperature and
Humidity Sensor
Art.No.: 99 190 59
2 3
5
www.malmbergs.com
TECHNICAL SPECIFICATIONS
Product type Temperature and
humidity sensor
Wireless
connection Bluetooth
Operating temp. Ta: -20ºC - +45ºC
Dims (WxDxH) 45x45x13 mm
Battery life CR2450 3V DC
(Included)
Measuring
frequency
Can choose to report
every 5/10/15/30 min
4
INSTALLATION
Warnings:
Product size
Anywhere
APP
APP
99 190 59
T&H sensor
99 190 58
PIR Sensor
Door sensor
99 190 57
99 190 59
T&H sensor
99 190 58
PIR Sensor
Door sensor
99 190 57
Device Sharing
Apps
APP
Router
Gateway 99 190 42
(Example)
Gateway
99 190 42
(Example)
Control your Smart Home wherever you are
Model No.: io-TH-BLE
Wiring Instructions and Diagrams
1. Ensure that the product is within
the range of the Bluetooth gateway
network.
2. The device detects temperature and
humidity in the environment in real
time, and works in conjunction with
other devices to implement smart home
application.
3. The device shall be kept away from
stove, refrigerator, air-conditioner or
any other places that are sensitive to
change the temperature or humidity of
the environment and resulted to inac-
curate reading recorded.
The device can only be installed indoors.
The correct installation should meet the
following conditions:
• This device does not support standalone
application and it must work together
with the Bluetooth gateway (Example
99 190 42 optional accessories) under the
same WIFI network configuration.
• Indoor use only.
• Keep the device out of reach of children.
• Keep the device away from water, damp
or hot environment.
• Do NOT exceed the recommended
electrical ratings.
• Install the device away from strong signal
sources such as microwave ovens, which
may lead to signal interruption resulting in
abnormal operation of the device.
• Obstruction by concrete wall or metallic
materials may reduce the range of the
device and should be avoided.
• Do NOT attempt to disassemble, repair or
modify the device.
AF/BC-JA/YL-210305
Malmbergs Elektriska AB (publ)
PO Box 144, SE-692 23
Kumla, SWEDEN
Phone: [phone]
[email protected]
www.malmbergs.com
Ø 45 mm
13 mm
Temp./Humidity
Sensor
Bluetooth Gateway
99 190 42
(Example)
EMC Standard (RED)
ETSI EN 301 489-1 V2.2.3(2019-11),
ETSI EN 301 489-17 V3.1.1(2017-02),
EN 55032:2015, EN 55035:2017
Safety Standard (RED)
EN 62368-1:2014+A11:2017, EN 60598-
2-12:2013, EN 60598-1:2015 +A1:2018,
EN 62471: 2008, EN 62493:2015,
EN 62031: 2008+A1:2013+A2:2015,
EN 61347-1:2015, EN 61347-2-
13:2014+A1:2017
RoHS Standard (RoHS)
(EU)2015/863, 2011/65/EU
Radio Equipment (RED)
EN 300 328 V2.2.2
Health Standard (RED)
EN 50663:2017
REACH Standard (RED)
(EC) No 1907/2006

9 10 11
DECLARATION OF CONFORMITY
We hereby certify that the device satisfies the
provisions for CE markings in accordance with
the EU directives (EMC Directive 2014/53/
EU, RE Directive 2014/53/EU, RoHS Directive
2011/65/EU, (EU) 2015/863, REACH (EC) No
1907/2006) as described in this manual.
For and on behalf of:
Malmbergs Elektriska AB, Sweden.
Mr. Anders Folke / Product Manager
Date: 05/03/2021
SYSTEM REQUIREMENTS
• WIFI Router
• 99 190 42 Bluetooth gateway (Example)
• iPhone (iOS 9.0 or higher)
• Android 5.0 or higher
Note: Contents, icons and symbols shown
in the mobile app may be subject to change
without prior notice due to continuous upgrad-
ing and improvement.
7
APP USER MANUAL
6 8
Scan the QR code to download the
MALMBERGS App. You can also search
the keyword “MALMBERGS”at App Store
or Google Play to download the App.
Register your account with your mobile
number or e-mail address, wait a few
minutes for verification code (by text mes-
sage or e-mail) and enter it where required
to set a password, and “Create Family”. If
you already have an account, please log in
directly with your mobile number or e-mail
address and password to open the App.
3
2
1
iOS APP/Android APP
When pairing is done, the device will be
shown in the App.
5
Make sure the Bluetooth gateway is added
and installed to the WIFI network. Ensure
that the product is within the range of the
Bluetooth gateway network.
4Click “+” (Add sub-device) to select the
suitable product category and follow the
on-screen instruction for pairing.

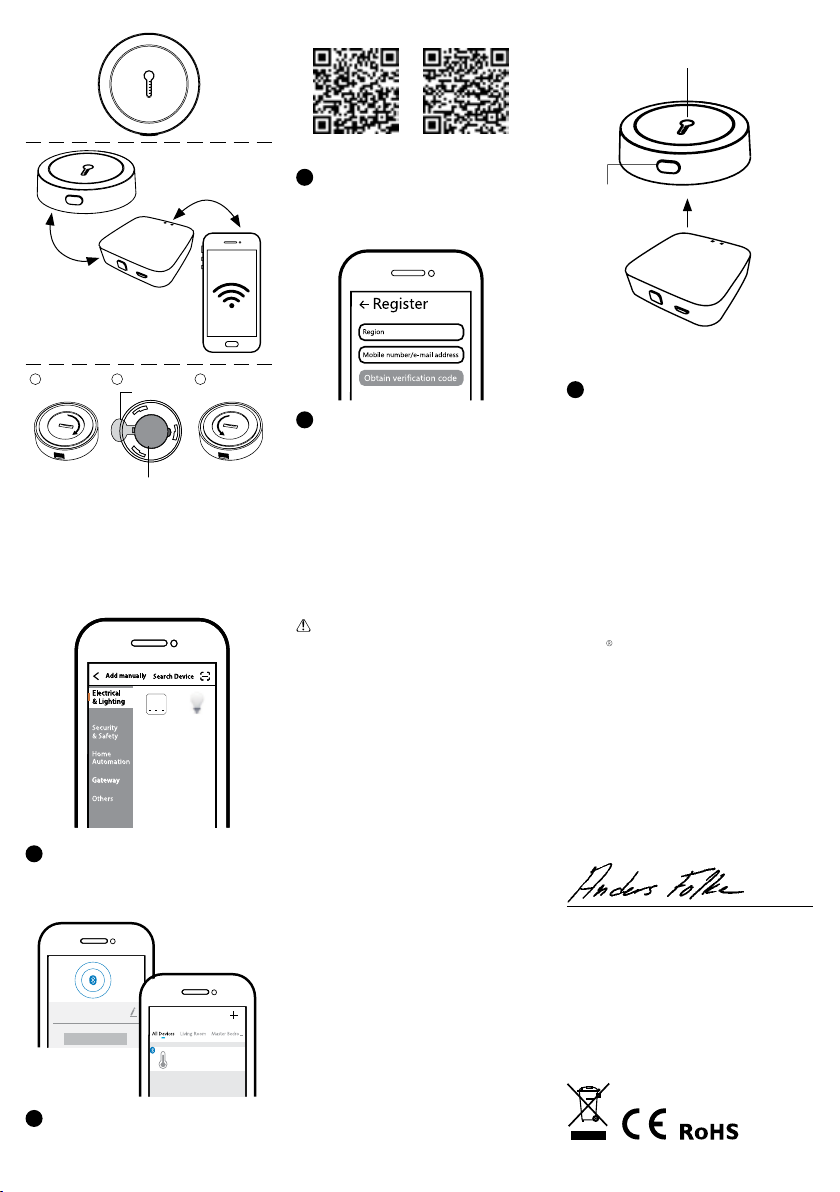

Plastic insert
Button cell
battery
Turn clockwise
to open
Turn
anti-clockwise
to close
Important:
Remove plastic insert before installation.
1 2 3
Reset button for
Bluetooth connection
Indicator light (Red): Working mode
Temperature and Humidity Sensor
Done
Temperature and Humidity Sensor
Bluetooth
Device
WIFI Devices
DIMMER
FAQ
Q1: What should I do if I can’t configure the
device?
a. Please check whether the device is pow-
ered on.
b. Make sure your mobile and the device are
in the same 2.4GHz WIFI network.
c. Please check if the WIFI signal is strong
enough.
d. Make sure the password entered in the
App is correct.
e. Make sure the wiring is correct.
Q2: What happens if the WIFI goes off?
You will not be able to control your device until
the WIFI resumes normal.
Q3: What should I do if I change the WIFI
network or change the password?
You can connect the module to the WIFI net-
work according to the App User Manual.
Q4: How do I reset the device?
Press and hold the reset button until the red
indicator light is flashing rapidly.
Q5: Other technical problems?
Please contact our technical support by e-mail:
[email protected].
Bluetooth Gateway
99 190 42
(Example)
