MASCOT 2240P User manual

1
User Manual
Doc.no. 5240D - Part No. 205240 - 19.06.2019
Charger for
LiFePO4Batteries
MASCOT ELECTRONICS AS
P.O.Box 177, N-1601 Fredrikstad, NORWAY
Phone: [phone] • Telefax: [phone]
E-mail: [email protected] • Web: www.mascot.no
EN User Manual
Bruksanvisning
Käyttöohjeet
Bedienungsanleitung
Mode d’emploi
Manual de instrucciones
Istruzioni per l’uso
Language specific user manuals are available on
www.mascot.no/downloads/usermanuals

2
IMPORTANT SAFETY INSTRUCTIONS!
CAUTION! DOUBLE POLE / NEUTRAL FUSING!
This product is designed for indoor use. (Not
applicable to products marked ”IP67”)
A version of this product marked ”IP41” may be
available. This version is protected against ingress
of solid objects larger than 1.0 mm and the effe-
cts of vertically falling drops of water according to
standard EN/IEC 60529.
A version of this product marked ”IP4X” or ”IP40”
may be available. This version is protected against
ingress of solid objects larger than 1.0 mm.
A version of this product marked ”IP44” may be
available. This version is protected against ingress
of solid objects larger than 1.0 mm and the
effects of water splashed against the enclosure
from any direction according to standard EN/
IEC 60529.
A version of this product, marked with a symbol
with two drops of water and/or ”IP67”, may be
available. This version is filled with a potting
IP4XIP41 IP44 IP67
TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK:
READ THROUGH THESE INSTRUCTIONS PRIOR TO USING THE PRODUCT.
CAREFULLY FOLLOW THESE INSTRUCTIONS WHEN USING THE PRODUCT.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
compound and is dust-tight and protected against
the effects of temporary immersion in water
according to standard EN/IEC 60529, but must
not be immersed in water for longer periods
of time.
Products marked with the “double square
symbol” are double insulated (Insulation Class II).
Products without this mark are Class I (relies on
safety earth for protection).
WARNING: To avoid risk of electric shock, Class
I products must only be connected to a supply
mains with protective earth.
At the end of their service life electric and
electronic equipment and their accessories shall
not be discarded with the municipal waste but be
disposed of using separate collection, treatment,
recovery/recycling and environmentally sound
disposal. This also applies to any potentially bio
hazardous parts and accessories. If in doubt;
contact your local authorities to determine the
proper method.
Technical specifications for your product:
See tables, the marking on the
product or www.mascot.no

3
• The intended use for this product is to charge
a battery or a battery powered electrical
accessory (NiCd/NiMH, Lead-Acid, Lithium-Ion
or LiFePO4batteries) or to be used as a Power
Supply to power an electrical accessory. Please
see the marking on the product you have to
verify the type of product you have and read
the applicable instructions and technical
specifications included with this manual.
• This product may be used by unskilled opera-
tors, under the condition that these instructions
are followed.
• Unskilled operators may contact the supplier
or manufacturer for assistance, if needed, in
setting up, using or maintaining this product
and to report unexpected operation or events.
• This appliance can be used by children aged
from 8 years and above and persons with re-
duced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction con-
cerning use of the appliance in a safe way and
understand the hazards involved. Do not allow
small children to handle this product while
unattended as cables may represent a risk for
strangulation and small parts may represent a
risk for inhalation or swallowing.
• Do not allow animals to come into contact
with this product. Some animals are known to
cause damage to cables etc which may be a
potential for risk of electric shock and excessive
temperatures. Also, cables and small parts may
represent a strangulation risk for the animal.
• If the product is equipped with a mains cord,
please check that the cord is not damaged. If
the cord is damaged, the product must not be
used until the cord is replaced. Replacement
should be carried out by qualified personnel.
• The mains socket outlet used should always
be easily accessible to facilitate immediate
removal of the products mains supply should
an operational error occur during use. If the
product has a detachable mains cord the
appliance coupler may be used as a disconnect
device.
• The product is “switched on” by inserting
the mains plug into the mains socket and “swit-
ched off” by disconnecting the mains plug from
the mains socket.
• The product may be connected to an IT type
mains supply.
• For use in U.S.A.:
- Be sure to use 125V 15A receptacle configu-
ration before plugging in.
- Use a UL817-standard compliant mains cord
(plug type NEMA 1-15, cord type SJT or SVT).
• For use outside U.S.A:
Use a mains cord compliant with the country
specific requirements.
• The time from powering this product until its
full function starts may exceed 15 seconds.
• Should an operational error or unexpected
change in the performance occur during
use; disconnect the product from the mains
immediately by disconnecting the mains plug
from the mains socket and contact the supplier
or manufacturer (see contact details on the
front of this document).
• When not in use please think about discon-
necting the product from the mains. This will
reduce the risk of hazards, reduce the products
environmental impact and save electricity
costs.
• To avoid overheating make sure there is
sufficient room for the circulation of air around
the product when in use. Do not cover it up.
• Even though this product complies with
relevant safety standards it should not be in
contact with human skin for long periods as
some people may get allergies or injuries from
long-term contact with moderate temperatures
and/or plastic materials.
• Prior to using this product with accessories
Cautions to observe prior to use

4
and/or interconnected equipment please
carefully read its respective User Manuals.
• If the product is supplied with exchangeable
output plugs, please see separate page for
assembly.
• Output cables having a modular plug ( similar
to a telephone connector) must never be
connected to a telephone outlet.
• Products with a welded plastic housing or rated
IP 67 are not repairable. For such products the
supply cord cannot be replaced. If the cord is
damaged the appliance should be scrapped.
Please contact your supplier for replacement
part.
• This product contains hazardous voltages and
there are no user replaceable parts inside the
product. Never attempt to remove the cover.
• WARNING: No modification of this equipment
is allowed. Any repair/service should be
carried out by qualified personnel who may get
assistance by contacting the manufacturer or
the manufacturer’s agent.
• Products specified to have automatic polarity
protection must be switched off if a battery is
connected with reverse polarity. The protection
will be automatically reset when the polarity
has been corrected.
• In chargers specified to have a replaceable fuse
as polarity protection the fuse must be replaced
if the battery has been connected with reverse
polarity. When replacing the fuse; a fuse of the
same type and rating must be used.
• If the product is specified to comply with the
standard for Medical Electrical Equipment
(standards based on IEC60601-1) it complies
with some of the requirements for medical ele-
ctrical equipment and may be used in medical
applications and hospital environments.
• The product must be kept away from sources
of heat and may not be used in the vicinity
of flammable anesthetic gases or in other
environments with flammable or explosive
atmosphere.
• If the product is specified to comply with the
standard for Medical Electrical Equipment
for Home Healthcare Environment (standard
IEC60601-1-11) it may be used in medical
applications used in a home healthcare
environment.
NOTE: Products relying on safety earth for
protection (Class I) may not be used in home
healthcare environment unless they are
permanently wired to the building installation:
Installation must only be carried out by qualified
service personnel, following the below instructi-
ons:
- The protective earth conductor must be min.
0.75 mm2.
- Connect the protective earth conductor to the
external protective earthing system.
- Verify that the protective earth terminal used is
connected to the external protective earthing
system.
- Verify the integrity of the external protective
earthing system.
• This product converts the mains voltage to
a safety extra low voltage.
The output from products applying with 2MOPP
insulation ( model names followed by ”P”) may
be treated as Applied Part Type B or Type BF
according to standard EN/IEC 60601-1 and
may come in physical contact with a patient.
The housing of the product shall not be allowed
to contact the patient.
• This product must be operated in an environ-
ment within temperature range +5 to +40°C,
humidity 15 - 93 % RH and atmospheric
pressure 70 - 106 kPa (700 - 1060 hPa). If the
product has recently been stored or transported
at conditions ouside this range; please wait for
30 minutes before operating the product.
•Expected service life of this product and acces-
sories delivered with this product is three (3)
years, if operated as indicated above. However;
the guarantee times indicated in document
”TERMS OF SALES AND DELIVERY FOR MAS-
COT AS” apply (available at www.mascot.com).

5
• Environmental parameters during transport
and storage between uses: temperature range
-25 to +85 °C, humidity 15 - 93% RH NC and
atmospheric pressure 70 - 106 kPa (700 -
1060 hPa).
• If stored for longer periods of time the
environmental parameters should be within
the temperature range +5 to +35°C, humidity
range 10 - 75% RH NC and atmospheric
pressure 70 - 106 kPa (700 - 1060 hPa) to
maintain the products expected service life.
• Expected shelf life of this product is one (1)
year, if stored as indicated above.
• This product complies with the requirements to
electromagnetic compatibility for medical ele-
ctric equipment and for use in residential, office
or light industrial environment but all electric
products imply a potential for electromagnetic
or other interference between the product and
other devices. If such interference is suspected
please disconnect the product from the mains
and consult a qualified technician, your supplier
or the manufacturer.
• No special maintenance procedure is required
but if the product gets dusty or dirty it should
be wiped clean using a dry cloth while the
product is disconnected from the mains. No
other maintenance should be necessary.
• For products having a plastic casing, please
avoid any contact with lotions, oils, grease
and solvents as most types of plastic may be
degraded by such chemicals. Also make sure to
position, operate and store such products away
from UV-light and direct sunlight.
• Position, operate and store this product only
under reasonable foreseeable environmental
conditions with respect to magnetic fields,
EM-fields, electrostatic discharges, pressure or
variations in pressure, acceleration etc.
• If this product is used with or mounted in a
vehicle it may only be used when the vehicle is
not in use.
• When in use, position this product so that
the label can be read – within 40 cm of the
operator.
• Turn the product off and allow it’s housing to
cool down prior to moving it to another location.
• LiFePO4chargers are designed for charging Li-
FePO4(LFP) batteries only. Make sure you have
the correct battery charger for the chemistry
and number of cells in series.
If the number of cells in series in the battery
pack is not known you can calculate it by
dividing the voltage indicated by 3.2VDC for
LiFePO4(e.g. a 12.8VDC LFP battery contains
4 LiFePO4cells).
Make sure the charge voltage indicated on the
charger corresponds to the number of battery
cells in series multiplied by 3.65VDC (e.g. a
4 cell LFP battery is typically charged using
14.6VDC).
NOTE: The voltages indicated above are typical
and may vary between battery types and batte-
ry makes. If in doubt; consult the specifications
for your battery.
• Make sure the specifications for your battery
allows for the maximum charge current indica-
ted on the charger.
• Make sure the specifications for your battery
allows for the environmental conditions present
during charging.
• Never attempt to charge batteries that are not
rechargeable.
• We recommend that you connect the charger
to the mains before connection is made to the
battery. This will reduce the sparks that may
occur due to difference in potential between
charger terminals and battery terminals.
Cautions to observe prior to charging LiFePO4-batteries

6
Note! Make sure the charger terminals are not
short-circuited and ensure that the polarity is
correct.
• Please ensure correct polarity when connecting
to the battery terminals. Reverse polarity
connection may, in some chargers (see the
chargers specifications), result in a fuse
blowing, requiring replacement or leaving the
charger useless.
• The charge cycle starts when the charger is
connected to the mains.
• If the charger is disconnected from the mains
voltage during a charge cycle the charger will
start a new charge cycle when it is reconnected
to the mains.
• The recommended minimum and maximum
battery capacity for which the specific charger
can be used vary from battery to battery. Plea-
se follow the datasheet and recommendations
from the battery manufacturer. In our tables we
use typical 2C as a maximum current for LiFe-
PO4cells. 2C means that charge current for a
1Ah battery should be max 2A. Thus the typical
minimum capacity recommendation is 1Ah
for a 2A charger. For max battery capacity we
have used C/40 for chargers with timer (and/or
uC) and 100 times current detection levels for
chargers using only this termination method.
For a 2A charger with 0.2A current detection
level the max capacity recommended will be
100 x 0.2A = 20Ah. Again this is just typical
recommendations. Please read recommendati-
ons and datasheets from battery manufacturer.

7
Explanation of LiFePO4battery charge cycle
(See tables for methods for each charger model.)

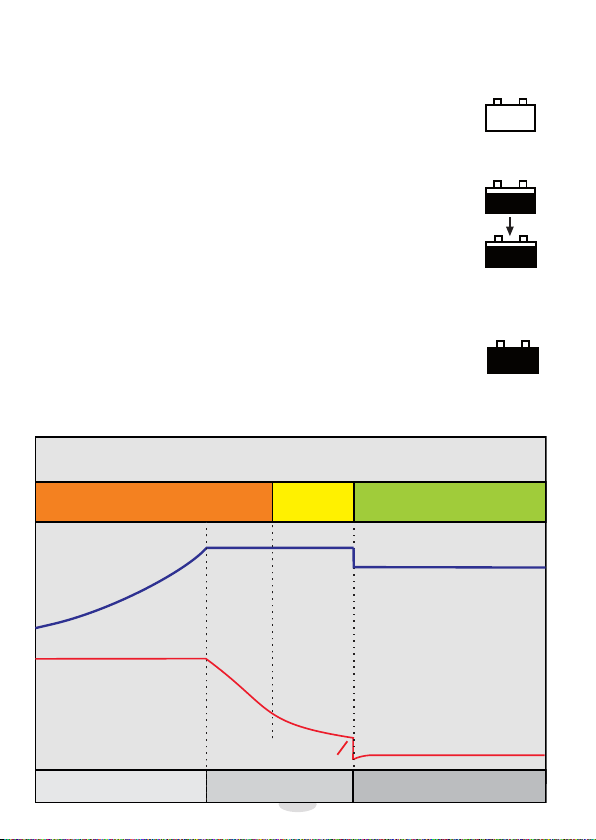

Charging method A
STEP 1 – BOOST CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated on
the charger, the LED-indication on the charger is ORANGE. This step allows rapid charging
of your battery until the battery reaches typically 80 - 95% of its capacity.
STEP 2 – TOP-UP CHARGE
The charger is in constant voltage mode, charging with a decreasing current until the
current is below the chargers charge termination level (indicated on the charger). The
LED-indication on the charger is ORANGE. The battery is charged to its full capacity at the
end of this step
STEP 3 –FLOAT CHARGE
The LED-indication on the charger is GREEN and the battery is fully charged.
The charge voltage is at float level and the charger may remain connected to the battery.
The charger will return to Step 1 if the battery is used. A load larger than the cut-off
current will initiate a new charge cycle.
INDICATOR: GREEN
Charge Voltage
Charge Current
INDICATOR: ORANGE
Charge Voltage
Step 2
Top-up Charge
Step 3
Float Charge
Step 1
Boost Charge
Cut-Off Current
Diagram: A
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow

8
Orange
Orange
Green
Yellow
Yellow
Charging method B
STEP 1 – BOOST CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated
on the charger, the LED-indication on the charger is ORANGE. This step allows rapid
charging of your battery until the battery voltage has increased to a certain set level
STEP 2 – TOP-UP CHARGE
When the battery voltage has increased to a certain set level the charger enters constant
voltage mode, charging with a decreasing current until the current is below the chargers
charge termination level (indicated on the charger). The LED-indication on the charger is
ORANGE.
When the battery has reached typically 90 - 95% of its full capacity the charge current
has dropped below a set level and the LED-indication on the charger changes to YELLOW
to indicate that the battery is almost fully charged and may be ready for use. The constant
voltage charge continues and the battery reaches its full capacity at the end of this step
STEP 3 - FLOAT CHARGE
The LED-indication on the charger is GREEN and the battery is fully charged.
The charge voltage is at float level and the charger may remain connected to the battery.
The charger will return to Step 1 if the battery is used. A load larger than the cut-off
current will initiate a new charge cycle.
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow
INDICATOR:
YELLOW
INDICATOR: GREEN
Charge Voltage
Charge Current
INDICATOR: ORANGE
Charge Voltage
Step 2
Top-up Charge
Step 3
Float Charge
Step 1
Boost Charge
Cut-Off Current
Diagram: B

9
Charging method C
STEP 1 – BOOST CHARGE
To start a charge cycle; connect the charger to the mains.
The charger is in constant current mode, charging with the maximum current indicated on
the charger, the LED-indication on the charger is ORANGE (or RED 9640). This step allows
rapid charging of your battery until the battery reaches typically 80 - 95% of its capacity.
STEP 2 –TIMER CHARGE
The charger is in constant voltage mode, charging with a decreasing current. The
LED-indication on the charger is YELLOW. The charger is now in timer mode indicated by
the YELLOW LED and will remain in this mode until time interval is completed. The battery
is charged to its full capacity at the end of this step.
STEP 3 - FLOAT CHARGE
The LED-indication on the charger is GREEN and the battery is fully charged.
For Li-Ion batteries the charge current is zero and the battery has been charged it its full
capacity.
The charge voltage is at float level and the charger may remain connected to the battery.
The charger will return to Step 1 if the battery is used. A load larger than the constant
current level in Step 1 will initiate a new charge cycle.
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow
Orange
Orange
Green
Yellow
Yellow
Cut-Off Current
INDICATOR:
YELLOW
INDICATOR: GREEN
Charge Voltage
Charge Current
INDICATOR: ORANGE
Charge Voltage
Step 2
Timer Charge
Step 3
Float Charge
Step 1
Boost Charge
Diagram: C

10
INDICATOR:
FLASHING YELLOW
INDICATOR: GREEN
Charge Current
INDICATOR: YELLOW
Charge Voltage
Battery Voltage
Cut-Off Current
Safety Timer (72 hours)
Step 3
Float Charge
Step 0
Start Timer
(10 min)
Step 1
Boost Charge
Start Current
Low
Current Start-Up at Vbatt <2.6V/cell
Error Mode if <2.6V/cell after 10 minutes
Diagram: D
LFP charger diagram
Charge Voltage
Step 2
Top-up Charge (max 1h)
Charging method D
STEP 1 - BOOST CHARGE
LED-indicator: YELLOW
The charger is in constant current mode (CC), charging with the
maximum current until battery voltage reach Top-Up level.
STEP 2 – TOP-UP CHARGE
The charger is in constant voltage mode. The LED-indication will be FLASHING YELLOW
during Top-up charge. The charger stays in this mode until the charge current decreases
to charge termination level or the Top-Up Charge Timer runs out. The battery is charged
to its full capacity at the end of this step
STEP 3 – FLOAT CHARGE
The LED-indication on the charger is GREEN and the battery is fully charged.
The charger is in float mode. The charge voltage is at float level and the charger may
remain connected to the battery.
The charger will return to boost charge if the battery is used.
BATTERY NOT CONNECTED INDICATIONS
Battery not connected is indicated by FLASHING GREEN
Yellow
Green
Yellow

11

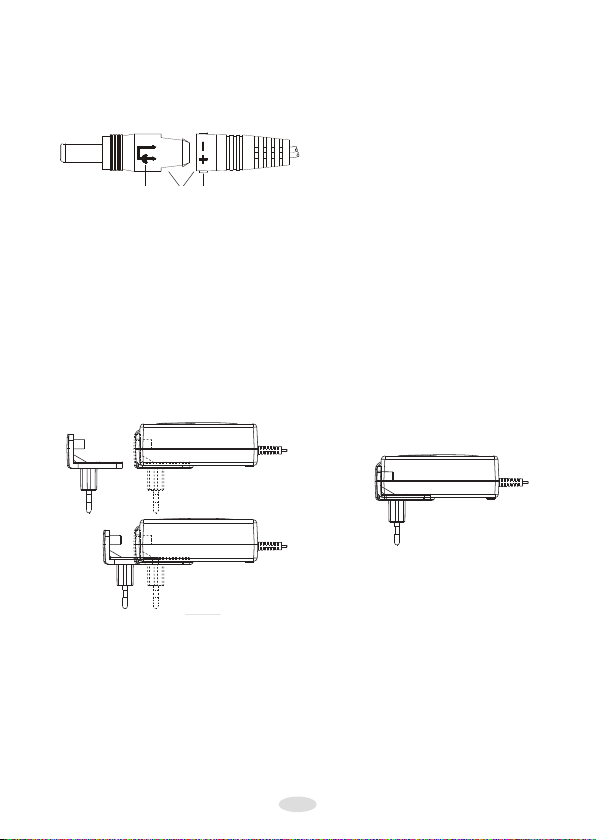

1. To connect for desired polarity, both plug
ends are clearly marked.
2. When connected, the female plug is also
marked on each side to identify plug polarity.
3. Shows the center polarity of the plug.
3 12
3 1 2
The following exchangeable AC plugs are available:
Type 018110 - ”EURO” 250V 2.5A (EN50075/IEC83 C5 II)
Type 018111 - ”US” 125V 2.5A
(NEMA 1-15 / CSA-C22.2 No.42)
Type 018112 - ”UK” 250V 13A (BS 1363)
Type 018114 - ”AUS” 250V 10A (AS/NZS 3112)
Mains Cord Set is available on request if you wish your product to be ”DeskTop”
How to connect exchangeable
DC-output plugs
How to connect exchangeable AC-plugs

12
Electromagnetic Compatibility
In order to regulate the requirements for EMC (electromagnetic compatibility) with the aim of preventing
unsafe product situations, the EMC EN60601-1-2 standard has been implemented. This standard defines
the levels of immunity to electromagnetic interference as well as maximum levels of electromagnetic
emissions for medical devices. Medical devices manufactured by Mascot have been tested and conform
with the requirements of
IEC/EN 60601-1-2, 3rd & 4th edition, nevertheless, special precautions may need to be observed:
The Mascot products are suitable for use in Domestic, Residential, Office and Hospital environment,
except in special locations where EM Disturbances are known to be high, such as near High Frequency
Surgical Equipment or Magnetic Resonance Imaging systems.
When used according to its specification the User can expect the product to fulfil it's essential performan-
ce, being powering Medical Electrical Devices or charging batteries for Medical Electrical Devices.
WARNING: Use of this equipment adjacent to or stacked with other equipment should be
avoided because it may result in improper operation. If such use is necessary, this equipment
and the other equipment should be observed to verify that they are operating normally.
WARNING: Use of accessories, transducers and cables other than provided by the manu-
facturer could result in increased electromagnetic emissions or decreased electromagnetic
immunity of this equipment and result in improper operation.
WARNING: Portable RF communications equipment should be used no closer than 30 cm
(12 inches) to any part of the power supply or battery charger, including cables. Otherwise,
degradation of the performance of this equipment could result.
Guidance and manufacturer’s declaration
The Masot products are intended for use in the electromagnetic environment specified below. The
customer or user should ensure that it is used in such an environment.
Test / Standard Compliance level Guidance
Emission:
RF emissions,
CISPR 11 Group 1, Class B Suitable for use in all establishments, inclu-
ding domestic establishments and those
directly connected to the public low-voltage
power supply network that supplies buil-
dings used for domestic purposes.
RF emissions not likely to cause any interfe-
rence in nearby electronic equipment.
However, a separation distance of 30 cm
shall be maintained.
Harmonic emissions,
IEC 61000-3-2 -
Voltage fluctuations /
flicker emissions,
IEC 61000-3-3
-

13
Test / Standard Compliance level Guidance
Immunity:
Electrostatic discharge
(ESD),
IEC 61000-4-2
± 8 kV contact
± 15 kV air
Temporary loss of function may be
experienced while the product is subject
to the phenomena.
The product is expected to recover to it’s
normal operation.
Electrostatic fast
transient / burst,
IEC 61000-4-4
± 2 kV for AC-power lines
± 1 kV for output lines
Surge, IEC 61000-4-5 ± 1 kV line to line
± 2 kV line to earth
(if applicable).
Voltage dips, short
interruptions and
voltage variations on
power supply lines,
IEC 61000-4-11
<5% UT (0.5 cycle)
40% UT (5 cycles)
70% UT (25 cycles)
<5% UT for 5 s
UT= AC Input Voltage prior
to test.
Power frequency
magnetic field
IEC 61000-4-8
3 A/m (50/60 Hz) Not applicable for non-magnetic field
sensitive devices.
Conducted RF,
IEC 61000-4-6
3 Vrms
150 kHz to 80 MHz Temporary loss of function may be
experienced while the product is subject
to the phenomena.
The product is expected to recover to it’s
normal operation.
Radiated RF,
IEC 61000-4-3
3V/m for Professional
healthcare environment.
10 V/m for Home Health-
care environment.
80 MHz to 2.7 GHz
These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection from structures, objects
and people and field strengths from fixed transmitters, such as base stations for radio (cellular/
cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcasts and TV
broadcasts cannot be predicted theoretically with accuracy.
To assess the electromagnetic environment due to fixed RF transmitters an EM site survey
may be considered. If the measured field strength in the location exceeds the applicable RF
compliance level above, the Mascot product should be observed to verify normal operation. If
abnormal performance is observed, additional measures may be necessary, such as re-orienting
or relocating the product.

14
Input voltage Charge LED
indicator 1 cell (3.2V) 2 cell (6.4V) 3 cell (9.6V) 4 cell (12.8V) 5 cell (16V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max. 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
1.3A < 3.65V
3.65V > 100mA
3.5V < 100mA
0.65Ah – 10Ah
1.3A < 7.3V
7.3V > 100mA
7V < 100mA
0.65Ah – 10Ah
1.3A < 10.95V
10.95V > 100mA 10.45V < 100mA
0.65Ah – 10Ah
0.9A < 14.6V
14.6V > 100mA
14V < 100mA
0.45Ah – 10Ah
0.88A < 18.25V
18.25V > 100mA 17.45V < 100mA
0.44Ah – 10Ah
Charge diagram A
Input voltage Charge LED
indicator 6 cell (19.2V) 7 cell (22.4V) 8 cell (25.6V) 9 cell (28.8V) 10 cell (32V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max. 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.73A < 21.9V
21.9V > 100mA
21V < 100mA
0.36Ah – 10Ah
0.64A < 25.55V
25.55V > 100mA
24.5V < 100mA
0.32Ah – 10Ah
0.56A < 29.2V
29.2V > 100mA
28V < 100mA
0.28Ah – 10Ah
0.5A < 32.85V
32.85V > 100mA
31.5V < 100mA
0.25Ah – 10Ah
0.45A < 36.5V
36.5V > 100mA
35V < 100mA
0.23Ah – 10Ah
Input voltage Charge LED
indicator 11 cell (35.2V) 12 cell (38.4V) 13 cell (41.6V) 14 cell (44.8V) 15 cell (48V) 16 cell (51.2V)
2240(P) 2241(P)
100-240Vac
50-60Hz
max. 0.35A
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
0.4A < 40.15V
40.15V > 100mA 38.45V < 100mA
0.2Ah – 10Ah
0.37A < 43.8V
43.8V > 100mA
42V < 100mA
0.19Ah – 10Ah
0.34A < 47.45V
47.45V > 100mA
45.5V < 100mA
0.17Ah – 10Ah
0.32A < 51.1V
51.1V > 100mA
49V < 100mA
0.16Ah – 10Ah
0.3A < 54.75V
54.75V > 100mA 52.56V < 100mA
0.15Ah – 10Ah
0.28A < 58.4V
58.4V > 100mA
56V < 100mA
0.14Ah – 10Ah

15
Input voltage Charge LED
indicator 1 cell (3.2V) 2 cell (6.4V) 3 cell (9.6V) 4 cell (12.8V) 5 cell (16V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.7A < 3.65V
3.65V > 1.15A 3.65V < 1.15A
3.5V < 100mA
1.35Ah – 10Ah
2.7A < 7.3V
7.3V > 1.15A 7.3V < 1.15A
7.0V < 100mA
1.35Ah – 10Ah
2.3A < 11.0V 11.0V > 1.0A 11.0V < 1.0A
10.5V < 100mA
1.15Ah – 10Ah
2.0A < 14.6V
14.6V > 0.85A 14.6V < 0.85A
14.0V < 100mA
1Ah – 10Ah
1.6A < 18.3V 18.3V > 0.7A 18.3V < 0.7A
17.5V < 100mA
0.8Ah – 10Ah
(20-60Vdc)
max 2A
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
4.5A < 3.65V 3.65V > 1.8A 3.65V < 1.8A
3.5V < 300mA
2.25Ah – 30Ah
4.5A < 7.3V 7.3V > 1.8A 7.3V < 1.8A
3.5V < 300mA
2.25Ah – 30Ah
4.5A < 11.0V 11.0V > 1.8A 11.0V < 1.8A
10.5V < 300mA
2.25Ah – 30Ah
4A < 14.6V
14.6V > 1.6A 14.6V < 1.6A
14.0V < 300mA
2Ah – 30Ah
3.9A < 18.3V 18.3V > 1.6A 18.3V < 1.6A
17.5V < 300mA
1.95Ah – 30Ah
2840(P) 2841(P) 2842(P)
220-240Vac
50-60Hz
max. 1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
8.5A < 3.65V 3.65V > 3.8A 3.65V < 3.8A
3.5V < 300mA
4.25Ah – 30Ah
8.5A < 7.3V 7.3V > 3.5A 7.3V < 3.5A
7V < 300mA
4.25Ah – 30Ah
8.5A < 10.95V 10.95V > 3.1A 10.95V < 3.1A
10.45V < 300mA
4.25Ah – 30Ah
7A < 14.6V
14.6V > 2.7A 14.6V < 2.7A
14.0V < 300mA
3.5Ah – 30Ah
5.5A < 18.3V
18.25V > 1.9A 18.25V < 1.9A
17.45V < 300mA
2.25Ah – 30Ah
3240(P) 3241(P) 3242(P)
110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3240B
3240BP N.A. N.A. N.A. N.A.
3340 220-240Vac N.A. N.A. N.A. N.A. N.A.
Charge diagram B

16
Input voltage Charge LED
indicator 6 cell (19.2V) 7 cell (22.4V) 8 cell (25.6V) 9 cell (28.8V) 10 cell (32V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.4A < 21.9V 21.9V > 0.6A 21.9V < 0.6A
21V < 100mA
0.7Ah – 10Ah
1.2A < 25.6V 25.6V > 0.5A 25.6V < 0.5A
24.55V < 100mA
0.6Ah – 10Ah
1A < 29.2V
29.2V > 0.4A 29.2V < 0.4A
28V < 100mA
0,5Ah – 10Ah
0.9A < 32.9V
32.9V > 0.35A 32.9V < 0.35A
31.55V < 100mA
0.45Ah – 10Ah
0.8A < 36.5V
36.5V > 0.35A 36.5V < 0.35A
35V < 100mA
0.4Ah – 10Ah
(20-60Vdc)
max 2A
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
3.3A < 21.9V 21.9V > 1.6A 21.9V < 1.6A
21V < 300mA
1.15Ah – 30Ah
2.8A < 25.55V 25.55V > 0.8A 25.55V < 0.8A
24.5V < 300mA
1.4Ah – 30Ah
2.5A < 29.2V 29.2V > 0.8A 29.2V < 0.8A
28V < 300mA
1.25Ah – 30Ah
2.2A < 32.85V 32.85V > 0.8A 32.85V < 0.8A
31.5V < 200mA
1.1Ah – 20Ah
1.95A < 36.5V
36.5V > 0.8A 36.5V < 0.8A
35V < 200mA
1Ah – 20Ah
2840(P) 2841(P) 2842(P)
220-240Vac
50-60Hz
max. 1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
4.6A < 21.9V 21.9V > 1.7A 21.9V < 1.7A
21V < 300mA
2.3Ah – 30Ah
3.9A < 25.55V 25.55V > 1.6A 25.55V < 1.6A
24.5V < 300mA
1.95Ah – 30Ah
3.5A < 29.2V 29.2V > 1.4A 29.2V < 1.4A
28V < 300mA
1.75Ah – 30Ah
3.1A < 32.85V 32.85V > 1.3A 32.85V < 1.3A
31.5V < 300mA
1.55Ah – 30Ah
2.8A < 36.5V 36.5V > 1.2A 36.5V < 1.2A
35V < 300mA
1.4Ah – 30Ah
3240(P) 3241(P) 3242(P)
3240B
3240BP
110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3340 220-240Vac
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
25A < 21.9V 21.9V > 10A
2.9V < 10A
21V < 3A
12.5Ah – 120Ah
25A < 25.55V 25.55V > 10A 25.55V < 10A
21V < 3A
12.5Ah – 120Ah
22A < 29.2V 29.2V > 10A 29.2V < 10A
28V < 3A
11Ah – 120Ah
19A < 32.85V
32.85V > 7A 32.85V < 7A
31.5V < 3A
9.5Ah – 120Ah
17A < 36.5V
36.5V > 7A 36.5V < 7A
35V < 3A
8.5Ah – 120Ah

17
Input voltage Charge LED
indicator 11 cell (35.2V) 12 cell (38.4V) 13 cell (41.6V) 14 cell (44.8V) 15 cell (48V) 16 cell (51.2V)
2541(P) 2542(P)
100-240Vac
50-60Hz
max 0.9A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
0.7A < 40.2V 40.2V > 0.3A 40.2V < 0.3A
38.5V < 100mA
0.35Ah – 10Ah
0.7A < 43.8V 43.8V > 0.3A 43.8V < 0.3A
42V < 100mA
0.35Ah – 10Ah
0.6A < 47.45V
47.45V > 0.25A 47.45V < 0.25A
45.5V < 100mA
0.3Ah – 10Ah
0.6A < 51.1V
51.1V > 0.25A 51.1V < 0.25A
49V < 100mA
0.3Ah – 10Ah
0.6A < 54.8V
54.8V > 0.25A 54.8V < 0.25A
52.6V < 100mA
0.3Ah – 10Ah
0.6A < 58.4V
58.4V > 0.25A 58.4V < 0.25A
56V < 100mA
0.3Ah – 10Ah
(20-60Vdc)
max 2A
2440(P) 2441(P) 2442(P)
100-240Vac
50-60Hz
max. 1.6A
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
1.8A < 40.15V 40.15V > 0.8A 40.15V < 0.8A
38.5V < 200mA
0.9Ah – 20Ah
1.65A < 43.8V
43.8V > 0.6A 43.8V < 0.6A
42V < 200mA
0.83Ah – 20Ah
1.5A < 47.45V 47.45V > 0.6A 47.45V < 0.6A
45.5 < 100mA
0.75Ah – 10Ah
1.4A < 51.1V 51.1V > 0.6A 51.1V < 0.6A
49V < 100mA
0.7Ah – 10Ah
1.3A < 54.75V 54.75V > 0.6A 54.75V < 0.6A
52.56V < 100mA
0.65Ah – 10Ah
1.2A < 58.4V 58.4V > 0.6A 58.4V < 0.6A
56V < 100mA
0.6Ah – 10Ah
2840(P) 2841(P) 2842(P)
220-240Vac
50-60Hz
max. 1.2A Orange CC ch.:
Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
2.5A < 40.15V 40.15V > 1.2A 40.15V < 1.2A
38.5V < 300mA
1.25Ah – 20Ah
2.3A < 43.8V 43.8V > 0.9A 43.8V < 0.9A
42V < 300mA
1.15Ah – 30Ah
2.15A < 47.45V
47.45V > 0.8A 47.45V < 0.8A
45.5V < 300mA
1.1Ah – 30Ah
2A < 51.1V
51.1V > 0.7A 51.1V < 0.7A
49V < 300mA
1Ah – 30Ah
1.8A < 54.75V 54.75V > 0.7A 54.75V < 0.7A
52.56V < 300mA
0.9Ah – 30A
1.7A < 58.4V 58.4V > 0.6A 58.4V < 0.6A
56V < 300mA
0.85Ah – 30Ah
3240(P) 3241(P) 3242(P)
3240B
3240BP
110-120Vac/
220-240Vac
50-60Hz
max. 2.1A
3340 220-240Vac
Orange CC ch.: Orange CV ch.: Yellow CV ch.: Green ch. complete: Rec. batt. capacity:
15A < 40.15V
40.15V > 7A 40.15V < 7A
38.5V < 3A
7.5Ah – 120Ah
15A < 43.8V
43.8V > 5A 43.8V < 5A 42V < 1.3A
7Ah – 52Ah
14A < 47.45V
47.45V < 5A
47.45V V < 5A
45.5V < 1.3A
7Ah – 52Ah
13A < 51.1V
51.1V > 5A 51.1V < 5A 49V < 1.3A
6.5Ah – 52Ah
12A < 54.75V
54.75V > 5A 54.75V < 5A
52.56V < 1.3A
6.0Ah – 52Ah
11A < 58.4V
58.4V > 5A 58.4V < 5A
< 1.3A
5.5Ah – 52Ah

18
Input voltage Charge LED
indicator 6 cell (19.2V) 7 cell (22.4V) 8 cell (25.6V) 9 cell (28.8V) 10 cell (32V)
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
2A < 21.9V
21.9V < 2A (½h)
21V
1Ah – 80Ah
2A < 25.55V
25.55V < 2A (½h)
24.5V
1Ah – 80Ah
2A < 29.2V
29.2V < 2A (½h)
28V
1Ah – 80Ah
1.7A < 32.85V
32.85V < 1.7A (½h)
31.5V
1.35Ah – 68Ah
1.5A < 36.5V
36.5V < 1.5A (½h)
35V
0.75Ah – 60Ah
Charge diagram C
Input
voltage
Charge LED
indicator 11 cell (35.2V) 12 cell (38.4V) 13 cell (41.6V) 14 cell (44.8V) 15 cell (48V) 16 cell (51.2V)
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: (½h)
Green ch. complete: Rec. batt. capacity:
1.4A < 40.15V 40.15V < 1.4A
38.5V
0.7Ah – 56Ah
1.3A < 43.8V 43.8V < 1.3A
42V
0.65Ah – 52Ah
1.2A < 47.45V
47.45V < 1.2A
45.5V
0.6Ah – 48Ah
1.1A < 51.1V 51.1V < 1.1A
49V
0.55Ah – 44Ah
1.1A < 54.75V
54.75V < 1.1A
52.50V
0.55Ah – 44Ah
1A < 58.4V
58.4V < 1A
56V
0.5Ah – 40Ah
Input voltage Charge LED
indicator 1 cell (3.2V) 2 cell (6.4V) 3 cell (9.6V) 4 cell (12.8V) 5 cell (16V)
2040(P) 2041(P) 2042(P) 2140(P)
100-240Vac
50-60Hz
Orange CC ch.: Orange CV ch.: Green ch. complete: Rec. batt. capacity:
N.A. N.A.
4A < 11V
11V < 4A (½h)
10.5V
2Ah – 160Ah
3.5A < 14.6V
14.6V < 3.5A (½h)
14.0V
1.75Ah – 140Ah
2A < 18.3V
21V < 2A (½h)
17.5V
1Ah – 80Ah
(P) = 2MOPP version (B) =Special open frame PCB (All standard versions are also available as open frame units)

19
Charge diagram D
Input voltage Charge LED indicator 1-cell 2-cell 3-cell 4-cell 5-cell 6-cell
3546
100-240Vac
50-60Hz
max.0.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
2.5A < 3.65V 3.65V > 2.2A 3.65V > 2.2A
3.5V < 100mA
1.25Ah - 100Ah
2.5A < 7.3V 7.3V > 2.2A 7.3V > 2.2A
7.0V < 100mA
1.25Ah - 100Ah
2.2A < 10.95V 10.95V > 1.9A 10.95V > 1.9A
10.5V < 100mA
1.10Ah - 88Ah
2A < 14.6V
14.6V > 1.80A 14.6V > 1.80A
14.0V < 100mA
1.00Ah - 80Ah
1.6A < 18.25V 18.25V > 1.4A 18.25V > 1.4A
17.5V < 100mA
0.80Ah - 64Ah
1.3A < 21.9V 21.9V > 1.1A 21.9V > 1.1A
21.0V < 100mA
0.65Ah - 52Ah
3743
100-240Vac
50-60Hz
max.0.5A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
1.5A < 3.65V
3.65V > 1.35A 3.65V < 1.35A
3.5V < 100mA
0.75Ah - 60Ah
1.5A < 7.3V
7.3V > 1.35A 7.3V < 1.35A
7.0V < 100mA
0.75Ah - 60Ah
1.3A < 10.95V
10.95V > 1.17A 10.95V < 1.17A
10.5V < 100mA
0.65Ah - 52Ah
1A < 14.6V
14.6V > 0.90A 14.6V < 0.90A
14.0V < 100mA
0.5Ah - 40Ah
0.9A < 18.25V
18.25V > 0.81A 18.25V < 0.81A
17.5V < 100mA
0.45Ah - 36Ah
0.75A < 21.9V 21.9V > 0.68A 21.9V < 0.68A
21.0V < 100mA
0.38Ah - 30Ah
Input voltage Charge LED indicator 7-cell 8-cell 9-cell 10-cell 11-cell 12-cell
3546
100-240Vac
50-60Hz
max.0.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl..: Rec. batt. capacity:
1.1A < 25.55V 25.55V > 1.0A 25.55V > 1.0A
24.5V < 100mA
0.55Ah - 44Ah
1A < 29.2V
29.2V > 0.90A 29.2V > 0.90A
28.0V < 50mA
0.50Ah - 40Ah
0.85A < 32.85V 32.85V > 0.75A 32.85V > 0.75A
31.5V < 50mA
0.43Ah - 34Ah
0.8A < 36.5V
36.5V > 0.70A 36.5V > 0.70A
35.0V < 50mA
0.40Ah - 32Ah
0.7A < 40.15V
40.15V > 0.60A 40.15V > 0.60A
38.5V < 50mA
0.35Ah - 28Ah
0.65A < 43.8V 43.8V > 0.55A 43.8V > 0.55A
42.0V < 50mA
0.33Ah - 26Ah
3743
100-240Vac
50-60Hz
max.0.5A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
0.66A < 25.55V 25.55V > 0.59A 25.55V < 0.59A
24.5V < 50mA
0.33Ah - 26Ah
0.56A < 29.2V 29.2V > 0.50A 29.2V < 0.50A
28.0V < 50mA
0.28Ah - 22Ah
0.5A < 32.85V
32.85V > 0.45A 32.85V < 0.45A
31.5V < 50mA
0.25Ah - 20Ah
0.45A < 36.5V 36.5V > 0.41A 36.5V < 0.41A
35.0V < 50mA
0.23Ah - 18Ah
0.4A < 40.15V
40.15V > 0.36A 40.15V < 0.36A
38.5V < 30mA
0.2Ah - 16Ah
0.4A < 43.8V
43.8V > 0.36A 43.8V < 0.36A
42.0V < 30mA
0.2Ah - 16Ah

20
Charge diagram D
Input voltage Charge LED indicator 13-cell 14-cell 15-cell 16-cell
3546
100-240Vac 50-60Hz max.0.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
0.6A < 47.45V
47.45V > 0.55A 47.45V > 0.55A
45.5V < 30mA
0.30Ah - 24Ah
0.55A < 51.1V 51.1V > 0.50A 51.1V > 0.50A
49.0V < 30mA
0.28Ah - 22Ah
0.5A < 54.75V
54.75V > 0.45A 54.75V > 0.45A
52.5V < 30mA
0.25Ah - 20Ah
0.5A < 58.4V
58.4V > 0.45A 58.4V > 0.45A
56.0V < 30mA
0.25Ah - 20Ah
3743
100-240Vac 50-60Hz max.0.5A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
0.35A < 47.45V 47.45V > 0.32A 47.45V < 0.32A
45.5V < 30mA
0.18Ah - 14Ah
0.33A < 51.1V 51.1V > 0.30A 51.1V < 0.30A
49.0V < 30mA
0.17Ah - 13Ah
0.3A < 54.75V
54.75V > 0.27A 54.75V < 0.27A
52.5V < 30mA
0.15Ah - 12Ah
0.3A < 58.4V
58.4V > 0.27A 58.4V < 0.27A
56.0V < 30mA
0.15Ah - 12Ah
The max. battery capacities given in the tables above are for guidance only. For import to the U.S.A.: see the U.S. DOE Compliance Certification Database for maximum battery capacity allowed.
Input voltage Charge LED indicator 4-cell 7-cell 8-cell 9-cell
3540
*
220-240Vac
50Hz
max.2.4A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
20A < 14.6V
14.6V> 14A 14.6V< 14A
0.8A
10Ah - 800Ah
10A < 25.55V
25.55V > 8.0A 25.55V < 8.0A
0.8A
5Ah - 400Ah
10A < 29.2V
29.2V > 8.0A 29.2V < 8.0A
<0.8A
5Ah - 400Ah
9.0A < 32.85V 32.85V > 7.5A 32.85V < 7.5A
<0.8A
4.5Ah - 360Ah
3540
*
115Vac
50-60Hz
max.3.7A
Yellow CC ch.: Yellow CV ch.: Yellow flash CV ch.: Green ch. compl.: Rec. batt. capacity:
17A < 14.6V
14.6V> 12A 14.6V< 12A
0.8A
8.5Ah - 680Ah
9.8A < 25.55V 25.55V > 7.8A 25.55V < 7.8A
0.8A
5Ah - 400Ah
8.5A < 29.2V 29.2V > 7.0A 29.2V < 7.0A
<0.8A
4.3Ah - 340Ah
7.5A < 32.85V 32.85V > 6.5A 32.85V < 6.5A
<0.8A
3.8Ah - 300Ah
* Output automatically derated when operated at high amb. temperature.
