Chapter 1
Charger Overview

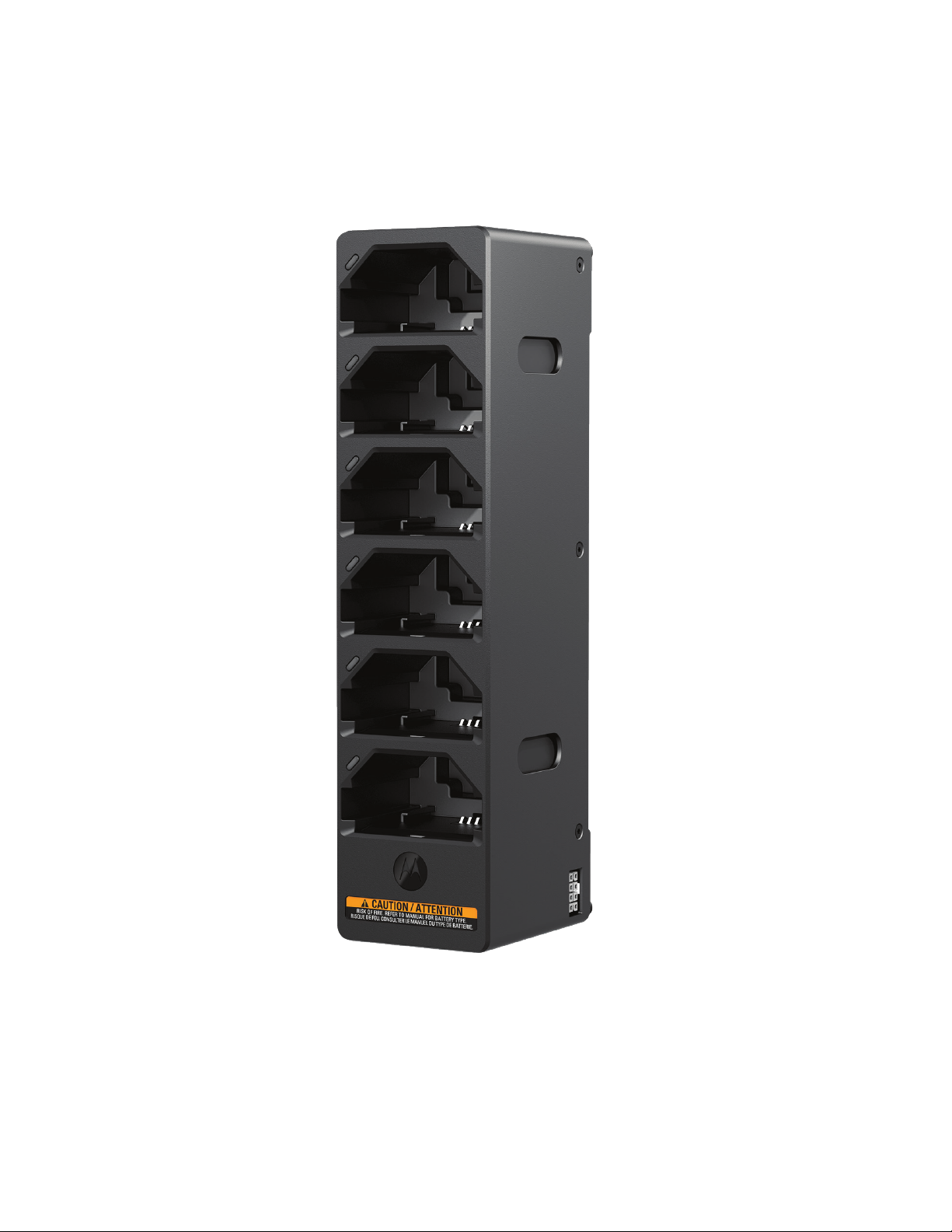

Figure 1: Charger Overview
8
1
2
3
7
5
4
6
Table 1: Charger Overview
Label Description
1 LED Indicator
2 Charging Pocket
3 Male Connector
4 Male Connector Latch
5 Female Connector
6 Magnet
7 Mounting Bracket Rails
8 Rubber Foot
Table 2: Charger Specification
INPUT OUTPUT
100-240 VAC ~ 50/60 Hz 1.3A (Up to 2 Multi-Unit
Chargers) 4.35 1Ax6
MN007338A01-AC
Chapter 1: Charger Overview
10

INPUT OUTPUT
100-240 VAC ~ 50/60 Hz 4.0A (Up to 4 Multi-Unit
Chargers)
Table 3: Supported Models with assigned Power Supply
Charger Kit Power Supply Description Module
PMPN4531 PS000242A04 External 90 W, 100–
240 V
Up to two multi-unit
chargers
PS000212A02 External 201 W, 100–
240 V
Up to four multi-unit
chargers
1.1
Charger Accessories Overview

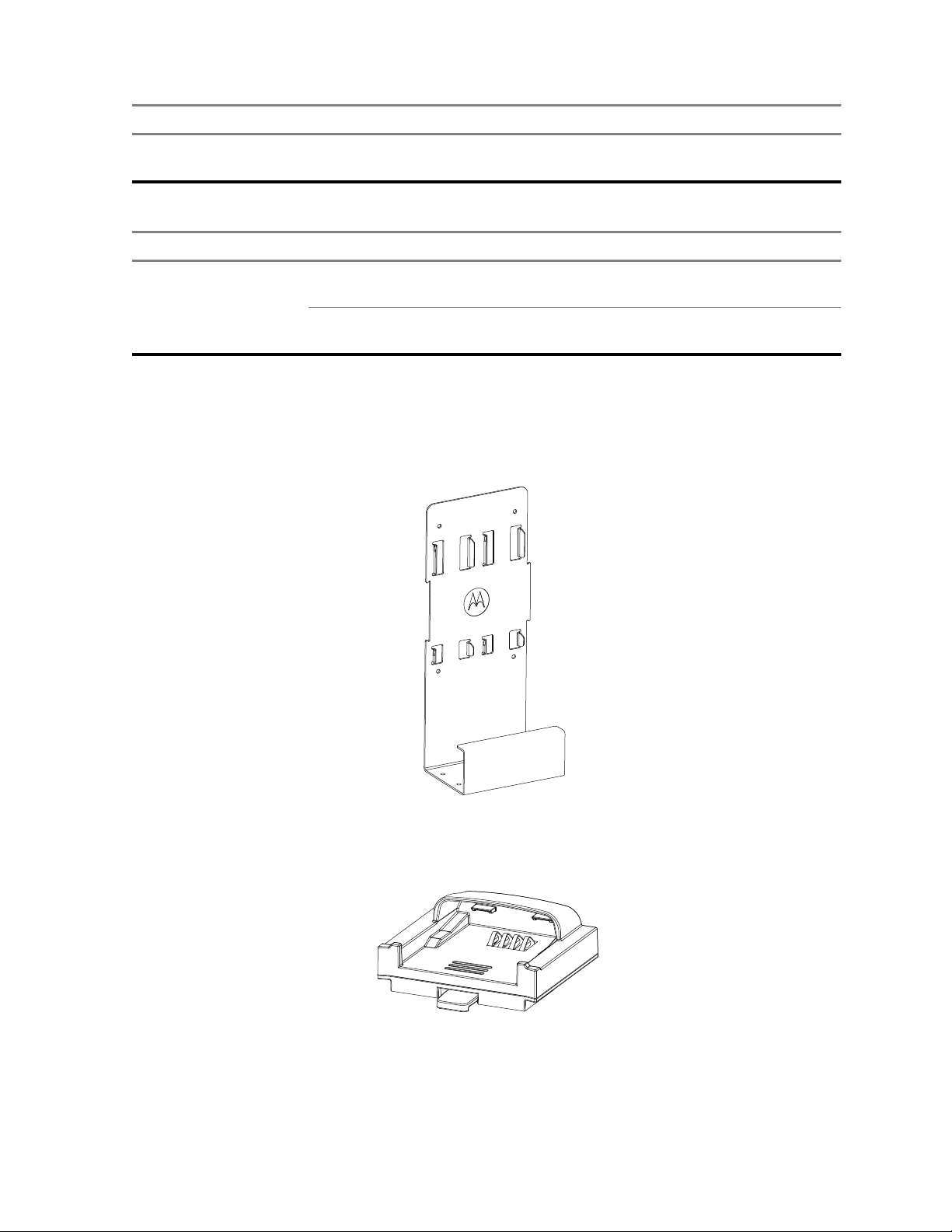

Figure 2: Mounting Bracket (Part Number: BR000482A01) Overview
Figure 3: Insert (Part Number: AS000401A01) Overview
MN007338A01-AC
Chapter 1: Charger Overview
11

1.2
Authorized Batteries and Power Supplies
Table 4: Motorola Solutions Authorized Batteries
Part Number Description Series
PMNN4801 Lithium-ion IMPRES 2 Battery, 1900 mAh MXP600
PMNN4582 Lithium-ion IMPRES 2 Battery, 2900 mAh
PMNN4802 Lithium-ion IMPRES 2 Battery, 3400 mAh
NNTN80201Lithium-ion Battery, 1950 mAh MTP3000 or
MTP6000
NNTN80231Lithium-ion Battery, 2200 mAh
PMNN4522 Lithium-ion IMPRES 2 Battery, 3400 mAh
PMNN4351 2Lithium-ion Battery, 1940 mAh MTP850
Table 5: Motorola Solutions Authorized Power Cords
Part Number Description
3087791G01 Power Cord, United States/North America
3087791G04 Power Cord, Europe
3087791G07 Power Cord, United Kingdom/Hong Kong
3087791G10 Power Cord, Australia/New Zealand
3087791G13 Power Cord, Argentina
3087791G16 Power Cord, Korea
3087791G20 Power Cord, Japan
3087791G22 Power Cord, Brazil
CB000199A01 Power Cord, China
CB000805A01 Power Cord, Taiwan
1Battery NNTN8020B and NNTN8023C will be sold in Taiwan market.
2The battery requires to use insert (Part Number: AS000401A01) when charging. The order
comes in six pieces (Part Number: AS000403A01).
MN007338A01-AC
Chapter 1: Charger Overview
12

1.3
Optional Equipments
A mounting bracket (Part Number: BR000482A01) is available for the Multi-Unit Charger. Contact your
dealer to order this item. See Mounting the Mounting Bracket to the Wall on page 17 for installation
instructions.
WARNING:
• The mounting bracket should be installed by a trained and experienced technician. Having
the mounting bracket installed by a non-specialized technician is dangerous, and can cause
damage or injury.
• Do not install the mounting bracket where the weight cannot be supported. If the strength of
the location where the mounting bracket is installed is not strong enough, it can fall off and
cause an injury.
• Do not install the mounting bracket on a structure that is prone to vibration, movement, or
chance of impact.
MN007338A01-AC
Chapter 1: Charger Overview
13

Chapter 2
Charger Operations
This sections contains the charging information of your charger.
2.1
Charging the Batteries
Prerequisites:Charge your Motorola Solutions Authorized Batteries best at room temperature with the
assigned power supply to the supported models.
Procedure:
1Place the multi-unit charger on a flat surface.
NOTICE: If you have more than one multi-unit charger, it is recommended to place the
multi-unit charger in a vertical position mounted to the mounting bracket.
2Insert the power supply adapter to the female connector of the multi-unit charger.
3Plug the power supply adapter to the power outlet.
If powering up the multi-unit charger is successful, the LED shows green for one second.
If powering up the multi-unit charger is unsuccessful, check the power cord connection.
4To insert the battery into the charger pocket, align the battery on the rail of the charger pocket.
5Make sure the battery is in contact with the charger contact.
If the battery is inserted correctly, the LED indicator shows solid red.
6To remove the battery from the charger pocket, pull the battery out from the charger pocket.
2.2
Charging Indications
Table 6: Charging Indications
Charger Indication Description
Solid green for 1 second Charger power up successfully.
Solid red Battery is charging rapidly.
Blinking green Battery is charged up to 90% or more.
Solid green Battery is nearly charged or fully charged.
Blinking red Battery is at fault.
NOTICE: Remove and re-insert the battery to the
charger pocket.
MN007338A01-AC
Chapter 2: Charger Operations
14

Charger Indication Description
Blinking amber Battery is in standby mode waiting to be charged.
NOTICE: Battery might be too hot, too cold or low
voltage.
2.3
Combining the Multi-Unit Chargers
Prerequisites:The maximum unit of multi-unit charger that can be combined is four.
Procedure:

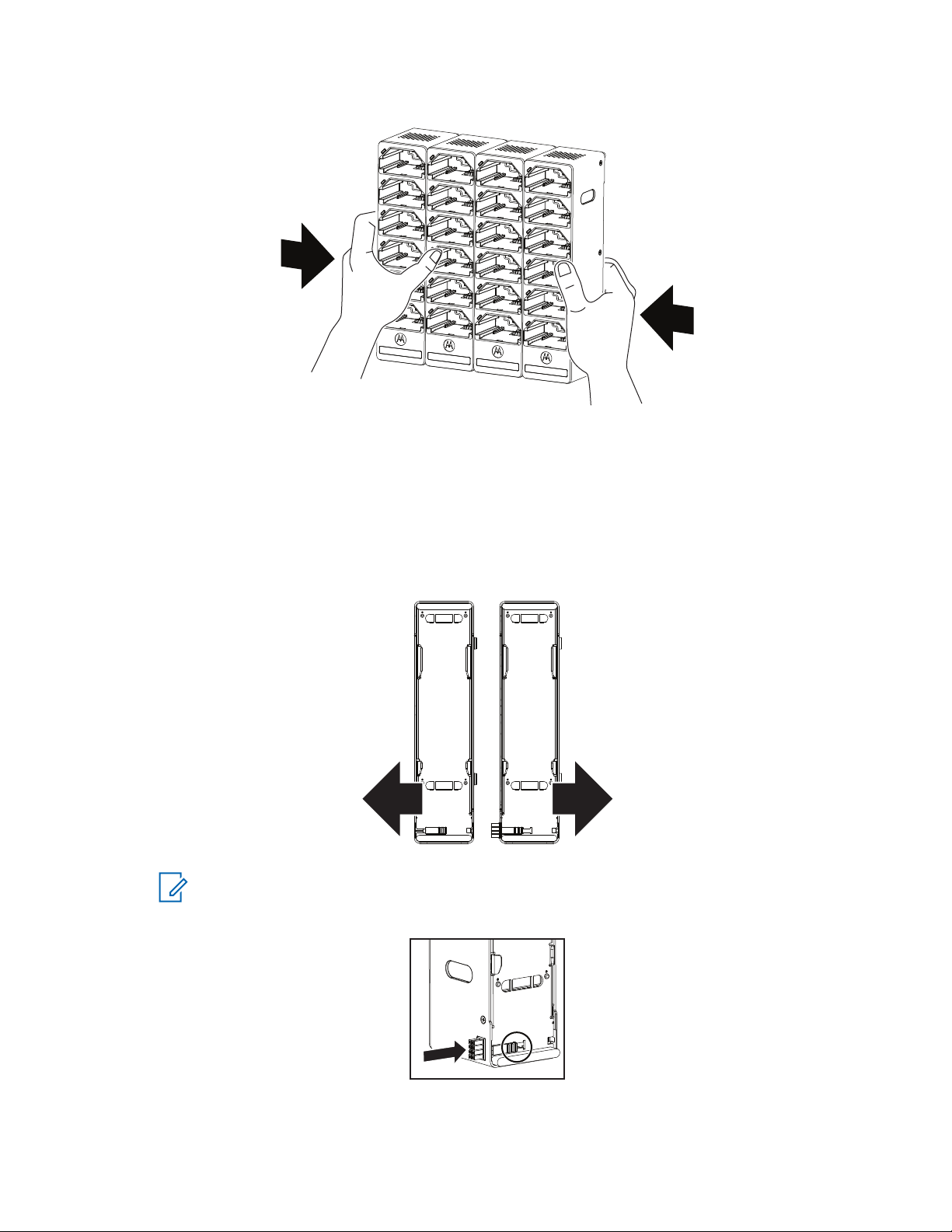

1Place the chargers on the table for support before combining them.
2To extend the connector, press and push the male connector latch to the left.
3To combine the chargers, connect the male connector to the female connector.
The magnets of the chargers stick together magnetically.
4Hold the sides of the combined chargers when moving to another location.
MN007338A01-AC
Chapter 2: Charger Operations
15

2.4
Separating the Multi-Unit Chargers
Procedure:
1Place the combined chargers on the table.
2To separate the combined chargers, pull each of the chargers apart.
NOTICE: To place the male connector into the charger, press the male connector latch
and push to the right.
MN007338A01-AC
Chapter 2: Charger Operations
16

2.5
Mounting the Mounting Bracket to the Wall
NOTICE: This is an optional equipment. See Optional Equipments on page 13 for more
information.
Procedure:

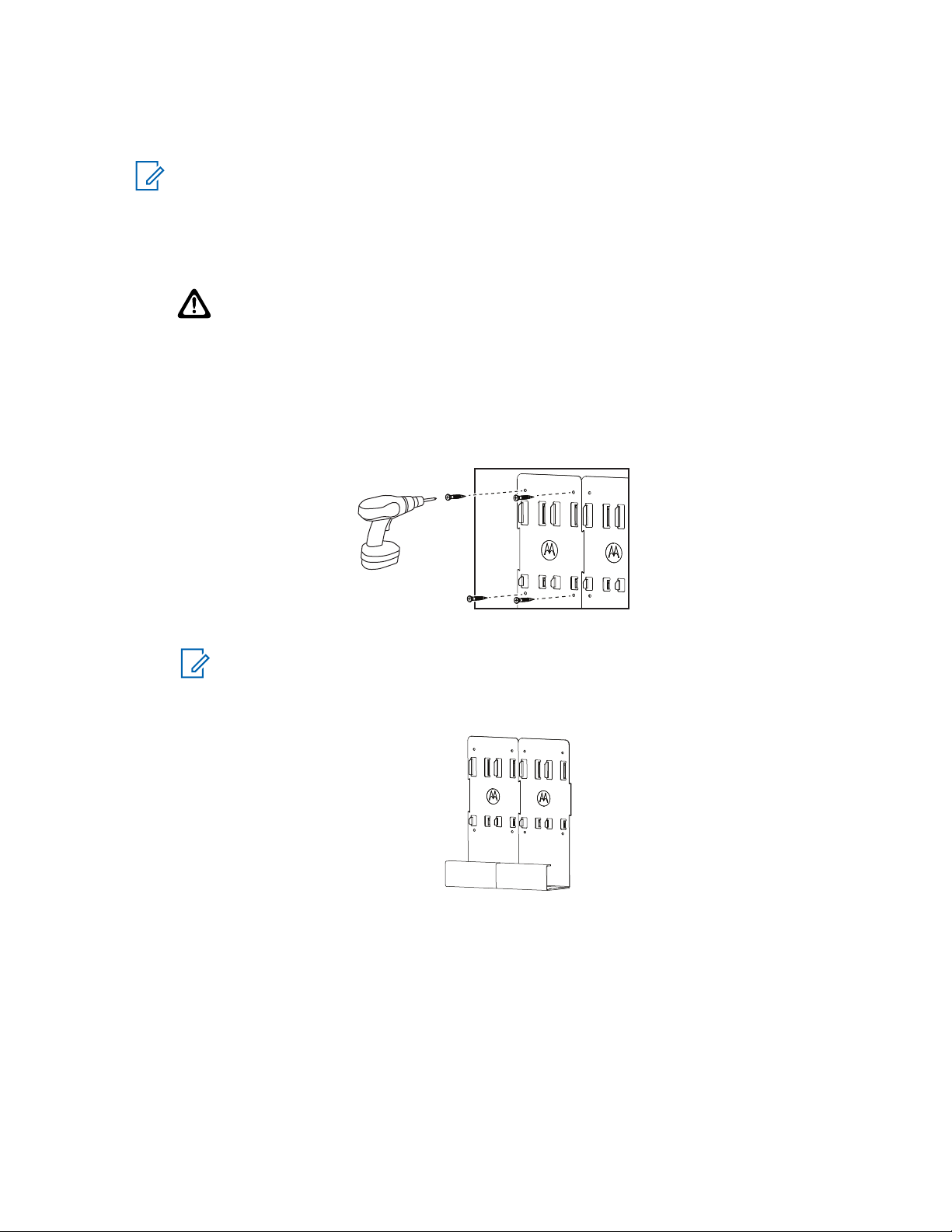

1Position the bracket in a desired position, and mark the location of the mounting holes on the
wall surface.
CAUTION: Ensure that the area behind the mounting surface is free from electrical
wires, cables, or pipes before cutting, drilling, or installing the mounting screws.
2Mount the bracket to the wall using the appropriate mounting hardware required such as wall
material fixture.
3Drill based on the mounting holes markings on the wall.
4To secure the bracket, install the mounting hardware over the mounting holes on the bracket
tightly.
NOTICE: It is recommended to use a 10–16 x 1.5 inch. tapping screw and washer (not
included) on the wood stud and solid-flat concrete or brick wall.
5To mount the two brackets, place both brackets closely and align vertically to each other.

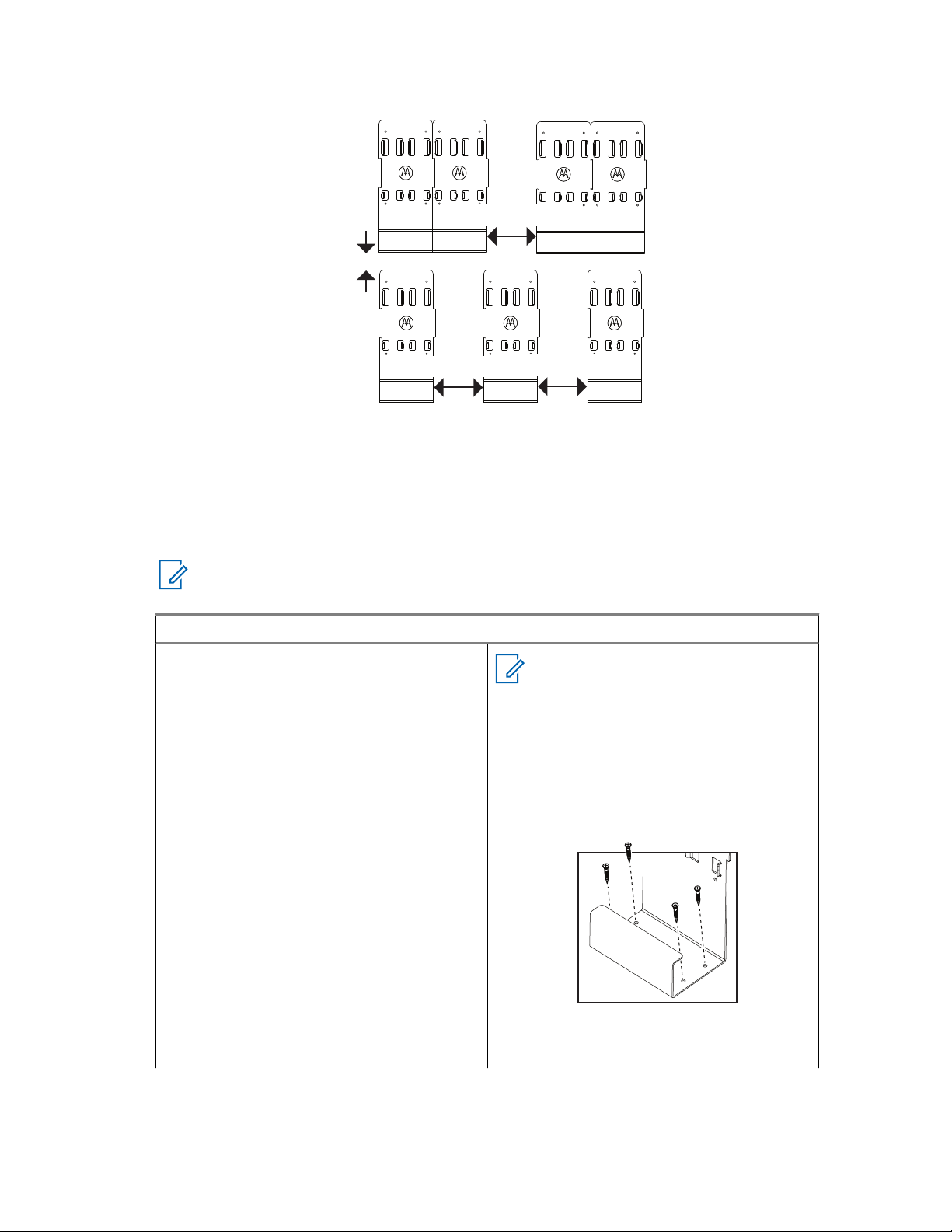

6To mount more than two brackets, mount each pair of the brackets with a minimum distance of
50 mm vertically and 140 mm horizontally.
MN007338A01-AC
Chapter 2: Charger Operations
17

50 mm
140 mm
140 mm
140 mm
2.6
Preparing Chargers for Desktop Charging
Procedure:

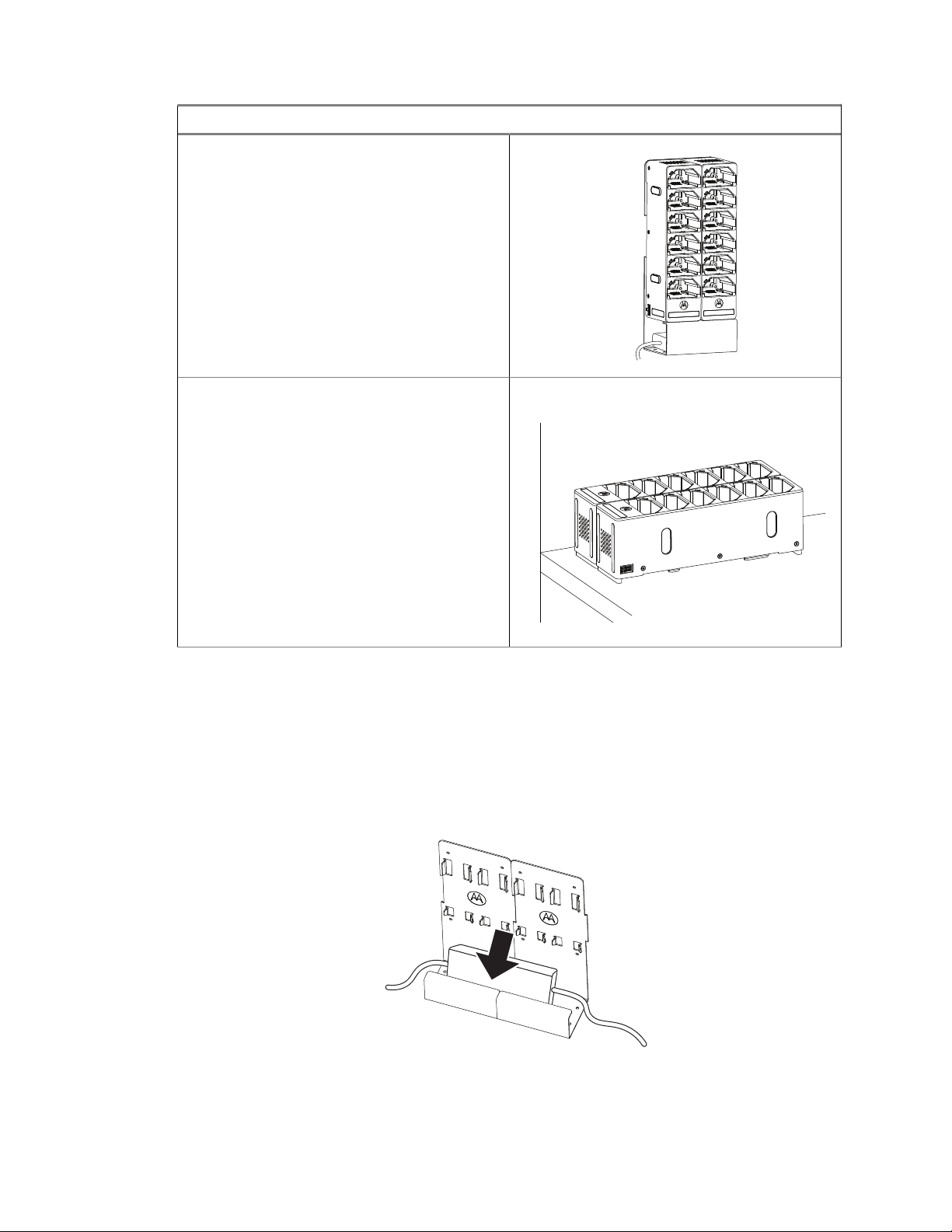

1Prepare charger for desktop charging by performing one of the following action:
NOTICE: If the charger is placed in a vertical position, it is recommended to place the
charger on the mounting bracket to prevent it from toppling.
Option Action
Charging with mounting bracket NOTICE:
• It is recommended to use 10–
16x1.5 inch. tapping screw to
mount the bracket onto table
top.
• Ensure the screws do not pen-
etrate through the table.
aScrew the wall bracket to the table.
bPlace the power supply inside the wall
bracket.
MN007338A01-AC
Chapter 2: Charger Operations
18

Option Action
Charging without metal bracket aPlace the charger horizontally.
2.7
Preparing Chargers for Vertical Charging Position
Prerequisites:Ensure that the mounting bracket is mounted to the wall, and chargers are combined
before mounting into the mounting bracket.
Procedure:
1Place the power supply adapter into the mounting bracket.
2Place and lean the charger to the bracket.
MN007338A01-AC
Chapter 2: Charger Operations
19

3Align the back rails on the charger with the rails on the mounting bracket.
4Slide the charger downwards to attach with both rails.
5Ensure that both rails are attached before releasing the charger.
2.8
Installing or Removing the Batteries Inserts
You are required to use inserts (Part Number: AS000401A01) to charge PMNN4351 batteries.
Installing the Batteries Inserts
Procedure:
1Align the insert to the pocket of the multi-unit charger.
2Push inside the insert until you hear a click sound.
MN007338A01-AC
Chapter 2: Charger Operations
20
