CLS SERIES CHARGER
User Manual
*MN006468A01*
MN006468A01-AB
OCTOBER 2020
© 2020 Motorola Solutions, Inc. All rights reserved
en-US fr-CA

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
AVIS:
Cet équipement a fait l'objet de tests et a été déclaré conforme aux limites établies pour un appareil
numérique de classe B, conformément à la section 15 des règlements de la FCC. Ces limites sont
fixées afin d'offrir une protection suffisante contre des interférences nuisibles dans une installation
résidentielle. Cet équipement génère, utilise et peut émettre de l'énergie de radiofréquence et, s'il n'est
pas installé ou utilisé conformément aux instructions, il peut provoquer un brouillage nuisible aux
communications radio. Cependant, il est impossible de garantir qu'il n'y aura aucune interférence dans
une installation particulière. Si cet appareil cause une interférence nuisible à la réception de la radio ou
de la télévision, ce qui peut être déterminé en éteignant et en allumant l'appareil, vous êtes encouragé
à remédier à la situation en prenant une ou plusieurs des mesures suivantes :
• Réorienter ou déplacer l'antenne réceptrice.
• Augmenter la distance entre l'équipement et le récepteur.
• Brancher l'appareil dans une autre prise sur un circuit différent de celui du récepteur.
• Consulter un revendeur ou un technicien de radio ou de télévision chevronné pour obtenir de l'aide.
MN006468A01-AB
Note:
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
2

Important Safety Instructions
Save these instructions. This document contains important safety and operating instructions. Read
these instructions carefully and save them for future reference.
Before using the battery charger, read all the instructions and cautionary markings on (1) the charger,
(2) the battery, and (3) the radio using the battery.
WARNING:
• To reduce risk of damage to the power cords, pull the plug rather than the cord when
disconnecting from the AC outlet or the charger.
• An extension cord should not be used unless absolutely necessary. Use of an improper
extension cord could result in risk of fire and electric shock. If an extension cord must be
used, make sure that the cord size is 18 AWG for lengths of up to 6.5 feet (2.0 m), and 16
AWG for lengths up to 9.8 feet (3.0 m).
• To reduce risk of fire, electric shock, or injury, do not operate the charger if it has been
broken or damaged in any way. Take it to a qualified Motorola Solutions service
representative.
• Do not disassemble the charger. It is not repairable and replacement parts are not available.
Disassembly of the charger may result in risk of electric shock or fire.
• To reduce risk of electric shock, unplug the charger from the AC outlet before attempting any
maintenance or cleaning.
• To reduce risk of injury, charge only the rechargeable Motorola Solutions Authorized
Batteries listed in Table 1. Other batteries may explode, causing personal injury and
damage.
• Use of accessories not recommended by Motorola Solutions may result in risk of fire, electric
shock, or injury.

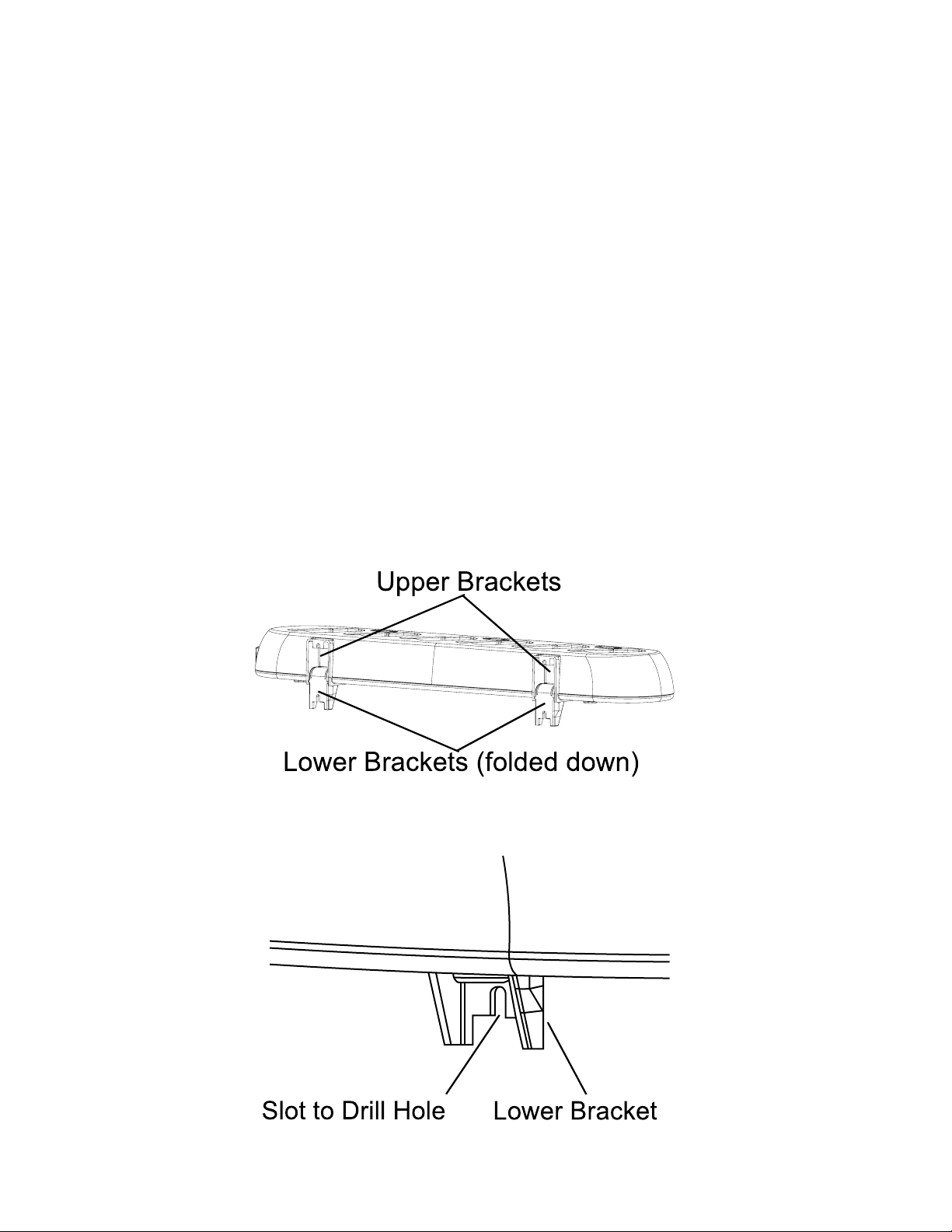

• Ensure the area behind the mounting surface is always free of electrical wires, cables, and
pipes before cutting, drilling, or installing the mounting screws.
• Do not install the product where the weight cannot be supported. If the strength of the
location where the wall mount is installed is not strong enough, it can fall off and cause an
injury.
• Do not install on a structure that is prone to vibration, movement, or chance of impact.
MN006468A01-AB
Important Safety Instructions
3

•Turn off the radio when charging the battery.
• The equipment shall be connected to a nearby and easily accessible socket outlet.
• This equipment is not suitable for outdoor use. Use only in dry locations or conditions.
• Maximum ambient temperature around the charger must not exceed 40 °C (104 °F).
• Connect the charger only to an appropriate power supply and power cord listed in Table 2 and
Table 3.
• Make sure the power cord is located where it will not be stepped on, tripped over, or subjected to
water, damage, or stress.
• Connect the power cord only to an appropriately fused and wired AC outlet with the correct voltage,
as specified on the product.
• Disconnect from line voltage by removing the power cord from the AC outlet.
MN006468A01-AB
Operational Safety Guidelines
Operational Safety Guidelines
4

Warranty
The Charger Kit for North America is covered under the Motorola Solutions one year limited warranty.
If your charger is defective, please contact your Motorola Solutions Partner where the unit was
purchased. Order a Replacement Charging Kit if necessary.
For product-related questions, contact: 1-800-448-6686 (US & Canada)
For more information, contact Motorola Authorized Dealer or visit us at www.motorolasolutions.com.
MN006468A01-AB
Warranty
5

Chapter 1
Product Overview
CLS Single Unit Charger (SUC)
CLS Multi-Unit Charger (MUC)
MN006468A01-AB
Chapter 1: Product Overview
6

1.1
Motorola Solutions Authorized Accessories
Table 1: Motorola Solutions Authorized Battery
Kit Number Decsription
PMNN4497_ Li-Ion Battery
Table 2: Motorola Solutions Authorized Single Unit Charger And Power Supplies
Charger Kit Description Power Supplies
PMPN4528_ CLS Single Unit Charger
(SUC) Tray
None
PMPN4529_ CLS Single Unit Charger
(SUC) Kit for North America
PS000228A01
*UL certification only applied when charger kits shipped with the power supplies listed above.
Table 3: Motorola Solutions Authorized Multi-Unit Charger And Power Cords
Charger Kit Description Power Cords
HCTN4002_ CLS Multi-Unit Charger (MUC)
Tray
None
PMPN4530_ CLS Multi Unit Charger (MUC)
Tray with Power Supply
PS000443A01
1.2
CLS Single Unit Charger (SUC) Kit Operating Instructions
NOTICE: Prior to charging a battery with radio, turn off the radio. Batteries charge best at room
temperature.
1This CLS Single Unit Charger (SUC) Kit is able to charge CLS Series radios with batteries or radios
with batteries and holsters.
2This CLS Single Unit Charger (SUC) Kit is able to charge standalone batteries as listed in Table 1.
1.3
Charging Procedure
To charge the battery (with the radio attached), place it in a Motorola Solutions approved CLS SUC
Tray (see Table 2):
Procedure:
1Place the CLS SUC Tray on a flat surface.
2Insert the connector of the power supply into the port on the side of the drop-in tray charger.
3Plug the wall receptacle end of the power supply cord into appropriate AC outlet. A successful
power-up sequence in indicated by a SINGLE FLASH GREEN on the charger indicator.
MN006468A01-AB
Chapter 1: Product Overview
7

4 Turn the radio off.

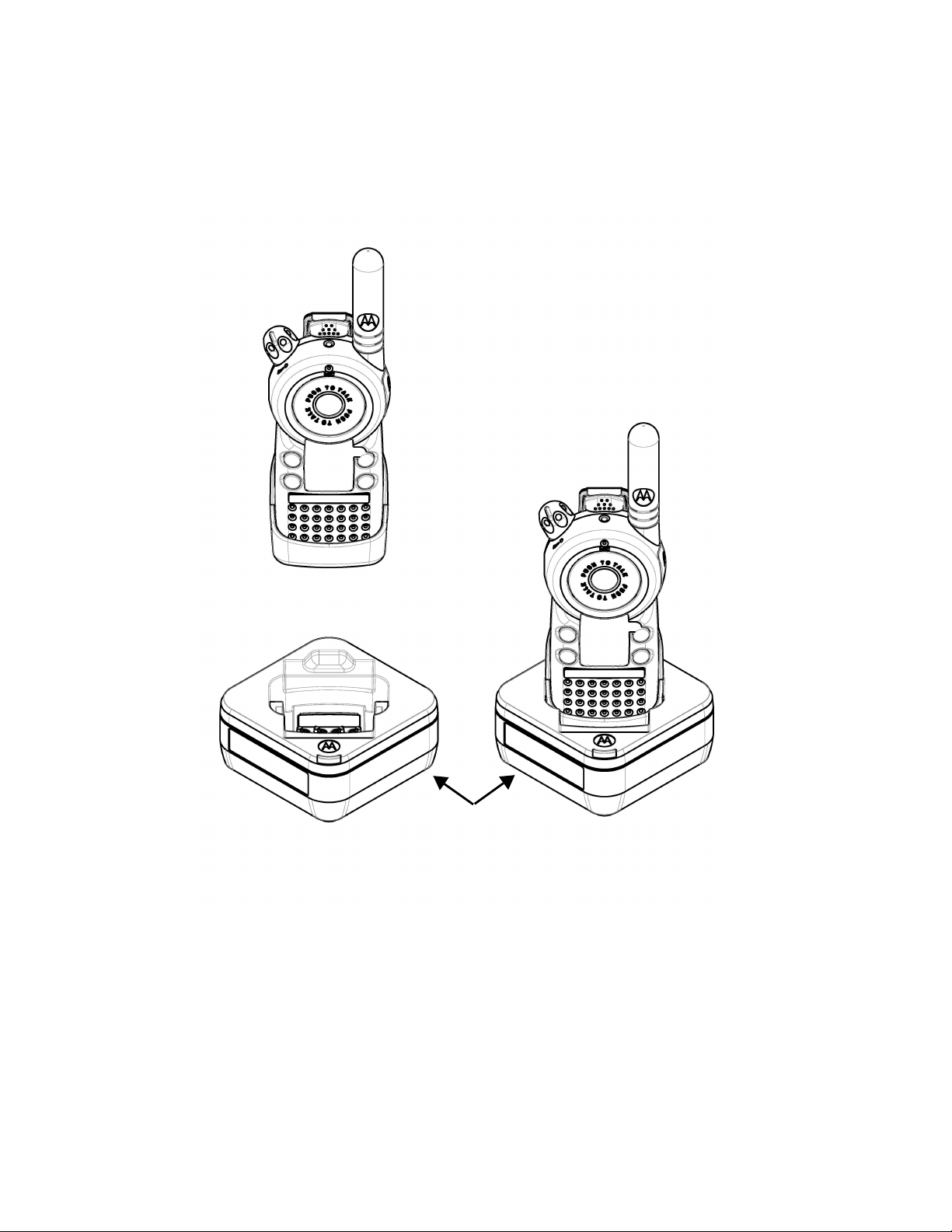

5 Insert the radio into the tray with the front of the radio facing the front of the charger, as shown.
CLS SUC Tray
1.4
Charging A Stand-Alone Battery
To charge a battery, insert the battery into the charger pocket by:
Procedure:

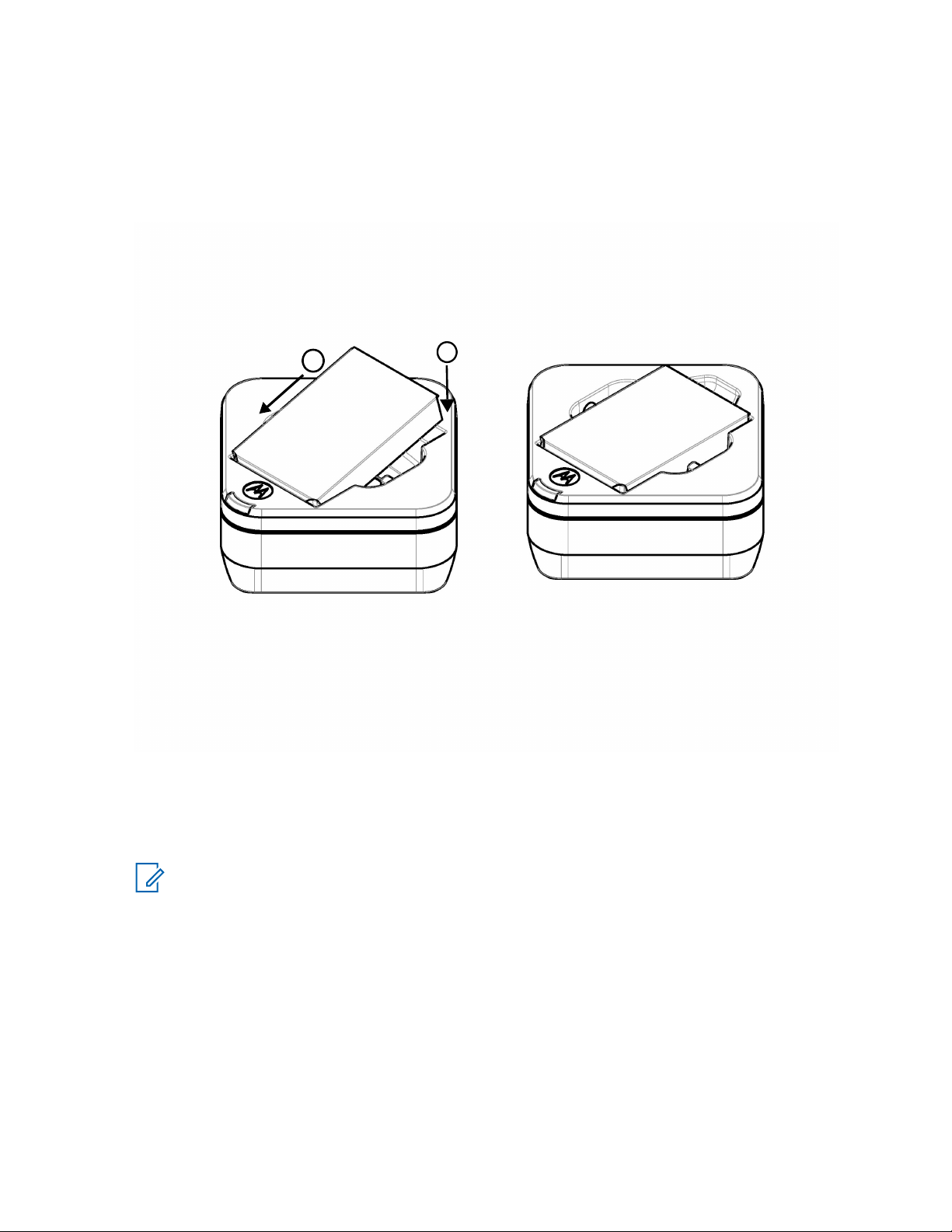

1Aligning the raised tab on each side of the battery with the corresponding groove on each side
of the charger pocket.
2Pressing the battery toward the rear of the pocket.
3Sliding the battery into the charger pocket, ensuring complete contact between the charger and
battery contacts.
MN006468A01-AB
Chapter 1: Product Overview
8

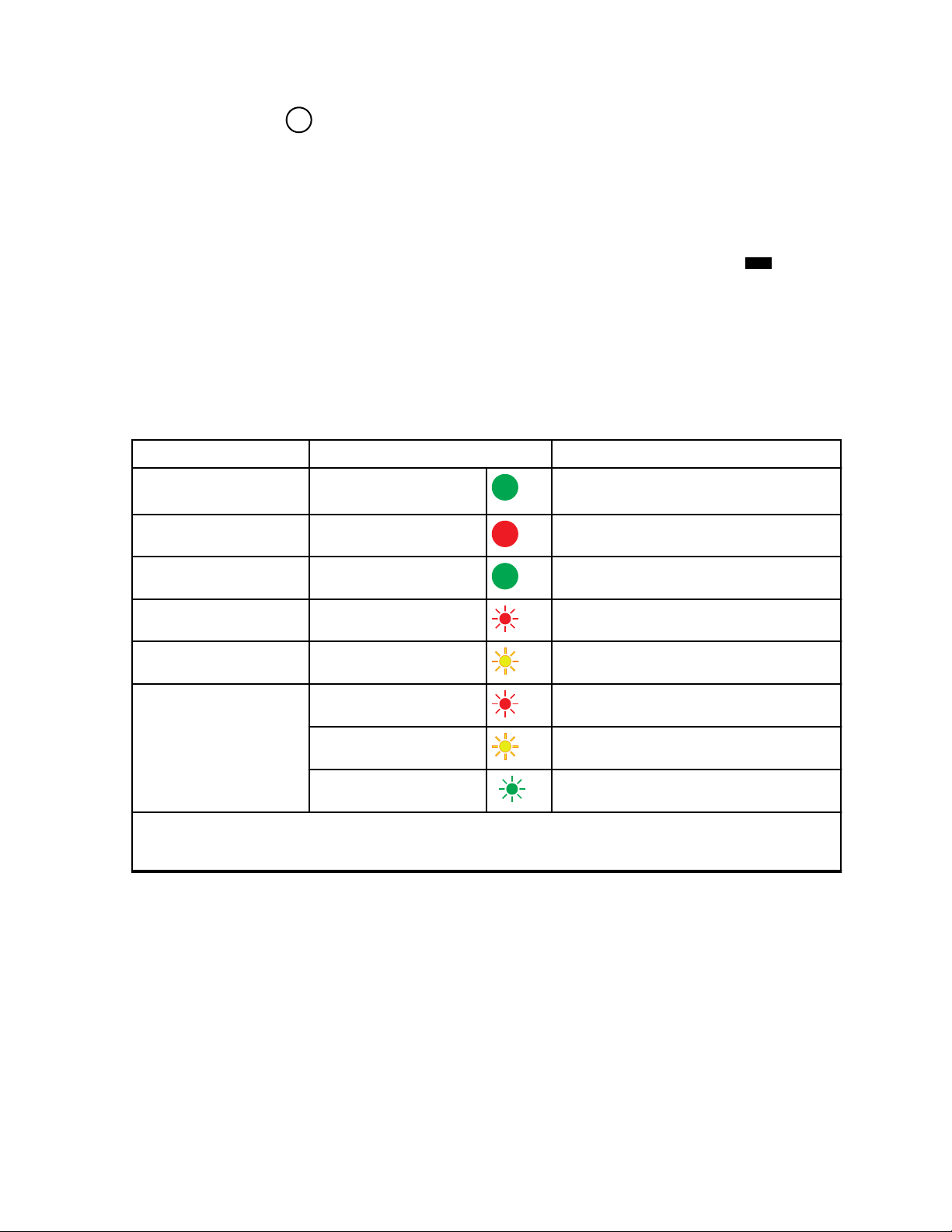

4When the battery is properly seated in the pocket, the charger indicates the Battery Level status
as shown in Table 4. The RED LED illuminates to indicate that the battery is charging rapidly.
5The LED changes to a STEADY GREEN light to indicate that the battery is nearly or fully
charged.
12
1.5
Operating Instructions For CLS 6-Pocket Multi-Unit Charger Kit
The charger pockets 1–6 will accommodate either a radio with battery attached or stand-alone battery.
NOTICE: Prior to charging a battery with radio, turn off the radio. Batteries charge best at room
temperature.
1This CLS 6-Pocket Multi-Unit Charger (MUC) Kit is able to charge CLS Series radios with batteries,
or radios with batteries and holsters.
2This CLS 6-Pocket Multi-Unit Charger (MUC) Kit is able to charge stand-alone batteries as listed in
Table 1.
1.6
Charging Procedure
The Multi-Unit Charger (MUC) allows drop-in charging of up to 6 CLS Series radios or batteries.
MN006468A01-AB
Chapter 1: Product Overview
9

1 Insert the power cord plug into the jack on the MUC.
2 Plug the cord into an AC outlet.
3 Turn the radio off.
4 Insert the radio or battery into the charging pocket.

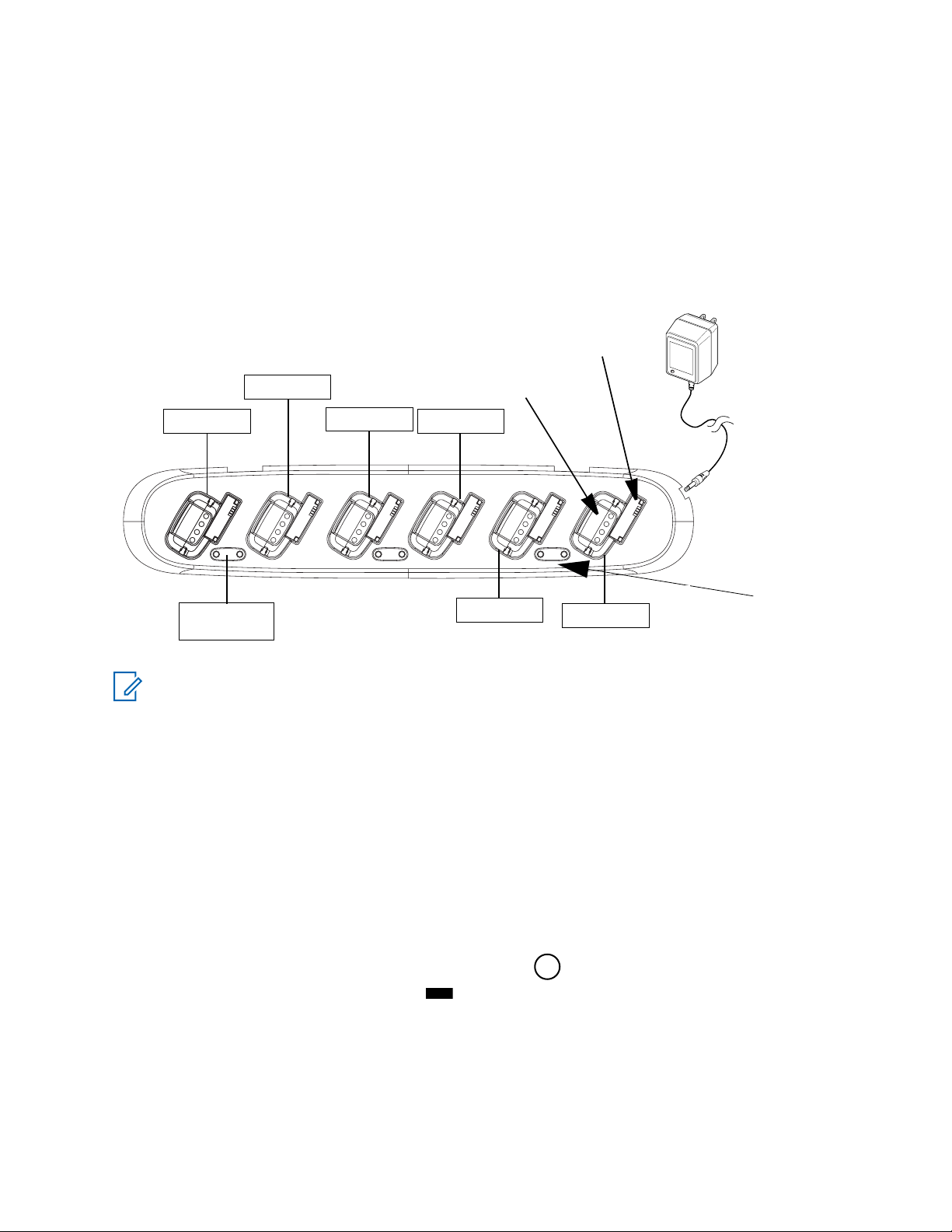

031102o
Radio charging pocket
Battery charging pocket
LED
LED Charging
Status
Pocket 2
Pocket 1 Pocket 3 Pocket 4
Pocket 5 Pocket 6
NOTICE: The charging status LED is solid red when the battery is charging, and solid green
when charging is complete.
1.7
Cloning Radio Settings
The cloning feature duplicates radio settings for radio fleet configuration of the CLS Series radios. All
selectable settings are sent from one radio (the source) to a second radio (the target).
When and where to use:
You can clone only one radio at a time. A multi-channel radio can clone to a single-channel radio, but
only the first channel is cloned. When cloning, the MUC does not need to be plugged into a power
source, but ALL radios require charged batteries.
Procedure:
1On the source radio, press and hold Push to Talk and
MON
for 3 seconds while turning on the
radio ON. The radio beeps and display
PROG
.
2Place the source radio in one of the charging pockets.
3Turn the target radio ON and place it in the charging pocket that is paired with the pocket
containing the source radio. There are 3 paired charging pockets as indicated by the 3 pairs of
charging status LEDs (pocket 1-2, 3-4 and 5-6).
MN006468A01-AB
Chapter 1: Product Overview
Batteries can charged inside the radios or removed and place in the MUC separately. Each of the 6
charging pockets on the MUC can hold a radio or battery. Batteries are charged in 3 to 6 hours.
Procedure:
10
