AIG-300 Series Hardware User’s Manual
Version 1.0, September 2021
www.moxa.com/product
© 2021 Moxa Inc. All rights reserved.

AIG-300 Series Hardware User’s Manual
The software described in this manual is furnished under a license agreement and may be used only in accordance
with the terms of that agreement.
Copyright Notice
© 2021 Moxa Inc. All rights reserved.
Trademarks
The MOXA logo is a registered trademark of Moxa Inc.
All other trademarks or registered marks in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the part of
Moxa.
Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not
limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to
the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility
for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to the
information herein to correct such errors, and these changes are incorporated into new editions of the publication.
Technical Support Contact Information
www.moxa.com/support
Moxa Americas
Toll
-free: 1-888-669-2872
Tel:
[phone]
Fax:
[phone]
Moxa China (Shanghai office)
Toll
-free: 800-820-5036
Tel:
[phone]
Fax:
[phone]
Moxa Europe
Tel:
[phone]
Fax:
[phone]
Moxa
Asia-Pacific
Tel:
[phone]
Fax:
[phone]
Moxa India
Tel:
[phone]
Fax:
[phone]

Table of Contents
1. Introduction...................................................................................................................................... 1-1
Model Descriptions..............................................................................................................................1-2
Package Checklist ...............................................................................................................................1-2
Product Features ................................................................................................................................1-3
Product Specifications .........................................................................................................................1-3
2. Hardware Introduction...................................................................................................................... 2-1
Appearance........................................................................................................................................2-2
AIG-301-AZU-LX .........................................................................................................................2-2
AIG-301 US, EU, AP, and CN Models ..............................................................................................2-3
Dimensions ........................................................................................................................................2-4
AIG-301-AZU-LX .........................................................................................................................2-4
AIG-301 US, EU, AP, and CN Models ..............................................................................................2-4
LED Indicators.................................................................................................................................... 2-5
Reboot ..............................................................................................................................................2-5
Reset to Default ................................................................................................................................. 2-5
Real-time Clock ..................................................................................................................................2-5
Installation Options.............................................................................................................................2-6
DIN-rail Mounting........................................................................................................................2-6
Wall Mounting (optional) ..............................................................................................................2-6
3. Hardware Connection Description ..................................................................................................... 3-1
Wiring Requirements...........................................................................................................................3-2
Connecting the Power ..................................................................................................................3-2
Grounding the Unit ......................................................................................................................3-3
Connecting to the Network...................................................................................................................3-3
Connecting to a USB Device ................................................................................................................. 3-3
Connecting to Serial Ports....................................................................................................................3-3
Inserting the microSD Card..................................................................................................................3-4
Connecting to the Console Port.............................................................................................................3-4
Connecting the CAN Port .....................................................................................................................3-4
Connecting the Digital Inputs and Digital Outputs ...................................................................................3-5
Inserting the SIM Card ........................................................................................................................ 3-5
Installing the Wi-Fi Module (US, EU, AP, and CN models only) ..................................................................3-5
Connecting the Antennas ..................................................................................................................... 3-9
A. Regulatory Approval Statements....................................................................................................... A-1

1
1. Introduction
The AIG-300 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for
distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge
software are preloaded and seamlessly integrated with the AIG-300 Series to enable easy, reliable, yet
secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud
solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever.
Thanks to the robust OTA function, you never have to worry about system failure during software upgrades.
With the secure boot function enabled, you can enable the booting process of AIG-300 Series to prevent
malicious software injection.
The following topics are covered in this chapter:

Model Descriptions

Package Checklist

Product Features

Product Specifications

AIG-300 Series HW UM Introduction
1-2
Model Descriptions
The AIG-300 Series includes the following models:
•AIG-301-T-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1 CAN
port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -40 to 85°C operating temperature
•AIG-301-T-US-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, USA LTE band support, ThingsPro Edge and Azure IoT Edge software, -40 to
70°C operating temperature
•AIG-301-T-EU-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, Europe LTE band, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C
operating temperature
•AIG-301-T-AP-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, Asia Pacific LTE band, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C
operating temperature
•AIG-301-T-CN-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -40 to 70°C operating
temperature
•AIG-301-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1 CAN
port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -20 to 85°C operating temperature
•AIG-301-US-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, USA LTE band support, ThingsPro Edge and Azure IoT Edge software, -20 to
70°C operating temperature
•AIG-301-EU-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, Europe LTE band, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C
operating temperature
•AIG-301-AP-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, Asia Pacific LTE band, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C
operating temperature
•AIG-301-CN-AZU-LX: Advanced IIoT gateway with Arm® Cortex™-A7 dual-core 1 GHz processor, 1
CAN port, 4 DIs, 4 DOs, ThingsPro Edge and Azure IoT Edge software, -20 to 70°C operating
temperature
NOTE
The CN model does not come with the LTE module preinstalled. We
have tested the model with the Quectel
EC20 R2.1 LTE module and
recommend operating the LTE module in the -20 to 65°C temperature range.
Contact Moxa’s distributor in China for more information.
Package Checklist
The package contains the following items:
•AIG-300 Series advanced IIoT gateway
•Power jack
•DIN-rail mounting kit
•Quick installation guide (printed)
•Warranty card
NOTE
Notify your sales representative if any of the above items are missing or damaged.
NOTE
The console cable is not included in the package; you need to purchase it
separately.

AIG-300 Series HW UM Introduction
1-3
Product Features
•Simplifies data acquisition and device management via the ThingsPro Edge software.
•Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud
connectivity.
•Supports easy device-provisioning with the ThingsPro Proxy utility.
•Provides robust OTA function to prevent system failure during software upgrades.
•Equipped with secure boot to prevent malicious software-injection attacks.
Product Specifications
NOTE
The
latest specifications for Moxa's products can be found at https://www.moxa.com.

2
2. Hardware Introduction
The AIG-300 Series devices are compact and rugged, making them suitable for industrial applications. The
LED indicators allow you to monitor device performance and quickly identify issues, and the multiple ports
can be used to connect a variety of devices. The AIG-300 Series comes with a reliable and stable hardware
platform that lets you devote the bulk of your time to application development. In this chapter, we provide
basic information about the device’s hardware and its various components.
The following topics are covered in this chapter:

Appearance
AIG-301-AZU-LX
AIG-301 US, EU, AP, and CN Models

Dimensions
AIG-301-AZU-LX
AIG-301 US, EU, AP, and CN Models

LED Indicators

Reboot

Reset to Default

Real-time Clock

Installation Options
DIN-rail Mounting
Wall Mounting (optional)

AIG-300 Series HW UM Hardware Introduction
2-2
Appearance
AIG-301-AZU-LX
Top Panel View
Front Panel View
Bottom Panel View

AIG-300 Series HW UM Hardware Introduction
2-3
AIG-301 US, EU, AP, and CN Models
NOTE
The CN model does not come with the LTE module preinstalled. Contact Moxa’s distributor in China for more
information.
Top Panel View
Front Panel View
Bottom Panel View

AIG-300 Series HW UM Hardware Introduction
2-4
Dimensions
AIG-301-AZU-LX
AIG-301 US, EU, AP, and CN Models

AIG-300 Series HW UM Hardware Introduction
2-5
LED Indicators
The function of each LED is described in the table below:
LED Name Status Function
PWR1/PWR2 Green Power is on
Off No power
SIM Green SIM2 is in use
Yellow SIM1 is in use
USR Green/Yellow Green: System is operating normally
Yellow: System is initializing and running initial boot-up process
L1/L2/L3 Yellow Cellular signal strength
L1+L2+L3: Strong
L2+L3: Normal
L3: Weak
W1/W2/W3 Yellow WLAN signal strength
W1+W2+W3: Strong
W2+W3: Normal
W3: Weak
LAN1/LAN 2
(RJ45 connector)
Green Steady on 100 Mbps Ethernet link
Blinking Data is being transmitted or received
Yellow Steady on 1000 Mbps Ethernet link
Blinking Data is being transmitted or received
Off No Ethernet connection or 10 Mbps Ethernet link
Reboot
To reboot the device, press the function (FN) button for 1 second.
Reset to Default
Press and hold the function (FN) button between 7 to 9 seconds to reset the device to the factory default
settings. When the reset button is held down, the USR LED will blink once every second and become steady
after 7 to 9 seconds. Release the button within this period to load the factory default settings.
Real-time Clock
The real-time clock is powered by a non-chargeable battery. We strongly recommend that you do not
replace the lithium battery without help from a qualified Moxa support engineer. If you need to change the
battery, contact the Moxa RMA service team.
WARNING
There is a risk of explosion if the battery is replaced
with an incorrect type.

AIG-300 Series HW UM Hardware Introduction
2-6
Installation Options
DIN-rail Mounting
The aluminum DIN-rail attachment plate is already attached to the product’s casing. To mount the device on
to a DIN rail, make sure that the stiff metal spring is facing upwards and follow these steps.
1. Pull down the bottom slider of the DIN-rail bracket located at the
back of the unit
2. Insert the top of the DIN rail into the slot just below the upper
hook of the DIN-rail bracket.
3. Latch the unit firmly on to the DIN rail as shown in the
illustrations below.
4. Push the slider back into place.
Wall Mounting (optional)
The device can be mounted on to a wall using a wall-mounting kit as shown in the following illustrations.
The optional wall-mounting kit is not included in the product package and should be purchased separately.
Follow these steps to mount the device on to a wall:
Step 1
Use four screws to fasten the wall
-mounting
brackets on the left panel of the
device.
Step 2
Use another four screws to mount the
device on a
wall or a cabinet.

AIG-300 Series HW UM Hardware Introduction
2-7
IMPORTANT!
The diameter of the screw heads should be greater than 7 mm and less than 14 mm; the diameter of the
shafts should be less than 3 mm. The length of the screws should be greater than 6 mm.
NOTE
•
Test the screw head and shank size by inserting the screws into one of the keyhole shaped apertures of
the wall-mounting plates before attaching the plate to the wall.
•
Do not drive the screws in all the way—leave a space of about 2 mm to allow room for sliding the wall
mount panel between the wall and the screws.

3
3. Hardware Connection Description
In this chapter, we describe how to connect the AIG-300 to a network and other devices.
The following topics are covered in this chapter:

Wiring Requirements
Connecting the Power
Grounding the Unit

Connecting to the Network

Connecting to a USB Device

Connecting to Serial Ports

Inserting the microSD Card

Connecting to the Console Port

Connecting the CAN Port

Connecting the Digital Inputs and Digital Outputs

Inserting the SIM Card

Installing the Wi-Fi Module (US, EU, AP, and CN models only)

Connecting the Antennas

AIG-300 Series HW UM Hardware Connection Description
3-2

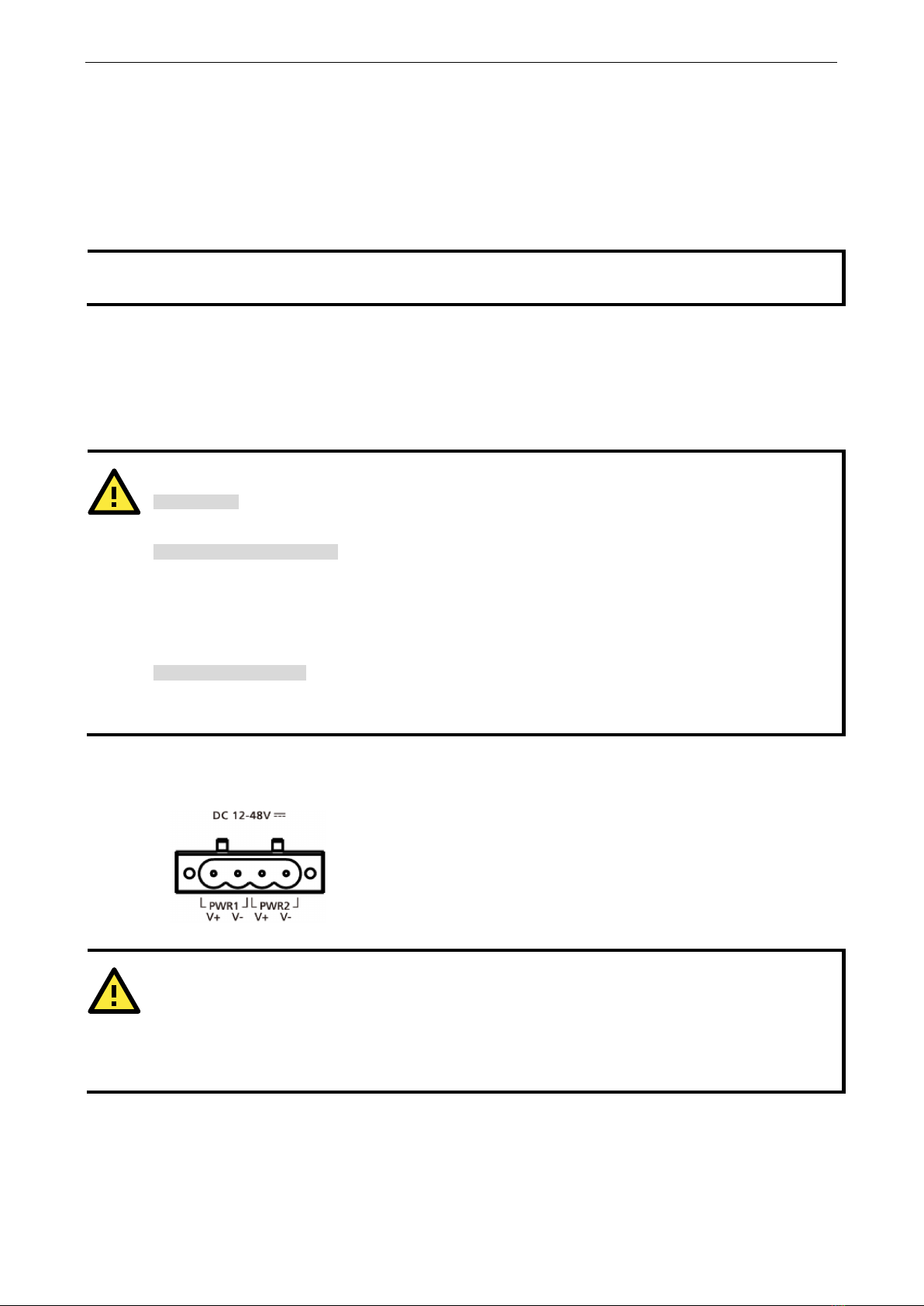

Wiring Requirements
In this section, we describe how to connect various devices to the AIG-300. Be sure to read and follow these
common safety precautions before proceeding with the installation of any electronic device:
•Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must
cross, make sure the wires are perpendicular at the intersection point.
NOTE
Do not run signal or communication wiring and power
wiring in the same wire conduit. To avoid
interference, wires with different signal characteristics should be routed separately.
•You can use the type of signal transmitted through a wire to determine which wires should be kept
separate. The rule of thumb is that wiring that shares similar electrical characteristics can be bundled
together.
•Keep input wiring and output wiring separate.
•When necessary, it is strongly advised that you label wiring to all devices in the system.
ATTENTION
Safety First!
Be sure to disconnect the power cord before doing installations and/or wiring.
Electrical Current
Caution!
Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes
dictating the
maximum current allowable for each wire size.
If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your
equipment.
Temperature Caution!
Be
careful when handling the unit. When the unit is plugged in, the inter
nal components generate heat, and
consequently the
outer casing may feel hot to the touch.
Connecting the Power
Connect the power jack (in the package) to the DC terminal block (located on
the top panel), and then connect the power adapter. It takes about
3 minutes
for the system to boot up.
Once the system is ready, the power LEDs
will light
up. Both models support
dual power inputs for redundancy.
WARNING
•
This product is intended to be supplied by a UL Listed Power Adapter or DC power source marked
“L.P.S.” (or “Limited Power Source”) rated 12 to 48 VDC, 1 A (minimum), and TMA = 85°C (minimum).
•
The power adapter should be connected to a socket outlet with an earthing connection.
If you need further information or assistance, contact a Moxa representative.

AIG-300 Series HW UM Hardware Connection Description
3-3
Grounding the Unit
There is a grounding connector on the top panel of the device. Use this connector to connect a well-
grounded mounting surface, such as a metal panel. Grounding and wire routing help limit the effects of
noise due to electromagnetic interference (EMI).
ATTENTION
A shielded power cord is required to meet the FCC emission limits
and to prevent interference with nearby
radio and television reception. It is essential that only the supplied power cord be used.
You are cautioned tha
t changes or modifications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment.

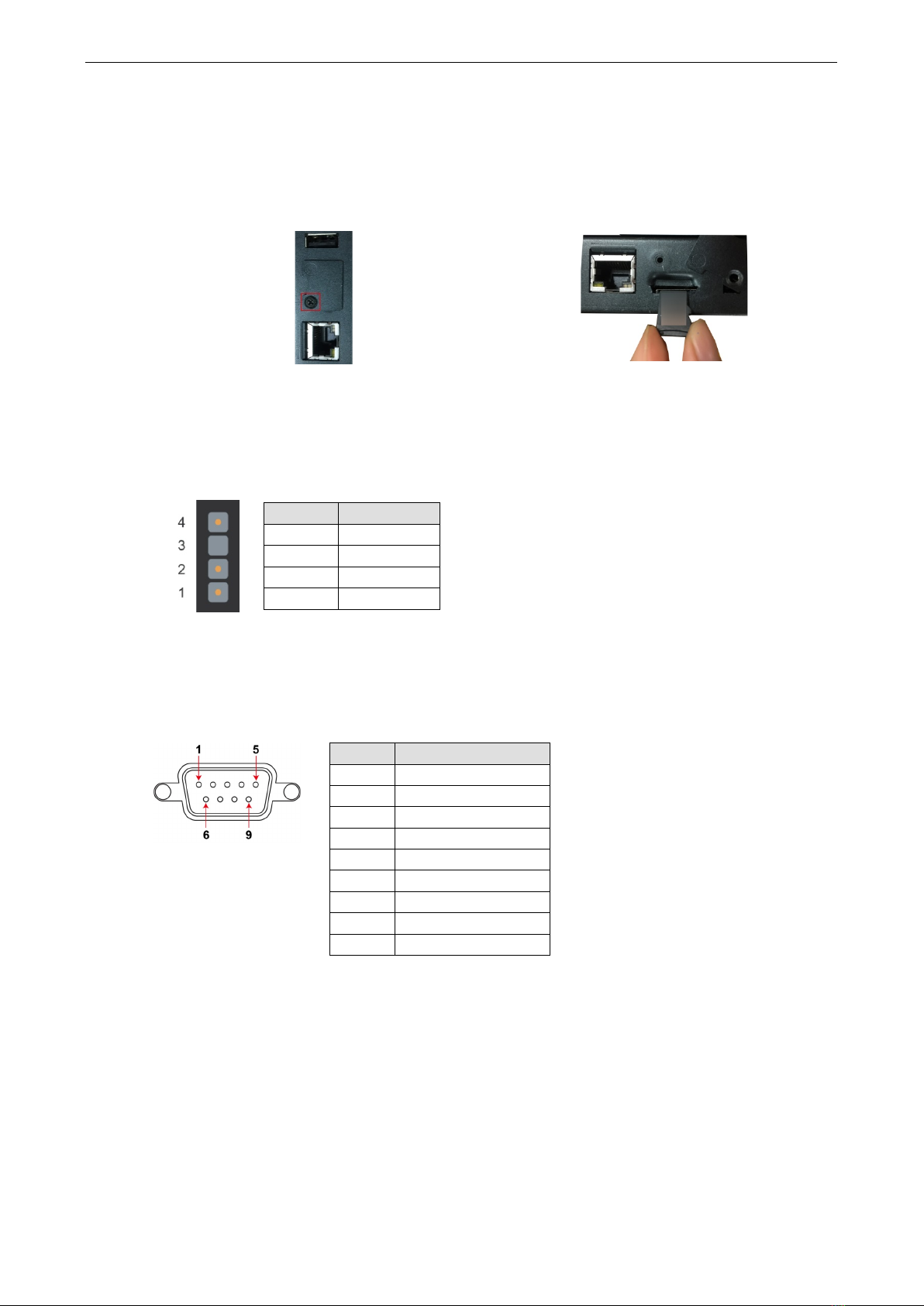

Connecting to the Network
The Ethernet ports are located on the front panel of the device. The pin assignments for the Ethernet ports
are shown in the following figure. If you are using your own cable, make sure that the pin assignments on
the Ethernet cable connector match the pin assignments on the Ethernet port.
Pin 10/100 Mbps 1000 Mbps
1 Tx+ TRD(0)+
2 Tx- TRD(0)-
3 Rx+ TRD(1)+
4 – TRD(2)+
5 – TRD(2)-
6 Rx- TRD(1)-
7 – TRD(3)+
8 – TRD(3)-
Connecting to a USB Device
The device comes with a USB port located on the lower part of the front panel, allowing users to connect to
a device with an USB interface. The USB port uses a type-A connector.
Connecting to Serial Ports
The serial ports can be configured by software for RS-232, RS-422, or RS-485. The pin assignments for the
ports are shown in the following table:
Pin RS-232 RS-422/RS-485 4w RS-485 2w
1 – TxD-(A) –
2 RxD TxD+(B) –
3 TxD RxD+(B) Data+(B)
4 DTR RxD-(A) Data-(A)
5 GND GND GND
6 DSR – –
7 RTS – –
8 CTS – –

AIG-300 Series HW UM Hardware Connection Description
3-4
Inserting the microSD Card
The device comes with a microSD socket for storage expansion. The microSD socket is located on the lower
part of the front panel. To install the card, remove the screw and the protection cover to access the socket,
and then insert the microSD card into the socket directly. You will hear a click when the card is in place. To
remove the card, push the card in before releasing it.
Connecting to the Console Port
The console port is an RS-232 port located on the top panel and can be connected to a 4-pin pin header
cable. You can use this port for debugging or firmware upgrade.
Pin
Signal
1 TxD
2 RxD
3 NC
4 GND
Connecting the CAN Port
There is a CAN port in DB9 interface, located on the bottom panel. Refer to the figure on the left for detailed
pin definitions.
Pin Definition
1 –
2 CAN_L
3
CAN_GND
4 –
5 (CAN_SHLD)
6 (GND)
7 CAN_H
8 –
9 (CAN_V+)

AIG-300 Series HW UM Hardware Connection Description
3-5
Connecting the Digital Inputs and Digital
Outputs
There are four digital inputs and four digital outputs on the top
panel. Refer
to the figure on the left for detailed pin definitions.
Inserting the SIM Card
The device comes with a SIM card socket that allows users to install two SIM cards for cellular
communication.
Step 1
Remove the screw on the SIM card holder co
ver
located on the bottom panel
of the device.
Step 2
Insert the SIM card into the socket.
Make sure you insert in the right direction. To remove
the SIM card, press the SIM card in to release and then
you can pull out the SIM card.
Installing the Wi-Fi Module (US, EU, AP, and
CN models only)
The optional Wi-Fi wireless module is not included in the product package and should be purchased
separately. The Wi-Fi wireless module package contains the following items:
•1 x Wi-Fi module
•1 x thermal pad (25 x 10 x 1 mm)
•2 x black screws (M2.5 x 4 mm)
•2 x bronze spacers (M/F M3 x 4/M3 x 5 mm)
•1 x insulation pad
•1 x heatsink
NOTE
Notify your sales representative if any of the above items are missing or damaged.

AIG-300 Series HW UM Hardware Connection Description
3-6

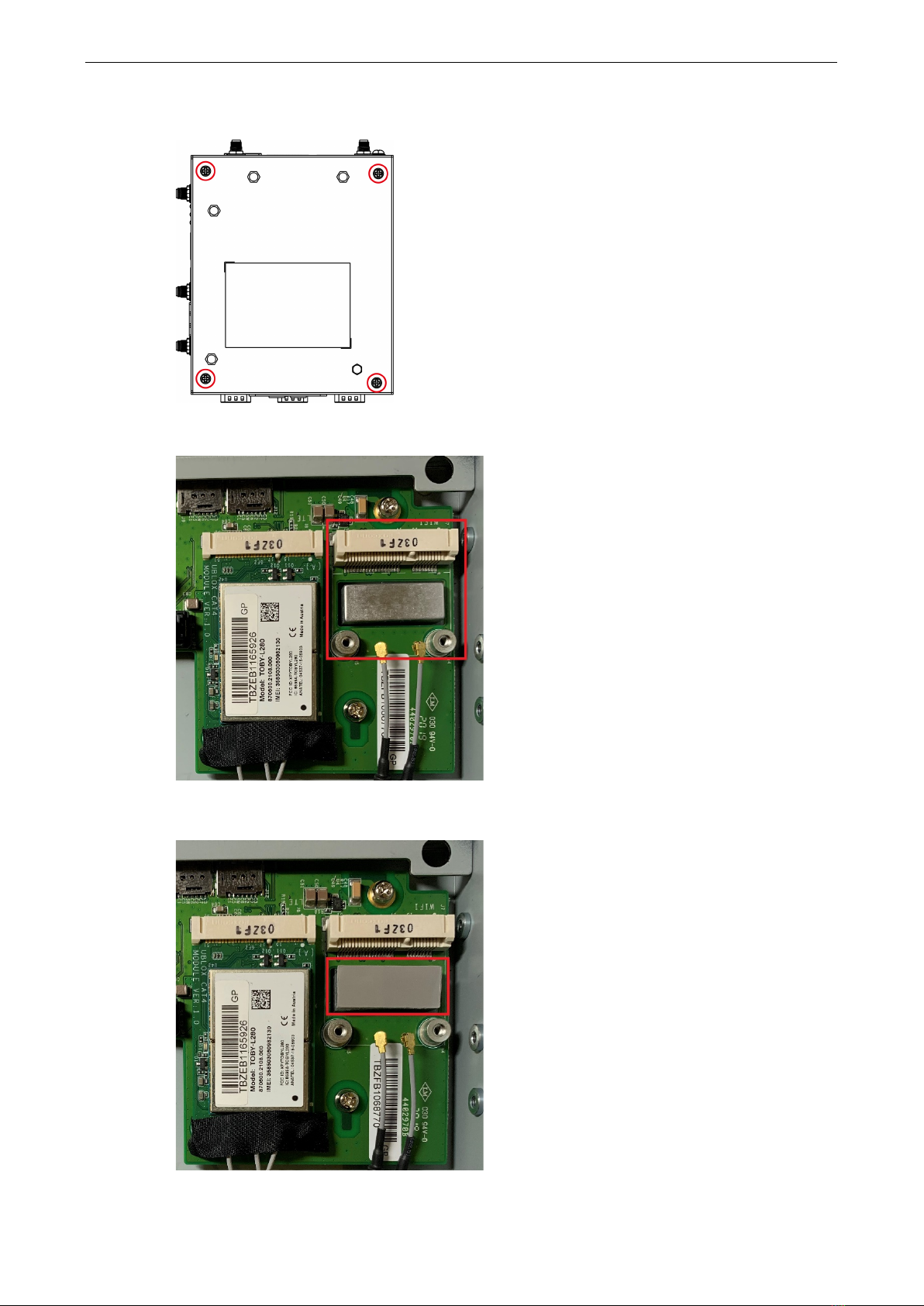

Follow these steps to install the Wi-Fi module for the device.
1. Loosen the four screws on the right panel of your computer.
2. Remove the right-side cover to expose the Mini-PCIe socket.
The Wi-Fi socket is located beside the cellular module socket.
3. Remove the plastic sheet on the thermal pad and stick the thermal pad on the metal surface as
indicated.

AIG-300 Series HW UM Hardware Connection Description
3-7
4. Insert the wireless module card into the socket at an angle.
5. Push down the wireless module card and secure it by fastening the two black screws (M2.5x4 mm).
6. Remove the plastic protection covers on the antenna connectors.
7. Connect the #W1 SMA cable to the Main connector and the #W2 SMA cable to the Aux connector on the
wireless module card installed.
