Safety Instructions
1. Alwaysreadthesafetyinstructionscarefully.
2. KeepthisUser sGuideforfuturereference.
3. Keepthisequipmentawayfromhumidity.
4. Neverpour anyliquidintotheopening thatcoulddamageorcause
electricalshock.
5. Ifanyofthefollowingsituationsarises,gettheequipmentcheckedbya
service personnel:
•Liquidhaspenetratedintotheequipment.
•Theequipmenthasbeenexposedtomoisture.
•Theequipmenthasnotworkedwell oryoucannotgetitwork
accordingtoUser sGuide.
•Theequipmenthasbeendroppedandbeendamaged.
6. Ifanyfailureoccurredto MEGASTICK528,removeandinsertthe
batterybackagain,andthenslidethePowerswitchonce topoweronthe
system.
7. Donotchangethedefaultfoldersinthe MEGASTICK528,orthe
devicemightfunctionabnormally.

5
Chapter1.Introduction
Congratulationsonbecoming anewuserof MEGASTICK528.Thenew
MEGASTICK528 willimprovetheconvenience ofstoring yourpersonaldata
andtheenjoymentof usingvariousaudiofunctions.Weareproud totellour
usersthat MEGASTICK528 isthoroughlytestedand certifiedbyour
reputationforunsurpasseddependabilityandcustomersatisfaction.
MEGASTICK528 isahighperformance portabledigitalaudioplayerthat
enablesusersnotonlytoplayMP3,WMAorWMA withDRMaudiofiles,
listentothe FM radiobroadcast(FMradioisanoptionalfunction),and record
voice ,FM programordirectlyrecordwheneverneeded,butalsotostore
personaldatainthememoryof thisdevice.Besides,this MEGASTICK528
alsoworksasaKARAOK togiveusersmorefun of singing practice.
Herearethemajorfeatures:
nDigitalAudioPlayer –supportsMP3,WMA,WMA withDRMaudio
filesplayback.
nFMRadioAdd-Onmodule –theFM Radiomodule,whileoptional,
receivingFMRadiofunctionwillbeplusin MEGASTICK528.Users
areabletosave15favoriteFM stations.
nVoice Recorder –providessynchronousrecordingfunctionforvoice.
nRadioProgram/CDDirectRecording –providessynchronous
recordingfunctionforFMordirectlyfromaCDplayer,recordedfileswill
bestoredinMP3orWAV format.
nLanguageLearningFunction –enablesuserstorepeatparticularsection
duringnormalplayback.Withthisfunction,userswillbeabletopay
attentionontherepeatedplaybacktolearn language.
nUSBFlash Disk –allows userstostoredatain MEGASTICK528.

6
nLyricShowing –allows MEGASTICK528 toshowlyricsduring
playback.
n7-colorBacklightDisplay –allowsuserstoswitchsevendifferent
backlightsinordertolistenmusicwithmorefun.
nConvertibleUSBConnector –userscanconnect MEGASTICK528
directlywiththeconvertibletypeAUSBconnector.
The MEGASTICK528 provides Changeable Startuplogo,youcanedit,
convert,andstorepersonalizedstartup logos.Thankyouforchoosing MEGA
STICK528.Wehopeyouwill continuetoturn tousforqualityproductsas
yourpersonalneedsandinterestsgrow.
Howto UseThisGuide
ThisUser sGuideprovidesinstructionsandillustrationsonhowtoinstalland
operateyour MEGASTICK528.We assumethatthoseuserswhoseoperating
systemisat leastWindows98 /98SE/2000 /XP arefamiliarwiththeirOS,
andarecapabletofollowthestep-by-stepinstructionstoinstallthedriverof
MEGASTICK528.Foruserswhoarenotabletomanagetheoperating system
properly,it issuggestedtolearn moreaboutMicrosoftWindowsbyreferringto
yourMicrosoftWindowsmanualbeforeinstalling theprovideddriver.
Chapter1, Introduction,tellsyouthedescriptionsof all theaccessoriesof
MEGASTICK528. Pleasecheckifyouhaveall theaccessoriesincludedwhen
youopenthepackingbox.Ifanyitem isdamagedormissing,pleasecontact the
vendorwhereyoupurchased MEGASTICK528 directly.
Chapter2, GettingStarted,introducesthefunctionkeyson MEGASTICK
528,theLCDDisplaystatusindifferentmode,andhowtoinsertthebattery.

7
Chapter3, DriverandUtilityInstallation,describeshowtoinstall MEGA
STICK528 andthespeciallydesignedutilityforyournew MEGASTICK
528.
Chapter4, Basic Usage,describeshowtouse MEGASTICK528 invarious
ways.Itisrecommendedtoreadthischaptercarefullybeforeusing MEGA
STICK528.
AppendixA, Specification,providesthespecificationandaccessoriesof
MEGASTICK528.
AppendixB, OperationMenuStructure
AppendixC, Driver andUtilitiesCD
AppendixD, ScreenEditor
Unpack
Pleaseunpackyour MEGASTICK528 and checkthatthefollowing
accessoriesarecompletewithnothingmissing.
MEGASTICK528 (PortableDigitalAudioPlayer)
Earphone
USBExtensionCable
DriverDisk(User sManualincluded)
QuickStarting Guide
AAABattery

8
Chapter2.GettingStarted
Overview

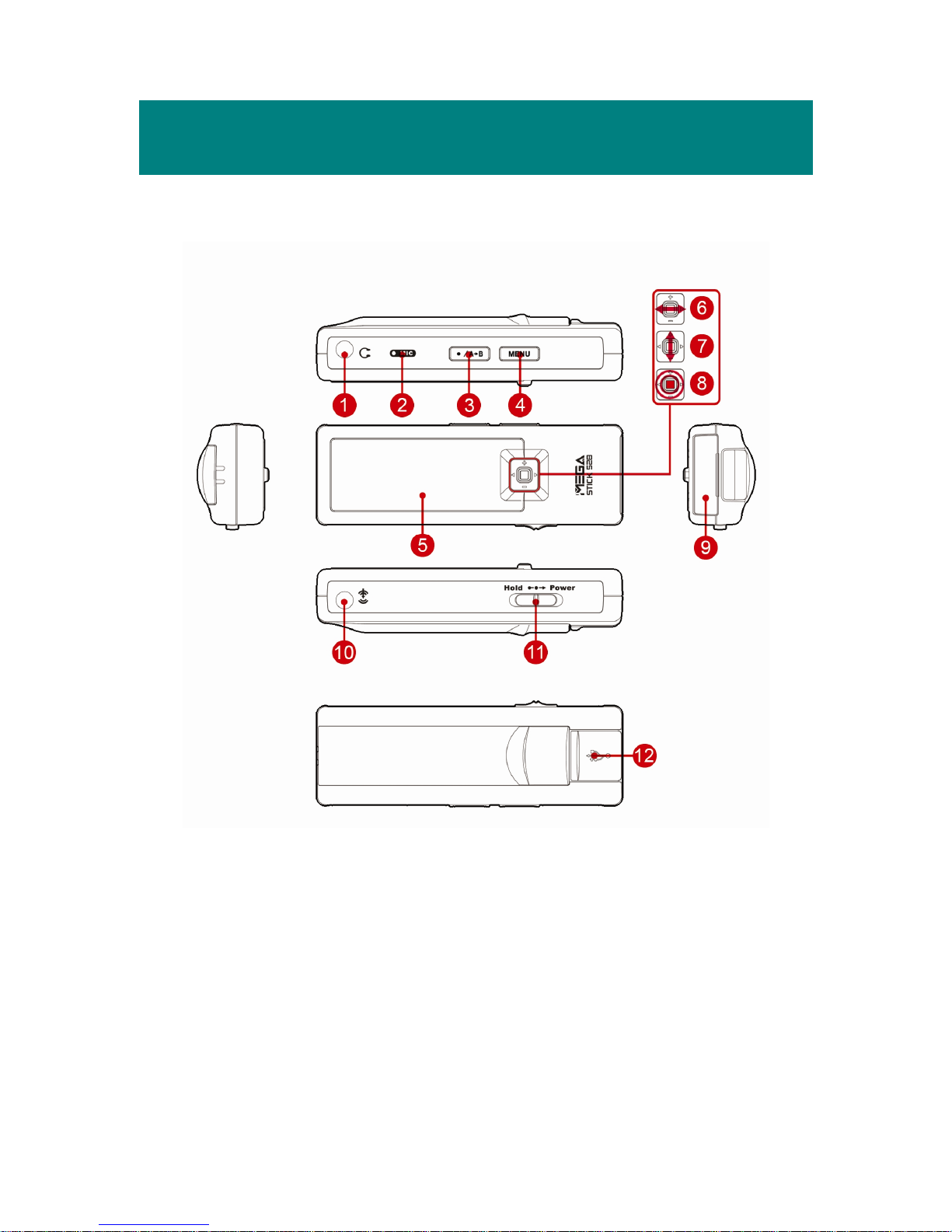

1. EarphoneConnector Plug thesuppliedearphonehere.
2. MIC InternalMicrophone.
3. Record/RepeatA->B Press torecordvoice orenabletheAtoBrepeat
function.
4. Menu Press thebuttontoenterthemenuoperation.
5. Display Window Readstatusand informationatthiswindow.
6. FiveWayButton(Right/Left,Forward/Rewind)

9
Whileplayingasoundtrack,pushtoit right/
leftandholdthisbuttontodofast-forwardor
rewind.Pushittoleftonce cangotobeginning
oftheplayingsoundtrack.Pushittorightonce
cangotothenexttrack.
7. FiveWayButton(Up/Down,Volume+/-)
Pushitup/downtoincrease/decreasevolume
level.
8. FiveWayButton(Play/Pause/Enter)
Press it toplaytheselectionof track.While
playingpress thebuttontopauseandpress it
againtoresumethetrack.
9. FMSocket Userscan plugaoptionalFMAdd-Onmodule
inhere.
10. Line-In Plug theexternalLine-Indevice here.
11. Power/Hold SwitchtoPOWERpositiontopoweron MEGA
STICK528.Switchtoholdpositiontoprevent
anymiss touchingwhile MEGASTICK528 is
recordingorplaying.Switchtothemiddleto
unlocktheprevention.

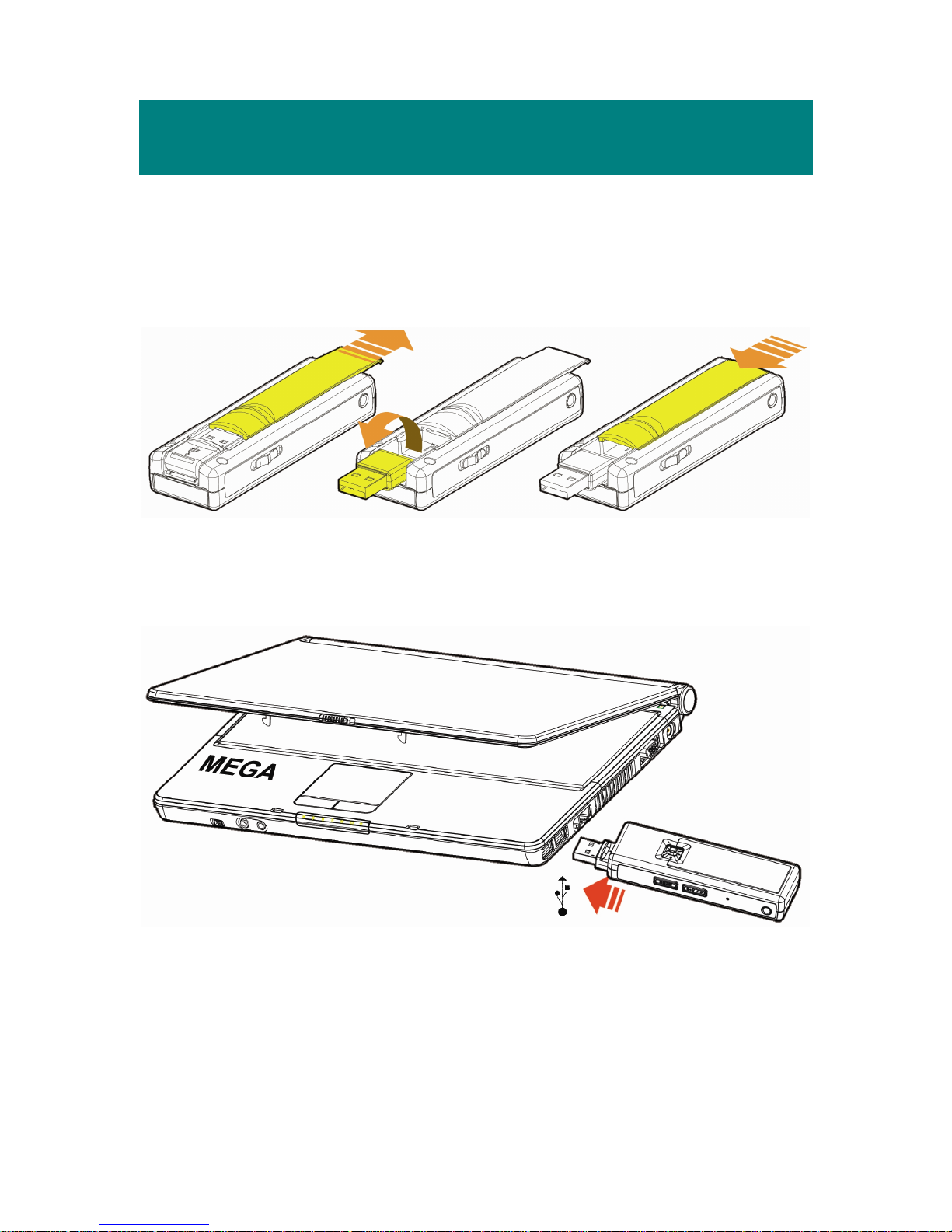

12. ConvertibleUSBConnecter
Connectoneendof thesuppliedUSBextension
cablehere.

10
LCDDisplay
NormalPlaybackMode

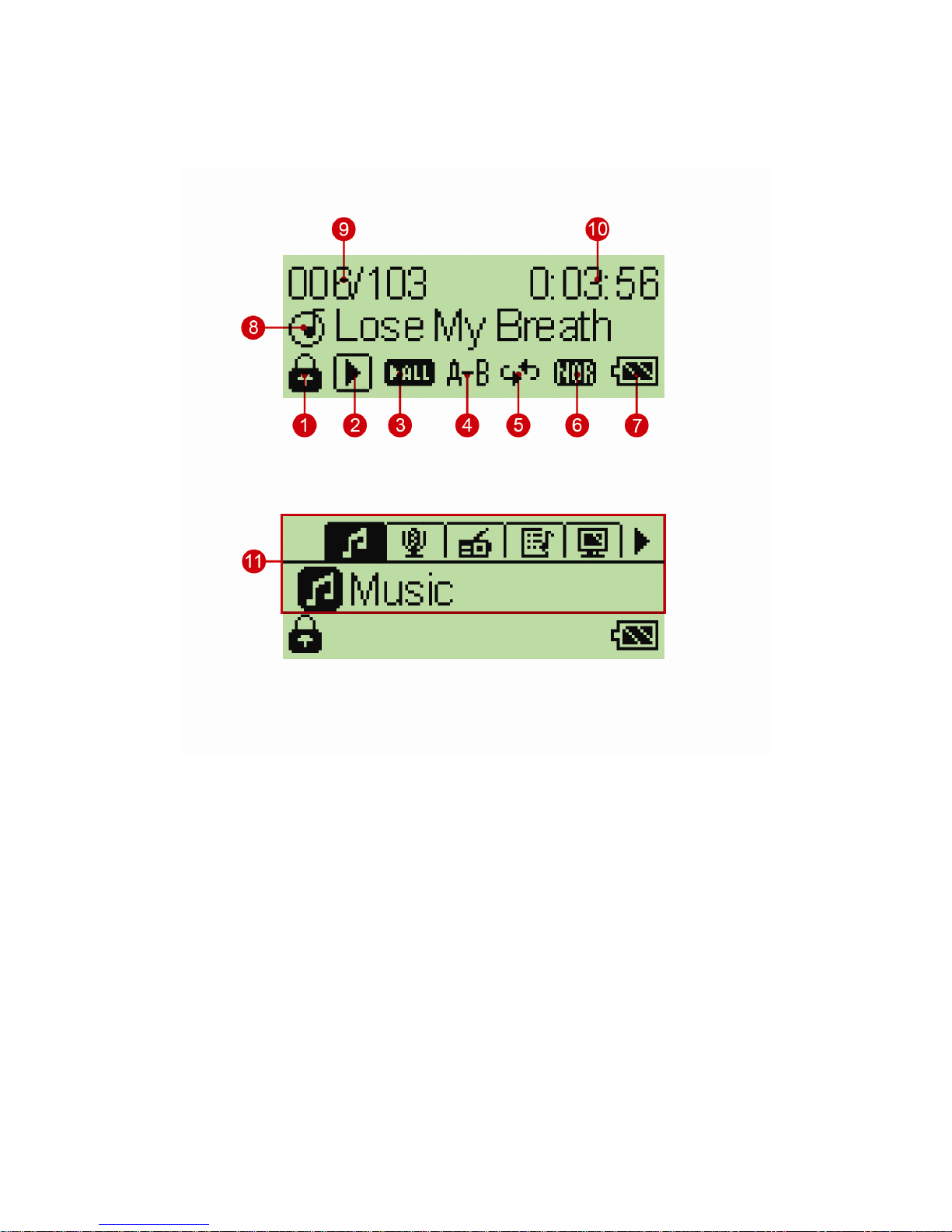

1. Hold(Lock)Switch IndicateswhentheHoldfunctionisenabled.
2. PlaybackStatus Displaysthemusicorvoice filesplayback
status.
3. Play Mode IndicatestheplaymodethatincludesPlayAll
andPlayList.
4. AtoBRepeat IndicateswhenAtoBSectionRepeat
functionisenabled.
5. RepeatMode Indicatestherepeatmodethatincludes

11
Normal,Repeat One,Repeat All,Shuffle, and
ShuffleRepeat.
6. SRS(●)/Equalizer Indicates SRS(●) status or theEQmode
settingsthatincludeNormal, Classical,POP,
Rock, andJazz.
7. BatteryStatus IndicatestheBatteryStatus.
8. File Name/Title/Lyric Displaysthecurrentfilename,titleorlyric
thatisbeingplayed.
9. TrackNumber Displaythecurrentplaybacknumberand the
totalnumberof soundtracks.
10. TrackTimer Displaytheongoingtimerof thecurrent
playbackfile.
11. OperationMenu Theseiconsshiftwhen MEGASTICK528
isindifferentOperationmodewhichincludes
Music,Voice, FM Radio(Module), Playlist,
Backlight, Setting, Delete,Info.

12
RecordingDisplay
1. RecordingStatus Displaystheaudiorecordingstatus.
2. RecordingFileName Displaysthecurrentfilenamethatisbeing
recorded.
3. RecordingTimer Displaytheongoingtimerof thecurrent
recording.
4. Remains Time Displaytheremaining timeof theflash
memorycanbeused.
FM RadioDisplay
1. Tuner Adjusttoselecttheradiobroadcasting.
2. Channel Displaysthechannel numbershavebeen
saved.
3. Frequency Displaythecurrentradiofrequency.

13
Insert aBattery

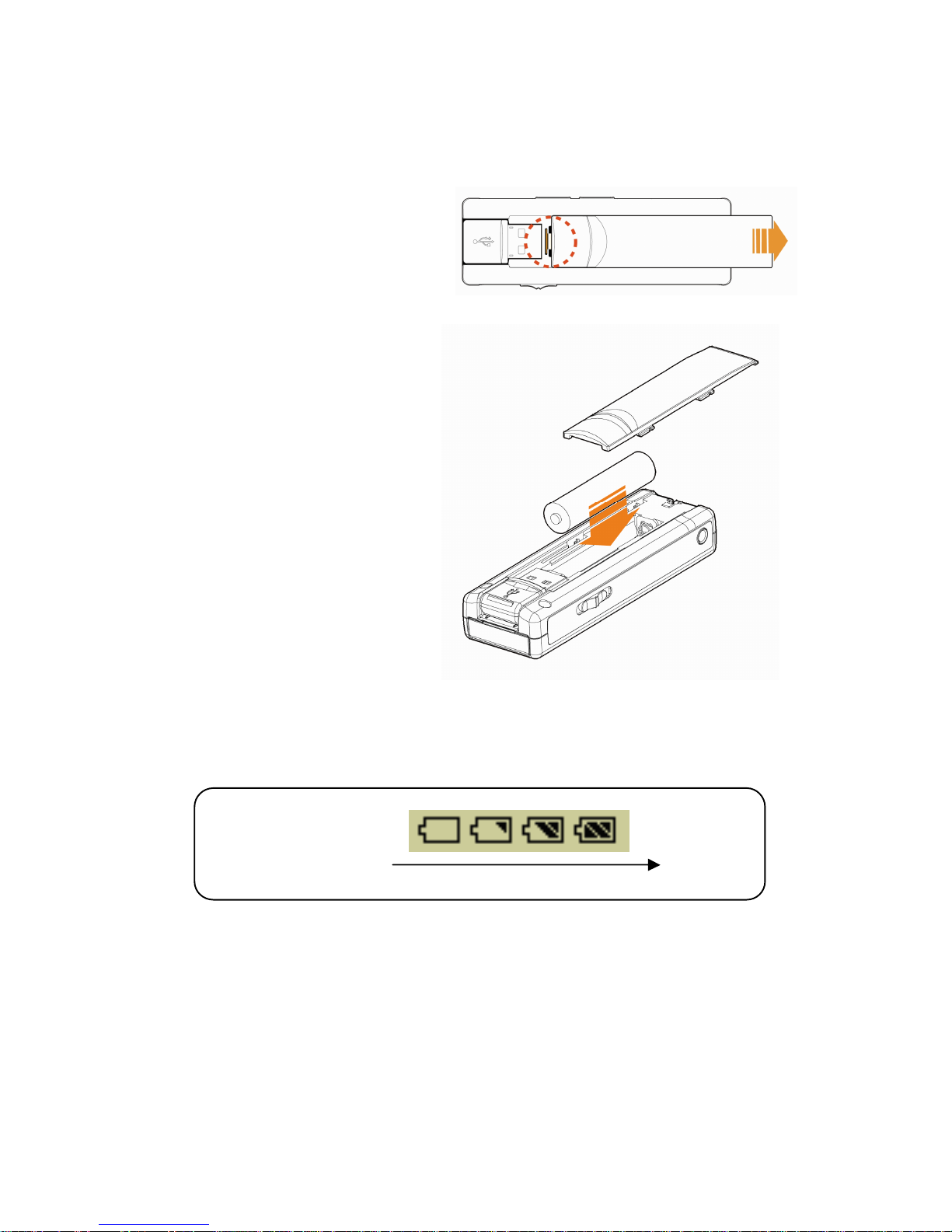

1. Slidethebatterycoveropen
untilyoucansee thecathode
andcarefullyremovethe
batterycover.
2. InsertanAAAbatteryand
makesurethebatteryis
insertedintothecorrect
alignment.
3. Closethebatterycover.
4. Turn on,andthencheckthecapacityofthebattery.
5. IfyoucannotreadtheBatteryStatusontheDisplaywhenthebatteryis
inserted, pleasereturn tostep1andonce againmakesurethebatteryis
insertedintothecorrectalignment.
BatteryStatus
EmptyFull

14
BatteryConsumingReference
•CategoryofBattery:AlkalineAAAbattery
•Playing:Average18 hoursforaudioplayback.
Note:1.AlkalinebatteryisrecommendedwhenusingthisDrive.
2. Makesurethebatteryistakenoutifyouarenotgoingtousethis
Driveforalongperiodoftime.
3. MEGASTICK 528 canbeaflash diskwithoutthebattery.
HoldSwitch
MEGASTICK528 hasaHoldSwitch,whichislocatedonthesideof the
deviceforpreventing anyaccidentaloperationwhile MEGASTICK528 is
recordingorplaying.Once theHoldSwitchisslidetothelockposition,all
functionkeyson MEGASTICK528 willbedisabledinstantly.

15
Chapter3.Driver&UtilityInstallation
ConnectMEGA STICK528 to Your Computer
1. Slidethebatterycoveropen,and thenswing theUSBconnectorout.
2. Slidethebatterycoverbacktotheoriginalposition.
3. Plug MEGASTICK528 tothecomputerUSBconnectordirectly.Also,
youcanconnecttocomputerwithasuppliedUSBcable.
4. Once MEGASTICK528 isconnectedtothecomputer, MEGASTICK
528 shouldbedetectedbytheoperatingsystemautomatically.
Note:IftheoperatingsystemofyourcomputerisWindows98SE,a
hardwaredriverforMEGASTICK528 willberequired.

16
Hardware Installationfor Windows98SEonly
When MEGASTICK528 isconnectedtoacomputerwithWindows98SE
operatingsystem,thesystemwillautomaticallydetectthenewhardware,and
askforahardwaredrivertobeinstalled. Toinstallthedriver,place thesupplied
driverCDintotheCDdrive,andfollowtheon-screeninstructionstocomplete
theinstallation.
Install Utilities
ThesuppliedDriverCDincludesa MEGASTICK528 specializeddriver.Itis
recommendedtoinstallevenifyouroperatingsystemisWindows2000 orXP.
Then,your systemcanrecognizeandfullysupportthisdevice.Thedriver
program includesautilityforupgradingthelatestfirmwareprovidedbyMSI

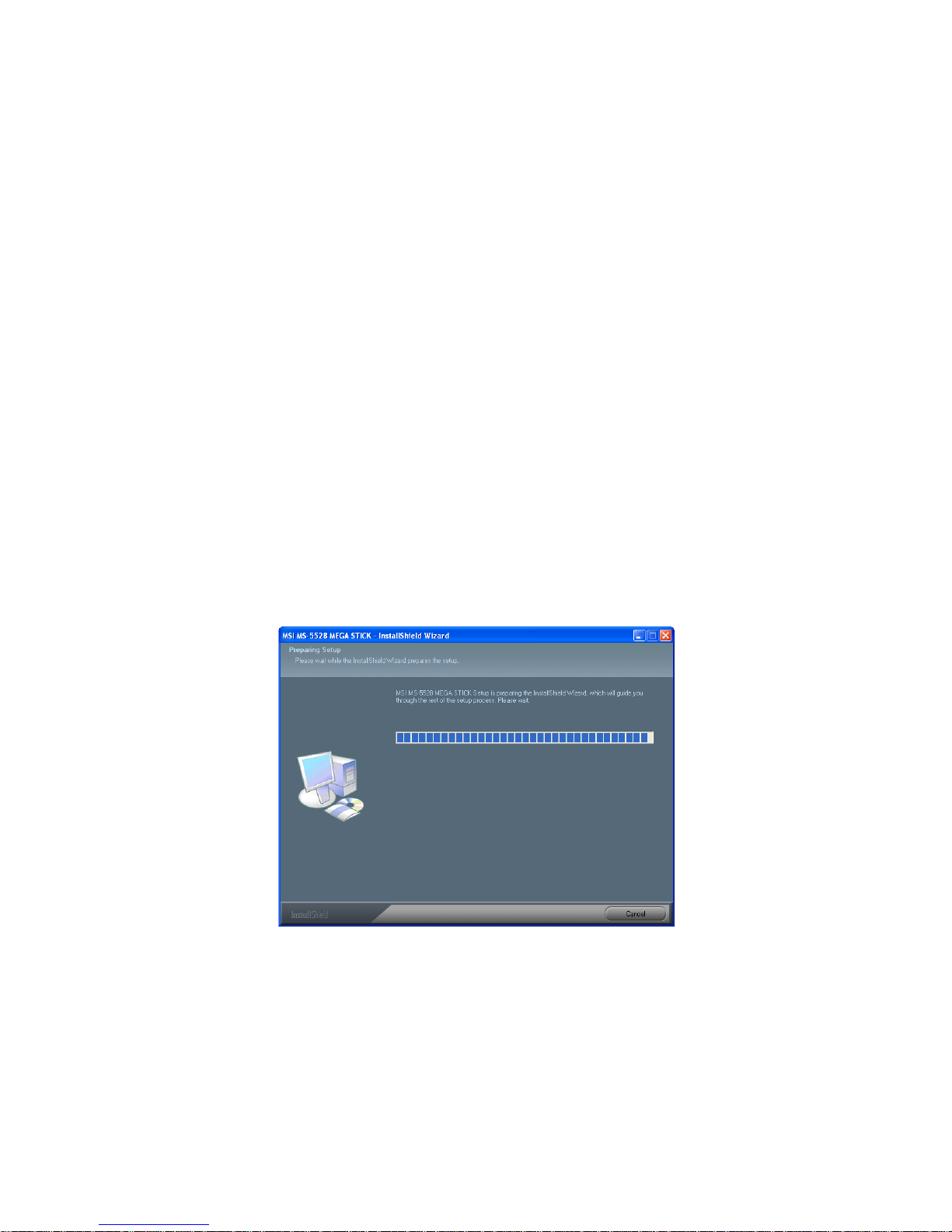

website.SimplyinsertthesupplieddiskintotheCDdrive,andthenfollowthe
on-screeninstructionstocompletetheinstallation.
Utilize the Utility
Once theUtilityisinstalled,youwill beabletoupdatingthefirmwareorformat
your MEGASTICK528.

17
NOTE:THIS IS ANADVANCEDOPERATION.NORMALUSERSARE
NOTRECOMMENDEDTOPERFORMTHIS OPERATION!
FirmwareUpdating
Toupdatethefirmware,downloadthelatestfirmwarefromMSIwebsitefirst,
andplace thedownloadedfirmwareunder[Programfiles->MSI->MS-5528]:
1. Slidethe Power switchand keepholding.
2. Connect MEGASTICK528 toyourcomputer.

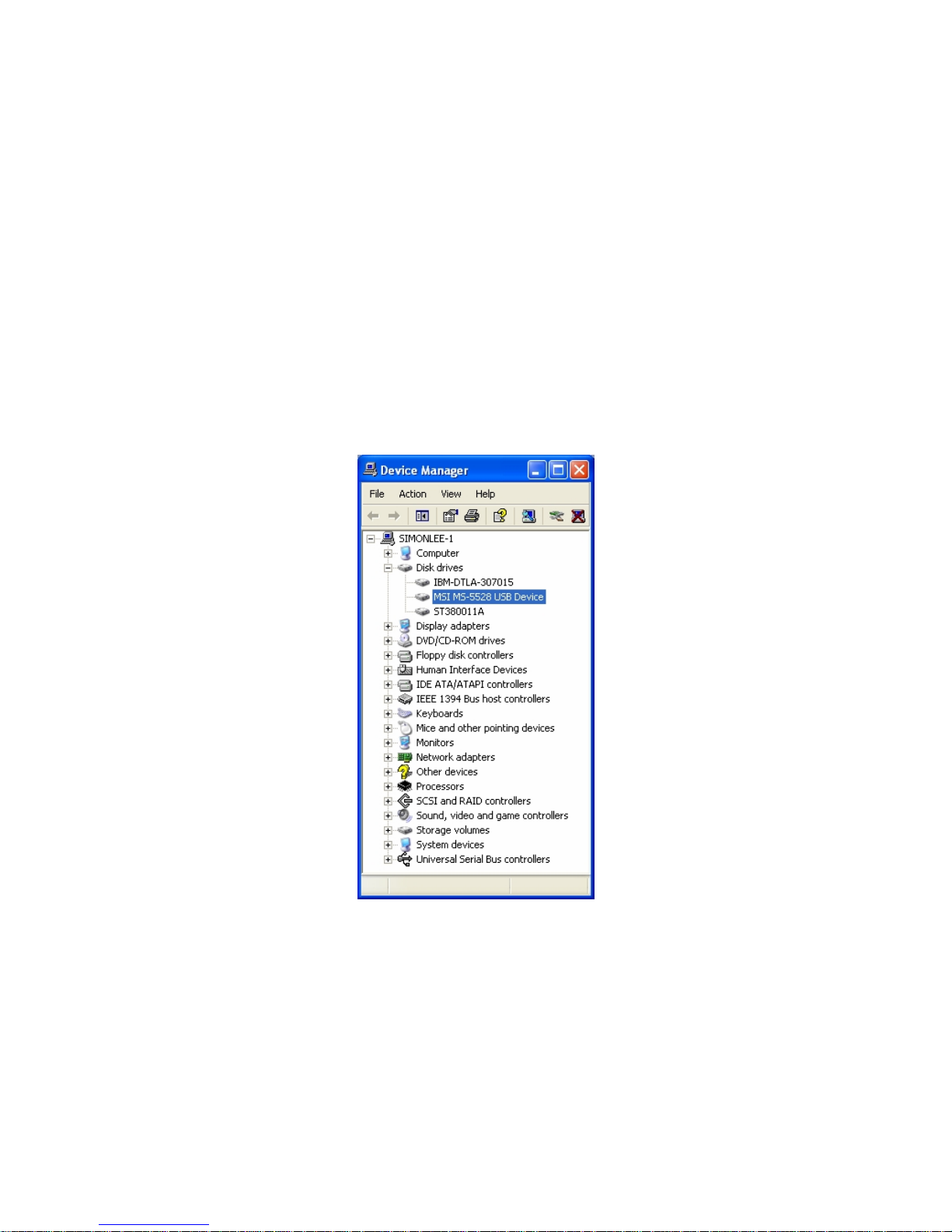

3. Goto[Device Manager],find [MSIMS-5528USBDevice]in[DiskDrive]
tocheckconnection.Iffailed, youcannotfindit.Repeat step1 tore-connect.
4. Select[Start->Programs->MSIMS-5528MEGASTICK->MSIMS-5528
Update]toloadthefirmware.

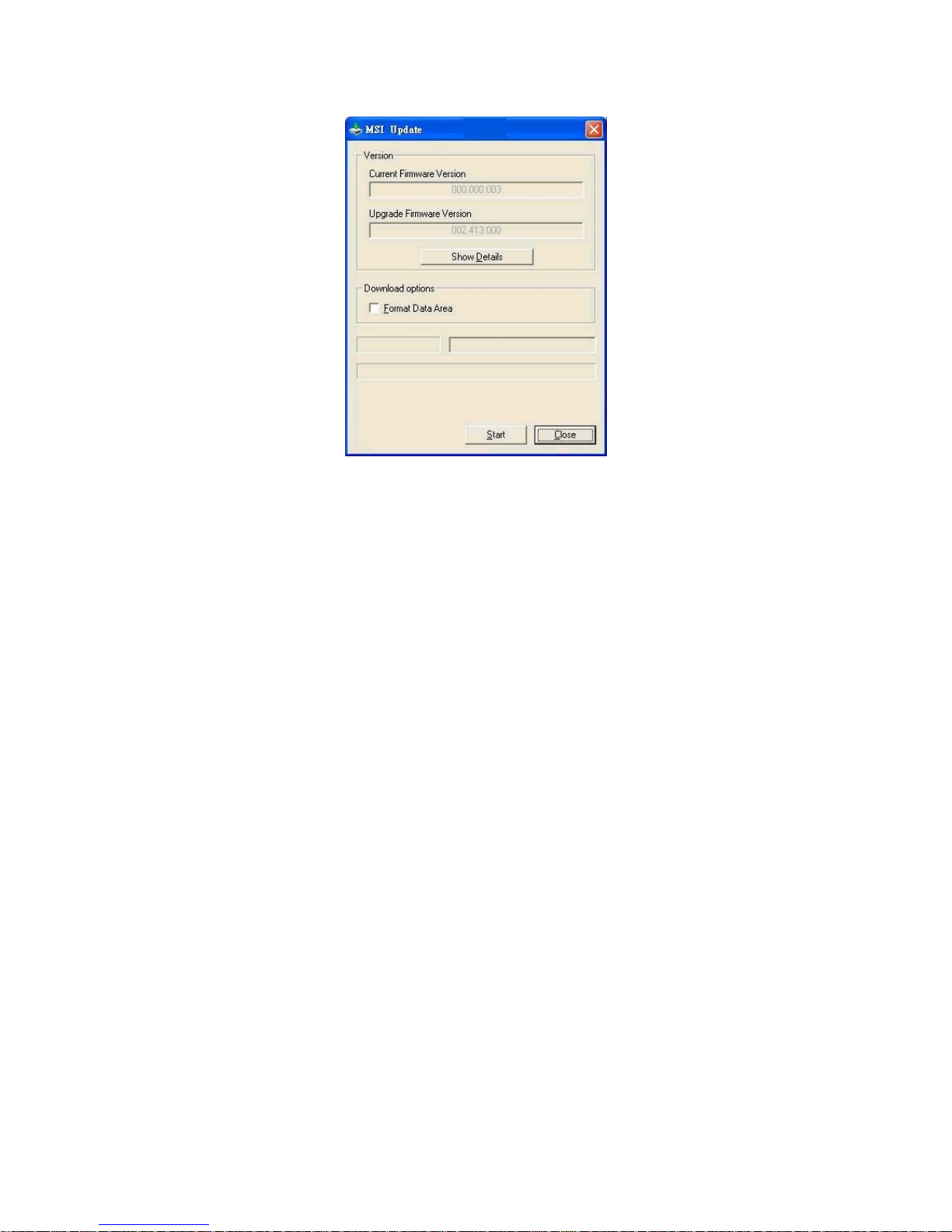

5. Afterloading firmware,youcansee anupdatedialog.

18
6. DeselectFormatDataArea toupdatethenewfirmwarewithoutformatting
MEGASTICK528.SelectFormatDataAreatoupdatethenewfirmware
andformatMEGASTICK528atthesametime.
7. Press Startbuttontostartupdating thenewfirmware.
Format MEGASTICK528
ToformatMEGASTICK528, pleaserefertheconnectinginstructionmentioned
previouslytoconnectMEGASTICK528toyourcomputerfirst.Onceyou
connectMEGASTICK528toyourcomputer,youmayformatMEGASTICK
528 withtheformattoolofferedbyWindows.
Note:Usethefirmwareupdateutilitytoformat MEGASTICK528 canensuretheformat
quality.
Note:If youformatMEGASTICK528,thedataandfilesstoredinsidewillbeall erased!
Note:If youneedtoformatMEGASTICKbyotherformatutility,pleaseselect FAT16 or
FAT32 format.
Safety RemoveMEGA STICK528fromComputer
Aftermanagingthefilesorupdatingfirmware,youhavetofollowthestepsto

19
safetyremovethe MEGASTICK528,topreventsystemordevicecorrupt:
1. WhileanUSBdevice isconnectingtocomputer,therewill bean icon
onthetaskbar.DoubleclicktheicontobringtheSafelyRemoveHardware
dialogbox.Youcanfindallthedevicesconnectedonthedisplay.To
remove MEGASTICK528,closealltheprogramsrelated,and click USB
Mass StorageDevice and Stop button.
2. Thenyousee awindowasbelow, click USBMass StorageDevice and OK
Therewillbethefollowingmessage,
andyoucanremovethedevice now.

20
EdittheLyric
Usersareabletosee thelyricwhenthesongisplaying.Beforeyoucansee the
lyric, youhavetoadd ittoeachMP3.Youcandownloadit,writeityourself, use
peculiarprogramsorplug-insof Winamptoeditit.
Editthelyrictextfilewithatexteditor
1. Executeatexteditor.
2. Typetheeachsentence asthefollowingformat.
[hh:mm:ss]lyric
hh:hour, mm:minute, ss:second, lyric:thelyric.
Note:Manytimestampsallowtobeinsertedatthesameline,that s
suitableforthechorus.
3. SavethefilewiththesamenameastheMP3fileandwithextension".lrc".
4. Storeboth.mp3and.lrcfilesin MEGASTICK528.
5. Enablethe Lyric function.(Pleasereferto SettingLyricShowing in
Chapter4).
6. Playthesong,and enjoyyourkaraokewith MEGASTICK528.
Note:Thelyricshowing timingdependsonthetimestamp.Ifthelyricappears
late,youcanmodifythetimestamptomatch.
EditthelyricfilewithWINAMPLYRICS
WINAMP LYRICSisaPlug-inforWINAMP.Youcanfinditfrom
http://cosorio.cjb.net.
WINAMP vision2.81 orhigherisrequitedbyWINAMP LYRICS. Youcan
downloaditfrom http://classic.winamp.com/download/
1. Preparealyrictextfile. Organizethelyrictomeeteachlinenotlongerthen
14 charactersor7Asiancharacters(14bytes).
