MSI MEGA Stick 256 User manual

MSI
MEGA STICK 256
Multi Function MP3 Player
User Manual

Table of Contents
Safety Instructions.................................................................................................. 4
Chapter 1. Introduction.......................................................................................... 5
How to Use This Guide ...................................................................................... 6
Unpack ............................................................................................................... 7
Chapter 2. Getting Started .................................................................................... 8
Overview ............................................................................................................ 8
LCD Display ...................................................................................................... 9
Insert a Battery.................................................................................................. 10
Hold Switch.......................................................................................................11
USB Flash Disk.................................................................................................11
Chapter 3. Driver & Utility Installation.............................................................. 12
Connect MEGA STICK to Computer .............................................................. 12
Hardware Installation for Windows 98SE............................................... 12
Install Utilities................................................................................................... 13
Utilize the Utility .............................................................................................. 13
Firmware Updating................................................................................. 13
Format MEGA STICK............................................................................ 15
Safety Remove MEGA STICK from Computer............................................... 16
Chapter 4. Basic Usage ....................................................................................... 17
Power On and Off............................................................................................. 17
Editing Sound Tracks (Files) ............................................................................ 18
Music Playback ................................................................................................ 19
Normal Playback..................................................................................... 19
Select the Next or Previous Track (File).................................................. 19
Fast-Forward or Rewind ......................................................................... 19
Volume Adjustment................................................................................. 20
Delete a Track (File)................................................................................ 20
Delete All Tracks (Files) ......................................................................... 20
EQ Settings....................................................................................................... 21

Repeat Settings ................................................................................................. 22
FM Radio Mode (*optional function)............................................................... 23
Select FM Radio Mode ........................................................................... 23
Select FM Station.................................................................................... 23
Store a Favorite Station ........................................................................... 23
Select the Stored Favorite Station............................................................ 24
Record Radio Broadcast.......................................................................... 24
Play a Recorded FM Voice File............................................................... 25
Delete a Recorded FM Voice File ........................................................... 25
Delete All FM Voice Files....................................................................... 25
Switch in Playback and FM mode (*optional operation).................................. 26
Switch from Music Playback mode to FM mode.................................... 26
Switch from FM mode to Music Playback mode.................................... 26
Voice Record.................................................................................................... 27
Activate Voice Recording Function......................................................... 27
Play a Recorded Voice File ..................................................................... 27
Delete a Recorded Voice File .................................................................. 27
Delete All Voice Files.............................................................................. 28
Language Learning Function............................................................................ 29
Operation Menus .............................................................................................. 30
Other Settings ................................................................................................... 32
Backlight................................................................................................. 32
Contrast................................................................................................... 32
Power Off................................................................................................ 33
Record Rate............................................................................................. 34
Startup Logo............................................................................................ 34
Language................................................................................................. 35
Appendix A. Specifications ................................................................................ 36
Appendix B. Driver and Utilities CD ................................................................. 37
Appendix C. Screen Editor ................................................................................. 38

4
Safety Instructions
1. Always read the safety instructions carefully.
2. Keep this User’s Guide for future reference.
3. Keep this equipment away from humidity.
4. Never pour any liquid into the opening that could damage or cause electrical
shock.
5. If any of the following situations arises, get the equipment checked by a
service personnel:
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you can not get it work
according to User’s Guide.
The equipment has dropped and damaged.
6. If you need to format the device, please select FAT16 or FAT32.
7. Do not change the default folders in the MEGA STICK, or the device might
function abnormally.

5
Chapter 1. Introduction
Congratulations on becoming a new user of MEGA STICK, the finely designed
portable digital audio player. Your new MEGA STICK will improve the
convenience of storing your personal data and the enjoyment of using various audio
functions. We are proud to tell you that MEGA STICK is thoroughly tested and
certified for unsurpassed dependability and customer satisfaction.
MEGA STICK is a high performance portable digital audio player that enables
users to play MP3 or WMA audio files, listen to the FM radio broadcast (optional
function), and have favorable program recorded in MEGA STICK memory. In
addition to the functions that just mentioned previously, MEGA STICK also works
as a portable USB data storage device that enables users to store their personal data
in MEGA STICK. Here are main distinguishing features of MEGA STICK:
zDigital Audio Player - supports MP3 and WMA audio files.
zFM Radio Broadcasting (optional function) - provides the function of
receiving FM Radio frequency. Users are able to save 15 FM stations and have
the FM program recorded while listening to the radio.
zVoice or Radio Program Recording - provides synchronous recording function
for voice or FM radio program (optional function), and the recorded files will
be stored in MP3 format.
zLanguage Learning Function - enables users to repeat a particular sound track
section during normal playback. With this function, users will be able to pay
more attention on the repeated playback and to achieve the result of learning
language.
zUSB Flash Disk - allows users to store personal data in MEGA STICK.
Thank you for choosing MEGA STICK. We hope you will continue to turn to us for
additional quality products as your personal needs and interests grow.

6
How to Use This Guide
This User’s Guide provides instructions and illustrations on how to install and
operate your MEGA STICK. We assume that those users whose operation system is
at least Windows 98 or 98SE are familiar with their OS, and be capable to follow the
step-by-step instructions to install the driver of MEGA STICK. If users who are not
able manage the operation system properly, it is suggested to learn more about
Microsoft Windows by referring to your Microsoft Windows manual before
installing the provided driver.
Chapter 1, Introduction, tells you the descriptions of all the accessories of MEGA
STICK. Please check out that if you have all the accessories included when you
open the packing box. If any item is damaged or missing, please contact the vendor
where you purchased MEGA STICK directly.
Chapter 2, Getting Started, introduces the function keys on MEGA STICK, and
tells you how to insert an AAA battery into the battery container located on the back
of MEGA STICK.
Chapter 3, Driver and Utility Installation, describes how to install MEGA STICK
and the special designed utility for your new MEGA STICK.
Chapter 4, Basic Usage, describes how to use MEGA STICK in a various way. It is
recommended to read this chapter carefully before using MEGA STICK.
Appendix A, Specification, provides the specification and accessories of MEGA
STICK.
Appendix B, Driver and Utilities CD, explains the CD-ROM usages.
Appendix C. Screen Editor, tells you how to operate the Screen Editor tool to edit
your own start up logo on MEGA STICK.

7
Unpack1
8
6
5
2
4
97
3
1
1. MEGA STICK (Portable Digital Audio Player)
2. Earphone
3. Extension Cable for Earphone
4. Metal Necklace
5. USB Extension Cable
6. Quick Installation Guide
7. Carry Bag
8. Driver Disk
9. AAA Battery
1The accessories come with MEGA STICK package may be different from those shown above.

8
Chapter 2. Getting Started
Overview
1. Battery Cover Slide open to insert an AAA size battery here.
2. Hold Switch Switch to hold position to prevent any miss
touching while MEGA STICK is recording or
playing.
3. USB Connector Cap Detach the cap when connecting the MEGA
STICK to the computer.
4. USB Connector Connect one end of the supplied USB extension
cable here.
5. Power On/Off Press and hold to Power On or Off MEGA
STICK.
Play/Pause In music playback mode, press to play or to pause
the playback. In FM mode, press to select the
stored favorite stations one by one.
6. Volume+/- Press +/- button to increase or decrease the
volume level.

9
7. MENU Press down the button or push it to the right or to
the left to make various adjustment.
8. Fn Press to select FM station mode. Or, press to
enable the section repeat function
9. REC Press to start or stop the FM or voice recording.
10. MIC Internal Microphone.
11. Earphone Jack Plug the supplied earphone here.
12. External MIC Jack Plug the external microphone here.
LCD Display
1. Hold (Lock) Switch Indicates when the Hold function is enabled.
2. Playback Status Displays the music or voice files playback status.
3. Volume Displays the volume status.
4. A to B Repeat Indicates when A to B section repeat function is
enabled.
5. Repeat Mode Indicates the repeat mode that includes Normal,
Repeat One, Repeat All, Shuffle, and Shuffle
Repeat.
6. Equalizer Indicates the EQ mode settings that include
Normal, Classical, POP, Rock, and Jazz.
7. Battery Status Indicates the Battery Status.
8. File Name Displays the current file name that is being
played.

10
Insert a Battery
1. Gently detach the USB connector cap, and you will find that the cap is attached to
the main set with a special design string to avoid losing it.
2. Slide the battery cover.
3. Insert an AAA battery and make sure the battery is inserted by correct alignment.
4. Slide back the battery cover.
5. Press the Play/Pause button to power on MEGA STICK, and then check the
capacity of the battery.
6. If you cannot read the Battery Status on the Display, please return to step 1 and
make sure the battery is inserted by the correct alignment.
Battery Consuming Reference
Category of Battery Playing/ Recording
AAA Alkaline
1280mA/hr battery Average 12 hours for audio playback or recording
Note: 1. Alkaline battery is recommended when using this Drive.
2. Take out the battery if you will not use this Drive for long time.
Battery Status
Empty Full

11
Hold Switch
MEGA STICK provides a Hold Switch, which is located on the side of MEGA
STICK for preventing any miss touching while MEGA STICK is recording or
playing. Once the Hold Switch is slide to the lock position, all function keys on
MEGA STICK will be disabled instantly.
USB Flash Disk
Users are able to save personal data in various formats to MEGA STICK memory.
You can say MEGA STICK is a small hard disk. To save data to MEGA STICK,
simply connect it to computer, and press the Power button to let your system
configure it. Then you can use Windows Explorer to manage the data.
Note: Please refer to the Safety Instructions before formatting MEGA STICK.

Chapter 3. Driver & Utility Installation
Connect MEGA STICK to Computer
1. Remove the USB connector cap.
2. Plug one end of the supplied USB cable to your computer, and plug the
other end to MEGA STICK.
3. Once MEGA STICK is connected to the computer, MEGA STICK
should be detected by the operation system automatically.
Note: If the operating system of your computer is Windows 98SE, a
hardware driver for MEGA STICK will be required.
Hardware Installation for Windows 98SE
When MEGA STICK is connected to a computer with Windows 98SE
operating system, the system will automatically detect the new hardware, and
ask for a hardware driver to be installed. To install the driver, place the supplied
driver disk into the CD drive. Then, follow the on-screen instructions to
complete the installation.

13
Install Utilities
The supplied Driver CD includes a MEGA STICK specialized driver. It is
recommended to install even if your operating system is Windows 2000 or XP.
Then, your system can recognize and fully support this device. The driver
program includes a utility for upgrading the latest firmware provided by MSI
website. Simply insert the supplied disk into the CD drive, and then follow the
on-screen instructions to complete the installation.
Utilize the Utility
Once the Utility is installed, you will be able to updating a new firmware or
format your MEGA STICK with this Utility.
Note: The Firmware update is an advanced operation, not recommended to
run by a normal user.
Firmware Updating
To update the firmware, download the latest firmware from MSI website, and
place the downloaded firmware under [Program files -> MSI -> MS-551X].
Now, follow the instructions below to update the new firmware:
1. Press and hold the Play/Pause button.
2. Connect MEGA STICK to your computer with the supplied USB cable.

14
Note: The Play/Pause button must be pressed while connecting MEGA
STICK to the computer.
3. When you have connected MEGA STICK to the computer, please go to
[Device Manager] and find a new drive named [Player Recovery Device
Class] to check connection status. If the connection is failed, you will not
find [Player Recovery Device Class] appearing in [Device Manager]. At
this time, please repeat step 1 and 2 again to try to connect MEGA STICK
to your computer one more time.
4. Now, release the Play/Pause Button.
5. Run the Update program by selecting [Start -> Programs -> MSI ->
MS-551X] to load the firmware.
6. After loading firmware, you can see an update dialog.

15
7. Deselect Format Data Area to update the new firmware without formatting
MEGA STICK. Select Format Data Area to update the new firmware and
format MEGA STICK at the same time.
8. Press Start button to start updating the new firmware.
Note: If you format the MEGA STICK, the data and files stored inside will be erased!
Format MEGA STICK
To format MEGA STICK, connect it to your computer with the supplied USB
cable. Then you may format your MEGA STICK with the utility mentioned
above or with the Windows format tool.
Note: Use firmware update utility to format MEGA STICK can ensure format quality.
Note: If you format the MEGA STICK, the data and files stored inside will be erased!
Note: If you need to format MEGA STICK, please select FAT16 or FAT32 format.

Safety Remove MEGA STICK from Computer
After managing the files or updating firmware, you have to follow the steps to
safety remove the MEGA STICK, to prevent system or device corrupt:
1. While an USB device is connecting to computer, there will be an icon
on the task bar. Double click the icon to bring the Safely Remove Hardware
dialog box. You can find all the devices connected on the display. To
remove MEGA STICK, close all the programs related, and click USB
Mass Storage Device and Stop button.
2. Then you see a window as below, click USB Mass Storage Device and OK
3. There will be the following message, and you can remove the device now.

17
Chapter 4. Basic Usage
Power On and Off
1. Press the Play/Pause [] button once to turn the power on. When power on
MEGA STICK, a power on icon and MSI startup logo will be shown on the
display.
2. To power off MEGA STICK, press and hold the Play/Pause [] button
until the power is switched off.
Note that when pressing the Play/Pause [
 ] button to power off MEGA
STICK, you will see a Power Off Status Bar appearing on the display to show
you the Power Off status, and note that it takes about three to five seconds to
turn the power off.

18
Editing Sound Tracks (Files)
1. Press the Play/Pause [] button to power on MEGA STICK. If there is no
sound track added in the memory of this drive, you will read the massage as
below on the screen.
2. Remove the USB connector cap, and then plug one end of the supplied USB
cable to your computer, and plug the other end to MEGA STICK.
3. Once MEGA STICK is connected to the computer, you will see the screen
shown as below.
4. Select the desired sound tracks (files) from your own folder, and move them
into MEGA STICK. While the selected sound tracks (files) is transferring to
MEGA STICK, a message will shown as below.
Note: Do not disconnect MEGA STICK from the computer while the file is
still transferring , otherwise it may cause some system failure.
5. You can also get the files stored from the MEGA STICK 520. While the
selected tracks (files) is transferring from the MEGA STICK 520 to your
computer, the message will shown as below.
6. Under the MEGA STICK, you are allowed to add, delete, or edit a folder as
what you will do under a disk as usual. In another word, this MEGA STICK
works as another portable hard disk of yours.

19
Music Playback
Normal Playback
1. Press the Play/Pause [] button to play the current selected file.
2. During playback, press the Play/Pause [] button again to pause the
playback.
Select the Next or Previous Track (File)
1. During playback, push Menu button to the right once to skip to the next track.
2. Or, push Menu button to the left once to back to the previous track.
Fast-Forward or Rewind
1. During playback, push Menu button to the right and hold the position to
fast-forward the current track.
2. Or, push Menu button to the left and hold the position to rewind the current
track.

20
Volume Adjustment
1. Press the Volume Up or Down button to adjust the playback volume.
2. You may check the LCD Display to see the Volume status.

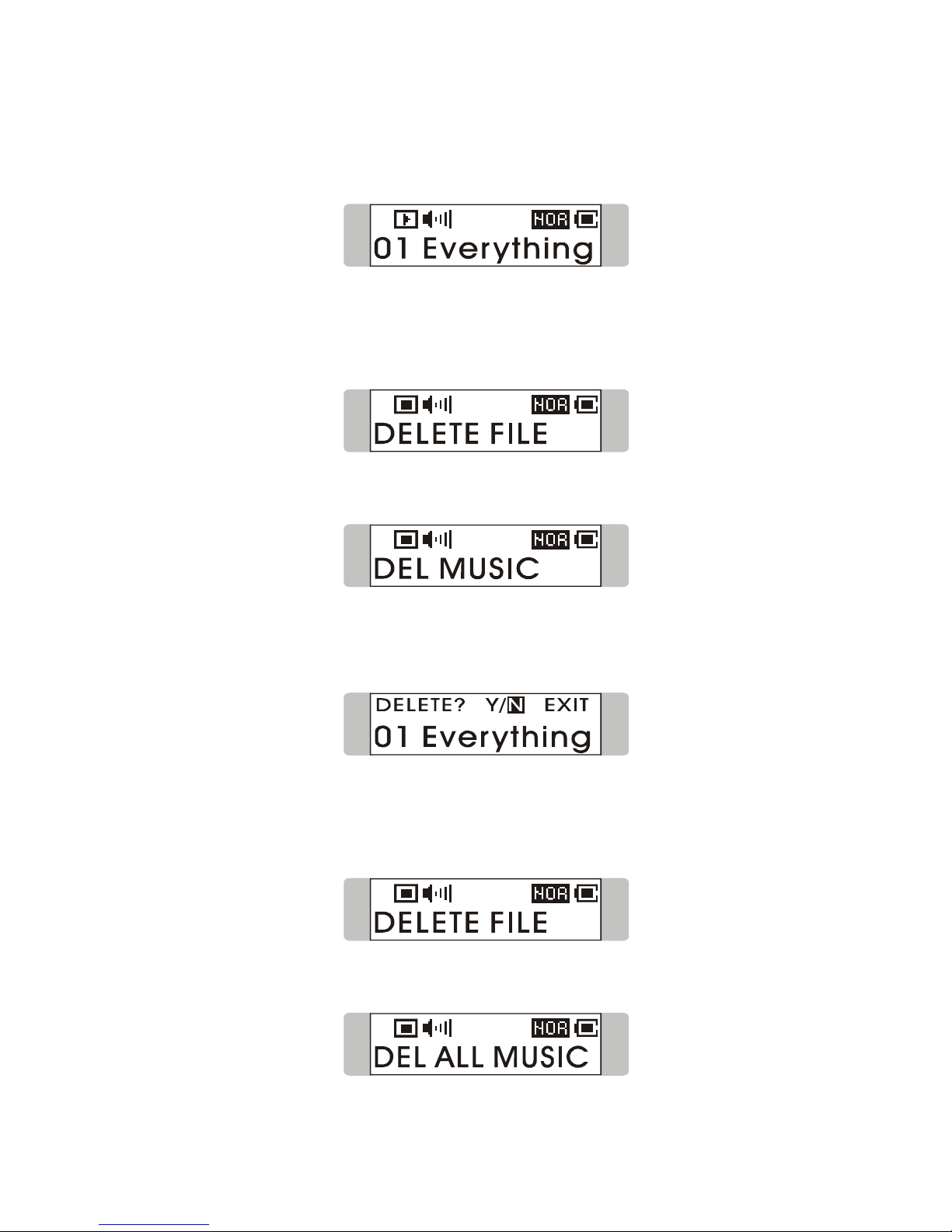

Delete a Track (File)
1. Press down Menu button once, and push Menu button to the right until
DELETE FILE appears on the display.
2. Press down Menu button once and then push Menu button to select DEL
MUSIC.
3. All of the stored file will be displayed by sequence, switch Menu button to the
right or to the left to select Yes to delete the file shown on the Display, or select
No to skip to the next file, or select EXIT to leave the current screen.
Delete All Tracks (Files)
1. Press down Menu button once, and then push Menu button to the right until
DELETE FILE appears on the display.
2. Press down Menu button once, and then push Menu button to the right or to
the left to select DEL ALL MUSIC.
3. Once you read DEL ALL MUSIC on the screen, press down Menu button, and
