Safety Instructions
1. Alwaysreadthesafetyinstructionscarefully.
2. KeepthisUser sGuideforfuturereference.
3. Keepthisequipmentawayfromhumidity.
4. Neverpour anyliquidintotheopening thatcoulddamageorcause
electricalshock.
5. Ifanyofthefollowingsituationsarises,gettheequipmentcheckedbya
service personnel:
•Liquidhaspenetratedintotheequipment.
•Theequipmenthasbeenexposedtomoisture.
•Theequipmenthasnotworkedwell oryoucannotgetitwork
accordingtoUser sGuide.
•Theequipmenthasbeendroppedandbeendamaged.
6. Ifanyfailureoccurredto MEGAPLAYER533,removeandinsertthe
batterybackagain,andthenslidethePowerswitchonce topoweronthe
system.
7. Donotchangethedefaultfoldersinthe MEGAPLAYER533,orthe
devicemightfunctionabnormally.

5
Chapter1.Introduction
Congratulationsonbecominganewuserof MEGAPLAYER533.Thenew
MEGAPLAYER533 will improvetheconvenience ofstoringyourpersonal
data andtheenjoymentof usingvariousaudiofunctions.Weareproud totell
ourusersthat MEGAPLAYER533 isthoroughlytestedandcertifiedbyour
reputationforunsurpasseddependabilityandcustomersatisfaction.
Therearetwomodelsof MEGAPLAYER533:Onemodelhasabuilt-inLCD
panel andtheothermodeldoesnothaveaLCDpanel andit scalled MEGA
PLAYER533 Lite.Thepackagingforyour MEGAPLAYER533 identifiesif
aLCDpanel isincluded.
Herearethemajorfeatures:
nDigitalAudioPlayer (MEGAPLAYER533and MEGAPLAYER533
Lite) –supportsMP3,WMA audiofilesplayback.
nFMRadio(onlyforMEGAPLAYER533 withtheLCD panel) –
ReceivingFMRadiofunction.Usersareabletosave10 favoriteFM
stations.
nRecorder (onlyforMEGAPLAYER533 withtheLCD panel) –
providessynchronousrecordingfunction.
nUSBCardReader(MEGAPLAYER533andMEGAPLAYER533
Lite) –allowsuserstostoredataontheSD cardvia MEGAPLAYER
533.
Thank youforchoosing MEGAPLAYER533.Wehopeyouwill continueto
turntousforqualityproductsasyourpersonalneedsandinterestsgrow.
Fordetailspecificationsof thempleasereferto AppendixA.Specifications.

6
Howto UseThisGuide
ThisUser sGuideprovidesinstructionsandillustrationsonhowtoinstalland
operateyour MEGAPLAYER533.We assumethat thoseuserswhose
operating systemisatleastWindows98 /98SE/2000/XParefamiliarwith
theirOS,andarecapabletofollowthestep-by-stepinstructionstoinstallthe
driverof MEGAPLAYER533.Foruserswhoarenotabletomanagethe
operating systemproperly,it issuggestedtolearn moreaboutMicrosoft
Windowsbyreferring toyourMicrosoftWindowsmanualbeforeinstallingthe
provideddriver.
Chapter1, Introduction,tellsyouthedescriptionsof all theaccessoriesof
MEGAPLAYER533.Pleasecheckifyouhavealltheaccessoriesincluded
whenyouopenthepackingbox.Ifanyitem isdamagedormissing,please
contactthevendorwhereyoupurchased MEGAPLAYER533 directly.
Chapter2, GettingStarted,introducesthefunctionkeyson MEGAPLAYER
533 series,theLCDDisplaystatus, andhowtoinsertthebattery.
Chapter3, DriverandUtilityInstallation,describeshowtoinstall MEGA
PLAYER533series and thespeciallydesignedutilityforyournew MEGA
PLAYER533 series.
Chapter4, Basic Usage describeshowtouse MEGAPLAYER533.Itis
recommendedtoreadthischaptercarefullybeforeusing MEGAPLAYER533.
Chapter5, BasicUsageforLiteversion,describeshowtouse MEGA
PLAYER533Lite.Itisrecommendedtoreadthischaptercarefullybefore
using MEGAPLAYER533Lite.

7
AppendixA, Specification,providesthespecificationandaccessoriesof
MEGAPLAYER533 series.
AppendixB, OperationMenuStructure
AppendixC, Driver andUtilitiesCD
Unpack
Pleaseunpackyour MEGAPLAYER533 andcheckthatthefollowing
accessoriesarecompletewithnothingmissing.
MEGAPLAYER533 (PortableDigital AudioPlayer)
Earphone
USBExtensionCable
DriverDisk(User sManualincluded)
QuickStarting Guide
AAABattery

8
Chapter2.GettingStarted
Overview
1. MIC (MEGAPLAYER533withtheLCD panel)
InternalMicrophone.
2. EarphoneConnector Plug thesuppliedearphonehere.
3. USBConnector Connectoneendof thesuppliedUSBextension
cablehere.
4. StrapEyelet Attachthestraponthere.
5. LED(MEGAPLAYER533Lite)
Indicatethedevice status.
6. Volume- Press ittodecreasevolume.
7. Volume+ Press ittoincreasevolume.
8. Mode(MEGAPLAYER533 withtheLCD panel)
Press thebuttontoenterthemenuoperation.
9. Power/Play/Pause Press ittopoweron.
Press ittoplaytheselectionof track.

9
Whileplayingpress thebuttontopauseand
press itagaintoresumethetrack.
10.Rewind/Left Press it once cangotobeginningof theplaying
soundtrack.
Press andholdittodofast-rewind.
Press ittoselectmenuitems.
11.Forward/Right Press itonce cangotothenexttrack.
Press andholdittodofast-forward.
Press ittoselectmenuitems.
12.Display Window(MEGAPLAYER533withtheLCD panel)
Readstatusand informationatthiswindow.
13.BatteryCover Openit,youcansee thebatterycompartment
andtheSD card slot.
14.HoldSwitch Switchtolockpositiontopreventanymiss
touchingwhile MEGAPLAYER533 is
recordingorplaying.

10
LCDDisplay
NormalPlaybackMode

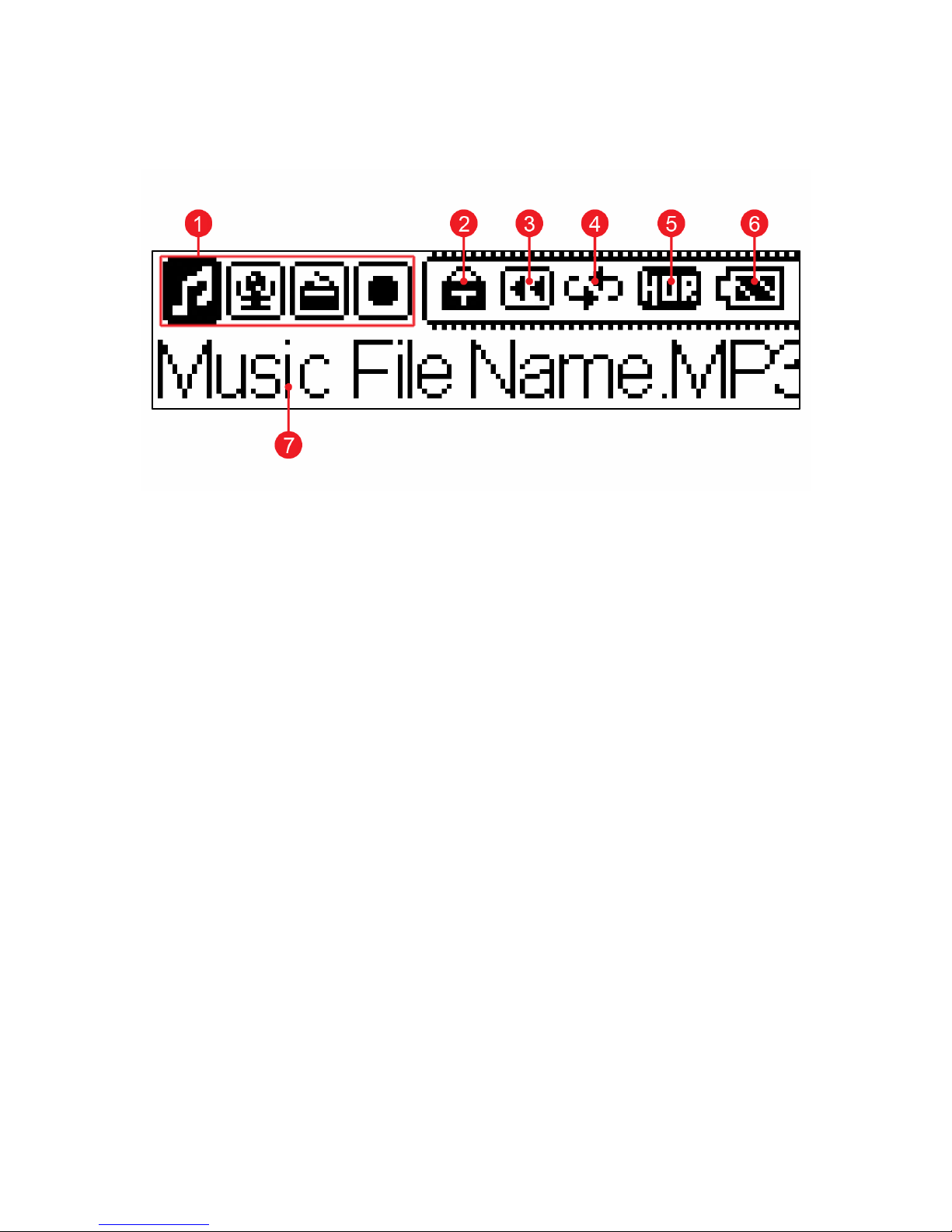

1. ModeBar Indicatesthepresentoperationmode.
2. LockIndicateswhentheHoldfunctionisenabled.
3. PlaybackStatus Displaysthemusicorvoice filesplayback
status.
4. RepeatMode Indicatestherepeatmodethatincludes
Normal,Repeat One,Repeat All,Shuffle, and
ShuffleRepeat.
5. Equalizer IndicatestheEQmodesettingsthatinclude
Normal,Classical,POP, Rock, andJazz.
6. BatteryStatus IndicatestheBatteryStatus.
7. File Name Displaysthecurrentfilenameisbeing
played.

11
Insert BatteryandSDCard
1. Slidethebatterycoveropenyou
cansee thebatterycompartment
andaSD cardslot.
2. InsertanAAAbatteryandmake
surethebatteryisinsertedinto
thecorrectalignment.
3. Plug aSDcardintotheslot.
Note:ToejecttheSDcard,push
and thenreleasetheSDcard.
4. Closethebatterycover.
5. Turn on,andthencheckthe
capacityofthebattery.
6. IfyoucannotreadtheBatteryStatusontheDisplaywhenthebatteryis
inserted, pleasereturn tostep1andonce againmakesurethebatteryis
insertedintothecorrectalignment.
BatteryConsumingReference
•CategoryofBattery:AlkalineAAAbattery
•Playing:Average8hoursforaudioplayback.
Note:1.AlkalinebatteryisrecommendedwhenusingthisDrive.
2. Makesurethebatteryistakenoutifyouarenotgoingtousethis
BatteryStatus
EmptyFull

12
Driveforalongperiodoftime.
3. MEGAPLAYER533 canbeacardreaderandaflash diskwithout
thebattery.
4. MEGAPLAYER533 willreadallfileandfolderinformationon
theSDcardwhenyouinstallaSDcardintheslot. Dependingon
thefilestructure,itmaytakemorethenaminute toreadthem.
Duringthistime,thecurrentplaybackisstopped.
HoldSwitch
MEGAPLAYER533 hasaHoldSwitch,whichislocatedontherearsideof
thedevice forpreventinganyaccidentaloperationwhile MEGAPLAYER533
isrecordingorplaying.Once theHoldSwitchisslidetothelockposition,all
functionkeyson MEGAPLAYER533 willbedisabledinstantly.

13
Chapter3.Driver&UtilityInstallation
ConnectMEGA PLAYER533to YourComputer
1. Plug oneendof thesuppliedUSBcableto MEGAPLAYER533,and plug
theotherend toyourcomputer.
2. Once MEGAPLAYER533 isconnectedtocomputer,it shouldbedetected
bytheoperatingsystemautomatically.
Note:IftheoperatingsystemofyourcomputerisWindows98SE,a
hardwaredriverforMEGAPLAYER533 willberequired.

14
Hardware Installationfor Windows98SEonly
When MEGAPLAYER533 isconnectedtoacomputerwithWindows98SE
operatingsystem,thesystemwillautomaticallydetectthenewhardware,and
askforahardwaredrivertobeinstalled. Toinstallthedriver,place thesupplied
driverCDintotheCDdrive,andfollowtheon-screeninstructionstocomplete
theinstallation.
Install Utilities

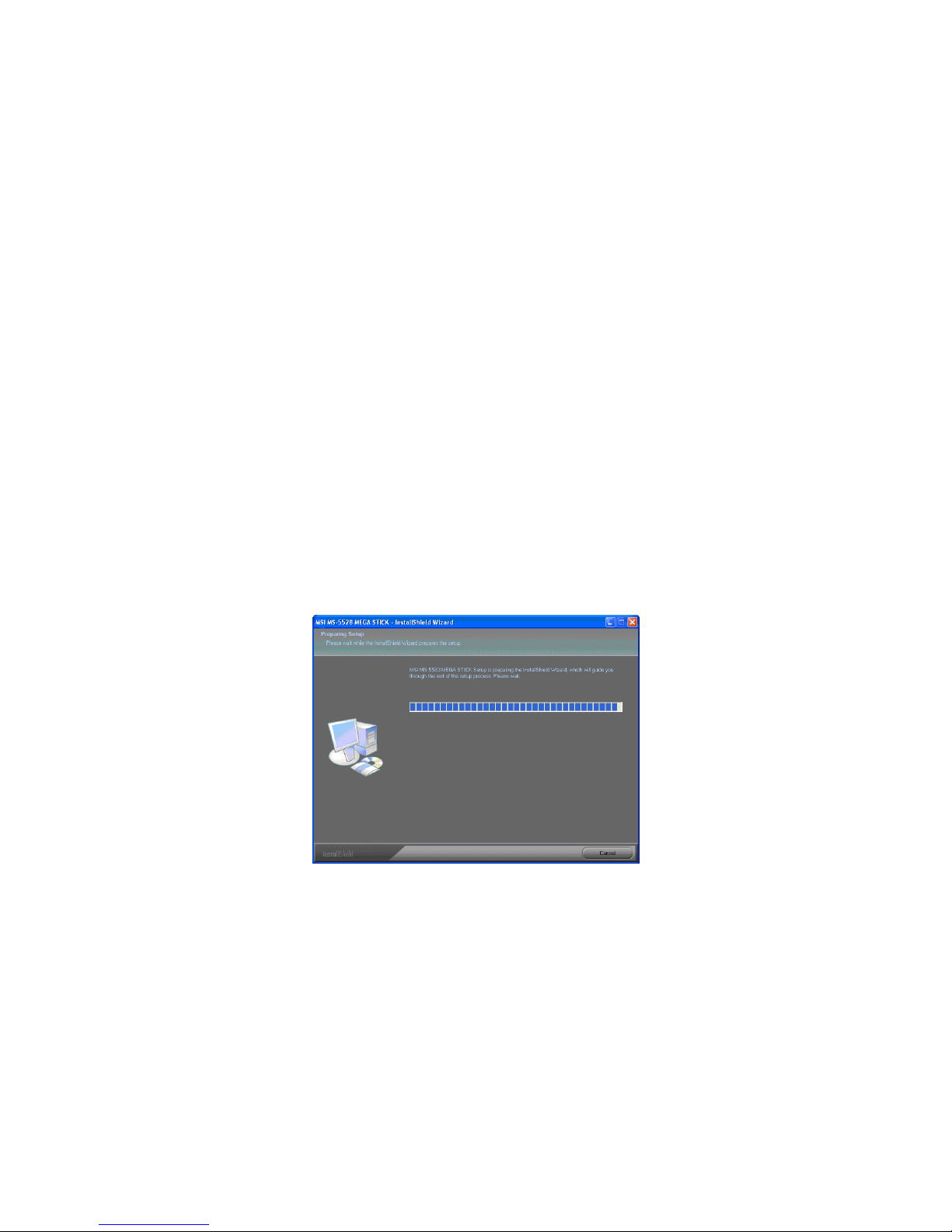

ThesuppliedDriverCDincludesa MEGAPLAYER533 specializeddriver.It
isrecommendedtoinstallevenifyour operatingsystemisWindows2000orXP.
Then,your systemcanrecognizeandfullysupportthisdevice.Thedriver
program includesautilityforupgradingthelatestfirmwareprovidedbyMSI
website.SimplyinsertthesupplieddiskintotheCDdrive,andthenfollowthe
on-screeninstructionstocompletetheinstallation.
Utilize the Utility
Once theUtilityisinstalled,youwill beabletoupdatingthefirmwareorformat
your MEGAPLAYER533.
NOTE:THIS IS ANADVANCEDOPERATION.NORMALUSERSARE
NOTRECOMMENDEDTOPERFORMTHIS OPERATION!

15
FirmwareUpdating
Toupdatethefirmware,downloadthelatestfirmwarefromMSIwebsitefirst,
andplace thedownloadedfirmwareunder[Programfiles->MSI->MS-5533]:
1. Press the Power buttonand keepholding.
2. Connect MEGAPLAYER533 toyourcomputer.
3. Goto[Device Manager],find [MSIMS-5533USBDevice]in[DiskDrive]
tocheckconnection.Iffailed, youcannotfindit.Repeat step1 tore-connect.
4. Select[Start->Programs->MSIMS-5533MEGAPLAYER->MSI
MS-5533 Update]toloadthefirmware.
5. Afterloading firmware,youcansee anupdatedialog.
6. DeselectFormatDataArea toupdatethenewfirmwarewithoutformatting
MEGAPLAYER533.SelectFormatData Area toupdatethenewfirmware
andformatMEGAPLAYER533atthesametime.
7. Press Startbuttontostartupdating thenewfirmware.
Formatting
Toformatthebuilt-inmemeryortheSDcardinMEGAPLAYER533,please

16
refertheconnectinginstructionmentionedpreviouslytoconnectMEGA
PLAYER533 toyour computerfirst.Once youconnectMEGAPLAYER533
toyourcomputer,youmayformatMEGAPLAYER533 withtheformattool
offeredbyWindows.
Note:UsethefirmwareupdateutilitytoformatMEGAPLAYER533canensurethe
format quality.
Note:IfyouformatMEGAPLAYER533,thedataandfilesstoredinsidewill beall
erased!
Note:IfyouneedtoformatMEGAPLAYERbyotherformatutility,pleaseselectFAT16
orFAT32 format.
USBFlashDisk/SDCardReader
Usersareabletosavepersonaldata withmanyformatsavailableintothe
built-inmemoryof the MEGAPLAYER533,orstoredataontheSD card
insidethe MEGAPLAYER533 likeusingacard reader.Tosavedatato
MEGAPLAYER533,simplyconnectit tocomputer,anduse Windows
Explorer tomanageyourdata.
Note:MEGAPLAYER533canbeaflash diskandacardreaderwithoutthe
battery.
Note:Duetothelimitationof memory, whenthetotalfolderamountisover50
orfileamountisover650,somemusicfileswillnotbeabletobeloadedand
beplayed.
Safety RemoveMEGA PLAYER533 fromComputer
Aftermanagingthefilesorupdatingfirmware,youhavetofollowthestepsto
safetyremovethe MEGAPLAYER533,topreventsystemordevice corrupt:

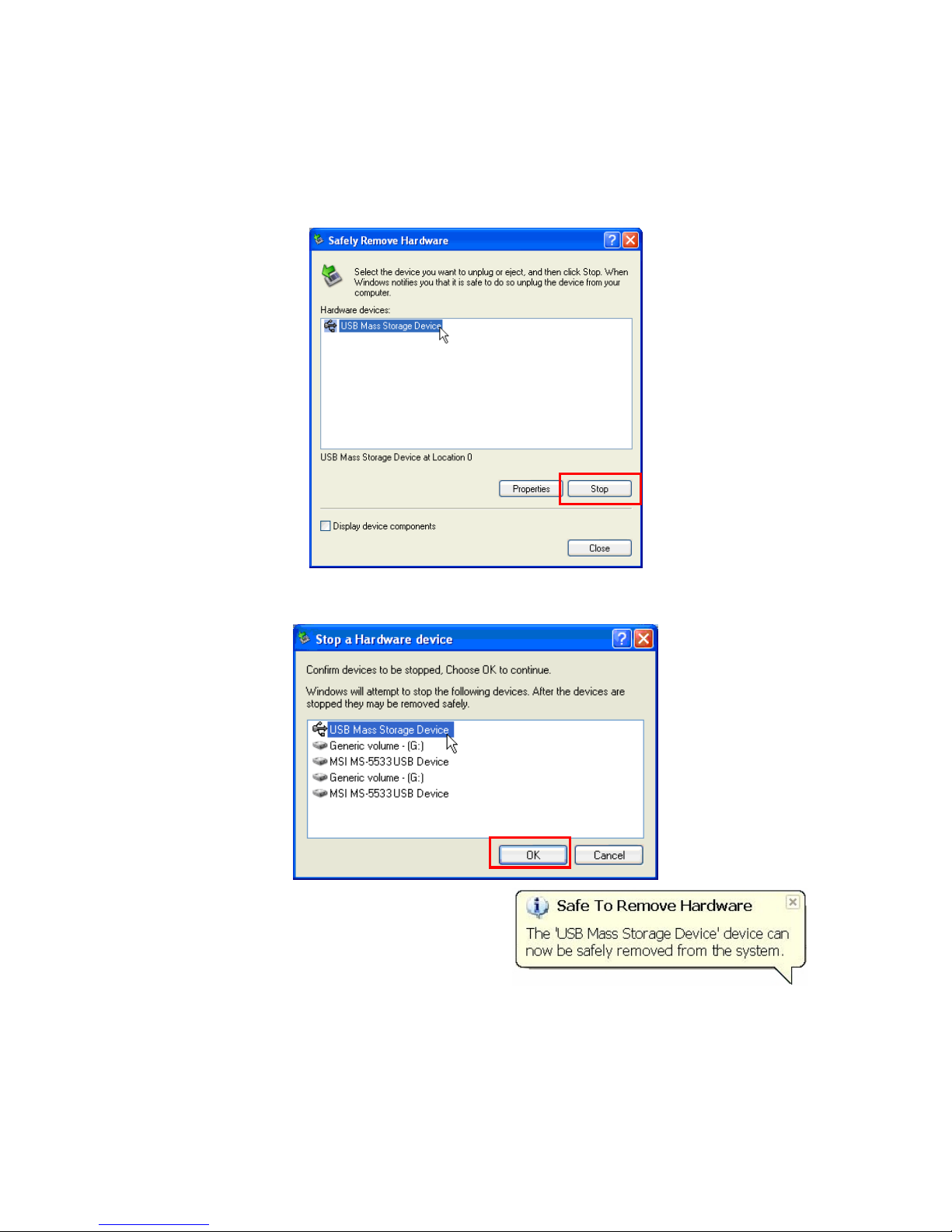

1. WhileanUSBdevice isconnectingtocomputer,therewill bean icon
onthetaskbar.DoubleclicktheicontobringtheSafelyRemoveHardware

17
dialogbox.Youcanfindallthedevicesconnectedonthedisplay.To
remove MEGAPLAYER533,closeall theprogramsrelated,andclick
USBMassStorageDevice and Stop button.
2. Thenyousee awindowasbelow, click USBMass StorageDevice and OK
Therewillbethefollowingmessage,
andyoucanremovethedevice now.

18
Chapter4.Basic Usage
Ifyourdevice isMEGAPLAYER533 Lite(withouttheLCDpanel),please
jumptoread Chapter5.UsageforLiteVersion. Inthisdocument,wewill use
theterm, “Select”, tomeanthatyoushouldpress the Rewind/Left or
Forward/Right buttontobrowsethroughoptions,andthenselecttheoptionby
press the Power/Play/Pause button.
Power On
1. Press the Power buttonfortwoseconds.
2. Afterpoweron,thedefault modeisPlayback
“stop”mode.
3. Press the Play buttontoplaythetrack.
4. Duringplayback, youcanpress the Pause button
topausetheplayback.
Power Off
Press the Power buttonand hold. Youwillsee a PowerOffStatusBar
appearing onthedisplaytoindicatethePowerOffstatus.Notethatittakes
abouttwosecondstoturnthepoweroff.
MusicPlayback
1. Press the Mode buttontoselectthe Music item.

19
2. Selectthesongyouwanttolisten,andthenpress
the Play buttontoplay.
PlayingVoice File
1. Press the Mode buttontoselectthe Voice item.
2. Selectthesongyouwanttolisten,andthenpress
the Play buttontoplay.
FM RadioMode
1. Press the Mode buttontoselect FM Radio item,
whenFMRadioModeisselectedforthevery
firsttime, MEGAPLAYER533 willrunanauto
stationsearchingandstorethesearchedfive
stationsasthepresetfavoritestations.
2.WhentheradiofrequencyappearsontheLCD
screen,Press the Right or Left buttontoadjust
andsearchthepresetchannelyouwant.
3.Press and hold Mode button for twoseconds, a
“SaveCH”messagewillappearontheLCD
screen,thenpress theplaybuttonandselecta
numbertosave.
Press the Play button toswitchthe CH numberthat
youhavesavedbefore.
Toautomaticallyscanand saveradiostations,Press
the Mode buttonandthenselectthe PresetCH item.

20
SettingsEQ
MEGAPLAYER533 providesvarious EQ modes,suchas Pop, Rock, Jazz,
and Classical,foruserstochooseasfollowingsteptoincreasetheenjoymentof
listening tomusic,and tomeetthepersonalneedorhabit.
1. Press andholdthe Mode buttonfortwoseconds
inthe Music or Voice mode. Itwillchangetothe
Setting mode.
2. Selectthe EQ item.
3. Select Normal, POP, Rock,Jazz or Classical.
SettingRepeatMode
1. Press andholdthe Mode buttonfortwoseconds
inthe Music or Voice mode. Itwillchangetothe
Setting mode.
2. Selectthe Repeat item.
3. Selectoneof thefollowingitemsinthe Repeat
mode.
a. Normal:Playsusersselectedtracksin
sequentialorder.
b. Repeatone:Repeat thecurrenttrack.
c. RepeatAll: Repeat allselectedtracks.
