Oce 9800 User manual

Printer
User Manual
Océ 9800

Copyright
Océ-Technologies B.V. Venlo, The Netherlands © 1999
All rights reserved. No part of this work may be reproduced, copied, adapted,
or transmitted in any form or by any means without written permission from
Océ.
Océ-Technologies B.V. makes no representation or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose.
Further, Océ-Technologies B.V. reserves the right to revise this publication and
to make changes from time to time in the content hereof without obligation to
notify any person of such revision or changes.
Code number 7114386
Edition 6.0
Océ-Technologies B.V.
GB
This manual contains a description of the Océ 9800 (controller release 1.2) and
the printing that can be done with it. The introduction (chapter 1) contains a
general description of the working methods for using the system and it is
recommended that you read at least this chapter.
Overview of copier parts on the covers
To assist you in finding parts of the copier and the functions on the operating
panel quickly, an illustration of the Océ 9800 is presented on the inside front
cover and of the operating panel on the inside back cover, both of which can be
folded out.
Safety information
This manual contains the following safety information:
■Appendix B lists ‘Instructions for safe use’. You are advised to read this
information before you start to actually use the copier. Technical safety
information such as safety data sheets can also be found in appendix B.
■Where applicable, cautions and warnings are used throughout this manual to
draw your attention to safety precautions to be taken.

Contents 3
Contents
Chapter 1 Getting started
Switching on and off 8
Reading the display 10
Which Océ 9800 systems are available? 11
Océ 9800 Copier/Printer 11
Océ 9800 Printer 12
Océ 9800 optionals 12
Chapter 2 Using the Océ 9800
The operating panel (layout and use) 14
Buttons 14
Display and soft keys 15
Stopping a print job 22
Interrupting a print job 23
Collecting your output 25
Copy Delivery Tray 25
Folder (optional) 25
High Capacity Stacker (optional) 26
Lower Output 27
Printing on cut sheet material 28
Printing status information or test page 30
Resetting error 32
Resetting the counter 33
Accounting 34
Chapter 3 Default printer settings
Auto format selection 38
Printing non-standard size originals 39
Defining your copy length 40
Editing 41
Auto shift 41
Mirrored-image 42
Shifting the image 43

4 Océ 9800 Printer User Manual
Stamp unit (optional) 45
Folded copies (optional) 47
High capacity output unit with punch unit (optional) 50
Reinforcement Unit (optional) 53
High Capacity Stacker (optional) 55
Lower Output 59
Pre-programmed groups of default settings 60
Chapter 4 Key operator
The Océ 9800 key operator 62
Entering the key operator mode 63
Defining clock settings 64
Setting the current time and date 64
Setting the reset time 65
Activating the time switch 66
Image correction 67
Programming groups of default settings 68
Editing the stamp 71
Defining the standard copy material type 72
Defining automatic roll change 73
Resetting the controller 74
Handling A4 formats 75
Chapter 5 System Administrator
Introduction 78
Entering the system administrator mode 79
Defining connectivity settings 80
Centronics 80
SCSI 80
Ethernet 80
Defining default language settings 82
Language (data format) 82
Pens 83
Automatics settings 84
General settings 86
Resetting the configuration 88

5
Chapter 6 Maintenance
Introduction 90
Loading rolls of copy material 91
Emptying the chip tray 94
Refilling toner 95
Maintenance of the Reinforcement Unit 97
Inserting a new tape roll 97
Emptying the waste box 105
Cleaning the reinforcement knives 106
Chapter 7 Problem solving
Introduction 110
Clearing paper jams 111
Clearing a paper jam in the manual feed 112
Clearing a paper jam in the fuser section 113
Clearing a paper jam in the roll feed section 116
Clearing a paper jam in the folder 119
Clearing a paper jam in the high capacity output unit (folder) 123
Clearing a paper jam in the High Capacity Stacker 127
Solving problems with the Reinforcement Unit 130
Clearing paper jams with the Reinforcement Unit 130
Clearing tape jams in the Reinforcement Unit 132
No reinforcement strips on the output without an error message 134
Print controller errors 136
Other problems (call service) 136
Appendix AOverview and tables
Product specifications 138
Copy material that can be used 139
Reinforcement strips 139
Overview of default settings on delivery 140
Controller default settings 141
Océ 9800 controller error codes 144

6 Océ 9800 Printer User Manual
Appendix BSafety information
Instructions for safe use 150
Safety data sheets 152
Safety data sheet Océ 9800 High Capacity Stacker 152
Safety data sheet Océ Copy/Original delivery tray 152
Safety data sheet Océ Reinforcement Unit 152
Safety data sheet Océ Cleaner K 153
Safety data sheet Océ 9800 printer 154
Safety data sheet Océ 9800 printer and folder 155
Safety data sheet Océ 9800 printer, folder and high capacity output unit 156
Safety data sheet Océ 9800 printer, folder, high capacity output unit and
puncher 157
Safety data sheet Océ E1 toner 158
Safety data sheet Océ OPC drum 160
Safety data sheet Océ Fixing Unit Cleaning Oil 162
Appendix CMiscellaneous
Notation conventions 166
Reader’s comment sheet 167
Addresses of local Océ organisations 169

7
Océ 9800 Printer
User Manual
Chapter 1
Getting started
This chapter describes how to switch the Océ 9800 ‘on’
and ‘off’, and how to read basic components of the printer
display. It also explains in what configurations the
Océ 9800 is available.

8 Océ 9800 Printer User Manual
Switching on and off
The Océ 9800 can be switched on by hand, or switched on automatically by
the time switch. The setting of the time switch is set by the key operator. The
on/off timer switch with the key is located on the right side panel of the display
(see figure 1). Turn this key to the ‘timer’ position if you want it to switch on
and off automatically.
Your key operator can program the time switch to switch on the system each
day of a work week at a specified time. This can be quite handy because the
warm-up time of the system will be approximately 20 minutes. By activating
the timer you’ll find the system ready for use, when you are.
The on/off timer switch has three settings:
■on: the system is switched on.
■off: the system is switched off.
■timer: the system will be switched-on automatically at a time of your choice
and switched-off after a certain idle time.
[1] On/off switch with key and timer position
▼
▼▼
▼Switching on
1Turn the key to ‘on’ position.
The system takes about 20 minutes to warm up. As soon as the system is
warmed up, the message ‘Ready to print’ appears.
off
on
timer

Getting started 9
▼
▼▼
▼Switching on the timer
1Turn the key to ‘timer’ position.
▼
▼▼
▼Switching off
1Ensure that the engine is not running
2Turn the key to the ‘off’ position.
3Then turn the key to the ‘timer’ position if the machine has to be automatically
switched on by the timer.
For details refer to ‘Activating the time switch’ on page 66.
High Capacity Stacker (optional) The on/off switch on the optional High
Capacity Stacker must always be left in the ‘on’ position. The High Capacity
Stacker is automatically switched on and off along with the system.

10 Océ 9800 Printer User Manual

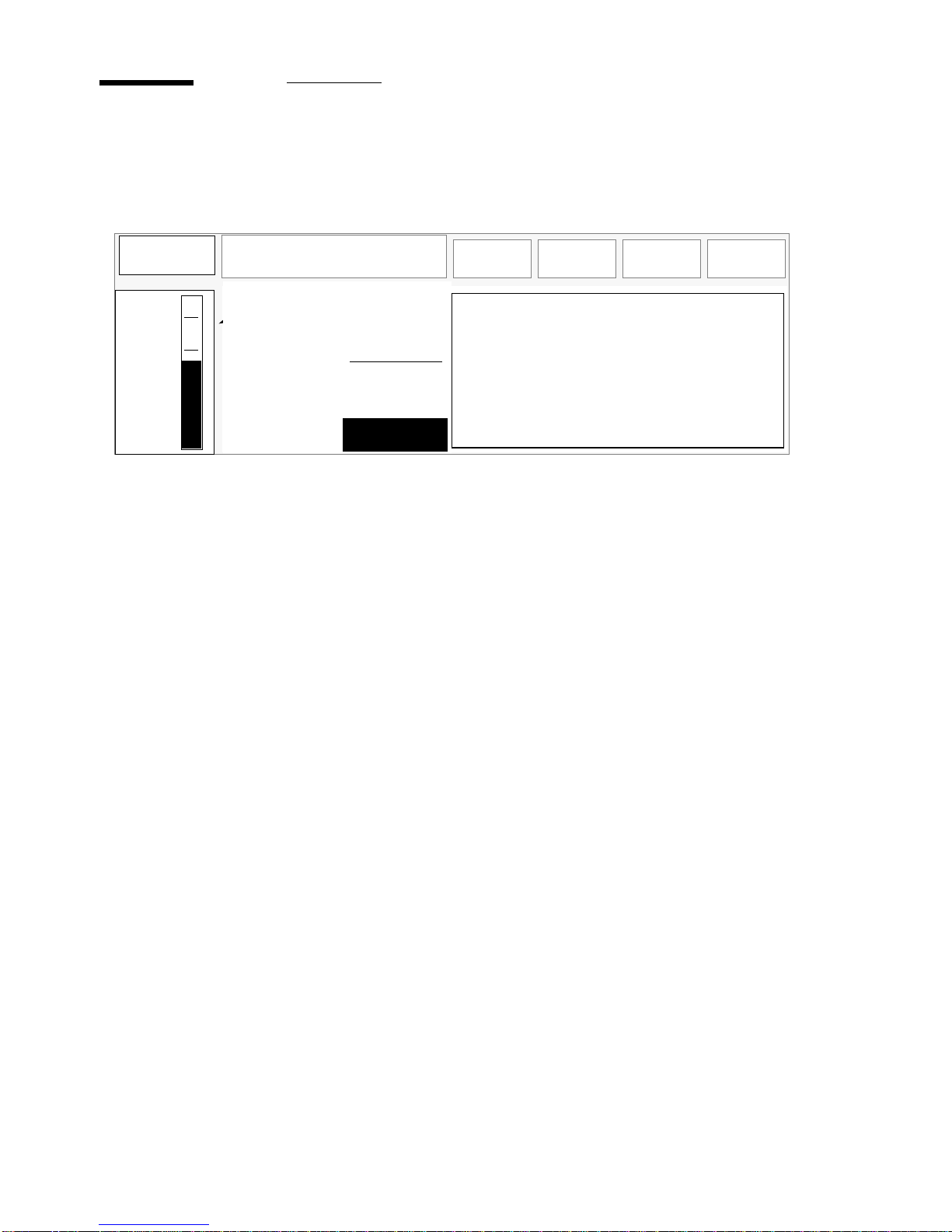

Reading the display
The display on the printer will show the following components:

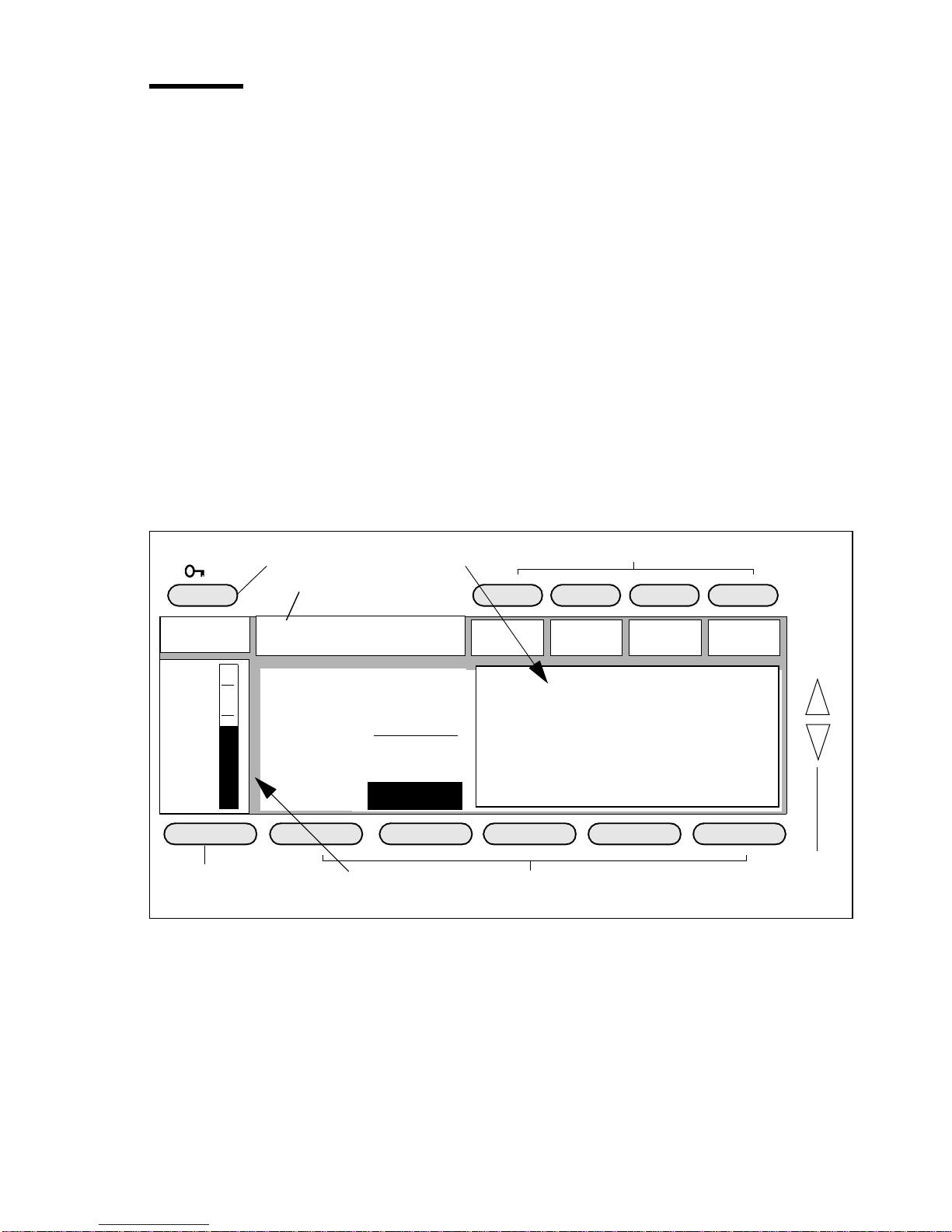

[2] Components of the printer display
By pressing the button under ‘Print’ in the lower right corner of the display,
you can enable or disable plotting on the Océ 9800 printer.
If ‘Print’ is selected (black), the system will accept and print incoming jobs.
The jobs will be handled in incoming order. If the controller is currently
processing a print job, the display will show ‘Processing’. If ‘Print’ is not
selected (white) the printing process isstopped after printing the pagesthat are
already sent to the engine. The system however, will continue to accept
incoming print jobs as long as enough memory is available. For more
information about stopping print jobs, (see ‘Stopping a print job’ on page 22).
The memory indicator shows the amount of memory that is currently in use,
along with the number of jobs in memory and the time it will take to print these
jobs. ‘Prints’ in the upper left corner of the display indicates the number of
(sets of) prints that are left to be made for the current job.
The roll indicator shows the kind of copy material and the format that is
currently loaded on the different rolls of the engine.
The message area above the print button area displays the current activity of
the controller.
................ ................
Program Copy
................
Finishing
Ready to print ................
Machine
Prints:
3
Time:
Jobs:
7
0:11
Roll 2
A2 Paper
Roll 4
A0 Paper
Roll 1
A3 Paper
Roll 3
A1 Paper
memory indicator
.....................
Print
Processing.
......................................

Getting started 11
Which Océ 9800 systems are available?
The Océ 9800 is available in two versions:
■Océ 9800 Copier/Printer
■Océ 9800 Printer (this manual)
Océ 9800 Copier/Printer
The Océ 9800 Copier/Printer in basic configuration consists of a scanner and
a print engine. The operating panel is located on the scanner.

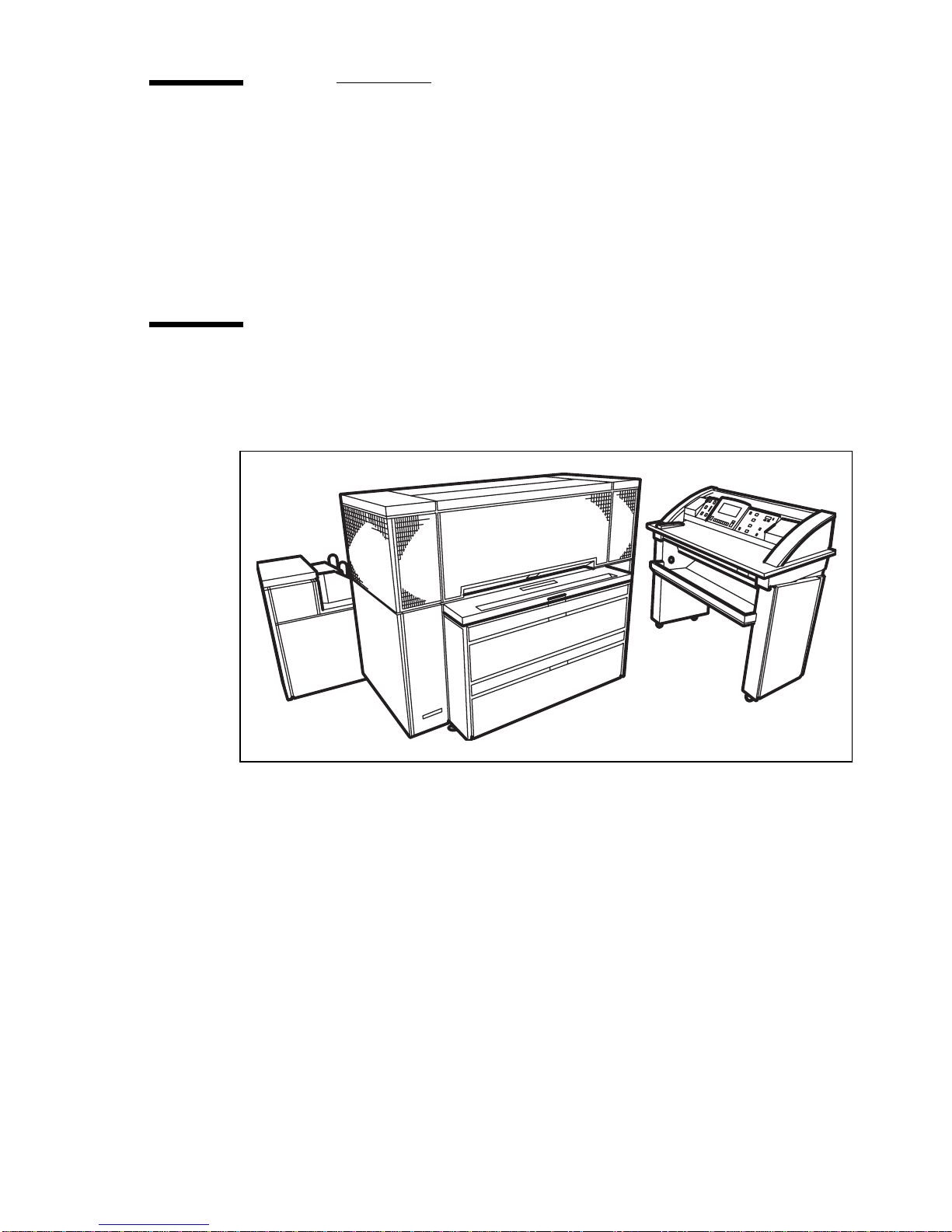

[3] Océ 9800 Copier/Printer, described in another manual
Use the scanner to feed your originals and to control the various functions of
the print engine.
If your print engine is equipped with a controller, you can connect it to your
computer system. To send your print jobs to the printer you can use Océ Job
Director, Océ Repro Station, or other drivers, described in the separate user
manuals.
The Océ 9800 Copier/Printer is described in the Océ 9800 Copier/Printer User
Manual.

12 Océ 9800 Printer User Manual
Océ 9800 Printer
The Océ 9800 Printer in basic configuration consists only of a print engine.
The operating panel is located on the printer.

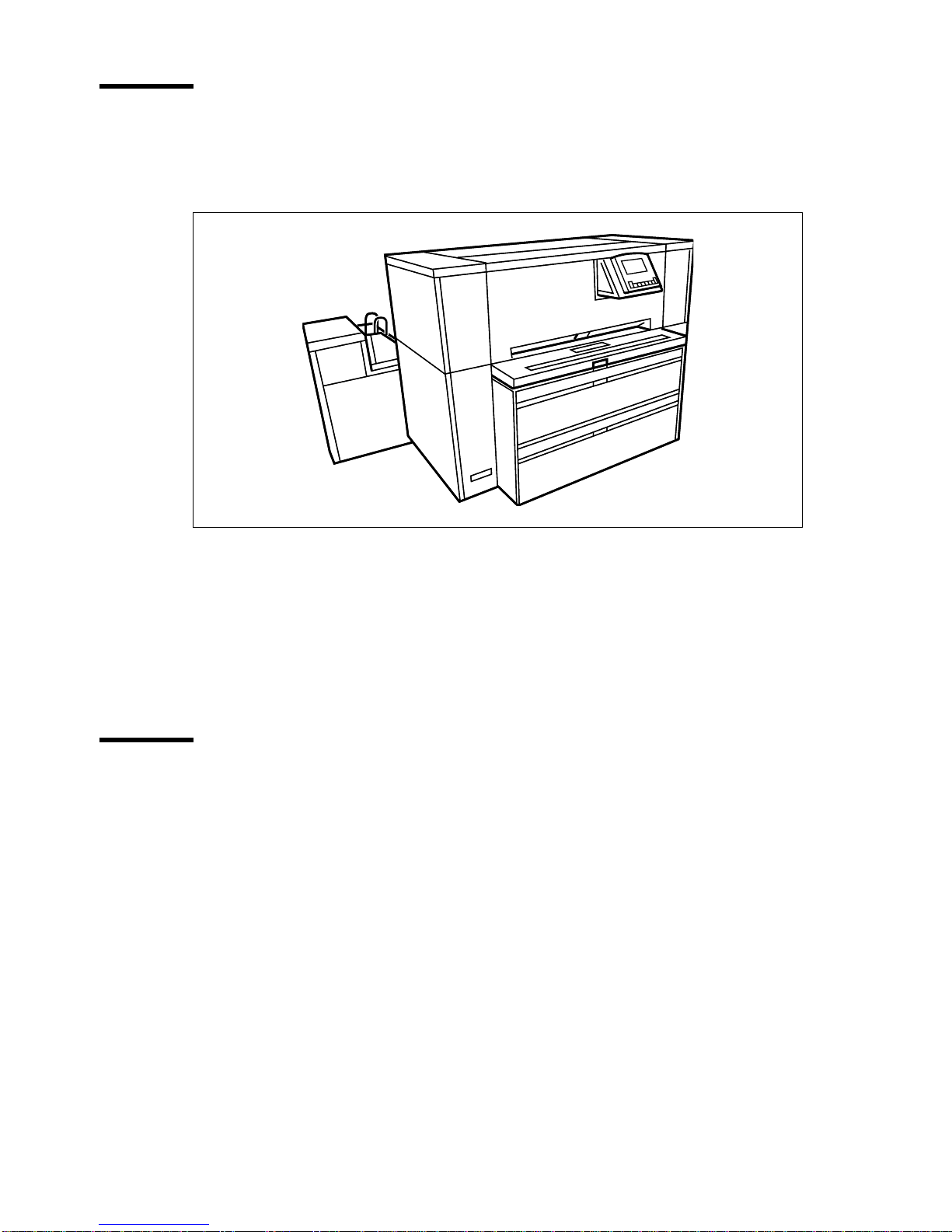

[4] Océ 9800 Printer
To send your print jobs to the printer, you can use separate applications like
Océ Job Director, Océ Repro Station,or other drivers, described in the separate
user manuals.
This manual describes the Océ 9800 Printer.
Océ 9800 optionals
■High Capacity Stacker.
The 6 bin High Capacity Stacker can be installed as a replacement of the
copy delivery tray.
■Folder
The folder can bedelivered withoptionals such as belt delivery units, apunch
unit, a first fold delivery and a reinforcement unit.
■Lower Output container
If no folder/punch unit is installed, this container can be used to deliver
(long) copies.

13
Océ 9800 Printer
User Manual
Chapter 2
Using the Océ 9800
This chapter explains the layout and use of the operating
panel. You’ll learn how to operate the printer for basic
print jobs.

14 Océ 9800 Printer User Manual
The operating panel (layout and use)
The operating panel of the Océ 9800 Printer is located at the front of the print
engine. It is illustrated in this manual’s inside back cover. As you can see in
this scheme, the panel consists of a display, and below this the start, numeric,
correction, and stop buttons.
This section consists of two parts. The first part explains for basic use the
names of the fixed buttons and where to find them. The second part is about
special use. That is how to use the soft buttons over and along the sides of the
display to define your default print settings.
Buttons
Start The button marked with is used to re-start the print process, or for
other purpose, such as to confirm a dialogue.
Numeric buttons The buttons with numbers on the lower part of the operating
panel are used to specify numbers.
Correction The orange button marked with C, located on the right side of the
operating panel, is used to switch to another level of settings, to cancel a
dialogue, or to retrieve default settings.
Stop Pressing the small red button over the Correction button stops the
printing process.

Using the Océ 9800 15
Display and soft keys
The operator panel is used to (re-)start and stop the printer. The display
provides feedback about print job status and memory content. The section and
function buttons above and under the display allow you to enter (default)
printer settings.
The display informs you about:
■the number of (sets of) prints, still to be made for the current job.
■the memory indicator shows the amount of memory that is currently in use,
along with the number of jobs in memory and the time it will take to print
these jobs.
■the roll indicator shows the kind of copy material that is currently loaded on
the different rolls of the engine.
■the actual system status, for example ‘Warming up’. In the event of an error
in the printer, the exact error location (covers or panels) are graphically
shown on the display, together with instructions on how to solve the problem.
[5] Section, card selection, function, and higher/lower buttons
You can use the operator panel to specify machine settings and default settings:
higher/lower
buttons
section buttons
function buttons
card selection button
................ ................
Program Copy
................
Finishing
Ready to print ................
Machine
KEY
Prints:
3
key operator button
system status
Time:
Jobs:
7
0: 11
memory indicator
Roll indicator
Roll 2
A2 Paper
Roll 4
A0 Paper
Roll 1
A3 Paper
Roll 3
A1 Paper
.....................
Print
Processing.
..............................

16 Océ 9800 Printer User Manual
■Machine settings can not be overruled by job specific printer settings.
Examples of machine settings are: changing the timer/clock, specify the type
of copy material that is currently loaded in the printer, and reset the counter.
■Default settings can be overruled by job specific printer settings that are sent
along with the print job. Examples of default settings are: copy material to be
used, deposit mode, folding method and stamp selection.
Key operator button By pressing this button you can enter the key operator or
system administrator mode. As this functionality is restricted to a dedicated
user, a different PIN code is required for each mode.
Section and function buttons By means of the section buttons you can access
the machine, program, finishing and copy sections. In a section, you can use
the function buttons to select a specific function; the function name belonging
to each button is shown in the display.
As you can see in illustration 5 on page 15, the display is surrounded by
buttons. Their function depends on the state of the display.
The top four buttons (section buttons) provide access to the sections (main
menus). Each high level menu item contains several functions (‘cards’). The
left button, or card selection button, provides access to the cards. The function
buttons allow you to select functions or sub functions in a card. Finally you
may use the higher/lower buttons, or numeric buttons to define numeric
settings.
When operating the buttons of the Océ 9800 display, keep this sequence in
mind: start with one of the section buttons and work counter clock-wise to the
card selection and function buttons. Finally, use the triangular higher/lower
buttons to make a selection.
[6] When using the Océ 9800 menu, work counter clockwise
section (top- menu) level
function (bottom menu) level
card (middle menu) level
function
value
level
............ ...........
Program Copy
............
Finishing
Ready to print ............
Machine
KEY
Prints:
3
Time:
Jobs:
0:11 Roll 2
A2 Paper
Roll 4
A0 Paper
Roll 1
A3 Paper
Roll 3
A1 Paper
7
............
Print
Processing.
.....................

Using the Océ 9800 17
If you want access to a section, simply press its button. Pressing Copy for
example, displays:

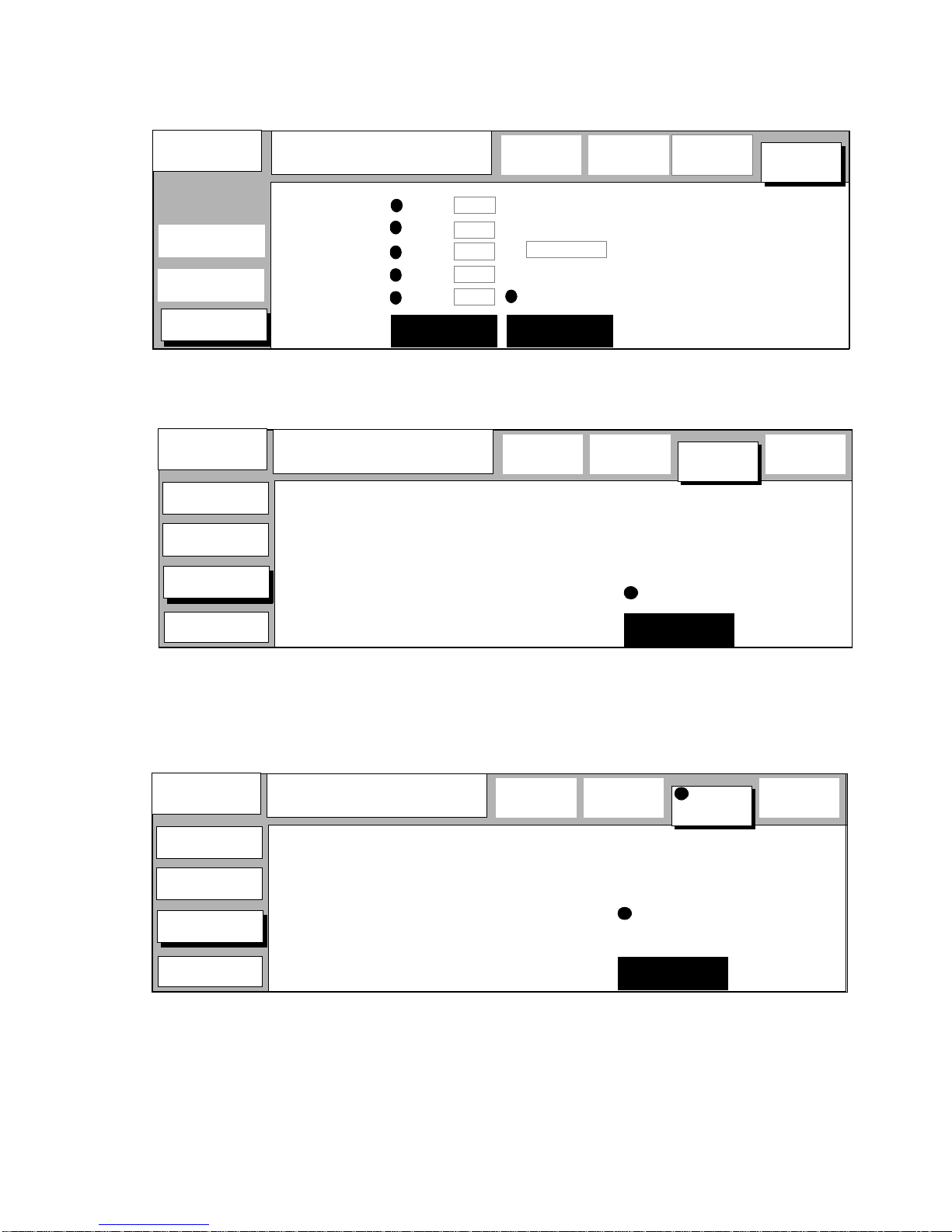

[7] The Copy section
If you press the Finishing button, this display will be shown:
[8] The Finishing section (folder)
If you have selected settings in the Copyor Finishing section, that are different
from the default settings, a bullet will appear in the according button:
[9] Indication of changed settings in Finishing menu
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Copy
Copy
A3 >>
A2 >>
................
Machine
................
Finishing
................
Program
Prints:
0................
Copy
size
material
Auto format
selection
A1 >>
A0 >>
A3
A2
A1
A0
Copy
length
Standard cut
Synchro cut
A3
A4 >>
210 mm
strip
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Stamp
................ ................
Machine Copy
................
Finishing
................
Program
Prints:
0
Fold Folding
length Print
Belt 2
Stack
Fold
delivery
Belts
Belt 1
High cap.
stacker
delivery
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Stamp
................ ................
Machine Copy
................
Finishing
................
Program
Prints:
0
Fold Folding
length Print
Belt 2
Stack
Fold
delivery
Belts
Belt 1
High cap.
stacker
delivery

18 Océ 9800 Printer User Manual
You can leave a section by:
1pressing the same section button again. The start-up (blank) display as in
illustration 5 on page 15 will be shown,
2pressing another section button. In this case the new section will be displayed
immediately.
Each section can be subdivided into several cards or sub menus. For instance,
the copy section contains these cards:
[10] The four cards in the Copy section
You can leave a card by:
pressing the card selection button or (another) section button.
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Copy
Copy
A3 >>
A2 >>
................
Machine
................
Finishing
................
Program
Prints:
0................
Copy
size
material
Auto format
selection
A1 >>
A0 >>
A3
A2
A1
A1 Standard cut
Synchro cut
A4 >> A3
Copy
length
210 mm

Using the Océ 9800 19
You can move between cards by:
pressing the card selection button. For instance if you press the card selection
button in the Copy size section as displayed above, you will enter the Copy
material card:
[11] The Copy material card selected
How to modify the settings in a card:
Consider the image card in the copy section as an example:
[12] Image card selected
If you press the Edit button, the function name is printed white-on black. This
indicates that the edit function has been activated. See the illustration below:
[13] Edit function in image card activated
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Copy
Copy
Polyester
................
Machine
................
Finishing
................
Program
Prints:
0................
Copy
material
size Roll 1
Transparent
Paper
Roll 3 Roll 4
Roll 2
Polyester
Transparent
Paper
Polyester
Transparent
Paper
Polyester
Transparent
Paper
Roll 2
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
Copy
Copy
Erase
................
Machine
...............
Finishing
................
Program
Prints:
0................
Copy
material
size
Mirror
Autoshift
Shift
type
Edit
Stretch
Roll 2
Ready to print
.................................. .................................. .................................. .................................. .....................................
......................................................................................................................................
Copy
Copy
................
Machine
...............
Finishing
................
Program
Prints:
0................
Copy
material
size type
Edit
Erase
Mirror
Autoshift
Shift
Stretch
Shift
Upper left
position

20 Océ 9800 Printer User Manual
If you press the edit button twice, you’ll enter the shift function as can be seen
in illustration 14.
[14] Selecting another edit function
Changing a numerical value If you press the ‘Horizontal’ function button the
display will change to:
[15] Selecting the ‘Horizontal; function in the Image card
Note the two triangles located to the right of the horizontal shift value in the
‘To left’ area. They inform you that the system is ready to modify a numeric
value.
Roll 2
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
......................................................................................................................................
Copy
Copy
................
Machine
...............
Finishing
................
Program
Prints:
0................
Copy
material
size type Horizontal
0 mm
To left
0 mm
To right:
0 mm
Up
0 mm
Down
Edit Vertical
Erase
Mirror
Autoshift
Shift
Stretch
Roll 2
Ready to print
..................................... ..................................... ..................................... ..................................... .....................................
......................................................................................................................................
Copy
Copy
................
Machine
...............
Finishing
................
Program
Prints:
0................
Copy
material
size type Horizontal
0 mm
To left
0 mm
To right:
0 mm
Up
0 mm
Down
Edit Vertical
Erase
Mirror
Autoshift
Shift
Stretch
