Chapter 1
Instructions for safe use

Instructions for safe use
Introduction
All the products have been tested in accordance with the strictest international safety
standards. Please read the following sections before you connect the machine to the
power supply. These sections contain important information with regard to the user
safety and the prevention of equipment problems. Make sure that you observe the safety
rules hereinafter. This helps to assure that you can work with the product safely. Make
sure that you observe all the precautions mentioned below.
Note:
Some parts of the contents of this section may not be applicable to your product.
Note:
Please refer to the corresponding Safety Data Sheets for specific safety information. You
can download the Safety Data Sheets from the support site of your product at
http://global.oce.com/support/.
Warning and precaution symbols
Caution:
Ignoring this warning could cause serious injury or even death.
Attention:
Ignoring this warning could cause injury or damage to property.
Note:
Indicates additional important information.
The indicators above are used on the warning labels or in the manuals to categorize the
level of safety warnings.
Disassemble and modification
Caution
Chapter 1 - Instructions for safe use6
Instructions for safe use

■Do not remove covers and panels which are fixed to the machine. Some machines
have a high-voltage component or a laser beam source inside that could cause an
electrical shock or blindness
■Do not modify this machine, because this could cause a fire, electrical shock or
breakdown. If the machine contains a laser, the laser beam source could cause blindness.
Attention
■Do not carry out maintenance activities for other components and maintenance ma-
terials than the components and materials that are mentioned in the user manual.
■Do not place any liquids on the machine.
■Do not open any door while the machine starts up or runs, unless the operator panel
displays a message that asks you to open one or more doors.
■Use maintenance materials or other materials for their intended purpose only.
■To avoid any risk, only properly qualified and trained service technicians are allowed
to modify the machine.
■Do not bridge any mechanical or electrical circuit breakers.
Note
■Keep maintenance materials away from children.
Power cord
Caution
■Do not scratch, abrade, heat, twist, bend, place a heavy object on or cause any other
damage to the power cord. The use of a damaged power cord (exposed core wire,
broken wire, for example) could result in a fire or breakdown. If you find any of these
conditions, immediately turn OFF the power switch and unplug the power cord from
the power outlet. Then call your authorized service representative.
■Do not use an extension lead to connect the machine.
Power source
Caution
■Put the power plug directly into a wall socket that has the same configuration as the
plug. The use of an adapter leads can result in an inadequate power supply. If a
proper wall outlet is not available, ask a qualified electrician to carry out the installation.
■Do not connect the machine to a mains voltage that differs from the value as stated
on the power marking label.
■Do not use a multiple outlet adapter or an extension lead. Contact your authorized
service representative if an extension lead is required.
Attention
■Consult your authorized service representative before you connect other equipment
to the same wall outlet.
Chapter 1 - Instructions for safe use 7
Instructions for safe use

Power plug
Caution
■For machines that are connected via a fixed connection to the electricity grid: The
disconnect device in the fixed connection must be easily accessible.
Grounding
Caution
■Connect the power cord to an electrical outlet (wall socket) that is equipped with a
grounding terminal.
■This equipment has not been designed for connection to an IT power system. An IT
power system is a voltage network in which the neutral wire is not connected to ground.
■In particular for Finland (FI), Norway (NO) and Sweden (SE), according to National
Deviations to EN/IEC 60950-1.
#
Laite on liitetävä suojamaadoituskoskettimilla varustettuun pistorasiaanFI
Apparatet må tilkoples jordet stikkontaktNO
Apperaten skall anslutas till jordat uttagSE

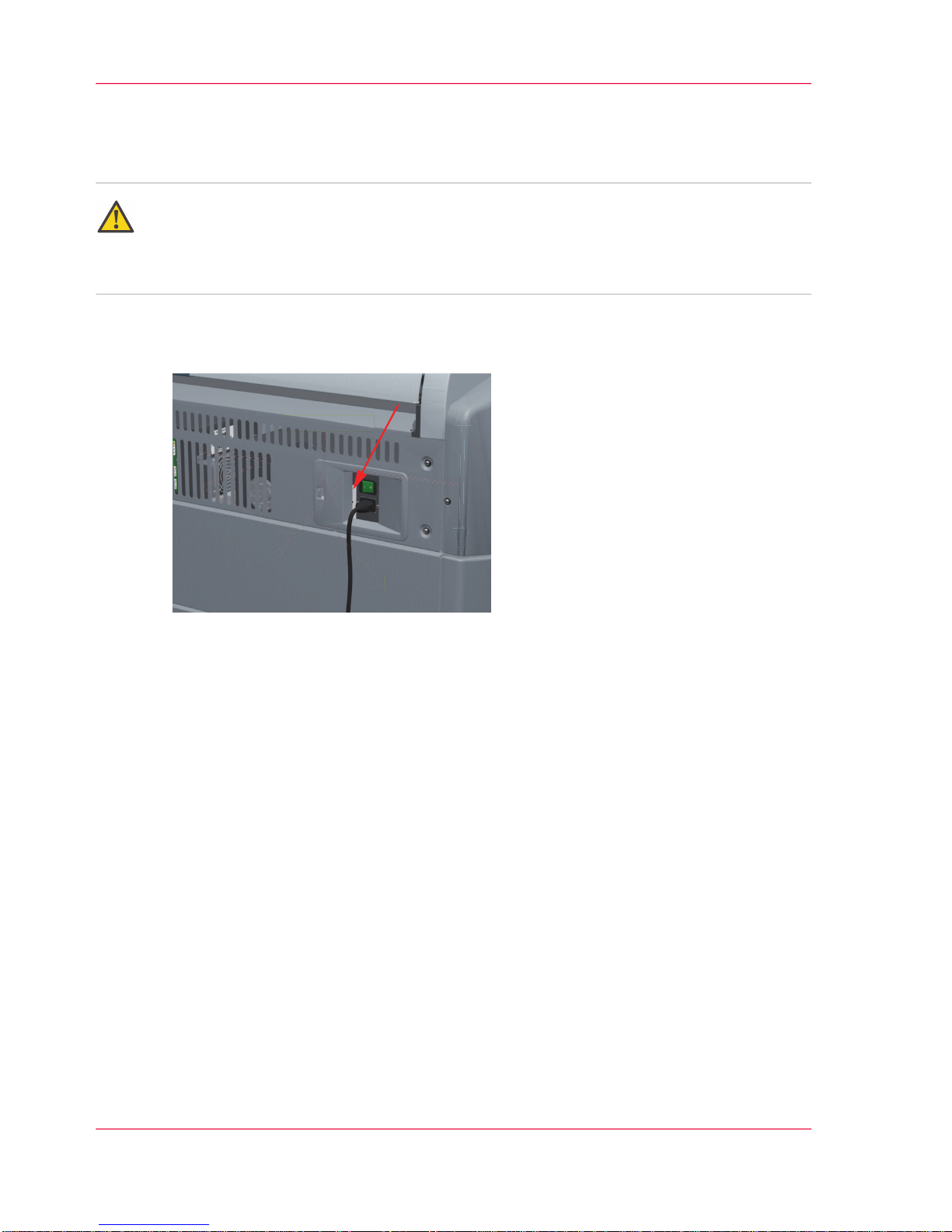

[1] Figure: 1. The power connection at the back of the printer.
Installation
Caution
■Make sure that the machine is placed on a level, horizontal surface of sufficient strength.
■Do not place this machine on an unstable or tilted bench.
■Do not place this machine in a location that is subject to lots of vibrations and shocks.
■Do not use flammable sprays, liquids or gases near this product, because this could
cause a fire.
■Make sure that the stabilizing studs are placed correctly after installing or moving the
machine.
Chapter 1 - Instructions for safe use8
Instructions for safe use

#
Pull out the left 'Foot' [1] until it touches the
ground and locks [2]. You should hear a click as
it locks.
Repeat this procedure on the right hand side of
the Océ ColorWave 600.
Note:
If you do not hear a click, place your foot
on the foot of the printer [1] and at the
same time push gently against the printer
until you hear the click.
■Check with empty drawers if it is possible to open two drawers. If this is possible call
service.
Ventilation
Attention
■Do not block the ventilation openings of the machine.
■Do not place the machine in rooms which are too small and insufficiently ventilated.
See the Product Safety Data Sheet of the machine for the ventilation requirements.
Actions in response to troubles
Caution
Chapter 1 - Instructions for safe use 9
Instructions for safe use

■When a piece of metal, water or any other similar foreign matter gets inside the ma-
chine, immediately turn OFF the power switch and unplug the power cord from the
power outlet. Then call your authorized service representative.
■Immediately stop using the machine if the machine becomes excessively hot, emits
smoke, or produces unusual odors or noises. Immediately turn OFF the power switch
and unplug the power cord from the power outlet. Then call your authorized service
representative.
Attention
■Stop using the machine if the machine was dropped or a cover was damaged. Imme-
diately turn OFF the power switch and unplug the power cord from the power outlet.
Then call your authorized service representative.
■Some areas inside the machine become hot. Touching these areas could cause burns.
When you check for malfunctions inside the machine such as a paper misfeed, do not
touch the locations which are labeled "high temperature". You can find these labels
around the fusing unit, for example.
■LCD display. Do not rub, press or touch the display surface with hard material, because
the polarizer at the surface can be easily scratched. The LCD module consists of glass.
Therefore, the LCD module can damage when you drop, pinch strongly or punch
the module. When glass breaks, be careful that you do not get injured by glass pieces.
Call Customer Service.
Consumables, supplies and maintenance materials
Attention
■Do not leave a toner unit or drum unit in a place within reach of children.
■Always use the materials which the manufacturer recommended and which are devel-
oped for this machine. Materials not approved by the manufacturer may result in
faults in your machine.
Opening drawers
Attention
■Only one drawer can be opened at the same time. This is to prevent overbalance of
the machine.
Moving the machine
Attention
■Make sure that you disconnect the power cord and other cables before you move the
machine.
■Make sure that you check the documentation for the space requirements before you
move the machine.
■Unlock the stabilizing studs before moving the machine.
Chapter 1 - Instructions for safe use10
Instructions for safe use

Holidays
Attention
■Unplug the machine when you will not use the machine for a long period of time.
Chapter 1 - Instructions for safe use 11
Instructions for safe use

Chapter 1 - Instructions for safe use12
Instructions for safe use

Chapter 2
Regulation notices

Regulation notices
Introduction
This section describes the regulation notices.
Radio Interference suppression (all countries except USA)
Warning: This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
FCC approval (USA only)
This system has been tested and found to comply with the limits for a class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the system is operated in a commercial en-
vironment. This system generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
ICES-003; Class A Interference-causing equipment (Canada only)
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique
de la classe A est conforme à la norme NMB-003 du Canada.
Battery labeling (EU only)
This product contains (a) Button Cell(s). It (They) is (are) located in (a) printed circuit
board(s) that is (are) essential for the continuous error-free functioning of the product.
The button cell(s) should be removed only by skilled service technicians who are aware
of the removal instructions provided by Océ-Technologies B.V.
Button cell specification#
Containing the following sub-
stances (if applicable)
Button cell ca-
pacity
Button cell location
Li / MnO2220mAhLocated in PowerM(+) Con-
troller, only accessible by service
technician.
Chapter 2 - Regulation notices14
Regulation notices

Caution: Océ does not accept any liability for any damage or consequences if the batteries
are removed by persons other than Océ service personnel.
End of Life; WEEE (EU-only)
The symbol "the crossed-out wheeled bin" indicates that at end-of-life of the equipment
separate collection is required in the EU Member States. The black bar specifies that the
appliance is put on the market after August 13, 2005. Reference: Directive 2002/96/EC.
Contact your local Océ -organization for further information.
RoHS (China only)
The Environmental Protection Use Period (EPUP) applicable for the printing system
designated for deliveries to the People's Republic of China is 20 years. This EPUP, which
does not include consumables or expendables, does not affect any warranty that is provided
for the system and may not be construed or interpreted as a separate guarantee for the
printing system.
ENERGY STAR® (All countries)
Océ-Technologies B.V. has joined the ENERGY STAR® Program of the United States
Environmental Protection Agency (EPA). The purpose of the ENERGY STAR Program
is to promote the manufacturing and marketing of energy-efficient equipment, thereby
potentially reducing combustion-related pollution. Using the energy management features
outlined below prevents unnecessary power consumption, which helps to prevent air
pollution from electricity generating plants and saves money on your utility bills. As an
ENERGY STAR® Partner, Océ-Technologies B.V. has determined that the Océ Color-
Wave® 600 printer meets the ENERGY STAR® criteria for energy efficiency laid down
in the ENERGY STAR Program Requirements for Imaging Equipment (Version 1.1).
Energy consumption (All countries)
In order to limit energy consumption during times of non-use the Océ ColorWave® 600
printer has a Sleep mode during which the power level is reduced. The value for the Sleep
mode is listed in the Product Safety Data Sheet.
Chapter 2 - Regulation notices 15
Regulation notices

Power modes and delay times
The energy consumption and efficiency are influenced both by the product technology
and by the settings chosen by the user, especially the delay times that are selected to enter
reduced power states. The following delay times have been pre-set.
Power modes and delay times#
Default delay time (minutes)Operational mode
5 minutes (range 5 - 60 minutes)Energy Save
30 minutes (range 15 - 240 minutes)Sleep
The modes above are automatically entered after the Default Delay Time has elapsed;
counting from the moment the last print has been produced. These settings are recom-
mended and for most users ensure both ease of use and low energy consumption. Between
brackets are the minimum and maximum values. The Delay Times can be changed by
the key-operator. Shorter delay times within this range will lower the energy consumption
even further, but may cause longer recovery times. In some cases longer delay times may
prove to be more convenient, but it should be noted that this may cause an increase in
energy consumption. Therefore, from an energy preservation point-of-view, longer delay
times are not recommended.
Standby power (Federal Energy Management Program) (all countries)
This product meets the following criteria for the United States Federal Energy Management
Program (FEMP):
■In Standby this product consumes less than 1 W/0 W. After shutting down all systems
properly, the Standby-mode as defined by FEMP is reached by switching the Main
Switch to "0".
■This product has a hard-off switch.
■This product meets the ENERGY STAR® Guidelines for energy efficiency.
Chapter 2 - Regulation notices16
Regulation notices

Chapter 3
General information

Caution labels and notations
Caution:
Do not remove caution labels or caution notations. If a label or notation is soiled, please
clean the label or notation. If you cannot make label or notation legible, or if the label
or notation is damaged, please contact your service representative.
Power-marking label
You can find the power-marking label behind the cover of the mains entrance.
Spiral cleaner
I
If a connection to a mains voltage - different than the rating on the power-marking label
- is required, contact Customer Service.
Space requirements and operation precautions (power source)
Please refer to the corresponding Safety Data Sheets for specific safety information. You
can download the Safety Data Sheets from the support site of your product at
http://global.oce.com/support/
Operating environment
The environmental requirements for correct operation of the machine are as follows:
■Operating temperature (T): 15 °C (59 °F) to 35 °C (95 °F)
■Relative Humidity(RH): 20 % to 80 %
Chapter 3 - General information18
Caution labels and notations

Chapter 4
Miscellaneous

Addresses of local Océ organisations
#
Océ-Österreich GmbH
Postfach 95
1233 Vienna
Wienerbergstrasse 11
Vienna Twin Tower
1100 Vienna
Austria
http://www.oce.at/
Océ-Australia Ltd.
P.O. Box 363
Ferntree Gully MDC
Vic 3165
Australia
http://www.oce.com.au/
Océ-Brasil Comércio e Indústria Ltda.
Av. das Nações Unidas, 11.857
Brooklin Novo
São Paulo-SP 04578-000
Brasil
http://www.oce-brasil.com.br/
Océ-Belgium N.V./S.A.
J. Bordetlaan 32
1140 Brussel
Belgium
http://www.oce.be/
Océ Office Equipment (Shanghai)
First Shanghai Center, Phase II, Building
4,
Lane 180, Zhangheng Road
Pudong District
Shanghai 201204, P.R.
China
http://www.oce.com.cn/
Océ-Canada Inc.
4711 Yonge Street, Suite 1100
Toronto, Ontario M2N 6K8
Canada
http://www.oce.ca/
Océ-Danmark a/s
Vallensbækvej 45
2605 Brøndby
Denmark
http://www.oce.dk/
Océ-Czech Republic ltd.
Babická 2329/2
149 00 Praha 4
Czech Republic
http://www.oce.cz/
Océ-France S.A.
32, Avenue du Pavé Neuf
93882 Noisy-le-grand, Cedex
France
http://www.oce.fr/
Océ Finland OY
Niittyrinne 7
02270 Espoo
Finland
http://www.oce.fi/
Chapter 4 - Miscellaneous20
Addresses of local Océ organisations
