Pace IntelliHeat ST 30 User manual

Operation and Maintenance Manual for
IntelliHeat™ Power Sources
P/N 5050-0556 REV B
This manual applies to:
Model Part Number
ST 30 7008-0290-01
ST 30E 7008-0290-02
ST 50 7008-0291-01
ST 50E 7008-0291-02
ST 65 7008-0292-01
ST 65E 7008-0292-02
ST 70 7008-0293-01
ST 70E 7008-0293-02
ST 75 7008-0294-01
ST 75E 7008-0294-02
ST 115 7008-0295-01
ST 115E 7008-0295-02

©2012 PACE Inc., Southern Pines North Carolina All Rights Reserved Page 2 of 20
TITLE PAGE
General Information
Introduction................................................................................................................3
Specifications ............................................................................................................3
Power Source Requirements.....................................................................................3
Shop Air Input Requirements.....................................................................................3
Temperature Specifications (All Models) ...................................................................3
Vacuum and Air (ST 65,ST 75 & ST 115)..................................................................3
EOS/ESD Specifications (All Models)........................................................................3
Power Supply Features .............................................................................................4
Safety
Safety Guidelines.......................................................................................................7
System Set-Up
Mounting Options (ST 30, ST 50, ST 65, & ST 70)....................................................7
Tip & Tool Stand Mounting Option (SX 90, PS 90, & TJ 85)......................................7

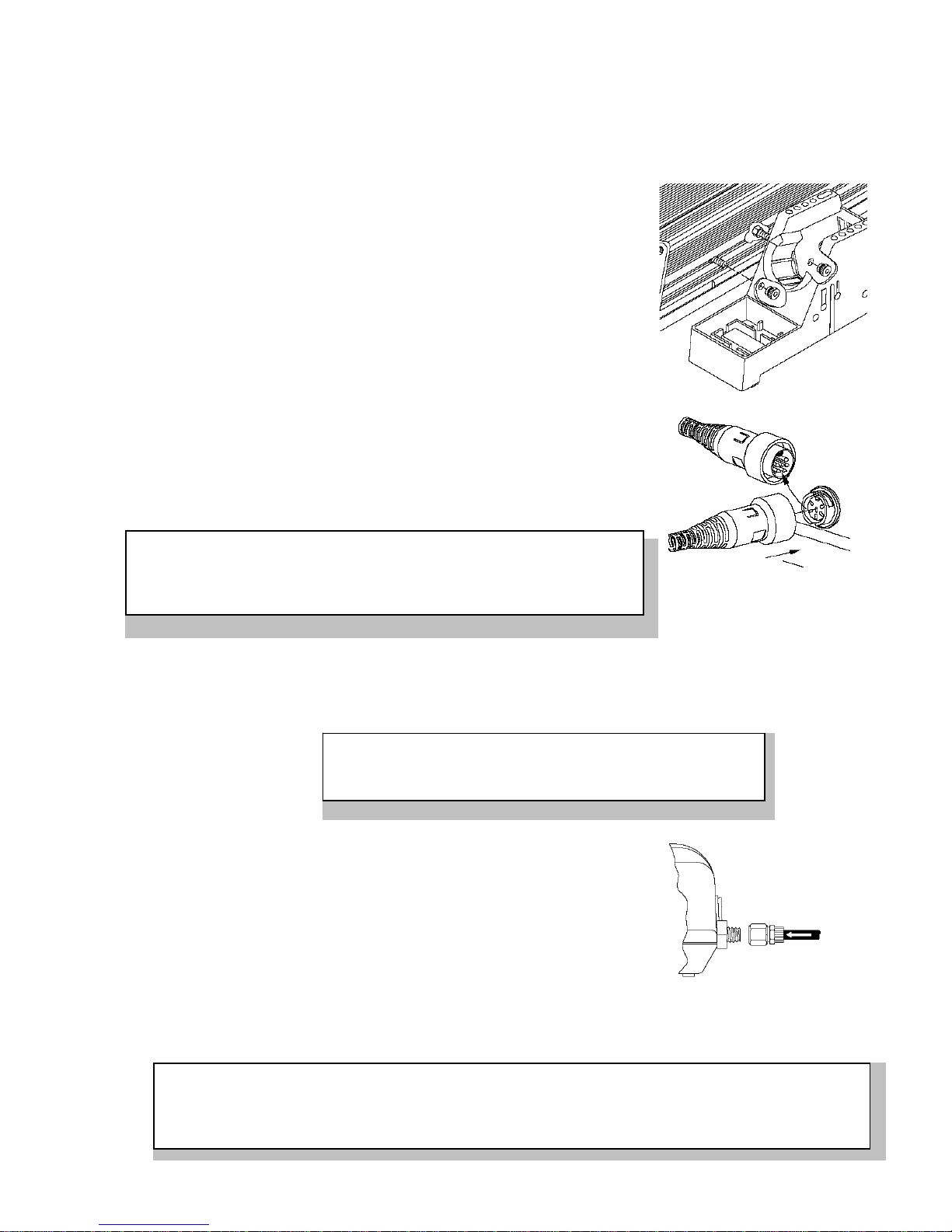

Handpiece Connection (All Models)...........................................................................8
Air Supply Connection (ST 65 Only)..........................................................................8
Handpiece Vacuum/Pressure (ST 65, ST 75, & ST 115)...........................................9
System Power Up......................................................................................................9
Analog Temperature Controlled Power Supplies (ST 30,ST 65, & ST 75)

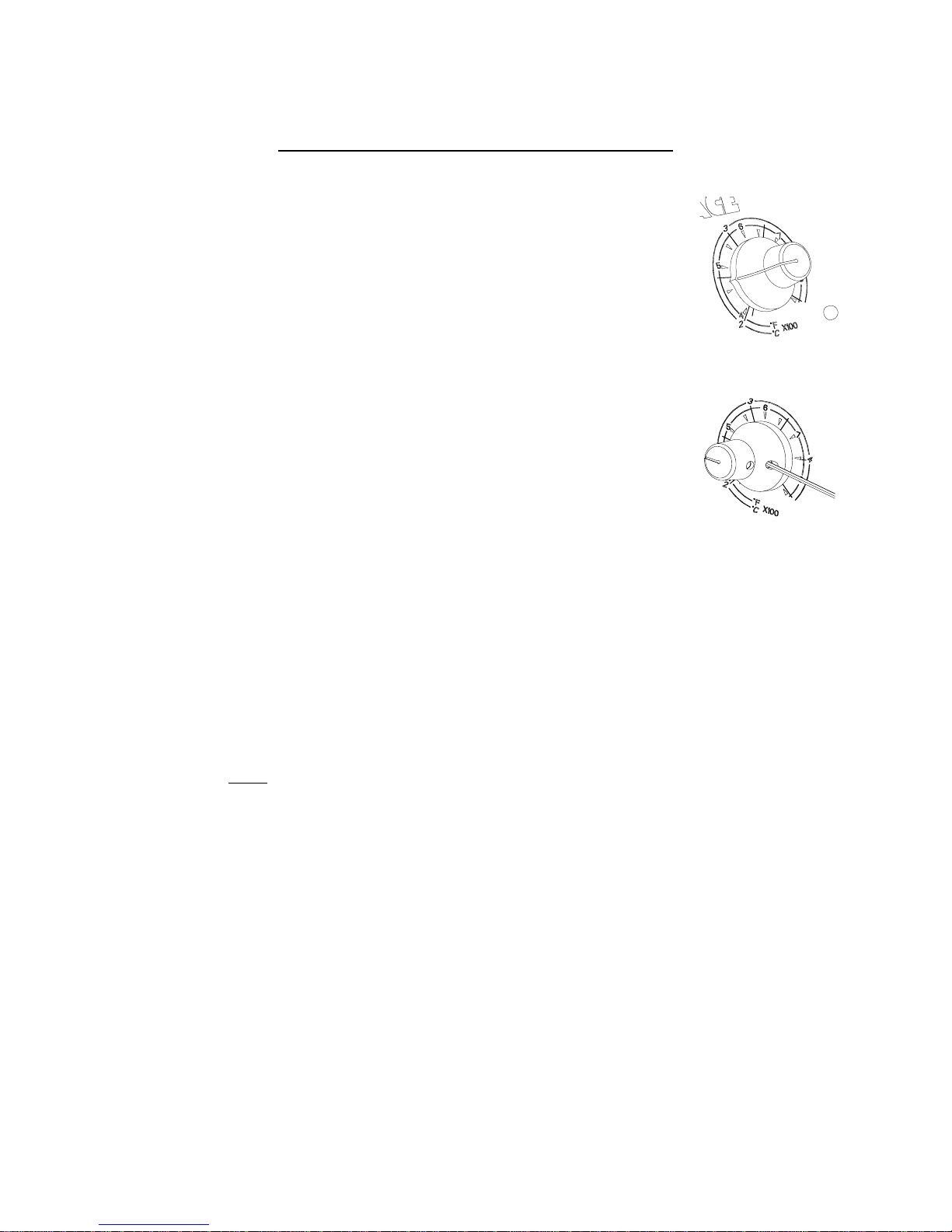

Operation..................................................................................................................10
Temperature / Dial Lock ...........................................................................................10
Analog Control LED Operation .................................................................................10
Digital Temperature Controlled Power Supplies (ST 50, & ST 115)
Operation..................................................................................................................11
Digital Control LED Operation ..................................................................................11
LED Display..............................................................................................................12
Temperature Setback Mode .....................................................................................12
Activating Setback Mode..........................................................................................12
Exiting Temperature Setback ...................................................................................12
Auto Off Mode ..........................................................................................................12
Exiting Auto Off.........................................................................................................12
Customizing Your System ........................................................................................13
Introduction ...........................................................................................................13
Entering Set-Up Mode...........................................................................................13
Password..............................................................................................................14
Temperature Scale................................................................................................14
Temperature Limits...............................................................................................14
Temperature Setback............................................................................................15
Auto Off.................................................................................................................15
Exiting Set-Up Mode.............................................................................................15
Default Factory Settings........................................................................................15
Power Module Controlled Power Supply (ST 70)
Operation..................................................................................................................15
Auto- Setback and Auto Off Features.......................................................................15
Power Module Controlled LED Operation.................................................................15
Replacement Power Modules...................................................................................16

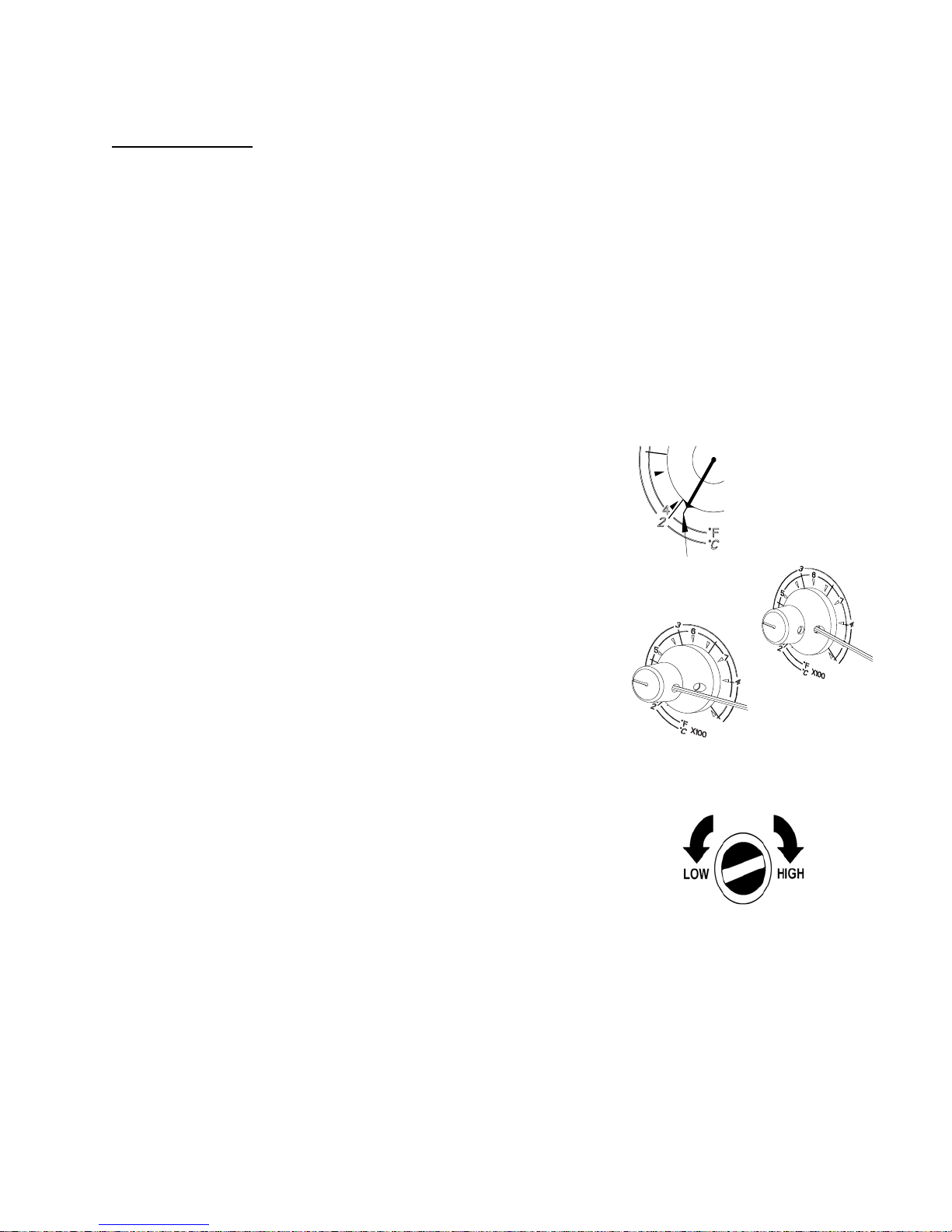

System Calibration ........................................................................................................17
Corrective Maintenance ................................................................................................18
Spare Parts.....................................................................................................................19
Service............................................................................................................................19
PACE LIMITED WARRANTY STATEMENT...................................................................20

©2012 PACE Inc., Southern Pines North Carolina All Rights Reserved Page 3 of 20
General Information
Introduction
Thank you for purchasing an IntelliHeat™system.. This manual will provide you with the information
necessary to properly set up, operate, and maintain your system. Please read this manual thoroughly
before using the system.
The systems featured in this guide are available in either 115 VAC or 230 VAC versions. All of these
models incorporate Intelliheat™ technology. Intelliheat™ is the combination of THC (Tip Heater
Cartridge) and SensaTemp handpieces into one system. The system recognizes either handpiece
individually and automatically adjusts the menu driving controls for each handpiece. The 230 VAC
version system bears the CE Conformity Marking, which assures the user that it conforms to EMC
89/336/EEC. All models featured in this manual are lead free compatible and comply with RoHS and
WEEE directives.
Specifications
Power Source Requirements
Domestic Models Export Models
ST 30 ST 30E
ST 50 ST 50E
ST 65 ST 65E
ST 70 ST 70E
ST 75 ST 75E
ST 115
Operates on 97-127 VAC,
50/60Hz, 80 Watts maximum at
115 VAC, 60Hz
ST 115E
Operates on 197-253 VAC
50/60Hz, 80 Watts maximum at
230 VAC, 50Hz
Shop Air Input Requirements (ST 65 Only)
Pressure- 5.48 Bar (80p.si.) recommended
Airflow- 45.3 SLPM (1.6SCFM) minimum
Temperature Specifications (All Models)
Tip Heater Cartridge Handpiece Tip Temperature Range: 205 to 455°C (400 to 850°F) nominal.
SensaTemp Handpieces Tip Temperature Range: 37 to 482°C (100 to 900°F) nominal.
Digital Readout Resolution: ±5° (°C or °F)
Tip Temperature Stability: ±1.1°C (2°F) at Idle from Set Tip Temperature.
Temperature Accuracy: Meets or exceeds ANSI JSTD 001
VACUUM AND AIR (ST 65 ST 75 & ST 115) Measurements at front panel AUTO SNAP-VAC and
CONTROLLABLE PRESSURE Port.
Vacuum Rise Time: 150 ms average.
Vacuum: 20 in. Hg. (Nominal)
Pressure: (18 P.S.I.) (Nominal MAXIMUM setting)
Air Flow: 8 SLPM MAXIMUM
EOS/ESD Specifications (All Models)
Tip-To-Ground Resistance: Less than 2 ohms.
AC Leakage: Less than 2 Millivolts RMS from 50Hz to 100MHz.
Transient Level: Less than 500mV peak, out to 100MHz.

©2012 PACE Inc., Southern Pines North Carolina All Rights Reserved Page 4 of 20
Power Supply Features
A
A
B
B
C
D
E
F
C
G
J
I
H
D
E
L
E
K
C
O
P
Q
R
O
P
Q
R
S
O
P
Q
R
ST 30
ST 50
ST 65
FRONT BACK

©2012 PACE Inc., Southern Pines North Carolina All Rights Reserved Page 5 of 20
A
B
B
M
E
N
C
L
E
K
C
D
O
P
Q
R
ST 115
ST 75
R
P
T
Q
O
ST 70
F
C
G
J
I
H
E
L
K
R
P
T
Q
O
