Pfeiffer Vacuum PM Z01 295 User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
ACCESSORIES
Venting valve

Dear customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new Pfeiffer Vacuum accessory
should support you in your individual application with full performance and without
malfunctions. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a
comprehensive and complete range of top-quality products and first-class service. With this
expertise, we have acquired a multitude of skills contributing to an efficient and secure
implementation of our product.
Knowing that our product must not interfere with your actual work, we are convinced that our
product offers you the solution that supports you in the effective and trouble-free execution of
your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/16

Table of contents
1 About this manual 4
1.1 Validity 4
1.1.1 Applicable documents 4
1.1.2 Variants 4
1.2 Target group 4
1.3 Conventions 4
1.3.1 Instructions in the text 4
1.3.2 Pictographs 4
1.3.3 Labeling on the product 5
1.3.4 Abbreviations 5
2 Safety 6
2.1 General safety information 6
2.2 Safety instructions 6
2.3 Safety precautions 6
2.4 Proper use 7
2.5 Foreseeable improper use 7
2.6 Personnel qualification 7
3 Product description 8
3.1 Function 8
3.2 Scope of delivery 8
4 Installation and operation 9
4.1 Connecting venting valve 9
4.2 Operating venting valve 10
5 Recycling and disposal 11
6 Accessories, technical data and dimensions 12
6.1 Accessories 12
6.2 Technical data 12
6.3 Dimensions 12
EU Declaration of conformity 13
UK Declaration of Conformity 14
Table of contents
3/16

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
These operating instructions are a customer document of Pfeiffer Vacuum. The operating instructions
describe the functions of the named product and provide the most important information for the safe use
of the device. The description is written in accordance with the valid directives. The information in these
operating instructions refers to the product's current development status. The document shall remain
valid provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
Designation Document
Declaration of conformity A component of these instructions
Tbl. 1: Applicable documents
You can find this document in the Pfeiffer Vacuum Download Center.
1.1.2 Variants
●Venting valve, shielded, 24 V DC, AccessLink
1.2 Target group
This operating instructions is intended for persons who
●install,
●operate.
The work described in this document may be carried out only by people who have completed suitable
technical training (experts), or who have received equivalent training from Pfeiffer Vacuum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
About this manual
4/16

Note
Tip
1.3.3 Labeling on the product
This section describes all existing labeling on the product along with its meaning.
D-35614 Asslar
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
VVVVVVVVVVVVVVVVVVVVVVVVVVVVVVVV
Mod. Venting Valve
24 V DC, G1/8
P/N PM Z01 295
Made in Germany JJJJ/MM
Rating plate (example)
The rating plate is laser-marked on the bottom side
of the housing.
Tbl. 2: Labeling on the product
1.3.4 Abbreviations
DN Nominal diameter as size description
ISO Flange: Connection in accordance with ISO 1609 and ISO 2861
LED Light emitting diode
WAF Width Across Flats
TC Turbopump electronic drive unit (turbo controller)
Tbl. 3: Abbreviations used in this document
About this manual
5/16

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Low Voltage Directive 2014/35/EU. Where applicable, all life cycle phases of the prod-
uct were taken into account.
Risks during operation
CAUTION
Risk of injuries due to contact with vacuum when venting
While venting the vacuum pump there is a risk of minor injuries due to the direct contact of body parts
with the vacuum, e.g. hematomas.
►Do not fully unscrew the venting screw out of the housing during venting.
►Keep a distance from automatic venting device, such as venting valves.
2.3 Safety precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Safety
6/16

Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Never disconnect plug connections during operation.
►Keep lines and cables away from hot surfaces (> 70 °C).
►Observe the unit protection degree prior to installation or operation in other environments.
►Do not carry out your own conversions or modifications on the unit.
2.4 Proper use
►Use the venting valve only for controlled venting on the designated Pfeiffer Vacuum turbopumps.
2.5 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as improper use; in particular:
●Connecting to vacuum pumps and units that are not designed for this purpose according to their
operating instructions
●Connecting to units with exposed live parts
2.6 Personnel qualification
The work described in this document may only be carried out by persons who have appropriate profes-
sional qualifications and the necessary experience or who have completed the necessary training as
provided by Pfeiffer Vacuum.
Training people
1. Train the technical personnel on the product.
2. Only let personnel to be trained work with and on the product when under the supervision of
trained personnel.
3. Only allow trained technical personnel to work with the product.
4. Before starting work, make sure that the commissioned personnel have read and understood
these operating instructions and all applicable documents, in particular the safety, maintenance
and repair information.
Safety
7/16

3 Product description
3.1 Function
The Pfeiffer Vacuum venting valve ensures automatic venting of a turbopump after shutting down or in
the event of a power failure.
1
2
4
5
3

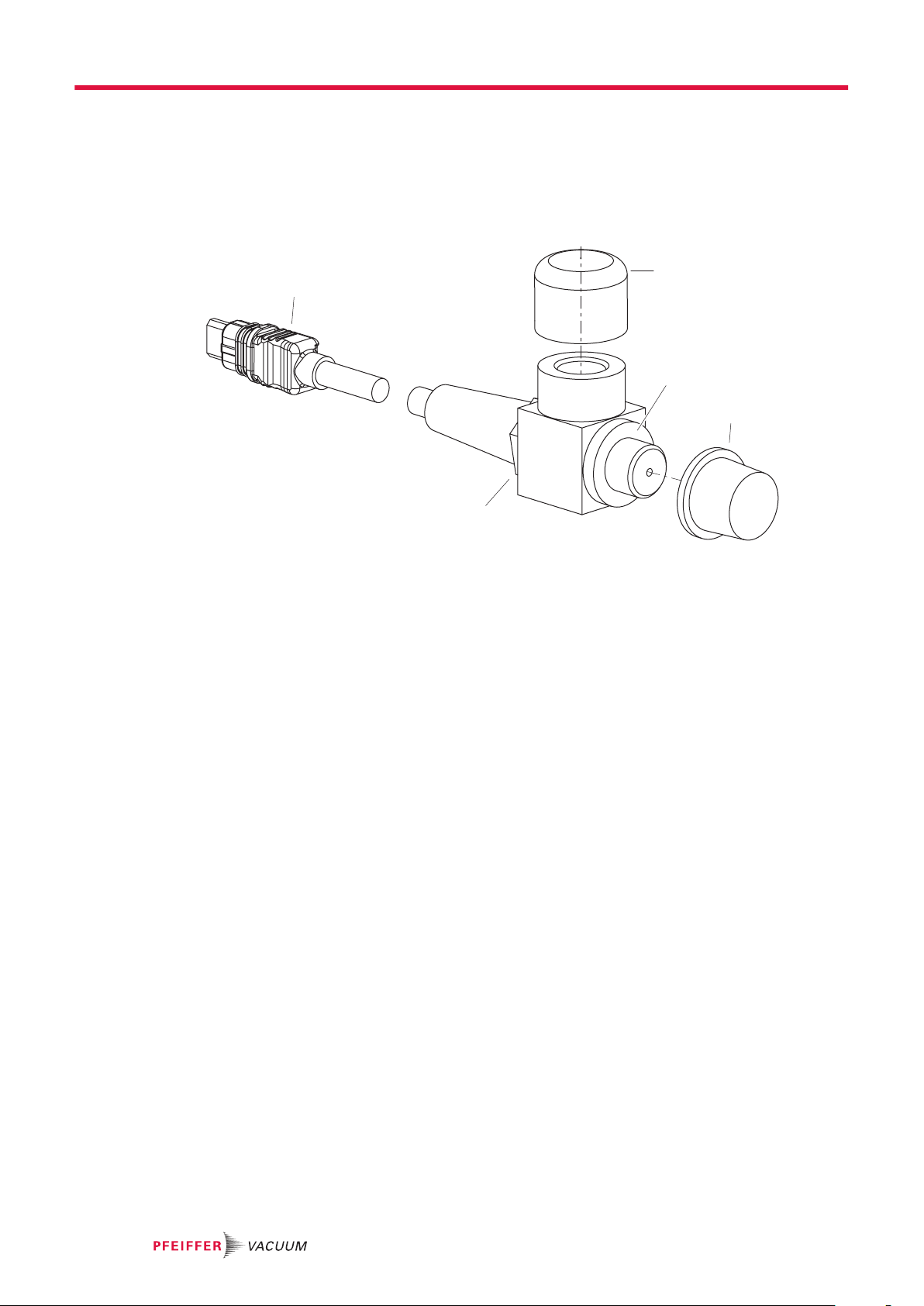

Fig. 1: Layout of venting valve
1 Control cable with connecting plug 4 Protective plug
2 Protective cap 5 Valve body
3 Sealing ring
3.2 Scope of delivery
●Venting valve
●Sealing ring
●Sealing plugs
●Operating instructions
Product description
8/16

4 Installation and operation
4.1 Connecting venting valve
NOTICE
Property damage caused by unfiltered media supply
Using unfiltered media for the gas inlet of a vacuum pump may result in particle contamination. There
is a risk of damage to, and even destruction of, vacuum components.
►Install suitable filters from the Pfeiffer Vacuum accessories range upstream of the gas inlet, be-
fore you use ambient air or other unclean media.
Prerequisites
●Vacuum pump switched off and vented
Required tools
●Hexagon wrench, WAF 14
●Calibrated torque wrench (tightening factor ≤ 1.6)
123
4
5
Fig. 2: Connecting venting valve to HiPace Neo
1 Venting connection, turbopump 4 Connecting plug with Pfeiffer Vacuum logo
2 Venting screw 5 Turbopump accessory connection
3 Valve body
Fitting the venting valve
1. Unscrew the venting screw with sealing ring out of the turbopump by hand.
2. Screw the venting valve with the outlet side into the venting connection of the turbopump.
–Tightening torque: 2 Nm.
Connecting venting valve to turbopump
►Plug the control cable of the venting valve into one of the two accessory connections "C1" or "D1"
on the pump bottom part.
–Make sure that the Pfeiffer Vacuum logo on the connecting plug is facing up.
–The electronic drive unit software automatically resets existing configuration settings to "de-
fault" and automatically detects newly connected accessories.
Establish the venting gas supply
In case you want to use dry room air as venting gas, the venting valve is ready for operation immediate-
ly. Pfeiffer Vacuum recommends: Use a filter on the inlet side.
Installation and operation
9/16

If you wish to use a different inert gas (e.g. nitrogen N2) as the venting gas, follow the steps.
1. Provide an external venting gas supply with a maximum inlet pressure of 1,500 hPa absolute.
2. Connect the venting gas supply to the inlet side (1/8" thread) of the valve.
3. If required, use connection adapters from the valve accessories (not included in the scope of sup-
ply).
4.2 Operating venting valve
CAUTION
Risk of injuries due to contact with vacuum when venting
While venting the vacuum pump there is a risk of minor injuries due to the direct contact of body parts
with the vacuum, e.g. hematomas.
►Do not fully unscrew the venting screw out of the housing during venting.
►Keep a distance from automatic venting device, such as venting valves.
NOTICE
Damage to the turbopump due to non-permissibly fast pressure rise during venting
Non-permissibly high pressure rise rates place a significant load on the rotor and the magnetic bear-
ing of the turbopump. During venting very small volumes in the vacuum chamber or the turbopump,
there is a risk of uncontrollable pressure rises. This causes mechanical damage to the turbopump,
including potential failure.
►Observe the prescribed maximum pressure rise speed of 15 hPa/s.
►Avoid manual and uncontrolled venting of very low volumes.
►Where necessary, use a venting valve from the Pfeiffer Vacuum range of accessories.
Parameter Name Designation Setting
[P:012] EnableVent Enable venting 0 = no
1 = yes
[P:030] VentMode Venting mode 0 = Delayed venting
1 = No venting
2 = Direct venting
[P:068] CfgAccC1 Accessory connection C1 1 = Venting valve, closed without current
6 = Always "0"
7 = Always "1"
8 = Power failure venting unit
12 = Second venting valve
[P:069] CfgAccD1 Accessory connection D1 Functions, see [P:068]
Tbl. 4: Parameter settings in the electronic drive unit of the turbopump
Venting speed [P:720] Venting duration [P:721] Venting duration in the event of a power
failure
50% of rated speed 3600 s 3600 s
Tbl. 5: Factory settings for delayed venting in turbopumps
Installation and operation
10/16

5 Recycling and disposal
Environmental protection
You must dispose of the product and its components in accordance with all applicable reg-
ulations for protecting people, the environment and nature.
●Help to reduce the wastage of natural resources.
●Prevent contamination.
Pfeiffer Vacuum products contain materials that you must recycle.
►Observe the special precautionary measures when disposing of:
–Fluoroelastomers (FKM)
–Potentially contaminated components that come into contact with media
Recycling and disposal
11/16

6 Accessories, technical data and dimensions
6.1 Accessories
Description Order number
Push-in fitting for 6 mm tube, G 1/8" PM 016 781 -T
Push-in fitting for 8 mm tube, G 1/8" PM 016 782 -T
Filter element | silencer G1/8" P 0988 060
Tbl. 6: Optional accessories
6.2 Technical data
Type designation Venting valve, shielded, with AccessLink
Part number PM Z01 295
Connection flange (in) G 1/8"
Connection flange (out) G 1/8"
Weight 45 g
Inlet pressure max. 1500 hPa (absolute)
Integral leak rate < 1 · 10-9 Pa m³/s
Gas flow at atmospheric pressure min. 100 hPa·l/s
Gas flow at atmospheric pressure max. 130 hPa·l/s
Electronic drive unit TC 80
Electrical connection AccessLink
Control voltage 24 V DC
Tbl. 7: Technical data, venting valve
6.3 Dimensions
200
G 1/8“
45.5
16
6.3
8.1
24.1
SW 14
Fig. 3: Venting valve dimensions
Dimensions in mm
Accessories, technical data and dimensions
12/16

EU Declaration of conformity
This declaration of conformity has been issued under the sole responsibility of the manufac-
turer.
Declaration for product(s) of the type:
Venting Valve
Turbopumps
We hereby declare that the listed product satisfies all relevant provisions of the following
European Directives.
Electromagnetic compatibility 2014/30/EU
Low voltage 2014/35/EU
Restriction of the use of certain hazardous substances 2011/65/EU
Restriction of the use of certain hazardous substances, delegated directive
2015/863/EU
Harmonized standards and applied national standards and specifications:
DIN EN 61000-3-2: 2019
DIN EN 61000-3-3: 2020
DIN EN 61326-1: 2022
DIN VDE 0580: 2011
Signature:
Pfeiffer Vacuum GmbH
Berliner Straße 43
35614 Asslar
Germany
(Daniel Sälzer)
Managing Director
Aßlar, 2022-11-23

UK Declaration of Conformity
This declaration of conformity has been issued under the sole responsibility of the manufac-
turer.
Declaration for product(s) of the type:
Venting valve
Turbopumps
We hereby declare that the listed product satisfies all relevant provisions of the following
British Directives.
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Elec-
tronic Equipment Regulations 2012
Applied standards and specifications:
EN IEC 61000-3-2: 2019
EN IEC 61000-3-3: 2013
EN IEC 61326-1: 2021
The manufacturer's authorized representative in the United Kingdom and the authorized
agent for compiling the technical documentation is Pfeiffer Vacuum Ltd, 16 Plover Close, In-
terchange Park, MK169PS Newport Pagnell.
Signature:
Pfeiffer Vacuum GmbH
Berliner Straße 43
35614 Asslar
Germany
(Daniel Sälzer)
Managing Director
Asslar, 2022-11-24

15/16

*PT0771* ed. B - Date 2307 - P/N:PT0771BEN
