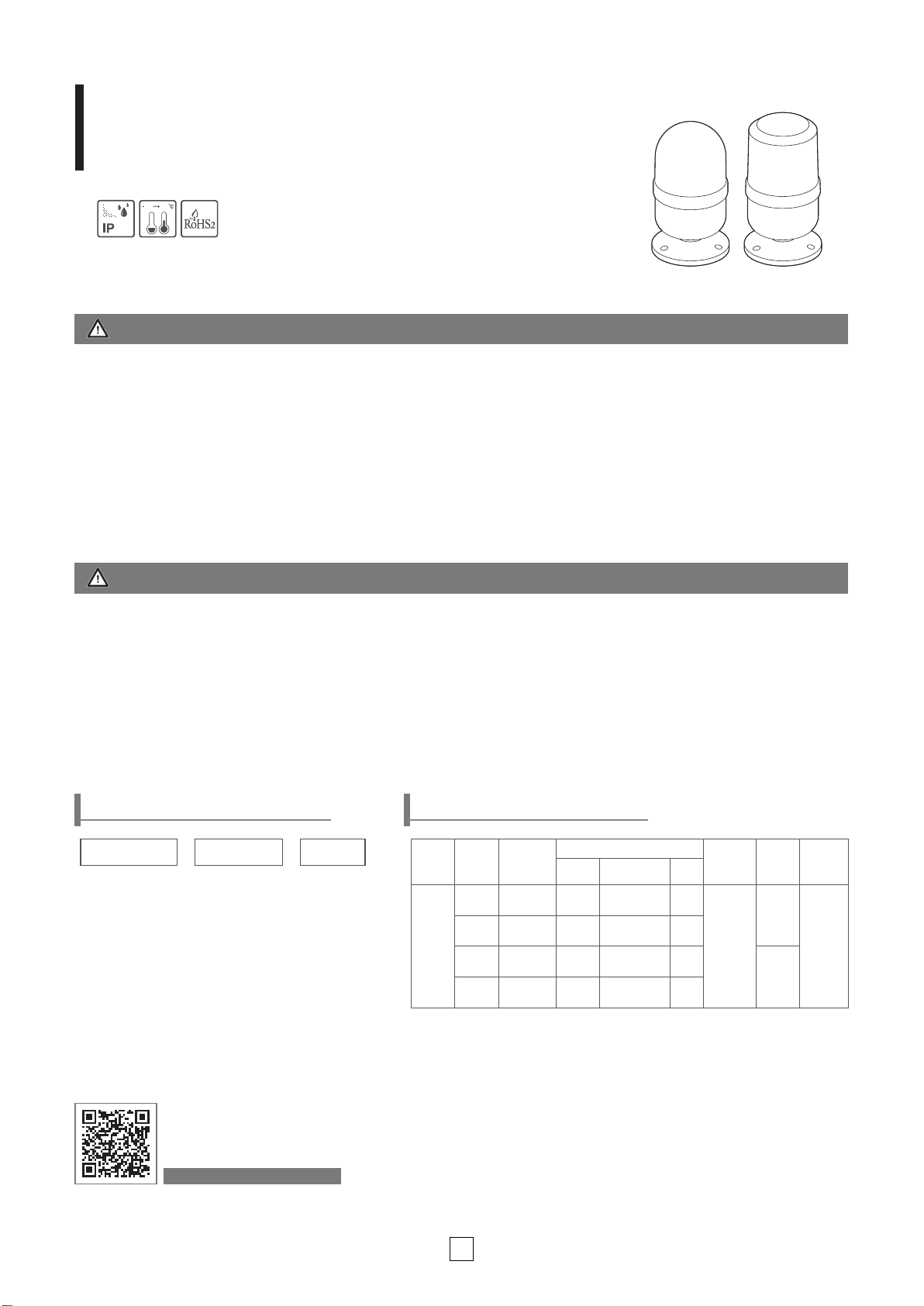

Qlight S80RK User manual
1
S80RK/ S80UK
• Protection rating : IP44
• Ambient operating temperature : -20°C to +50°C
S80UK
-
220
-
R
[Model number] [Voltage] [Color]
| | |
• S80RK
• S80UK
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
R-Red
A-Amber
G-Green
B-Blue
Model
number
Voltage Current Bulb speci¿cations
Certi¿cate
Weight
Color
Volts/
Watts
Con¿guration
Part#
S80RK
S80UK
DC12V 0.484A 12V5W
T16x35 15S
5
-
0.26kg
R-Red
A-Amber
G-Green
B-Blue
DC24V 0.310A 24V5W
T16x35 15S
6
AC110V 0.080A
12V5W T16x35 15S
5
0.48kg
AC220V 0.040A
12V5W T16x35 15S
5
Ordering Specications
Bulb Revolving Warning Light
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o- the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn o- the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, ¿re, electric shock and loss of life.)
Product Specications
5020
44
Please scan the QR code for more
detailed product information.
www.qlight.com
2
Parts Denition/ Installation Mounting Hole Specications
Bulb Replacement Instructions
• First, remove the ange nuts from bolts and place the product
through the mounting surface holes.
• Fasten the ange nuts on the opposite side of the mounting surface
until the product is tightened securely.
• Machine holes on the mounting surface referring to
the diagram below.
Wiring Instructions
Dimensions
(Units : mm)
Reector
(Heat resistant ABS)
Lens(AS)
Light bulb
Housing(ABS)
Flange nut
Bolt
Ø13 CABLE
ENTRY
Ø83
Ø84
360°/3-Ø5 HOLES
S80RK
8271
153
PCD 70
Ø13 CABLE
ENTRY
Ø83
Ø84
S80UK
PCD 70
155
71 84
360°/3-Ø5 HOLES
PCD 70
3-Ø5 HOLES
Min. Ø5 CABLE ENTRY
S80RK/ S80UK
• Please wait at least 1 minute after turning o- the power
before replacing the bulb.
• In order to dissemble the bulb, please push down the bulb( ①)
lightly and screw it counterclockwise.
• In order to put the bulb in to the unit, please place the bulb( ①)
in the socket(
②) and screw it clockwise while lightly pushing
down the bulb.
Assemble bulb
Disassemble bulb
①
②
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
•
AC compatible type shall be connected the black and white wires when using AC110V, and the black and red wires when using
AC220V.
DC AC compatible type
AC
Red
Black
Red
White
Black
White
Black
Power Power Power
FuseFuseFuse
3
Ø18
M18x1.5
THREAD
Ø70
51
Ø18
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
60 57
4-Ø5.5 HOLES
PCD 73
Ø19 CABLE ENTRY
Ø18
Ø90
4-Ø5.5 HOLES
PCD 54~56
Ø90
Ø18
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Ø18
M18x1.5
THREAD
Ø70
51
Ø18
Ø70
50
Ø18
4-Ø5 HOLES
PCD 56
60 57
4-Ø5.5 HOLES
PCD 73
Ø19 CABLE ENTRY
Ø18
Ø90
4-Ø5.5 HOLES
PCD 54~56
Ø90
Ø18
4-Ø6 HOLES
45.5 66
Ø11 CABLE ENTRY
PCD 73
Ø18
Ø70
51.5 67
4-Ø5.5 HOLES
Ø18 CABLE ENTRY
PCD 54~56
Dimensions
S80RK
S80UK
18mm SCREW & NUT SZ18
QZ18 SL18
QLA18
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP44.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP44), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website(www.qlight.com).
Mounting Accessories (Sold Separately)
• Please refer to the dimensions below for installation of mounting brackets
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea ( Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - S80RK - 2205A
