Qlight QEAL1 User manual
1
Ordering Specications
6040
66
QEAL1 - 24 - R
[Model number] [Voltage] [Color]
| | |
• QEAL1
• 12 – DC12V
• 24 – DC24V
• 110/220 –AC110V~220V
R- Red
Explosion Proof Low Intensity LED Aviation Obstruction Light
QEAL1
Please scan the QR code
for more
detailed product information.
www.qlight.com
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Safety Precautions for Explosion Proof Products
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point.
(Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5.
When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device.
(Failure to follow this may cause damage to property, ¿re, electric shock and loss of life.)
Precaution for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
Please follow the instruction below to ensure safe and correct use of explosion proof products.
1. Explosion proof products should be managed according to explosion-proof regulations. Do not disassemble, assemble, alter or repair
the product arbitrarily.
2.
The temperature rating of the product is the temperature the product will experience at the applied rated voltage and ambient
temperature indicated.
3. Use cable glands that satisfy the product’s explosion proof grade and temperature grade.
4. Unused cable entries must be ¿lled with material that meets the explosion proof grade and temperature rating.
5. Before installing the product, please make sure all cautions indicated on the labels, packaging, and operation manual of the product are
fully understood.
6. Installation, maintenance and repair of the product must be performed by experts in the explosion proof ¿eld, or persons who have
received relevant training.
7. For safety, the product should be installed and operated in environments that avoid high temperature and high pressure.
8. Please follow general safety precautions and avoid installing the product in locations that may generate excessive heat.
9. When installing the product in places where chemicals are located, please make sure that the environment does not have two or more
incompatible chemicals mixed. For safety, please read the instruction manual carefully and be mindful of the chemical compositions
where the product is used.
10. This product requires grounding.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
Ex
2
Product Specications
■
Explosion Proof Specications
Model number QEAL1
Type
Low intensity B type
Light source High intensity light emitting diodes(LED)
Light color Red
Luminous intensity 50cd±25%
Housing color Red
Light function Steady
Rated voltage
DC12V, DC24V, AC110V-220V
Power consumption
30W
Materials
Lens : Tempered Glass, Housing : Al, Protection cage : STS316L, Cover : Al
Weight(Approx.)
3.9Kg
Cable entry
NPT1/2”
Certi¿cate
KCs
Protection rating
IP66
■
General Product Specications
Model number
QEAL1
Range of
operating voltage
DC12V, DC24V
AC100V~240V
Ex mark
Ex d II C T4, IP66
Ambient operating
temperature
–40°C ≤ Ta ≤ 60°C
Explosion proof
Zone
Zone 2
Protection rating
IP66
Zone
de¿nitions(Gas)
Zone 1
High risk gas/vapour(Gas)
Zone 2
Medium risk gas/vapour(Gas)
Group
de¿nitions(Gas)
GROUP II A
Acetone, Petrol, Methanol, Propane, Toluene
GROUP II B
Ethylene, City gas
GROUP II C
Hydrogen, Acetylene, Carbon sulphide
Maximum surface
temperature of
electrical equipment
T1
450
°C
T2
300°C
T3
200°C
Zone
de¿nitions(Dust)
T4
135
°C
T5
100
°C
Group
de¿nitions(Dust)
T6
85
°C
Zone 21
High risk powder/dust(Dust)
Zone 22
Medium risk powder/dust(Dust)
Group
de¿nitions(Dust)
GROUP II A
Ignitible ¿bers/yings(more than 0.5mm)
GROUP II B
Non-conductive dusts
GROUP II C
Conductive dusts
■
Classication of Aviation Obstruction Lights
■
Application Areas of Aviation Obstruction Lights
Objects inside the
Obstacle Restriction Area
Obstacle certi¿ed for use at night that is 60m from the ground and is located within the Obstacle Restriction Area of
an airport
Objects outside the
Obstacle Restriction Area
Obstacle that is 150m from the ground
Chimneys, steel towers, poles, frame structures, electricity pylons, or wind turbines that are 60m from the ground
Low intensity Atype
or low intensity B type
obstruction light
Obstacle that is 150m from the ground and is located within the Obstacle RestrictionArea
Low intensityAtype model is installed on ab obstacle that has limited mobility such as a boarding bridge
Low intensity C type
obstruction light
Low intensity C type model(Blue/ashing) is installed on an emergency vehicle or security vehicle operated inside the airport
Low intensity C type model(Yellow/ashing) is installed on a normal vehicle or mobilize object that is operated inside the airport
Low intensity D type
obstruction light
Low intensity D type model(Yellow/ashing) is installed on escort vehicles that are operated inside the airport
Medium intensity Atype
obstruction light
Medium intensity A type warning light(White/ashing) is installed in areas where trees or buildings are widespread
Obstacle that is 45m from the ground and is located within the Obstacle Restriction Area or an obstacle that is 150m from
the ground and is located outside the Obstacle RestrictionArea
Medium intensity B type
obstruction light
Medium intensity B type warning light(Red/ashing) is installed in areas where trees or buildings are widespread.
Obstacle that is 45m from the ground and is located within the Obstacle Restriction Area or an obstacle that is 150m from
the ground and is located outside the Obstacle RestrictionArea
Medium intensity C type
obstruction light
Medium intensity C type warning light(Red/steady) is installed in areas where trees or buildings are widespread
Obstacle that is 45m from the ground and is located within within the Obstacle RestrictionArea or an obstacle that is 150m
from the ground and is located outside the Obstacle RestrictionArea
Medium intensity C type warning light(Red/stead) cannot be used with other warning lights
3

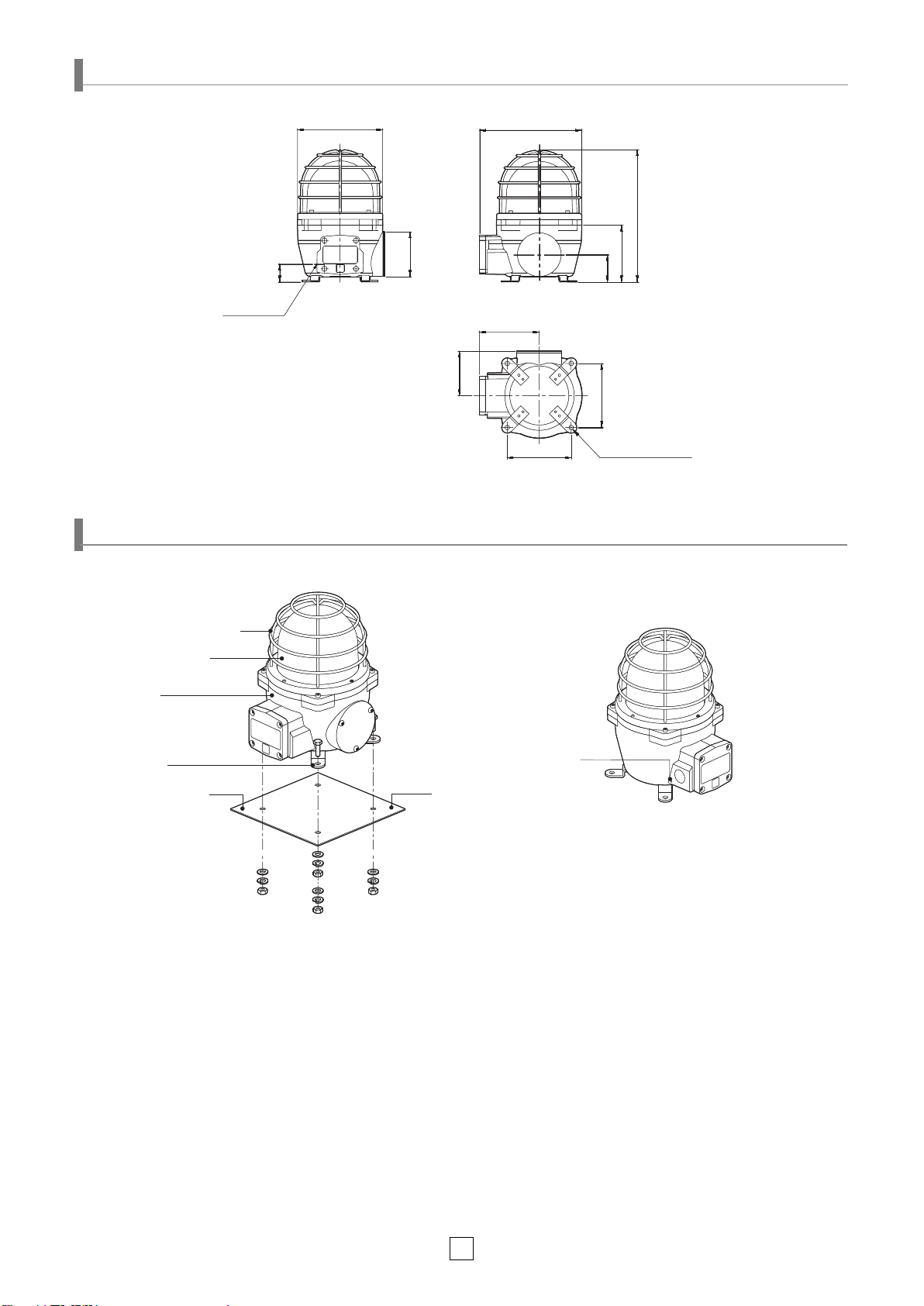

Dimensions
• Please use an M4 bolt at the location marked in the diagram
above to ground the product.
• When connecting the grounding cable, please use a ring terminal.
• Please use a ring terminal made of C5212 material as it has the
same electrical properties of the conductor.
• Please use a grounding cable with a diameter greater than 4mm.
(Units : mm)
Ø152
Ø79
4-Ø8 FITTING HOLES
CABLE ENTRY
NPT 1/2''
37
182.5
238
100
49
107
78
114
114
QEAL1
M4 ground
contact part
• First, machine taps or holes on the mounting surface
①.
• The mounting hole of this product is 8mm in diameter(hole).
• When machining taps, fasten the bolt through the mounting hole of the product.
• When machining holes, insert the bolt through the hole of the product, and tighten the nut from the opposite side of the mounting surface.
■
Installation
Parts Denition/ Installation/ Grounding Instructions
■
Parts Denition
■
Grounding Instructions
Protection cage : STS316L
Lens(Tempered glass)
Housing(AI)
Bracket(STS)
①①
4
Installation Environment and Protection Rating
Mounting Hole Specications
• This product is designed for use with protection rating of IP66.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP66), it may cause malfunction or damage to the product.
• For further information, please visit our website(www.qlight.com).
•
Machine holes on the mounting surface referring to the diagram below.
• Product with built-in ambient light sensor is available upon request.
-Ambient light sensor activates the lighting system and automatically
operates the product when darkness is detected.
-Ambient light sensor is located in location ①. Please be careful to keep
the outside lens clean and prevent obstacles from obstructing the ambient light sensor
■
Built-in Ambient Light Sensor Model
①
①
Terminal Box Wiring Instructions
• Terminal block is located inside of the product. Unscrew the 4 bolts located in the upper
body to get rid of the upper lighting element of the unit.
• Please apply fork (U-type) or ring (O-type) locking spade terminal at naked tip of the wire
for secure connection.
• Please wire the power line to terminal ①
• For AC type products, wire regardless of polarity.
• For DC type products, wire terminal of black line to (-) polarity.
• External power line -
UL1015 AWG18(0.75sq) x 2C 400mm
4-Ø9 HOLES
114
114
※Applicable cable range : AWG16-AWG22

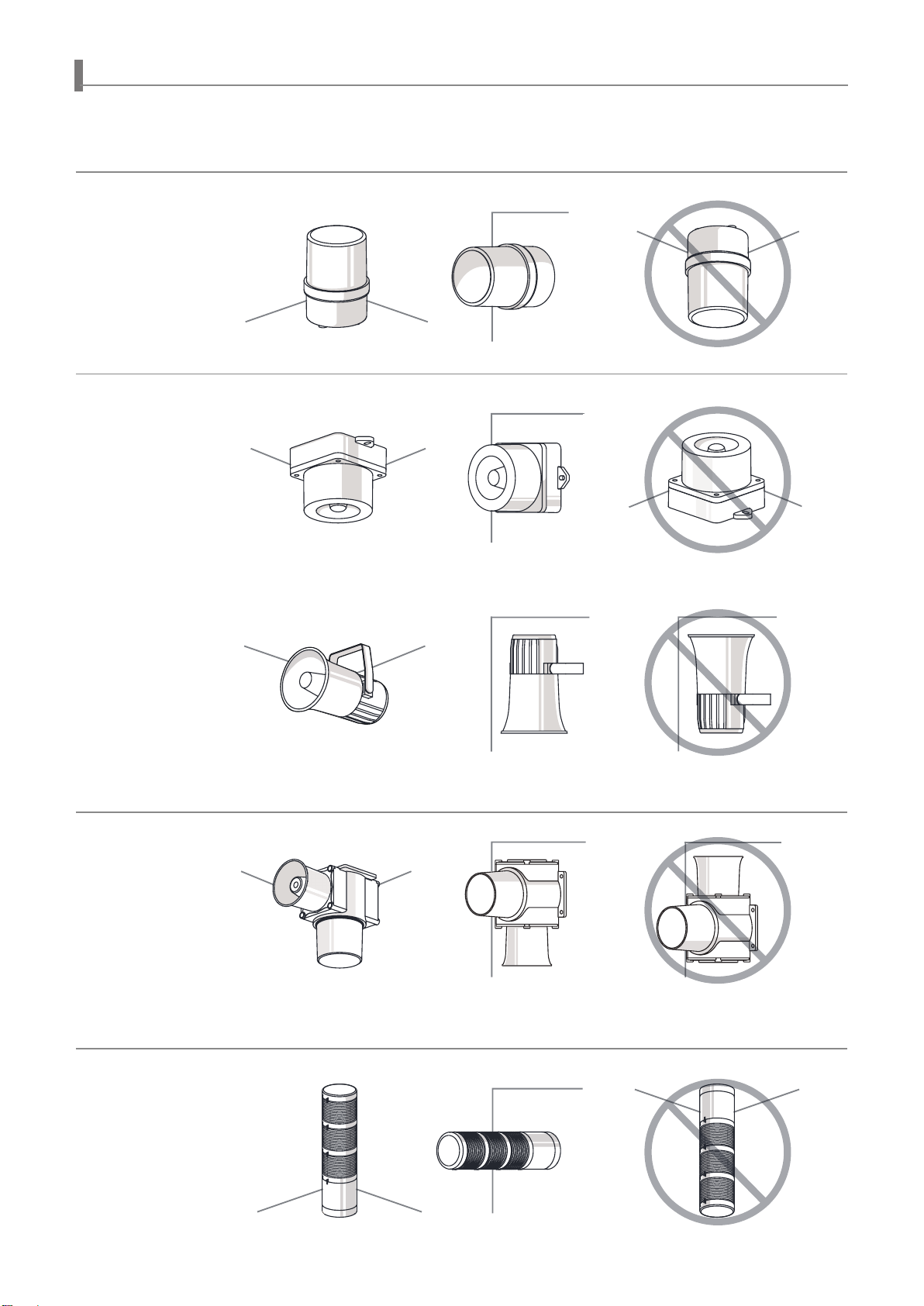

Product installation direction
■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product.
ㆍELECTRONIC SOUNDER/SIGNAL HORN
Sounder part shall not be facing the sky.
Sounder part shall not be facing the sky.
ㆍBEACON/SIGNALING LIGHT
Power cord inlet part shall not be facing the sky.
Power cord inlet part shall not be facing the sky.
ㆍSIGNAL TOWER LIGHTS
ㆍHEAVY-DUTY & EXPLOSION PROOF SIGNALINGS
※ For products with a protection rating of less than IPX4, please install it vertically.
※ For products with a protection rating of less than IPX4, please install it vertically.
MEMO
MEMO
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea ( Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - QEAL1 - 2302A
