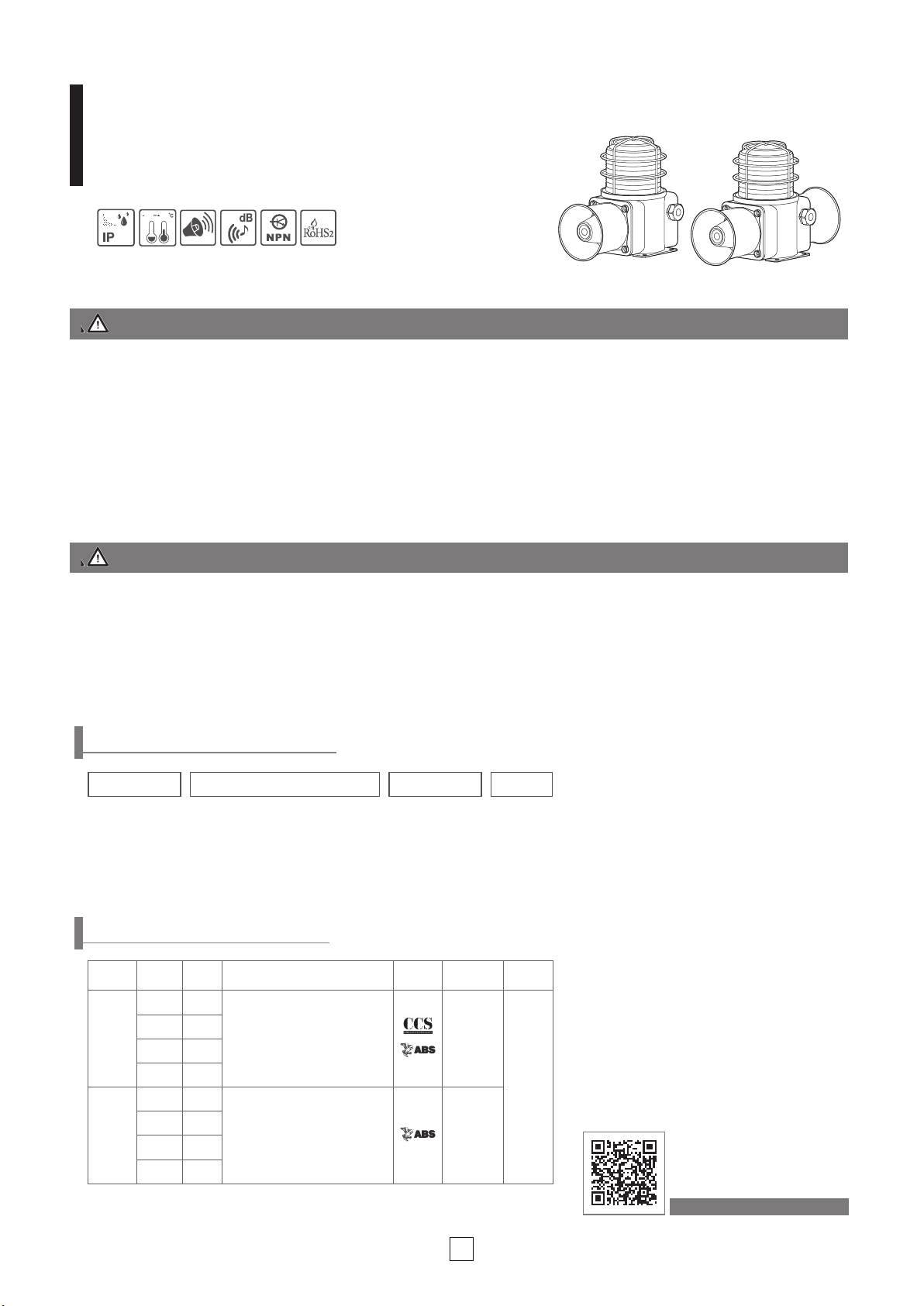

Qlight SHDL User manual

5030
66
118
HORN
1
Please scan the QR code for more
detailed product information.
www.qlight.com
Product Specications
Ordering Specications
SHDL - WA - 24 - R
[Model number]
[Sound] [Voltage] [Color]
| | | |
• SHDL
• SHD2L
• SHDLP
• SHD2LP
• WS-Warning sounds
• WP-special warning sounds
• WM-Melodies
• WA-Alarms
• WV-Customizable sounds
• 12 - DC12V
• 24 - DC24V
• 110 - AC110V
• 220 - AC220V
R-Red
A-Amber
G-Green
B-Blue
Model
number
Voltage Current
Sound pattern
and volume
Certicate Weight Color
SHDL
SHDLP
DC12V 2.511A
• WS-5 Warning Sounds : Max.118dB
• WP-5 special warning sounds : Max.118dB
• WM-5 Melodies : Max.118dB
• WA- 5 Alarms : Max.116dB
• WV-5 Customizable sounds : Max.113dB
• SHDL
DC-3.02kg
AC-3.39kg
• SHDLP
DC-3.27kg
AC-3.64kg
R-Red
A-Amber
G-Green
B-Blue
DC24V 1.222A
AC110V 0.286A
AC220V 0.143A
SHD2L
SHD2LP
DC12V 4.722A
• WS-Warning Sounds : Max.118dBx2
• WP-special warning sounds : Max.118dBx2
• WM-5 Melodies: Max.118dBx2
• WA-5 Alarms :116dBx2
• WV-5 Customizable sounds :113dBx2
• SHD2L
DC-4.07kg
AC-4.45kg
• SHD2LP
DC-4.32kg
AC-4.70kg
DC24V 2.188A
AC110V 0.513A
AC220V 0.256A
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰘯 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci󰘰cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the product
that would void the warranty.
1. During wiring or maintenance, please completely turn o󰘯 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a 󰘰re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to 󰘰re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to 󰘰re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, 󰘰re, electric shock and loss of life.)
Thank you for purchasing Qlight’s products. Please read this user
manual carefully prior to installation and operation to ensure safe and correct use.
Heavy-Duty LED Revolving Warning Light & Electric Horn Combination
for Vessels and Heavy Industry Applications
SHDL/ SHD2L
• Protection rating : IP66
• Ambient operating temperature : -30°C to +50°C

2
Ø135
PROTECTION CAGE PROTECTION CAGE
255
Ø120
116
237
121
12887
255
40
134 152 * (227)
4-Ø8.5 FITTING HOLES
Ø135
CABLE ENTRY
PF1/2″
CABLE ENTRY
PF1/2″
343
Ø120
116121
237
* (227)
4-Ø8.5 FITTING HOLES
12887128
134 152
343
SHDSP SHD2SP
SHDL/ SHDLP SHD2L/ SHD2LP
Dimensions
(Units : mm)
※*(227) represents without protection cage.
Sound Setting - Select using the switch
inside of the unit.
Category Sound
pattern Channel Sound tone
volume
(Max.)
WS
5 Warning
sounds
Ch1 Fire.A-ANG
118dB
Ch2 Emergency WA-U
Ch3 Ambulance PI-PO
Ch4 Machinery Fault
Ch5 High Expansion
WP
5 Special
Warning
sounds
Ch1 Fire.A-ANG
118dB
Ch2 Abandon Alarm
Ch3 Machinery Fault
Ch4 High Expansion
Ch5 7 Short PI. / 1 Long
WM 5 Melodies
Ch1 Sweet Home
118dB
Ch2 For Elise
Ch3 Cuckoo's Waltz
Ch4 Piano Sonata
Ch5 Turkish March
WA 5 Alarms
Ch1 Beep Intermittent
116dB
Ch2 Door Chime
Ch3 Phone Ring
Ch4 PI.PI.PI Short
Ch5 Tripping Beat
WV
5 Customiz-
able sounds
Ch1-Ch5
Available upon request
(customized voice type)
113dB
■ Sound Type by Group
• Standard unit has 5 built-in sound tones.
Select different built-in sounds using the sound setting switch.
Ch1-Ch5 sound setting switch
Wiring Instructions for LC Type
• LC type product with exposed sound selection signal line is avali-
able upon request. Please refer to the diagram below for wiring.
SHDL/ SHDLP-DC/AC
SHD2L/ SHD2LP-DC/AC
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
• External signal line - UL1007 AWG22(0.3sq) 400mm
Ch1
Ch2
Ch3
Ch4
Ch5
Ch1
Ch2
Ch3
Ch4
Ch5
EXTERNAL CONTACT
EXTERNAL TRASISTOR-NPN
Common
Common
Power
Power
Fuse
Fuse
Red
Amber
Green
Blue
White
White
Black
Black
Red
Amber
Green
Blue
White
White
Black
Black
Volume Adjustment
• The volume output of this product
is adjustable.
• Turn the volume dial clockwise to
increase the volume, and
turn counter clockwise to decrease
the volume.
• There will be no sound when the
dial is put at MIN.
Volume Dial
VOL.
MIN.MAX.

3
①
Terminal Box Wiring Instructions
• Terminal block is located inside of the product. Unscrew the 4 bolts located in the upper
body to get rid of the upper lighting element of the unit.
• Please apply fork (U-type) or ring (O-type) locking spade terminal at naked tip of the
wire for secure connection.
• Please wire the power line to terminal
①
• For AC type products, wire regardless of polarity.
• For DC type products, wire terminal of black line to (-) polarity.
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP66.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP66), it may cause malfunction or damage to the product.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upside-
down positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).
Parts Denition/ Installation/ Light Function Selection/ Mounting Hole Specications
•
First, machine holes on the mounting surface.
•
The mounting hole of this product is 8.5mm in diameter.
•
When machining taps, fasten the bolt through the mounting hole of the bracket.
• When machining holes, insert the bolt through the hole of the product, and tighten the nut from the opposite side of the mounting surface.
• When assembling using bolt and nut, please make sure to use at washer and spring washer.
4-Ø9 HOLES
134
87
• Machine holes on the mounting surface referring to the
diagram below.
■
Parts Denition/ Installation
■
Mounting Hole Specications
▶LF :
Flashing
■ Light Function Selection
•• Please refer to the chart below to use light function
selection switch located inside the product.
• Default function is set at steady LED. Select the desired function
for your application during installation.
▶L :
Steady
Horn
Lens
(PC)
Housing
(Al)
Protection cage
(STS316L)

Qlight Co., Ltd. www.qlight.com | [email protected]
Head Ofce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea Tel. [phone] Fax : [phone]
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. [phone]
Qlight Overseas Sales Dept | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight Public Relations & Marketing Team Ofce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : [phone]
Qlight USA, Inc. www.qlight.com www.qlightusa.com | [email protected]
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. [phone] Fax. [phone]
SHANGHAI Qlight Electronic Co., Ltd. www.qlight.com www.qlightcn.com | [email protected]
China Factory/ Shanghai Sales Ofce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. [phone] Fax. [phone]
Product Operation Inquiry / Customer Support [phone]
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea (Postal Code : 50805)
For your safety
Specication and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - SHDL -1911A
