200 Series Conveyor Operator Manual Issue 1 May 2011
Table Of Contents
1 Introduction ........................................................................................ 2
1.1 Pictograms ........................................................................... 2
1.2 Notes on the use of this handbook........................................... 3
2 Safety notes ........................................................................................ 3
2.1 General safety notes.............................................................. 4
2.2 End of life ............................................................................ 5
3 Description of machine ........................................................................ 7
3.1 Description of operation ......................................................... 7
3.2 Identication of parts............................................................. 8
3.2.1 Angled (Default) Version........................................... 8
3.2.2 Inline Version .......................................................... 9
4 Machine Setup ................................................................................... 10
4.1 Angled Version.....................................................................10
4.2 Inline Version ......................................................................11
4.3 Backrest adjustment.............................................................11
5 Using the Conveyor............................................................................ 12

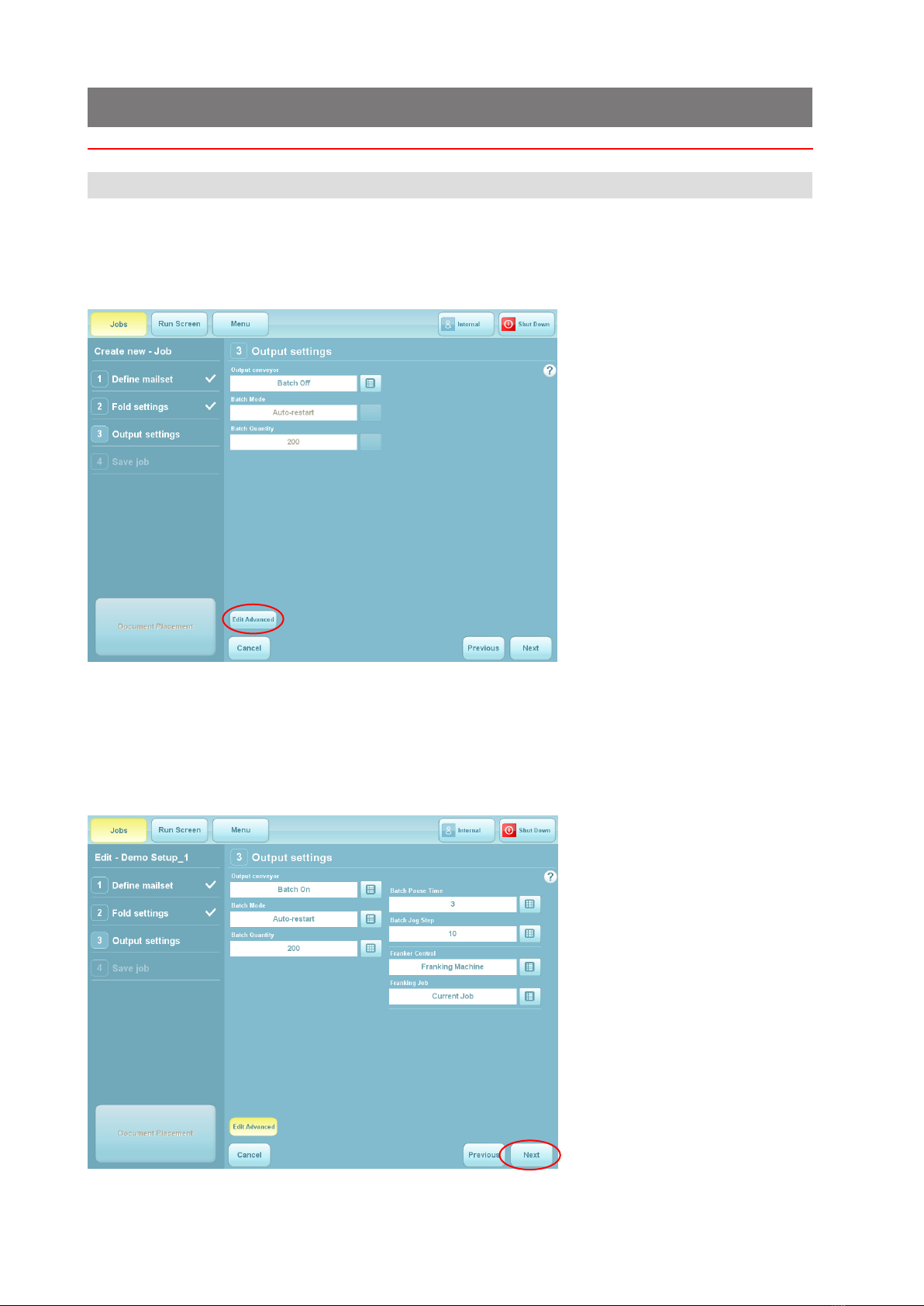

5.1 Output settings ....................................................................12
5.2 Adjusting the speed..............................................................13
6 Technical Specication ...................................................................... 14
6.1 Physical sizes.......................................................................14
6.2 Electrical .............................................................................14
7 Troubleshooting Guide....................................................................... 15

2
200 Series Conveyor Operator Manual Issue 1 May 2011
1 Introduction
With this conveyor you have an ouput device intended for use with a 200 Series folder/
inserter. It provides a means of receiving lled envelopes prior to hand removal for
subsequent further handling. Its speed of operation and jog steps between batches are
under software control by the inserter.
In order to ensure the long usage of this machine and its components, and above all the
safe use of the machine, you must read and adhere to the operating instructions and safety
notes. Always be aware of all warnings and notes that are mounted or noted on the machine
itself.
All persons entrusted with the handling of this machine must also be familiar with the
operating manual.
Save this handbook carefully, so that the information it contains may be available at all
times.
1.1 Pictograms
General Warnings
Warning of danger from electricity or electrical shock
Information / Note indicating important information regarding the handling of
the machine.

3
200 Series Conveyor Operator Manual Issue 1 May 2011
1.2 Notes on the use of this handbook
This document contains all general information and explanatory text necessary in order to
be able to carry out the operation of the machine.
When some action is expected from the operator, this will always be explicitly stated, and
where relevant, accompanied by an illustration or graphic.
Always read through each step, so that you will obtain all of the necessary information. Do
not anticipate what you believe will follow in the handbook: It will prevent you from making
mistakes!
Chronology and Reference
This handbook is structured chronologically, and therefore ordered sequentially for the
operationally ready machine. It assumes that the machine has been installed in the
correct environment by an Authorised Service Engineer and that the operator or his or her
supervisor has had a degree of operator training.
When you are unfamiliar with the machine, it is best to read through the handbook from
beginning to end. You will be guided step by step, and in this way you can easily and quickly
have the machine in operation.
If you are already familiar with the machine, it will make things easy if you use this
handbook as a reference work.
2 Safety notes
For your own safety and the operating safety of the machine, read the following notes
carefully before starting your machine. Always be aware of all warnings and notes that
are mounted or noted on the machine itself. Save this handbook carefully, so that the
information it contains may be available at all times.
The machine is of advanced construction and reliable in operation. Nevertheless, the device
does present hazards when operated by untrained personnel. The same applies to use that
is inappropriate and not in keeping with its intended purpose.
In not adhering to this handbook, there is the danger of
• an electrical shock,
• injuries from the intake at the rotating rollers,
• damage to the machine.

4
200 Series Conveyor Operator Manual Issue 1 May 2011
Caution!
Please, read these notes with care.
Save these instructions for later use.
All notes and warnings found on the machine are to be followed.
Important! The machine must be installed only by an Authorised
Service Engineer. A safe, level position is necessary, when installing the
machine, with sufcient space all round to operate it. The machine is to be
protected from moisture. If moving the machine, ensure that the castor
brakes are off, and push on the stand, not the machine.
Ensure there is at least 1 metre of free space between the side of the machine
and a wall or barrier. Do not place surrounding furniture or other objects
where your path may be obstructed.
The machine operates on low voltage so no general elctrical hazard is present.
However, the inserter to which it connects operates at mains voltage, hence a
hazard exists if any electrical parts remain uncovered. Protect the device from
moisture. When moisture enters the machine, there is the danger of electrical
shock. Never remove any screws from the machine or attempt to open it. For
reasons of electrical safety, the machine may only be opened by authorized
Service Agents.
Never reach into the machine when it is running! As the machine is connected
to the inserter, this could only occur if a safety interlock were to fail.
The danger of injuries exists, due to a moving conveyor belt. Keep long hair
and parts of loose clothing far from the machine in operation. If a safety
interlock fails, your Service Agent must be contacted immediately!
In order to prevent damage to the machine, only factory authorized accessory
parts should be used.
Prior to cleaning the exterior of the machine, it should be disconnected from
the power supply. When cleaning the machine, do not use liquid or spray
cleaners, but only a cloth dampened with water.
When cleaning sensors use only non-ammable airdusters, eg. part number
9103707C. Other types may use ammable propellants, which could result in
re or explosion.
Installing
the
machine
Electrical
danger
Operating
safety
Cleaning
the
machine
Cleaning
sensors
2.1 General safety notes

5
200 Series Conveyor Operator Manual Issue 1 May 2011
In the following cases, the mains plug must be unplugged and the device
left for the authorized Service Agents:
• When the mains cable or plug is worn or damaged.
• When water or other liquid has entered the device.
• When the device does not function properly, in spite of
following the instructions provided.
• When the device has fallen down or the housing is
damaged.
• When there are noticeable differences in the normal
operation of the machine.
When repair work is carried out, only original spare parts or spare parts
corresponding to the original parts may be used.
Do not disassemble the machine any further than is described in this
handbook. Other than the top cover, the opening of the machine by
unauthorized personnel is not permitted. Repairs may only be carried out
by an authorized Service Agent.
Modication is not permitted:
For safety reasons, your own reworking and modications are not
permitted.
Please contact your Service Agent, for all questions relating to service and
repair. In this way, you ensure the operational safety of your machine.
2.2 End of life
The objectives of the European Community’s environment policy are, in particular, to
preserve, protect and improve the quality of the environment, protect human health and
utilise natural resources prudently and rationally. That policy is based on the precautionary
principle and principles that preventive action should be taken, that environmental damage
should as a priority be rectied at source.
Separate collection of waste is the precondition to ensure reuse and recycling of waste that
is generated at the disposal of electrical or electronic equipment and is necessary to achieve
the chosen level of protection of human health and the environment in the European
Community.
More particularly, certain materials and components of waste electrical and electronic
equipment needs selective treatment as their injudicious handling or disposing of on or into
land, water or air would represent a major threat to the environment and human health.
Allow
machine to
be checked
by the
Service
Agent
Spare Parts
Repairs

6
200 Series Conveyor Operator Manual Issue 1 May 2011
In order to facilitate collection and treatment separated from normal domestic waste,
electrical and electronic equipment is marked with the following logo:
Not only are you by law not allowed to dispose of the waste equipment via other waste-
streams, but we encourage you to actively contribute to the success of such collection and
to the common good and better quality of life of present and future generations.
For more information on the correct disposal of this product please contact your local dealer.
Do not mix with normal domestic waste.
Please use the subjoined return or
collection system dedicated to electrical
and electronic waste.
Equipment produced after
August 13 2005

7
200 Series Conveyor Operator Manual Issue 1 May 2011
3 Description of machine
3.1 Description of operation
The function of the machine is to receive mailpieces from a 200 Series in-
serter and stack them along the surface for hand removal.
The speed of the conveyor can be adjusted in the operating software for the
relevant job, and batches can be ‘jogged’ to provide a gap between each
batch.
The conveyor can be attached to the inserter in two orientations:
At a right angle to the inserter in the direction of the operator
•
(default orientation).
In line with the inserter.•
The Output Conveyor is automatic in operation and no external controls are
required.

8
200 Series Conveyor Operator Manual Issue 1 May 2011
3.2 Identication of parts

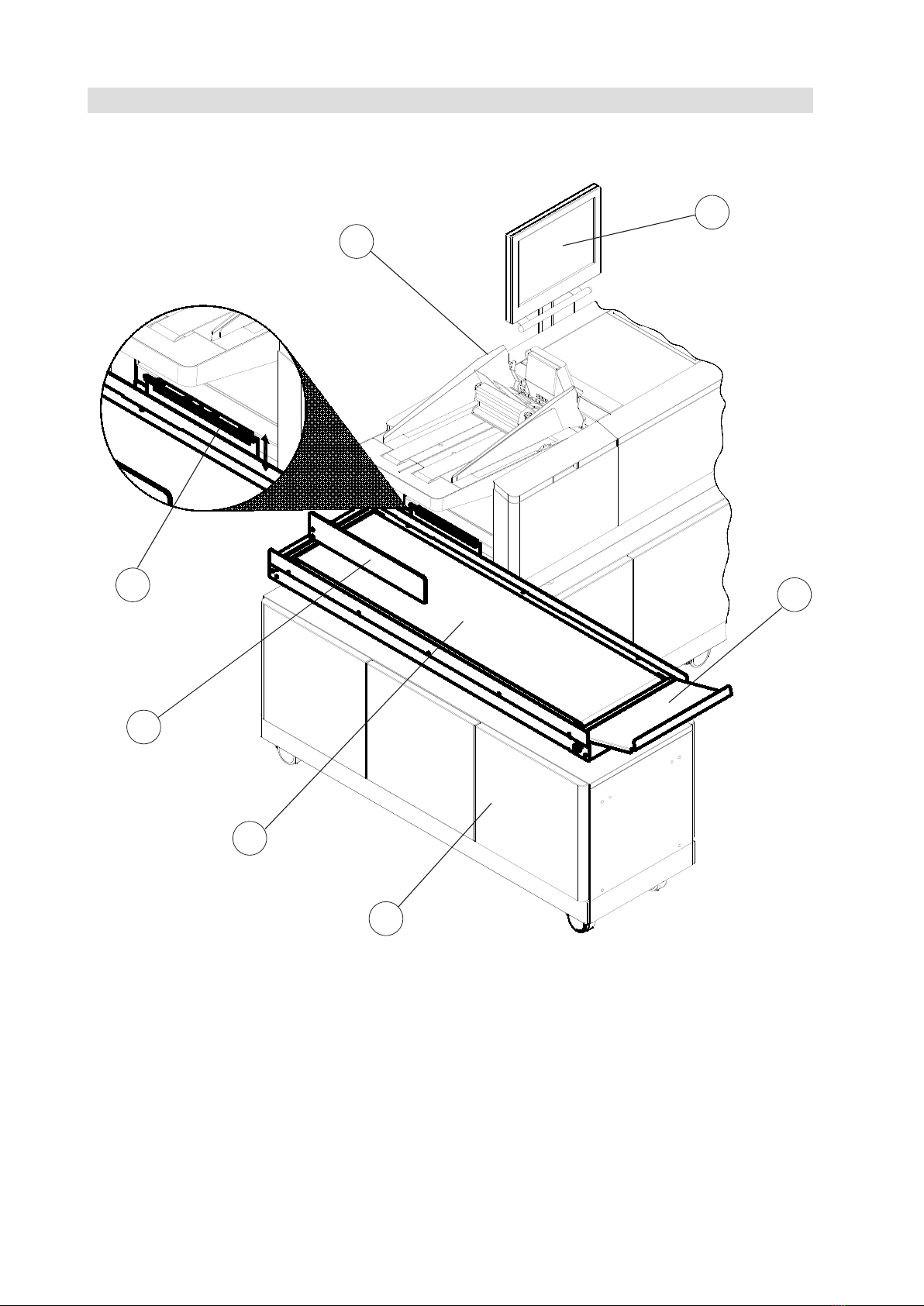

3.2.1 Angled (Default) Version
26
3
1
7
5
4
1 DS200 Folder/Inserter
2 Adjustable Roller Plate (see section 4)
3 Adjustable Backstop (see section 4)
4 Conveyor Surface
5 Conveyor Stand Unit
6 Adjustable Backrest (see section 4)
7 Operator Screen

9
200 Series Conveyor Operator Manual Issue 1 May 2011
3.2.2 Inline Version
2
6
3
1
7
5
4
1 DS200 Folder/Inserter
2 Adjustable Roller Plate (see section 4)
3 Adjustable Backrest (see section 4)
4 Conveyor Stand Unit
5 Conveyor Surface
6 Adjustable Rollers (see section 4)
7 Operator Screen

10
200 Series Conveyor Operator Manual Issue 1 May 2011
4 Machine Setup
To help envelopes feed onto the conveyor properly, a backstop or rollers will need to be set
up. This is described below.
4.1 Angled Version
Adjust the backstop shown below, so that the ejecting envelope contacts it approximately
halfway up, and then falls fully onto the conveyor surface.
This can be further assisted by raising or lowering the roller plate to adjust the angle of the
ejecting envelope. The plate moves in indents.
Note: Some envelopes may be found to feed better if the plate is pulled out and turned
round the other way.
Roller plate Backstop
Envelope
When adjustments are complete, ensure the adjustment knob is fully tightened.

11
200 Series Conveyor Operator Manual Issue 1 May 2011
4.2 Inline Version
Adjust the rollers shown below, so that the ejecting envelope contacts the nip of the rollers
at the conveyor surface, and then falls fully onto the surface.
This can be further assisted by raising or lowering the roller plate to adjust the angle of the
ejecting envelope. The plate moves in indents.
Note: Some envelopes may be found to feed better if the plate is pulled out and turned
round the other way.
Roller plate Envelope Rollers
When adjustments are complete, ensure the roller adjustment knobs are fully tightened.
4.3 Backrest adjustment
When the envelopes reach the end of the conveyor, they will stack up against the backrest.
This can be adjusted to suit the required amount of tilt: slacken the adjustment knob each
side and retighten when you are satised with the angle.
Adjustment knob

12
200 Series Conveyor Operator Manual Issue 1 May 2011
5 Using the Conveyor
5.1 Output settings
The output settings control how the conveyor is used. The settings are dened
when the job is created, or can be added or changed later by editing the job. Out-
put settings are described below. See also DS200 Operator Manual for full de-
tails of creating/editing a job.
1Select whether
batching is to be used,
and the quantity. Set
Batch Mode as follows:
Pause: Machine will
pause until the Run but-
ton is pressed to run an-
other batch.
Auto-restart: Machine
will stop and then auto-
matically resume next
batch after pause time set
as described below.
Conveyor Only: Machine
will advance conveyor
by an amount set as de-
scribed below, and then
continue with next batch.
To dene further settings,
press the Edit advanced
settings button.
2Select batch jog
steps and pause time.
This means that as each
batch is fed onto the
conveyor, it will move the
specied amount (the
steps are unitless), and
pause for the specied
time.
When settings are com-
plete, press Next to save
the job.

13
200 Series Conveyor Operator Manual Issue 1 May 2011
5.2 Adjusting the speed
There are no external controls on the Output Conveyor: instead, the speed is con-
trolled from the Fine Tuning settings in the Run Screen.
Press the Fine Tuning button – this will open the settings box. Adjust the Con-
veyor Pulse Multiplier (speed) as required using the keys.

14
200 Series Conveyor Operator Manual Issue 1 May 2011
6 Technical Specication
6.1 Physical sizes
O/A Sizes 1510mm (59.½”) Length (including backrest)
445mm (17.½”) Width
235mm (9.¼”) Height
Speed 4m/minute Max. Linear Speed (controlled by inserter)
Selectable jog function for batching.
6.2 Electrical
Electrical Voltage: 24VDC (supplied via DIN lead from inserter)
Rating Power: 12W Max.
Fuse: N/A

15
200 Series Conveyor Operator Manual Issue 1 May 2011
7 Troubleshooting Guide
If operating problems cannot be resolved using the following guide, the Technical
Department must be contacted for further assistance.
PROBLEM SUGGESTED CAUSE AND REMEDY
1. Conveyor belt does not move.
2. Envelopes bouncing off backstop
with excessive force on Angled
Version.
3. Satisfactory eject angle of envelope
cannot be acheived.
4. Envelopes travel untidily along
conveyor on Angled Version.
5. Excessive or insufcient gap between
batches when in batch mode.
6. Excessive or insufcient overlap of
envelopes on conveyor surface.
1. a) Ensure Conveyor Only is
selected as ‘Batch Mode’ in Output
Settings (section 5.1).
b) Check DIN lead is properly
connected to inserter.
2. Move backstop further away and
raise or lower roller plate to adjust
eject angle.
3. Pull out roller plate, turn it round
and re-insert.
4. Fit output rollers in 2nd position
to assist envelope travel (contact
Service Department).
5. Adjust batch jog steps in Output
Settings (section 5.1).
6. Adjust Conveyor Pulse Multiplier
in Fine Tuning screen (section 5.2).

16
200 Series Conveyor Operator Manual Issue 1 May 2011
Page intentionally
left blank
