RainPoint HTV213FRF User manual

HTV213FRF
USER MANUAL
2-Zone Water Timer
Sma Garden Irrigation System
+
Web: www.rainpointonline.com
Email：se[e-mail]
WhatsApp: [phone]
US Free Hotline(English): [phone]
(MON-FRI 9�30 AM-5�30 PM PST)
EU Free Hotline(English Deutsch): [phone]
(MON-FRI 9�00 AM-5�00 PM CET )

1. INTRODUCTION
1.1 Product Oveiew
1.2 Specication
1.3 Product Features
2. CONNECTION AND INSTALLATION
2.1 Timer Connection
2.2 Timer Installation
3. APP FEATURES AND FUNCTIONS
3.1 Device Home Page
3.2 Basic Setting
3.3 Plan Setting
3.4 Statistics
3.5 Manual Watering
4. TROUBLESHOOTING
5. NOTES
6. WARRANTY POLICY
7. FCC STATEMENT
8. CUSTOMER SUPPORT
01
01
01
02
02
02
06
07
07
08
11
14
14
16
18
18
19
20
CONTENT

1.1 Product Oveiew
Batte CoverOperation Button
1.2 Specication
•1” or 3/4” inlet thread and 3/4” outlet thread.
•Operating Water Pressure: 0.5~8 bar (7- 116 PSI).
•Flow Rate: 1.32~9.25GAL/Min(5 ~35 L/Min).
•1 min ~ 12 hrs.
•Waterproof Level: IP54.
•Maximum 6 plans per zone.
•Working Temperature: 37℉~ 122℉(3℃~50℃).
•Communicated by WI-FI 2.4G.
•Up to 60m depending on obstacle betweenhub and timer.
•Powered by 4* AA batteries (Not included).
1. INTRODUCTION
- 01 -

2. CONNECTION AND INSTALLATION
1.3 Product Features
•App remote controlled.
•Build-in ow meter with leaking ale function.
•Track water ow rate.
•Review water consumption data histo on APP.
•2 watering methods: Irrigation mode or Misting mode.
•Voice controlled via Google Assistant or Amazon Alexa.
•Automatically monitor the watering progress according to the soil
temperature and humidity data after paired with soil sensor.
•Auto sta or stop watering base on soil moisture level.
•Schedule watering plans by water usage.
•Multi-zone outlets to meet more watering needs.
- 02 -
Tips:
Please scan the QR code or search the link to access
the video to connect the device quickly and easily.
Set Video:
https://www.youtube.com/watch?v=sVYR_wdH5gw

1. After the hub is successfully connected, select the button on the top
right corner of the APP home page to add device, or you can go to the
hub’s home page and use “Sub-devices” to add devices.
This device is a sub-device, please connect the hub of Rainpoint
Sma+ series before connecting this device.
2.1 Timer Connection
- 03 -

2. Find “2-ZONE Water Timer” or the icon to add HTV213FRF 2-Zone
Water Timer.󶀅
3. Inse 4 AA 1.5V alkaline batteries (not included). Then press and hold the
left button of the timer until the light ashes red quickly. Meanwhile, select
"Next" on the APP and sta searching devices.
- 04 -

4. Keep the timer and the hub close to each other so they can connect
automatically.󶀅
5. Besides that, you can also hold the left button to reset and reconnect if
you fail to connect for the rst time.
6. After successfully connecting, the last water usage value will display in the
middle of the timer’s screen. The next watering plan time will display as well
after creating plans.
- 05 -

2.2 Timer Installation
Install the timer veically on the tap.
NOTE:
1. Please t to install the timer veically on the tap, not at an angle or
horizontally.
2. Please do not install the timer in a underground valve box to get a better
connection with Wi-Fi.
- 06 -

1. Setting: Basic settings for the water timer
2. Left side valve & right side valve
3. Next Plan Time & Last Water usage
4. Soil temperature & moisture: Show the data of the soil if you pair the timer
with the soil sensor
5. Plan: To create and manage watering plans
6. Statistics: Check the water usage data in bar cha
7. Irrigation Mode: Manual watering in irrigation mode
8. Mist Mode: Manual watering in misting mode
3.1 Device Home Page
3. APP FEATURES AND FUNCTIONS
- 07 -
1
2
3
4
5
6
7
8

3.2 Basic Setting
Find the icon on the top right corner of the APP home page to ＂Settings ＂
page. In the basic settings, you can check and manage the device
information, such as name, inteace and description. There are also some
advanced settings you can Set up for the specic functions:
Mist Mode: Set the mist time and inteal time for manual misting mode.
Default Duration Time: Set the default watering duration for manual
irrigation mode.
- 08 -

Pair the Soil Sensor: Pair with a soil sensor to display the data on the
home page and activate the ＂Stop irrigation plan humidity＂ function.
＂Stop irrigation plan humidity＂: Set a ＂stop watering＂ value of the soil
moisture to protect the plants from over watering. All the plans will be
stopped once the soil moisture gets over the valve, and will go back to
work when the moisture return below the value.
- 09 -

Intelligent Irrigation: This is the other feature after connecting with a soil
sensor that uses soil moisture to sta watering. After enabling this function,
you can set a moisture level condition and a watering task which will run
automatically once the condition is met. A disable period can also be set to
temporarily o this function.
Water Usage Correction: Correct the error when your water usage collection
is not accurate.
- 10 -

3.3 Plan Setting
Select Plan and sta to create a new auto-watering plan.
Set a watering mode rst:
Press the icon on the top right corner of the "Irrigation Plan" page to
set irrigation plan.
Irrigation Mode: Normal watering mode with basic sta time, duration
and frequency.
Mist Mode: Special mist time and inteal period that can intermittent
quick watering.
- 11 -

- 12 -

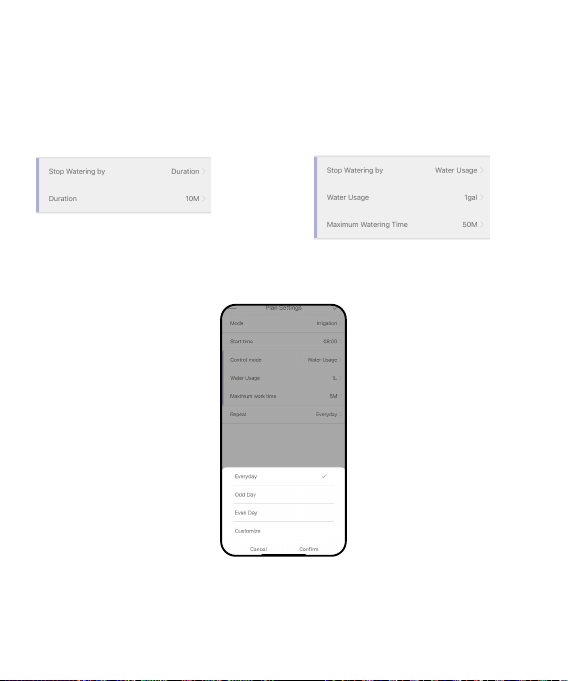

Sta Time: Set the time that the plan stas.
There are two way to stop watering: Duration or Water Usage
Duration: set a watering duration for irrigation plan.
Water Usage: set both a water consumption limit value and a limited time.
Repeat: Set the watering frequency for your plans.

After nish setting, press the top right button save your plan and you will see a
plan oveiew appears in the list. Use the button on the right to turn on or o
the plan. Up to SIX plans that can be created. plans that can be created.
There is also a Plan Calendar for checking the oveiew of all the plans’
schedule.
- 13 -

3.4 Statistics
Select Statistics to review your daily or monthly water usage that go through
this timer.
3.5 Manual Watering
3.5.1 Irrigation Manual Mode
Select Irrigation in the home page to manually turn on a tempora irrigation
plan with a settable time.
- 14 -

3.5.2 Mist Manual Mode
Select Mist in the home page to manually turn on a tempora misting plan
with a settable time. It is able to change the mist time and inteal time by
press the time value.
Note: When you turn on manual watering, if there is a plan running now or
there will be a plan staing during your manual water time, the schedule will
be skipped for this time.
- 15 -
If you need more detail information about the
operation, please scan the QR code or search the
link to access the video to check the device
quickly and easily.
Setup Video: http://bit.ly/3jlUEBV

Problem Possible Factors Solution may help
Can't turn on
/o the valve
Inaccurate
water ow
meter
Timer can't
connect
•Low batte.
•Impurities in water
inlet.
•Unstable network or
delayed response.
•Inaccurate statistics
due to tilted
mounting angle.
•Low or erratic water
pressure from the tap.
•Unstable WIFI
network.
•Long distance from
the hub Timer not in
pairing state.
•Replace fresh batteries.
•Regularly clean the lter
po of impurities to avoid
disruptions in use.
•Wait a while and t again.
•The water timer needs to be
installed perpendicular to
the ground and it is
recommended that it is not
installed at an angle to
avoid aecting the water
count.
•Normal error values for
water counts ± 5%.
•Check that the WIFI network
environment is working.
•Close to hubs and routers
when connected to
irrigation timers.
•Re-pair the timer: Press and
hold the timer button until
the white light ashes
rapidly to indicate pairing.
(Or remove the device from
the homepage and
reconnect).
4. TROUBLESHOOTING
- 16 -

Problem Possible Factors Solution may help
Hub can’t
connect
Timer can't
connect
•Not using 2.4GHz
WIFI.
•Incorrect WIFI
password.
•Distance between
sensor and hub is too
far.
•Impurities in water
inlet lter.
•Rainfall delay
parameters are set.
•In a low power state,
the timer goes into a
low power protection
state and does not
execute the schedule.
Irrigation duration/
period is not set with
parameters.
•Conrm 2.4GHz WIFI
connection.
•Conrm that the WIFI
password has been entered
correctly.
•Stay closer to the hub while
connecting.
• Inlet impurities need to be
cleared regularly so that
they do not clog up and
inteere with the irrigation
program.
•Check that the rainfall delay
parameter is set.
•Replace fresh batteries.
Check that the irrigation
duration/period is not set
with parameters. (Note
12H/24H).
If you need more help about the product or anything from us, please
contact us by
US: 1-833-381-5659 (EN)(MON-FRI󶀅9�30󶀅AM-5�30󶀅PM󶀅PST)
EU: [phone] (EN DE)(MON-FRI󶀅9�00󶀅AM-5�00󶀅PM󶀅CET)
Email:󶀅se[e-mail]
- 17 -

•Please make sure to use 2.4GHz band WIFI to connect to this product.
•Do not mix old and new batteries or dierent types of batteries.
•Please install the timer veically to avoid valve body damaged and
inaccurate water ow meter.
•Under freezing temperatures, timers should be removed from the faucet
and stored indoor to avoid potential freezing damage.
•Please clean lters regularly and replace if it is worn in order to prolong
working life of timer.
RAINPOINT provides a 3-year limited warranty on this product against
manufacturing defects in materials and workmanship.
5. NOTES
6. WARRANTY
