C H A P T E R
INTRODUCTION
Congratulations on your purchase of the Raven SmarTrax system! This system is designed
to provide cutting-edge, hands-free steering of your machine via GPS coordinates.

Nitro 2200 SmarTrax Installation Manual
2
Basic Kit
Contents
Below you will see the kit contents that you should have received with this SmarTrax
kit.
Nitro 2200 SmarTrax Kit Contents
Quantity Item Description Part Number
1SENSOR ASSEMBLY, ROTARY WHEEL ANGLE
100° 063-0181-013
1WELDMENT, BRACKET, UNIVERSAL HYD.,
MTG., PART "A" 116-0159-527
1WELDMENT, SPS, ROTARY, CASE IH FLX 3x10 116-0159-666
1WELDMENT, ARM, SPS, CASE IH FLX 4x10 116-0159-668
1WELDMENT, SPS, NITRO 116-0159-679
1HOSE, HYD., 13/16" ORFS (F) TO 9/16" JIC (F),
48" LONG 214-1000-202
1HOSE, HYD., 13/16" ORFS (F) TO 9/16" JIC (F),
48" LONG 214-1000-203
1HOSE, HYD., 13/16" ORFS (F) TO 9/16" JIC (F),
48" LONG 214-1000-204
1HOSE, HYD., 13/16" ORFS (F) TO 9/16" JIC (F),
48" LONG 214-1000-205
1HOSE, HYD., 9/16" ORFS (F) TO 9/16" JIC (F),
48" LONG 214-1000-207
1SWITCH, PRESS., MICRO, H.D., 15-100 BAR
ADJ., W/FITTINGS 422-0000-074
1VALVE, HYD., CLOSED CENTER LS 334-0003-062
3FITTING, ELBOW, 45° SWIVEL, 9/16" JIC M/F 333-0012-027
4FITTING, ADAPTER, SWIVEL RUN TEE, 13/16"
ORFS M/M/F 333-0012-028
3FITTING, ELBOW, 90°, SWIVEL, 9/16" ORFS M/F 333-0012-042
4FITTING, ELBOW, 90°, SWIVEL, 13/16" ORFS
M/F 333-0012-067
1FTG., STR., ADPT., 9/16" ORFS (M) TO 7/16"
SAE O-RING (M) 333-0012-209
4BOLT, 5/16"-18 x 7/8", HEX HEAD 311-0052-104
4BOLT, HEX, 3/8"-16 UNC x 1 1/4" 311-0054-106
1BOLT, HEX, 1/2"-13, S.S. 311-0058-186
4NUT, 3/8"-16 312-1001-037
1NUT, HEX, 1/2-13 312-1001-043
4WASHER, LOCK 5/16" 313-1000-019
4WASHER, LOCK, SPLIT, 3/8" 313-1000-022
4WASHER, FLAT, 3/8" 313-2300-013
1MANUAL, INSTALLATION 016-0190-026
1MANUAL, INSTALLATION, SMARTRAX 016-9001-021
1LABEL, WARNING, DO NOT STEP 041-0159-688
1LABEL, WARNING, TAMPERING 041-0159-689
1CABLE, HYDRAULIC SOLENOID / OVERRIDE 115-0171-466

Manual # 016-0190-026
3
C H A P T E R
SAFETY
Important: Hydraulics are under pressure. Never attempt to
open or work on a hydraulic system with the equipment running.
Care should always be taken when first opening a system that
was previously pressurized.
When disconnecting the hydraulic hoses or when purging is required, be aware
that the hydraulic oil within the machine system may be extremely hot and under
high pressure. Caution must be exercised. Any work carried out on the hydraulic
system must be performed in accordance with the machine manufacturerer’s
approved maintenance instructions. Raven Industries recommends that appropri-
ate protective equipment be worn when working on the hydraulic system. Ob-
jects or materials that are able to bypass the machine’s hydraulic filtration system
will adversely reduce performance and possibly damage the hydraulic valves.
Do not reverse the power leads. Doing so will cause severe damage to the
equipement. Always check to make sure that the power leads are connected to
the right polarity as marked. Ensure that the power cable is the last cable to be
connected.
Hydraulic
Safety
Requirements
Electical
Safety
Requirements

Nitro 2200 SmarTrax Installation Manual
4
We welcome your feedback about this manual. If you have any comments or
suggestions for improvement, please let us know by contacting our Customer
Support Center by any of the following methods:
wVia phone: [phone]
wViamail:
Raven Industries
FlowControl Division
205 E. 6th St.
Sioux Falls, SD 57104
wVia email: [email protected]
Contacting
Raven
Industries

Manual # 016-0190-026
5
C H A P T E R
MOUNTING THE UNIVERSAL BRACKET AND VALVE
1. Mount the universal bracket to the machine as shown, directly beneath
the cab.
2. Mount t-shaped part of the universal bracket by drilling two holes and
bolting the bracket.
3. Place the valve on the mounting plate. Move the valve in place to the
holes that line up and fasten down with the bolts provided.

Nitro 2200 SmarTrax Installation Manual
6

Manual # 016-0190-026
7
C H A P T E R
HYDRAULICS
Left Steer Hose
1. Identify the left steer port on the tractor steering orbital. Hoses may
need to be traced to the hydraulic cylinders for proper identification.
Once the port has been identified, remove the hose from the steering
orbital and install on the appropriate tee fitting, found in the Raven
adapter kit, to the steering orbital. Once the tee fitting is installed, re-
attach the original hose.
2. Attach hose (P/N 214-1000-204) to the A-Port on the Raven steering
control valve, route to and attach to the open branch on the installed tee
fitting using a 90° fitting.
3. An additional 45° or 90° elbow may be installed on the Raven valve to
help hose routing. These elbows will be found in the hydraulic fitting kit.
Right Steer Hose
1. Identify the right steer port on the tractor steering orbital. Hoses may
need to be traced to the hydraulic cylinders for proper identification.
Once the port has been identified, remove the hose from the steering
orbital and install an appropriate tee fitting, found in the Raven adapter
kit, to the steering orbital. Once the tee fitting is installed, reattach the
originalhose.
2. Attach hose (P/N 214-1000-205) to the B-Port on the Raven steering
control valve, route to and attach to the open branch on the installed tee
fitting using a 90° fitting.
3. An additional 45° or 90° elbow may be installed on the Raven valve to
help hose routing. These elbows will be found in the hydraulic fitting kit.
Installing the
Steering
Control Valve
Hoses

Nitro 2200 SmarTrax Installation Manual
8
Pressure Hose
1. Identify the pressure port on the tractor steering orbital. Hoses may
need to be traced to the hydraulic pump for proper identification. Once
the port has been identified, remove the hose from the steering orbital
and install on the appropriate tee fitting, found in the Raven adapter kit, to
the steering orbital. Once the tee fitting is installed, reattach the original
hose.
2. Attach hose (P/N 214-1000-202) to the P-Port on the Raven steering
control valve, route to and attach to the open branch on the installed tee
fitting using a 90° fitting.
3. An additional 45° or 90° elbow may be installed on the Raven valve to
help hose routing. These elbows will be found in the hydraulic fitting kit.

Manual # 016-0190-026
9
LS-PV Hose
1. Remove fitting from the LS-PV port on the SmarTrax valve. Insert the
supplied SAE O-Ring to o-ring face seal adapter fitting.
2. Remove the load sense hose from the steering orbital and connect the
hose directly to the port labeled “LS-PV” on the Raven steering control
valve. To identify the load sense port on the valve, a general rule of
thumb is that the smallest hose on the orbital is the load sense hose.
Once the hose is identified, follow the hose to its origin and verify that
the hose is running from the tractor’s priority valve.
Tank Hose
1. Identify the tank port on the tractor steering orbital. Hose may need to
be traced to the hydraulic reservoir for proper identification. Once the
port has been identified, remove the hose from the steering orbital and
install an appropriate tee fitting, found in the Raven adapter kit, to the
steering orbital. Once the tee fitting is installed, reattach the original
hose.
2. Attach hose (P/N 214-1000-203) to the T-Port on the Raven steering
control valve, route to and attach to the open branch on the installed tee
fittings using a 90° fitting.
3. It is extremely important that the tank line running to the Raven steering
control valve goes to the port designated “T”. Failure to do so will result
in internal o-ring failure on the valve.
4. An additional 45° or 90° elbow may be installed on the Raven valve to
help hose routing. These elbows will be found in the hydraulic fitting kit.
LS-Steer Hose
1. Run hose (P/N 214-1000-207) from the open branch on the tee to the
load sense port on the tractor’s steering orbital. This port should be open
since the original hose was removed and run to the LS-PV port in the
previous step.
Connect the Pressure Switch directly to the PS port on the SmarTrax valve.

Nitro 2200 SmarTrax Installation Manual
10
Hydraulic Schematic

Manual # 016-0190-026
11
C H A P T E R
STEERING POSITION SENSOR
1. The SPS attaches to the top of the left steering arm.
2. With wheels pointing straight ahead, remove bolt from center of steering
arm and loosely attach the mounting bracket as shown.
3. Attach bracket with 3/8” rod to the top hole on front inside corner of the
wheel support assembly using the supplied bolt. Attach so the 3/8” rod is
offset towards the back of the machine.
Installing the
Steering
Position
Sensor (SPS)

Nitro 2200 SmarTrax Installation Manual
12
Withwheelsstraight,sensorshaft
shouldbeinthisposition.
5. With 3/8” rod in the slot in the sensor arm, attach the arm to the shaft
sensor using the supplied set screws. Be sure to keep the shaft flat
aligned with the notch on the face when tightening the arm.
6. Tighten bracket holding sensor keeping arm and shaft aligned as shown
above.

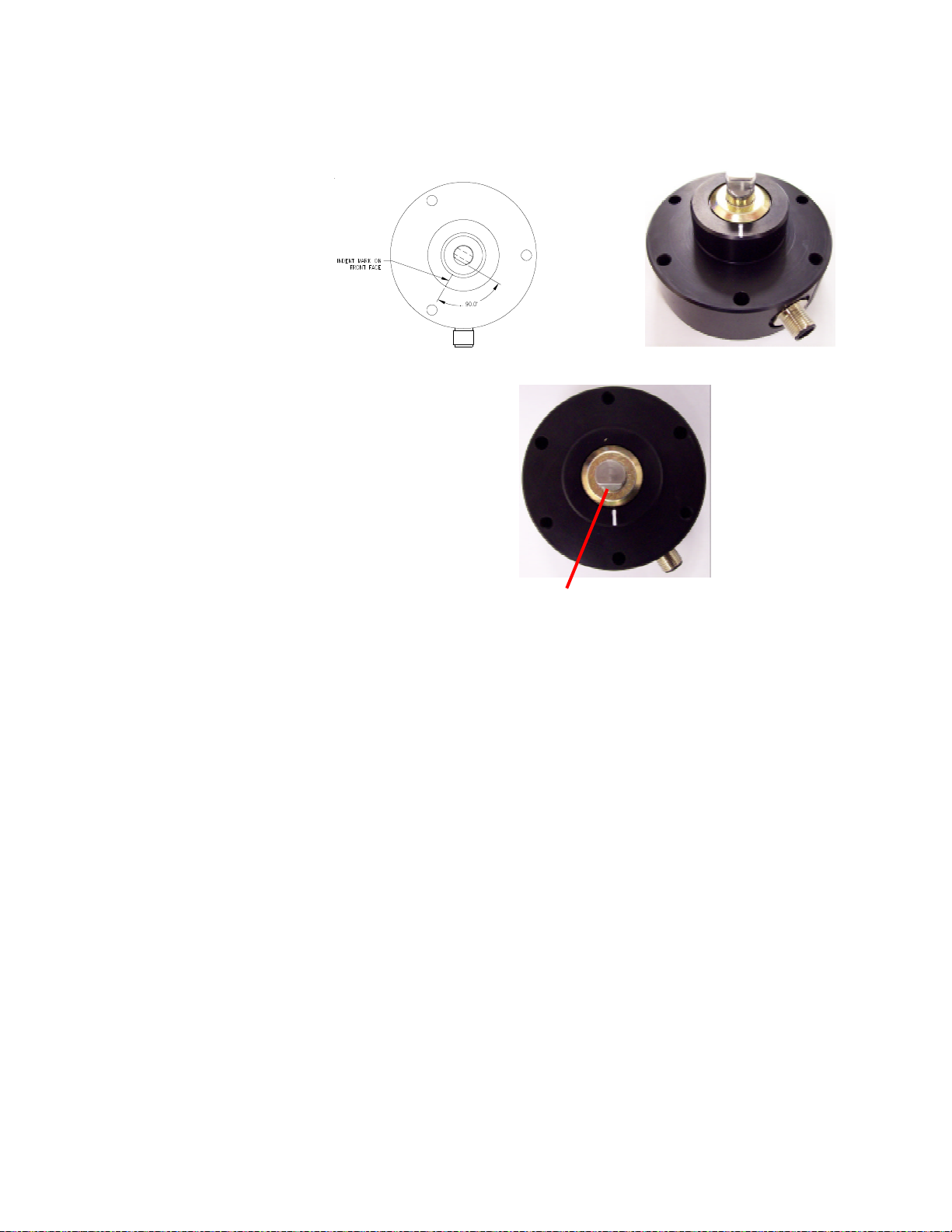

4. With wheels point straight forward, place rotary sensor on bracket with
shaft pointing down. Alignshaft flatside so itisperpendicular to the notch
in the sensor.

Manual # 016-0190-026
13
C H A P T E R
START-UP PROCEDURES
After installing the SmarTrax on your machine, always follow these start-up pro-
cedures.
wMake sure the Steering Position Sensor does not over-extend or over-
compress when turning the wheels.
wTurn the wheels fully from side to side numerous times to remove air
from the hydraulic system.
Important: Time the wheels for a full left to right and right to
left time of approximately 5 seconds. Refer to the Universal
Kit Manual for additional instructions on this.
wAdjust the pressure switch to the most responsive setting. Refer to the
Universal Kit Manual for instructions on this.

Nitro 2200 SmarTrax Installation Manual
14
Notes:

RAVEN INDUSTRIES
LIMITED WARRANTY
WHAT IS COVERED?
This warranty covers all defects in workmanship or materials in your Raven
Flow Control Product under normal use, maintenance, and service.
HOW LONG IS THE COVERAGE PERIOD?
This warranty coverage runs for 12 months from the purchase date of your
Raven Flow Control Product. This warranty coverage applies only to the
original owner and is not transferrable.
HOW CAN YOU GET SERVICE?
Bringthedefectivepart,and proof of date of purchase, toyourlocaldealer. If
your dealer agrees with the warranty claim, he will send the part, and proof
of purchase to his distributor or to Raven for final approval.
WHAT WILL RAVEN INDUSTRIES DO?
When our inspection proves the warranty claim, we will, at our option, repair
or replace the defective part and pay for return freight.
WHAT DOES THIS WARRANTY NOT COVER?
Raven Industries will not assume any expense or liability for repairs made
outsideourplantwithoutwrittenconsent. We are not responsiblefordamage
toanyassociatedequipment or product and will not be liable for loss of profit
or other special damages. The obligation of this warranty is in lieu of all
other warranties, expressed or implied, and no person is authorized to
assume for us any liability. Damages caused by normal wear and tear, mis-
use, abuse, neglect, accident, or improper installation and maintenance are
not covered by this warranty.

Nitro2200 SmarTraxSupplement& InstallationManual(P/N016-0190-026RevC01/07)
Notice: This document and the information provided are the property of Raven Industries, Inc. and
may only be used as authorized by Raven Industries, Inc. All rights reserved under the copyright laws.
RavenIndustries
FlowControls Division
P.O.Box 5107
Sioux Falls, SD 57117-5107
TollFree 800-243-5435
Fax[phone]
www.ravenprecision.com
[email protected]
