roundhouse WILLIAM User guide

WILLIAM
Owners Handbook

Operating Instructions
IMPORTANT: Read these instructions carefully before operating the
locomotive
The following items are required for running this engine and are not in-
cluded with the model.
Fuel Butane gas. See 'Filling the gas tank'
Water See 'Filling the boiler'
Lubricating oil See 'Lubrication'
SAFETY PRECAUTIONS
This is a working model locomotive using steam under pressure and
highly flammable fuel. Provided it is operated with reasonable care and
attention, no problems should arise.
It is intended for use out of doors and must only be operated in a well-
ventilated area.
Whilst the locomotive is in use, hot gasses are exhausted up the chim-
ney and excess steam frequently blows off through the safety valve
even when stationary, so operator and spectators should not bend over
the model.
As you will appreciate, this is not a toy and is therefore unsuitable for
young unsupervised children.
Follow manufacturers recommendations regarding the safe storage of
Butane gas canisters.
Some areas of the model will get quite hot whilst it is operating, so a
pair of gloves are provided in the tool kit for your protection.
Always have to hand either a fire extinguisher or wet cloth when oper-
ating the model.
2

CONTENTS
Tool kit Page 4
Running in Page 4
Access to controls Page 4
Identification of parts of the locomotive Page 5
Preparations for operation Page 6
1. Filling the Gas Tank Page 6
2. Filling the Boiler Page 6
3. Lubrication Page 7
4. Lighting the Burner Page 8
Running the locomotive Page 9
Driving manually Page 9
Driving by radio control Page 10
Storage between operating sessions Page11
Altering wheel gauge Page11
Trouble shooting & maintenance Page12
Gas system page 13
Service and parts page 16
3
William Instruction Booklet

TOOL KIT
The following items are included with your locomotive.
One 60m1 bottle of special steam oil for use in the cylinder lubricator.
One 60m1 syringe with plastic tube for filling the boiler with water.
One set of spare washers and ‘0’ rings.
One spare gas jet.
One Allen key for cylinder socket cap screws.
One pair of protective gloves.
One cleaning duster.
RUNNING IN
All locomotives are extensively test run before leaving the factory, but they
will still require a certain amount of running in when new, to overcome initial
tightness and allow valves etc. to ‘bed in’.
ACCESS TO THE CONTROLS
For normal operation, all controls are accessible without the need to remove
any part of the locomotive, however, to give access to the gas tank when fill-
ing, the cab roof hinges up. Care should be taken when opening the cab roof.
Gently grasp either side of the roof hinge and firstly lift the hinge vertically
upwards. This will lift the hinge clear of the cab, and allow the roof to then tilt
to the side.
The gas regulator is accessible through the rear of the cab and on manual con-
trol engines, the steam regulator is accessible through the right hand cab door-
way and reversing lever through the left hand cab doorway.
The radio control receiver, batteries and switch are housed in the tender and
access to batteries and receiver is by lifting the dummy coal or wood load.
COUPLING ENGINE AND TENDER
The tender has a steel pin under the front which should be fitted into one of
the two holes in the draw bar from the engine. Use the first hole for close cou-
pling if running on large radius curves, or the second hole if curves are tight.
On radio controlled versions, the servo leads pass through the rear buffer
beam and should be coupled to the leads from the tender.
4

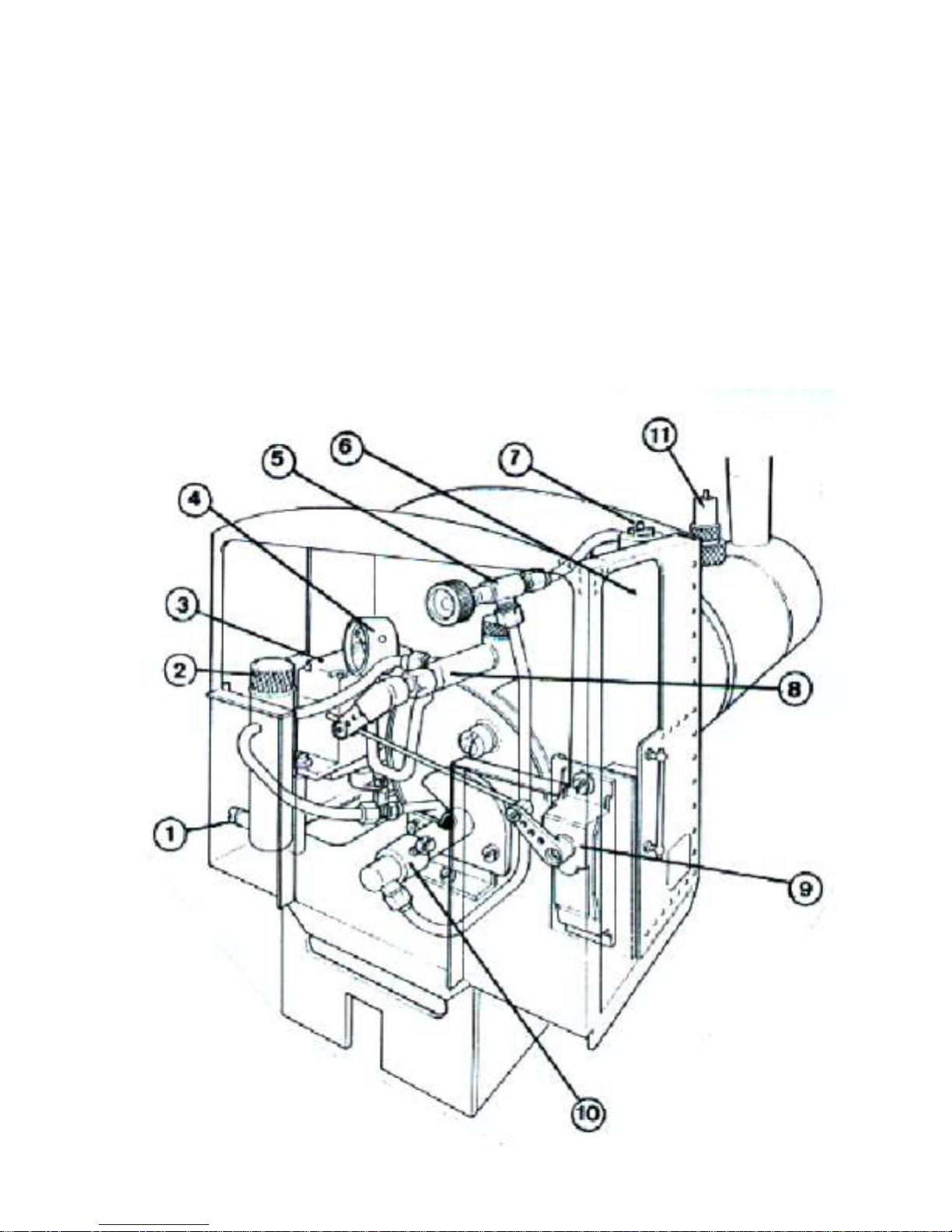

IDENTIFICATION OF PARTS
OF THE LOCOMOTIVE
Radio controlled version illustrated
1/ Lubricator drain screw. 2/ Lubricator filler cap.
3/ Reversing servo, this is replaced by a reversing lever on manual models.
4/ Pressure gauge. 5/ Gas regulator. 6/ Gas tank.
7/ Gas filler valve. 8/ Steam regulator.
9/ Steam regulator servo and linkage (not fitted on manual control engines).
10/ Gas burner. 11/ Safety valve.
5

PREPARING FOR OPERATION
The locomotive must be serviced before being operated. It is important to per-
form all the following operations.
1) FILLING THE GAS TANK
The filling of the gas tank should only be carried out in a well-ventilated area,
where there are no naked lights or other lighted locomotives close by. Ordi-
nary Butane or Iso-butane gas (as used in gas cigarette lighters) is the pre-
ferred fuel, though for economy, the larger canisters as used for blowlamps or
camping stoves etc. are better. The larger canisters have an EN417 threaded
self sealing valve on top and require a special adapter to couple up to the filler
valve on the locomotive. A special brass gas filler adapter is obtainable from
your local garden railway supplier or direct from ROUNDHOUSE.
Mixed gasses are also available and may be used if ordinary butane or iso-
butane are not available, but see ‘Gas System’ on page 13 for more informa-
tion on this subject.
Before attempting to fill the gas tank, make sure that the gas control valve is
closed by turning it clockwise.
The filler valve for the gas tank is on top of the tank under the cab roof. Invert
the gas canister and place its nozzle over the gas filler valve. Support the tank
from underneath and press the canister down. The gas will be heard hissing as
it enters the tank and a small amount will escape around the valve. This is
quite normal and is the tank venting as the liquid enters. After about 20 to 30
seconds, liquid gas will emerge from the valve showing that the tank is full.
Remove the canister immediately.
2) FILLING THE BOILER
A syringe and plastic pipe are supplied for filling of the boiler.
The boiler is filled with water through the filler plug housed under the brass
dome on top of the boiler. The brass dome is a substantial and heavy item, be-
ing turned from solid brass. Care is needed when removing the dome, espe-
cially when the engine is hot, as the dome itself will be hot. Take care not to
drop the dome onto the locomotive, as the weight of it may damage the
model. Lift off the brass dome then remove the filler plug by unscrewing it.
Fill the boiler right to the top with clean water. Distilled water is recom-
mended if available. As an alternative to distilled water if this is unavailable,
clean tap water can be used in soft water areas. Also, rain water or water from
a dehumidifier can be used provided that it is adequately filtered
Do not use deionised water as this type of water may cause long term damage
to the boiler and fittings.
6

There has to be a space above the water to allow steam to be raised so, insert
the end of the plastic pipe into the boiler and withdraw 30ml of water with the
syringe. Replace the filler plug finger tight.
3) LUBRICATION
Regular lubrication of all working parts is important and should be carried out
before each operating session. There are two types of lubrication required:
The external moving linkages and bearings are lubricated with a medium oil
such as motor engine oil, and the internal steam mechanisms such as cylin-
ders, pistons and valves are lubricated with a special steam oil that is mixed
with the steam. Infrequent external lubrication will allow parts to run dry, and
over oiling can form pools around operating parts that attract dirt and grit. If
too thin an oil is used it will evaporate very quickly as the loco gets hot –
leading to dry running. We recommend the use of a 20-50 motor oil for exter-
nal lubrication.
Internal lubrication is achieved by steam oil that is mixed with the steam in
the displacement lubricator, housed in the left-hand side of the cab. Remove
the knurled cap from the top and slacken the drain screw two or three turns at
the bottom but do not remove it. Any water in the lubricator will run out
through the drain screw. Tighten the drain screw and refill with the steam oil
supplied, then replace the cap. Take time filling the lubricator, especially
when cold, as the oil takes time to run down and may trap an air bubble. Both
cap and drain screw are fitted with ‘0’ rings and need only be closed finger
tight.
NOTE: Only special steam oil as supplied should be used in the lubricator
and under no circumstances should ordinary oil be substituted, or damage may
result.
The gas and steam regulators will require periodic lubrication –see the
troubleshooting section for details.
7

4) LIGHTING THE BURNER
WARNING: Before lighting read the section on gas system troubleshooting
(page 13) and be aware of potential problems. If the gas system is not
operating correctly, shut it off immediately or damage may result.
Move the locomotive to another location before lighting. Butane is heavier
than air and small pockets of gas can collect around the locomotive during
filling.
To light the burner, hold a lighted match or cigarette lighter over the top of the
chimney and slowly open the gas regulator by turning it anti-clockwise. The
gas should ignite almost immediately with a pop as the flame travels down the
chimney and into the boiler tube. The burner should be audible but not too
loud.
NOTE as stated above, the gas regulator should be opened slowly until the
burner ignites. If opened too quickly, particularly when the engine is cold or if
the gas tank has just been filled, it is possible that the flame may not travel
back into the boiler flue but stay in the smokebox. If this should happen, the
burner will sound quite different to normal and the blue flame will be visible
in the smokebox if viewed down the chimney from a safe height. Should this
happen, turn off the gas immediately or damage may result and then re-light
it. If the problem persists and it is not possible to ignite the burner correctly,
then a dirty jet should be suspected and cleaned as detailed on page 13.
For the first couple of minutes keep the burner on low. This is important, as
until it warms up, the flame will be a little unstable and turning it up too much
could cause it to go out. Also, with a completely full tank, liquid gas could be
drawn off instead of vaporized gas, which can also extinguish the flame.
After a couple of minutes, the gas control valve can be opened more to speed
up steam raising. Open the gas regulator slowly to about one full turn.
The full range of adjustment (closed to fully open) is achieved within the
first full rotation of the gas regulator knob any more is unnecessary. It
should not be opened more than this, as it is possible to unscrew the spindle
completely and release gas into the cab, which is potentially dangerous.
To achieve a more accurate setting of the gas flow, it helps to pull very gently
on the regulator knob, adjust the gas flow, and then release the regulator.
8

RUNNING THE LOCOMOTIVE
When full working pressure has been reached (about 40psi), the safety valve
will start to blow off steam. Steam generation can be controlled by the gas
valve in the cab. If the safety valve blows off frequently during running, then
too much steam is being produced, which wastes water and gas. Turning
down the burner will decrease the amount of steam created. Conversely, if
steam pressure is not maintained during a run, then the burner should be
turned up. After a few minutes of running it may be noticed that the gas
pressure through the burner has increased. This is due to the gas tank
becoming warmer and so increasing the gas pressure. Simply turn the gas
down –this may need to be performed several times during a run. The art of
balancing steam generation to the operational requirement by the adjustment
of the gas control valve will quickly be learned.
The gas tank has a duration of about 25 minutes, though this will vary a little
depending on gas valve setting. The boiler should not be allowed to run dry,
and the gas tank capacity is such that the gas should run out before the water.
When the gas is fully used up, the steam pressure in the boiler will be seen to
gradually drop until the loco comes to a halt. Should the water expire before
the gas is fully used, the pressure will drop rapidly and the loco will stop.
Check the pressure gauge –if this is zero turn off the gas. No damage will
result if the gas is turned off immediately.
DRIVING THE LOCOMOTIVE MANUALLY
On manually controlled locomotives, there are three main controls, all of
which are housed in the cab.
1) The gas regulator, which should be used to control steam generation as
described earlier.
2) The reversing lever. This is in the left-hand side of the cab and is moved
fully forward for running in a forward direction and full back to run in the
reverse direction. It should be parked in the centre (mid gear) when the
locomotive is stationary for any length of time. When in mid gear position,
the valve gear is effectively in neutral and the engine will not move under
steam power.
3) The regulator. This is the main steam control valve and regulates the speed
at which the engine will run. The regulator handle is situated in the right hand
cab doorway and is moved anti-clockwise to open and clockwise to close.
Using the reversing lever, select the desired direction of travel and open the
9

regulator a little. Initially, there will be a certain amount of water in the pipes
and cylinders, which will exhaust through the chimney and, after a few
moments, the engine will move jerkily, until this clears. Once the parts have
warmed up, the engine will move off steadily and it's speed can be controlled
with the regulator. Subsequent starts will be quite smooth once the cylinders
etc. have reached their normal operating temperature.
To reverse the locomotive, close the regulator to bring it to a halt, move the
reversing lever over and open the regulator again.
The art of fine control will soon be learnt with a little practice.
DRIVING BY RADIO CONTROL
On a radio controlled model, speed and direction are controlled by moving the
two levers on the transmitter supplied. The left hand lever operates the steam
regulator, down for stop, up for go and the right hand lever operates the
reversing valve gear, left for forward, right for reverse and centre for mid gear
(neutral).
Switch on the transmitter with the switch in the centre of the front panel. The
battery meter above should indicate that the batteries are OK. Switch on the
receiver on the locomotive with the switch on the front of the tender. Select
the desired direction of travel by holding the right hand lever fully over, and
then open the regulator a little by moving the left-hand lever upwards slowly.
The locomotive will now move off as described in the manual control section.
The art of fine control will soon be learnt with a little practice.
NOTE:
Always hold the reversing lever fully over in the required direction when the
engine is moving. The model is fitted with a simplified Walschaerts type
valve gear which is not suitable for 'notching up' (altering the cut off).
Always bring the locomotive to a halt by closing the regulator before
changing direction.
If an emergency stop is required, simply release the reversing lever, which
will spring back into mid gear and halt the train. Then close the regulator.
Always ensure that the regulator is closed before switching off the transmitter.
Always switch off the receiver and transmitter when not in use to preserve
battery life.
It is good practice to switch on the transmitter before the receiver and switch
off the receiver before the transmitter. In this way, the radio receiver is never
on when the transmitter is switched off and so should always be under your
control.
When the batteries are getting low, a poor signal between transmitter and
receiver will result and control of the engine will become erratic. The
10

transmitter batteries are housed in the back of the unit under a clip off panel.
The receiver batteries are housed in the tender as described on page 3.
STORAGE BETWEEN OPERATING SESSIONS
At the end of an operating session, it is good practice to clean the locomotive
carefully with a clean soft cloth, and to oil all bright metal parts.
Do not leave fuel in the gas tank.
Do not leave water in the boiler for long periods.
Do not store in places where the temperature may drop below freezing
as water may still be present in the pipework.
Ensure all controls are closed and the valve gear in mid gear.
Ensure that radio control equipment is switched off and, if the engine is
not to be used for some time, remove all batteries.
Periodically it may be necessary to wash off all traces of dirt and old oil from
the moving parts with paraffin (not thinners). This will remove any
accumulations of dirt or grit. After washing with paraffin, leave to dry
thoroughly overnight before re-oiling. It is most important that clean oil is
applied and allowed to penetrate fully into all moving parts before the
locomotive is run again. Manually moving the locomotive back and forth will
assist in distributing the oil fully. Under normal operating conditions this
procedure should not be required more than once or twice per year.
ALTERING WHEEL GAUGE
The wheels are set at the factory for the specified gauge however, for those
who wish to alter this to run on other peoples railways or if you change the
gauge of your track, they are easily reset with the aid of a conversion kit
available separately.
The driving wheels are moveable on their axles and are locked in place by a
small grub screw. They should be adjusted so that the "back to back" gauge
supplied in the kit will just slip between their inner faces. Ensure that the
wheels are evenly spaced relative to each side frame.
Do not over tighten the grub screws particularly on insulated wheels.
The tender wheels and axles are swapped for those of the required gauge by
simply removing the keeper plate from the underside of the tender frame (two
self tapping screws).
11

TROUBLE SHOOTING & MAINTENANCE
On a working model of this nature, it is important to keep all working parts
well lubricated. With constant heating up, cooling down and the stresses of
hard work, screws etc. can work loose so, it is good practice to check all
fixings and cylinder screws regularly but remember, never over tighten.
STEAM LEAKS
The cylinders are fitted with 'O' rings in the glands sealing both piston and
valve rods. These can be adjusted with a spanner if steam leaks develop. They
should only be tightened just enough to stop the leak, as over tightening will
affect the running of the model. Cylinder covers are fitted with gaskets and
valve chests with ’O’ rings . A little ‘bubbling’ of oil may sometimes occur
around these and is quite normal, however, steam leaking past the gasket
should be attended to. If ‘nipping up’ retaining screws does not stop a steam
leak, a service kit is available which includes replacement gaskets and seals
and full instructions for fitting. Valve chest screws on top of the cylinders are
accessed by removal of the dummy cylinder cover which simply clips round
the cylinder. Spring it gently out from the bottom and lift off the valve chest at
the top.
REGULATOR NOT SHUTTING (R/C models)
The steam regulator seating and seal can, after a period of time become worn
or compressed so that when the lever on the radio control is fully closed, the
locomotive still moves. To overcome this, a trimmer is fitted to the
transmitter. This is the small lever at the side of the main control lever and is
set at the factory to the top of its slot. As wear takes place in the regulator, it
can slowly be moved down the slot to compensate. When it reaches the
bottom, it is time to reset it to the top and adjust the linkage between the servo
and the regulator in the cab. If adjustment does not cure this problem, the
internal '0' ring may be damaged and requires replacement. Contact the
factory for further advice. Periodic oiling of the gland will help keep the
regulator working freely. Place a spot of motor oil between the gland nut and
the regulator arm and work the regulator a few times.
RADIO CONTROL
If the radio control gives problems, always check the batteries first and
replace if in doubt. AA size batteries are used, four in the tender and eight in
the transmitter. If problems occur whilst running the locomotive near other
r/c engines, check that yours is on a different frequency.
To allow a number of locomotives to operate at the same time in close
12

proximity, a range of crystals are available for different frequencies, which
can be purchased from any good model shop. Crystals operate in pairs, one in
the transmitter and one in the receiver. They are clearly marked with the
frequency and either TX or RX. When fitting, ensure that the one marked TX
is fitted to the transmitter and RX to the receiver. Two radio systems are
currently in use, 40MHz FM and 75MHz FM. ROUNDHOUSE now only use
75MHz FM sets for USA and CANADA. Ensure that the replacement crystals
are of the correct type.
It is common practice with radio controlled sets to attach a white marker or
label to the aerial with the frequency or band number clearly marked in black.
For further details of the r/c equipment, refer to the manufacturers literature
supplied.
GAS SYSTEM
William locomotives are fitted with our 'FG' type gas burner, which is set up
and fully tested at the factory.
This system is designed for use with Butane or Iso-Butane gas. Mixed gasses,
i.e. Butane with a proportion of Propane mixed in, are available, and may be
used if straight Butane is unavailable. These come in a variety of mixes
ranging from 90/10 to 60/40 with one of the most common being 70/30. The
figures refer to the proportions of the mix i.e. 70/30 contains 70% butane and
30% propane. If using mixed gasses, always choose the one with the largest
proportion of butane. The addition of propane slightly alters the gasses
properties. This can make the burner a little more difficult to light when cold
or after filling the gas tank. Always open the regulator very slowly when
lighting, and only just sufficient for ignition to take place. Opening too much
too soon may extinguish the flame until the burner reaches normal operating
temperature.
The tiny jet in these units can become blocked by small particles of dirt
making the burner difficult to light, burn weakly at normal operating
temperatures*, burn in the smokebox or fail completely. If any of these should
happen, clean out the jet as follows.
(* On very cold days, a burner may start off burning weakly due to the
temperature of the gas but should increase to its normal level as the engine
warms up. This is quite normal)
Carefully, disconnect the gas pipe from the jet block using a 2BA spanner.
Note when connecting or disconnecting the gas pipe and jet block, do not use
excessive force. Always hold the end of the gas burner near the air holes to
support it otherwise it is possible to cause damage by bending the body. 13

Slacken the screw retaining the jet block and slide it out to the rear. Remove
the jet from the jet block using a 4BA spanner. Wash out the jet in fast
evaporating thinner (Cellulose or similar). Blow through the jet from the
front, which should clear most blockages. Although the hole through the jet is
tiny, if you hold it up to the light you should be able to see quite clearly if it is
blocked or not. If in doubt, fit a new jet. A spare gas jet is included with the
toolkit. Do not use wire to clean the jet as this can damage the precision hole
and may upset the delicate balance of the gas system. Reassemble in the
reverse order, putting a small amount of PTFE tape round the thread of the jet.
Ensure all connections are tight. When re-positioning the jet block in the
burner, ensure that it is pushed in as far as it will go.
The gas regulator has a spindle ‘O’ ring housed inside the body which may
need lubrication from time to time if the control becomes ‘spongy’ in
operation, making precise gas control difficult.
As stated in the lighting instructions on page 8, the full range of adjustment
for normal burner operation is achieved within the first full rotation of the
regulator knob, and it should only be unscrewed more than this for
maintenance purposes and when the tank is empty, and their are no naked
lights nearby.
To lubricate it, remove the knurled knob which is retained by a 4BA socket
grub screw (.100” AF Allen key required) in the side.
Beneath the knob is a back-lash spring and white PTFE washer which will
slide off the spindle.
Unscrew the hexagon retaining nut then screw the spindle out of the body.
The ‘O’ ring can now be lubricated.
Replace the spindle followed by the retaining nut. Slide the white PTFE
washer and backlash spring over the spindle and replace the knob. Note that
the grub screw that holds the knob in place tightens into a groove near the end
of the spindle.
14

15
Gas Burner
1). Superheater Pipe. 2). Lubricator Pipe.
3). Gas Jet Block retaining screw. 4). Gas Jet.
5). Gas Jet Block. 6). Gas Pipe.
7). Gas Burner fixing screw. 8). Air Inlet Holes.

If your dealer is unable to help, you may contact the Factory directly:
ROUNDHOUSE ENGINEERING CO. LTD.
Units 6-9 Churchill Business Park. Churchill Road.
Wheatley. Doncaster. DN1 2TF. England
Telephone [phone] Fax [phone]
e-email [e-mail]
SERVICE AND PARTS
If' any problems arise with this model which are not covered in these
operating instructions or, spare parts are required, owners should first
contact their local dealer. Your ROUNDHOUSE dealer is;
www.roundhouse-eng.com
ONLINE
16
William, with Coal Load
