This manual contains basic information on how to use the INT-TSG2 keypad with factory
default settings. The functions available in the user menu of the keypad allow you to control
your alarm system, regardless of its configuration. In addition, the user screens can be
prepared by the installer for customization of the keypad functionality. The installer can
create new user screens and add widgets that you will use for day to day operations of the
alarm system. The installer may also personalize the look of the screen to better suit your
preferences in terms of widget, font and background colors. Pictures selected by you may be
used as the background image.
Ask the installer for instructions on how to use your individually configured keypad.
The instructions must include all the changes from the default settings. The installer should
also instruct you on how to operate the alarm system by using the INT-TSG2 keypad.
1. LED indicators
LED
Color
System status
yellow flashing – trouble or trouble memory
green
ON – all partitions supported by the keypad are armed
flashing – at least one partition is armed or exit delay
countdown is running
green
INTEGRA system
flashing
– the service mode is entered
VERSA system
ON – the service mode is entered and the service menu is
displayed
flashing – the service mode is entered but the service menu is
hidden or displayed in another keypad
red ON or flashing – alarm or alarm memory
Information about the armed status may be hidden after the time defined by the
installer has passed.
If the “Grade 2” (INTEGRA / VERSA) / “Grade 3” (INTEGRA Plus) option is enabled by
the installer:
−the LED indicates alarms only after the user has entered the code,
−flashing of the LED means that there is a trouble in the system, some zones
are bypassed, or that there was an alarm.
2. Using the touch screen
The touch screen displays information about the system status, while allowing you to operate
and program the alarm system, as well as control the home automation equipment.
In order to control the alarm system, you can use:
•user screens and additional screens created for you by the installer,
•user menu created by SATEL.

SATEL INT-TSG2 3
After 10 minutes of inactivity, the keypad screen can turn off (this setting is available in the
service menu).
Use the gestures described below.
Tap
Tap on an item on the screen.
Tap and hold
Tap on an item on the screen and hold for 3 seconds.
Swipe up / down
Tap the screen and slide your finger up or down to:
•swipe the screen up / down (move between the screensaver / user screen / user menu
home screen),
•scroll through a list.

4 INT-TSG2 SATEL
Swipe right / left
Tap the screen and slide your finger right or left to swipe the screen right / left (go to the
previous / next screen). When the screensaver is active, swipe right / left to start / end the
slide show.
The slide show is available when a memory card containing image files is installed in
the keypad.
Swipe right from the edge (return to the previous screen)
Tap the screen close to the left edge and slide your finger right to return to the previous
screen. This gesture is supported in the user menu and the service menu. You will not be
able to exit the service mode by using this gesture.
3. Screensaver
The screensaver is displayed:
•when you swipe down on the user screen,
•when you swipe right on the slide show,
•60 seconds after the last operation is performed on the screen (except when in the
service menu).
You will be logged out when the screensaver is displayed.

SATEL INT-TSG2 5
Fig. 1. Screensaver (keypad with factory default settings).
The screensaver on a keypad with factory default settings (Fig. 1) shows the date and time.
The installer can add to the screen additional widgets that will indicate the alarm system
status (see “Widgets” p. 7).
Tap the screen to view the user screen.
Swipe left to start the slide show.
3.1 Slide show
The keypad can run a slide show of images, if the installer installed in the keypad a memory
card on which the images had been saved.
Tap the screen to view the user screen.
Swipe right to view the screensaver.
3.2 Trigger the panic alarm
When the screensaver or slide show is displayed, tap the screen and hold for 3 seconds to
trigger the panic alarm. The installer defines whether the alarm triggered will be loud
(signaled by the alarm system) or silent (without signaling). The silent panic alarm is useful
when the control panel reports events to the monitoring station, but unauthorized persons
should not be aware of the alarm being triggered.
4. User screens
When the screensaver or slide show is displayed, tap the screen to go to the user home
screen. Only one user screen is available in the keypad with factory default settings.
The installer can add more user screens and set one of them as the user home screen,
i.e. one that is displayed first. Swipe left / right to go to another user screen (if more user
screens were added by the installer). Information on which user screen is currently displayed
is represented graphically on the bottom of the screen.

6 INT-TSG2 SATEL
Fig. 2. User home screen (keypad with factory default settings).
The user screen includes:
•status bar (see p. 7),
•widgets used to operate the alarm system, indicate the alarm system status, etc.
(see “Widgets” p. 7).
To run a function with a widget, you may be required to enter a code. If this is the case,
the keypad will be displayed (see p. 8). When you enter the code, the function will be run and
you will be logged in. If you are already logged in, you will not be required to enter your code
again when trying to run a function with a widget.
The following widgets are available on the user home screen in the keypad with factory
default settings.
tap to arm in mode “full”.
tap to:
•INTEGRA system: arm in mode “without interior”,
•VERSA system: arm in mode “day”.
tap to:
•INTEGRA system: arm in mode “without interior and without entry delay”,
•VERSA system: arm in mode “night”.
tap to disarm / clear alarm.
tap and hold for 3 seconds to trigger the panic alarm. The installer defines whether
the alarm triggered will be loud (signaled by the alarm system) or silent (without
signaling).
tap and hold for 3 seconds to trigger the fire alarm.
tap and hold for 3 seconds to trigger the medical (auxiliary) alarm.
tap to view the message.

SATEL INT-TSG2 7
Consult the installer about which additional widgets may help you to operate the alarm
system or control the home automation devices connected to the control panel.
Only the installer can create new user screens, add widgets to the screen, etc.
The installer can configure the keypad so that the access to the user screen is code-
protected (a keypad will open before the screen is displayed).
Two different background pictures may be applied to user screens.
5. Additional screens
Additional screens differ from the user screens only in that each of them can have a different
background picture. For this reason, the additional screens may be used to display site plans.
If pictures other than the ones offered by SATEL are to be displayed, the installer must save
them on a memory card and install the card in the keypad.
To display an additional screen, tap a link widget.
Fig. 3. Screen with a site plan (example).
6. Status bar
The status bar is displayed on the top of the user screen and the additional screen.
It includes:
•screen title (optionally, if added by the installer),
•time,
•the icon. If you are not logged in, tap the icon to log in (keypad will open – see p. 8).
If you are logged in, tap the icon to log out or go to the user menu.
7. Widgets
The following widgets may be displayed on the screen.
Text – the widget displays any text that was added by the installer or system element name.
Partition status – the widget displays the partition status represented by icons.
Zone status – the widget displays the zone status represented by either:
– icons selected by SATEL (indicator) – different statuses are displayed,
– text messages (text) – messages inform only about normal and violated states,
– icons selected by the installer (icon) – only normal and violated states are displayed.

8 INT-TSG2 SATEL
Output status – the widget displays the output status represented by either:
– icons selected by SATEL (indicator),
– text messages (text),
– icons selected by the installer (icon).
Temperature – the widget displays the temperature. Information about the temperature is
sourced from an ABAX 2 / ABAX wireless detector. The widget is not available in the
VERSA system.
Date/time – the widget displays the date and time in the format specified by the installer.
Switch – the icon for the widget is selected by the installer. Tap the widget to enable /
disable an output.
Rectangle – the widget displays a rectangle that can be translucent and have different
colors. As an additional graphic element it may be used e.g. to highlight a part of the
screen.
Macro – the icon for the widget is selected by the installer. Tap the widget to run a macro
command. The macro command is a sequence of actions to be performed by the control
panel. Macro commands are created by the installer.
PANIC/FIRE/MED. – the widget is used to trigger an alarm ( - panic alarm; - fire
alarm; - medical alarm).
Information – the widget is represented on the screen by the icon. Tap the widget to
view the message added by the installer.
Link – the icon for the widget is selected by the installer. Tap the widget to go to the
additional screen / return to the user screen from the additional screen.
8. On-screen keypad
The on-screen keypad is displayed when it is required to enter a code e.g. to access the user
menu. You may be required to enter the code to access the user screen or the additional
screen or to run a function with a widget.

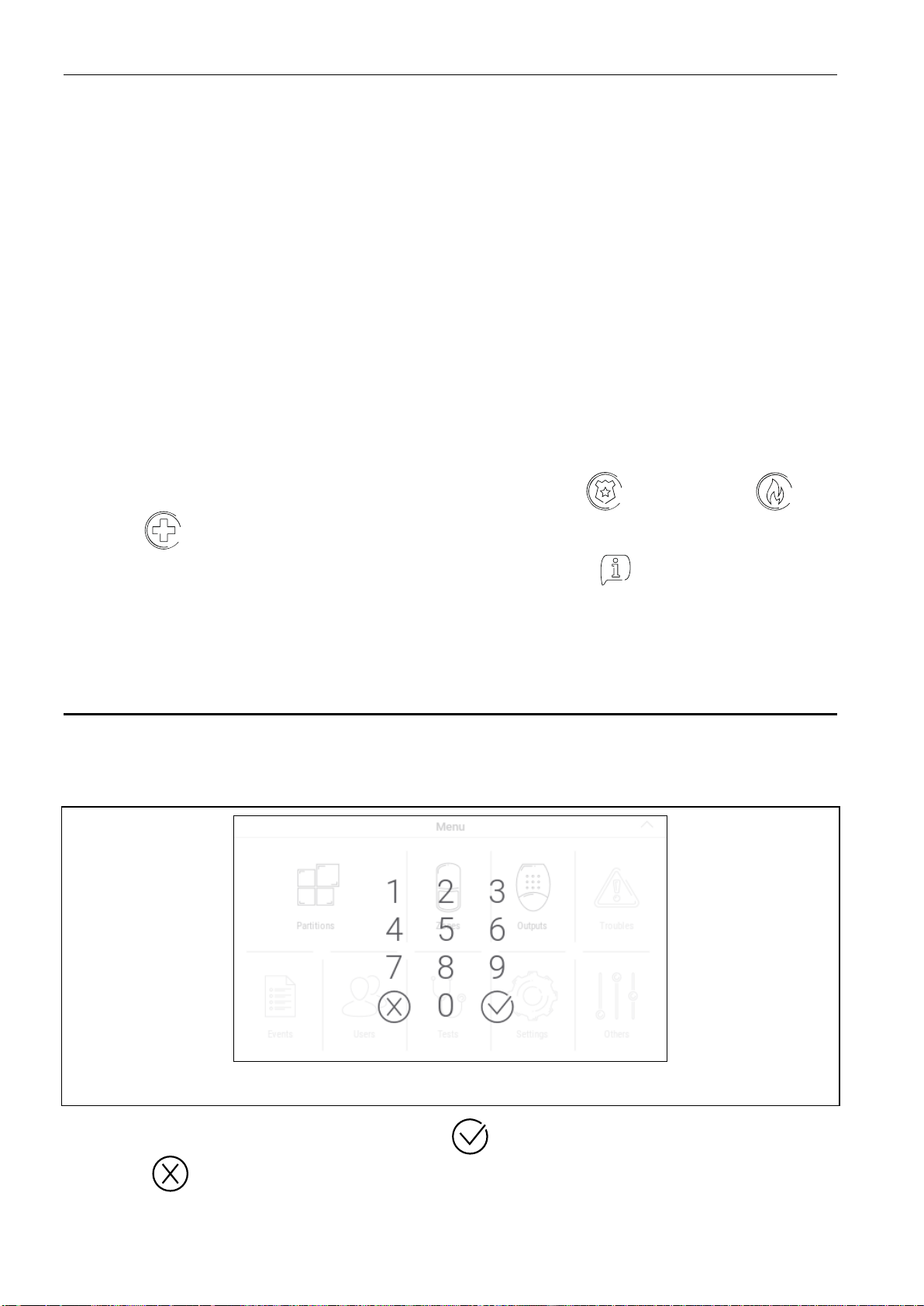

Fig. 4. On-screen keypad.
Enter the code using the number keys and tap . If you made a mistake when entering the
code, tap and re-enter the code (if you fail to enter the valid code within one minute,
it will be treated as if you entered an invalid code).

SATEL INT-TSG2 9
If you tap before you enter the code, the on-screen keypad will close and you will return
to the previous screen.
By default, the following codes are programmed in the INTEGRA series control panel:
service code: 12345
object 1 master (administrator) code 1: 1111
By default, the following codes are programmed in the VERSA series control panel:
service code: 12345
user 30 code: 1111
If there is an alarm in the system, it will be cleared after you enter the code.
9. User menu
Swipe up on the user screen / additional screen to go to the user menu. Since the access to
the user menu is code-protected, the keypad will open first. Enter the code. The menu will
open immediately if you have already logged in on the user screen.
9.1 User menu home screen
9.1.1 INTEGRA system
Fig. 5. User menu home screen in the INTEGRA system.
The following functions are available on the user menu home screen.
tap to go to the “Partitions” screen.
tap to go to the “Zones” screen.
tap to go to the “Outputs” screen.
tap to go to the “Troubles” screen. The function is available when a trouble is
signaled by the alarm system.
tap to go to the “Events” screen.

10 INT-TSG2 SATEL
tap to go to the “Users” screen.
tap to go to the “Tests” screen.
tap to go to the “Settings” screen.
tap to go to the “Others” screen.
If the icon is greyed out, the function is unavailable.
The icon is displayed in the top right corner of the screen. Tap it to exit the user menu.
9.1.2 VERSA system
Fig. 6. User menu home screen in the VERSA system.
The following functions are available on the user menu home screen.
tap to go to the “Partitions” screen.
tap to go to the “Zones” screen.
tap to go to the “Outputs” screen.
tap to go to the “Troubles” screen.
tap to go to the “Events” screen.
tap to open the terminal and access other user functions and service functions.
tap to go to the “Keypad” screen.
If the icon is greyed out, the function is unavailable.
The icon is displayed in the top right corner of the screen. Tap it to exit the user menu.

SATEL INT-TSG2 11
9.2 QWERTY keyboard
The QWERTY keyboard is used to enter text. It is displayed e.g. when you search for items
on certain screens.

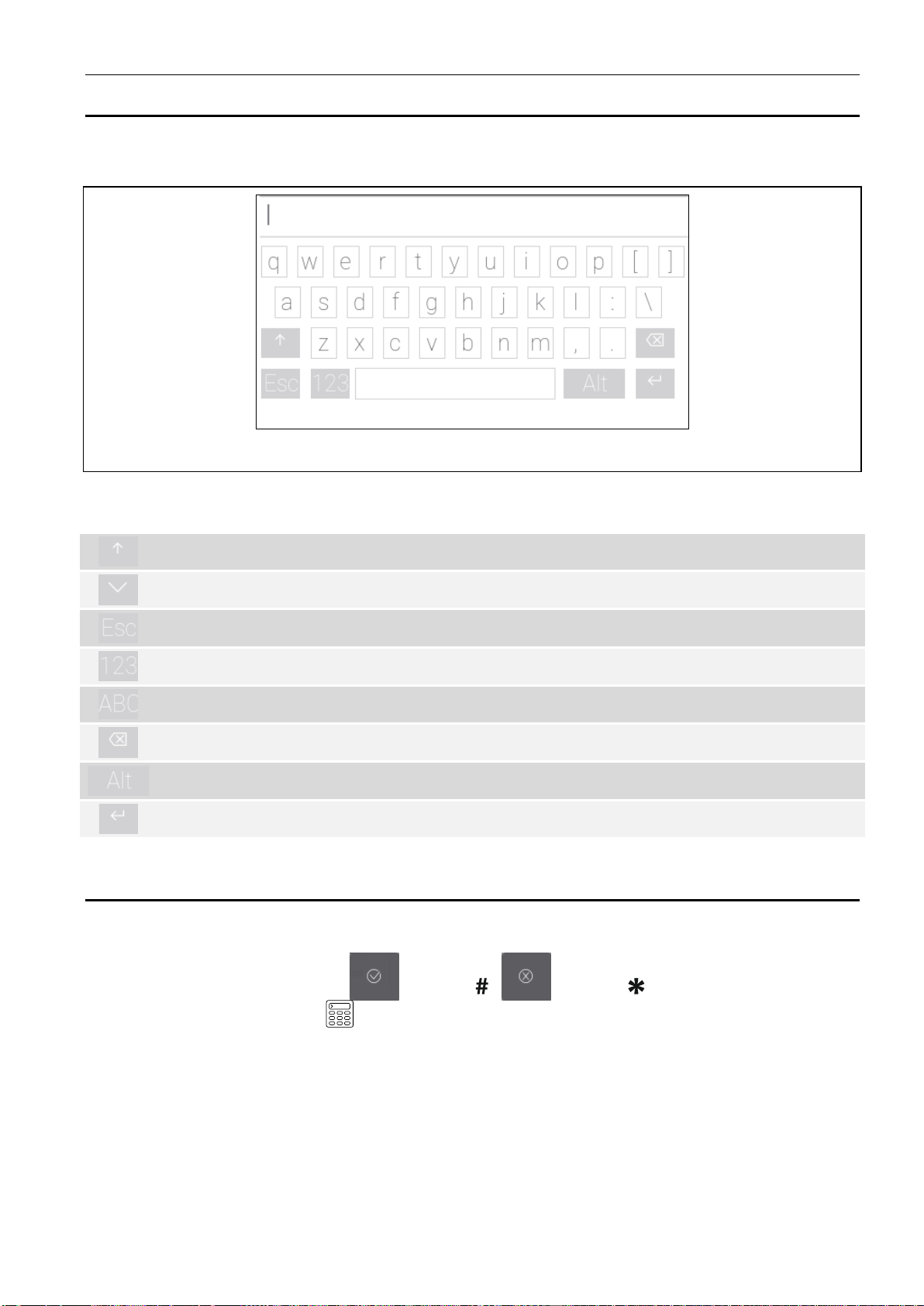

Fig. 7. QWERTY keyboard: letter keys mode.
The text entered is displayed in the field above the keys.
In addition to the typing keys, the following special keys are available.
tap to switch the keyboard to the uppercase mode.
tap to switch the keyboard to the lowercase mode.
tap to exit the QWERTY keyboard.
tap to switch the keyboard to the number keys mode.
tap to switch the keyboard to the letter keys mode.
tap to delete the character before the cursor.
tap to enable / disable the diacritical marks mode.
tap to confirm the text entered.
9.3 Terminal
The terminal allows you to enter data and configure the settings in the same way as from the
LCD keypad with text menu. In the INTEGRA system, it is displayed if you run certain user
functions or service functions ( acts as ; acts as ). In the VERSA system,
it is displayed if you tap the icon on the user menu home screen (it provides access to
user functions and service functions).

12 INT-TSG2 SATEL
Fig. 8. Terminal in the INTEGRA system.
Fig. 9. Terminal in the VERSA system.
