Sauder Edge Water Series User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-22
Français pg 23-25
Español pg 26-28
Lot # 374229 06/02/15
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Highboy TV Stand
Edge Water Collection | Model 409242
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
Your holder for all
things awesome.

Table of Contents Assembly Tools Required
3
4
5-22
23-25
26-28
29-30
31
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Use of a TV that is too heavy or large is hazardous. A TV that is too heavy will create a risk of a tip-over that can cause severe injury or
death. A TV that is too large for the available space might be accidentally pushed or bumped o the furniture, or subject to tip-over.
• Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly!
• This Sauder unit is designed for use with televisions weighing less than 70 pounds. Never use with a TV that weighs more.
• The size of the television, front-to-back and side-to-side, must fit within the space defined in the diagram.
• Never place the front edge of the TV past the front edge of the TV support shelf (or stop molding – if equipped)
• Never allow the sides of the TV to extend past the side edges of the TV support surface.
• If the TV has a CRT picture tube, the picture tube cone may extend past the rear of the support shelf.
• Be sure to apply the warning label as instructed in the last assembly step. The label provides important safety related information.
WARNING
!
70 lbs.
70 lbs.
17-1/2"
17-1/2"
44-1/2"
44-1/2"
409242 www.sauder.com/servicesPage 2
Short Screwdriver
(provided)

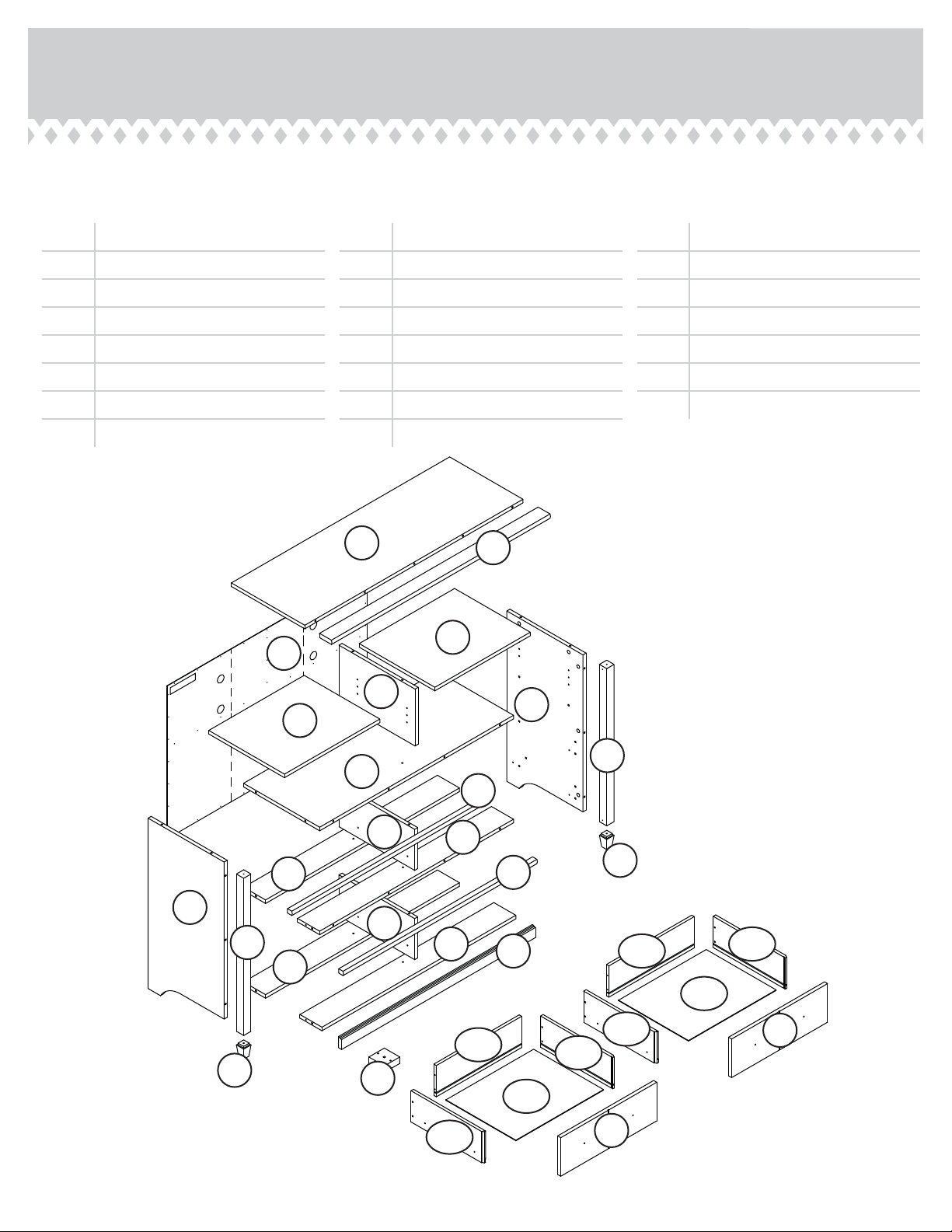

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C UPRIGHT (1)
D SHORT UPRIGHT (2)
D12 RIGHT DRAWER SIDE (4)
D13 LEFT DRAWER SIDE (4)
D72 DRAWER BACK (4)
D968 DRAWER BOTTOM (4)
E2 TOP (1)
F UPPER SHELF (1)
G BACK (1)
H BACK BRACE (2)
I FRONT BRACE (1)
J BOTTOM BRACE (1)
K EXTENSION BLOCK (1)
L ADJUSTABLE SHELF (2)
M3 LEG (2)
N SKIRT (1)
O2 LEFT DRAWER FRONT (2)
P2 RIGHT DRAWER FRONT (2)
U SHELF MOLDING (2)
V FOOT (2)
RR STOP MOLDING (1)
409242www.sauder.com/services Page 3
A
B
C
D
E2
F
G
H
I
J
K
L
M3
N
O2
P2
D72 D12
D13
D968
U
V
H
M3
V
D72 D12
D13
D968
U
L
D
RR

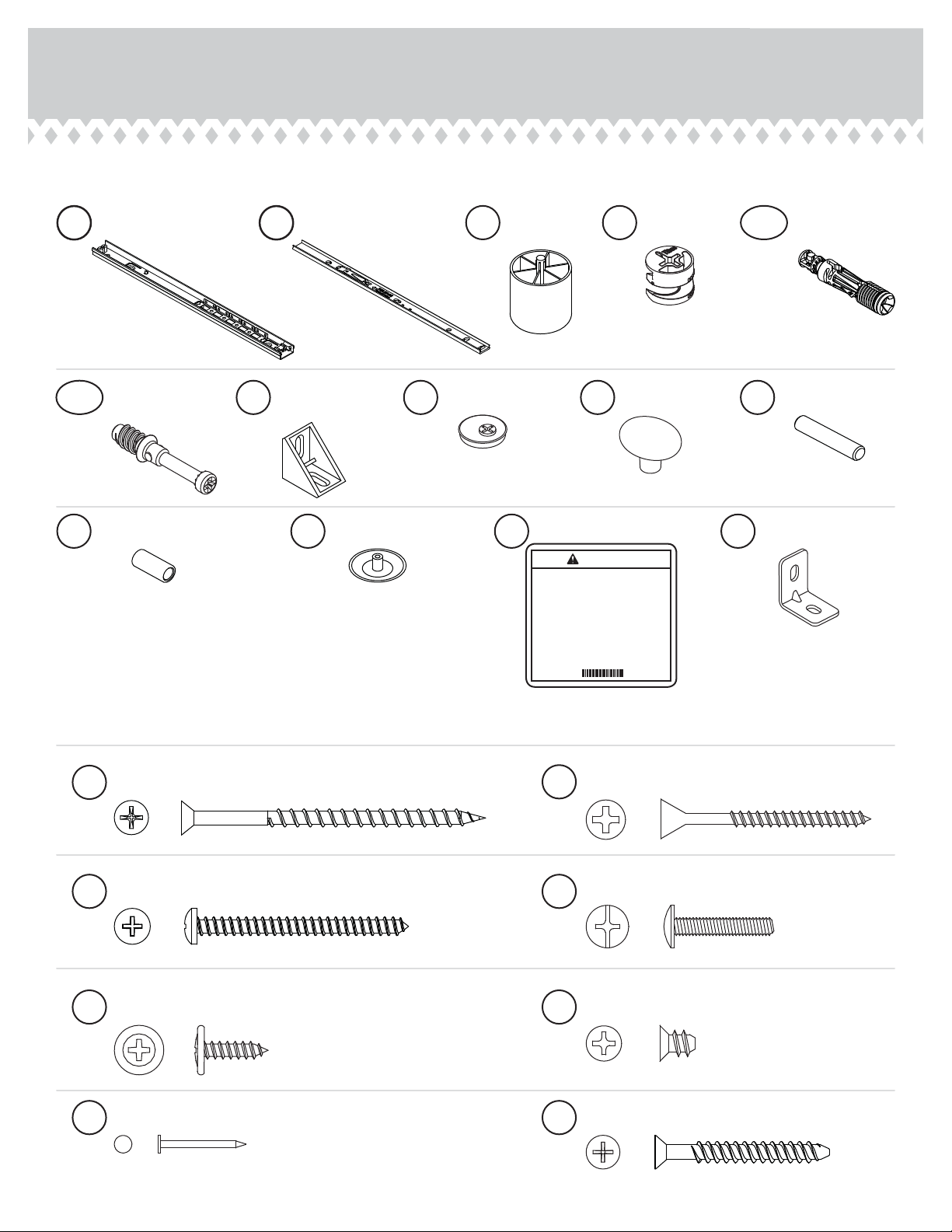

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
409242 www.sauder.com/servicesPage 4
(EXTENSION SET SHOWN SEPARATED)
EXTENSION RAIL - 8
WEXTENSION SLIDE - 8 XPLASTIC
FOOT - 1
YHIDDEN
CAM - 41
Z2 CAM
DOWEL - 30
AA2
CAM
SCREW - 11
BB2 ANGLE
BRACKET - 5
CC DD SLIDE CAM - 8 KNOB - 8
FF METAL PIN - 16
GG
RUBBER SLEEVE - 8
HH CAM COVER - 8 II
BLACK 1-7/8" FLAT HEAD SCREW - 6
LL
BLACK 7/8" MACHINE SCREW - 8
NN
BLACK 9/16" LARGE HEAD SCREW - 14
OO PP GOLD 5/16" FLAT HEAD SCREW - 32
NAIL - 47
QQ
BLACK 2-3/4" FLAT HEAD SCREW - 2
KK
BLACK 1-7/8" PAN HEAD SCREW - 2
MM
(Refer to Step 17 for proper
location and application)
WARNING LABEL - 1
JJ
WARNING
Never use this furniture with a TV that is too
large or too heavy. Severe injury or death
can occur.The TV and furniture will be
unstable and may tip.
-The TV must less than 70 lbs.
-The base of the TV must be able to sit
completely on this shelf.
-Refer to instruction book for complete
safety information.
Note: This is a permanent label. Do not try
to remove. Surface will be damaged.
02/ 02 269224
30S BLACK 1-9/16" FLAT HEAD SCREW - 16
METAL BRACKET - 2
4G

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty carton to avoid
scratching your unit or the floor.

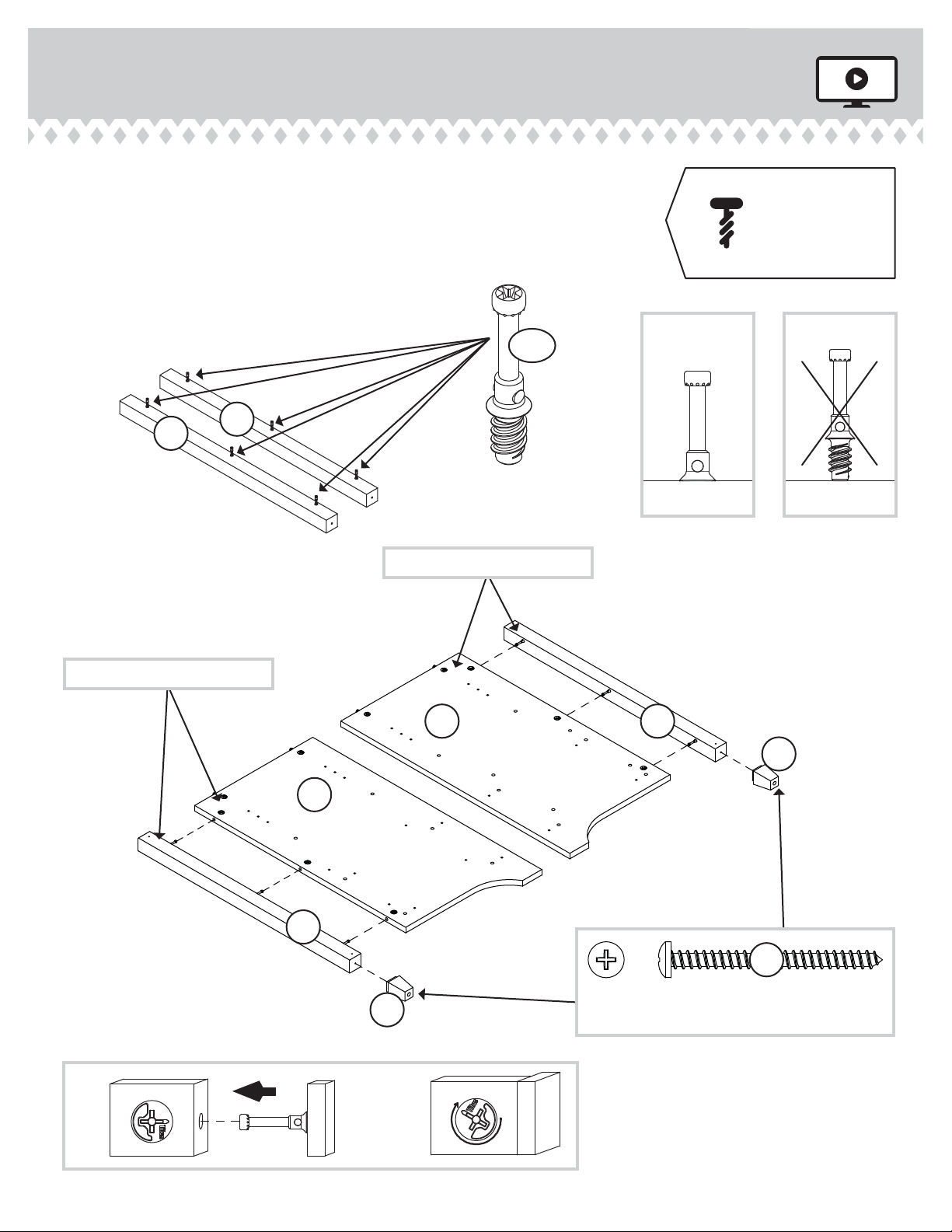

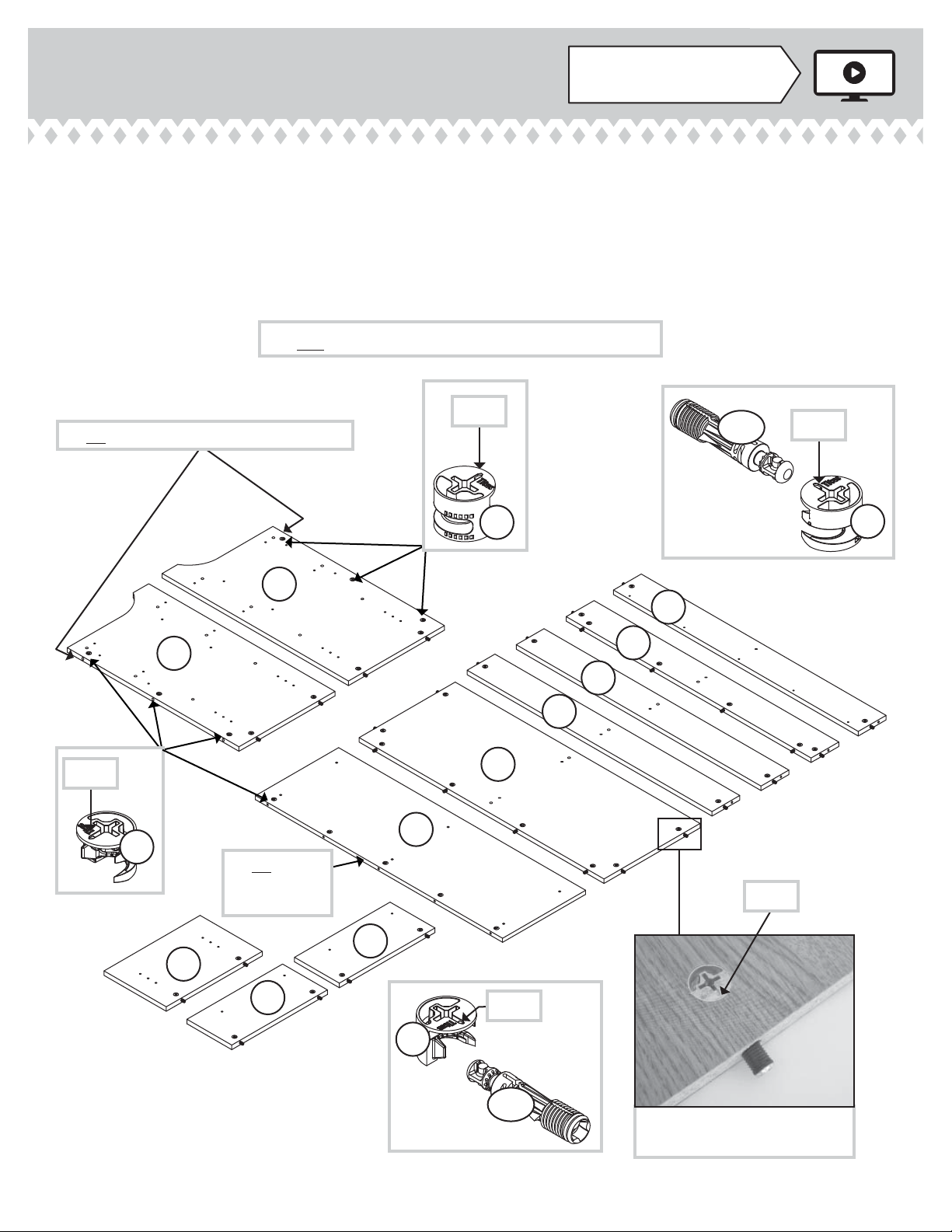

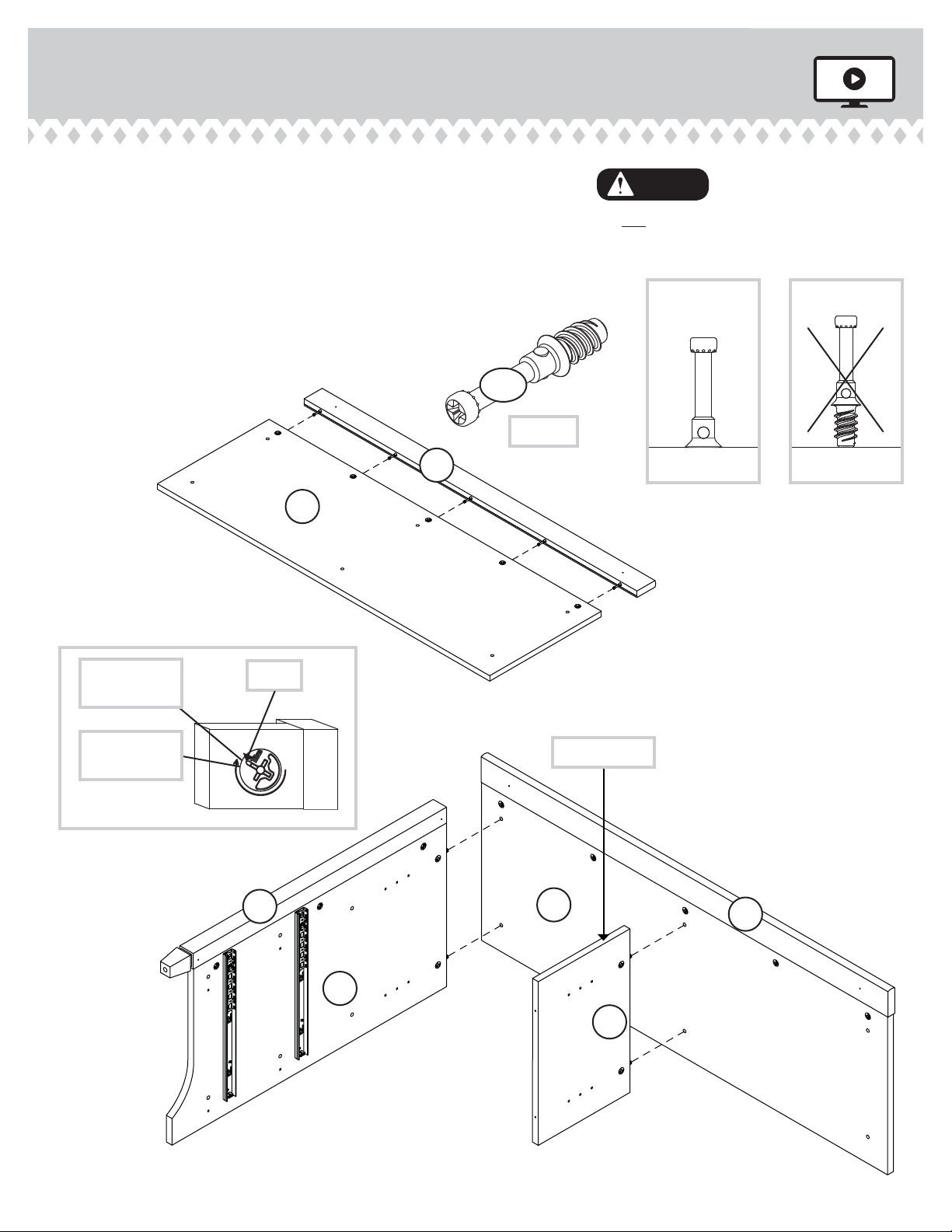

å Push forty-one HIDDEN CAMS (Z2) into the ENDS (A and B),
UPRIGHTS (C and D), TOP (E2), UPPER SHELF (F), and BRACES (H, I,
and J). Then, insert the metal end of thirty CAM DOWELS (AA2) into
the HIDDEN CAMS.
409242www.sauder.com/services Page 5
Arrow
Z2
Arrow
Z2
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Do not tighten the HIDDEN CAMS in this step.
Do not insert CAM DOWELS into these edges.
AA2
AA2
(41 used)
(30 used)
A
B
C
D
F
H
I
J
H
D
Z2
Arrow
E2
Z2
Arrow
Do not insert
CAM DOWELS
into this part.

Step 2
å Turn six CAM SCREWS (BB2) into the LEGS (M3).
å Fasten the LEGS (M3) to the ENDS (A and B). Tighten six
HIDDEN CAMS.
å Fasten the FEET (V) to the LEGS (M3). Use two BLACK
1-7/8" PAN HEAD SCREWS (MM).
409242 www.sauder.com/servicesPage 6
12
BB2
These surfaces should be even.
These surfaces should be even.
A
B
M3
V
M3
V
M3 M3
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
BLACK 1-7/8" PAN HEAD SCREW
(2 used in this step)
MM
Remember:
Righty tighty.
Lefty loosey.

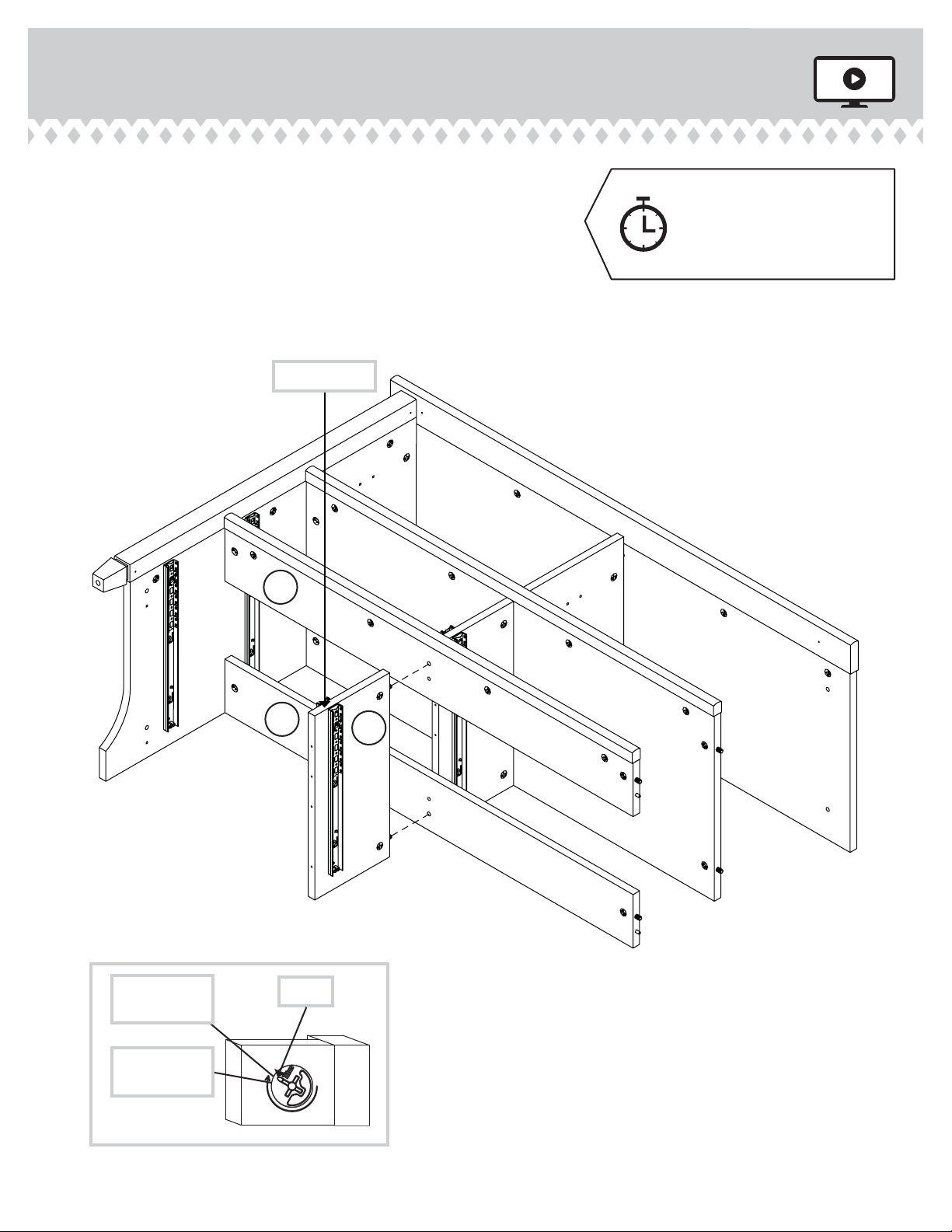

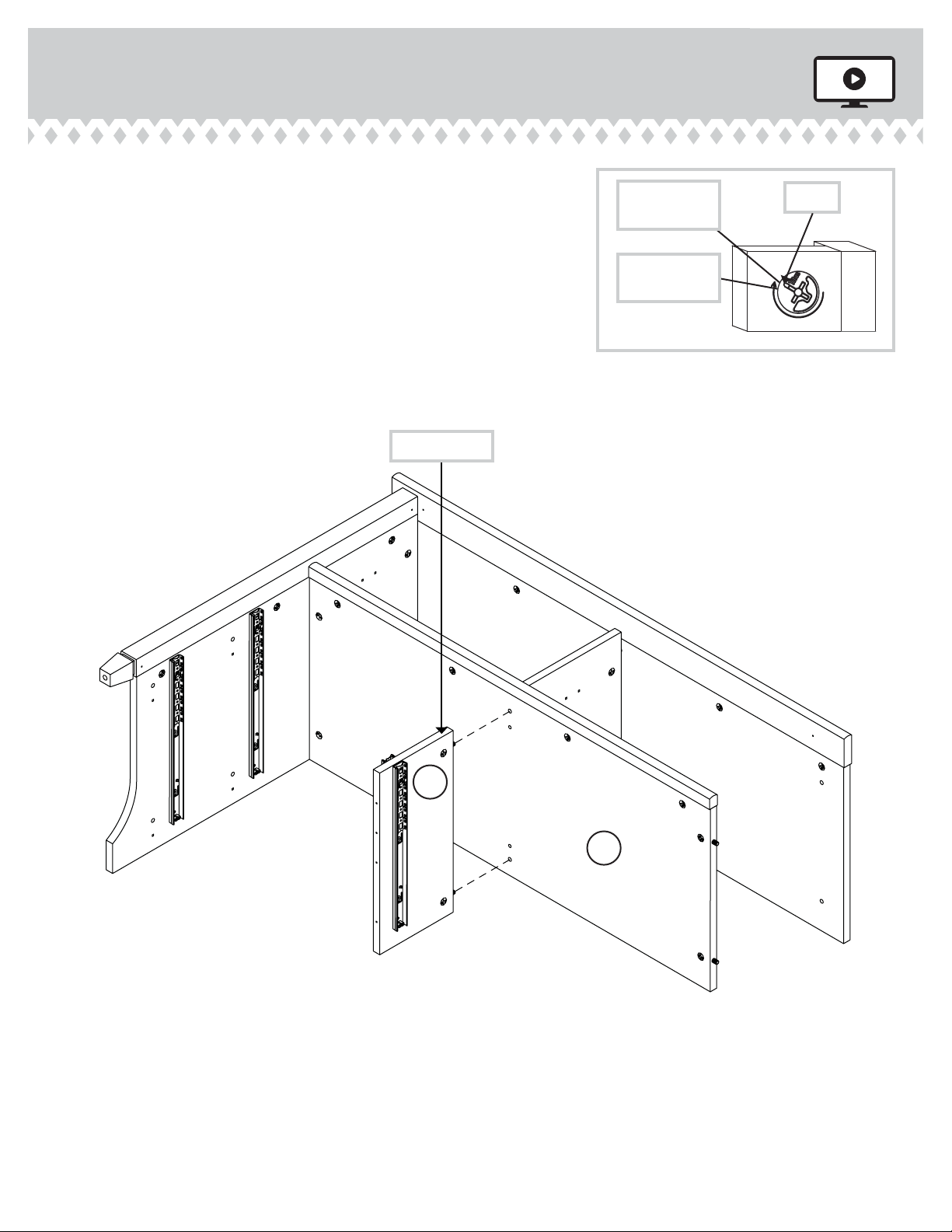

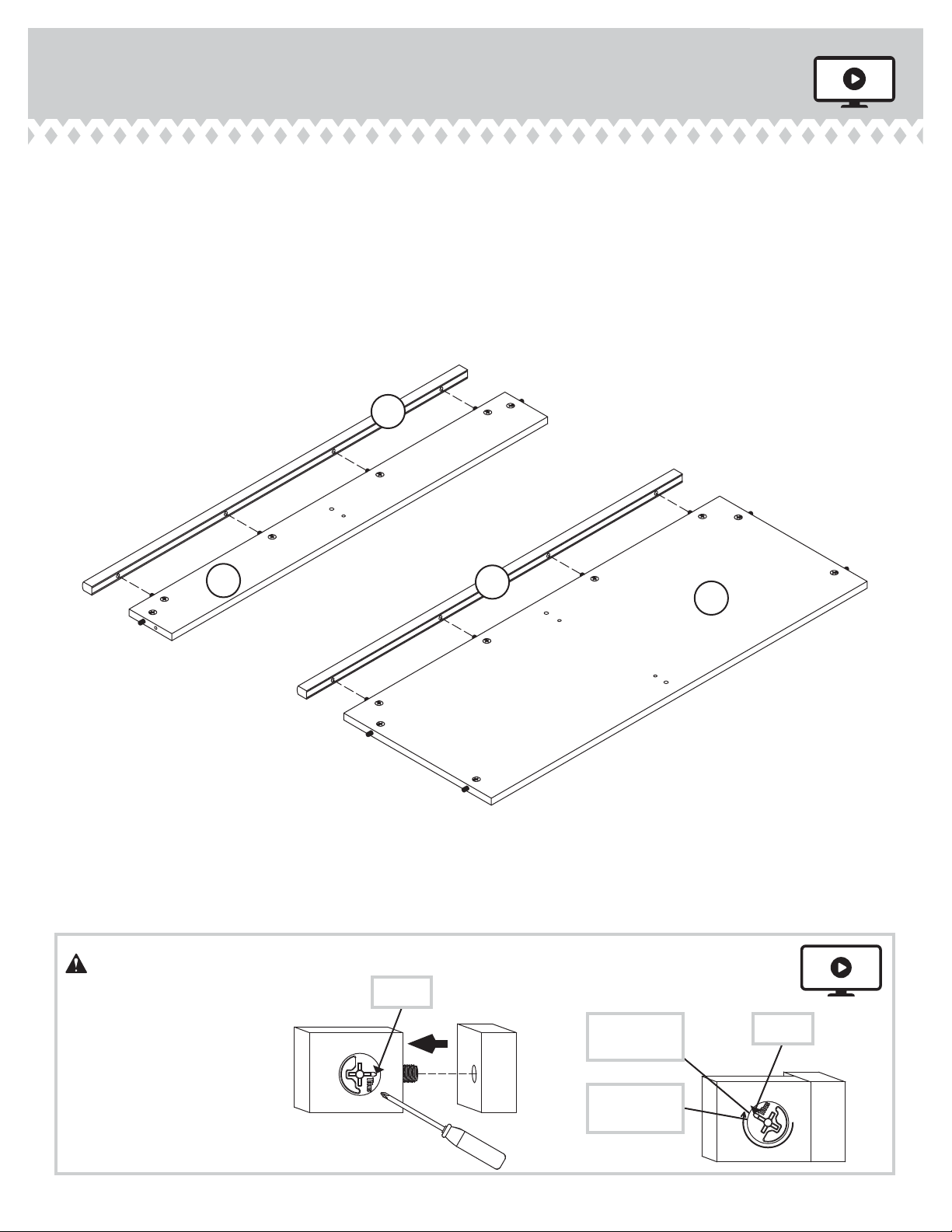

å Separate the EXTENSION SLIDES (X) from the EXTENSION RAILS (W)
as shown in the upper diagram below. Be prepared, the parts are greasy.
å Fasten the EXTENSION RAILS (W) to the ENDS (A and B) and SHORT
UPRIGHTS (D). Use sixteen GOLD 5/16” FLAT HEAD SCREWS (PP).

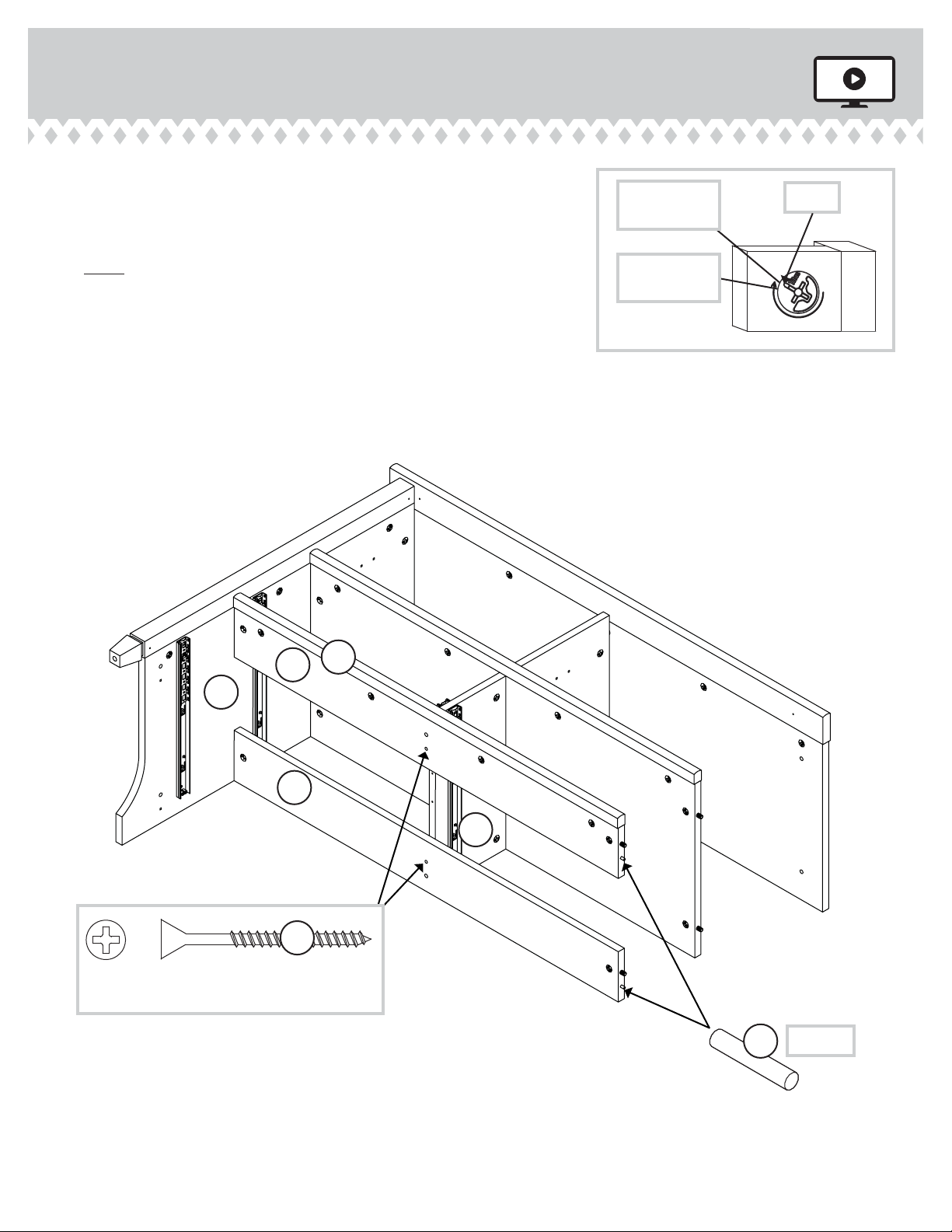

å NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in
the enlarged diagram. Then, slide the inner cartridge of the EXTENSION
RAIL out to find the other hole that lines up with the hole in the END. Turn
a SCREW into this hole.
Step 3
409242www.sauder.com/services Page 7
WX
A
B
Surface with
HIDDEN CAMS
Surface with
HIDDEN CAMS
W
W
W
W
W
W
W
W
D
D
M3
M3
Finished edge
Surface without
HIDDEN CAMS
Surface with
HIDDEN CAMS
Open end
Open end
Open end
Open end
Finished edge
Open end
Push the black lever in and pull the SLIDE from the RAIL.
GOLD 5/16" FLAT HEAD SCREW
(16 used in this step)
PP
Hole

Step 4
å Fasten the SHELF MOLDINGS (U) to the UPPER SHELF (F)
and FRONT BRACE (I). Tighten eight HIDDEN CAMS.
409242 www.sauder.com/servicesPage 8
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
F
I
U
U
Surface with HIDDEN CAMS
Surface with HIDDEN CAMS

å Turn five CAM SCREWS (BB2) into the STOP MOLDING (RR).
å Fasten the TOP (E2) to the STOP MOLDING (RR). Tighten five
HIDDEN CAMS.
å Fasten the LEFT END (B) and UPRIGHT (C) to the TOP (E2).
Tighten four HIDDEN CAMS.
Step 5
409242www.sauder.com/services Page 9
B
C
E2
Surface with
HIDDEN CAMS
M3
Surface
with
HIDDEN
CAMS
Finished edge
E2
RR
Surface with HIDDEN CAMS
Surface with holes
Surface with HIDDEN CAMS
RR
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
BB2
(5 used)
Arrow
Minimum
190 degrees
Maximum
210 degrees

Step 6
å Fasten the UPPER SHELF (F) to the LEFT END (B).
Tighten two HIDDEN CAMS.
å Fasten the UPPER SHELF (F) to the UPRIGHT (C). Use
two BLACK 1-7/8" FLAT HEAD SCREWS (LL).
409242 www.sauder.com/servicesPage 10
Arrow
Minimum
190 degrees
Maximum
210 degrees
B
C
F
U
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
LL
Surface with HIDDEN CAMS

å Fasten a SHORT UPRIGHT (D) to the UPPER SHELF (F).
Tighten two HIDDEN CAMS.
Step 7
409242www.sauder.com/services Page 11
Arrow
Minimum
190 degrees
Maximum
210 degrees
Finished edge
Surface
with
HIDDEN
CAMS
D
F

Step 8

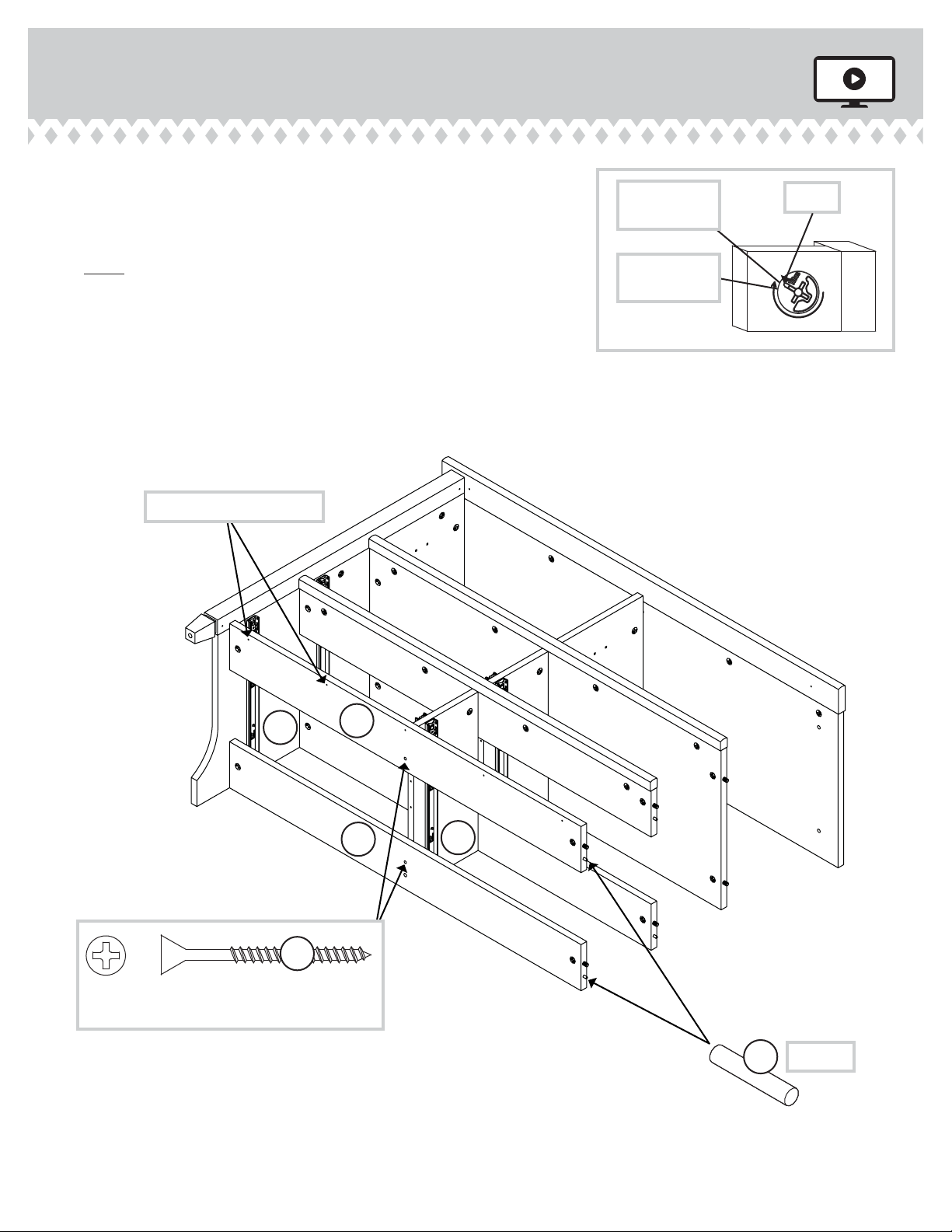

å Insert four METAL PINS (GG) into the BRACES (H and I).
å Fasten the BRACES (H and I) to the LEFT END (B).
Tighten two HIDDEN CAMS.
å NOTE: Be sure the METAL PINS in the BRACES insert into
the holes in the LEFT END.
å Fasten the BRACES (H and I) to the SHORT UPRIGHT (D).
Use two BLACK 1-7/8" FLAT HEAD SCREWS (LL).
409242 www.sauder.com/servicesPage 12
Arrow
Minimum
190 degrees
Maximum
210 degrees
B
IU
H
D
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
LL
GG (4 used)
Surface with HIDDEN CAMS
Surface with HIDDEN CAMS

å Fasten the other SHORT UPRIGHT (D) to the BRACES (H and I).
Tighten two HIDDEN CAMS.
Step 9
409242www.sauder.com/services Page 13
Arrow
Minimum
190 degrees
Maximum
210 degrees
Finished edge
Surface
with
HIDDEN
CAMS
D
I
H
Don't worry. It isn't
Rome. This can be built
in a day.

Step 10
å Insert four METAL PINS (GG) into the BRACES (H and J).
å Fasten the BRACES (H and J) to the LEFT END (B). Tighten
two HIDDEN CAMS.
å NOTE: Be sure the METAL PINS in the BRACES insert into
the holes in the LEFT END.
å Fasten the BRACES (H and J) to the SHORT UPRIGHT (D).
Use two BLACK 1-7/8" FLAT HEAD SCREWS (LL).
409242 www.sauder.com/servicesPage 14
Arrow
Minimum
190 degrees
Maximum
210 degrees
BJ
HD
GG (4 used)
Surface with HIDDEN CAMS
Surface with HIDDEN CAMS
BLACK 1-7/8" FLAT HEAD SCREW
(2 used in this step)
LL
These holes must be here.

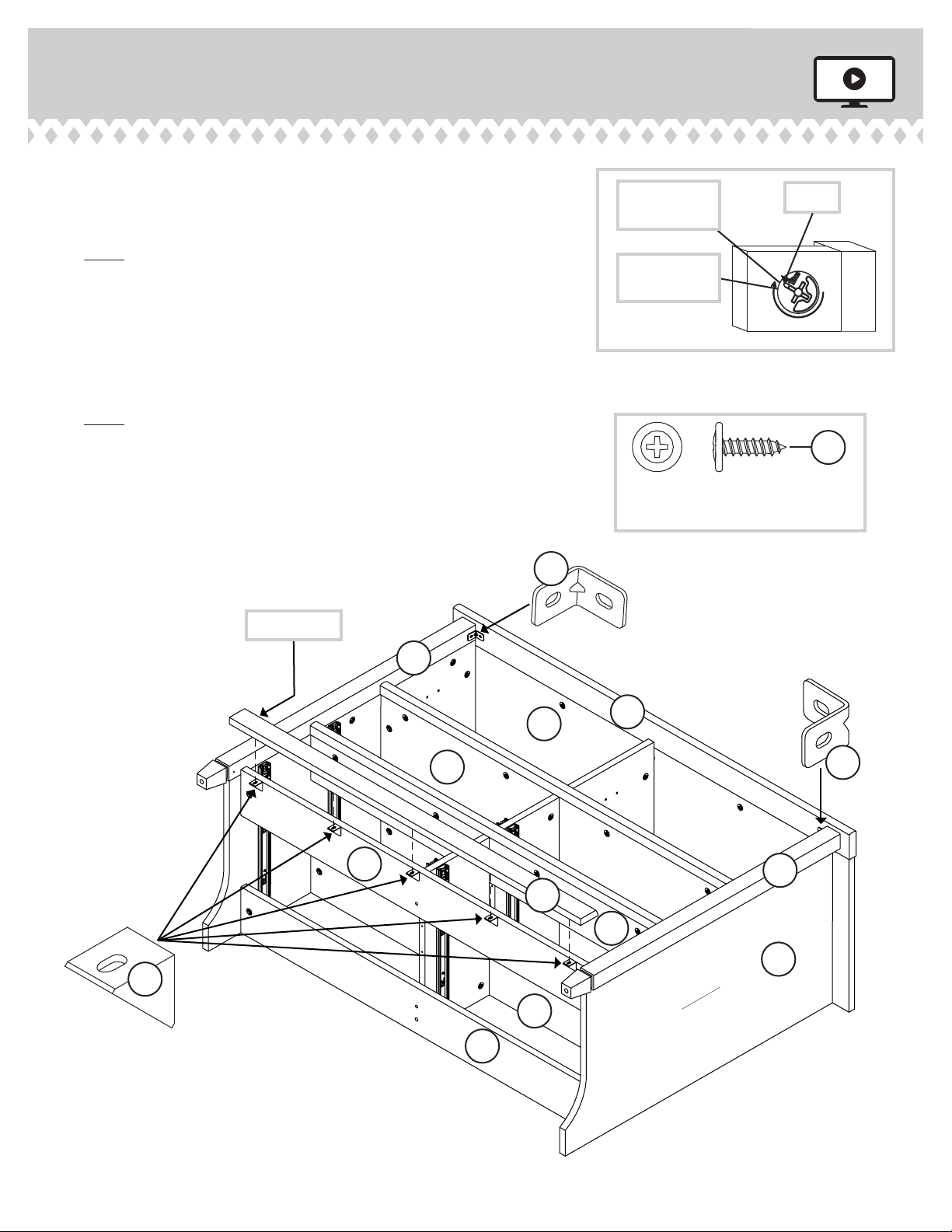

å Fasten the RIGHT END (A) to the TOP (E2), UPPER SHELF (F) and
BRACES (H, I, and J). Tighten eight HIDDEN CAMS. Use the provided
SHORT SCREWDRIVER.
å NOTE: Be sure the METAL PINS in the BRACES insert into the holes
in the RIGHT END.
å Fasten two METAL BRACKETS (4G) to the LEGS (M3) and STOP
MOLDING (RR). Use four BLACK 9/16" LARGE HEAD SCREWS (OO).
å Fasten five ANGLE BRACKETS (CC) to the BOTTOM BRACE (J). Use
five BLACK 9/16" LARGE HEAD SCREWS (OO).
å NOTE: Be sure the edges of the ANGLE BRACKETS are even with
the edge of the BRACE.
å Fasten the SKIRT (N) to the BOTTOM BRACE (J). Use five BLACK
9/16" LARGE HEAD SCREWS (OO).
Step 11
409242www.sauder.com/services Page 15
Arrow
Minimum
190 degrees
Maximum
210 degrees
A
E2
F
H
I
JM3
N
H
Surface without
HIDDEN CAMS
CC
BLACK 9/16" LARGE HEAD SCREW
(14 used for the BRACKETS)
OO
Angled edge
RR
M3
4G
4G

Step 12

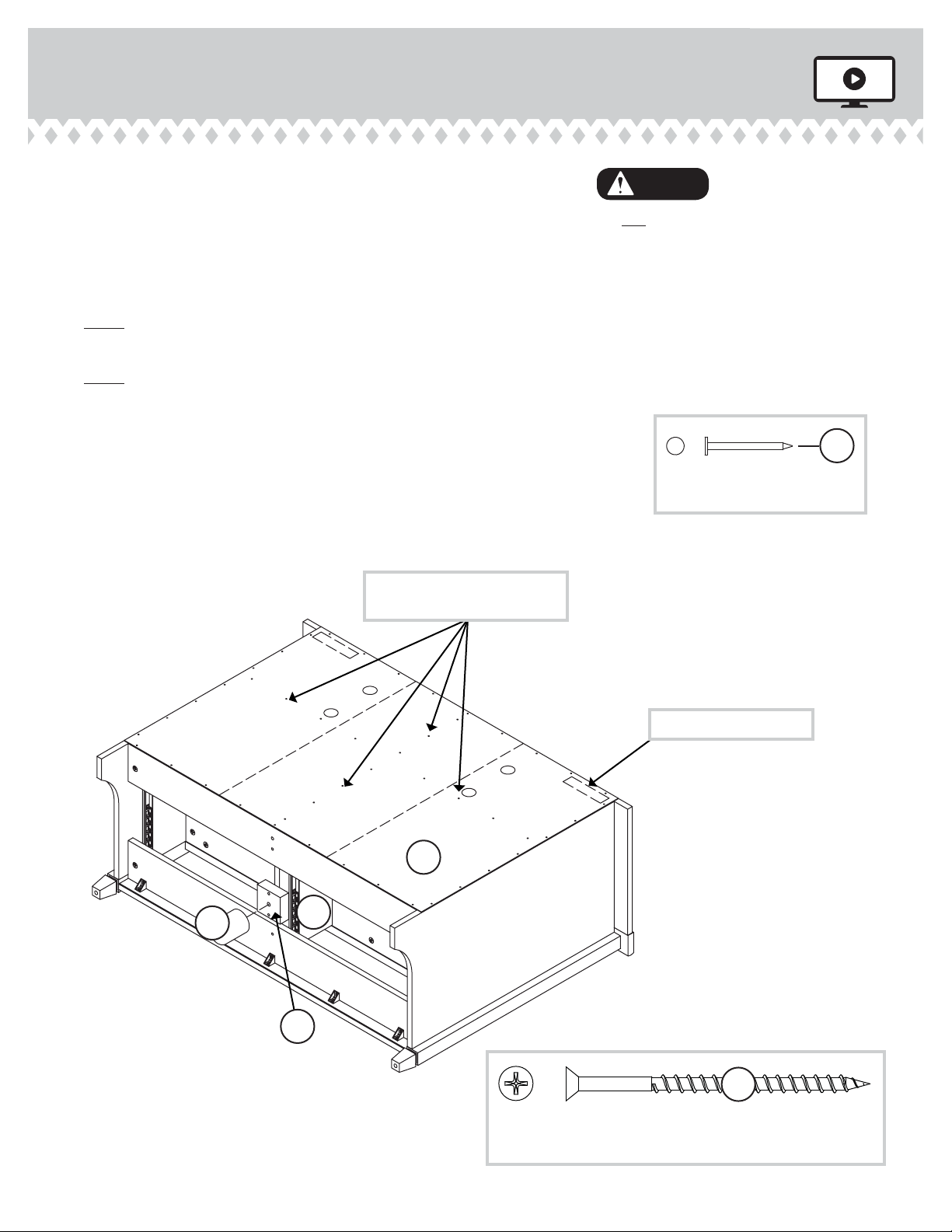

å Carefully turn your unit over onto its front edges. Unfold the BACK (G)
and lay it over your unit.
å Make equal margins along all four edges of the BACK (G). Push on
opposite corners of your unit if needed to make it "square".
å Fasten the BACK (G) to your unit using the NAILS (QQ).
å NOTE: Be sure to tap NAILS into the holes that line up over the UPPER
SHELF (F) and UPRIGHTS (C and D).
å NOTE: Perforations have been provided for access through the BACK.
Carefully cut out the holes needed.
å Fasten the EXTENSION BLOCK (K) to the SHORT UPRIGHT (D). Use two
BLACK 2-3/4" FLAT HEAD SCREWS (KK).
å Push the PLASTIC FOOT (Y) into the hole in the EXTENSION BLOCK (K).
409242 www.sauder.com/servicesPage 16
Unfinished
surface
NAIL
(47 used for the BACK)
QQ
These holes must line up over
the SHELF and UPRIGHTS.
G
D
Y
K
BLACK 2-3/4" FLAT HEAD SCREW
(2 used for the EXTENSION BLOCK)
KK
Cut-out (used for lifting)
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution

Step 13
409242www.sauder.com/services Page 17
VIEW THE T-LOCK BOX VIDEO
å Fasten the DRAWER BACK (D72) to the DRAWER SIDES (D12
and D13). Use four BLACK 1-9/16" FLAT HEAD SCREWS (30S).
å Repeat this step for the remaining drawers.
12
3
å Insert the DRAWER SIDES (D12 and D13) at an angle into
the slot at each end of the LEFT DRAWER FRONT (O2).
å Slide the DRAWER BOTTOM (D968) into the grooves
in the DRAWER SIDES (D12 and D13) and LEFT
DRAWER FRONT (O2).
The tabs should insert freely
into the slots. Gently tilt the
DRAWER SIDES side to side
until the tabs slip into the slots.
Groove
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
D12
D13
D968
D968
D12
D13
D72
D13
O2
O2
Unfinished
surface
With the palm of your hand,
tap the DRAWER BOTTOM
down into the groove.
D12
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
Start each screw a few turns before
completely tightening any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(16 used in this step)
30S

å Insert the SLIDE CAMS (DD) into the large holes in the
DRAWER SIDES (D12 and D13).
å Fasten the EXTENSION SLIDES (X) to the DRAWER SIDES (D12
and D13). Use four GOLD 5/16" FLAT HEAD SCREWS (PP)
through holes #1 and #3.
å NOTE: The screw head in the CAM must be visible through the
slotted hole in the SLIDE.
å Repeat this step for the other drawers.
Step 14
409242 www.sauder.com/servicesPage 18
Screw head - turn CAM to line up holes in
the SLIDES with holes in DRAWER SIDES
1
2
3
1
2
3
DD
DD
Open end
Open end
GOLD 5/16" FLAT HEAD SCREW
(16 used in this step)
PP
X
X
(8 used)
D12
D13

Step 15
409242www.sauder.com/services Page 19
BLACK 7/8" MACHINE SCREW
(8 used in this step)
NN
O2
FF

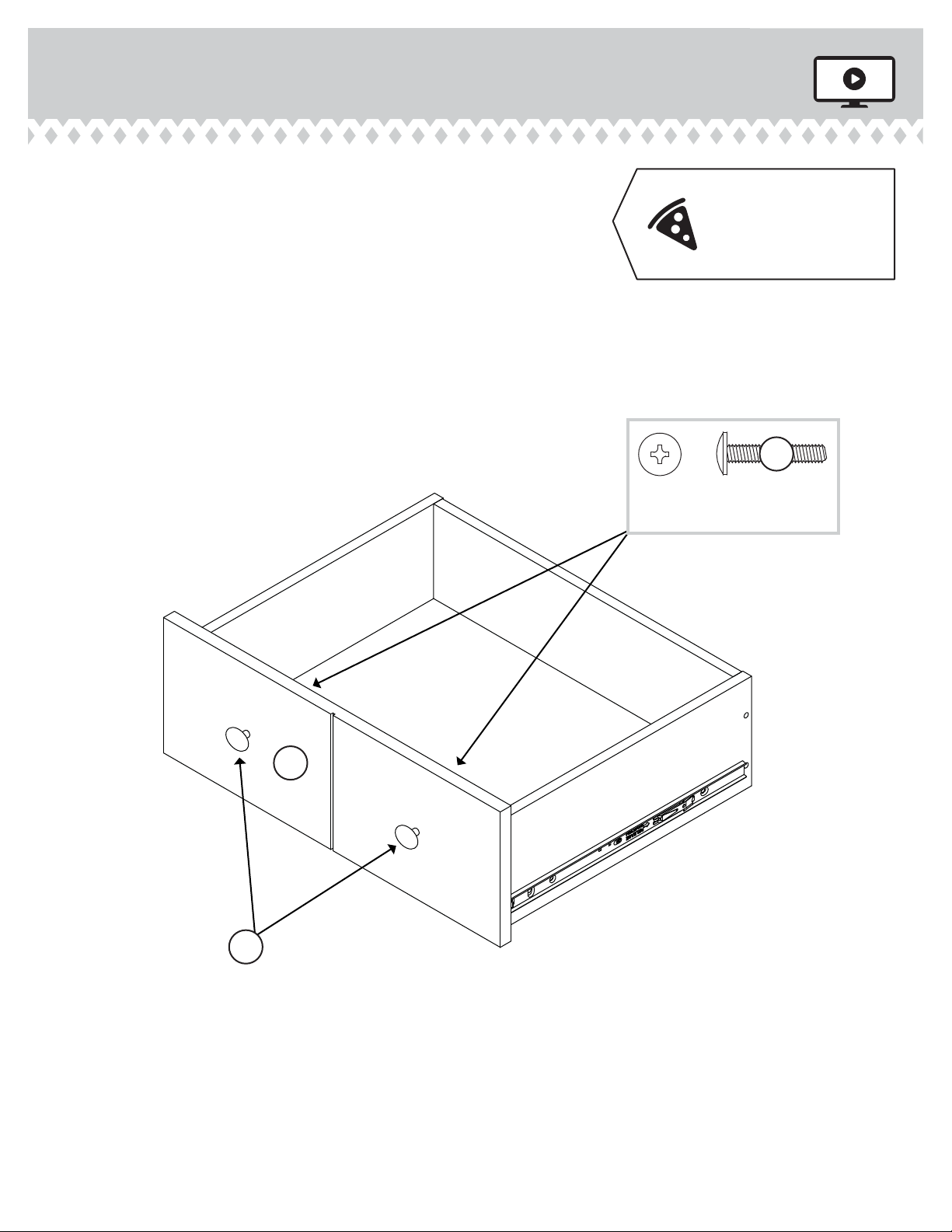

å Fasten two KNOBS (FF) to the LEFT DRAWER FRONT (O2).
Use two BLACK 7/8" MACHINE SCREWS (NN).
å Repeat this step for the other drawers.
If you're doing this to
help a friend, don't
leave without a bite.

Step 16
å Carefully stand your unit upright.
å Push the RUBBER SLEEVES (HH) over the METAL PINS (GG). Insert the METAL PINS into the hole locations of your choice
in the ENDS (A and B) and UPRIGHT (C). Set the ADJUSTABLE SHELVES (L) onto the METAL PINS.
å NOTE: Before inserting a drawer, be sure the INNER CARTRIDGE in the EXTENSION RAIL on your unit is all the way
forward. The INNER CARTRIDGE should click into place against the BLACK TAB.
å To insert a drawer into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit
and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is all the way in, then
it will slide in and out easier.
409242 www.sauder.com/servicesPage 20
O2
O2 P2
P2
L
CL
A
HH
GG
B
(8 used)
Extension Rail
Black tab
Click the inner cartridge into place against the black tab.
Front
Inner cartridge
