Sega SEGA-RaceTV User manual

OWNER'S MANUAL
IMPORTANT
• Before using this product, read this manual carefully to understand the
contents herein stated.
• After reading this manual, be sure to keep it near the product or in a
convenient place for easy reference when necessary.
OWNER'S MANUALSEGA-RaceTV 420-7108-01UK
AMUSEMENTS EUROPE LTD
Block C, 42 Barwell Business Park, Chessington, SURREY. KT9 2NY. United Kingdom.
TEL: [phone]. FAX: [phone]
© SEGA
All manufacturers, cars, names, brands and associated imagery featured in this game are trademarks and/or
copyrighted materials of their respective owners. All rights reserved.
420-7108-01UK
1ST PRINTING

TABLE OF CONTENTS
i
TABLE OF CONTENTS
 
BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING:
TABLE OF CONTENTS ....................................................................................... i
INTRODUCTION ................................................................................................ iv
1HANDLING PRECAUTIONS ......................................................................... 1
2PRECAUTIONS REGARDING INSTALLATION LOCATION........................ 5
2-1 LIMITATIONS OF USAGE ................................................................................................5
2-2 OPERATION AREA ..........................................................................................................6
3PRECAUTIONS REGARDING PRODUCT OPERATION ............................. 7
4PART DESCRIPTIONS................................................................................ 11
5ACCESSORIES ........................................................................................... 12
6ASSSEMBLY AND INSTALLATION............................................................ 14
6-1 INSTALLATION AND SECURING IN PLACE................................................................16
6-1-2 INSTALLATION OF THE AC COVERS.......................................................................17
6-1-3 ASSEMBLE FRONT DESIGN PLATE ........................................................................18
6-1-4 SECURING IN POSITION ...........................................................................................19
6-2 ATTACHING THE DVD DRIVE AND KEY CHIP ............................................................20
6-3 CONNECTING POWER AND GROUND........................................................................22
6-4 TURNING THE POWER ON...........................................................................................24
6-5 CHECKING ASSEMBLY.................................................................................................30
7PRECAUTIONS WHEN MOVING THE MACHINE...................................... 33
8GAME DESCRIPTION ................................................................................. 35
8-1 GAME OVERVIEW .........................................................................................................35
8-2 GAME FLOW..................................................................................................................37
8-3 MODE OVERVIEW .........................................................................................................40
8-3-1 MULTI PLAYER GAME .........................................................................................40
8-3-2 SINGLE PLAYER GAME.......................................................................................40
8-4 PASSWORDS.................................................................................................................41
8-5 TIME RELEASE..............................................................................................................42

ii
TABLE OF CONTENTS
9TEST MODE ................................................................................................ 43
9-1 SWITCH UNIT AND COIN METER ................................................................................44
9-2 SYSTEM TEST MODE ...................................................................................................46
9-3 GAME TEST MODE .......................................................................................................47
9-3-1 GAME TEST MODE Menu....................................................................................47
9-3-2 INPUT TEST ..........................................................................................................48
9-3-3 OUTPUT TEST ......................................................................................................49
9-3-4 FORCE FEEDBACK .............................................................................................50
9-3-5 INPUT ASSIGNMENTS.........................................................................................51
9-3-6 GAME ASSIGNMENTS.........................................................................................55
9-3-7 BOOKKEEPING ....................................................................................................57
9-3-8 BACKUP DATA CLEAR ........................................................................................59
10 CONTROL PANEL (HANDLE MECHA) ...................................................... 60
10-1 OPENING THE CONTROL PANEL..............................................................................61
10-2 ADJUSTING/REPLACING THE VOLUME...................................................................62
10-3 GREASING ...................................................................................................................64
11 SHIFT LEVER .............................................................................................. 65
11-1 REMOVING THE SHIFT LEVER ..................................................................................65
11-2 SWITCH REPLACEMENT............................................................................................66
12 ACCELERATOR & BRAKE......................................................................... 67
12-1 VOLUME ADJUSTMENT AND REPLACEMENT ........................................................68
12-2 GREASING ...................................................................................................................70
13 COIN HANDLING AND CREDIT SETTING................................................. 71
14 MONITOR .................................................................................................... 79
14-1 CAUTIONS AND WARNINGS CONCERNING
THE SAFETY FOR HANDLING THE MONITORS......................................................79
14-2 CLEANING THE CRT SURFACES ..............................................................................82
14-3 ADJUSTMENT PROCEDURE......................................................................................83
15 FLUORESCENT LIGHT/OTHER LAMPS REPLACEMENT ....................... 86
16 PERIODIC INSPECTION ............................................................................. 89
17 TROUBLESHOOTING................................................................................. 91
17-1 TROUBLESHOOTING (WHEN NO ERROR MESSAGE IS SHOWN).........................91
17-2 ERROR MESSAGES....................................................................................................95
18 GAME BOARD ............................................................................................ 97
18-1 REMOVING THE LINDBERGH ....................................................................................98
18-2 COMPOSITION OF THE GAME BOARD ..................................................................100

TABLE OF CONTENTS
iii
19 COMMUNICATION PLAY .......................................................................... 101
19-1 INSTALLATION PRECAUTIONS ...............................................................................101
19-2 CONNECTING THE COMMUNICATION CABLE ......................................................103
19-3 NETWORK PLAY SETTINGS ....................................................................................106
19-4 NETWORK PLAY PRECAUTIONS ............................................................................107
19-5 ATTACHING SATELLITE NUMBER STICKERS .......................................................108
20 DESIGN-RELATED PARTS....................................................................... 109
21 PARTS LIST............................................................................................... 110
22 WIRE COLOR CODE TABLE.................................................................... 140
23 WIRING DIAGRAM.................................................................................... 141

iv
INTRODUCTION
INTRODUCTION
This manual is intended to provide detailed descriptions together with all the necessary information covering the
general operation of electronic assemblies, electro-mechanicals, servicing control, spare parts, etc. for the product,
“SEGA-RaceTV.”
This manual is intended for the owners, personnel and managers in charge of operation of the product.
Operate the product after carefully reading and sufciently understanding the instructions.
In the unlikely event that the product does not function correctly, DO NOT allow anyone other than a technician
to touch the internal system. Turn off the power to the machine, making sure to unplug the electrical cord from the
outlet, and contact the ofce listed below or the point of purchase for this product.
Use of this product is unlikely to cause physical injuries or damage to property. However, points that require special
attention are indicated by bold text, the word “IMPORTANT” and the symbol below.



800 Arthur Avenue, Elk Grove Village, IL 60007-5215, U.S.A.
TEL: [phone]
TOLL FREE: 1-888-877-2669
FAX: [phone]

42, Barwell Business Park, Leatherhead Road, Chessington, Surrey, KT9 2NY United Kingdom
Telephone: [phone] Facsimile: [phone]
e-mail: [email protected] http://www.sega-amusements.co.uk

Installation space: 928 mm (36.5 in.) [Width] x 1,756 mm (69.1 in.) [Depth]
Height: 2,192 mm (86.3 in.)
Weight: 255 kg (562.2 lbs.)
Power, maximum current: 458 W, 4.34 A (AC 120 V, 60 Hz Area)
464 W, 2.40 A (AC 220 V, 50 Hz Area)
460 W, 2.20 A (AC 220 V, 60 Hz Area)
462 W, 2.30 A (AC 230 V, 50 Hz Area)
472 W, 2.19 A (AC 240 V, 50 Hz Area)
Power, current: 474 W, 5.1 A, (Max.) (AC 110 V, 60 Hz; Taiwan)
265 W, 2.6 A, (Min.) (AC 110 V, 60 Hz; Taiwan)
Monitor: 29 Type Color Monitor
NOTE: The contents herein described are subject to change without notice.

INTRODUCTION
v
Denition of 'Site Maintenance Personnel or Other Qualied Individuals'




Parts replacement, maintenance inspections and troubleshooting should be carried out by site maintenance personnel
or other qualied professionals. This manual includes directions for potentially dangerous procedures which should
only be carried out by professionals with the appropriate specialized knowledge.
The site maintenance personnel or other qualied professionals mentioned in this manual are dened as follows:
Site maintenance personnel:
Individuals with experience in maintaining amusement equipment, vending machines, etc., working under the
supervision of the owner/operator of this product to maintain machines within amusement facilities or similar
premises by carrying out everyday procedures such as assembly, maintenance inspections, and replacement of units/
expendable parts.
Activities to be carried out by site maintenance personnel:
Amusement equipment/vending machine assembly, maintenance inspection and replacement of units/expendable
parts.
Other qualied professionals:
Persons employed by amusement equipment manufacturers, or involved in design, production, testing or
maintenance of amusement equipment. The individual should have either graduated from technical school or hold
similar qualications in electrical/electronics/mechanical engineering.
Activities to be carried out by other qualied professionals:
Amusement equipment/vending machine assembly, repair/adjustment of electrical/electronic/mechanical parts.

HANDLING PRECAUTIONS


1 HANDLINGPRECAUTIONS




• Before performing work, be sure to turn the power o󱐯. Performing the work without turning the
power o󱐯 can cause an electric shock or short circuit. In the case work should be performed
in the status of power on, this manual always states to that e󱐯ect.
• To avoid an electric shock or short circuit, do not plug in or unplug quickly.
• To avoid an electric shock, do not plug in or unplug with a wet hand.
• Do not expose power cords or earth wires on the surface, (oor, passage, etc.). If exposed, the
power cords and earth wires are susceptible to damage. Damaged cords and wires can cause
an electric shock or short circuit.
• To avoid causing a re or an electric shock, do not put things on or damage the power cords.
• When or after installing the product, do not unnecessarily pull the power cord. If damaged, the
power cord can cause a re or an electric shock.
• In case the power cord is damaged, ask for a replacement through where the product was
purchased from or the o󱐰ce herein stated. Using the cord as is damaged can cause re, an
electric shock or leakage.
• Be sure to perform grounding appropriately. Inappropriate grounding can cause an electric
shock.
• Be sure to use fuses meeting the specied rating. Using fuses exceeding the specied rating can
cause a re or an electric shock.
• Be sure that connections such as IC BD are made properly. Insu󱐰cient insertion can cause an
electric shock.
• Specication changes, removal of equipment, conversion and/or addition, not designated by
SEGA are not permitted.
- Failure to observe this may cause a fire or an electric shock. Non-compliance with this
instruction can have a bad influence upon physical conditions of the players or the
onlookers, or result in injury during play.
- SEGA shall not be held responsible for damage, compensation for damage to a third party,
caused by specication changes not designated by SEGA.
• If work or parts replacement not indicated in this manual is carried out, an accident may occur.
If it is necessary to carry out work not indicated in this manual, be sure to have it done by the
o󱐰ce indicated in this manual or by the point of purchase. Also, please inquire regarding
details of the work involved.
• Be sure to perform periodic maintenance inspections herein stated.


HANDLING PRECAUTIONS

• For the IC board circuit inspections, only the logic tester is allowed. The use of a
multiple-purpose tester is not permitted, so be careful in this regard.
• When cleaning the CRT surfaces, use a soft and dry cloth. Do not apply chemicals such
as thinners, benzene, etc.
• Static electricity from your body may damage some electronics devices on the IC board.
Before handling the IC board, touch a grounded metallic surface so that the static
electricity can be discharged.
• Do not turn the power on and o󱐯 continuously. Repeatedly turning the power on and
o󱐯 may cause product malfunction or parts damage.
• Some parts are not designed and manufactured specically for this game machine. The
manufacturers may discontinue, or change the specications of such general-purpose
parts. If this is the case, SEGA cannot repair or replace a failed game machine whether
or not a warranty period has expired.

HANDLING PRECAUTIONS


440-WS0300-EG 440-WS0166-EG
421-12359-01
CONCERNING THE STICKER DISPLAY









󱐯






CONCERNING THE WARNING LABELS




















HANDLING PRECAUTIONS

SEE A
SEE A
440-WS0002XEG
Serial No. Display
Electrical Specifications Display
440-DS0013XEG
440-CS0186-EG

PRECAUTIONS REGARDING INSTALLATION LOCATION


This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places
mentioned below so as not to cause a re, electric shock, injury and/or malfunction.
- Places subject to rain or water leakage, or places subject to high humidity in the proximity of an indoor
swimming pool and/or shower, etc.
- Places subject to direct sunlight, or places subject to high temperatures in the proximity of heating units,
etc.
- Places lled with inammable gas or vicinity of highly inammable/volatile chemicals or hazardous matter.
- Dusty places.
- Sloped surfaces.
- Places subject to any type of violent impact.
- Vicinity of anti-disaster facilities such as re exits and re extinguishers.
- Areas where the temperature exceeds the applicable temperature (ambient temperature) range
of  to 0 degrees centigrade.
2 PRECAUTIONSREGARDINGINSTALLATIONLOCATION
2.1LIMITATIONSOFUSE
Be sure to check the Electrical Specications. Ensure that this product is compatible with the location’ s power
supply, voltage, and frequency requirements. A plate describing Electrical Specications is attached to the
product. Non-compliance with the Electrical Specications can cause a re and electric shock.
This product requires a breaker and earth mechanism as part of the location facilities. Using the product
without these can cause a re and electric shock.
Ensure that the indoor wiring for the power supply is rated at  A or higher (AC single phase 00 V ~ 0 V
area), and 7 A or higher (AC 0 V ~ 0 V area). Non-compliance with the Electrical Specications can cause a
re and electric shock.
Be sure to use an independent power supply equipped with an earth leakage breaker. Using a power supply
without an earth leakage breaker can cause an outbreak of re if a power surge occurs.
Putting many loads on one electrical outlet can cause generation of heat and a re resulting from overload.
When using an extension cord, ensure that the cord is rated at  A or higher (AC 00 V ~ 0 V area) and 7
A or higher (AC 0 V ~ 0 V area). Using a cord rated lower than the specied rating can cause a re and
electric shock.
ELECTRICITYCONSUMPTION



PRECAUTIONS REGARDING INSTALLATION LOCATION

2.2OPERATIONAREA
• For the operation of this machine, secure a minimum area of . m [W] x . m [D]. The
dimensions of the base periphery are established in consideration of ventilation,
maintenance and customer passage. And if they fall and hit their head, there could be a very
serious injury. Be sure to always secure enough space as prescribed in this manual.
• Be sure to provide su󱐰cient space specied in this manual. Do not allow objects to block the
ventilation ports. It can cause generation of heat and a re.
• SEGA shall not be held responsible for damage or compensation for damage to a third
party, resulting from the failure to observe this instruction.
In order to transport the machine into a building, the minimum necessary dimensions
of the opening (of doors, etc,) are .m, (W) and .8m, (H).

PRECAUTIONS REGARDING PRODUCT OPERATION
7

In order to avoid accidents, check the following before starting the operation:
To ensure maximum safety for the players and the customers, ensure that where the
product is operated has su󱐰cient lighting to allow any warnings to be read.
Operation under insufficient lighting can cause bodily contact with each other,
hitting accident, and/or trouble between customers.
Be sure to perform appropriate adjustment of the monitor (projector). For operation
of this machine, do not leave monitor’ s flickering or deviation as is. Failure to
observe this can have a bad inuence upon the players’ or the customers’ physical
conditions.
It is suggested to ensure a space allowing the players who feel sick while playing the
game to take a rest.
Check if all of the adjusters are in contact with the surface. If they are not, the cabinet
can move and cause an accident.
3 PRECAUTIONSREGARDINGPRODUCTOPERATION
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players
Do not put any heavy items on this product. Placing any heavy item on the product
can cause a falling down accident or parts damage
Do not climb on the product. Climbing on the product can cause a falling down
accident. To check the top portion of the product,use a step ladder.
To avoid electric shock, short circuit and / or
parts damage, do not put the following
items on or in the periphery of the
product.
Flower vases, ower pots,
cups, water tanks,
cosmetics,recepticles
or vessels containing
chemicals or water.
Ensure that a adjusters
are in contact with the
oor.

8
PRECAUTION REGARDING PRODUCT OPERATION

Players hold the controller with their bare hands so it is recommended that wet towels
(paper towels) be provided.
● During daily cleaning be sure to check the surface of the steering wheel, gear shifter
and other parts that that the player touches with his hands for damage, cracks or
loose screws. If a player uses the machine while it is damaged, cracked or has a loose
screw, the player may become injured.
● During daily cleaning, be sure to check the seat for any abnormality, wetness, etc.
Failure to do this may result in deliberate tampering or negligence being left unde-
tected.
● To avoid injury, be sure to provide sufficient space by considering the potentially
crowded situation at the installation location. Insufficient installation space can
cause contact, collisions and or trouble between customers.
● Do not attemp to clean this product using pressurised equipment such as a jet wash
or hose. If for any reason this product becomes wet, do not use until it has com-
pletely dried.

PRECAUTIONS REGARDING PRODUCT OPERATION


● For safety reasons, do not allow any of the following people to play the game.
・Those who need assistance when walking.
・Those who have high blood pressure or heart problems.
・Those who have a neck or spinal cord problem.
・Those who have experienced muscle convulsion or loss of consciousness while
playing video games, etc.
・Those who are intoxicated or under the inuence of drugs.
・Pregnant women.
・Those who are not in good health.
・Those who do not follow the attendants instructions.
・Those who cannot grasp the controller unit securely because of immobility in
ngers, hands or arms.
・Persons who disregard the products warning labels.
● Even players who have never been adversely affected by light stimulus might
experience dizziness or headaches depending on their physical condition when
playing the game. Small children are especially likely to experience these symptoms.
Caution guardians of small childern to keep watch on their children during play.
● Instruct those who feel sick during pay to seek medical advice or examination.
● To avoid injury from falling objects or electric shock hazzard from spilt drinks, instruc
the player not to place drinks or heavy items on the product.
● To avoid electric shock hazzard and short circuit hazzard, do not allow customers to
put hand or ngers or any other extraneous matter in to the openings of the product
or small openings on or around the doors.
● To avoid falls resulting in injury, immediately stop the customer from leaning
against or climbing on the product.
● To avoid electric shock and/or short circuit hazzard, do not allow customers to
unplug the power plug without a justiable reason.

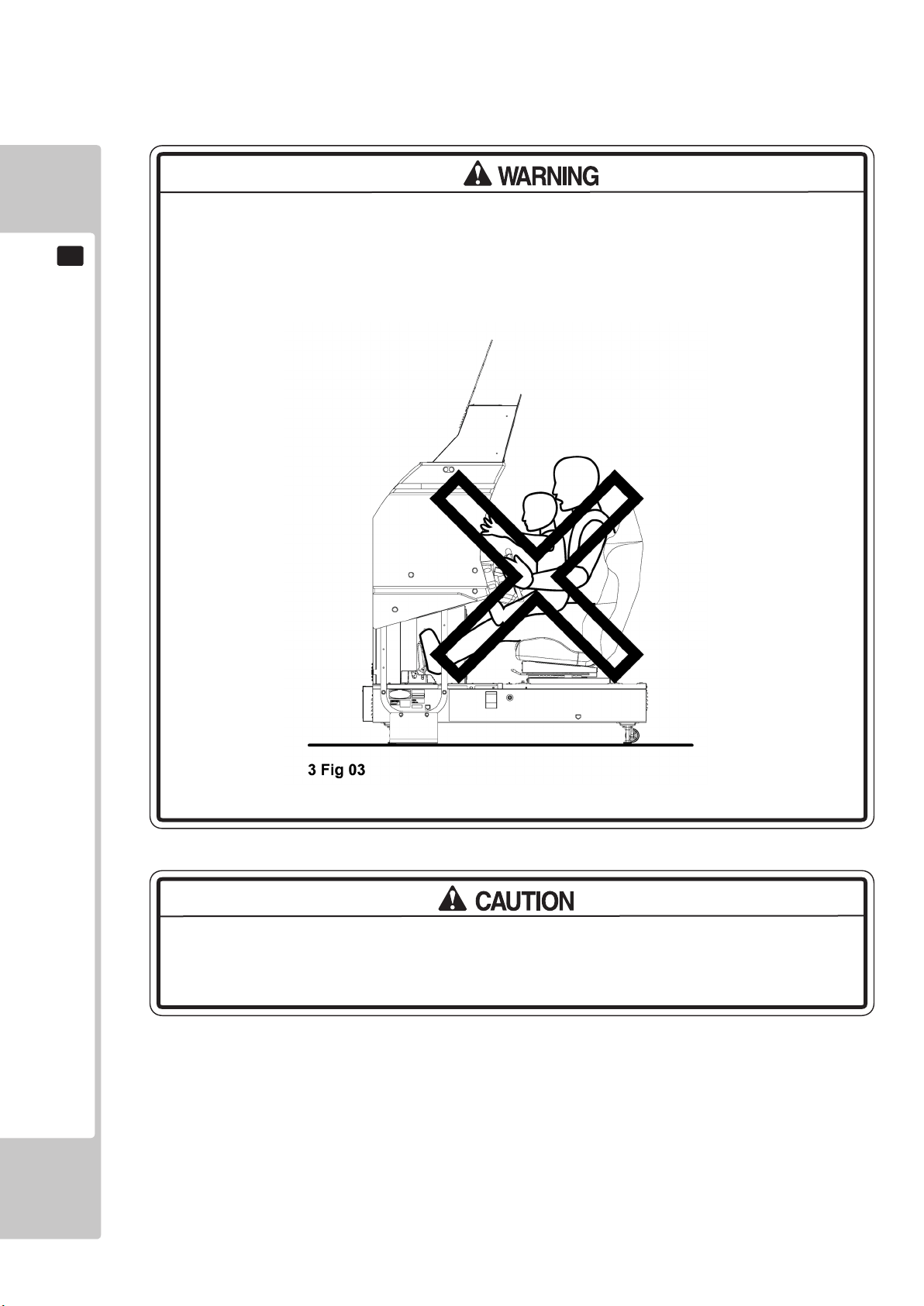

● This product is intended for  Player only. Playing the game by  or more Players
riding on the seat togethercan cause falling down and collision accidents by striking
heads, hands or elbows.
● Persons other than the player should not
be allowed to touch the controls during
play. They may brush against or collide
with the controls or the player, possibly
resulting in accident.
PAYINGATTENTIONTOCUSTOMERSDURINGOPERATION
To avoid injury and trouble, be sure to pay attention to the behavior of visitors and players.

0
PRECAUTION REGARDING PRODUCT OPERATION

Immediately stop such violent acts as hitting and kicking the product. Such violent acts
can cause parts damage or cause the cabinet to fall over, resulting in injury.
● Customer should be warned not to place children on their lapswhile they
play the game. Doing so may cause the child to become trappedbetween the
player and the control panel and/or cause the machine to tip over.

Part Descriptions


4 PARTDESCRIPTIONS
Images may differ from the product.


ACCESSORIES

Conrmthattheaccessorieslistinthetablebelowarepresentwhensettinguptheproduct.
Accessoriesmarked“Spare”inthenotecolumnareconsumeableitemsbutincludedasspares.
TABLE5a-ACCESSORIES
5 ACCESSORIES






























ACCESSORIES


Conrmthattheaccessorieslistinthetablebelowarepresentwhensettinguptheproduct.
Accessoriesmarked“Spare”inthenotecolumnareconsumeableitemsbutincludedasspares.
TABLE5b-ACCESSORIES



 









