INTRODUCTION
This manual explains how to configure network settings and install and configure the software to
enable the machine to be used as a network printer.
Trademark acknowledgments
•Microsoft®Windows®operating system is a trademark or copyright of Microsoft Corporation in the
U.S.A. and other countries.
•Windows®95, Windows®98, Windows®Me, Windows NT®4.0, Windows®2000, and Windows®
XP are trademarks or copyrights of Microsoft Corporation in the U.S.A. and other countries.
•Acrobat®Reader Copyright©1987- 2002 Adobe Systems Incorporated. All rights reserved. Adobe,
the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated.
•IBM and PC/AT are trademarks of International Business Machines Corporation.
•Macintosh, Power Macintosh, Mac OS, LaserWriter, and AppleTalk are trademarks of Apple
Computer, Inc.
•PostScript®is a registered trademark of Adobe Systems Incorporated.
•PCL is a trademark of the Hewlett-Packard Company.
•All other trademarks and copyrights are the property of their respective owners.
SOFTWARE LICENSE
The SOFTWARE LICENSE will appear when you install the software from the CD-ROM. By using all
or any portion of the software on the CD-ROM or in the machine, you are agreeing to be bound by the
terms of the SOFTWARE LICENSE.
•The explanations of screens and procedures in this manual are primarily for Windows®XP in
Windows®environments, and Mac OS X v10.2 in Macintosh environments. The screens may
vary in other versions of the operating systems.
•The explanations in this manual are based on the North American version of the software.
Versions for other countries and regions may vary slightly from the North American version.
•This manual refers to the digital multifunctional system AR-M160/M205 as "the machine".
•Where "AR-XXXX" appears in this manual, please substitute the name of your model for "XXXX".
For the name of your model, see "DIFFERENCES BETWEEN MODELS" in the operation
manual for copier.
•The PS3 expansion kit (AR-PK1) mentioned in this manual is an option.
The display screens, messages, and key names shown in the manual may differ from those on the actual
machine due to product improvements and modifications.
Note

- 5 -
CONTENTS
SAFETY STANDARDS.......................................................................................................... 2
INTRODUCTION....................................................................................................................4
USING THE MACHINE IN A WINDOWS ENVIRONMENT ................................................... 6
●CD-ROMS IN THE NETWORK EXPANSION KIT ...................................................................... 6
●HARDWARE AND SOFTWARE REQUIREMENTS ................................................................... 7
USING THE MACHINE IN A MACINTOSH ENVIRONMENT ............................................... 8
●CD-ROMS IN THE NETWORK EXPANSION KIT ...................................................................... 8
●HARDWARE AND SOFTWARE REQUIREMENTS ................................................................... 8
CONNECTING TO A NETWORK .......................................................................................... 9
●HOW TO RESET THE NETWORK EXPANSION KIT ................................................................ 9
INSTALLATION ENVIRONMENT AND INSTALLATION PROCEDURE ........................... 10
SETTING THE IP ADDRESS OF THE MACHINE............................................................... 11
CHECKING THE IP ADDRESS ........................................................................................... 13
INSTALLING THE SOFTWARE .......................................................................................... 14
●INSTALLING THE PRINTER DRIVER (Standard installation)..................................................14
●CUSTOM INSTALLATION........................................................................................................ 16
●SHARING THE PRINTER USING WINDOWS NETWORKING ............................................... 18
●INSTALLING THE PRINTER STATUS MONITOR................................................................... 20
●INSTALLING THE PRINTER ADMINISTRATION UTILITY ...................................................... 21
●INSTALLING THE PS DISPLAY FONTS.................................................................................. 22
USING THE PPD FILE......................................................................................................... 23
●Installing the resident font information for PPD (only when the PPD file is installed in Windows
95/98/Me).................................................................................................................................. 23
CONFIGURING THE PRINTER DRIVER ............................................................................ 24
APPLETALK SETTINGS..................................................................................................... 25
INSTALLING THE PPD FILE .............................................................................................. 25
●INSTALLATION IN MAC OS X ................................................................................................. 25
●INSTALLATION IN MAC OS 8.6 - 9.x....................................................................................... 27
●INSTALLING THE SCREEN FONTS (Mac OS 8.6 - 9.x) ......................................................... 27
CONFIGURING THE PRINTER DRIVER ............................................................................ 28
●MAC OS X v10.2.x.................................................................................................................... 28
●MAC OS X v10.1.5.................................................................................................................... 30
●MAC OS 8.6 - 9.x...................................................................................................................... 31
BEFORE INSTALLATION
SETUP IN A WINDOWS ENVIRONMENT
SETUP IN A MACINTOSH ENVIRONMENT

- 6 -
BEFORE INSTALLATION
USING THE MACHINE IN A
WINDOWS ENVIRONMENT
CD-ROMS IN THE NETWORK EXPANSION KIT
The network expansion kit contains the following three CD-ROMs: "Software", "Network Utilities", and
"Sharpdesk LT".
1. "Software" CD-ROM
The "Software" CD-ROM contains the following software programs:
•Printer driver
The printer driver enables you to use the printer function of the machine.
The CD-ROM contains the PCL6 and PCL5e printer drivers*1and the PS printer driver*2.
•Printer Status Monitor
This allows you to check the status of the network printer on your computer screen.
•Printer Administration Utility*3
This is a utility that allows administrators to check the status of the printer and change settings.
•NICManager
This is used to configure and check the IP address of the machine, which is used when the
machine is connected to a network.
•Acrobat Reader 5.0
Software that allows you to view the online printer manual on your computer.
*1 It is recommended that you use the PCL6 printer driver. If you have a problem printing from older software
using the PCL6 printer driver, use the PCL5e printer driver.
*2 To use the PS printer driver, the PS3 expansion kit must be installed.
*3 If you are installing the Printer Administration Utility in Windows 95, a system file must be updated before
the utility can be installed. For more information, click the "Display Readme" button in the Software
Selection window of the installer. (p.21)
The printer driver, Printer Status Monitor, Printer Administration Utility, and NICManager
utility on the "Software" CD-ROM cannot be used when the machine is connected to your
computer by a USB or parallel cable.
Caution

- 7 -
USING THE MACHINE IN A WINDOWS ENVIRONMENT
2. "Network Utilities" CD-ROM
This CD-ROM contains "Quick Setup" and "Standard Setup (NICManager)" which are used to
configure network settings, "SC-Print2000" which is used to create an LPR port, and an online manual
that explains network settings.
The online manual on the CD-ROM explains how to configure settings on a network other than a
TCP/IP network, such as a Netware, AppleTalk, or NetBEUI network.
3. "Sharpdesk LT" CD-ROM
Install Sharpdesk LT (for Windows) from this CD-ROM. Sharpdesk LT is a desktop document
management application that makes it easy to start applications and file documents and images.
For information on the "Sharpdesk LT" CD-ROM and the procedure for installing Sharpdesk LT, see
operation manual for network scanner (PDF format).
HARDWARE AND SOFTWARE REQUIREMENTS
Check the following hardware and software requirements before installing the software.
*1 If you are installing the Printer Administration Utility in Windows 95, a system file must be updated before the
utility can be installed. For more information, click the "Display Readme" button in the Software Selection
window of the installer.
*2 Administrator's rights are required to install the software using the installer.
•SC-Print2000 is only used to create an LPR port in Windows 95/98/Me. If the printer driver is
installed as explained in this manual, the LPR port is created automatically and thus there is
normally no need to use SC-Print2000.
•NICManager is also contained in the "Software" CD-ROM. If the network settings are configured
as explained in this manual, NICManager in the "Software" CD-ROM is used to configure
machine settings.
•The term "Print Server Card" appears in the "Network Utilities" CD-ROM. Where "Print
Server Card" appears, please substitute "Network expansion kit".
•If you use the "Network Utilities" CD-ROM to configure network settings, be sure to check
the machine's Ethernet address (MAC address) by printing out the Printer Setting List as
explained in "CHECKING THE IP ADDRESS". (The message that appears in the CD-ROM
utility is not relevant.)
Computer type IBM PC/AT or compatible computer equipped with a 10Base-T/100Base-TX LAN
board
Operating system Windows 95*1, Windows 98, Windows Me,
Windows NT Workstation 4.0 (Service Pack 5 or later)*2,
Windows 2000 Professional*2, Windows XP Professional*2,
Windows XP Home Edition*2
Other hardware requirements An environment that allows any of the above operating systems to fully operate
Note
Caution

- 8 -
USING THE MACHINE IN A
MACINTOSH ENVIRONMENT
To use the machine as a printer for the Macintosh, the PS3 expansion kit AR-PK1 must be installed.
Install the PPD file needed to use the machine as a printer from the "Software" CD-ROM that
accompanied the network expansion kit.
CD-ROMS IN THE NETWORK EXPANSION KIT
In a Macintosh environment, use the "Software" and "Network Utilities" CD-ROMs that are contained
in the network expansion kit.
1. "Software" CD-ROM
The "Software" CD-ROM contains the following software programs:
•PPD file
A Macintosh computer refers to the PPD file when using a printer driver for printing.
•Acrobat Reader 4.05
Software that allows you to view the online printer manual on your computer.
2. "Network Utilities" CD-ROM
The "Network Utilities" CD-ROM contains the following software programs:
•PSC Setup Utility
This is a utility that lets you configure the machine's network settings from a Macintosh.
HARDWARE AND SOFTWARE REQUIREMENTS
You will need the following hardware and software in order to install the PPD file for Macintosh.
The PPD file on the "Software" CD-ROM cannot be used when the machine is connected to
your computer with a USB or parallel cable.
The term "Print Server Card" appears in the "Network Utilities" CD-ROM. Where "Print
Server Card" appears, please substitute "Network expansion kit".
Operating system Mac OS 8.6 to 9.x, 10.1.5, and 10.2 to 10.2.8 (except 10.2.2)
CPU and RAM Requirements of the operating system must be satisfied.
If you are using Mac OS 8.6 to 9.x, make sure that LaserWriter8 has been installed and that the
"LaserWriter8" checkbox is selected ( ) in "Extensions Manager" in "Control Panels". If not,
install it from the system CD-ROM supplied with your Macintosh computer.
Caution
Caution
Note

- 9 -
CONNECTING TO A NETWORK

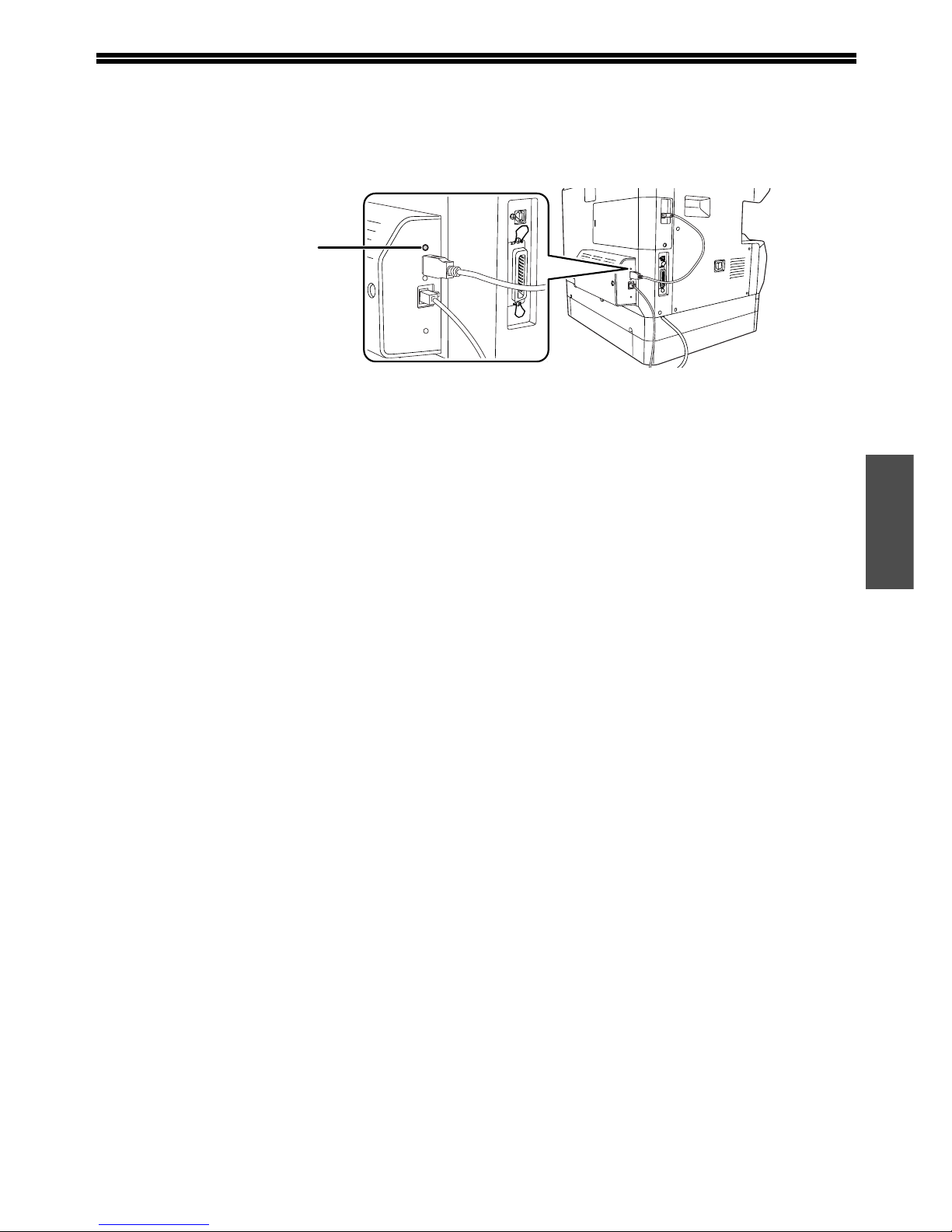

After the network expansion kit has been installed in the
machine, connect a LAN cable to the LAN connector of
the network expansion kit.
Use a network cable that is shielded.
HOW TO RESET THE NETWORK EXPANSION KIT
To reset the network expansion kit, turn on the power while holding down the status button on the
network expansion kit. Continue to hold down the status button until a beep sounds.
Network scanner destination information and scanning settings will remain after the network
expansion kit is reset, however, the network settings and printer settings will revert to the factory
default settings.
Caution

- 10 -
INSTALLATION ENVIRONMENT
AND INSTALLATION PROCEDURE
This manual explains the procedures for installing the software in a Windows environment (TCP/IP
network environment) and in a Macintosh environment.
Refer to the following table for the appropriate procedure for your environment.
Function Operating system Procedure to follow
Printer function
Windows environment 1. "SETTING THE IP ADDRESS OF THE MACHINE" (p.11)
2. "INSTALLING THE SOFTWARE" (p.14)
Macintosh environment 1. "INSTALLING THE PPD FILE" (p.25)
2. "CONFIGURING THE PRINTER DRIVER" (p.28)
Network scanner
function Windows environment
1. "SETTING THE IP ADDRESS OF THE MACHINE" (p.11)
2. Settings required for the network scanner function
(See operation manual for network scanner)

- 11 -
Windows
SETUP IN A WINDOWS ENVIRONMENT
SETTING THE IP ADDRESS OF THE
MACHINE
Before installing the printer driver, be sure to set the IP address of the machine. Consult your network
administrator for the correct IP address, subnet mask, and default gateway to be entered.
If a DHCP server
will automatically assign an IP address to the machine, the following procedure is not necessary.
(To check the IP address assigned to the machine by DHCP, see "CHECKING THE IP ADDRESS" (p.13).)
1Make sure that the LAN cable is
connected to the machine and then
turn on the machine.
2Insert the network expansion kit
"Software" CD-ROM into your
computer's CD-ROM drive.
3Click the "start" button, click "My
Computer" ( ), and then double-click
the CD-ROM icon ( ).
In Windows 95/98/Me/NT 4.0/2000,
double-click "My Computer" and then
double-click the CD-ROM icon.
4Double-click the "setup" icon ( ).
5The "SOFTWARE LICENSE" window will
appear. Make sure that you understand
the contents of the license agreement,
and then click the "Yes" button.
6Read the message in the "Welcome"
window and then click the "Next"
button.

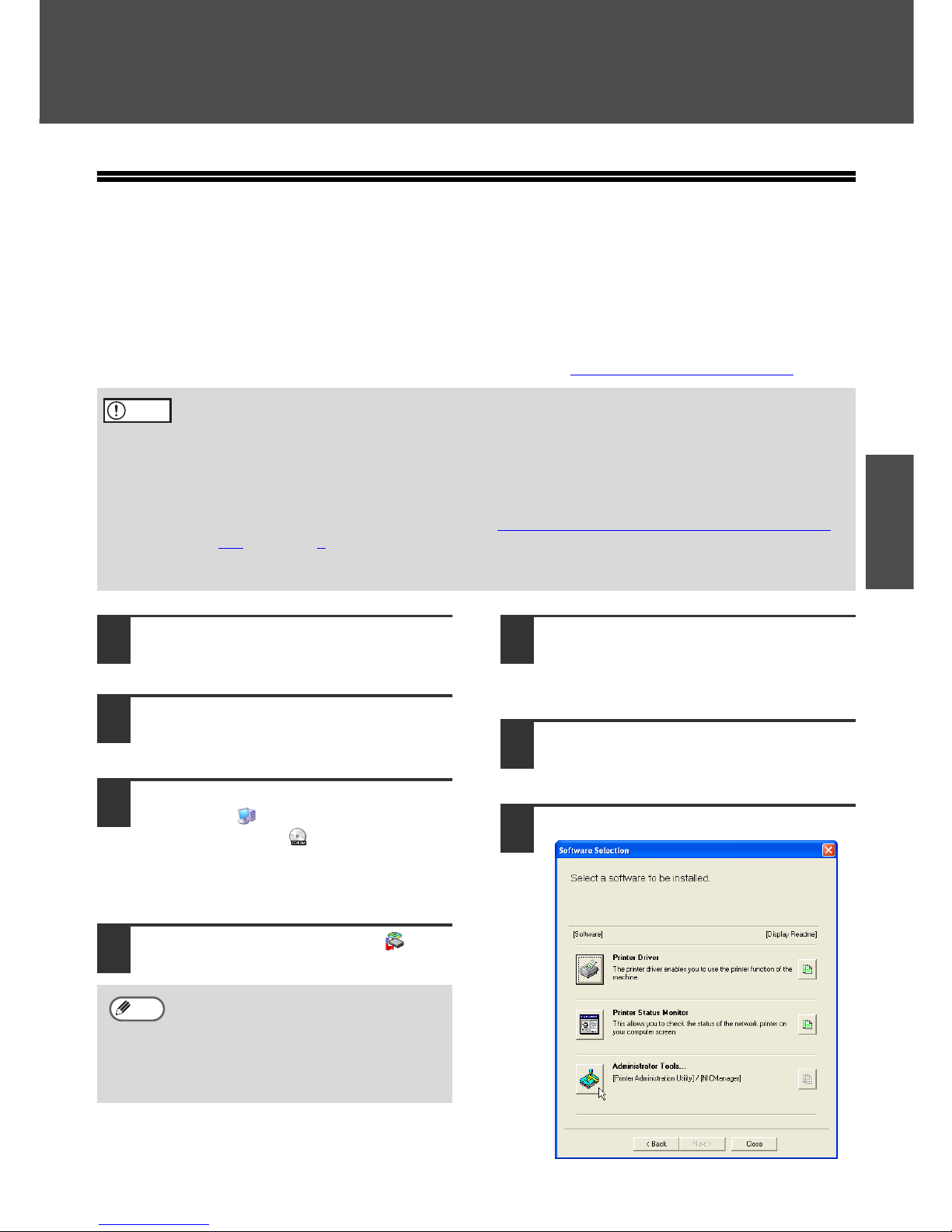

7Click the "Administrator Tools" button.
•If the machine is used in a DHCP environment, the machine's IP address may change
automatically. If this happens, printing will no longer be possible. In this event, use a
WINS server or do not use the machine in a DHCP environment.
•If it becomes necessary to move the machine to a different network after the IP address
has been set, use either of the following methods to change the IP address setting before
moving the machine:
1) Set the IP address for the new network while the machine is still connected to the old network.
2) Reset the network expansion kit (see "HOW TO RESET THE NETWORK EXPANSION
KIT" on page 9).
If the machine is moved to the new network while the old IP address is still set, the
machine will not be detected and it will not be possible to set the new IP address.
Caution
If the language selection screen
appears after you double click the
"setup" icon, select the language that
you wish to use and click the "Next"
button. (Normally the correct language
is selected automatically.)
Note

- 12 -
SETTING THE IP ADDRESS OF THE MACHINE
Windows
8Click the "NICManager" button.
9The printer or printers connected to the
network will be detected. Click the
printer to be configured (the machine).
Select the "AR-XXXX".
10
Click the "Print Server Card Setup" button.
If the machine is being used in a DHCP
environment or the IP address has
otherwise already been set, go to step 15.
11
If the IP address has not been set (the IP
address is set to "0.0.0.0"), a message
will appear prompting you to set the IP
address. Click the "Yes" button.
12
Enter the IP address and click the "OK"
button.
The machine's IP address is changed.
A password entry screen will appear while
the IP address is being changed. Enter the
password and click the "OK" button.
The password for this product has been
initially set to "Sharp".
13
Restart the machine.
Power off the machine and then power it
back on.
14
Select "Search" from the "File" menu,
select the machine, and then click the
"Print Server Card Setup" button.
15
Enter your password in the password
entry screen and click "OK".
The Print Server Card Setup window will
appear.
The password for this product has been
initially set to "Sharp".
If the "Guest user" checkbox is selected, the
settings can be viewed but not configured.
16
Click the "TCP/IP" tab.
17
Configure the settings and then click
the "Update" button.
Be sure to ask your network administrator
for the correct IP address, subnet mask,
and default gateway to be entered.
18
Your changes to the settings appear.
Make sure that the changes are correct
and then click the "OK" button.
19
Restart the machine.
Power off the machine and then power it
back on.
20
Select "Search" from the "File" menu.
The IP address that you entered will
appear. Make sure that it is correct.
The completes the IP address settings.
If the machine is not found, make sure
that the machine is powered on and
connected to your computer and then
search again.
Note

- 13 -
Windows
CHECKING THE IP ADDRESS
To check the IP address of the machine, hold down the status button on the network expansion kit at
least 2 seconds to print out a Printer Setting List.
Status button

- 14 -
Windows
INSTALLING THE SOFTWARE

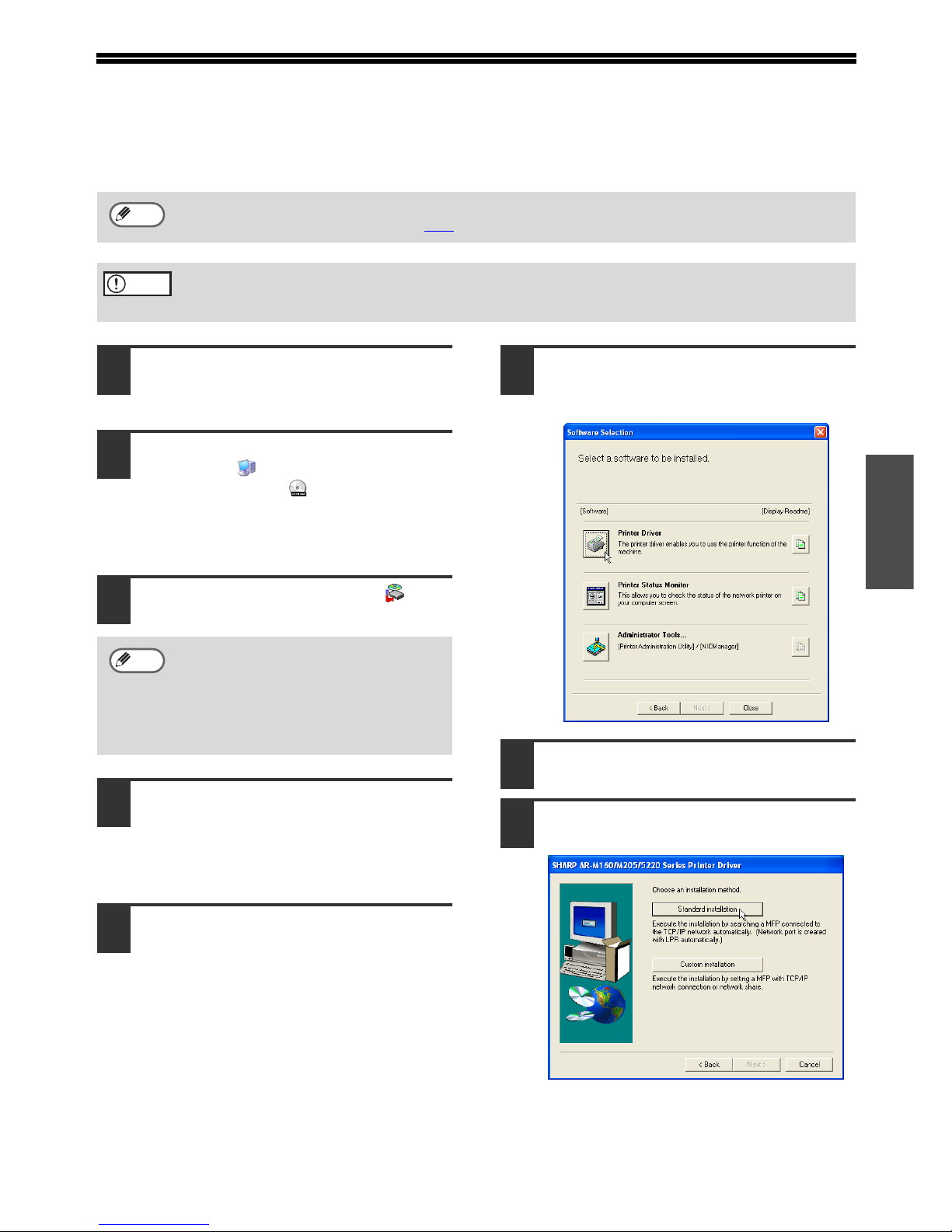

INSTALLING THE PRINTER DRIVER (Standard installation)
1Insert the network expansion kit
"Software" CD-ROM into your
computer's CD-ROM drive.
2Click the "start" button, click "My
Computer" ( ), and then double-click
the CD-ROM icon ( ).
In Windows 95/98/Me/NT 4.0/2000,
double-click "My Computer" and then
double-click the CD-ROM icon.
3Double-click the "setup" icon ( ).
4The "SOFTWARE LICENSE" window
will appear. Make sure that you
understand the contents of the license
agreement, and then click the "Yes"
button.
5Read the message in the "Welcome"
window and then click the "Next"
button.

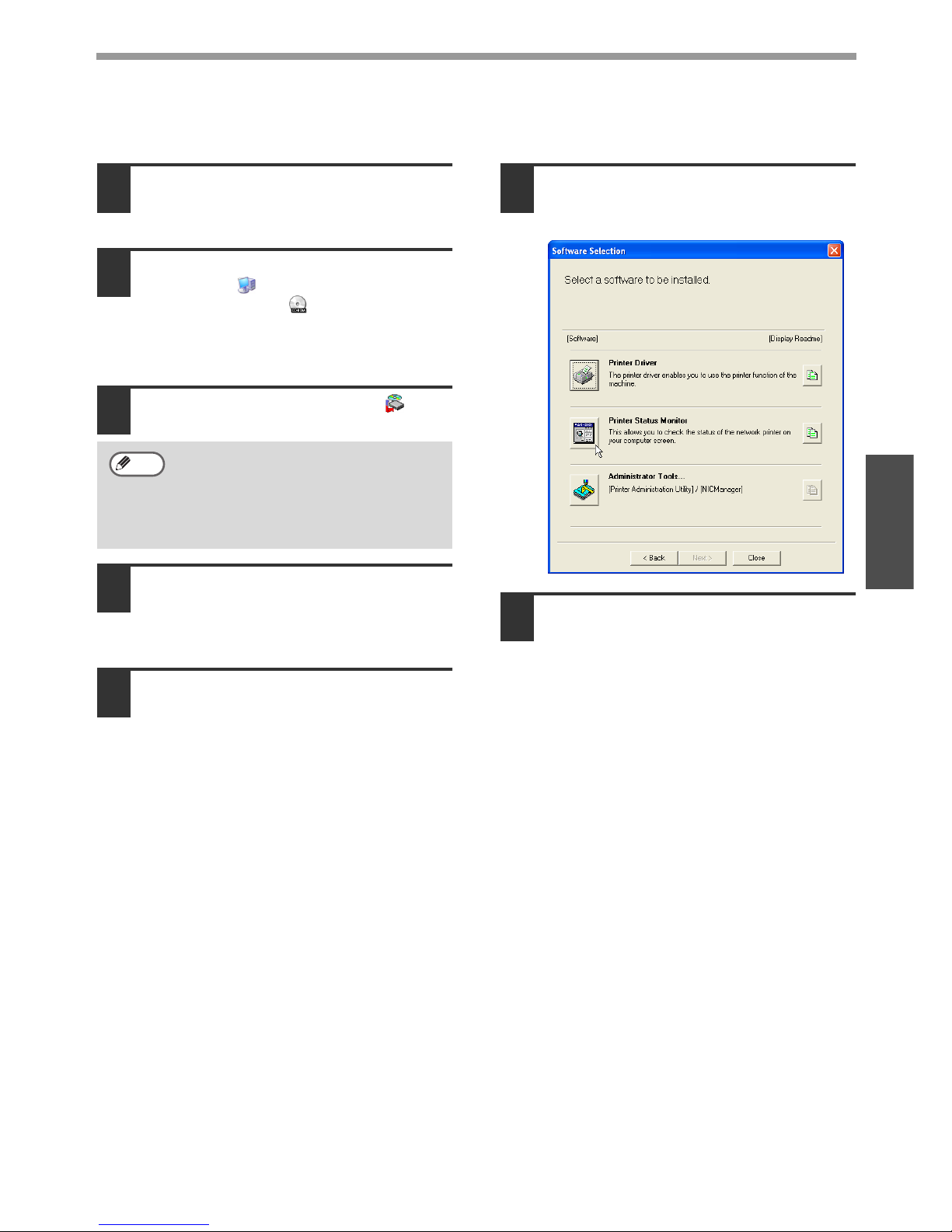

6Click the "Printer Driver" button.
To view information on the software, click
the "Display Readme" button.
7Click the "Next" button.
8Click the "Standard installation"
button.
If you wish to install the display font or specify the machine's IP address when installing the printer
driver, select "Custom installation" (p.16).
To use the machine as a network printer in Windows NT 4.0, "TCP/IP Protocol" and
"Microsoft TCP/IP printing" must be installed in your computer. Check to make sure these
components are installed. If they are not installed, see Windows NT 4.0 Help to install them.
Note
Caution
If the language selection screen
appears after you double click the
"setup" icon, select the language that
you wish to use and click the "Next"
button. (Normally the correct language
is selected automatically.)
Note

- 15 -
INSTALLING THE SOFTWARE
Windows

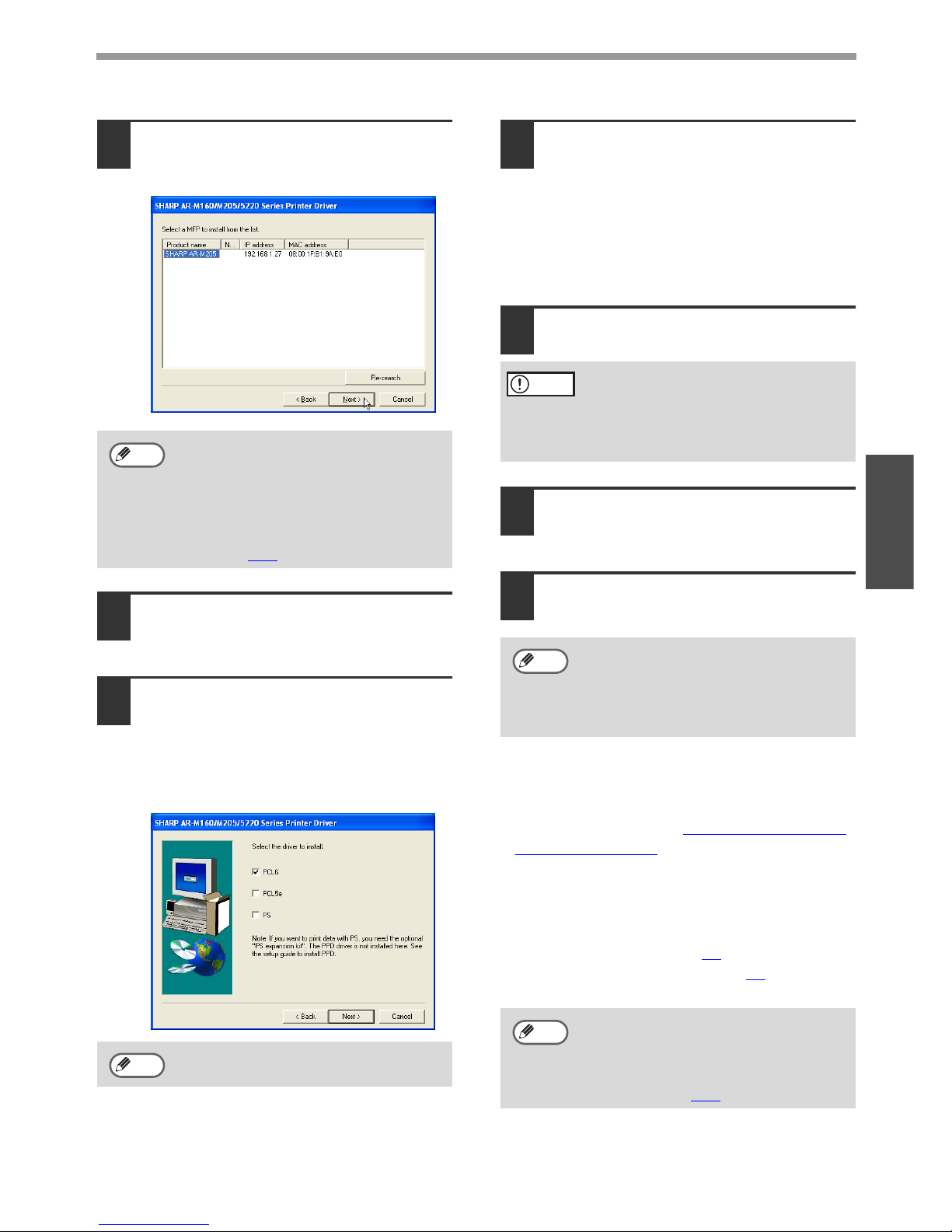

9Printers connected to the network are
detected. Select the machine and click
the "Next" button.
10
A confirmation window appears. Check
the contents and then click the "Next"
button.
11

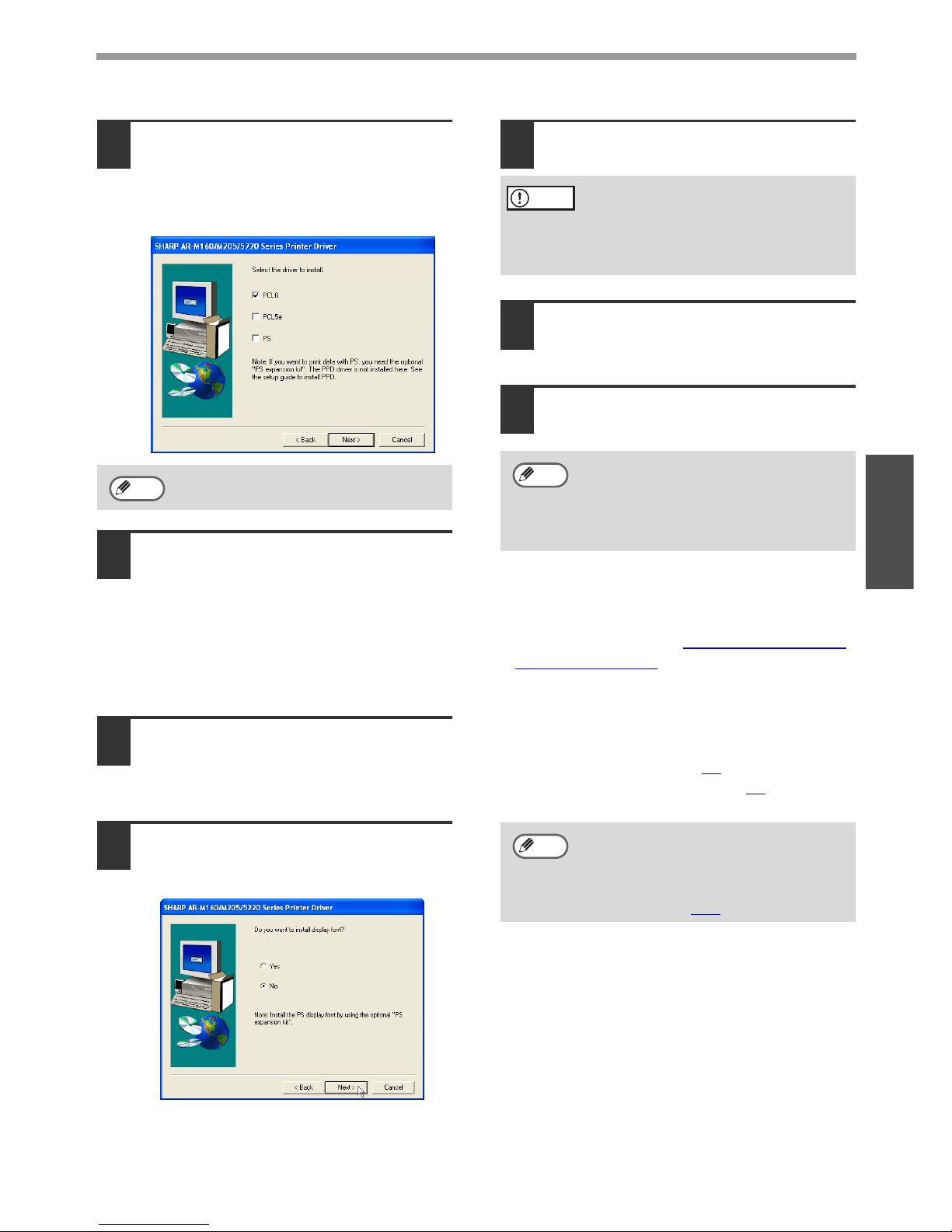

When the printer driver selection
window appears, select the printer
driver to be installed and click the
"Next" button.
Select the checkboxes of the printer
drivers to be installed.
12
Select whether or not you wish the
printer to be your default printer and
click the "Next" button.
If you are installing multiple printer drivers,
select the printer that you wish to use as
your default printer.
If you do not wish to set either printer
driver as the default printer, select "No".
13
Click the "Next" button.
Begin installation of the printer driver.
14
When "The installation of the SHARP
software is complete" appears, click
the "OK" button.
15
Click the "Close" button.
This completes the installation of the
software.
•After installation, see "CONFIGURING THE
PRINTER DRIVER" (p.24) to check the
printer driver settings.
•To install the Printer Status Monitor or Printer
Administration Utility, see the following
pages:
Printer Status Monitor: p.20
Printer Administration Utility: p.21
If the machine is not found, make sure
that the machine is powered on and
connected to your computer and then
search again. If the machine is still not
found, use the custom installation
procedure to directly specify the IP
address (p.16).
To use the PS printer driver, the PS3
expansion kit must be installed.
Note
Note
If you are running Windows 2000/XP
and a warning message appears
regarding the Windows logo test or
digital signature, be sure to click
"Continue Anyway" or "Yes".
After the installation, a message
prompting you to restart your
computer may appear. In this case,
click the "Yes" button to restart your
computer.
If you installed the PS printer driver,
the PS display font can be installed
from the "PRINTER UTILITIES"
CD-ROM that accompanied the PS3
expansion kit. (p.22)
Caution
Note
Note

- 16 -
INSTALLING THE SOFTWARE
Windows

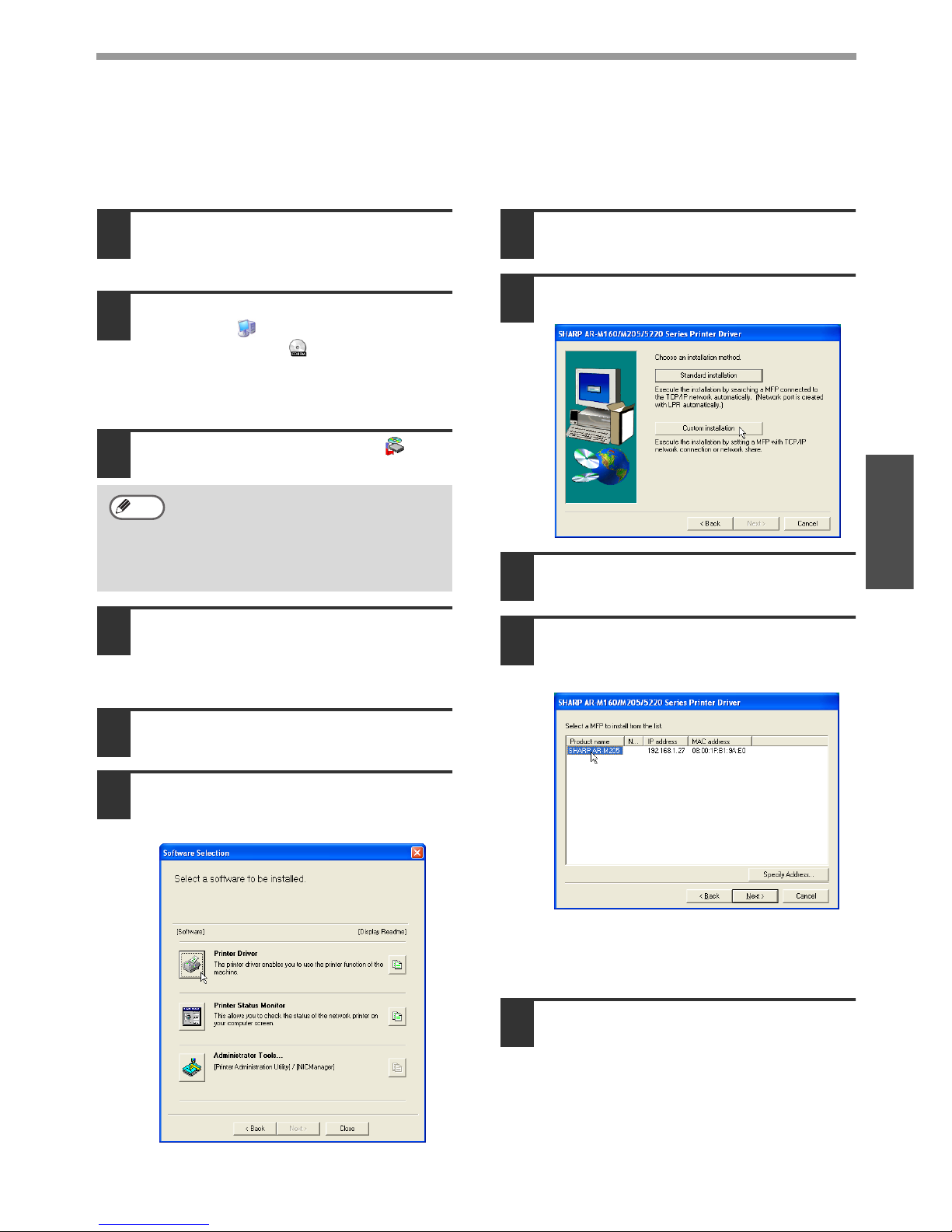

CUSTOM INSTALLATION
If you wish to install the display font or specify the machine's IP address when installing the printer
driver, select "Custom installation".
1Insert the network expansion kit
"Software" CD-ROM into your
computer's CD-ROM drive.
2Click the "start" button, click "My
Computer" ( ), and then double-click
the CD-ROM icon ( ).
In Windows 95/98/Me/NT 4.0/2000,
double-click "My Computer" and then
double-click the CD-ROM icon.
3Double-click the "setup" icon ( ).
4The "SOFTWARE LICENSE" window will
appear. Make sure that you understand
the contents of the license agreement,
and then click the "Yes" button.
5
Read the message in the "Welcome"
window and then click the "Next" button.
6Click the "Printer Driver" button.
To view information on the software, click
the "Display Readme" button.
7Click the "Next" button.
8Click the "Custom installation" button.
9Select "LPR Direct Print" and click the
"Next" button.
10
Printers connected to the network are
detected. Select the machine and click
the "Next" button.
If you wish to specify the IP address, click
the "Specify address" button, enter the IP
address, and click the "Search" button.
11
A confirmation window appears. Check
the contents and then click the "Next"
button.
If the language selection screen
appears after you double click the
"setup" icon, select the language that
you wish to use and click the "Next"
button. (Normally the correct language
is selected automatically.)
Note

- 17 -
INSTALLING THE SOFTWARE
Windows
12
When the printer driver selection window
appears, select the printer driver to be
installed and click the "Next" button.
Select the checkboxes of the printer
drivers to be installed.
13
Select whether or not you wish the
printer to be your default printer and
click the "Next" button.
If you are installing multiple printer drivers,
select the printer that you wish to use as
your default printer.
If you do not wish to set either printer
driver as the default printer, select "No".
14
When the window for entering a printer
name appears, click the "Next" button.
If you wish to change the printer name,
enter the desired name.
15
Select whether or not you wish to
install the display font and click the
"Next" button.
16
Click the "Next" button.
Begin installation of the printer driver.
17
When "The installation of the SHARP
software is complete" appears, click
the "OK" button.
18
Click the "Close" button.
This completes the installation of the
software.
•After installation, see "CONFIGURING THE
PRINTER DRIVER" (p.24) to check the
printer driver settings.
•To install the Printer Status Monitor or Printer
Administration Utility, see the following
pages:
Printer Status Monitor: p.20
Printer Administration Utility: p.21
To use the PS printer driver, the PS3
expansion kit must be installed.
Note
If you are running Windows 2000/XP
and a warning message appears
regarding the Windows logo test or
digital signature, be sure to click
"Continue Anyway" or "Yes".
After the installation, a message
prompting you to restart your
computer may appear. In this case,
click the "Yes" button to restart your
computer.
If you installed the PS printer driver,
the PS display font can be installed
from the "PRINTER UTILITIES"
CD-ROM that accompanied the PS3
expansion kit. (p.22)
Caution
Note
Note

- 18 -
INSTALLING THE SOFTWARE
Windows

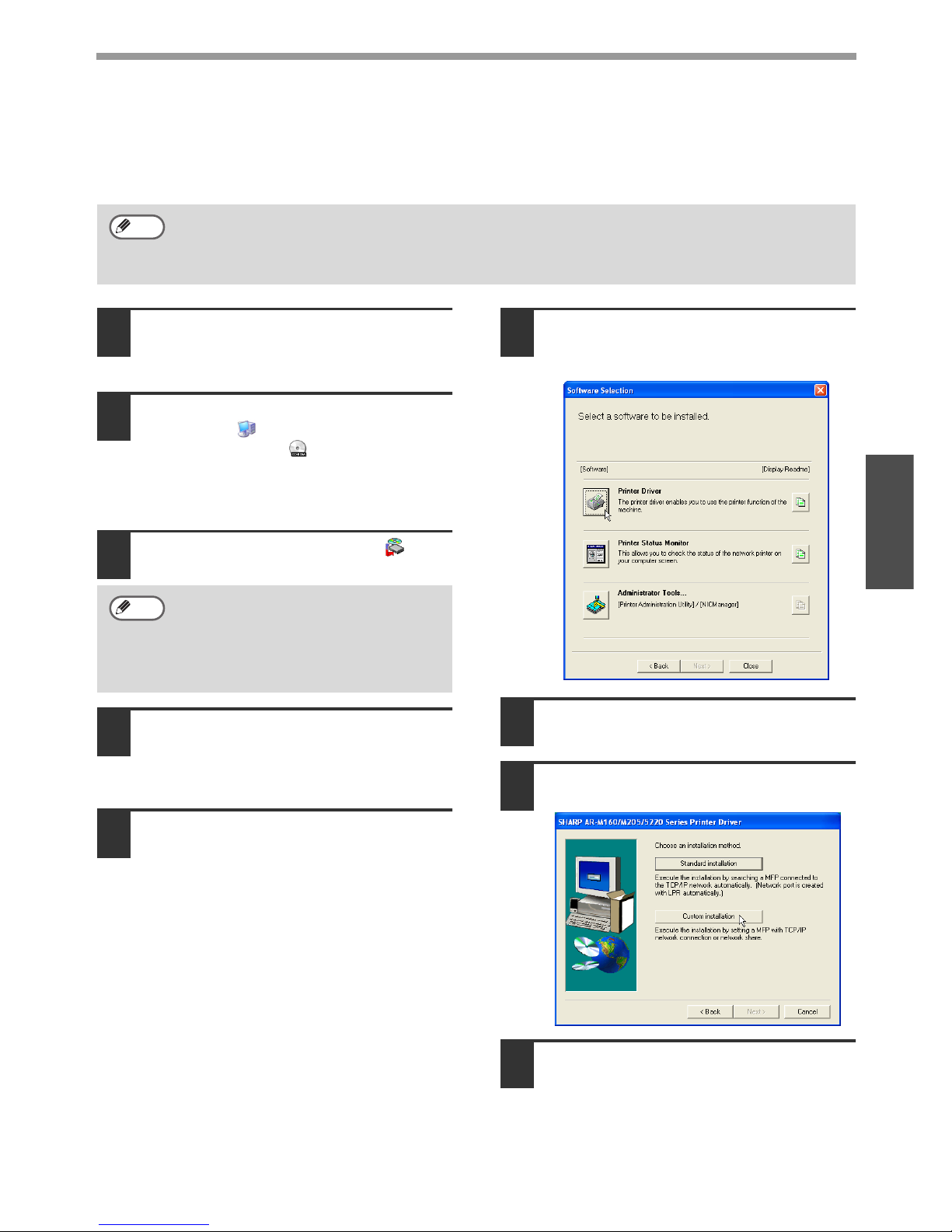

SHARING THE PRINTER USING WINDOWS NETWORKING
If the machine will be used as a shared printer on a network, follow these steps to install the printer
driver in the client computer.
1Insert the network expansion kit
"Software" CD-ROM into your
computer's CD-ROM drive.
2Click the "start" button, click "My
Computer" ( ), and then double-click
the CD-ROM icon ( ).
In Windows 95/98/Me/NT 4.0/2000,
double-click "My Computer" and then
double-click the CD-ROM icon.
3Double-click the "setup" icon ( ).
4The "SOFTWARE LICENSE" window will
appear. Make sure that you understand
the contents of the license agreement,
and then click the "Yes" button.
5
Read the message in the "Welcome"
window and then click the "Next" button.
6Click the "Printer Driver" button.
To view information on the software, click
the "Display Readme" button.
7Click the "Next" button.
8Click the "Custom installation" button.
9Select "Shared Printer" and click the
"Next" button.
To configure the appropriate settings in the print server, see the operation manual or help file of
your operating system.
"Print server" as explained here, is a computer that is directly connected to the machine, and a
"Client" is any other computer that is connected to the same network.
Note
If the language selection screen
appears after you double click the
"setup" icon, select the language that
you wish to use and click the "Next"
button. (Normally the correct language
is selected automatically.)
Note

- 19 -
INSTALLING THE SOFTWARE
Windows
10
For the port to be used, select the
machine set as a shared printer, and
click the "Next" button.
You can also click the "Add Network Port"
button and select the printer to be shared
(the machine) by browsing the network in
the window that appears.
11
When the model selection window
appears, select model name of your
machine and click the "Next" button.
12
When the printer driver selection
window appears, select the printer
driver to be installed and click the
"Next" button.
Be sure to select the same printer driver
as the printer driver used in the print
server (the machine).
13
Follow the on-screen instructions.
This completes the installation of the
software.
•After installation, see "CONFIGURING THE
PRINTER DRIVER" (p.24) to check the
printer driver settings.
•To install the Printer Status Monitor or Printer
Administration Utility, see the following
pages:
Printer Status Monitor: p.20
Printer Administration Utility: p.21
If the shared printer does not appear
in the list, check the settings in the
printer server.
Note
After the installation, a message
prompting you to restart your
computer may appear. In this case,
click the "Yes" button to restart your
computer.
If you installed the PS printer driver,
the PS display font can be installed
from the "PRINTER UTILITIES"
CD-ROM that accompanied the PS3
expansion kit. (p.22)
Note
Note

- 20 -
INSTALLING THE SOFTWARE
Windows
INSTALLING THE PRINTER STATUS MONITOR
1Insert the network expansion kit
"Software" CD-ROM into your
computer's CD-ROM drive.
2Click the "start" button, click "My
Computer" ( ), and then double-click
the CD-ROM icon ( ).
In Windows 95/98/Me/NT 4.0/2000,
double-click "My Computer" and then
double-click the CD-ROM icon.
3Double-click the "setup" icon ( ).
4The "SOFTWARE LICENSE" window will
appear. Make sure that you understand
the contents of the license agreement,
and then click the "Yes" button.
5
Read the message in the "Welcome"
window and then click the "Next" button.
6
Click the "Printer Status Monitor" button.
To view information on the software, click
the "Display Readme" button.
7Follow the on-screen instructions.
If the language selection screen
appears after you double click the
"setup" icon, select the language that
you wish to use and click the "Next"
button. (Normally the correct language
is selected automatically.)
Note
