Sharp AR-NB2 User manual

NETWORK EXPANSION KIT
OPERATION MANUAL
(for network scanner)
•INTRODUCTION
•
BEFORE USING THE NETWORK
SCANNER FUNCTION
• USING THE NETWORK
SCANNER FUNCTION
•TROUBLESHOOTING
•NETWORK EXPANSION
KIT CD-ROM
•SPECIFICATIONS
2
4
19
21
25
32
Page
MODEL
AR-NB2
AR-NB2 N
AR-M160/M205

- 2 -
INTRODUCTION
The optional network expansion kit enables the machine to be used as a network scanner.
●This manual only explains features that can be used when the optional network expansion kit is installed. For
information on loading paper, replacing toner cartridges, clearing paper misfeeds, handling peripheral devices,
and other copier-related information, please refer to your operation manual for the machine.
For information on the printer function that can be used when the network expansion kit is installed, see the online
manual for the network printer that accompanies the network expansion kit.
●The explanations in this manual assume that the person who will install the product and the users of the product
have a working knowledge of Microsoft Windows.
●This manual refers to the digital multifunctional system AR-M160/M205 as "the machine".
●For information on the operating system, please refer to your operating system manual or the online Help function.
●The explanations of screens and procedures in this manual are for Windows XP. The screens may vary
depending on your Windows version and settings.
●This manual refers to the Single Pass Feeder as the "SPF", and the Reversing Single Pass Feeder as the
"RSPF".
●Wherever "AR-XXXX" appears in this manual, please substitute your model name for "XXXX". For information on
your model name, see "DIFFERENCES BETWEEN MODELS" in the operation manual.
Warranty
While every effort has been made to make this operation manual as accurate and helpful as possible, SHARP
Corporation makes no warranty of any kind with regard to its content. All information included herein is subject to
change without notice. SHARP is not responsible for any loss or damages, direct or indirect, arising from or related
to the use of this operation manual.
Trademark Acknowledgments
• Sharpdesk LT is a trademark of Sharp Corporation.
•Microsoft
®Windows®operating system is a trademark or copyright of Microsoft Corporation in the U.S.A. and
other countries.
•Windows
®95, Windows®98, Windows®Me, Windows NT®4.0, Windows®2000, and Windows®XP are
trademarks or copyrights of Microsoft Corporation in the U.S.A. and other countries.
• Netscape Navigator is a trademark of Netscape Communications Corporation.
• Acrobat®Reader Copyright©1987- 2002 Adobe Systems Incorporated. All rights reserved. Adobe, the Adobe
logo, Acrobat, and the Acrobat logo are trademarks of Adobe Systems Incorporated.
• All other trademarks and copyrights are the property of their respective owners.
• To use the network scanner function, the dual function board (AR-EB7) must be installed in the machine.
• Use the USB 2.0 connector on the dual function board to connect the machine to the network expansion kit. The
network scanner function cannot be used if the network expansion kit is connected to the USB 1.1 connector on
the machine.
The display screens, messages, and key names shown in the manual may differ from those on the actual machine
due to product improvements and modifications.

- 3 -
CONTENTS
INTRODUCTION ............................................... 2
1
BEFORE USING THE NETWORK SCANNER FUNCTION
ABOUT THE NETWORK SCANNER FUNCTION .... 4
SETTINGS AND PROGRAMMING REQUIRED
FOR THE NETWORK SCANNER FEATURE .. 5
●SETTINGS REQUIRED FOR THE NETWORK
SCANNER FUNCTION....................................5
●ACCESSING WEB PAGES .............................6
●
CHANGING THE WEB PAGE LANGUAGE .......6
●ABOUT THE WEB PAGE ................................7
●
BASIC SETTINGS FOR NETWORK SCANNING .....8
●
SMTP SERVER AND DNS SERVER SETTINGS .....9
●CONFIGURING LDAP SERVER SETTINGS
(WHEN USING AN LDAP SERVER) .............10
●STORING SCANNING SETTINGS................11
●STORING DESTINATIONS ...........................12
●ASSIGNING DESTINATIONS TO THE SCAN
MENU KEYS ON THE MACHINE..................17
●PROTECTING INFORMATION
PROGRAMMED IN THE WEB PAGE
("Passwords") ................................................18
2
USING THE NETWORK SCANNER FUNCTION
BASIC TRANSMISSION PROCEDURE......... 19
●EDITING THE SETTINGS IN A [SCAN MENU]
KEY................................................................19
●IMAGE ORIENTATION AND STANDARD
ORIGINAL LOADING ORIENTATION ...........20
3TROUBLESHOOTING
TROUBLESHOOTING .................................... 21
●DISPLAY MESSAGES...................................22
●IF YOUR E-MAIL IS RETURNED ..................22
●IMPORTANT POINTS WHEN USING SCAN TO
E-MAIL ...........................................................23
CHECKING THE IP ADDRESS ...................... 24
4
NETWORK EXPANSION KIT CD-ROM
SOFTWARE PROGRAMS...............................25
●
HARDWARE AND SOFTWARE REQUIREMENTS ..... 25
●
USER'S GUIDES FOR SOFTWARE PROGRAMS ...... 26
INSTALLING THE SOFTWARE PROGRAM ..27
●INSTALLING SHARPDESK LT AND
NETWORK SCANNER TOOL ...................... 27
●
SETTING UP NETWORK SCANNER TOOL ........ 28
●
INSTALLING SHARP TWAIN AR/DM .................. 30
●INSTALLING TypeReader Professional 5.0
(Trial version) ................................................ 30
●
UNINSTALLING THE SOFTWARE PROGRAM ...... 31
5SPECIFICATIONS

- 4 -
1Chapter 1
1
BEFORE USING THE NETWORK SCANNER FUNCTION
ABOUT THE NETWORK SCANNER
FUNCTION
When the network expansion kit is installed in the machine, a document or photo can be scanned into an image file
and sent over a network or the Internet to a file server, e-mail destination, or your own computer. The scanned
image can be sent to the following types of destinations:
1. The scanned image can be sent to a memory
storage device on a network (a designated
directory on an FTP server). (This is called
"Scan to FTP" in this manual.)
When sending scanned image to an FTP
server, an e-mail message can also be sent to a
preset e-mail address to inform the recipient of
the location of the scanned image data. (This is
called "Scan to FTP (Hyperlink)" in this
manual.)
2. A scanned image can be sent to a computer
connected to the same network as the
machine. (This is called "Scan to Desktop" in
this manual.)
* Before Scan to Desktop can be performed, the
"Network Scanner Tool" software in the
CD-ROM that accompanied the network
expansion kit must be installed. For the system
requirements for Scan to Desktop and the
procedure for installing the Network Scanner
Tool, see "NETWORK EXPANSION KIT
CD-ROM" (p.25).
3. The scanned image can be sent to an e-mail
recipient. (This is called "Scan to E-mail" in
this manual.)
* A limit is set in the Web page for the size of
image files that can be sent using Scan to
E-mail (p.8).

- 5 -
1
SETTINGS AND PROGRAMMING
REQUIRED FOR THE NETWORK
SCANNER FEATURE
To the Network Scanner feature, settings for the SMTP server, DNS server, and destination addresses must be
established.
To establish the settings, use a computer that is connected to the same network as the machine to access the
machine's Web page. The Web page can be displayed with your Web browser (Internet Explorer 5.5 or later, or
Netscape Navigator 6.0 or later).
SETTINGS REQUIRED FOR THE NETWORK SCANNER FUNCTION
To transmit images using the network scanner function, configure the settings in the Web pages as follows:
The following settings can also be configured to enable convenient use of the network scanner function:
•Changing the Web page language (p.6) •Setting passwords. (p.18)
Scan to FTP
Scan to FTP (Hyperlink) Scan to E-mail Scan to Desktop
Access the Web pages (p.6)
Configure basic settings for network scanning (p.8)
Configure your SMTP and DNS server settings (p.9)
Configure LDAP server settings
(when using an LDAP server) (p.10)
Storing scanning settings (p.11)
Store destination information (p.12 to 15)
Assigning destinations to the scan menu keys on the machine (p.17)

- 6 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
ACCESSING WEB PAGES
Use the following procedure to access the Web pages.
1Open the Web browser on your
computer.
Supported browsers: Internet Explorer 5.5 or later
Netscape Navigator 6.0 or
later
2In the "Address" field of your Web
browser, enter the IP address of the
machine as a URL.
Enter the IP address that
has been programmed in
the machine.
If you do not know the IP
address, see page 24.
When the connection is completed, the Web
page will appear in your Web browser.
CHANGING THE WEB PAGE LANGUAGE
The language appearing in the Web page can be changed.
1Click "Language Setting" in the menu
frame.
2Select the desired language in the
"Language Setting" menu and click
"Submit".
3
Turn the machine power off and then on.
The language appearing in the Web page will
change to the selected language when the Web
page is refreshed.

- 7 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
ABOUT THE WEB PAGE
When you access the Web page in the machine, the following page will appear in your browser.
A menu frame appears on the left side of the page. When you click an item in the menu, a screen appears in the
right frame that allows you to establish settings for that item.
For detailed explanations of the procedures for establishing settings, click "Help" in the menu frame.
Menu frame
Click the menu items displayed here to configure the corresponding settings.
Destination (p.12)
Set up destinations for Scan to FTP, Scan to FTP (Hyperlink), Scan to Desktop, and Scan to E-mail. You can
also edit or delete previously set destination information.
Network Scanning (p.8)
This lets you select transmission methods for the network scanner function, configure settings for Scan to
E-mail.
Application (p.9)
This lets you establish SMTP server settings, DNS server settings, and WINS server settings for Scan to E-mail
and Scan to FTP (Hyperlink), and for entering a host name instead of an IP address when storing a transmission
destination.
Configure LDAP server settings if an LDAP server is used.
1
2
3
4
1
2
3
4

- 8 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
BASIC SETTINGS FOR NETWORK SCANNING
Click "Network Scanning" in the menu frame, and then establish the required settings. These settings should only be
established by the network administrator.
For detailed explanations of the procedures for establishing settings, click "Help" in the menu frame.
1Click "Network Scanning" in the menu
frame.
The Network Scanning
Setup page appears.
2Select the transmission methods that
you wish to use.
Select the scanner delivery methods that you
want to use. In the "Enable Scanner Delivery to:"
field, click the checkbox next to each method that
you want to use so that a checkmark appears in
the checkbox.
All transmission methods are initially selected
(factory default settings).
3
Configure the Advanced Setup settings.
Select advanced functions that can be used for
Scan to E-mail.
If you wish to Bcc a copy of a Scan to E-mail
transmission to an e-mail address, select the
"Bcc:" checkbox and enter the e-mail address.
4Set a limit for the size of image files.
A limit can be set for the size of image files sent
by Scan to E-mail to prevent excessively large
files from being sent.
If the image file created from the scanned image
is larger than the set limit, the image file is
discarded. The limit can be set from 1 MB to 10
MB in increments of 1 MB.
The factory default setting is "Unlimited". If you wish to
set a limit, remove the checkmark from the "Unlimited"
checkbox and enter the desired limit in "Upper Limit".
5Select the method for assigning a file
name to a scanned image.
Select the method for assigning a file name to a
scanned image. In "File Naming", click the items
that you wish to use in the file name. "Destination
Name" and "Date & Time" are initially selected.
6Selecting an e-mail subject (only used
for Scan to E-mail).
The setting is used to enter the subject that
appears in the recipient's e-mail program when
you perform Scan to E-mail. (This setting is not
necessary if you will not be using Scan to E-mail.)
The subject can be up to 80 characters long. Only
one subject can be entered. If nothing is entered,
"Scanned image from <Device Name>" will appear.
* The name that appears in <Device Name> is
the name stored in "Name" in the screen that
appears when you click "System Information" in
the menu frame. If a name has not been stored,
the product name will appear.
7Click "Submit".
After entering the
settings, be sure to click
"Submit" to store them.
If you are going to send images to the same
recipient more than once, we recommend
that you also select "Session Page Counter"
or "Unique Identifier" to prevent sending
multiple files with the same name, which
would result in each successive file
overwriting the previous file.
Note

- 9 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
SMTP SERVER AND DNS SERVER SETTINGS
SMTP is used to transmit e-mail that is sent using Scan to E-mail or Scan to FTP (Hyperlink). To use these
transmission methods, your SMTP server settings must be configured.
Configuring SMTP server settings

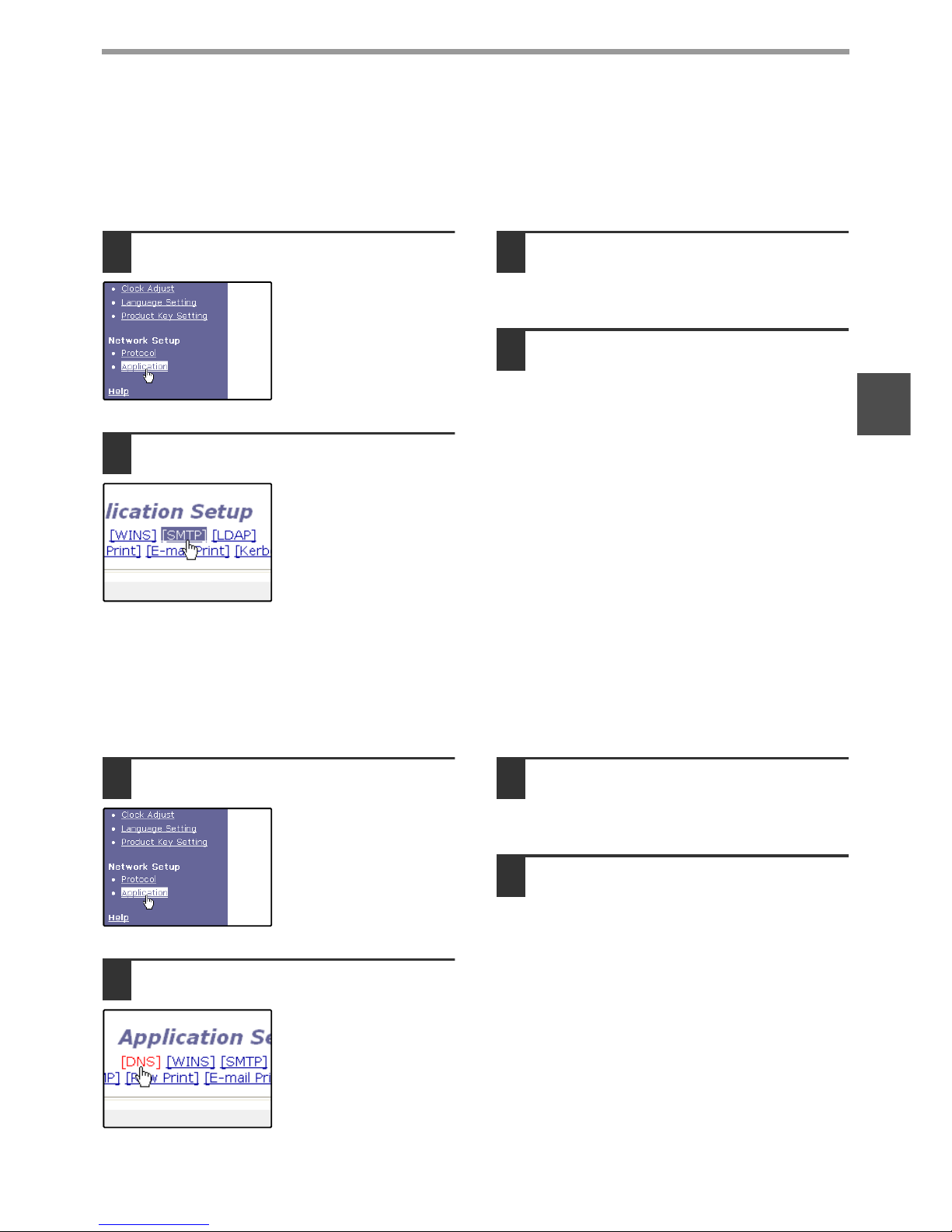

1Click "Application" in the menu frame.
2Click "SMTP".
3Enter the required information in
"SMTP Setup".
For explanations of each of the items, click "Help"
in the menu frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Configuring DNS server settings
If you entered a host name in "Primary SMTP Server" or "Secondary SMTP Server" of "SMTP Setup", you must also
configure your DNS server settings.
You will also need to configure your DNS server settings if host names will be entered in "Hostname or IP Address"
when storing destinations for Scan to FTP (Scan to FTP (Hyperlink)) or Scan to Desktop.
1Click "Application" in the menu frame.
2Click "DNS".
3Enter the required information in
"DNS Setup".
For explanations of each of the items, click "Help"
in the menu frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.

- 10 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
CONFIGURING LDAP SERVER SETTINGS (WHEN
USING AN LDAP SERVER)
If mail addresses are managed on your network by an LDAP server, the e-mail addresses stored in the LDAP server
can be used for Scan to E-mail.
To allow the machine to use the e-mail addresses in the LDAP server, the LDAP server settings must be configured in the Web page.
1Click "Application" in the menu frame.
2Click "LDAP".
3
Select "Enable" in the "LDAP Setup" menu.
4Click "Submit".
5Configure the settings in "Global
Address Books List".
For explanations of each of the items, click "Help"
in the menu frame.
6When you have completed all of the
entries, click "Submit".
The entries will be stored.

- 11 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
STORING SCANNING SETTINGS
Sets of scan settings (scan size, color mode, resolution, file type, etc.) can be stored for use in various scanning applications.
Each set of settings is called a "Scan Mode". When storing a destination, you can select one of the stored scanned modes.
The settings of the selected scan mode will be used when you scan an image and send it to that destination (p.12 to 15).
1Click "Network Scanning" in the menu
frame of the Web page.
2Click "Scan Mode".
3Click "Add" below the scan list.
If you need to change the
settings in a previously
stored scan mode, select
the scan mode and click
"Edit". To delete a scan
mode, select the scan
mode and click "Delete".
4Select the desired scanning settings.
To view explanations of the settings, click "Help"
in the menu frame.
When an original is scanned using the document
glass, the scanning area is determined by the
"Scan Size" setting. Read "IMAGE
ORIENTATION AND STANDARD ORIGINAL
LOADING ORIENTATION" (p.20) and make sure
that the correct scan size is selected.
The default settings are shown in the following table:
5When you have finished selecting the
settings, click "Submit".
The selected settings are stored.
Item Default setting Item Default setting
Scan Size Letter Light Source White
Color Mode Full Color File Type TIFF
Resolution 75 dpi Compression
Mode MMR(G4)
Void Area Off
Pages Per File All
• When the original size is automatically detected in the SPF/RSPF, the detected size is used instead of the scanning
size set in "Scan Size". For this reason, if the original is larger than the size set in "Scan Size", it may be scanned at a
lower resolution than the selected resolution.
• To scan a ledger, A3, or other large original at a high resolution setting such as 600 dpi, the machine memory
or network expansion kit memory must be expanded. (A high resolution setting can be selected with only
standard memory, however, the machine will scan the original at a lower resolution and enhance the image.)
To scan large originals at high resolution when the color mode is set to "mono 2 gradation", the network
expansion kit memory must be expanded. To scan large originals at high resolution when the color mode is set
to full color or grayscale, the machine memory must be expanded.
• For normal text originals, a sufficiently legible image is produced when the color mode is set to "Mono 2
gradation" and the resolution is 200 dpi or 300 dpi.
The 600 dpi setting should only be used in cases where high-clarity image reproduction is required, such as a
photograph or an illustration. Note that a high resolution setting will result in a larger file size, and transmission
may not be successful if there is insufficient disk capacity in the server to which the image is sent (or if the
administrator of the server has restricted the file size). If transmission is not successful, you can try such
measures as reducing the number of scanned pages in the file or reducing the scan size setting for the original.
•
The resolution settings that can be selected vary depending on the scan size, color mode, and light source settings.
• To open the scanned image without using the software program in the CD-ROM that accompanies the network
expansion kit, the recipient must have a viewer program that can open the image format (file type) that was
selected as explained above.
• The factory default setting for the image format produces the smallest file (File Type: TIFF, Compression
Mode: MMR (G4)). If the recipient cannot open the image, try sending the image in a different format.
•
Number of pages per file
If the number of scanned originals is not divisible by the number set in "Pages Per File", the last file will have less pages.
• If you wish to use a scan mode as the default scan mode when storing destinations, select the "Default Scan
Mode" checkbox.
•
The scan settings stored in a scan mode cannot be edited or deleted if the scan mode has been selected for a destination.
Note

- 12 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
STORING DESTINATIONS
To store scanning destinations, click "Destination" in the Web page menu frame. "Destination" can also be used to
edit or clear stored destinations. (p.16)
A total of 200 destinations* can be stored, including E-mail, FTP, Desktop, and Group destinations. Up to six of
these destinations can be assigned to the machine's [SCAN MENU] keys.
Stored destinations can be selected in the machine's operation panel when transmission is performed.
* Multiple e-mail addresses (up to 100) can be stored as a group. Note that this may reduce the maximum number
of destinations (normally 200) that can be stored.
E-mail: See below
FTP: Refer to page 13.
Desktop: Refer to page 14.
Group: Refer to page 15.
Storing destinations for Scan to E-mail
1Click "Destination" in the menu frame.
2Click "E-mail".
3Enter the destination information.
For explanations of each of the items, click "Help"
in the menu frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Click here.
Use "Scan Mode" to select a set of
previously stored scanning settings (see
"STORING SCANNING SETTINGS" on
page 11). The list shows the names of the
stored scan modes.
Note
To perform Scan to E-mail, the SMTP server settings must first be established. Click "Application" in the Web
page, click "SMTP" in the screen that appears, and then enter the settings under "SMTP Setup" (p.9).
Note

- 13 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Storing destinations for Scan to FTP

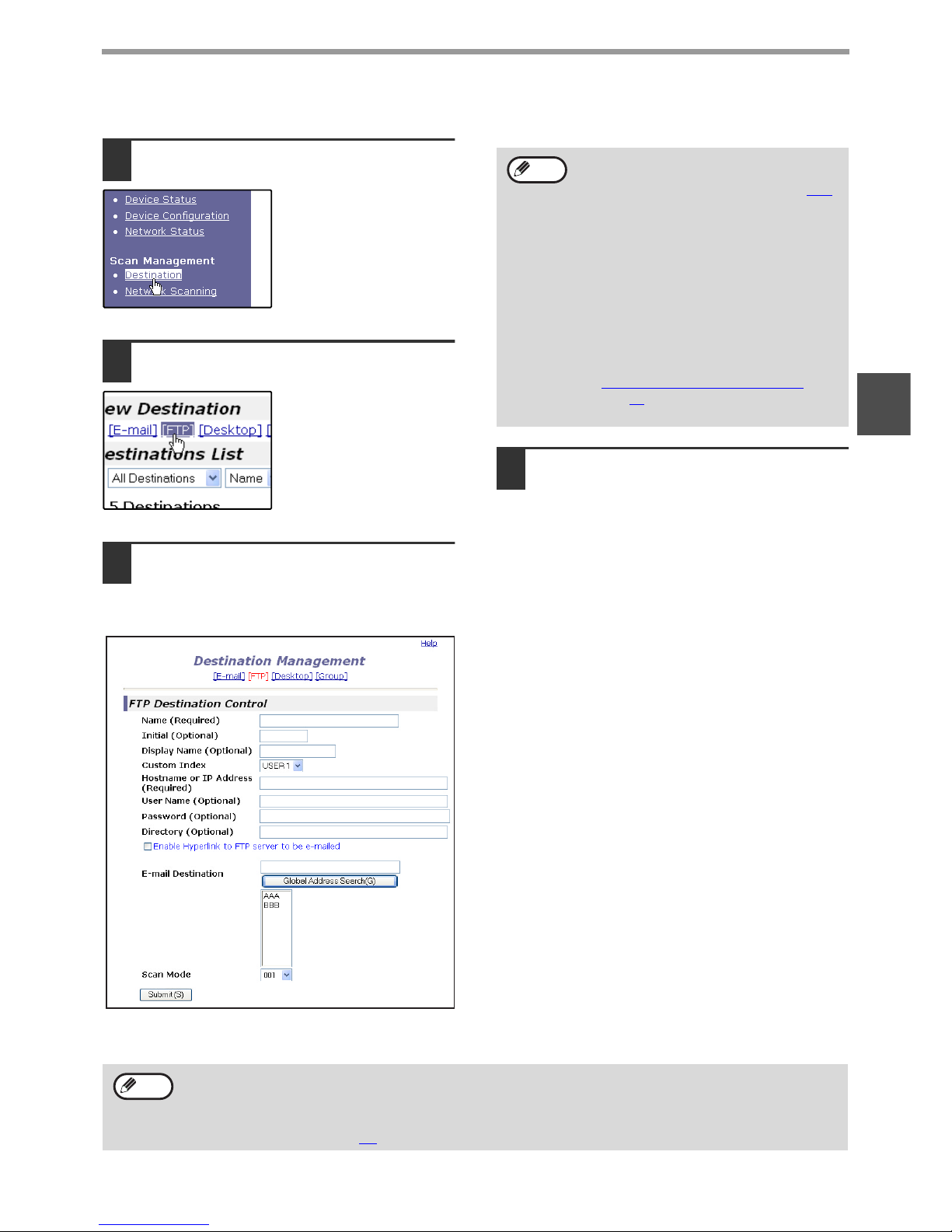

1Click "Destination" in the menu frame.
2Click "FTP".
3Enter the destination information.
For explanations of each of the items, click "Help"
in the menu frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
•If you select the "Enable Hyperlink to FTP
server to be e-mailed" checkbox and
select a previously stored recipient (p.12)
from "E-mail Destination", an e-mail will
be sent to the recipient informing them of
the file format and location of the scanned
image data. A hyperlink to the file server
to which the scanned image data was
sent appears in the e-mail, and the
recipient can click the hyperlink to go
directly to the location where the image
data is stored.
•Use "Scan Mode" to select a set of
previously stored scanning settings (see
"STORING SCANNING SETTINGS" on
page 11). The list shows the names of the
stored scan modes.
Note
If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server or WINS server
settings. Click "Application" in the menu frame and then click "DNS" or "WINS" in the page that appears to
configure the corresponding settings.
To perform Scan to FTP (Hyperlink), you must also click "SMTP" and then enter the settings under "SMTP
Setup" for the SMTP server (p.9).
Note

- 14 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Storing destinations for Scan to Desktop

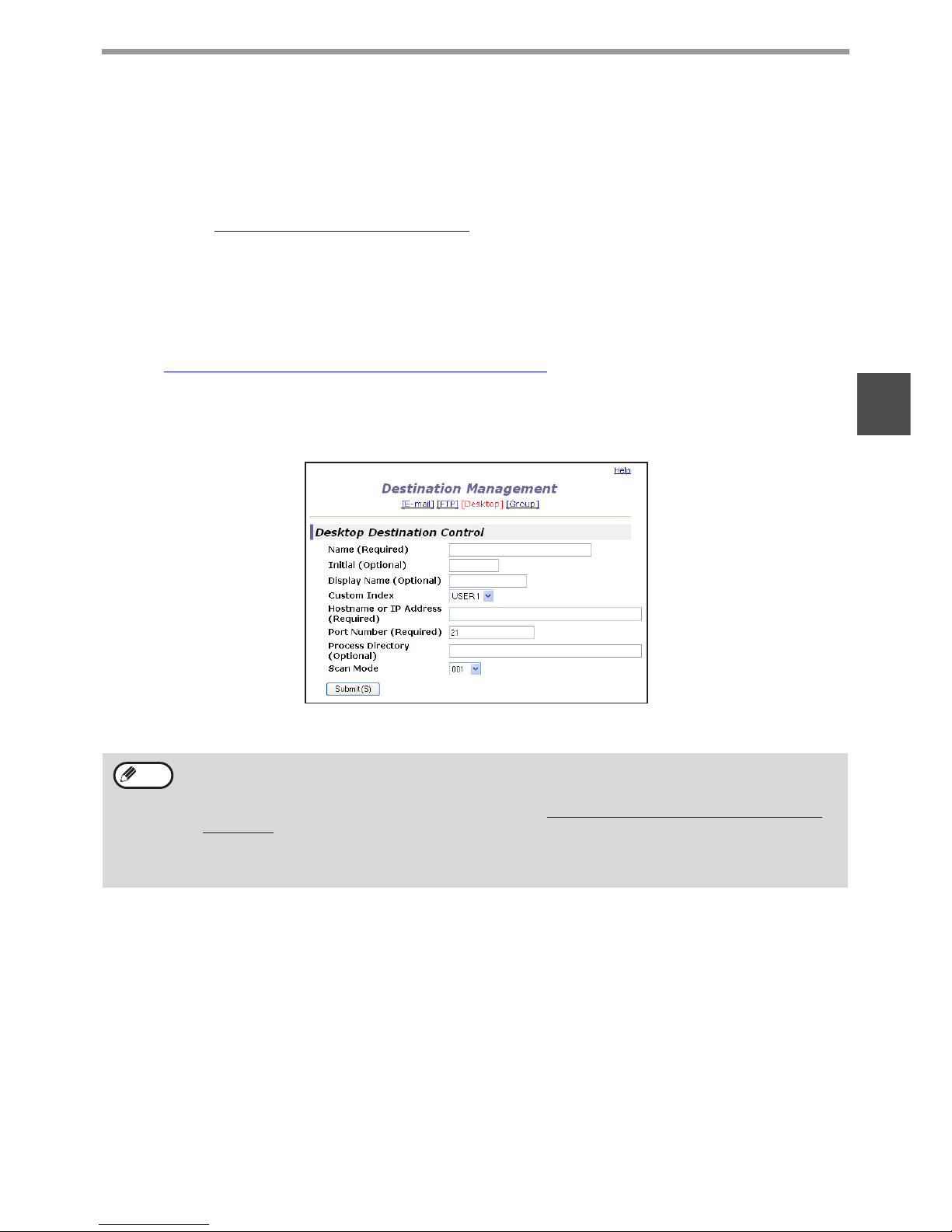

The destination for Scan to Desktop is stored by the Sharp Network Scanner Tool Setup Wizard when "Network
Scanner Tool" is installed in your computer. For this reason, there is no need to store the Scan to Desktop
destination in the Web page. (The Network Scanner Tool is on the "Sharpdesk LT" CD-ROM that accompanied the
Network Expansion Kit .)
For information on Scan to Desktop system requirements, installing the Network Scanner Tool, and storing the
destination, see "NETWORK EXPANSION KIT CD-ROM" (p.25).
Normally your computer is stored as the destination by the method indicated above.
The following page for storing Scan to Desktop destination information appears when "Destination" is selected in the
menu frame, followed by "Desktop". This page is used mainly by the system administrator in the following
circumstance.
•When another machine with the network scanner function has been added to the same network, and you wish to
perform Scan to Desktop from the added machine to a destination programmed in the previously existing machine.
Refer to "Editing and deleting programmed transmission destinations" (p.16), and select the Scan to Desktop
destination information that you wish to transfer to the new machine. Enter the displayed information in the same
setting screen of the new machine. (When all information has been entered, click "Submit".)
If there are additional destinations that you want to transfer to the new machine, repeat this procedure for each
destination.
Note that if there are any discrepancies between the newly programmed information and the information in the host
computer, transmission and reception may not be possible.
•For explanations of each of the items, click "Help" in the menu frame.
•The default scan mode (the scan mode for which the "Default Scan Mode" checkbox was selected when the
settings were stored) is automatically used as the scan mode for the Scan to Desktop destination stored by the
Network Scanner Tool. To use a different scan mode, see "Editing and deleting programmed transmission
destinations" (p.16).
•If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server or WINS server
settings. Click "Application" in the menu frame and then click "DNS" or "WINS" in the page that appears to
configure the corresponding settings.
Note

- 15 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Storing Groups (Scan to E-mail)

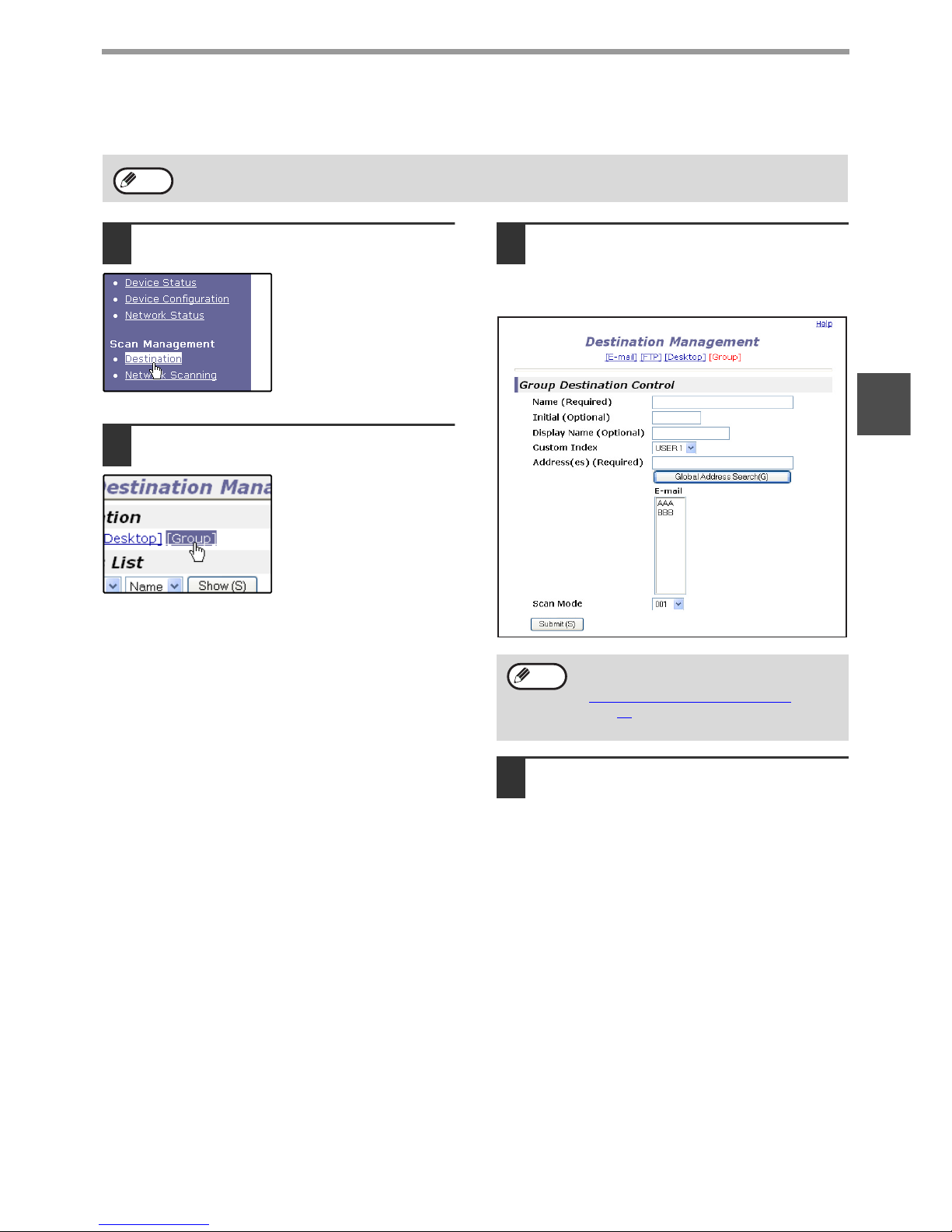

If you are using Scan to E-mail, a scanned image can be sent to multiple destinations in a single operation.
1Click "Destination" in the menu frame.
2Click "Group".
3Enter the destination information.
For explanations of each of the items, click "Help"
in the menu frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Up to 100 destinations can be stored in one group.
Note
Use "Scan Mode" to select a set of
previously stored scanning settings (see
"STORING SCANNING SETTINGS" on
page 11). The list shows the names of the
stored scan modes.
Note

- 16 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Editing and deleting programmed transmission destinations
To edit or delete programmed destinations, click "Destination" in the menu frame of the Web page.
1Click "Destination" in the menu frame
of the Web page.
2In the Destinations List, click the
checkbox of the destination that you
want to edit or delete.
3To edit the selected destination, click
"Edit" under the Destinations List.
The programming screen
of the destination
selected in step 2
appears. Edit the
information in the same
way as you initially stored
it.
When finished, be sure to click "Submit" to save
your changes.
4To delete the selected destination,
click "Delete" under the Destinations
List.
A message appears
asking you to confirm the
deletion. Click "Yes" to
delete.
If you attempt to delete a programmed destination in the following situations, a warning message will appear and
deletion will not be possible.
•The destination that you are attempting to delete is assigned to a [SCAN MENU] key.
•The destination is included in a group.
If the destination has been assigned to a [SCAN MENU] key, delete the assignment and then delete the
destination. If the destination is included in a group, delete the destination from the group and then delete the
destination.
Note

- 17 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
ASSIGNING DESTINATIONS TO THE SCAN MENU
KEYS ON THE MACHINE
Stored destinations (p.12 to 15) can be assigned to the six scan menu keys on the machine. This lets you use a
menu key to send a scanned image to the assigned destination.
1Click "Network Scanning" in the menu
frame of the Web page.
2Click "Button Manager".
3Click the checkboxes of the scan
menu keys to which you wish to
assign destinations, and then click
"Edit" below the button list.
4Select the destination that you wish to
assign to each scan menu key.
5Click "Submit".
The selected destination information is assigned
to the scan menu key.
Editing or deleting a [SCAN MENU] key assignment
To change a destination assigned to a [SCAN MENU] key, perform the above procedure.
To delete a [SCAN MENU] key assignment, click "Delete" in step 3.

- 18 -
BEFORE USING THE NETWORK SCANNER FUNCTION
1
PROTECTING INFORMATION PROGRAMMED IN THE
WEB PAGE ("Passwords")
Passwords can be established to protect the settings and information stored in the Web page. Note that it is not
necessary to set passwords; the network scanner functionality can also be used without passwords.
A password can be set for the administrator and a password can be set for users. When the Web page is accessed
with the user password, the "Device Setup" and "Network Setup" settings cannot be configured.
1Click "Passwords" in the menu frame.
2
Select the "Enable Password Protection
of this Web Site" checkbox.
3Enter the current password in "Admin
Password".
When establishing a password for the first time,
enter "Sharp" in "Admin Password".
4Enter passwords in "User Password"
and "Admin Password".
A maximum of 7 characters and/or numbers can
be entered for each password (passwords are
case sensitive).
Be sure to enter the same password in "New
Password" as you did in "Confirm Password".
5When you have completed all of the
entries, click "Submit".
The entered password is stored.
After setting the password, turn the machine
power off and then back on.
Be sure to enter "S" in upper case and
"harp" in lower case (passwords are case
sensitive).
Caution
When a password is set, you will be prompted for the
password when you attempt to access a Web page
with protected settings. For the "User name", enter
"user" if you are accessing the page as a user, or
"admin" if you are accessing the page as an
administrator. For detailed information on setting
passwords, refer to "Help".

- 19 -
2Chapter 2
2
USING THE NETWORK SCANNER FUNCTION
This section explains the procedure for scanning from the machine after the network scanner settings have been
configured in the Web page.
For the names and functions of the parts of the machine and operation panel that are used for network scanning,
see the operation manual for the machine.

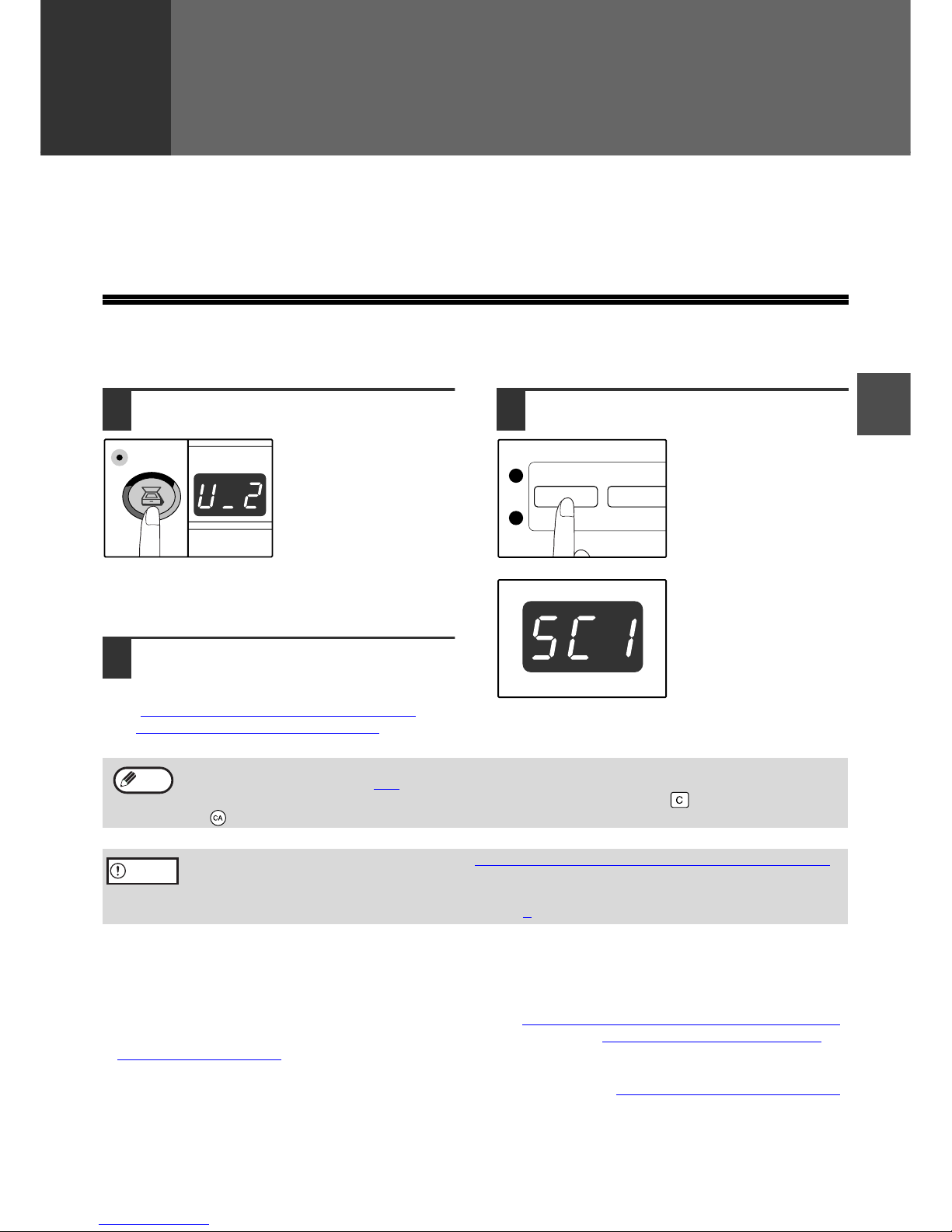

BASIC TRANSMISSION PROCEDURE
1Press the [SCAN] key.
When the SCAN
indicator lights up, the
machine enters scanner
mode.
The interface port
changes each time you
press the [SCAN] key.
When using the machine's network scanner function,
make sure that "U_2" appears in the display, which
indicates that the USB 2.0 port is selected.
2Place the original in the document
feeder tray or on the document glass.
For information on how to place the original, see
"IMAGE ORIENTATION AND STANDARD
ORIGINAL LOADING ORIENTATION" (p.20).
3Press a [SCAN MENU] key.
Scanning begins.
The SCAN indicator
blinks during scanning.
While the indicator is
blinking, the [SCAN
MENU] keys cannot be
pressed to begin
scanning.
The display will show the
number of the [SCAN
MENU] key that you
pressed.
EDITING THE SETTINGS IN A [SCAN MENU] KEY
●
To change the destination assigned to a [SCAN MENU] key, see "Editing or deleting a [SCAN MENU] key assignment".
●To edit the settings of a destination assigned to a [SCAN MENU] key, see "Editing and deleting programmed
transmission destinations".
●The scan settings stored in a scan mode cannot be edited if the scan mode has been selected for a destination.
You can either store the desired settings in a new scan mode as explained in "STORING SCANNING SETTINGS"
and then edit the destination settings, or you can cancel the selection of the scan mode for the destination and
then edit the scan mode settings.
SCAN
1
2
12
•To use a [SCAN MENU] key, the scanning method (destination and scan settings) must first be assigned to
the key using the Web page (p.17).
•To cancel a scanning job after pressing the [SCAN] key, press the [CLEAR] key ( ) or the [CLEAR ALL] key
( ) on the machine.
•
Before performing Scan to E-mail, read "IMPORTANT POINTS WHEN USING SCAN TO E-MAIL"
and take care that the image file is not too large.
•A limit for the size of image files that can be sent using Scan to E-mail can be set in
"Maximum Size of E-mail Attachments" (page 8) of the Web page.
Note
Caution

- 20 -
USING THE NETWORK SCANNER FUNCTION
2
IMAGE ORIENTATION AND STANDARD ORIGINAL
LOADING ORIENTATION
When using the document glass, the original should be placed face down so that it is centered vertically on the glass
with the top edge of the original at the left edge of the glass.
When using the SPF/RSPF, the original should be placed face up in the middle of the document feeder tray, with the
top of the original to the right.
Long horizontal originals of size 11" x 17", 8-1/2" x 14", A3, or B4 can only be placed as shown below.
For this reason, the scanned image will be rotated 90°when viewed on a computer.

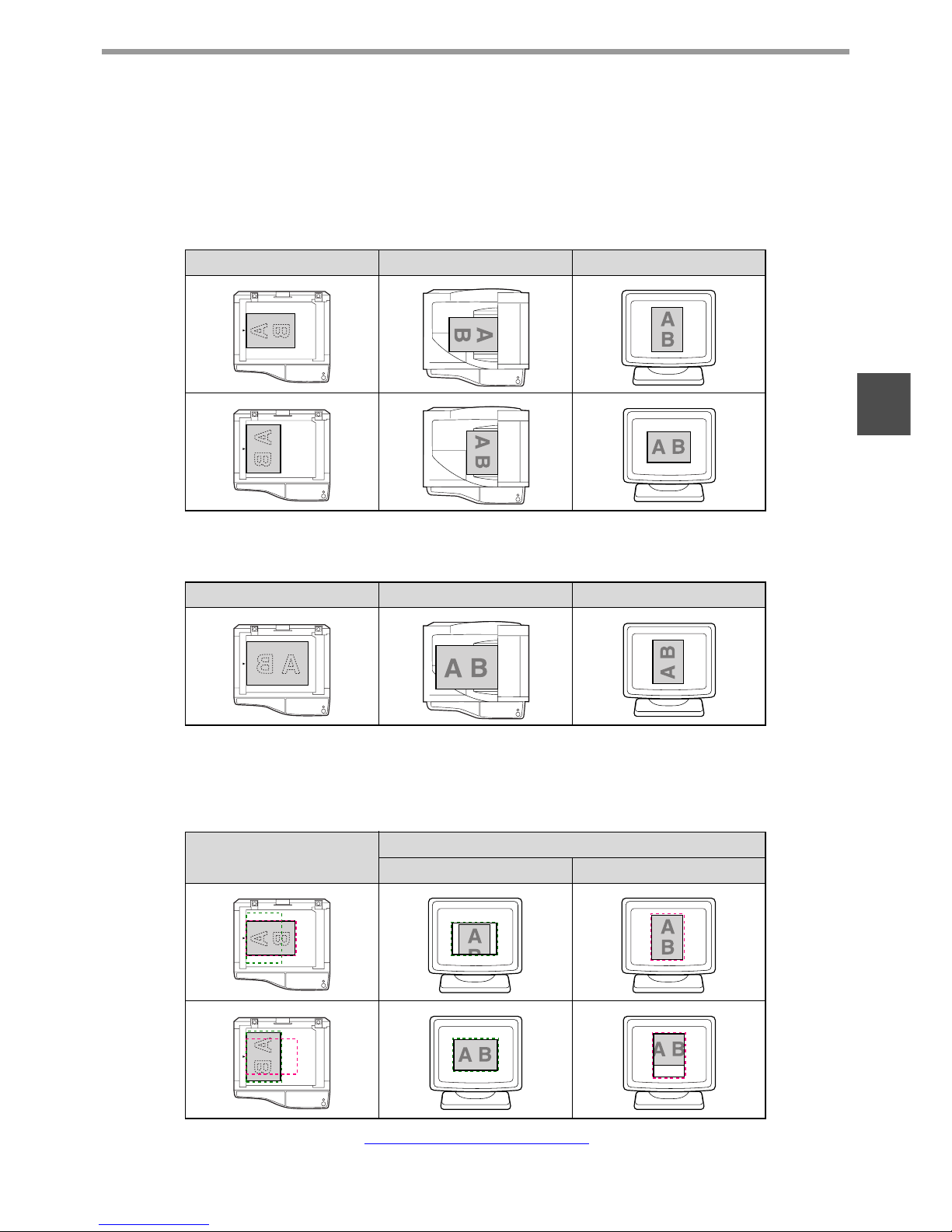

When an original is scanned using the document glass, the scanning area is determined by the "Scan Size" setting
of the scan mode stored in the destination information. If the orientation of the placed original does not agree with
the scan size setting, not all of the original will be scanned. The following examples show how the scan size setting
affects the resulting image when a letter original is scanned on the document glass.
To change the "Scan Size" setting, see "STORING SCANNING SETTINGS" (p.11).
Document glass SPF/RSPF Scanning result
Document glass SPF/RSPF Scanning result
Document glass Scanning result
Scan size = Letter Scan size = Letter-R
