ShoreStation Manual SSV20100MS User manual

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 1 of 19 Rev 2
ASSEMBLY GUIDE
MANUAL & FLEXPOWER® ELECTRIC
2000 LB THRU 6000 LB
Manual Models
SSV20100MS
SSV30108MS
SSV30120MS
SSV40108MS
SSV40120MS
SSV50108MS
SSV50120MS
SSPV50132LMS
Including
Pontoon
and Deep
Water
FlexPower® Electric Models
SSV20100EDS
SSV30108EDS
SSV30120EDS

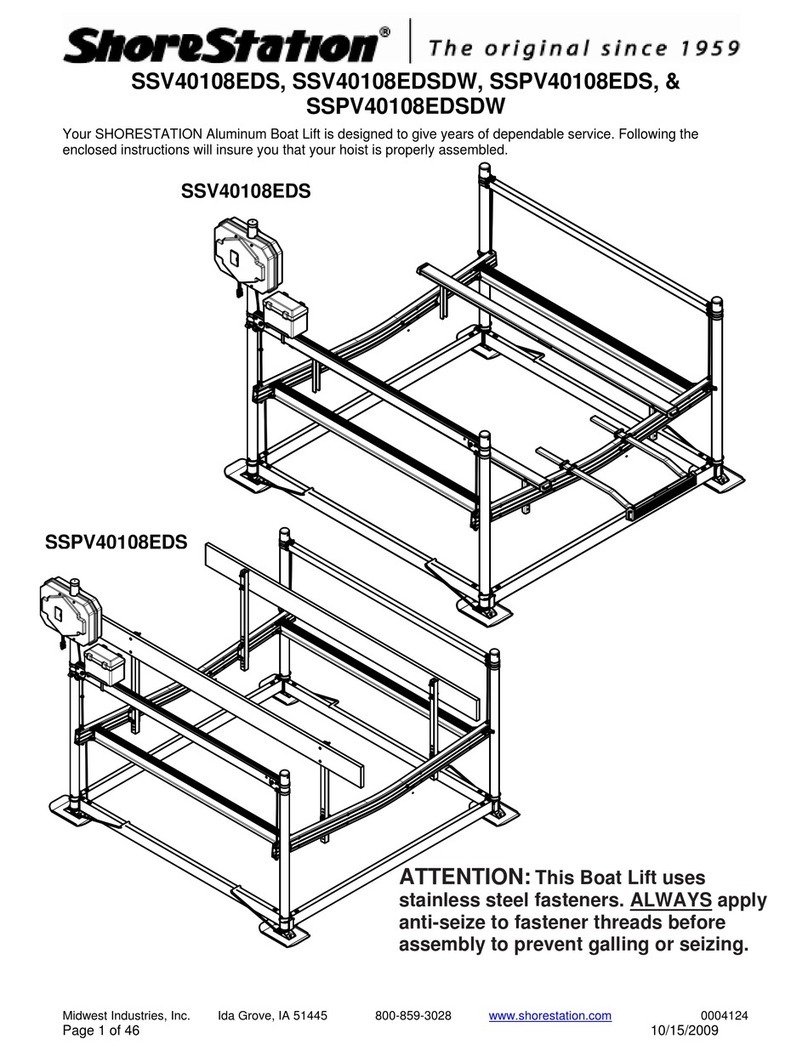

SSV40108EDS
SSV40120EDS
SSV50108EDS
SSV50120EDS
SSV60108EDS
SSV60120EDS
SSPV50132LEDS
Including
Pontoon
and Deep
Water

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 2 of 19 Rev 2
Step #1 –Sort Hardware
Open the hardware box and bag and sort the hardware and other contents by size. Locate the
fastener finder sheet in the hardware box to help identify the fasteners used in the assembly of
these lifts.
Step #2 –Assemble Base Pads
Collect enough of the fasteners and items shown below to assemble four base pads. Align the
channel clamp with the holes in the base pad as shown, insert bolts from the bottom up and
secure with lock nuts. Tighten and repeat for all four base pads.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 3 of 19 Rev 2
Step #3 –Assemble Base Pads to Legs
Locate the leg bundle or bundles and cut the bands to open it up. Locate the leg lift rods and
other components shown. Slide the end of the leg lift rod with the hole in it thru the channel
clamp and the adjustable leg tube as shown and secure with the hair pin cotter.
Note that the rods should be inserted in the same direction as that of the u-bolt. Slide the grip
onto the other end of the lift rod. Repeat this process on the remaining legs.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 4 of 19 Rev 2
Step #4 –Assembly of Lower Side Frame
Using the chart at the top of page 6, locate the correct components that are included in the
lower frame bundle. Your assembly will start by laying two legs down with the corner blocks as
shown, for the model that you are assembling. Make sure at this time that you are matching
the legs according to the decals applied. Slide a sideframe tube over the corner block and
insert the short bolt (see chart on page 6) with a 3/8” flat washer into the hole closest to the
post assembly. Secure with flat washer and brass locknut. DO NOT TIGHTEN.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 5 of 19 Rev 2
Step #5 –Attach Front & Rear Frame Crossmembers
Using the chart, locate the correct length tubes for crossmembers. With the unit still laying on
it’s side, slide the crossmembers over the other corner block leg and insert the short bolt with a
washer into the hole closest to the post and secure on the bottom with a flat washer and brass
lock nut. DO NOT TIGHTEN.
Step #6 –Complete Frame Corner Assembly
Flip the entire assembly upright onto the base pads.
Locate the long bolts (from the table below) and the bottom corner cable bracket. Insert the
long bolt with a flat washer thru the second hole from the post, thru the frame tubes and then
thru the corner cable bracket on the bottom as shown. Secure with a flat washer and brass
lock nut. Do not tighten.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 6 of 19 Rev 2
Lift Models
Lower Frame Components
Bolts for Assembly
Includes Pontoon & Deep
Water
Front & Rear
Crossmembers
Sideframes
Short Bolts
Long Bolts
SSV20100
4" X 2" X 99"
4" X 2" X 107"
3/8-16 X 5"
3/8-16 X 5 1/2"
SSV30108 & SSV40108
5" X 2" X 107"
5" X 2" X 107"
3/8-16 X 6"
3/8-16 X 6 1/2"
SSV30120 & SSV40120
5" X 2" X 119"
5" X 2" X 107"
3/8-16 X 6"
3/8-16 X 6 1/2"
SSV50108
5" X 2" X 107"
5" X 2" X 131"
3/8-16 X6"
3/8-16 X 6 1/2"
SSV50120
5" X 2" X 119"
5" X 2" X 131"
3/8-16 X 6"
3/8-16 X 6 1/2"
SSV60108
6" X 2" X 107"
6" X 2" X 131"
3/8-16 X 7"
3/8-16 X 7 1/2"
SSV60120
6" X 2" X 119"
6" X 2" X 131"
3/8-16 X 7"
3/8-16 X 7 1/2"
SSPV50132L
5” X 2” X 131”
5” X 2” X 167”
3/8-16 X 6”
3/8-16 X 6 1/2”

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 7 of 19 Rev 2
Step #7 –Complete Bottom Frame & Post Assembly
Insert the corner blocks of the two remaining leg assemblies into the crossmembers as shown
below, insert short bolts with washers in the holes closest to the posts to keep them in place.
Pull the legs apart slightly and slide the other side frame over the corner blocks and secure
these also with short bolts, washers, and brass lock nuts. Square the frame and tighten all
hardware installed.
Attention
Properly Securing a Lift’s Lower Frame
Tighten all fasteners with an air or battery powered high torque impact wrench. It’s
important to tighten the fasteners so the platform tube pulls tight to the corner block.
The fastener needs to slightly crease the tube wall until there is no gap between the
tube and the corner block. In some instances the impact wrench may not have enough
torque and it may be necessary to hand tighten in order to achieve contact with the
corner block.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 8 of 19 Rev 2
Step #8 –Assemble the Lift Platform
Lay the V-Shaped cradle tubes across the lower frame as shown. Place the end with the lift
cable threaded out the bottom on the same side as the corner cable brackets.
Slide two carriage bolts into the top slot and 2 into the bottom slot on the inside of the cradle
tube. Using those bolts, mount a pair of side rail brackets on each end of the cradle tube as
shown above. Position the outer edge of the brackets at least 3 inches from the end of the
cradle tube. It is important to keep this distance equal on all four corners to keep it square.
Insert a carriage bolt into the corner guide as shown and slide the head into the top slot in the
cradle tube. Secure corner guide with a flat washer and lock nut. Do the same on the other
three corners. Do not tighten at this time.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 9 of 19 Rev 2
Insert the platform rails into the space between the mounting brackets and between the v-
frames Note: that the platform I-beam that is used on the 2000# models will require spacers to
be inserted under the I-beam and on top of the lower mounting bracket. Secure with bolts,
washers and nuts as shown.
The following picture shows the position of the level cable as it comes over the pulley in the
cradle tube and out the bottom to go to the cable mounting bar attached to the corner of the
lower frame. Note the other two holes on the end of the cradle tube. These will be used later to
attach the cables coming from the bottom of the lift tube.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 10 of 19 Rev 2
Step #9 –Attach the Level Cable
Attach the level cable as shown inserting the cable into the hole closest to the sideframe and
securing with a flat washer and 2 brass hex nuts (see chart on page 12 for hardware sizes).
The first nut will be run to the bottom of the threads and the second run down and secured
tightly against the first. Repeat on other level cable.
Step #10 –Install the Drop Side or Spacer Brace Tube
The drop side or spacer brace tube is located opposite the lift tube so install it on the posts
opposite the corner cable brackets. The 2000# thru 6000# EDS lifts use a drop side brace
tube. The 2000# thru 5000# M lifts use a spacer brace tube. Locate the appropriate brackets
and hardware from the illustrations below. Mount the drop side to the post as shown, keeping
the lock nuts on the outside. Adjust brackets on both sides the height indicated by the chart
found on page 12 and tighten all fasteners securely.
2000# - 6000#EDS & 2000# - 5000#MS

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 11 of 19 Rev 2
Step # 10 –Attach the Lift (Winch) Tube Assembly
Mount the lift tube to the post as shown, keeping the lock nuts on the outside. Adjust brackets
on both sides to the height indicated by the chart found on page 12 and tighten all fasteners
securely.
2000# thru 4000# lifts
5000# thru 6000#
Lift Tube Assy

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 12 of 19 Rev 2
Lift Assembly Measurements
The following table shows the lift tube and brace tube (drop side) measurements for each lift model. Find the lift
model in the table and place the components as shown in the diagrams. Tighten all components according to the
assembly instructions after properly locating the lift tubes.
Lift Tube
Height (X)
Brace
Tube
Height (Y)
SSV1564ED
69”
69”
SSV1564M
69”
69”
SSV30108EDS
68”
68”
SSV30108MS
68”
68”
SSV30120EDS
68”
68”
SSV30120MS
68”
68”
SSV40108EDS
68”
68”
SSV40108HS
71-1/2”
75-1/2”
SSV40108MS
68”
68”
SSV40120EDS
68”
68”
SSV40120HS
71-1/2”
75-1/2”
SSV40120MS
68”
68”
SSV50108EDS
76”
76”
SSV50108MS
76”
76”
SSV50120EDS
76”
76”
SSV50120HS
71-1/2”
75-1/2”
SSV50120MS
76”
76”
SSV60108EDS
78”
77-1/2”
SSV60120EDS
78”
77-1/2”
SSV60120HS
80”
75-1/2”
SSV60132HS
80”
75-1/2”
SSV70120HSDW
80”
87”
SSV70132HSDW
80”
87”
SSV80132HSDW
87”
87”
SSPV50132LEDS
76”
76”
SSPV50132LHS
71-1/2”
75-1/2”
SSPV50132MLS
76”
76”
SSV100132HSDW
95”
87”
SSV100144HSDW
97”
90-1/2”
SSV150144HSDW
109”
102”
X
Y
Note: The lift measurements can vary up to 1 1/2” due to
cable length variation. Adjust the placement to ensure the
platform is level and the lift cables can reach the cradle
attachment.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 13 of 19 Rev 2
Step # 11 –Attach Level Cables to Drop Side or Brace Tube
Insert the ends of the level cables (from the cradle tubes) directly up thru the drop side or
brace tube and secure with hardware from chart below. Hint: Block the platform off the lower
frame about 6 inches to create enough slack for the cable to pass thru the brace tube.
Lift Models
Level Cables
Lift Cables
Includes Pontoon & Deep
Water
Brass Hex Nut
Stainless Flat
Washer
Brass Hex Nuts
Stainless Flat
Washer
SSV20100
1/2-13
4 = 1/2 Flat 2=
A152
5/8-11
5/8 Flat
SSV30108 & SSV40108
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSV30120 & SSV40120
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSV50108
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSV50120
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSV60108
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSV60120
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
SSPV50132L
5/8-11
4 = 5/8 Flat 2=
A152
5/8-11
5/8 Flat
A152 - 2 1/8" OD Aluminum Washer used on brace tube

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 14 of 19 Rev 2
Step # 12 –Mounting Manual and Electric Winches.
Lower the winch assembly into the winch
tube and align the holes. Insert one 1/2”
X 4 1/4” stainless steel hex bolt secure
with a 1/2" stainless steel flat washer and
brass hex locknut 1/2” with nylon insert.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 15 of 19 Rev 2
Make sure when inserting the cable into the FlexPower® Winch Assembly that it goes behind
the anti backwind switch lever.
Step # 13 –Attach Lift/Winch Cable to Winch Drum Assembly
anti backwind switch lever
Locate the cable wedge pocket. Rotate the
winch drum either clockwise or counterclockwise
by turning the drive shaft until the cable wedge
pocket is in the shown location.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 16 of 19 Rev 2
Step #14 –Attaching the Wheel Stop on Manual Lifts

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 17 of 19 Rev 2
Step #15 –Connecting Lift Tube Cables
The cables on the Mechanical winch lifts should be down so they can be attached to the lift
platform.
Attaching cables to Aluminum Cradle Tubes: the cable coming from the outside pulley of
the Lift Tube goes thru the outside holes in the Cradle Tube. The cable coming from the
inside pulley, on the other end of the Lift Tube, goes thru the inside hole on the Cradle
Tube.
Secure the cables to the Cradle Tubes with 2 brass nuts and a flat washer as shown below.
Refer to the chart on page 12 for the proper sizes.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 18 of 19 Rev 2
Step #16 –Attaching Upper Limit Switch for FlexPower Lifts
Step #17 –Mounting the Battery Box
Follow the instructions for assembly and mounting that are included with the HA0131 Kit for 2000# thru 4000#
and HA0109 kit for 5000# and 6000#.
Step #18 –Mounting the Battery Tender
Follow the instructions for assembly and mounting that are included with the HA Kit.
Step #19 –Mounting the Support Structure
A –Mounting the bunks
Follow the instructions for assembly and mounting that are included with the HA Kit.
B –Mounting the Pontoon Kit
Follow the instructions for assembly and mounting that are included with the HA Kit.
C –Mounting the Pontoon Log Rack and Loadguide
Follow the instructions for assembly and mounting that are included with the Hardware Box.
Attach the upper limit switch to the
bottom of the winch tube assembly
as shown. The holes will allow the
switch to be adjusted so the cable
will travel thru the center of the slot
in the pivot arm. The grommet and
wire tie are to be mounted to the
cable, the final placement will not
be made until the lift is in the water
and the boat can be loaded into the
lift.

Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004423
Page 19 of 19 Rev 2
Step #20 Attaching the Motor Stop –For 2000# Lifts
Note; The optional HA0151 Motor Stop kit assembly will be used on models 2000# lift
models. Refer to the instructions included in the HA kit
®
Note; The optional HA0087 Motor Stop kit assembly will be used on models 3000# thru
6000# lift models. Refer to the instructions included in the HA kit.
Step #21 –Inserting Caps
If you are adding a canopy you can omit this step
in the assembly process. The last step would be
to go around and put the black plastic caps in the
top of the leg post. Before calling your assembly
complete take one last walk around your hoist
and make sure all nuts and bolts have been
tightened, all cables are secured, and all hoses
and electrical connections are together.
