1 Safety information
1.1 General safety notes
■Read the operating instructions before commissioning.
■
Connection, mounting, and configuration may only be performed by trained
specialists.
■
2006/42/EC
NO
SAFETY
Not a safety component in accordance with the EU Machinery Directive.
■
Do not install the sensor at locations that are exposed to direct sunlight
or other weather influences, unless this is expressly permitted in the operating
instructions.
■These operating instructions contain information required during the life cycle of
the sensor.
1.2 Notes on UL approval
The device shall be supplied from an isolating transformer having a secondary overcur‐
rent protective device that complies with UL 248 to be installed in the field rated either:
a) max 5 amps for voltages 0 ~ 20 V (0 ~ 28.3 V peak), or
b) 100 / Vp for voltages of 20 ~ 30 V (28.3 ~ 42.4 V peak).
Alternatively, they can be supplied from a Class 2 power supply.
UL Environmental Rating: Enclosure type 1
2 Intended use
The WLG16 is an opto-electronic photoelectric retro-reflective sensor (referred to as
“sensor” in the following) for the optical, non-contact detection of objects, animals, and
persons. A reflector is required for it to function. If the product is used for any other
purpose or modified in any way, any warranty claim against SICK AG shall become void.
WLG16 is a photoelectric retro-reflective sensor with optional add-on for detecting
transparent objects.

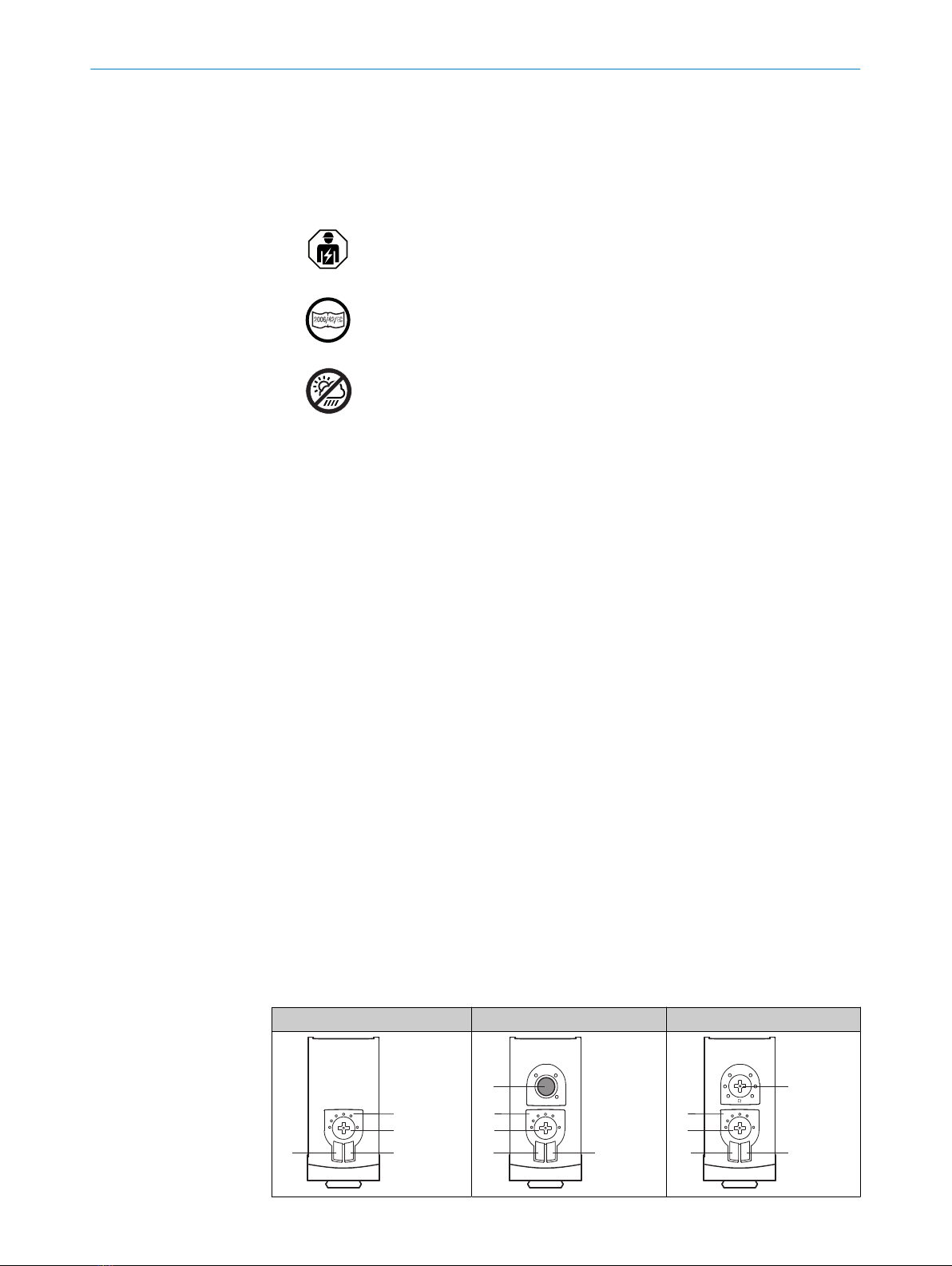

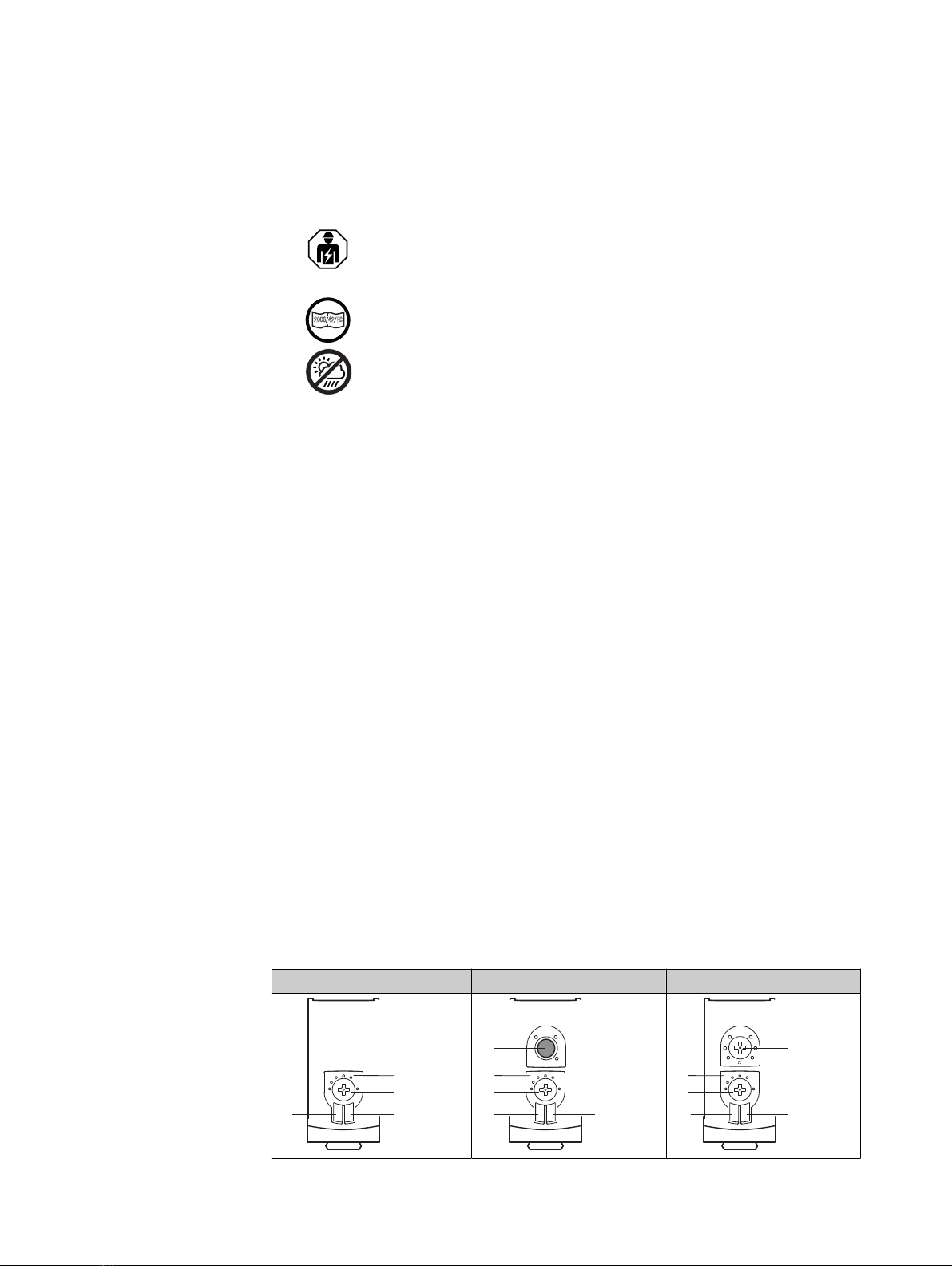

3 Operating and status indicators
WLG16x-xxxxxx20 WLG16-xxxxxxx21 WLG16-xxxxxxx22
1
2
34
1
2
34
6
1
2
34
5
1BluePilot blue: mode selection
1 SAFETY INFORMATION
48020349.19RH / 22.12.2020 | SICK
Subject to change without notice

2Press-turn element: adjustment of mode and sensitivity
3LED indicator yellow: status of received light beam
4LED indicator green: supply voltage active
5Press-turn element: time function adjustment
6Teach pushbutton: adjustment of light/dark switching
4 Mounting
Mount the sensor and the reflector using suitable mounting brackets (see the SICK
range of accessories). Align the sensor and reflector with each other.
Note the sensor’s maximum permissible tightening torque of < 1,3 Nm.
5 Electrical installation
The sensors must be connected in a voltage-free state. The following information must
be observed, depending on the connection type:
– Male connector connection: Note pin assignment.
– Cable: wire color
Only supply/switch on the voltage once all electrical connections have been estab‐
lished.
Explanations on connection diagram:
Alarm = alarm output
Health = alarm output
MF (pin 2 configuration) = external input, teach-in, switching signal
QL1/C = switching output, IO-Link communication
Test = test input
UB: 10 ... 30 V DC
Table 1: Connections
Wxx16x- x4 xH x5 xI
1 = BN
2 = WH
3 = BU
4 = BK
5= GY
12
4 3
0.14 mm2
AWG26
12
4 3
5
0.14 mm2
AWG26
Wxx16x- x9 xB
1 = BN
2 = BU
3 = not connected
4 = BK
5= WH
6 = GY
7 = not connected
3 4
1
2 5
6
IN = 4 A
3
7
2
16
5
4
IN = 6 A
MOUNTING 4
8020349.19RH / 22.12.2020 | SICK
Subject to change without notice 5

Table 2: DC
WLG16
x-
xxX6XxxxA00 xxX6Xx
xxA01-
A99
Push-
pull
xx161 xx162 xx163 xx165 xx168 xx16A xx16L xx16N xx16x
PNP xx861 xx862 xx863 xx865 xx868 xx86A xx86L xx86N xx86x
1 = BN + (L+)
2 = WH MF
3 = BU - (M)
4 = BK QL1/C
Default:
MF
QQAlarm Alarm Test →
L+
no func‐
tion
Test →
L+
no func‐
tion
www.sic
k.com
80227
09
Default:
QL1/C
QQQQQ Q Q Q www.sic
k.com
80227
09
Table 3: DC
WLG16x- xxXXXxxxZZZ
Push-pull xx111 xx112 xx114 xx116 xx421 xx422 xx721 xx722
PNP xx811 xx812 xx814 xx816 xxB21 xxB22 - -
BN + (L+)
WH QQHealth Health Q QQQ
BU - (M)
BK QQQQQQQQ
GR - - - - Test →
L+
Test →
L+
Test →
M
Test →
M
5 ELECTRICAL INSTALLATION
68020349.19RH / 22.12.2020 | SICK
Subject to change without notice

Table 4: Push-pull, PNP, NPN
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q≤ 100 mA
‒ (M)
6 Additional functions
Alarm
Alarm output: The sensor (WLG16) features a pre-failure notification output (“Alarm” in
connection diagram [see table 2]), which issues a notification if the sensor is only ready
for operation to a limited extent. The LED flashes in this case. Possible causes: Sensor
is contaminated, sensor is out of alignment. In the good state: LOW (0), if excessively
contaminated HIGH (1).
Health output: The sensor (WLG16) features a pre-failure notification output (“Health”
in connection diagram [see table 2]), which issues a notification if the sensor is only
ready for operation to a limited extent or the cable has been interrupted. Possible
causes: Sensor or reflector is contaminated, sensor is out of alignment, cable is dam‐
aged. In the good state: HIGH (1), if excessively contaminated or in the event of cable
interruption LOW (0). The yellow LED indicator flashes in this case.
ADDITIONAL FUNCTIONS 6
8020349.19RH / 22.12.2020 | SICK
Subject to change without notice 7

Table 5: Alarm / Health
Alarm (≤ 100 mA) Health (≤100 mA)
+ (L+)
Alarm
‒ (M)
+ (L+)
Health
‒ (M)
+ (L+)
Alarm
‒ (M)
+ (L+)
Health
‒ (M)
Test input
Test input: The WLG16 sensors feature a test input (“TI” or “Test” on the connection
diagram [table 2], which can be used to switch the sender off and, therefore, check that
the sensor is functioning correctly: If female cable connectors with LED indicators are
used, you have to ensure that the TI is assigned accordingly.
It is important that there is no object between the sensor and reflector; activate the
test input (see the connection diagram). The send LED is shut down or the detection
of an object is simulated. Refer to table 6 to check the function. If the switching output
fails to behave in accordance with the graphic, check the application conditions. see
„Troubleshooting“, page 14

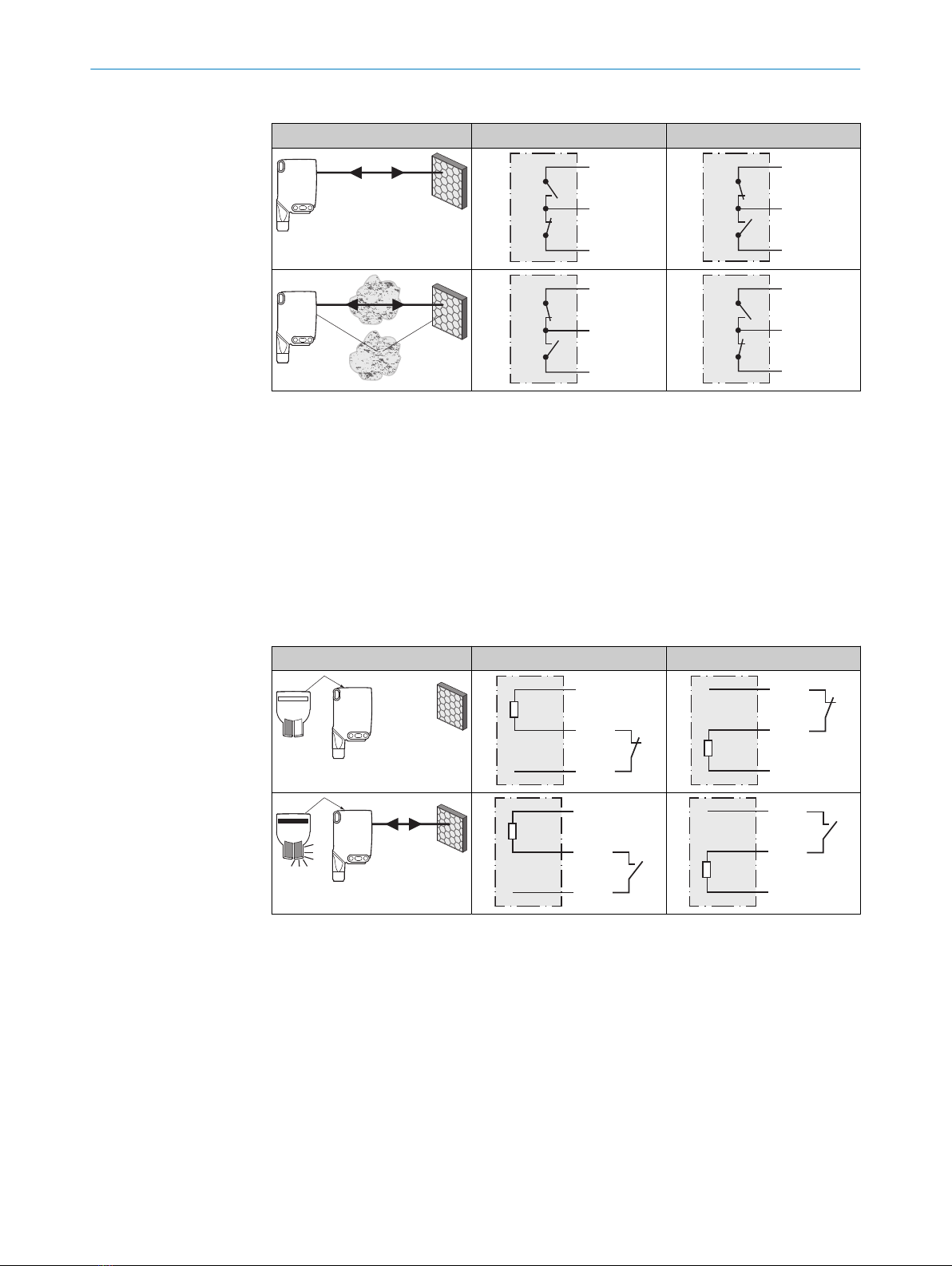

Table 6: Test
Test → M Test → L+
+ (L+)
Test
– (M)
+ (L+)
Test
– (M)
+ (L+)
Test
– (M)
+ (L+)
Test
– (M)
7 Commissioning
7.1 Alignment
Align the sensor with a suitable reflector. Select the position so that the red emitted
light beam hits the center of the reflector. The sensor must have a clear view of the
reflector, with no object in the path of the beam [see figure 1]. You must ensure that the
optical openings of the sensor and reflector are completely clear.
6 ADDITIONAL FUNCTIONS
88020349.19RH / 22.12.2020 | SICK
Subject to change without notice

Figure 1: Alignment
7.2 Check the application conditions
Adjust the distance between the sensor and the reflector according to the correspond‐
ing diagram [see figure 2] (x = sensing range, y = operating reserve).
Distance in m (feet)
Sensing range
1
2
3
4
5
6
0 1
(3.28)
2
(6.56)
3
(9.84)
4
(13.12)
5
(16.4)
6
(19.69)
4
2.8
0
2.5
0
3.5
0
5
0
1.20
0
Figure 2: Maximum distance between the sensor and the respective reflector type
1Reflector PL10F CHEM
2Reflective tape REF-AC1000 (50 x 50 mm)
3Reflector PL10FH-1
4Reflector PL10F
5Reflector PL20F
6Reflector P250F

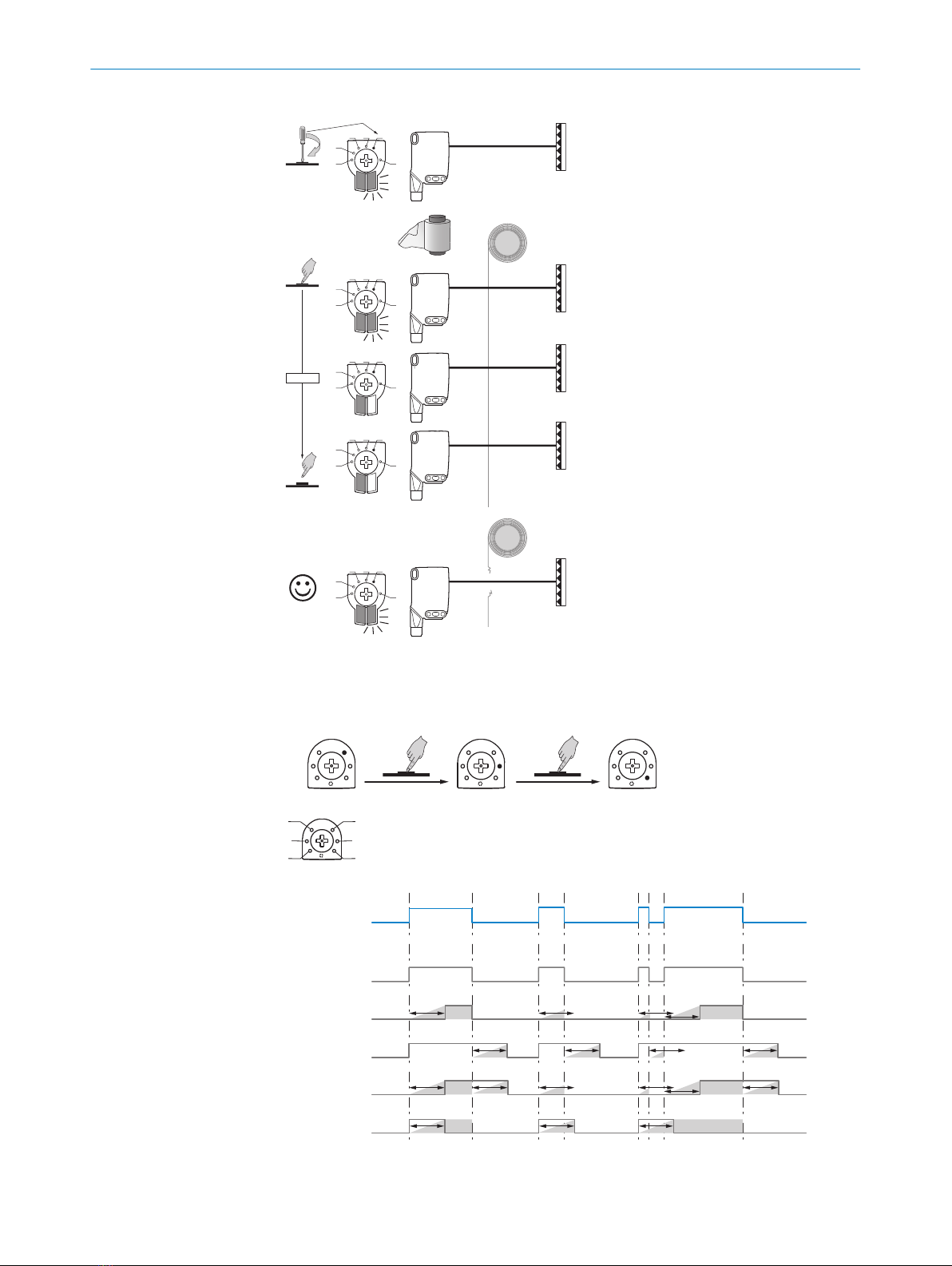

7.3 Sensing range setting
The Teach-Turn adjustment is used to set the object mode and switching threshold, see
figure 3, see figure 4.
The WLG16 is equipped with AutoAdapt technology. The switching threshold is automat‐
ically adjusted in the event of contamination or after cleaning.
COMMISSIONING 7
8020349.19RH / 22.12.2020 | SICK
Subject to change without notice 9
