SKF Lincoln 758 Product manual

Oil control valve
Models 758 and 758F
Installation and maintenance guide
Version 01
Date of issue May 2012
Publication number 404419
Section F22
Page 41
Model 758 Model 758F
A & A HYDRAULIC
800-992-9898

Introduction
The 758 series control handles have been
designed for use with engine oil, gear oil,
automatic transmission fluid, anti-freeze/
anti-boil and compatible fluids.
Please read and retain this instruction
manual to assist you in the operation and
maintenance of this quality product.
General information
This manual assists you in operating and
maintaining your new control handle. The
information contained will help you ensure
many years of dependable performance and
trouble free operation.
Please take a few moments to read
through this manual before installing and
operating your new oil control handle.
Important information
Read this information
carefully before use.
Your safety is important to us. Please read
and follow all safety instructions listed
inside.
Some of these instructions alert you to
the potential for personal injury. “Cautions”
listed throughout this manual advise of po-
tential practices or procedures which may
cause damage to your equipment.
Ensure all operators have access to ad-
equate instructions about safe operating
and maintenance procedures.
Do not exceed the maximum working
pressure of 1000 psi [6,895 kPa (69.0 bar)].
Note: It is the responsibility of the in-
staller to install a pressure relief valve
to the system preventing any damage
caused by excess system pressure.
WARNING
Do not hit the control handle if it fails to
operate.
Refer to “trouble shooting guide” or
return the unit to your nearest author-
ized service center.
Never point the nozzle at yourself or
anyone else.
Never exceed the pressure rating of
any component installed in the system.
Before every use check all hoses for
signs of wear, leaks or loose fittings.
Tighten all fluid connections regularly.
Before attempting any repairs or
maintenance of this product firstly dis-
connect the air supply from the oil
pump, then release the line pressure by
squeezing the lever on your control
handle.
Technical specifications
Wetting components Acetal, aluminim, nitrile (NBR), mild steel
Flow range 0 to 7.5 US gallons per minute (0 to 28 litres per minute)
Maximum working pressure 1000 psi [6 895 kPa (69 bar)]
Inlet thread 1/2 NPT (F)
Operating temperature 14 to 131 °F (-10 to +55 °C)
Weight (approximate) 2.01 lbs. (0.8 kg)
2
A & A HYDRAULIC
800-992-9898

CAUTION
Before carrying out any maintenance
disconnect the air supply from the
pump and release the fluid pressure in
the system by pressing the lever on the
control handle.
Inspect your oil control handle daily
for any signs of damage.
Replace any damaged parts or com-
ponents as required.
Use a clean bench to carry out
maintenance.
Assembly
Use teflon tape (or suitable thread sealant )
when connecting the control handle to an
hose.
Automatic nozzle
operation
When fluid flows through the valve the out-
let nozzle will automatically open. When the
fluid flow stops the outlet nozzle will auto-
matically shut off.
Handle operation
To latch the handle, squeeze the lever, push
the button and then release lever.
To release the latch simply squeeze and
release lever.
Control handle
disassembly
Service parts
Item Part Number Description Qty.
1 279076 Handle 1
2 278077 Swivel 1
3 278078 Rigid nozzle 1
4 278079 Flex nozzle 1

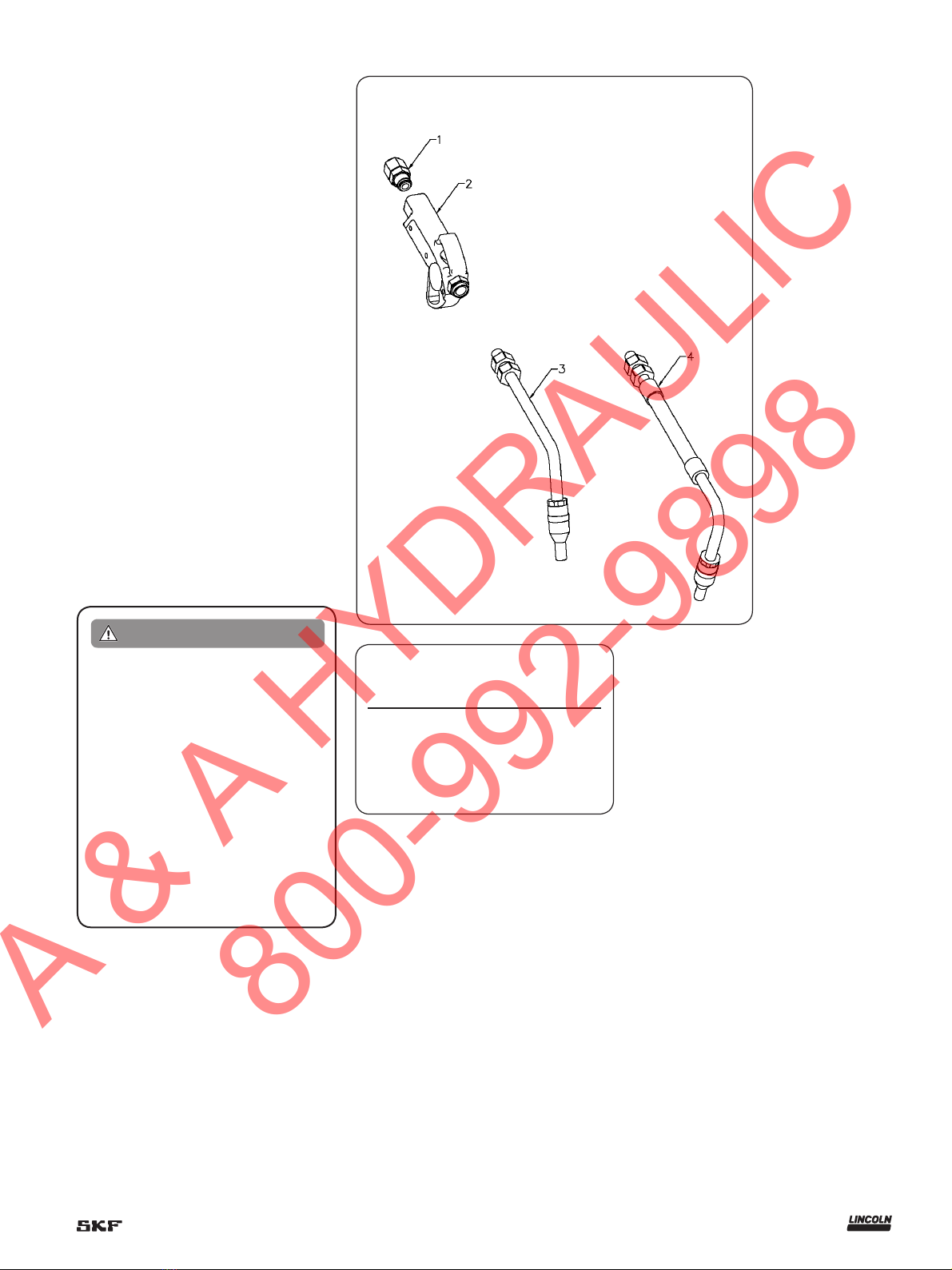

Parts diagram
3
A & A HYDRAULIC
800-992-9898

Lincoln industrial
standard warranty
Standard Limited warranty
Lincoln warrants the equipment manufac-
tured and supplied by Lincoln to be free
from defects in material and workmanship
for a period of one (1) year following the
date of purchase, excluding there from any
special, extended, or limited warranty pub-
lished by Lincoln. If equipment is deter-
mined to be defective during this warranty
period, it will be repaired or replaced, within
Lincoln’s sole discretion, without charge.
This warranty is conditioned upon the de-
termination of a Lincoln authorized repre-
sentative that the equipment is defective. To
obtain repair or replacement, you must ship
the equipment, transportation charges pre-
paid, with proof of purchase to a Lincoln Au-
thorized Warranty and Service Center within
the warranty period.
This warranty is extended to the original
retail purchaser only. This warranty does not
apply to equipment damaged from accident,
overload, abuse, misuse, negligence, faulty
installation or abrasive or corrosive material,
equipment that has been altered, or equip-
ment repaired by anyone not authorized by
Lincoln. This warranty applies only to equip-
ment installed, operated and maintained in
strict accordance with the written specifica-
tions and recommendations provided by
Lincoln or its authorized field personnel.
This warranty is exclusive and is in lieu
of any other warranties, express or im-
plied, including, but not limited to, the
warranty of merchantibility or warranty
of fitness for a particular purpose. War-
ranty on items sold by Lincoln, but not
manufactured by Lincoln are subject to
the warranty consideration, if any, of
their manufacturer (such as hoses, hy-
draulic and electric motors, electrical
controllers, etc.) Assistance in making
such warranty claims can be offered as
required.
In no event shall Lincoln be liable for inci-
dental or consequential damages. Lincoln’s
liability for any claim for loss or damages
arising out of the sale, resale or use of any
Lincoln equipment shall in no event exceed
the purchase price. Some jurisdictions do
not allow the exclusion or limitation of inci-
dental or consequential damages, therefore
the above limitation or exclusion may not
apply to you.
This warranty gives you specific legal
rights. You may also have other rights that
vary by jurisdiction.
Customers not located in the Western
Hemisphere or East Asia: Please contact
Lincoln GmbH and Co. Kg, Walldorf,
Germany, for your warranty rights.
Special limited warranties
Special limited 2 year warranty
sl-v series, single injectors-85772,
85782, and replacement injectors-85771,
85781
Lincoln warrants the SL-V Injector series to
be free from defects in material and work-
manship for two (2) years following the date
of purchase. If an injector model (single or
replacement) is determined to be defective
by Lincoln, in its sole discretion, during this
warranty period, it will be repaired or re-
placed, at Lincoln’s discretion, without
charge.
Special limited 5 year warranty
series 20, 25, 40 bare pumps, pmv bare
pumps, heavy duty and 94000 series bare
reels
Lincoln warrants series 20, 25, 40 bare
pumps, PMV bare pumps, Heavy Duty
(82206), Mini Bench (81133, 81323), and
all 94000 LFR series (single arm and dual
arm) bare reels to be free from defects in
material and workmanship for five (5) years
following the date of purchase. If equipment
is determined by Lincoln, in its sole discre-
tion, to be defective during the first year of
the warranty period, it will be repaired or re-
placed at Lincoln’s discretion, without
charge. In years two (2) and three (3), the
warranty on this equipment is limited to re-
pair with Lincoln paying parts and labor
only. In years four (4) and five (5), the war-
ranty on this equipment is limited to repair
with Lincoln paying for parts only.
Special limited 5 year warranty-
limited oil meters, limited fluid control
valves, aod (air-operated diaphragm
pumps)
Lincoln warrants the 712 series control
valves, 912 series lube meters, electronic
lube meters (980. 981, 982 series), our
universal inline digital meters (812/813 se-
ries), and our AOD pump offering to be free
from defects in material and workmanship
for five (5) years following the date of pur-
chase. If either is determined to be defective
by Lincoln, in its sole discretion, during the
warranty period, they will be repaired or re-
placed, at Lincoln’s discretion, without
charge.
Special DEF (diesel exhaust fluid) limited
warranty
DEF products are warranted to be free from
defects in material and workmanship for a
period of one (1) year following the date of
purchase. The following exceptions to the
standard warranty period are in effect
• 85700-30/85700-50 DEF hose reels
(bare reel only),
277251/277252 AC DEF pumps, and
277256 and 277257 DEF meters are
warranted for two (2) years from date of
purchase,
• 85623 DEF AOD (air operated
diaphragm) pumps
are covered under the standard five (5)
year AOD pump warranty.
If either is determined to be defective by
Lincoln, in its sole discretion, during the
warranty period, they will be repaired or re-
placed, at Lincoln’s discretion, without
charge.
Lincoln Industrial contact information
To find Lincoln Industrial’s Nearest Service
Center call one of the following numbers,
you may also use our website
Customer Service 314-679-4200
Website lincolnindustrial.com
