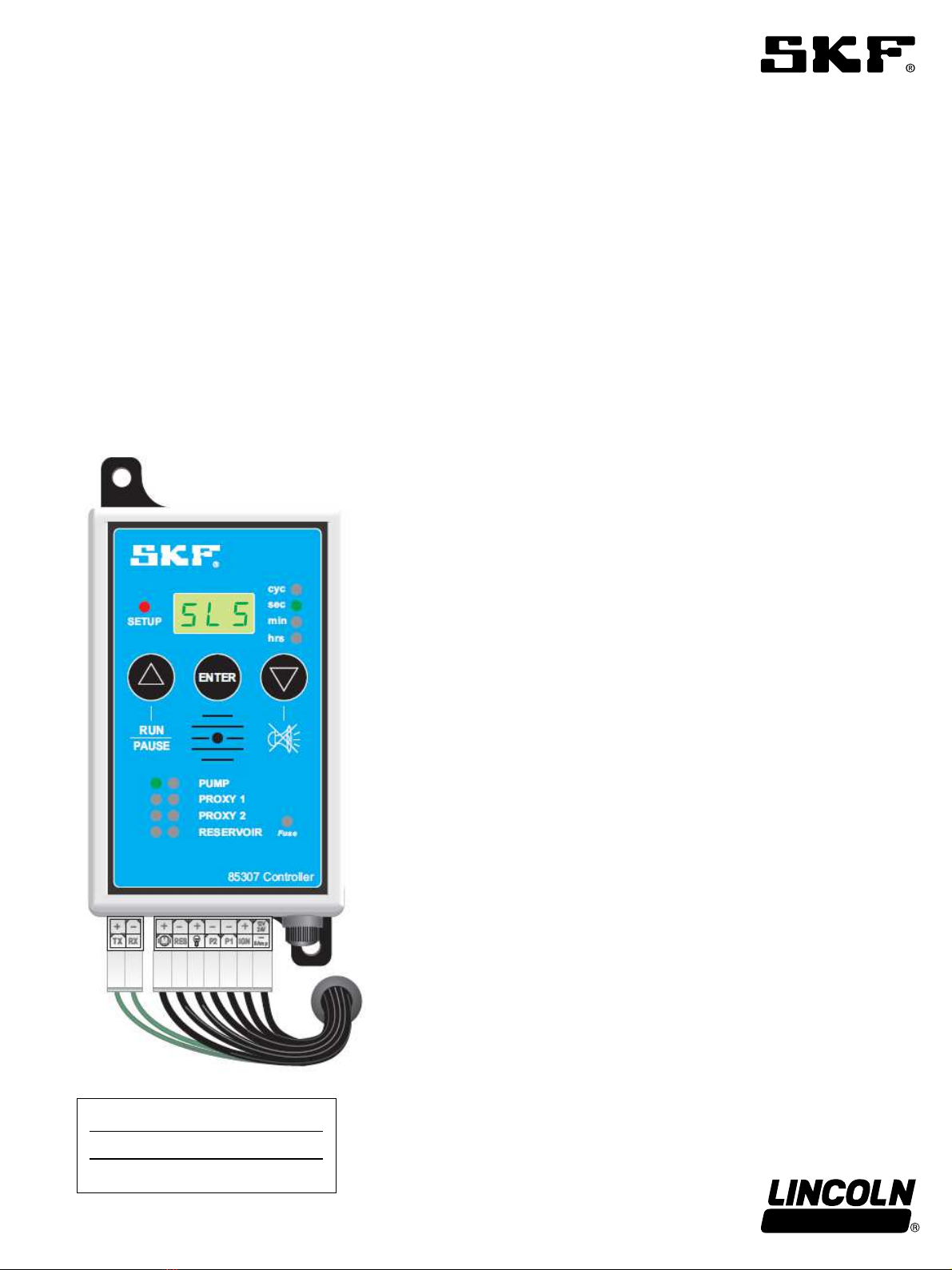

SKF Lincoln 85307 User manual

Operating instructions
Model 85307; single-line system
Electronic lubrication control unit
Date of issue August 2020
Form number 404773
Version 2

Contents
Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Explanation of signal words for safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operational precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Keypad layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LED code descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setup mode
Single-line system using pressure switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Run mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Running system (pump run). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Running system (pump pause). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Running system (vent time) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Wiring of pump with single-line system using pressure switch . . . . . . . . . . . . . . . . . . . 19
Wiring of pump with solenoid relay switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fault indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2

Description
Lubrication controller 85307 is a universal
electronic control unit compatible with
dual-line, single-line and progressive
lubrication systems. Provides flexibility and
control over traditional single-line systems.
Controller digital display quickly identifies
system status with easy-to-identify codes.
Programming of unit requires simple
information allowing operator to focus
on specific utilized system.
Features
• Runs progressive, single-line and
dual-line lubrication systems.
• Timing intervals from 5 seconds to
24 hours.
• Cycle counting.
• 10 V to 30 V operation.
• Short circuit/open circuit detection with
audible warning.
• External fault lamp drive (flash or steady
output).
• Low level reservoir monitoring.
• Two sensor switch inputs.
• Visual and audible fault indication.
• Non-volatile memory.
• Built-in blown fuse indicator.
• 3-digit LED display indicates exact
system status.
• Simple setup procedure.
• Test mode allows testing of all circuits
connected to controller.
• Practical housing with mounting bracket.
Table 1
Specifications
Voltage 10 V to 30 V
Current drain 150 mA maximum (no load), 70 mA nominal
Pump output 7 A rms. maximum
Lamp output 3 A maximum
Switching Solid state short circuit protected
Fuse 8 A fast blow 0.79 in (20 mm) glass
Connection 14 way MOLEX MINIFIT - JR
Communications RS232 type
Dimensions 2.8 × 5.7 × 1.5 in (70 × 145 × 38 mm) 1)
Weight 0.66 lbs (300 g)
Protection IP54
Temperature range 5 °F to 122 °F (–15 °C to +50 °C)
1) Includes mounting bracket.
3

Explanation of signal
words for safety
NOTE
Emphasizes useful hints and
recommendations as well as
information to prevent property damage
and ensure efficient trouble-free
operation.
CAUTION
Indicates a dangerous situation that can
lead to light personal injury if
precautionary measures are ignored.
WARNING
Indicates a dangerous situation that
could lead to death or serious injury if
precautionary measures are ignored.
DANGER
Indicates a dangerous situation that will
lead to death or serious injury if
precautionary measures are ignored.
Safety
Read and carefully observe operating
instructions before unpacking and operating
equipment. Equipment must be operated,
maintained and repaired exclusively by
persons familiar with operating instructions.
Local safety regulations regarding
installation, operation and maintenance
must be followed.
Operate equipment only after safety
instructions and this service manual are
fully understood.
Operational
precautions
User must have total understanding of
controller specifications. Never connect any
other voltage supply other than specified in
manuals contained within.
Operator/owner must ensure installation
or inspections are executed by authorized
personnel who have thoroughly read
operating instruction manual.
Switch machine off before performing any
setup or work on controller. Position
machine so no harm can be caused to any
person should machine be switched on
during setup of controller. Operator or
personnel working on machine must be
advised in the event machine needs to be on
for setup of controller.
Never switch machine on without prior
knowledge of operator/owner or someone
with full knowledge of machines operation.
WARNING
• Never weld on machine while main
switch of machine is on. Ensure main
switch is off and correctly tagged.
Welding on machine can cause
serious damage to controller.
• Do not alter or modify any part
of controller.
• Always mount controller in
suitable area.
• Do not mount controller near an area
with excessive heat.
• Always use correct specified fuse
rating for controller.
• Never exceed voltage rating of
controller.
• Never expose controller to direct
sunlight.
• Never expose controller to water or
other substances.
4

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Fig. 1
Keypad layout
Item Description
1Enter button
2 Run/pause buttton
3 Setup indicator
4 Mounting bracket
5 LED display
6 Cycle indicator
7 Second indicator
8 Minute indicator
9 Hour indicator
10 Select value down or silent buzzer
11 Blown fuse indicator
12 Fuse holder, 8 A
13 Power positive/negative
14 Ignition input/aux power output positive
15 Sensor 1 positive/negative
16 Sensor 2 positive/negative
17 External lamp
18 Reservoir sensor connection
19 Pump motor positive/negative
20 RS 232 connection
21 Reservoir low level status indicator
22 Sensor 2 status indicator
23 Sensor 1 status indicator
24 Pump status indicator
5

sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP

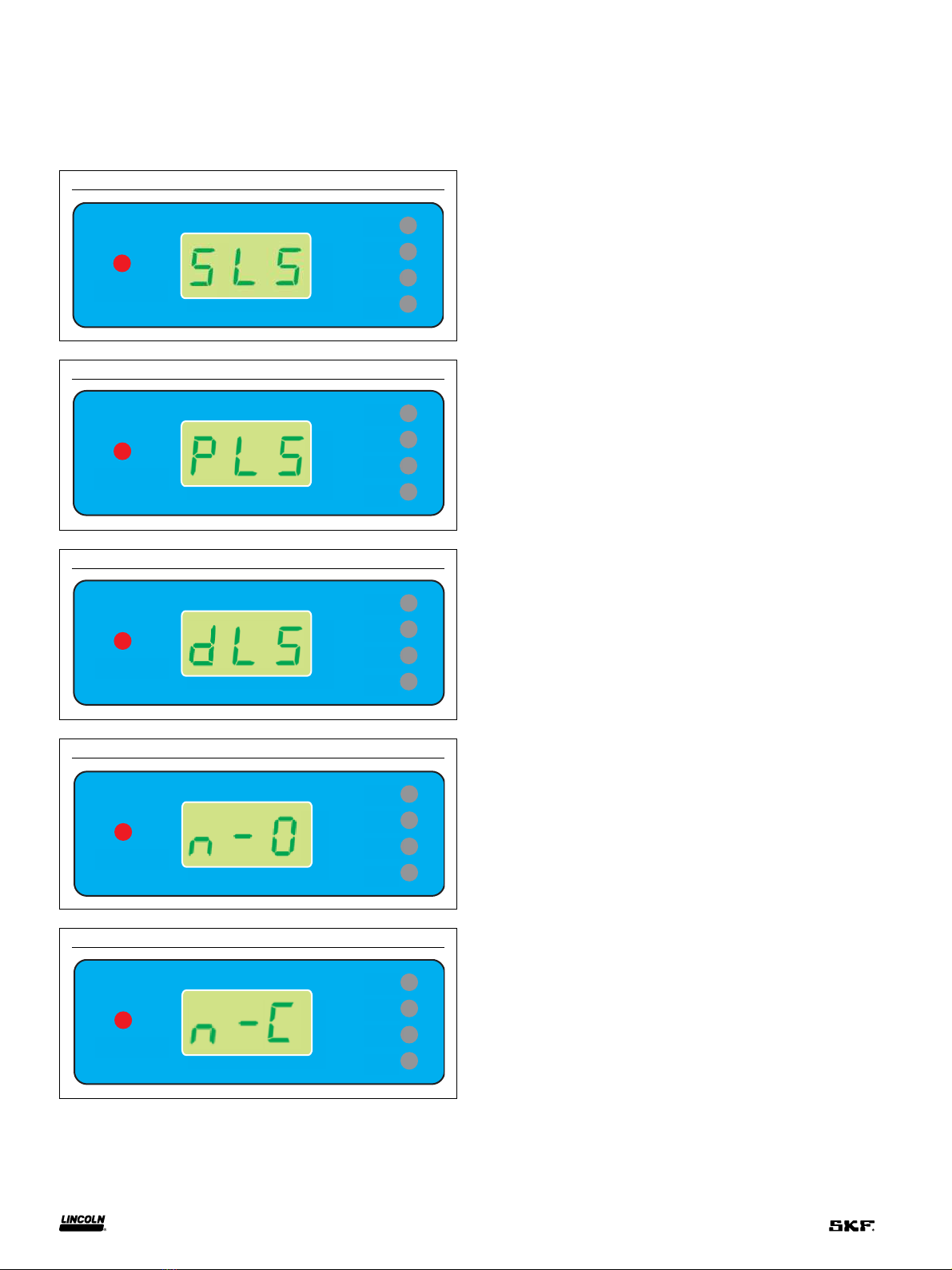

LED code descriptions
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
SLS = single-line system
PLS = progressive-line system
DLS = dual-line system
n – 0 = normally open (sensors)
n – C = normally closed (sensors)
6

sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11

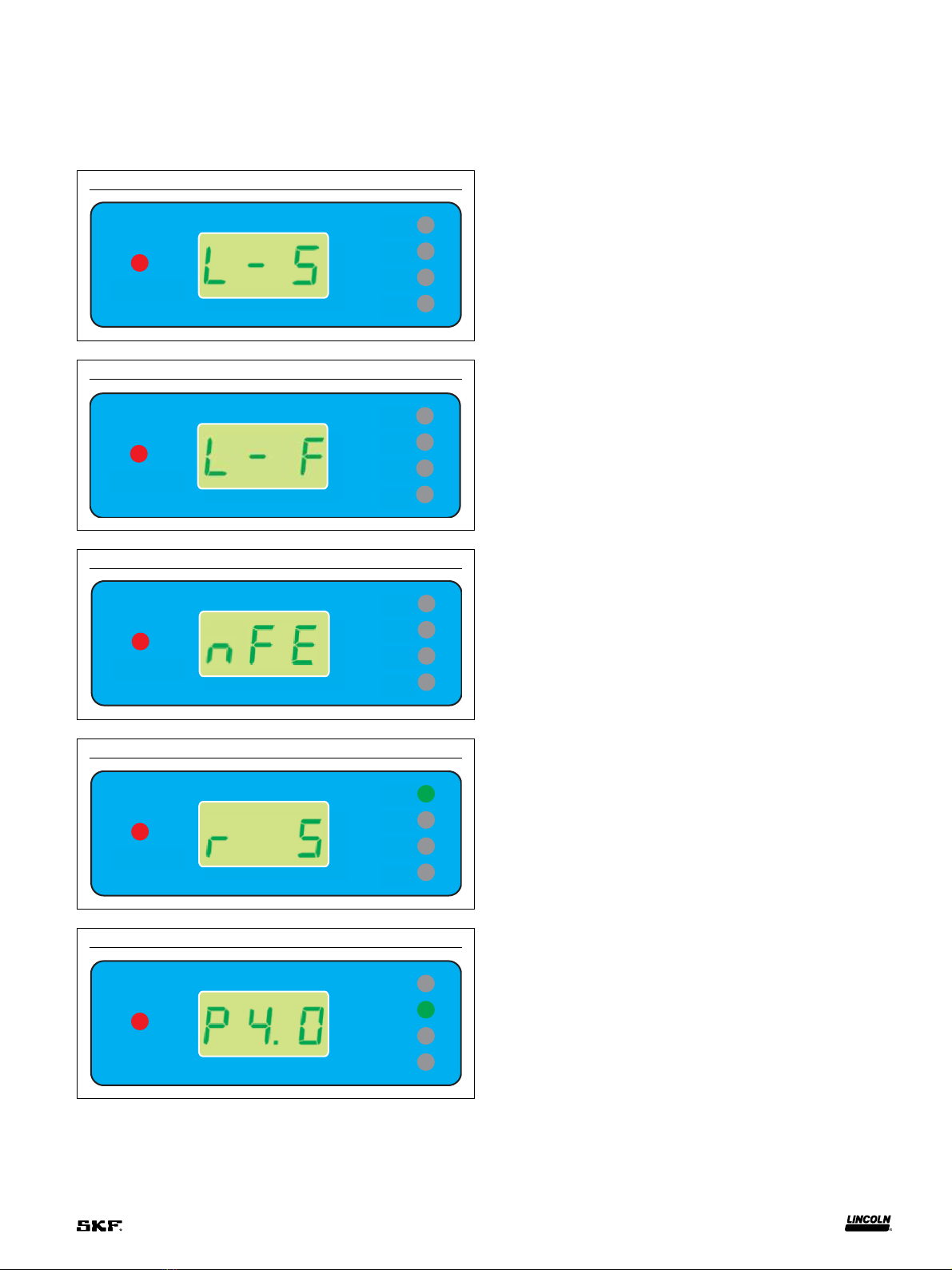

L – S = external lamp steady (continued supply)
L – F = external lamp flashing (pulsed supply)
nFE = non-fatal error (pump continues on low level fault)
r= run time in cycles
P= pause time in seconds, minutes or hours
7

sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
Fig. 12
Fig. 13
Fig. 14
Fig. 15
Fig. 16
LED code descriptions
F= fault time in seconds, minutes or hours
U= vent time in seconds, minutes or hours
rCC = run cycle counter
YES = confirms program changes

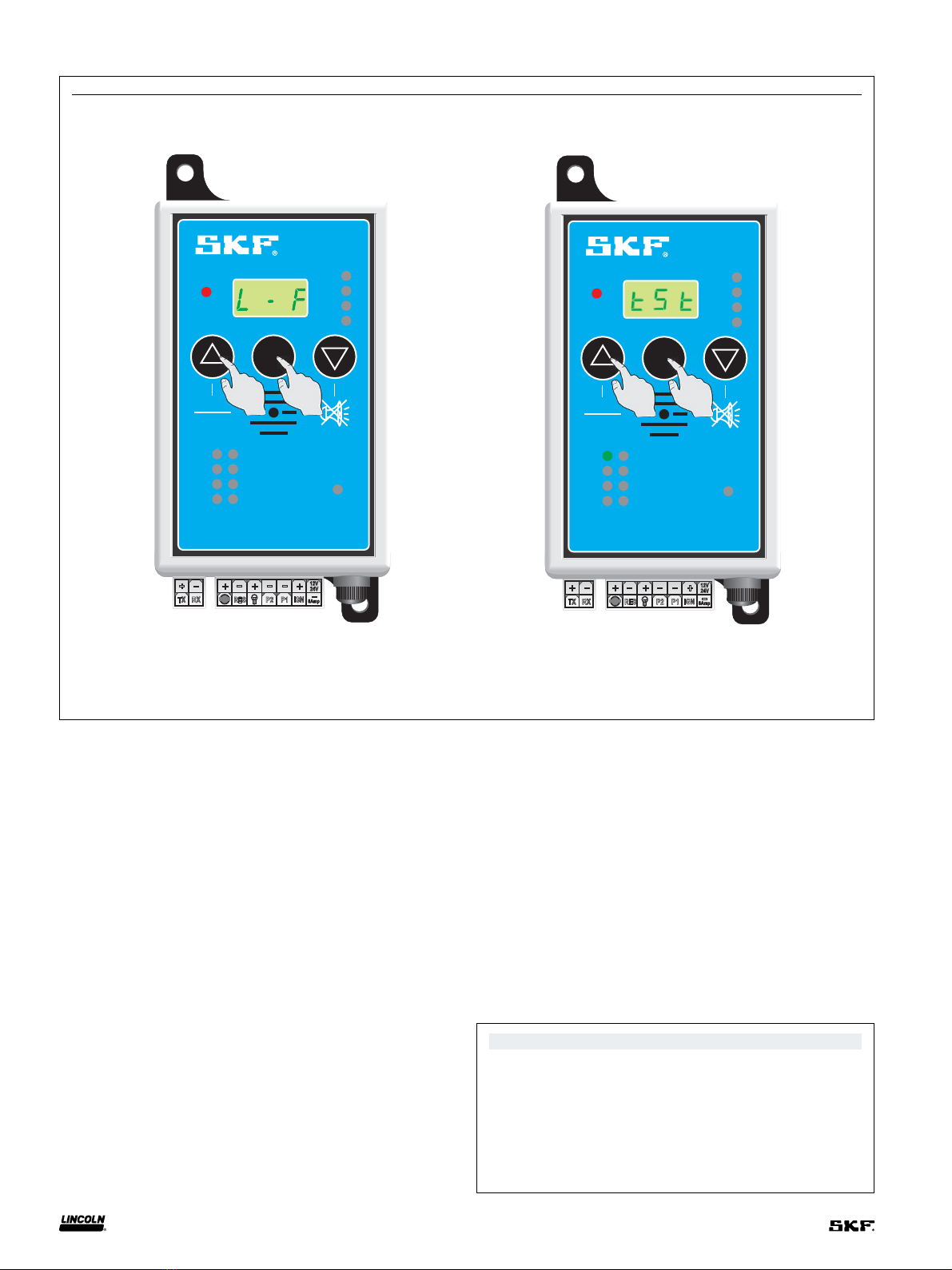

tSt = test mode for checking installed devices
8

sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
sec
min
hrs
cyc
SETUP
Fig. 17
Fig. 18
Fig. 19
Fig. 20
Fig. 21

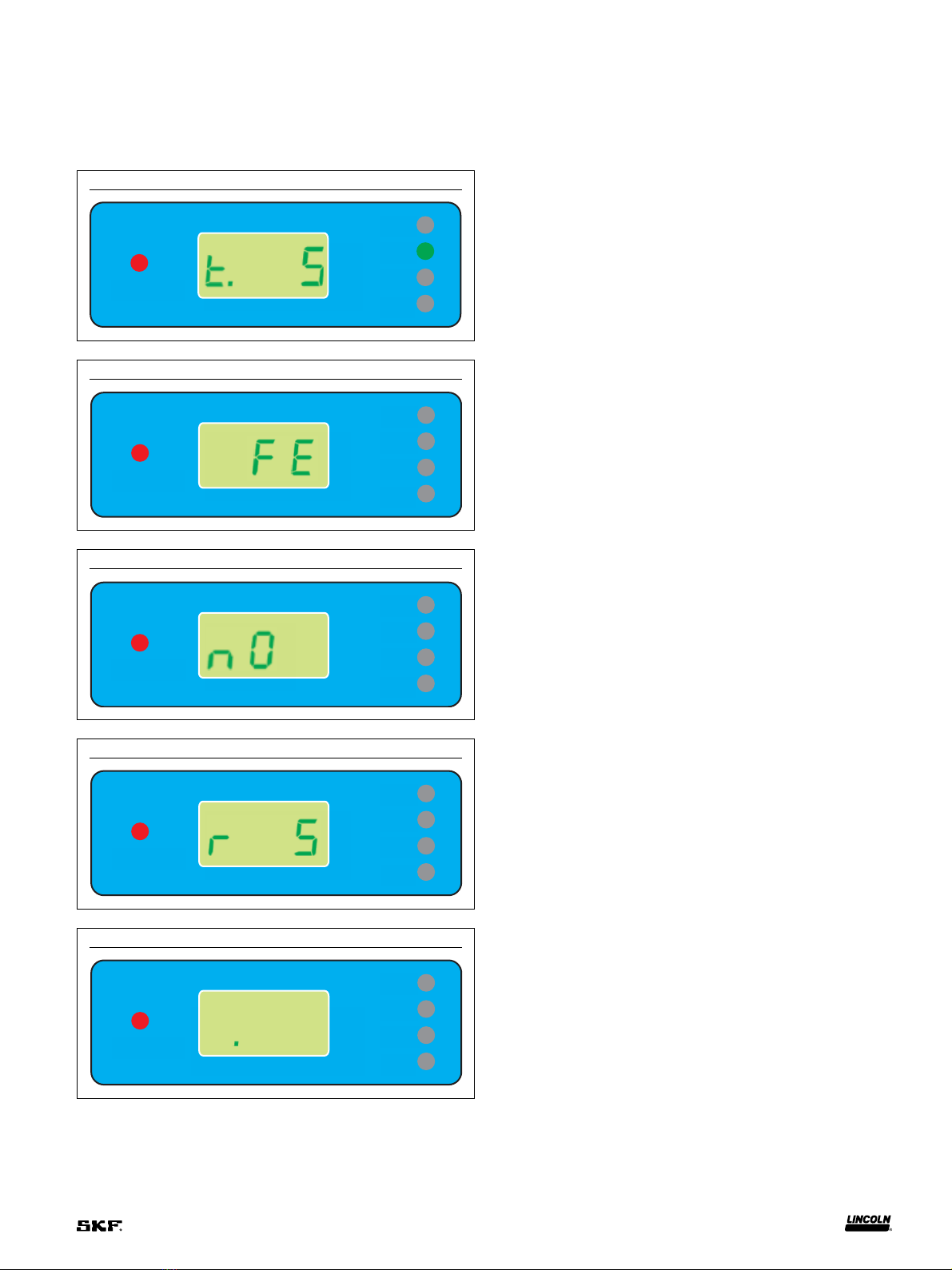

t= time out or dwell time for sensors
FE = fatal errors (pump stops on Low Level Fault)
nO = do not select selection
r= run time in seconds, minutes or hours
.= standby mode
9

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
AB C
Setup mode
Single-line system using pressure switch
Fig. 22
1 To enter setup mode:
Press and hold ENTER while switching on controller
power source.
2 Release ENTER and red LED next to SETUP illuminates.
Green LED next to PUMP flashes. PLS (progressive-line system)
appears in display (Fig. 22 A).
3 Press Δto select system type required:
Continue to press until SLS displays (Fig. 22 B).
4 Press ENTER to confirm use of single-line system (Fig. 22 C).
10

S
TEP 5
A B

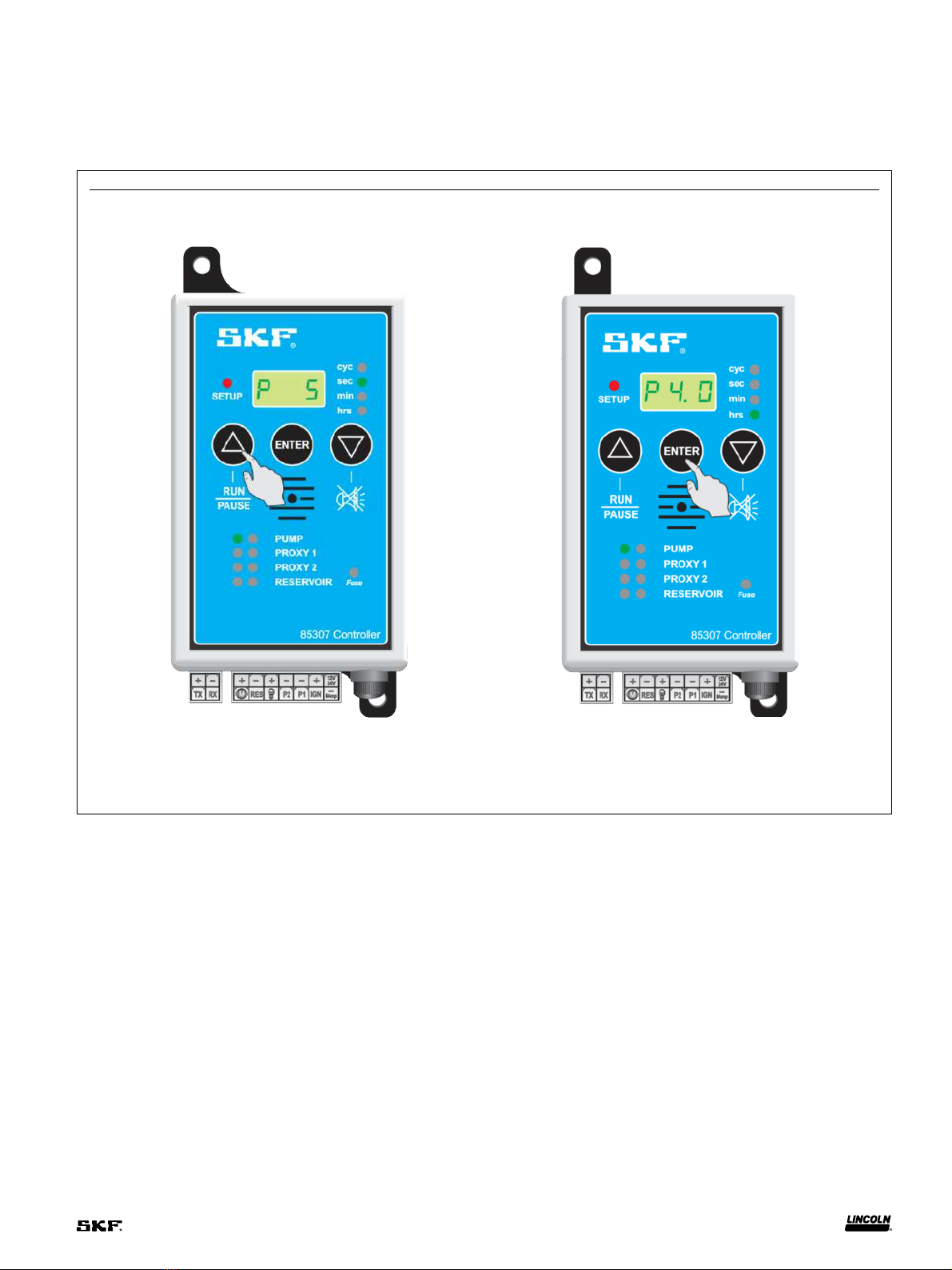

5 P (pause) appears in display. Press Δto change time (Fig. 23 A).
LED changes from seconds to minutes to hours. Display indicates
amount of pause time when function is applied.
6 Press ENTER to confirm pause time.
In example, pause time of 4 hours is confirmed (Fig. 23 B).
Fig. 23
11

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
A B
7 Run (r) time defaults to cycles. Display shows either 99 cycles or
number of cycles previously setup. In this example, one cycle is
setup. Unit looks for one signal from pressure switch before going
into VENT time.
8 Press ENTER to accept (Fig. 24 A).
9 t (time out) displays. For pressure switch. Press Δto increase
duration of time out required. Large systems may take longer
to pressurize complete system.
NOTE: Test system to establish time out. Add approximately 50%
more to actual time out for system to operate effectively without
timing out before it has reached pressure status.
10 Press ENTER to accept (Fig. 24 B).
Fig. 24
12

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
A B

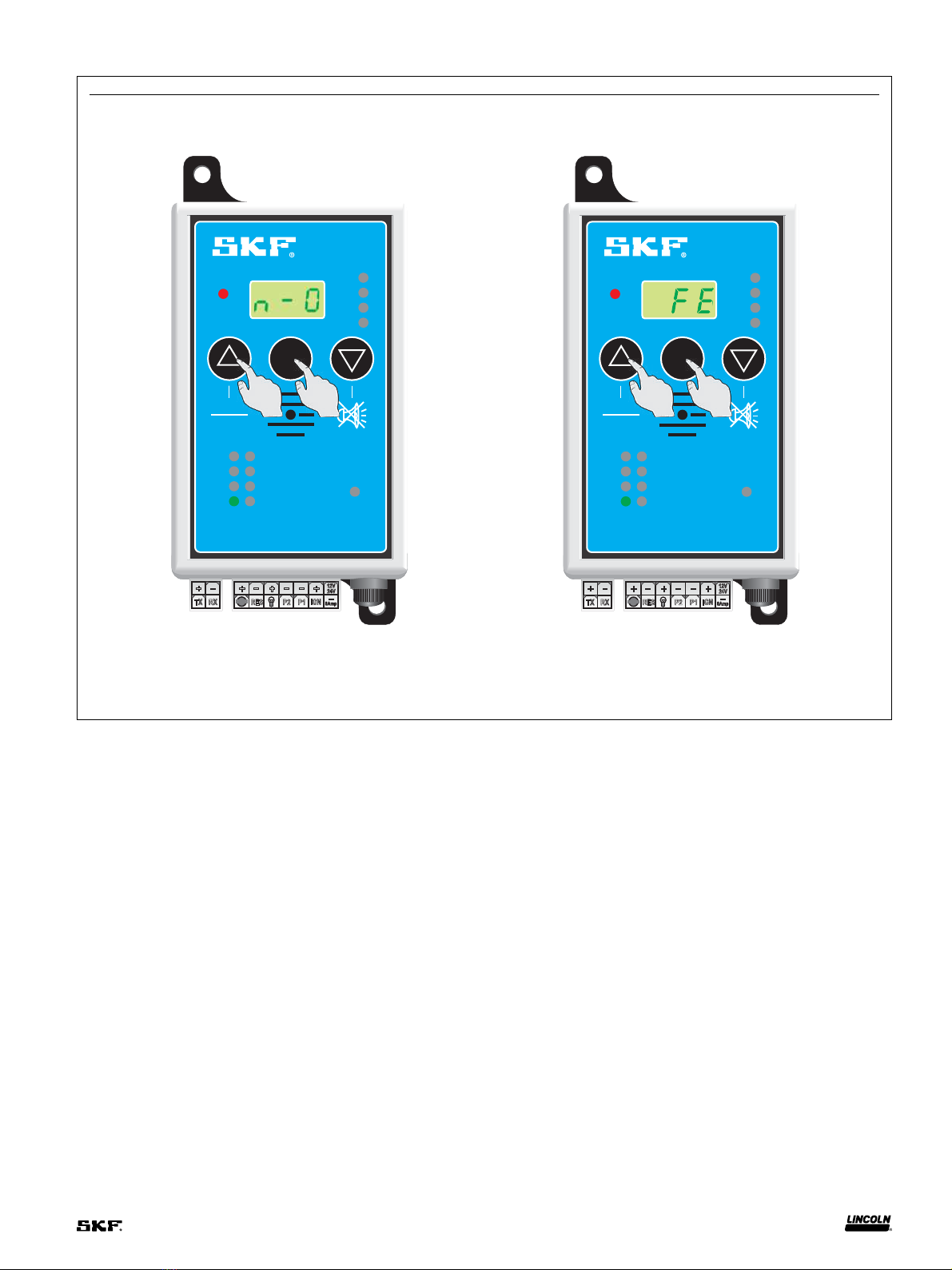

11 n-O (normally open) displays indicating whether pressure switch
is normally open or normally closed. n-O switches are used for
dual-line systems. Press Δto choose either n-O or n-C.
12 Press ENTER to accept choice (Fig. 25 A).
13 nO (do not select) displays. Green LED on PROXY 2 illuminates.
Press Δto proceed for PROXY 2.
14 Press ENTER to accept and proceed with setup as completed for
PROXY 1.
15 Typically only one pressure switch is used. Press Δuntil nO
appears in display.
16 Press ENTER to accept settings (Fig. 25 B).
Fig. 25
13

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
A B
17 U(vent) displays time in seconds, minutes or hours. Indicates time
needed for system to vent before proceeding into next cycle or
pause time.
SLS can be setup with multiple cycles. For example, if two
cycles are setup, unit operates for one cycle and then goes into
vent time of one minute, as indicated in display. After minute has
elapsed, pump restarts and proceeds with next cycle. When
second cycle is complete, Udisplays and times itself out for
established time. After completing two cycles and vent time,
unit proceeds into pause time.
For this example, one cycle is setup and therefore only
requires a short vent time as no further cycles are required
before reaching pause sequence.
18 Press ENTER to accept vent time (Fig. 26 A).
19 nO displays. Green LED on reservoir illuminates. Option of
low level detection displays. If low level detection is not required,
push Δ and select nO.
20Press ENTER to accept.
21 In this example, low level option is selected.
Press Δuntil YES displays.
22 Press ENTER to accept choice (Fig. 26 B).
Fig. 26
NOTE
10-second delay occurs on startup when using low level sensor
to ensure paddle assembly is in correct position.
Sensor activates on low level after 10 seconds. Low level
warning displays when unit reaches pause status.
14

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
A B
23 n-O (normally open) displays indicating whether sensor is
normally open or normally closed. Press Δto choose either
n-O or n-C.
24 Press ENTER to accept choice (Fig. 27 A).
25 FE (fatal error) or nFE (nonfatal error) appears in display.
Option FE (fatal error) is used to stop pump on low level warning.
Typically used on pumps with reservoir capacities from 0.26
to 2.6 gal (1 to 10 l). It is preferred to stop pump at low level to
maintain layer of grease above pump element area thereby
not allowing air pockets to form around pump element when
filling up reservoir. Option nFE (nonfatal error) is recommended
on larger pump reservoirs with substantial distance from pump
tube to bottom of reservoir.
26 Select choice and press ENTER (Fig. 27 B).
Fig. 27
15

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
A B
27 L - F (lamp flashing) displays. This option is used with external
warning lamp. Typically, if monitoring is installed, this function is
used. Press Δand change status from L - F (lamp flashing) to
L - S (lamp static). L - F is a pulsed output supply and L -S is a
constant output supply.
28Press ENTER with either choice selected to proceed to next part
of programming (Fig. 28 A).
NOTE
tSt must appear on display before switching off power to unit.
System does not save changes if power to unit is turned off
during any part of programming. tSt must appear on display for
changes to be confirmed.
Fig. 28
29 tSt (test mode) appears in display. Press Δto start turning pump
(Fig. 28 B). Correct pump from turning in wrong direction by
changing polarity of wiring. Check other sensors by energizing
them manually and observing if green LED illuminates. If LED
does not illuminate, a problem exists with wiring or setup
procedure.
30If all is correct, switch controller power to off and then to on
for unit to proceed into normal mode.
16

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
Fig. 29
Fig. 30
Run mode
Unit proceeds in run (r) mode after power is terminated on unit and
then switched on again. All devices selected are displayed (Fig. 29).
Running system (pump run)
Run (r) time displays when controller is switched on. Time appears
from time set and counts down to zero. Green LED indicates minutes
(Fig. 30). Green LED next to PUMP flashes to indicate pump is
turning or pumping.
NOTE
After each cycle received, amount decreases by one until all
cycles have been received. Unit then proceeds to pause time.
17

-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
-
- --
8Amp
P2
RES IGN
P1
12V
24V
M
+++
+
-
TX RX
sec
min
hrs
cyc
SETUP
Fuse
PROXY 1
PUMP
PROXY 2
RESERVOIR
RUN
PAUSE
ENTER
85307 Controller
Fig. 31
Fig. 32
Running system (pump pause)
Controller enters pause (P) time when required run time is reached.
Pause time counts down from original setup time to zero and then
resumes run time (Fig. 31). Green LED is steady next to PUMP
indicating pump is on but not turning while in pause mode.
Running system (vent time)
U(vent) displays in sec/min/hrs until required vent time is reached.
Once vent time reaches zero, system proceeds to next cycle (Fig. 32).
18

-
-
-
-
Amp
8
P2
RES
IGN
P1
V
12
24V
M
+
+
+
1
2
3
4
5
6
2)
1)

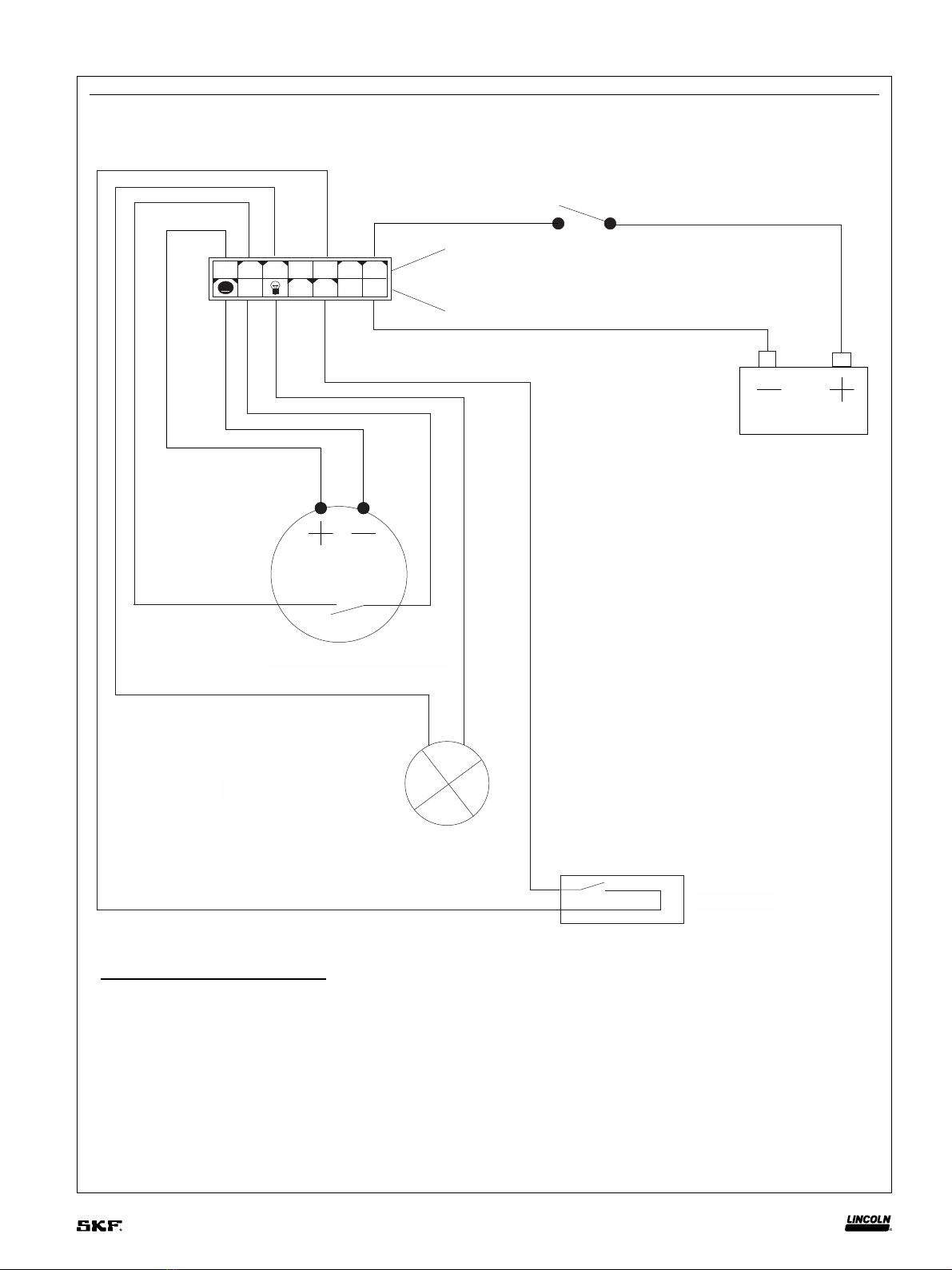

Diagram 1
Wiring of pump with single-line system using pressure switch
Item Description
1 Motor
2Power switch
3 Power supply
4 Microswitch
5 External warning lamp
6 Low level sensor
1) Top row represents front of controller.
2) Bottom row represents back of controller.
NOTE: If motor amp draw exceeds the maximum specification (Table 1, page 3), solenoid relay switch (69897S) must be used. Refer to († Diagram 2, page 20).
19

-
Amp
8
P2
RES
IGN
P1
M
-- - ++
+12 V
24 V
1
2
3
4
5
1)
2)
Diagram 2
Wiring of pump with solenoid relay switch
Item Description
1Fuse, 7.5A
2Solenoid relay switch
3 Motor
4 Vent valve solenoid (NO)
5 Power supply, 12 or 24V
1) Top row represents front of controller.
2) Bottom row represents back of controller.
20
