SloanLED 12 V BP LEDStripe User manual

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 1 OF 7
1. Tools required: Cordless drill, drill bits,
screw driver, wire stripper, measuring
tape, chalk line, marking pens, miter saw
(for custom cut lengths), Multi-meter.
4. Install mounting buttons: Snap a
chalk line on surface for mounting. Space
mounting button 1.5" (40 mm) from end
of each LEDStripe section and every 24"
(610 mm) on center throughout length
of each LEDStripe section. For custom
bends and tight corners, see Step 9 for
installation (space mounting button every
12" [305 mm]).
7. Corners: Corners should be installed with
one section slightly overlapping the other
leaving a minimum 0.25" (6 mm) space.
Optional corner covers can be snapped
into place.
8. Connect pieces together: Ensure tab is
aligned with locking clip. Once connected,
hide wires at back of LEDStripe in
mounting track. Use joint covers to cover.
CAUTION: To maintain integrity of
end-caps and prevent water penetration
around wires, do not pull or tightly bend
wires or allow tension between wire
connections.
6. Secure section in place: Use #8 (4 mm)
pan head screws to secure center bracket
once all sections are located on
mounting surface.
5. Install LEDStripe sections onto
buttons: Slide or snap LEDStripe
sections onto mounting buttons with
center bracket facing up.
NOTE: If installing in temperatures
below 40° F (4.5° C), leave a 0.25"
(6 mm) gap between 8 ft (2.44 m)
and 10 ft (3.05 m) pieces to allow for
expansion at warmer temperatures.
2. Supplies required: Butt splices (22 -18 AWG,
Red), 3M
™
314 Gel-lled IDC connectors
(optional), eld end-cap kit, #8 (4 mm) Pan
head screws, appropriate thread anchor for the
surface it is mounting to, silicone sealant, conduit
and conduit connectors (water tight if mounting
outdoors), disconnect switch, UL Listed wet
location, sunlight resistant PLTC cable.
3. Layout: Use an architectural drawing or
layout provided by SloanLED (sample
above) to determine number and length
of LEDStripe sections and power supplies
required for your installation.
Secure section in place with #8
pan head screws through bracket
hole
0.25"
(6 mm)
Gap
9. Optional slide and mount rectangle
mounting buttons (not included) are available
for hard to mount areas and are recommended
for eld and factory bend installations.
Slide button onto back of LEDStripe and use
#8 (4 mm) pan head screw to secure to wall
(space mounting button every 12" [305 mm]).
Female connector
Male connector
Center bracket points up
Chalk line
#8 pan head screw
LEDStripe Layout from SloanLED

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 2 OF 7
Weld-On #16
Humiseal 1B73
Field End
Cap
Sandpaper

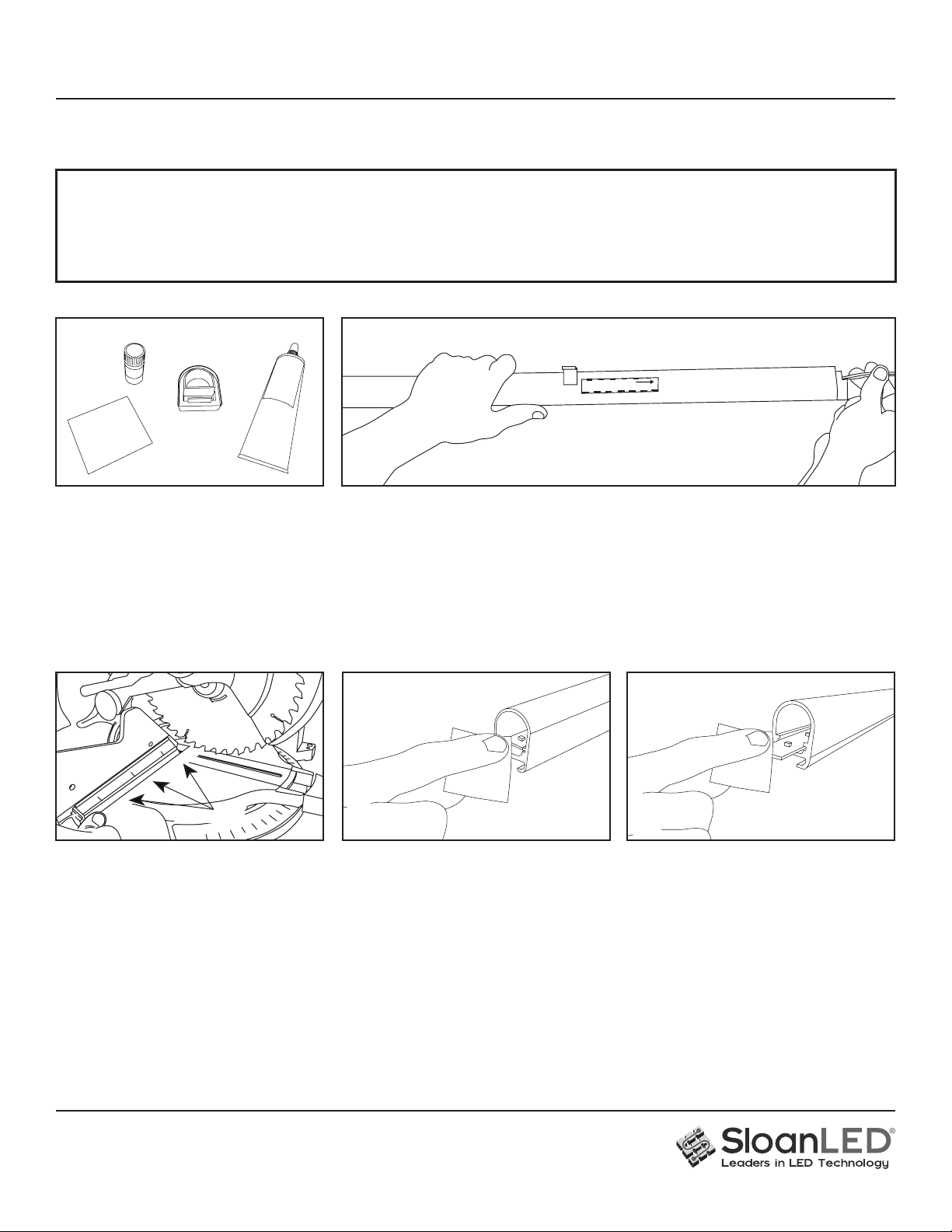

1. Gather materials: Sandpaper, Weld-On
#16, Humiseal 1B73 conformal coat (for
sealing edge of LED board), and acrylic
(eld) end-cap.
NOTE: All material shown is included
in eld end cap kit.
2. Prepare LEDStripe for cutting: Grip LEDStripe with mounting bracket pointing upwards and
gently pull right female connector to seat circuit board to right edge of tube.
Cut marks
3. Cut LEDStripe: All LEDStripe lengths can
be cut in the eld in 3" (75 mm) increments
on cut marks. Looking through extrusion,
black cut mark lines on LED board can
be seen on back of mounting track by
illuminating a section of LEDStripe. Measure
length from male connector end to cut mark
nearest required length. Use a power miter
saw to ensure a straight 90° cut. Use a sharp
blade to ensure a smooth clean cut.
5. Deburr and clean LED board:
Gently pull LED board out of tube about
0.25" (6 mm). Deburr cut-end of LED
board with sandpaper provided.
Remove any dust and debris.
WARNING: Failure to strictly follow these instructions may subject installer or others to personal injury.
Failure to strictly follow these instructions will also void manufacturer's warranties and may cause risk of
re, product damage, damage to property and injury to persons. Please read all warnings contained below
and follow all instructions carefully.
Field Cuts
4. Deburr and clean extrusion: Ensure end
of extrusion is deburred and clean of any
foreign material. Use sandpaper provided
if needed.

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 3 OF 7
Apply a generous continuous bead of Weld-on
#16 to entire bonding surface (crosshatched
area) on both cut extrusion and end cap.
Extrusion End Cap
7. Push PCB back into extrusion: After
Humiseal has dried for at least 7 minutes,
press circuit board as far into tube as it will
go. If any Humiseal adhered to the extrusion,
gently sand o󰀨 with sandpaper provided.
Avoid sanding edge of LED board.
8. Apply Weld-On #16: Apply Weld-On #16 in
a generous continuous bead to both cut end
of LEDStripe extrusion and bonding surface
on end-cap. See diagram above. Do not use
silicone or other solvents/adhesives.
WARNING: It is important to follow and review safety instructions and MSDS for Weld-On #16 solvent cement packaging and Humiseal 1B73
conformal coat. Follow all safety instructions on Weld-On #16 packaging.
Humiseal MSDS available at http://www.humiseal.com/
Weld-On #16 MSDS available at http://www.ipscorp.com/
WARNING: Field end-cap must create a water tight seal. All debris must be removed to promote a good end-cap bond and to
avoid electrical failure. Use of other types of saws and/or use of a dull blade may lead to chipping or cracking of the extrusion
or create a cut that cannot be sealed resulting in product failure. Ensure extrusion bonding surface is clean. Contaminants or
any adhesive other than Weld-On #16 on this surface may lead to poor bonding, water ingress, and product failure. Product
failures resulting from failure to strictly follow eld cut instructions are not covered by any product warranty.
SAFETY WARNING: Failure of eld end-cap to maintain a water tight seal may lead to water ingress and product failure.
Product failures of this type could result in electrical shock and/or re and damage to the product and materials which may
come in contact with the product. Electrical shocks may cause injury.
5 minutes
Hold cap
to edge
9. Fit end-cap to cut edge: After applying
Weld-On #16, immediately press end-cap onto
extrusion. Ensure end-cap is aligned, covers
entire extrusion opening, and is completely
seated against extrusion. Apply pressure to end-
cap for 5 minutes.
10. Second bead of Weld-On #16
Remove strong tape after the 5 minutes
curing period. Apply a generous continuous
second bead of Weld-On #16 around the
entire seam where the end-cap is bonded to
the extrusion.
NOTE: Strong tape can be used to maintain
pressure on end-cap for curing period.
5 minutes
7 minutes
WARNING: Avoid getting Humiseal conformal
coat on end of extrusion. Conformal coat will
interfere with end-cap bond.
6. Seal end of LED board with conformal coat:
Brush Humiseal 1B73 conformal coat onto cut
edge of LED board to seal from moisture. Allow
to dry for 7 minutes. Do not apply conformal
coat to cut edge of extrusion or end-cap. If any
Humiseal adhered to the extrusion, gently sand
o󰀨. Avoid sanding edge of LED board.

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 4 OF 7
Optional joint covers and corner covers:
Snap cover into place.
SloanLED 12 V DC wet Location Power Supply loading:
Two legs or up to 32 ft (9.76 m) each per power supply.
If more than two parallel legs are used, check output voltage and current of power supply.
Current ≤ 4.5 A
DC Voltage ≥ 11.5 V
Illustrated with 10 ft (3.05 m) LEDStripe lengths
Power Supply (PN# 701507-60W2E or 701507-60W3)
Troubleshooting:
One complete length of
LEDStripe won’t light.
Most likely a connector or connection problem. Check connections and voltage at connector. It could be a loose connection, wire or connector.
More than one length of
product does not light.
Most likely a connection problem. Check connections where product stops lighting. Another possible cause could be power supply is
overloaded and secondary output circuit protection is engaged. Check how many feet/meters of product are on each leg of power supply.
Check output current of power supply.
One 3" (75 mm) section
is dark
Problem inside product. Replace entire LEDStripe unit. Call SloanLED for return and replacement instructions.
After cutting, product
does not light.
Most likely the wrong end was cut. When cutting product, ensure end with big connector is end that is kept.
After cutting, end with female connector is scrap and will not light.
LEDStripe is dim Power supply is most likely overloaded. Remove section of LEDStripe until full brightness is achieved. Check output current of power supply.
12 VDC Power Supply Capacity Table for 12 V BP LEDStripe
Input Output
Loading
Part Number Nominal Input Voltage Input Current Output power Output Current
60W2(E) Power Supply (701507-60W2(E)
100-277 V 0.8 A 60 W 5.0 A Two legs of up to 32 ft (9.76 m)
each per power supply*
60W3 Power Supply (701507-60W3)
* If more than two parallel legs are used, check output voltage and current of power supply: Current 4.5 A, Voltage ≥ 11.5 V DC.
NOTE: Each 12 V circuit must be limited to 5 A (60 W) or less. For North American installations, a power supply that meets NEC Class 2 specications is required.
Illustrated with 8 ft (2.44 m) LEDStripe lengths
Power Supply (PN# 701507-60W2E or 701507-60W3)

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 5 OF 7

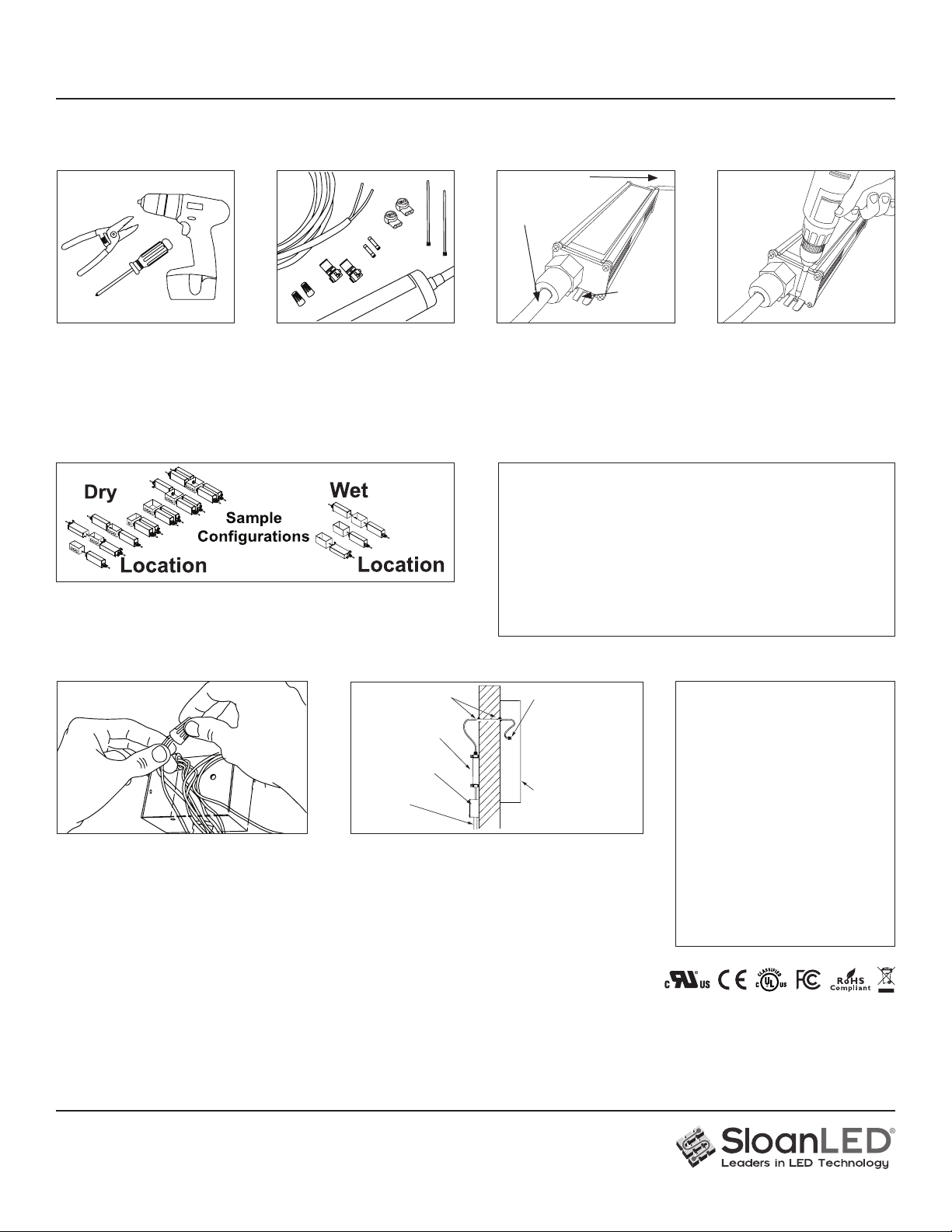

60W2E Power Supply Installation
1. Tools required: Wire strippers, drill, and screwdriver.
2. Supplies required: Conduit and electrical enclosure for power supply (if not
placed in a sign made from enclosure rated material). 4 or 5 mm pan head
screws, UL Listed PLTC cable, VDE H05RN-F cable (input)/UL Listed PLTC cable
(output), UL Listed electrical wire connectors (e.g., wirenuts), silicone.
3. Power Supply: Identify
primary wires, secondary
wires, and location of
mounting tabs.
4. Mount Power Supplies:
Use mounting tab in corner
to secure power supply.
12 VDC Output
(Red & Black)
Mounting Tabs
Primary
Wires
NOTE: Power supply operating temperature is -40º C to 60º C. To ensure
adequate ventilation, mounting power supplies without a secondary enclosure
is recommended. Space power supplies by standard knockout locations
3/4" (19 mm) minimum. If two or more power supplies are used, spacing must
be at least 1" (25 mm) end-to-end, and 4" (102 mm) on each side. Power supply
spacing to thermoplastic, wood, ber, or other combustible enclosure materials
must be 1" (25 mm). Ensure power supplies are not overloaded by verifying
output current is less than 5 DC Amps. Use of photo-cells or timing device is
recommended to ensure power supplies are o󰀨 during day light hours, when
sign illumination is not needed. Higher daytime temperatures and unnecessary
operation may shorten power supply lifetime.
5. Congure Power Supplies: Secure power supplies to junction box
using 1/2" (13 mm) locknuts. Power supplies may be joined together
in a wide array of congurations.
6. Connect Primary:
CAUTION: Have a licensed electrician
connect primary.
7. Make secondary connections: For North
American Installations, secondary class 2 cables
do not require conduit per NEC 2008 Articles
725.121 through 725.130. Seal all wall penetrations
with silicone to avoid water damage.
Wall penetration
(seal with silicone)
Power supply
UL Listed
junction box
Primary
power
Sign or
channel letter
Connect secondary
output. Ensure
all secondary
connections are
RED-TO-RED and
BLACK-TO-BLACK
TROUBLESHOOTING
If sign is not functioning properly,
check the following:
• Primary voltage is between
220-240 VAC
• Secondary voltage is 12 VDC
• Output current is 5 Amps or less
• Power supply is not overloaded
(see Power Supply Capacity Chart
in product installation guide or
SloanLED.com)
• There are no shorts in secondary wiring
• All secondary connections are RED-
TO-RED and BLACK-TO-BLACK
UL File number: TUV Reference number: DE 2-021052-A1
Some or all of the products shown are covered by U.S. and foreign patents pending and covered by one of more of the following
U.S. patents issued: 6776504, 6969179, 7192157, 6932495, 7241031
SloanLED products carry a limited warranty.
For complete details refer to the warranty policy found at SloanLED.com
Y
40 (NTS)
180
X
DADDED CSA, RCM, ADDRESS YE
YE
YE
MH
UPDATED UL RET. STATEMENT
ADDED FCC & UL CLASSIFIED
PRODUCTION RELEASE
C
B
A10/12/16
05/05/17
06/07/17
12/13/17
CHG DATE CHANGE INITIALS
FINISH MATERIAL
REFER TO B.O.M.
www.sloanled.com
1-888-456-2699
ALL DIMENSIONS ARE IN MILLIMETERS UNLESS OTHERWISE STATED.
THIS DESIGN AND DRAWING ARE PROPRIETARY AND THE
PROPERTY OF SLOANLED. ANY REPRODUCTION OR USE
WITHOUT PRIOR WRITTEN APPROVAL IS PROHIBITED.
TOLERANCE
.000 ±0.01
.00 ±0.05
.0 ±0.2
< .5
PRODUCT LABEL
701507-60W2
DRAWN
YE 12/13/17 N/A 401985
SHEET 1 OF 1 D
DATE SCALE CHG
5725 Olivas Park Drive
Ventura, CA 93003 USA
SloanLED.com

12 V BP LEDStripe
Installation Guide for 12 V BP Light Green LEDStripe
PAGE 6 OF 7
60W3 Power Supply Installation
1. Tools required:
Wire strippers, drill,
and screwdriver.
2. Supplies required: Junction
box, #8 (4 mm) or #10 (5 mm)
pan head screws, UL Listed
PLTC cable (or VDE H05RN-F
cable where required), UL Listed
electrical wire connectors
(e.g., wirenuts), silicone.
3. Power Supply: Identify
primary wires, secondary
wires, and location of
mounting tabs.
4. Mount Power Supplies:
Use mounting tab in corner
to secure power supply.
12 VDC Output
(Red & Black)
Mounting
Tabs
Primary Wires
NOTE: Power supply operating temperature is -40º C to 60º C. To ensure
adequate ventilation, mounting power supplies without a secondary enclosure
is recommended. Space power supplies by standard knockout locations 3/4"
(19 mm) minimum. If two or more power supplies are used, spacing must be
at least 1" (25 mm) end-to-end, and 4" (102 mm) on each side. Power supply
spacing to thermoplastic, wood, ber, or other combustible enclosure materials
must be 1" (25 mm). Ensure power supplies are not overloaded by verifying
output current is less than 5 DC Amps. Use of photo-cells or timing device is
recommended to ensure power supplies are o󰀨 during day light hours, when
sign illumination is not needed. Higher daytime temperatures and unnecessary
operation may shorten power supply lifetime.
5. Congure Power Supplies: Secure power supplies to junction box using
1/2" (13 mm) locknuts. Power supplies may be joined together in a wide
array of congurations. For wet locations use a junction box that is UL Listed
for wet locations. For dry locations, use any UL Listed junction box.
6. Connect Primary:
CAUTION: Have a licensed electrician
connect primary.
7. Make secondary connections: For North
American Installation, secondary class 2 cables do
not require conduit per NEC 2008 Articles 725.121
through 725.130. Seal all wall penetrations with
silicone to avoid water damage.
Wall penetration
(seal with silicone)
Power supply
UL Listed
junction box
Primary
power
Sign or
channel letter
Connect secondary
output. Ensure
all secondary
connections are
RED-TO-RED and
BLACK-TO-BLACK
TROUBLESHOOTING
If sign is not functioning properly,
check the following:
• Primary voltage is between
100-277 VAC
• Secondary voltage is 12 VDC
• Output current is 5 Amps or less
• Power supply is not overloaded
(see Power Supply Capacity Chart
in product installation guide or
SloanLED.com)
• There are no shorts in secondary wiring
• All secondary connections are RED-
TO-RED and BLACK-TO-BLACK
UL File number: E336107 UL8750
E215393 UL879
Some or all of the products shown are covered by U.S. and foreign patents pending and covered by one of more of the following U.S. patents issued: 6776504, 6969179, 7192157, 6932495, 7241031
SloanLED products carry a limited warranty.
For complete details refer to the warranty policy found at SloanLED.com
