HKSR-9003
Section 1
Installation
Purpose of this manual
This manual is an installation manual of RGB 4:4:4 Pro-
cessor Board HKSR-9003.
Intended for use by system and service engineers, this
manual describes information on installation of
HKSR-9003.
Related manual
Besides this installation manual, the following manual is
available for HKSR-9003.
.SRW-9000 Maintenance Manual (available on request)
This manual describes information on the maintenance
and component-based service of the unit.
If you need this manual, please contact your local Sony
Sales Office/Service Center.
1-1. Specifications
General
Dimensions (W/H/D including projections)
: 130 x102 x11 mm
Mass (heatsink +board)
: Approx. 95 g
Power voltages and power consumption: 5.5 W
1-2. Overview of Installation
Components
.PR-318 board
.Heatsink (PR) assembly
.Screw B2 x4 (3)
.Installation Manual
.Installation Guide
Applicable model
SRW-9000
Installation of HKSR-9003
Attach and adjust the unit properly following the proce-
dures in Section 1-3 and later.
Indicator on PR-318 board
PR-318 BOARD (SIDE A)
LED. No. Color Description Normal state at
Power ON
D100 Green Indicates that PR-318
board is running
OFF
D100
A
1
2
3
4
5
BCD

1-2 (E) HKSR-9003
1-3. Installation Procedures
m
.Power off the unit and disconnect the power
cord or battery beforehand to avoid damage to
the circuit of the unit.
.Carry out the work on a protective sheet to
avoid scratches on the cabinet.
1. Loosen the six screws with stopper to detach
the top panel.
2. Disconnect the harness from the connector
CN103 on the SMB-26 board.
3. Loosen the four screws with stopper to detach
the battery panel.
4. Disconnect the harnesses from the connector
CN4 on the CR-51 board and the connector
CN10 on the RE-244 board.
5. Remove the four screws to detach the board
retainer in the arrow direction.
n
When installing the board retainer, insert it
into the two slits of the chassis and secure it
with the four screws.
6. Detach the board spacer.
7. Disconnect the harness (AXM-VPR) from the
connector CN3 on the AXM-37 board.
CN103
CN4
CN10
Screws with stopper
Screws with stopper
Screws with stopper
Battery panel
Top panel
PSW2.6 x5
PSW2.6 x5
Board retainer
CN3
Board spacer
Harness (AXM-VPR)
Slits

1-3 (E)
HKSR-9003
8. Insert the blade of a screwdriver as shown in
the figure and push the screwdriver in the
arrow direction to disconnect the VPR-101
board from the MB-1106 board.
n
The board name and a number of board
removing order are stamped on each board
bracket.
Example) To remove the SS-103 board
Remove the VPR, RE, and SS
boards in this order.
The VDA-69 board need not be
removed.
VPR-101 board
SS-103 board
RE-244 board
VPR-101 board
VDA-69 board
Board name
Number of board
removing order
Screwdriver

1-4 (E) HKSR-9003
VPR-101 board
CN600
Harness
(AXM-VPR)
30 mm
9. Draw the VPR-101 board approximately 30
mm out of the unit, and disconnect the har-
ness (AXM-VPR) from the connector CN600.
10. Loosen the screw with stopper to detach the
cable stopper (30P).
11. Disconnect the fine-wire coaxial cable from
the connector CN2100 on the VPR-101 board
using the cable stopper (30P). (Refer to
Section 1-4-1.)
m
.Disconnect the fine-wire coaxial cable
using the procedure described in Section
1-4-1.
.Never pull the fine-wire coaxial cable.
12. Loosen the screw with stopper to detach the
cable stopper (BNC).
13. Disconnect the fine-wire coaxial cable from
the connector CN2101 on the VPR-101 board
using the cable stopper (30P). (Refer to
Section 1-4-1.)
14. Loosen the screw with stopper to detach the
cable stopper (BNC-2).
15. When the HKSR-9001 is installed in the unit,
disconnect the three coaxial cables from the
connectors CN1012, CN1010, and CN1011
on the TR-139 board using the cable stopper
(BNC). (Refer to Section 1-4-2.)
16. Remove the VPR-101 board from the unit.
n
Be very careful so that the harnesses and
cables are not caught.
Installed in HKSR-9001
TR-139 board
CN1011
coaxial cable
CN1010
CN1012
Blue
Gray
Red
CN2101
Gold
Gold
CN2100
Fine-wire
coaxial cables
Screws with stopper
Screw with stopper
Cable stopper
(BNC)
Cable stopper
(BNC-2)
Coaxial cables
Bainding
bands
Cable stopper (30P)

1-5 (E)
HKSR-9003
17. Remove the two screws to detach the dummy
plate (PR).
18. Remove the two nylon rivets securing the
heatsink (PR) assembly to the PR-318 board.
19. Check that radiation sheets (9 x12) are
attached to IC1000, IC1001, IC1003, IC1200,
and IC1202 on the PR-318 board.
20. Connect the connector CN100 on the PR-318
board to the connector CN2201 on the
VPR-101 board.
21. Install the heatsink (PR) assembly with the
supplied three screws.
B2 x4
VPR-101 board
Dummy plate (PR)
Heatsink (PR) assembly
VPR-101 board
CN100
PR-318 board
B2 x4
B2 x4
Radiation sheet (9 x12)
IC1200
IC1000
IC1202 IC1003
IC1001
CN2201

1-6 (E) HKSR-9003
B
G
R
Cable stopper (BNC-2)
A
Screw with stopper
Coaxial cables
Coaxial cable
Blue
Gray
Red
TR-139 board
Heatsink (TR)
assembly
22. Insert the VPR-101 board along the rails
shown in the figure to the position where the
VPR-101 board is drawn out of the unit about
30 mm.
n
Slowly insert the VPR-101 board straight.
23. When the HKSR-9001 is installed in the unit,
connect the three coaxial cables disconnected
in step 15 to the connectors CN1012,
CN1010, and CN1011 on the TR-139 board.
(Refer to Section 1-4-2.)
n
Match the colors of the coaxial cables with
the silk print R (Red), G (Gray), and B (Blue)
on the TR-139 board.
24. Arrange the three coaxial cables as shown in
the figure.
25. Hook portion A (three locations) of the cable
stopper (BNC-2) to the edge of the heatsink
(TR) assembly, and secure the cable stopper
with a screw with stopper.
SS-103 board
RE-244 board
VPR-101 board
VDA-69 board
VDA-69 board
VPR-101 board
RE-244 board
SS-103 board

1-7 (E)
HKSR-9003
CN2100
CN2101
Hook
Hook
Gold
Fine-wire
coaxial cables
A
Cable stopper (BNC)
Cable stopper
(BNC)
A
Do not put on the connector.
Pushing direction (B)
Arrow B view Arrow B view
A
Fine-wire coaxial cable
CN2101
Screw with
stopper
Screw with
stopper
Cable stopper
(BNC)
Cable stopper
(30P)
A
OK NG
Cable stopper
(BNC)
Gold
A
A
A
A
26. Connect the fine-wire coaxial cable discon-
nected in step 13 to the connector CN2101 on
the VPR-101 board. (Refer to Section 1-4-1.)
n
Connect the fine-wire coaxial cable in the
way described in Section 1-4-1.
27. Hook the cable stopper (BNC) to the hook of
the VPR bracket.
28. While pushing the cable stopper (BNC) in the
arrow direction so that portion A of the cable
stopper is not put on the connector CN2101,
secure the cable stopper (BNC) with a screw
with stopper.
29. Connect the fine-wire coaxial cable discon-
nected in step 11 to the connector CN2100 on
the VPR-101 board. (Refer to Section 1-4-1.)
30. Hook the cable stopper (30P) to the hook of
the VPR bracket.
31. While pushing the cable stopper (30P) in the
arrow direction so that portion A of the cable
stopper is not put on the connector CN2100,
secure the cable stopper (30P) with a screw
with stopper.

1-8 (E) HKSR-9003
CN600
Cable stopper (30P)
Cable stopper (BNC)
Harness (AXM-VPR)
Two coaxial cables
(B, G)
Do not bend the
coaxial cable sharply.
Harness guard A coaxial cable
(R)
Harness clamp
Avoid the connector.
32. Connect the harness (AXM-VPR) to the
connector CN600 on the VPR-101 board.
33. Arrange the harness (AXM-VPR) inside the
hooks of the two cable stoppers as shown in
the figure.
34. Push the VPR bracket to connect the
VPR-101 board to the MB-1106 board.
35. Arrange the harness and coaxial cables as
shown in the figure.
Clamp all the slacks of the coaxial cables
with the harness clamp as shown in the figure.
36. Install the removed parts by reversing steps 1
to 7.
37. Check that the HKSR-9003 has been recog-
nized with the SYSTEM menu. (Refer to Sec-
tion 1-5.)

1-9 (E)
HKSR-9003
1-4. Disconnecting/Connecting a Coaxial Cable

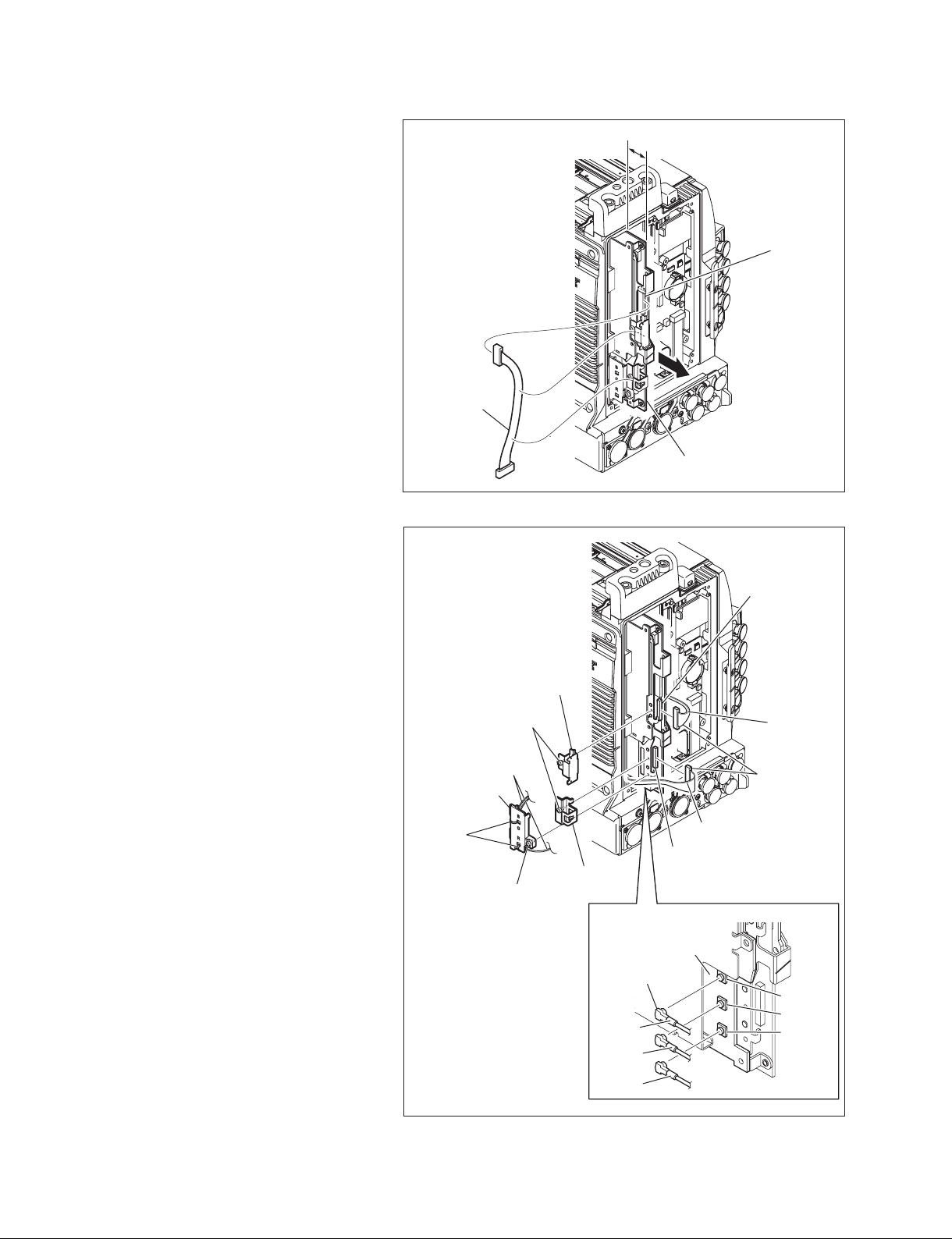

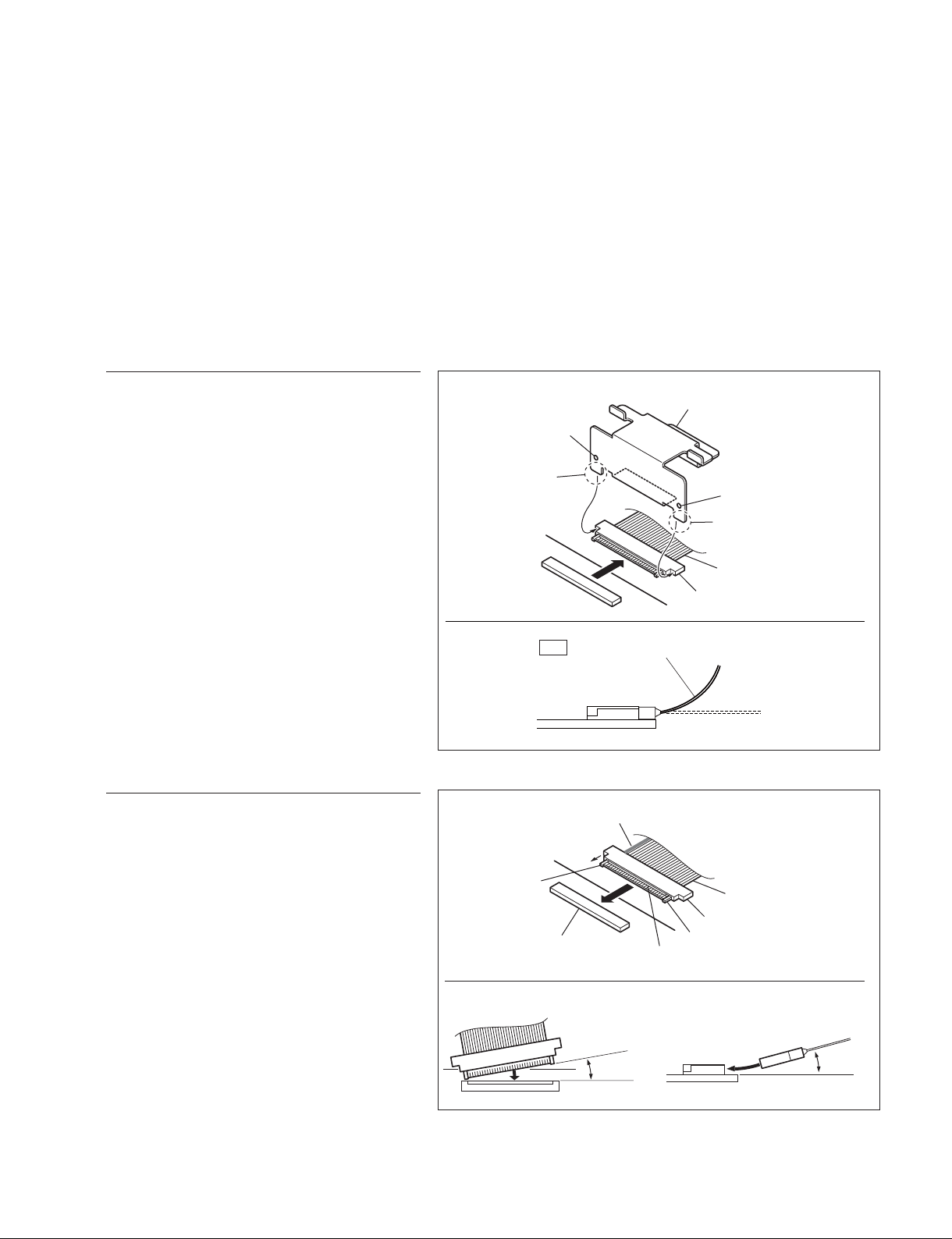

1-4-1. Fine-Wire Coaxial Cable (With the Connector)
Fine-wire coaxial cables are connected to the
following boards. Be sure to observe the discon-
necting and connecting procedures below to
prevent wire disconnection or poor contact.
.VPR-101 board
.AD-188 board
.SS-103 board
Disconnection
1. Remove the cable stopper (30P). (Refer to
Section 1-3.)
2. Hook portions A of the cable stopper (30P) to
the connector of the fine-wire coaxial cable,
and pull the connector straight in the arrow
direction to disconnect it.
n
Never pull the fine-wire coaxial cable.
Connection
1. Dry clean the contact surface with a wiping
cloth in the arrow a direction.
2. Hold both sides of the fine-wire coaxial cable
connector with the contact surface facing up.
3. Insert the connector straight to meet the angle
specified in Figure 1.
n
Insert the connector carefully so that the
connector guides are not caught by the edge
of the mating connector.
NG
Do not pull the cable.
Connector
Hole
Hole
A
A
Fine-wire coaxial cable
Cable stopper (30P)
Connector
Guide
Guide
Direction of dry cleaning
Connect surface
5° or less
2° or less
a
Mating connector
Figure 1
Gold
Fine-wire coaxial cable

1-10 (E) HKSR-9003
1-4-2. Coaxial Cable
Coaxial cables are connected to the following
boards and connectors. Be sure to observe the
disconnecting and connecting procedures below
to prevent wire disconnection or poor contact.
.CN-3261 board
.TR-139 board (HKSR-9001)
.VDA-69 board
.GENLOCK IN connector
.TC IN, TC OUT connectors
.TEST OUT connector
.HD SDI OUT A, HD SDI OUT B connectors
.AUX IN connector
.HD SDI MONI 1, 2 connectors
Disconnection
1. Remove the cable stopper (BNC). (Refer to
Section 1-3.)
2. Hook the claws of the cable stopper (BNC) to
the plug of the coaxial cable, and pull the
plug straight in the arrow direction to discon-
nect it.
n
Never pull the coaxial cable.
Connection
1. Hold the plug of the coaxial cable.
2. Push the plug perpendicularly to the connec-
tor while slightly turning the plug clockwise
and counterclockwise.
NG Do not pull the cable.
Cable stopper
(BNC)
Arrow A view
Claws
Plug
A
Coaxial cable
Hold the plug to connect.
Connecting connector

1-11 (E)
HKSR-9003
1-5. Checking Recognition of Optional Board
FORMAT
TEST SG
LCD
KEY MAP
KEY INHI
SERVO
REC INHI
EDIT
POWER
BATTERY
OTHERS
MAP
OFF
SOFT VERSION
HOURS METER
FORMAT LIST
OPTION LIST
System Setup Others
Option List
9003:RGB Proc
FORMAT
TEST SG
LCD
KEY MAP
KEY INHI
SERVO
REC INHI
BATTERY
OTHERS
MAP
OFF
SOFT VERSION
HOURS METER
FORMAT LIST
OPTION LIST
System Setup Others
Option List
OK
No Option
is Installed.
Checking
1. Press the SYSTEM button.
2. Select “OTHERS” from the System Setup
menu, and press the ENTER dial.
The “Others” window appears.
3. Select “OPTION LIST” on the window, and
press the ENTER dial.
The “Option List” window appears.
4. Check that “9003:RGB Proc” is displayed on
the window.
n
The recognized options are displayed on the
“Option List” window.
If the optional board is not recognized, “No
Option is Installed.” appears on the “Option List”
window.

このマニュアルに記載されている事柄の著作権は当社に
あります。
従って，当社の許可なしに無断で複写したり，説明内容
（操作，保守等）と異なる目的で本マニュアルを使用する
ことを禁止します。
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication
of any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck
als die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
The material contained in this manual consists of
information that is the property of Sony Corporation.
Sony Corporation expressly prohibits the duplication
of any portion of this manual or the use thereof for any
purpose other than the operation or maintenance of the
equipment described in this manual without the express
written permission of Sony Corporation.
Le matériel contenu dans ce manuel consiste en
informations qui sont la propriété de Sony Corporation.
Sony Corporation interdit formellement la copie de
quelque partie que ce soit de ce manuel ou son emploi
pour tout autre but que des opérations ou entretiens de
l’équipement à moins d’une permission écrite de Sony
Corporation.
Das in dieser Anleitung enthaltene Material besteht aus
Informationen, die Eigentum der Sony Corporation sind.
Die Sony Corporation untersagt ausdrücklich die
Vervielfältigung jeglicher Teile dieser Anleitung oder den
Gebrauch derselben für irgendeinen anderen Zweck
als die Bedienung oder Wartung der in dieser Anleitung
beschriebenen Ausrüstung ohne ausdrückliche
schriftliche Erlaubnis der Sony Corporation.
HKSR-9003

Sony Corporation
HKSR-9003 (SY) J, E
4-160-066-01
Printed in Japan
2009. 9 08
©2009
