Soundoff Signal PNFSLDGSB-TH User manual

TAHOE FRONT NFORCE®/ GHOST®GRILLE BRACKETS
PNFSLDGSB-TH (for 2015-2020 model years)
1.800.338.7337 / www.soundo󰀨signal.com
Pg. 1 PNFSLDGSB-TH 0120
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and re. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner’s Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
conguration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through rewall or metal.
WARNING
Note: It is recommended that the front bumper cover assembly
be removed for access to front beam. For complete explanation of
disassembly contact a local GM service center.
INSTALLATION:
1) Front bumper cover assembly must be removed to
install front nForce/ Ghost light bracket assemblies.
Assembly of bumper should be removed as one
piece and not individually. Consult a local GM
service center for best disassembly method. Keep
all hardware.
2) Mount the brackets for the light assemblies using
the exciting hole locations with the supplied
hardware kit. See gure 1.
3) Insert the supplied 1/4-20 clip nuts. Bolt on bracket
in 3 locations with the 1/4-20 bolts. As shown as
gure 2.
4) Assemble Ghost or nForce lights to brackets with
the supplied hardware. As shown on gure 3.
5) Make electrical connections. Refer to the
instruction sheet supplied with the light.
TECHNICAL SPECIFICATIONS
Material: Steel with powder coated black
nish
Dimensions
(bracket only):
3.22”H x 19.25”W x 0.07”D

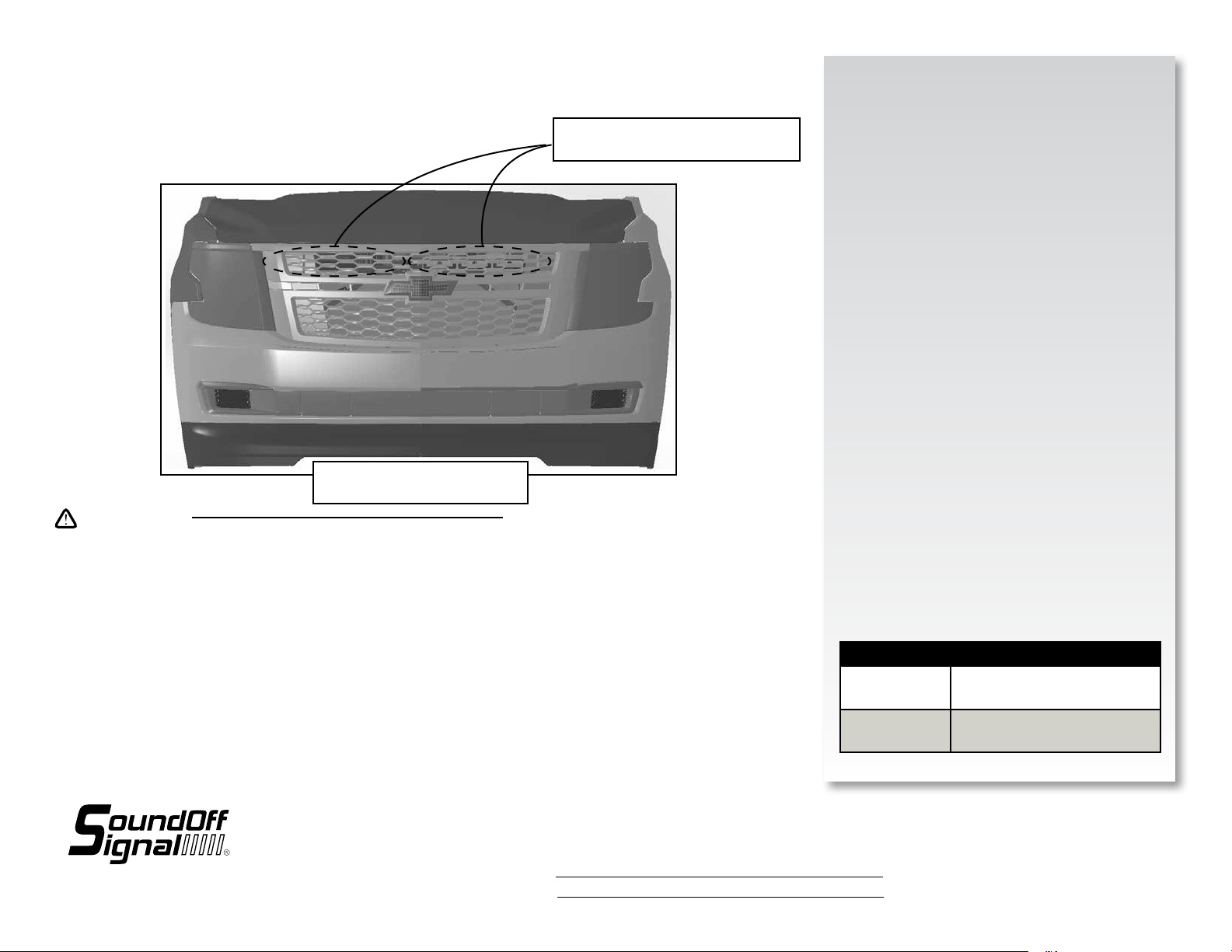

NFORCE/ GHOST LIGHT ASSEMBLY
-DRIVER OR PASSENGER SIDE-
FRONT END ASSEMBLY
-BRACKETS LOCATED BEHIND GRILLE-
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.
ENHANCING SAFETY THROUGH INNOVATION

TAHOE FRONT NFORCE®/ GHOST®GRILLE BRACKETS
PNFSLDGSB-TH (for 2015-2020 model years)
1.800.338.7337 / www.soundo󰀨signal.com
Pg. 2 PNFSLDGSB-TH 0120
FRONT VIEW OF VEHICLE
-GRILLE NOT SHOWN FOR CLARITY-
BRACKET ASSEMBLY
-PASSENGER SIDE-
PLASTIC RADIATOR SHROUD
BOLT ON LOCATIONS
-USED SUPPLIED HARDWARE-
SEE FIGURE 2
NOTE:
BRACKETS PROVIDED ARE SIMMETRICAL.
THEY CAN BE USED ON BOTH PASSENGER
AND DRIVER SIDE APPLICATIONS.
FIG. 1

TAHOE FRONT NFORCE®/ GHOST®GRILLE BRACKETS
PNFSLDGSB-TH (for 2015-2020 model years)
1.800.338.7337 / www.soundo󰀨signal.com
Pg. 2 PNFSLDGSB-TH 0120 Pg. 3 PNFSLDGSB-TH 0120
1/4-20 BOLTS
-INCLUDED IN HARDWARE KIT-
BRACKET
1/4-20 CLIP NUTS
-INCLUDED IN HARDWARE KIT-
FIG. 2
DRIVER SIDE ASSEMBLY SHOWN
-PASSENGER SIDE SIMMETRICALLY OPPOSITE-
WIRE HOLE
NFORCE FIT
NFORCE/
GHOST
FIG. 3
