Storage Canopy DT Container shelter User manual

1
SHELTER ASSEMBLY
MANUAL

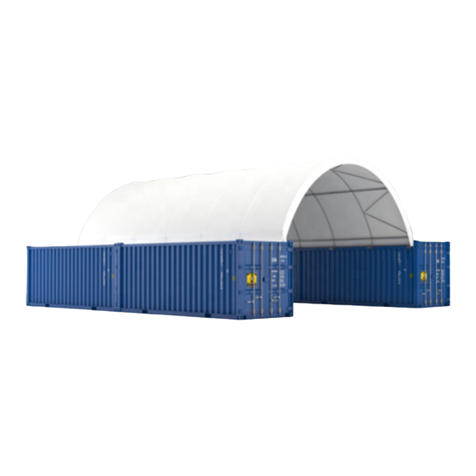

40x80x15 DT Container shelter
Double Truss

2
PARTS LIST
Part Code
Description
Qty
1
Top bent tube
11
2
Side bent tube
22
3
Lower bent tube
22
4
Purlin
70
5
Top tensioning device
16
6
Clips
32
7A
Left base plate
11
7B
Right base plate
11
8
Ratchet
22
9
Nylon band for ratchet
22
10
Tensioning tube
2 groups
11
Bolts M8x70
176
0
Bolts M12x30
132
12
Bolts M10x80
77
13
Roof cover
1
14
Knitting rope for cover
1
15
Plastc plug
4
16
Angle seat
4
17
Iron angle for base plate
22

1
ANCHORING THE CONTAINER
Make sure you have:
•Welder.
•Cement.
•Four 3” x 3” x 6 feet ¼” Square steel angle
1. As shown in the diagram 1, make a 3 ft deep hole right beside one of the front and
opposite rear corners of the container, in which the 6ft square steel will be installed.
2. Insert the 6ft square steel into the hole, making sure 3ft is below the surface
completely laying on the side of the containers.
3. Weld the square steel to the 2 containers.
4. Pour cement in the holes to make sure the square steel won’t move.
5. Repeat the previous steps on the corners located in the opposite rear side.
Securing the containers to the floor is crucial, that way the containers won’t shift
under harsh weather conditions, thus avoiding the shipping container canopy roof top
of getting damaged.
Diagram 1

2
Highly Recommended
1. All container canopy covers need to be removed during windstorm of 60 mph,
leaving frame assembled. Customer responsibility.
2. All container canopy covers need to be removed before a snowstorm of 1-2 inches
(for single truss Shipping container roofs) and 3-4 inches (for double truss Shipping
container roofs), leaving the frame assembled. Customer responsibility.
3. It is highly recommended for customers who live in snow states and cities to use
double truss framing instead of Single truss framing. Customer responsibility.
4. It’s the owner's responsibility to shovel snow off the canopy rooftop.
5. All containers need to be anchored to the ground in each opposite corner sides.
Customer responsibility.
6. All of our products fall under the temporary structure category/storage ragtops.
Return Policy: Any product can be returned within 7 calendar days after arrival; shipping
expenses are not refundable. For more information, please refer to the Return and refund
policy page.
About lifespan:
Tarp lifespan: 7-10 years*
Frame Lifespan: +15 years*
*The term "lifespan" refers to the durability of the materials themselves, not to the
structural integrity of the canopy once assembled.

3
SPECIFICATIONS
Width: 40 ft
Length: 80 ft
Height: 15 ft
IMPORTANT: READ MANUAL FIRST
Improper site preparation, assembly and maintenance may invalidate warranty and cause
unnecessary and costly mistakes. If you have any questions, contact your local dealer.
For an easy assembly process, we have identified each individual component with the part
code as indicated in the parts list. Please refer to the part code numbers and drawing to
ensure problem-free assembly.
It is necessary to tighten the roof fabric enough to avoid “hammocks” on the roof; also re-
tighten once or twice again after a few months of use. This is important when assembled
during cold seasons (autumn and winter) because the fabric gets stiff in these weather
conditions. When the weather conditions become warmer, the fabric loosens and needs
to be re-tighten
It is the owner’s responsibility to take off snow immediately, otherwise it will slide off on
its own.
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
1. Keep the work area clean. Accidents are more likely in cluttered areas. Do not set
up near snow drifts, in slippery places, in high winds, or wet locations.
2. All children should be kept away from the work area.
3. Don’t overreach. Always keep proper footing and balance.
4. Do not assemble under the influence of alcohol or drugs. Read warning labels on
medication prescriptions to determine if your judgment or reflexes are impaired
while taking them. If there is any doubt, do not assemble.
5. Be aware of possible windy conditions; fasten the bases in concrete if these
conditions are likely to occur. Remove the cover during hurricanes.
6. Be careful with power and heat sources. Do not keep heat sources near the
tarpaulin. Do not expose to open flame.
7. Be aware of personal safety during assembly and use. Be careful not to pinch your
fingers with clips and tubes when assembling: When using, make sure there is
adequate ventilation for any dangerous fumes.

4
EQUIPMENT AND TOOLS FOR INSTALLATION
1. Measuring tape
2. Alignment string
3. Step ladder
4. Welder
5. Sledgehammer
6. Wrench
7. Scissors
INSTALLATION PROCESS
A - BASE PLATES INSTALLATION
Please refer to the Figure 1 to place the base plates.
Figure 1
1. The measure must be taken from center to center of the base plates. Refer to the
diagram above and confirm the place of the base plates. ENSURE THAT THE
FOUNDATIONS ARE SQUARE.
2. All the base plates need to be welded on the Containers.

5
B - FRAME INSTALLATION (Refer to figure 2 for the full diagram)
Figure 2
1. Connect the Top Bent Tube (part code 1), the Side Bent Tube (part code 2) and the
Lower Bent Tube (part code 3) with the Bolts M8x70 (part code 11); these make
one group of arches. Please NOTE the direction of the bolt. DO NOT install the
bolts on the top of the truss where the fabric will rest.
Figure 3

6
2. Insert one end of the assembled arch into one base plate and force the other end
of the arch into the opposite base plate.
Figure 4
3. After installing the first two arches, connect the Purlin (part code 4) onto them
using the Bolts M10x80 (part code 12). There are 7 pieces of Purlins (part code 4)
between each arch.
4. Install the Inclined Top tension device (part code 5) using the Clips (part code 6).
Figure 5
5. Then install the third arch into the base plate and connect the purlins.
6. Assemble the arches one by one until the frame is finished.

7
C - ROOF COVER INSTALLATION
NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A
slight breeze is the most advantageous for cover installation. To take advantage of the
breeze, pull the cover up over the arches with the breeze blowing in the cover like a sail
filled with air.
1. Insert the Tensioning tube (part code 10) into the pockets on the end of the roof
cover (part code 13). Then put the Plastic plugs (part code 15).
Figure 6
2. Put the Roof cover (part code 13) EVENLY, CAREFULLY AND SLOWLY atop the
frame. Adjust the cover so that it is square and evenly centered on the frame.
Figure 7

8
3. On the Roof cover, cut pockets over each ratchet on the base plates, then use the
Nylon band for ratchet (part code 9) to tie down the Tensioning tubes.
Figure 8
4. Weld the Angle seats (part code 16) on each container and use Knitting Rope for
Cover (part code 14) to knit the cover on the two side arches and tie the Knitting
Rope for Cover to the Angle seats.
Figure 9

9
Please, check the detailed installation pictures below:
NOTES:
-DO NOT LEAVE THE ROOF COVER UNATTACHED UNDER ANYCIRCUMSTANCES until
the final assembly and tightening has been completed.
-The process is quite easy, but some tightening adjustments will be necessary to get
a flat, tensioned roof cover. Please adjust the roof cover every month.
-Wrap tape around the gap between the steel after installing.
