Technogym Synchro Forma User manual

Synchro Forma
User manual

2
Synchro Forma
Contents
User manual ....................................................................................1
Contents...........................................................................................2
1 Important safety instruction..................................................3
2 Personal safety........................................................................5
3 Equipment identication ........................................................7
4 Technical data ..........................................................................8
5 Description of the equipment ................................................9
6 Accessories ............................................................................10
7 Safety devices and warnings.............................................. 11
8 Place of installation...............................................................12
9 Moving the equipment ..........................................................13
10 Levelling..................................................................................14
11 Electrical connection.............................................................15
12 Switching on and o..............................................................16
13 Maintenance ..........................................................................17
13.1 Changing the fuses.....................................................19
14 Easily solved problems ........................................................ 20
15 Technical Support Service ................................................... 22
16 Storage....................................................................................23
17 Scrapping................................................................................23
18 Monitoring the heart rate..................................................... 24
19 Using Synchro Forma........................................................... 26

3
Synchro Forma
1 Important safety instruction
You should always consult with a qualied and licensed medical professional or healthcare practitioner before starting any nutritional, diet, stretching or
exercise program. You are advised to investigate and inform yourself about any health related actions and choices you make.
Synchro Forma is intended for commercial use.
Please read all instructions before using the equipment. These instructions were written to ensure your safety and to protect the unit.
When using an electrical appliance, basic precautions should be always followed, including the following.
!
Danger
To reduce the risk of electric shock, always unplug the unit from the electrical outlet immediately after using and before cleaning or performing any
maintenance tasks.
To reduce the risk of burns, re, electric shock or injury to person, take the following precautions.
- The equipment should never be left unattended when plugged in. Unplug from outlet when not in use, before cleaning it, and before putting on or taking o
electrical parts.
- Do not allow children unsupervised access to the equipment; parents and guardians must assume responsibility for the children in their care and avoid the
occurrence of situations or usage for which the equipment was not designed. Children must be closely supervised when using the equipment, with careful
attention paid to their mental and physical development. The equipment must under no circumstances be adapted or used as a toy.
- Close supervision by qualied personnel is necessary when the equipment is used by or near invalids or disabled persons.
- Use the equipment only for its intended use as described in the user manual. Only perform the exercises for which the equipment has been designed,
following the instructions given in the manual. Any other use is to be considered improper and therefore dangerous.
- Do not use attachments not recommended by Technogym.
- Never operate the equipment if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. In this
case, contact the Technogym Technical Support service.
- Do not carry the equipment by supply cord or use cord as handle.
- Keep the cord away from heated surfaces.
- Keep hands away from moving parts.

4
Synchro Forma
- Never drop or insert any object into any opening.
- Do not use outdoors. Do not leave the appliance outdoors, exposed to the elements (rain, sun, wind, etc.). Do not expose the appliance to water jets.
- Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
- To disconnect, turn all controls to the o position, then remove plug from outlet.
!
Warning
Connect the equipment to a properly grounded outlet only. See grounding instructions.
SAVE THESE INSTRUCTIONS

5
Synchro Forma
2 Personal safety
Before starting any exercise you are advised to read the whole manual thoroughly and get to know the equipment’s controls.
Synchro Forma can be used only after having a medical check-up for the specic type of exercise to be carried out and in compliance with Technogym’s stated
use conditions.
Before starting a workout program, consult a doctor for advice on any limits to observe when using the equipment.
Persons with specic physical complaints may use the equipment only under the strict supervision of a doctor specialised in that particular area.
If you feel ill during the workout (dizziness, chest pains, etc.), stop exercising immediately and consult a doctor.
If the message “HIGH HEART RATE” appears during the exercise, your heart rate is too high and you should slow the exercise down.
At the beginning of each exercise, make sure you are in the correct position, and that none of the parts of the equipment are in your way.
Choose suitable exercises for your physical characteristics and state of health, starting out with light loads.
Do not overexert yourself or work to exhaustion. If you feel any pain or abnormal symptoms, stop your workout immediately and consult your physician.
Incorrect or excessive exercise may cause physical harm.
Wear proper exercise clothing and shoes during a workout, no loose clothing. Tie long hair back. Keep garments or towels away from moving parts.
During use people must remain at a safe distance.
Do not use the equipment in presence of small children or pets.
Completely assemble the equipment before using it. Check the unit before each use. Do not continue to operate the equipment when it is not working properly.
Assemble and operate the equipment on a solid, level surface.
Keep all electrical components, such as the power cable and I/0 switch, away from liquids to prevent shock.
Maintain the equipment in good working condition. If there are signs of wear, contact the Technogym Technical Support service.
Do not attempt to service the equipment yourself other than the maintenance instructions found in the manual.
Do not set anything on the casing or control panel.
The equipment must not be placed close to heat sources or close to sources of electromagnetic waves (e.g. televisions, electrical motors, aerials, cellphones,
etc.).
Although the equipment has been designed and built in accordance with health and safety requirements, there are some zones in which there are unseen
hazards. You must be very careful about possible upper and lower limb crushing hazards.

6
Synchro Forma
!
Warning
Technogym s.p.a. will be held responsible for its equipment only if the following precautions are observed:
- the equipment must be used as specied;
- the User manual must be read thoroughly throughout;
- the place of installation must meet the requirements stated in the User manual;
- the electrical system must conform to the standards and legal requirements in the country of use;
- the installation, maintenance and setting must be done by qualied Technogym sta or persons authorised by Technogym;
- suitable clothing must be worn;
- towels and other items must not be put on the equipment.
Technogym is not responsible for any damages due to any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly
or installation, debris resulting from any construction activities in the product’s environment, rust or corrosion as a result of the product's location, alterations
or modications without Technogym's written authorization or for failure on your part to use, operate and maintain the products as set out in this User Manual.

7
Synchro Forma
Technogym S.p.A.-Cesena (FC)
SYNCHRO FORMA Model no. DBK0EB
Maximum User’s Weight: 180kg
Electric Class: I
EN957 - 1/5 Class: HB
S/N DBK0EB 13000001 05/12
Made in Italy
3 Equipment identication
The equipment identity label gives the present information:
- Manufacturer’s name and address
- Name of product
- Electrical specications
- Equipment classication
- Certication marks
- Serial number and date of manufacture
- Product code

8
Synchro Forma
1609 mm (63")
752 mm
(30")
2042 mm(80")

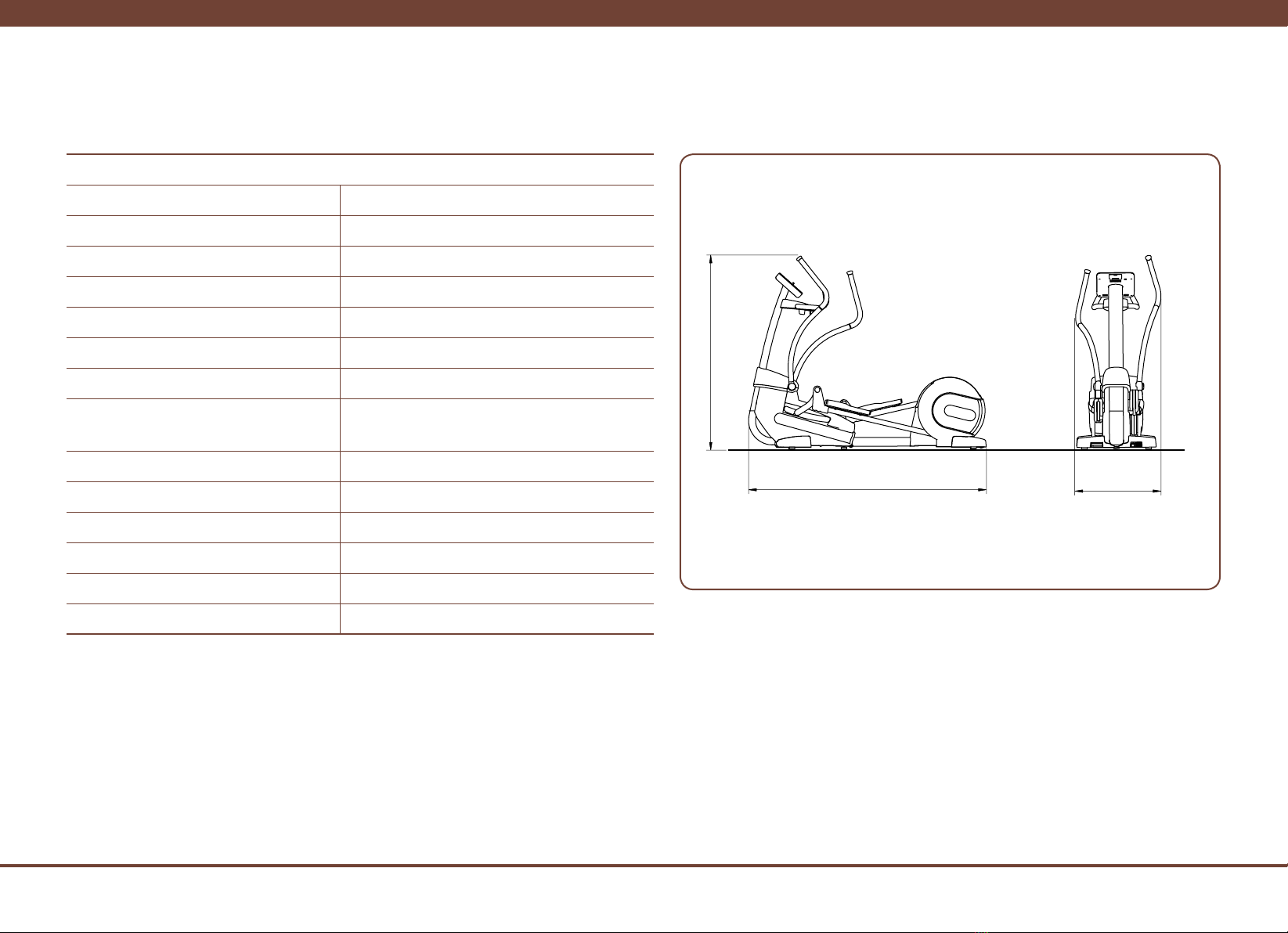

4 Technical data
Synchro Forma
Power supply 100÷240 Vac 50/60 Hz
Mains power input 65 VA max
Maximum braking power 440 watt at 200 spm (level 12)
Minimum braking power 23 watt at 80 spm (level 1)
Fuses 2 x 3.15 A (F)
Weight of equipment 148 kg (326 lb)
Maximum user weight 180 kg (397 lb)
User heigh for which performance
indicated is guaranteed 155 cm÷205 cm (6"÷8")
Time 0÷999 min ± 1%
Distance 0÷99,99 km ± 5% (0÷99,99 mi ± 5%)
Protection grade IP 20
Operating temperature from +5°C to +35°C
Electrical isolation class Class I
Marks and certicates CE
Ordinary appliance, not waterproofed.

9
Synchro Forma
17
5
2
3
4
2
6

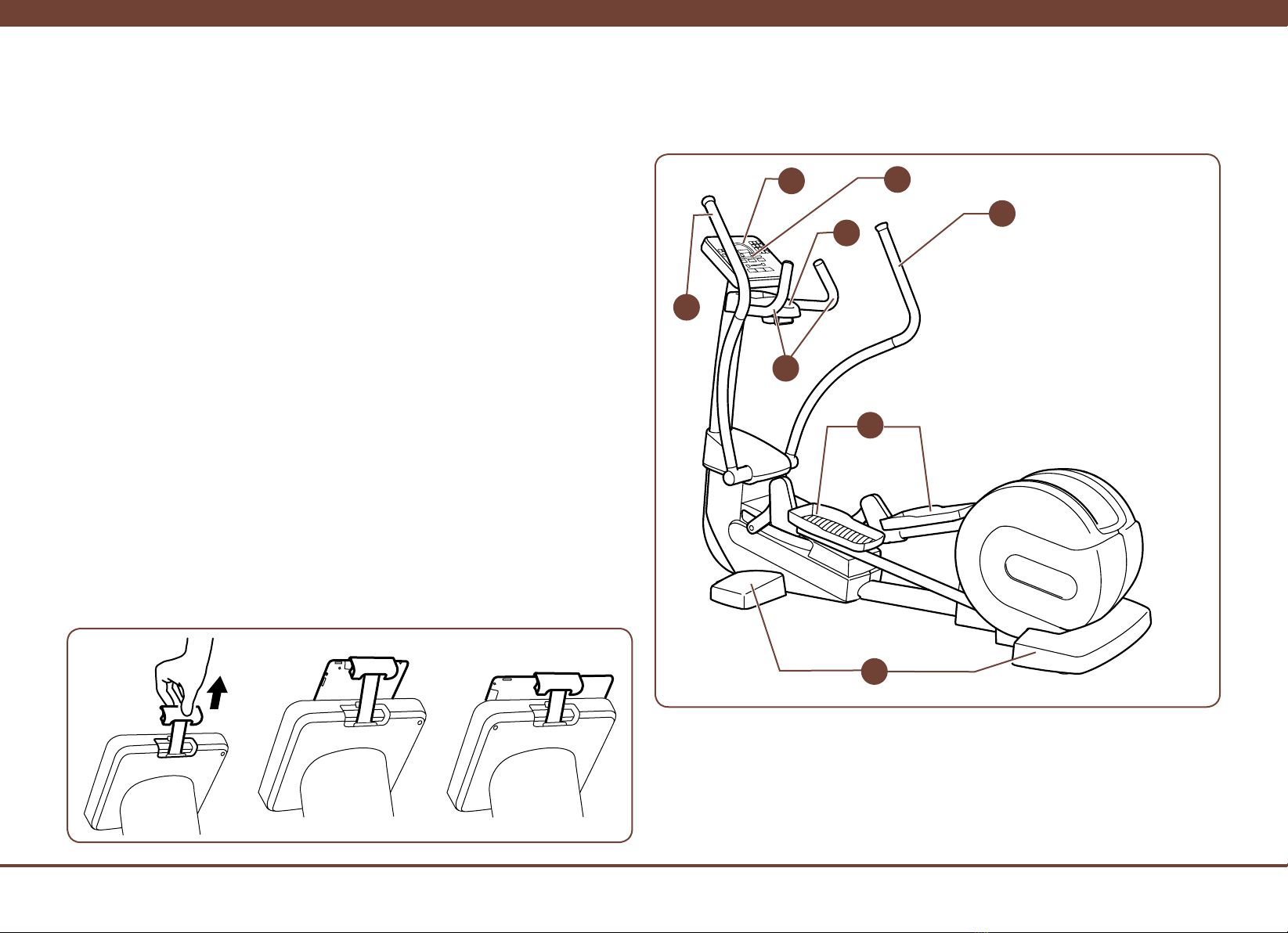

5 Description of the equipment
1 - Control panel: controls all available functions, from setting up workout
programs to viewing messages and related workout information.
2- Levers: these can be grasped by the user to perform the exercise with arm
movements.
3- Fixed handles: these can be grasped by the user during the workout.
4- Pedals: the special conguration of the pedals permit the ankles to work
under optimum conditions.
5- Bases: support the equipment frame and components.
6- Bottle-holder: for standing the water bottle or other useful items on during
the workout.
7- Object holder: for placing magazines, books or tablets and other electronic
devices. Tablets can be rmly xed as shown in the gure

10
Synchro Forma
2
5
6
1
4
3
00350024
7
6 Accessories
The supplied kit includes the following accessories:
1- Set of wrenches
2- Chest band with transmitter for heart rate monitor
3- User manual
4 - Warranty certicate
5 - Power supply cable
6 - Spare fuses 2 x 3.15 A (F)
7 - Cloth for cleaning

11
Synchro Forma
A
D
E
BC

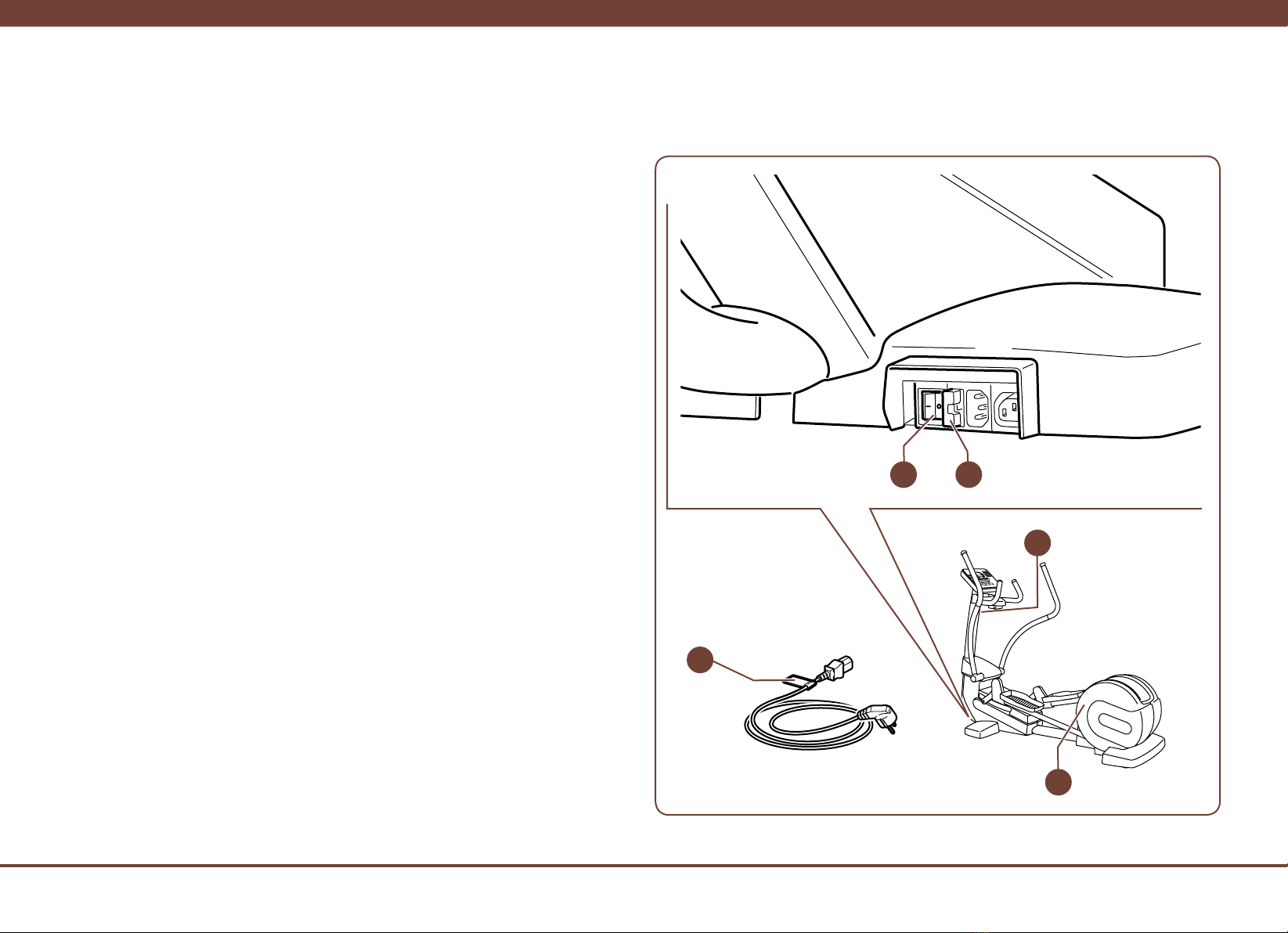

7 Safety devices and warnings
A- Fixed guard: guards against access to the inside of the equipment.
B- Fuses: protect the equipment’s electrical parts. When the current reaches
an excessive value, the fuses melt thus protecting the internal electronics.
C- Main switch: turns the equipment’s power on and o.
D- The label axed to the frame under the control panel states the equipment
electrical specications.
E- The label for attachment to the power supply cable states the electrical
specications for the cable.

12
Synchro Forma
8 Place of installation
To guarantee safe, comfortable and eective use of the equipment, the place of installation must comply with certain specic requirements; in particular,
before choosing where to install the equipment it is recommended to check the following:
- the temperature is between +10°C and +25°C;
- enough air is circulating to keep humidity during exercise to between 20% and 70%;
- the lighting is good enough to make the area safe and relaxing place to exercise in;
- there is a safety area of free space around the equipment;
- the oor is at, stable and vibration-free, and strong enough to bear the weight of the equipment plus user.
The place of installation must comply with all binding regulations.
!
Warning
Do not expose the equipment to direct sunlight.
Do not install the equipment in areas with high humidity levels, for example close to swimming pools, whirlpools or saunas.

13
Synchro Forma

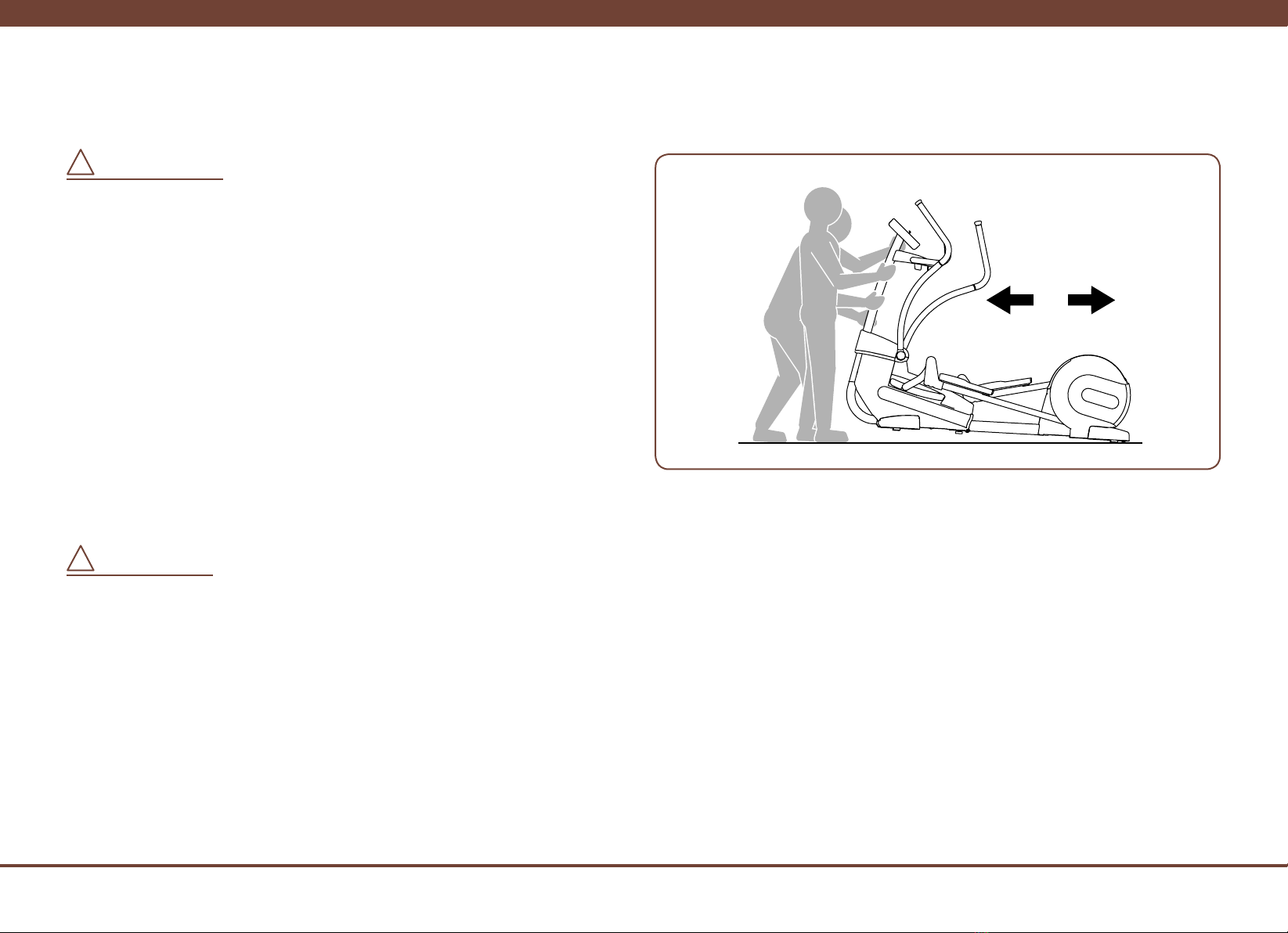

9 Moving the equipment
!
Warnings
Move the equipment with great care to avoid it tipping over.
After moving the equipment always check that it is level in order to
guarantee the correct working.
The equipment has two xed rear wheels.
To move the equipment, lift it up slightly, as shown in the illustration, and push
it forwards and backwards.
Given the weight of the equipment, we recommend that more than one person
be involved in lifting it.
If ooring conditions prevent use of the wheels, normal moving procedures
must be employed.
!
Warning
Lift the equipment by holding onto the frame and not the levers or the
control panel.

14
Synchro Forma
A
B
A

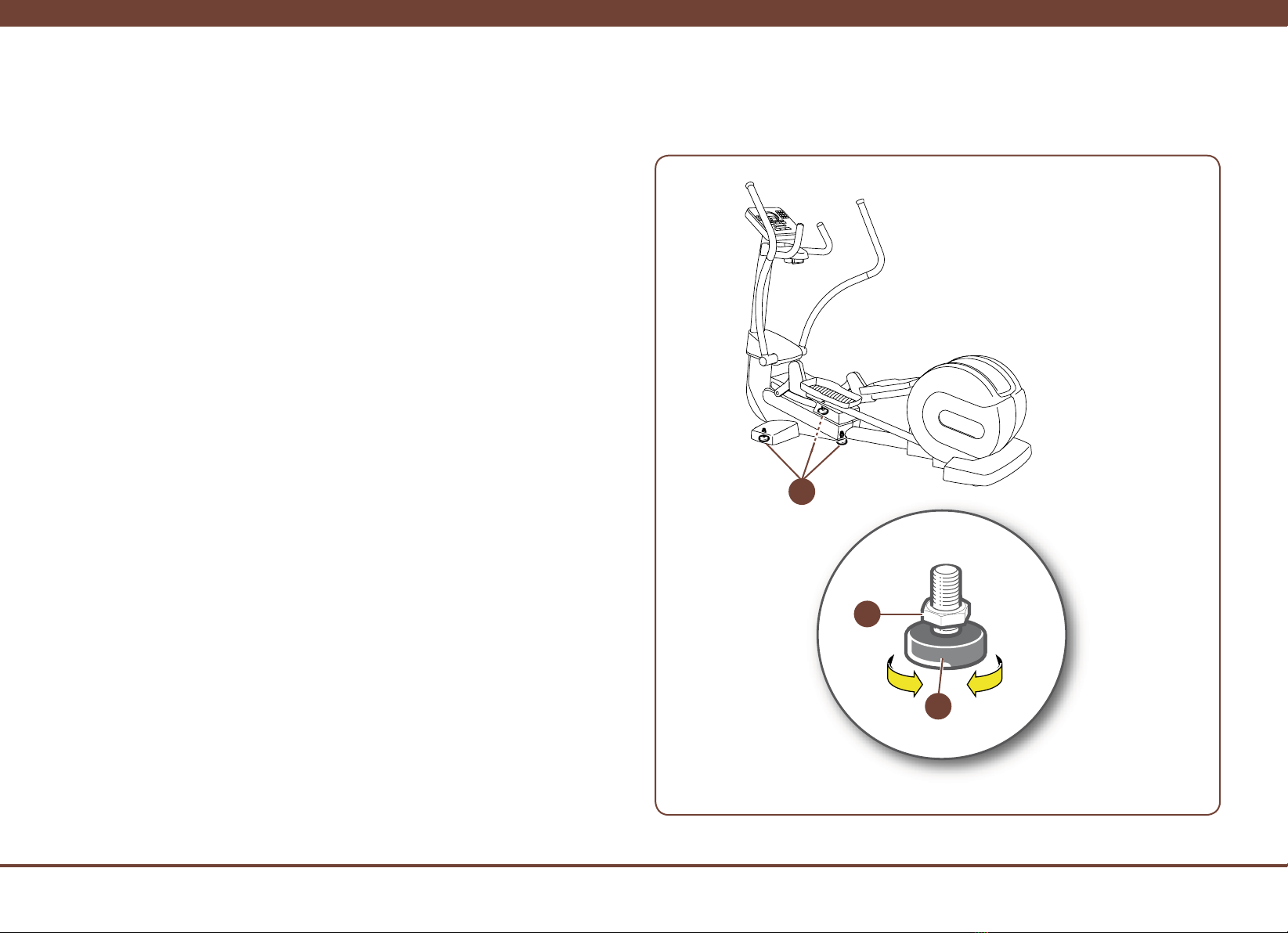

10 Levelling
Check that all the feet are resting on the oor. If they are not, the equipment
must be levelled.
Loosen the locknut (B).
Unscrew or screw the foot (A) until the frame is stable.
After adjusting tighten the locknuts (B).

15
Synchro Forma
05149018
11 Electrical connection
The product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk
of electric shock. The product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
!
DANGER
The power supply socket must be grounded . If not, a ground connection must be installed by a qualied electrician before connecting the equipment
to the electricity mains.
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualied electrician or serviceman
if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product; if it will not t in the outlet,
have a proper outlet installed by a qualied electrician.
Before connecting the equipment to the mains power supply, ensure that the
electrical installation complies to binding regulations. Check the mains power
supply specications on the equipment identity label.
!
Warnings
The wall socket must be located in a place where the plugging and
unplugging can be done easily and safely.
When plugging in, the main switch on the equipment must be in the 0
position (i.e. the equipment must be switched o).
Check the state of the power supply cable periodically.
Plug the power cable rst into the equipment socket and then into the wall
socket.

16
Synchro Forma
12 Switching on and o
To turn the equipment on, switch the main switch to the “I” position (on) .
After a quick system check (reset), the equipment is ready for use.
To turn the equipment o, switch the main switch to the “0” position (o).
The equipment must be switched o only at the end of the exercise, when in
standby.
If the equipment is not expected to be used for a long time, as well as turning
it o you should also pull the plug out of the wall socket.
!
Warning
The switch is for turning the equipment on and o but does not isolate
it completely from the mains voltage, even in the “0” position (o). For
complete isolation you must unplug the power supply plug.

17
Synchro Forma
13 Maintenance
!
Warnings
The safety of the equipment is assured only on the condition that it is carefully inspected every two weeks for any signs of damage and/or wear.
Replace defective and worn components immediately, or alternatively remove the equipment from service.
For maintenance actions not described in this manual, call in the Technogym Technical Service.
Cleaning and looking after the equipment
The equipment should always be kept clean and free of dust, in accordance with normal hygiene and sanitary rules.
To clean the control panel, proceed as follows:
- turn the equipment o by switching the switch to 0;
- unplug the equipment power cable from the wall socket;
- clean the control panel with a damp, but not wet, cloth.
Every week, clean the equipment completely:
- with the equipment turned o, clean the external parts with a damp sponge;
- move the equipment to one side so that you can vacuum clean underneath it.
Do not use chemicals or solvents. Do not use abrasive products on polished parts.
!
Warning
Do not rub too hard on the control panel.

18
Synchro Forma
A
C
B
Checks
Pos. Description Type of intervention Frequency
ATransmission belt Check state of wear Six-month
BPedals Check play Six-month
CLevers Check play Six-month
!
Warnings
The routine maintenance, adjustment and lubrication jobs must be
performed by the Technogym Technical Support Service.
Before starting any job, turn the equipment o by switching the switch
to the 0 position and unplug the power cable from the wall socket.

19
Synchro Forma
13.1 Changing the fuses
!
Warnings
The fuses must be changed by the Technogym Technical Support
Service.
Before changing the fuses, switch the equipment o by switching the
switch to 0 and unplug the power cable plug from the wall socket.
Remove the fuse holder, to the right of the switch, by pushing the lever.
Replace the blown fuse with the new one, as supplied.
Fit the fuse holder back into its housing, making sure it clicks in properly.
!
Warning
If no more of the supplied fuses are available, use a certied fuse with
identical electrical specications for the replacement.

20
Synchro Forma
14 Easily solved problems
The following table lists a series of problems that may arise during normal use of the equipment. If the solutions given don’t solve the problem, or if the problems
are dierent, ask for help from the Technical Support Service.
Problem Cause Remedy
Equipment doesn’t switch on Power supply cable not plugged in Plug the power supply cable into the wall socket
Mains power failure Check the power supply in the mains socket in question by plugging
in another appliance that denitely works
Power supply cable damaged Contact the Technogym Technical Support Service
Power supply cable connector not plugged
into equipment
Plug the connector in
The main switch is o Switch on the main switch
Burnt-out fuse To replace the blown fuse with a spare contact the Technogym
Technical Support Service
