Tennsco 1472 Instruction Manual

TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:
TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:
Model Number (1472) Purchase Date
Description of part(s) needed and part Your company name and contact person
number(s) as shown in Parts List (above) Who the product was purchased from
Color (i.e. Medium Grey, etc.) Was item missing, or was it damaged?
If requesting parts by telephone, please have as much of the above information ready as possible.
f requesting parts by telephone, please have as much of the above information ready as possible.
This information may also be submitted online at www.tennsco.com/replacement.cfm
This information may also be submitted online at www.tennsco.com/replacement.cfm
Tennsco Corp., P. O. Box 1888, Dickson, TN 37056-1888 Customer Service: [phone] Fax: [phone]
Tennsco Corp., P. O. Box 1888, Dickson, TN 37056-1888 Customer Service: [phone] Fax: [phone]
Tennsco Corp. , Dickson, TN 37056-1888 • [phone]

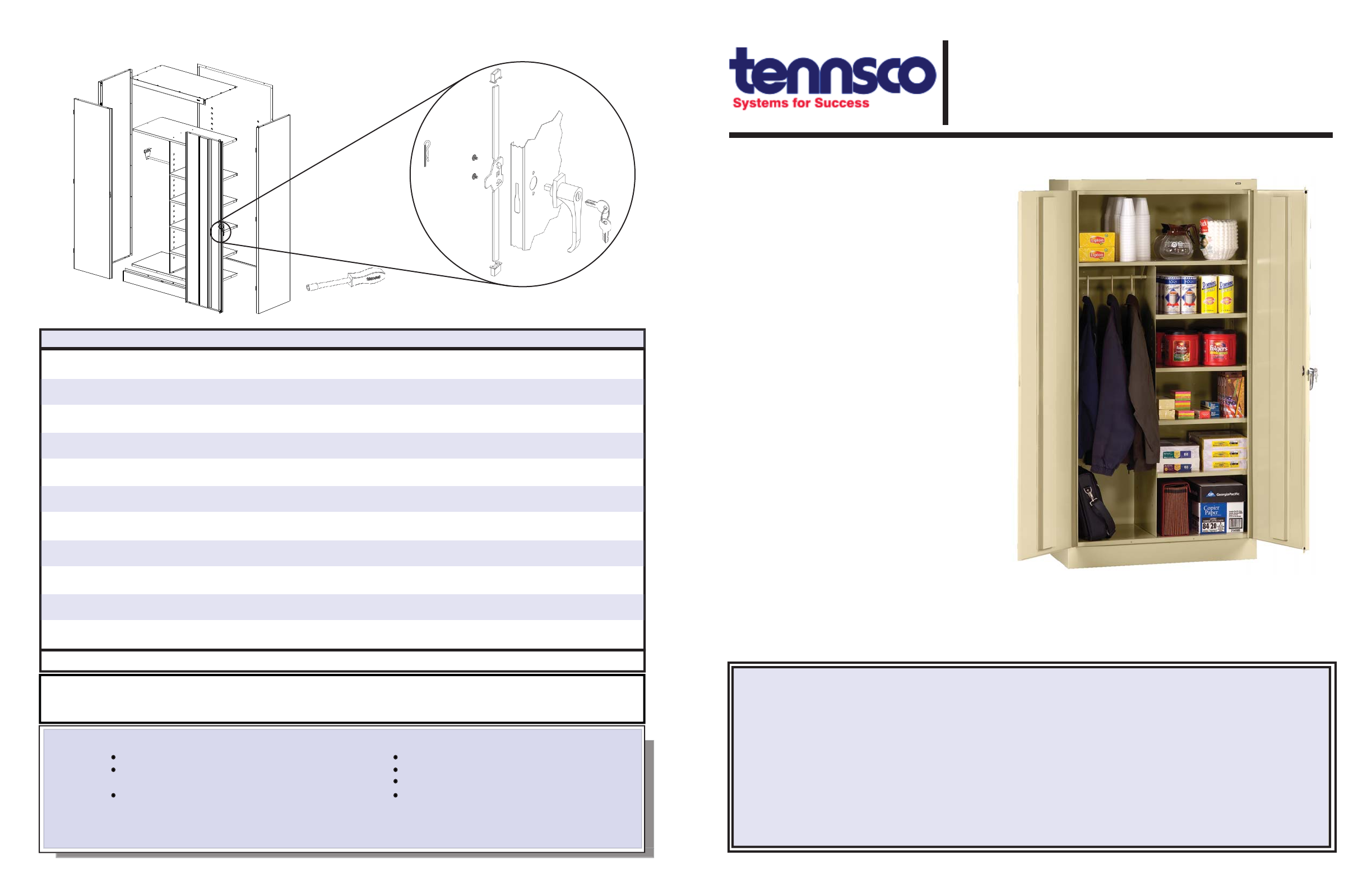

STANDARD COMBINATION CABINET
STANDARD COMBINATION CABINET
Unassembled Model 1472
Unassembled Model 1472
ASSEMBLY INSTRUCTIONS & PARTS MANUAL
ASSEMBLY INSTRUCTIONS & PARTS MANUAL
#1760313
#1760313
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!
GENERAL SAFETY INFORMATION
GENERAL SAFETY INFORMATION
Some parts may have sharp edges. CARE must be taken when handling various pieces
to avoid injury. For safety, wear a pair of work gloves when assembling or performing any
maintenance on shelving.
Congratulations on your purchase of a
Tennsco Combination Cabinet! Tennsco’s
1472 units provide a level of quality you
won’t find elsewhere. They provide secure
storage with a hanging rod for jackets,
clothing, and other hanging garments,
along with shelves along one side and at
the top for hats, books, tools, and other
general storage.
These cabinets also offer a locking chrome
handle with two keys, and a three-point
locking system for extra security.
Tennsco’s cabinets are constructed from
top quality 22 to 24 gauge steel, with 22
gauge steel shelves, offering weight ca-
pacities of up to 200 lbs. per shelf (evenly
distributed). Our attractive and durable
powder-coated paint finish will provide for
years of service.
LIMITED WARRANTY
LIMITED WARRANTY
Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment,
hereunder. This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification
or repair by persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modi-
fied or removed. UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:
a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE HEREBY EXCLUDED:
b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE
GOODS AT SELLER’S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL
OR OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers
place of business or require Buyer to return the goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be
borne by Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.
TENNSCO CORP., P.O. BOX 1888, DICKSON, TN 37056-1888
[phone] [phone]
REPLACEMENT PARTS
REPLACEMENT PARTS
Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. However, should your unit
Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. However, should your unit
contain missing or damaged parts, replacements may be obtained directly from Tennsco. To obtain proper replacement parts, fol-
contain missing or damaged parts, replacements may be obtained directly from Tennsco. To obtain proper replacement parts, fol-
low the instructions below: (or fill out the form at www.tennsco.com/replacement.cfm)
low the instructions below: (or fill out the form at www.tennsco.com/replacement.cfm)
PK-1760313
REF. NO. DESCRIPTION
REF. NO. DESCRIPTION
*Included in Ref. No. 13, locking handle with keys and hardware (Part No. 043LH). **Available Locally
QTY. PART NO.
QTY. PART NO.
































Tennsco Nut Driver
Tennsco Nut Driver
(Ref No. 20)
(Ref No. 20)
Bottom
Bottom
(Ref No. 7)
(Ref No. 7)
Coat Rod
Coat Rod
(Ref No. 18)
(Ref No. 18)
Sill
Sill
(Ref No. 6)
(Ref No. 6)
Coat Rod
Coat Rod
Bracket
Bracket
(Ref No. 19)
(Ref No. 19)
Partition Shelf
Partition Shelf
(Ref No. 11)
(Ref No. 11)
Partition
Partition
(Ref No. 10)
(Ref No. 10)
Left Side
Left Side
(Ref No. 2)
(Ref No. 2)
Top
Top
(Ref No. 5)
(Ref No. 5)
Shelf
Shelf
(Ref No. 4)
(Ref No. 4)
Right Side
Right Side
(Ref No. 3)
(Ref No. 3)
Cotter Pin
Cotter Pin
(Ref No. 15)
(Ref No. 15)
Locking Bar Guide
Locking Bar Guide
Nylon Insert
Nylon Insert
(Ref No. 16)
(Ref No. 16)
Locking Bar Set
Locking Bar Set
(Ref No. 12)
(Ref No. 12)
Locking Cam
Locking Cam
(Ref No. 14)
(Ref No. 14)
Locking Handle
Locking Handle
with Keys
with Keys
(Ref No. 13)
(Ref No. 13)
Back Panel
Back Panel
(Ref No. 1)
(Ref No. 1)
1 Back Panels 1 944BA
2 Left Side 1 944LS
3 Right Side 1 944RS
4 Shelf 1 301
5 Top 1 944TO
6 Sill 1 944SI
7 Bottom 1 944BO
8 Left Door 1 944LD
9 Right Door 1 944RD
10 Partition 1 047PA
11 Partition Shelves 4 315
12 Locking Bar Set 1 944LB
13 Locking Handle w/keys & hardware 1 944LH
14 Locking Cam* 1 944LC
15 Cotter Pin* 1 CTRPN
16 Locking Bar Guide Insert (Nylon)* 2 944GI
17 Hinge Pin 6 944HP
18 Coat Rod 1 046CR
19 Coat Rod Bracket 2 045RB
20 Tennsco Nut Driver 1 TOOL-2
21 #8-32 x 3/8” bolts* (not shown above) 31 **
22 #8-32 nuts* (not shown above) 47 **

7. Using two people, set the unit upright and
insert the partition (Ref. No. 10) into the
cabinet, aligning the four
holes in the
partition with
the holes
in
the
cabinet
bottom and
the cabinet shelf. Attach with four bolts
and nuts, making sure that the bolts are
inserted from the top downward to prevent
stored items from being snagged.
8. Attach the left coat
rod bracket (Ref. No. 19)
beneath the left side of
the cabinet shelf by
inserting one bolt through
the hole in the left edge
of the shelf. Secure with
a nut. Attach the right
bracket in the same way.
Then, slide the coat rod
(Ref. No. 18) through the
holes in the brackets.
9. Insert the four parition
shelves (Ref. No. 11) at
the desired levels. The
shelves should be
inserted using the same
method used to place
the top shelf.
5. Attach the top (Ref. No. 5) by inserting the
bolts into the holes on the ends of the top
and securing them loosely with 4 nuts. Insert
the bolt heads into the large end of the key-
hole slots, then slide them securely into the
smaller end. Be sure that the back flange on
the top overlaps on the outside of the back,
while the flange on the side panel fits over
the left edge of the cabinet top as illustrated
below. Attach four bolts and nuts
through the holes in the
back and three
bolts and nuts
down
each
side.
Tighten
all bolts
and nuts
securely. Tighten all bolts and nuts
securely. Next, Insert bolts into the outside
holes on the sill (Ref. No. 6) (two on each
end). Attach the nuts, but do not tighten.
Place the sill between the sides at the front
of the cabinet, inserting the loose bolt heads
into the two keyhole slots on each side. Make
sure the bolt heads are fully pulled down into
the bottom of the keyhole slots. Securely
tighten the four bolt heads.
1. Remove all parts from the carton and check
against the parts list on the back cover for
any missing parts.
2. Attach the left side (Ref. No. 2) to the back by
placing flange (A) around the back and bolt-
ing tightly together with seven bolts and nuts.
Be sure that the lances on all shelf
adjustment strips (B) point in the
same direction.
3. Attach the right side (Ref. No. 3) to the back
in the same manner as you did in step 3,
again, making sure that the flange is around
the back and that the lances on the shelf
adjustment strips are pointed in the same
direction as those on the back and
left side.
4. Insert shelf (Ref. No. 4) into the second
lance of the side and back
panels.
1. Place the locking
handle (Ref. No. 13)
on the right hand door
and fasten with two
#8-32 X 1/4slotted
hex-head bolts and
lock washers
(Ref. No. 21).
2. Turn the handle to the
open position and
place the locking cam
(Ref. No. 14) over the
square shank of the
door handle. The latch
must be facing downward
as shown. Then place the
locking cotter pin (Ref. No.
15) through the hole of the
square shank.
3. With the handle still in the open position,
hook the locking bars (Ref. No. 12) to the
locking cam (see “A” at left). Once in
position, slowly rotate the door handle to
the closed position so the lock bars prot-
rude from the holes at the top and bottom
of the door (shown at right, below).
4. Slide the nylon lock bar
guide inserts (Ref. No.
16) over the lock bar
ends and through the
door slots (see “B” at
right). Push firmly until
the guides snap into
place. If necessary, turn
the handle back to the
open position and gently
tap with a hammer until
the guides slide into
place.
10. Attach the left (Ref.
No. 8) and right door
(Ref. No. 9) to the
unit by placing the
door on the hinges,
aligning the holes and
using a hammer to tap
the hinge pins (Ref.
No. 17) into place with
the side of a screwdriver.
6. Place the levelers on the bottom of the sides
and place the bottom (Ref. No. 7) into the
bottom lances, located on the back and sides
of the unit. The flange of the sill will be just in
front of the shelf.
INSTALLATION OF 1472 CABINET
INSTALLATION OF 1472 CABINET
Handle/Locking System Installation
Handle/Locking System Installation
























































A
B
B
Inset A
Use 2nd
lance.
All lances point UP on
both backs and side.
Flange goes
under back.
Two holes must
be in front.
Insert shelf into
bottom lances.
Flanges
face upward
B
A


Tools Needed: A free 11/32” nut driver is included with each Tennsco cabinet. In addition,
you will need a flathead screwdriver. A hammer is required to install the hinge pin.
Two people are recommended for assembly. Approximate assembly time: 15-25 minutes.
