Tynetec SayPhone V2 User manual

Trusted Technology. Caring for People
SayPhoneV2
AT‐HOMEALARMUNIT
USERGUIDE
Tynetecoperateapolicyofcontinualproductimprovement.
Ifanyvariationtothedetailscontainedinthismanual
aresuspectedpleasecontactyourserviceprovider.
www.tynetec.co.uk

‐2‐
INDEX
SectionTopicPage
 
1UnpackingyourSayPhoneV22
2ConnectingyourSayPhoneV23
3YourPersonalPendant4
4SwitchingyourSayPhoneV2on5
5SwitchingyourSayPhoneV2off5
6MakinganEmergencyCall6
7WhathappensifImakeanaccidentalcall? 7
8Answeringanincomingtelephonecall7
9ActivityMonitoringandtheAwayMode 8
10UsingtheIntruderMode9
11MainsPowerFailureAlert10
12TelephoneLineFailureAlert 10
13BatteryFailureAlert11
14ReplacingtheBatteries11
15QuickGuide12



1.UNPACKINGYOURSAYPHONEV2
TheSayPhoneV2issuppliedwithaPowerLead,aTelecomLead,aPersonalPendantandaPendant
WearingKitincludinganeckcord,beltclipandwriststrap.





PersonalPendant

PendantWearingKit

SayPhoneV2At‐HomeAlarmUnit


PowerLead


TelecomLead




tynetec

‐3‐
2.CONNECTINGYOURSAYPHONEV2
ItisimportantthattheSayPhoneV2isconnectedandprogrammedbyatrainedinstaller.Donotlocate
theSayPhoneV2within1metreofDECTcordlesstelephoneequipmentandalwayspayparticular
attentiononinstallationswithextensiontelephonesorBroadband.

RefertotheInstallation&ProgrammingManual(TynetecDocNo.FM0546)forfulldetails.

BasicConnections



SAYPHONEV2FROMBELOW






     Ï ÏÏ
SUPPLY TELC/O

Procedure

1.UnplugtheuserstelephonefromtheBTwallsocketandplugitintotheSayPhoneV2TELsocket.

2.ConnecttheTelecomLeadbetweentheSayPhoneV2C/OsocketandtheBTwallsocket.

3.ConnectthePowerLeadbetweentheSayPhoneV2SUPPLYsocketandthemainssupply.

4.StandtheSayPhoneV2onatableandensuretheleadsaresafelyroutedbehind.

5.PerformatestcalltotheControlCentretoverifycorrectinstallationandprogramming.






AERIAL
SUPPLY TEL C/O
AT-HOME ALARM UNIT
TELEPHONE
TELEPHONE
SOCKET
ELECTRICITY
POWER LEAD TELECOM LEAD
E
F
X
Y
Z
N O
9
6
3
#
C B
A
T
U V
J
K
L
8
5
P
Q
R
G
H
I
7
4
S
2
1
0
*
W
M
D
MASTER
USERS
SAYPHONE V2
MAINS
SUPPLY

‐4‐
3.YOURPERSONALPENDANT
YourPersonalPendantcanbeusedtomakeanemergencycallfromanywhereinoraroundyour
home.Remembertokeepitonyouatalltimesandkeepitbyyourbedatnight.

YourPersonalPendantissuppliedwithakitofpartssoitcanbewornaroundtheneck,clippedontoa
beltorpocket,oronthewristlikeawatch.

Clipthepartsintoplaceasshownopposite    Belt
tocreatethewearingoptionyouprefer.   Neck Clip
Cord
AdditionalPendantsareavailableseparately
ifmorethanoneisrequired.

Theneckcordmustneverbeshortenedor
knottedwithoutthesafetybreakdeviceinplace.

Replacementblackorwhitecordassembly’s
areavailableasspares.

Thewriststrapfittingsusestandard15mmwatch
strappinsifanalternativestrapispreferred.     Wrist
Strap
MakinganEmergencyCall

SimplypresstheREDbuttononce.

TheREDlampwillflashforseveralsecondsto
confirmacallisbeingmade.

ThesmallerGREENbuttonisonlyusedforspecial
featuresandwillusuallyhavenofunction.

Maintenance

ThePendantiswaterproofbutitshouldnotbefullysubmergedinwaterforprolongedperiods.
ThePendantcanbewipedcleanwithadampcloth,avoidusingstrongdetergentsorpolish.

BatteryLife

InnormalusethePendantbatteryshouldlastforabout5years.Thebatteryconditionismonitored
andifitbeginstofaila“lowbattery”callwillautomaticallybesenttotheControlCentre.
PendantsmustbereturnedtoTynetecforbatteryreplacement.








tynetec
tynetec tynetectynetec

‐5‐
4.SWITCHINGYOURSAYPHONEV2ON
Connectthepowerleadandswitchthemainssupplyon…



Onpower‐upthefrontlampwillflash
RED/AMBER/GREENforabout12seconds.


WhenthefrontlampgoessteadyGREEN
theSayPhoneV2isreadyforuse.

5.SWITCHINGYOURSAYPHONEV2OFF
YourSayPhoneV2usesverylittlepowerandshouldalwaysbeleftswitchedON.Ifitisnecessaryto
switchtheunitOFFfollowtheprocedurebelow.

1.Turnthemainssupplyoffandwaitfortheunittoannounce…









2.PressandHOLDtheGREENbuttonuntiltheunit“beeps”once…






3.RELEASEtheGREENbuttonandtheunitwillannounce…






TheSayPhoneV2isnowswitchedoff.
ThetelephonepluggedintotheSayPhoneV2willstilloperatewhentheunitisswitchedoff.

“Yourmainspoweris
disconnected”

“Poweringdown”

“Beep”

‐6‐
6.MAKINGANEMERGENCYCALL
Anemergencycallcanbemadeatanytimeofthedayornight…

1.PresstheREDbuttonontheSayPhoneV2unitorpresstheREDbuttononyourPersonalPendant...

ThelamponthePendant
OR   willflashREDforseveral
secondsafterthebutton
ispressed.


2.TheSayPhoneV2willstarttomakeanemergencycall…

ThefrontlampwillgoRED
andtheunitwillannounce…






Thismessagewillrepeatforashortperiod
beforetheunitstartstodial.

3.YourcallwillbeansweredbytheControlCentreandanoperatorwillspeaktoyou–theywillknow
whoyouareandwillprovideappropriatehelpforyou.










Iftheoperatorcannothearyoutheywillstillknowwhereyouare.ThePersonalPendantdoesNOT
pickupyourvoice,themicrophoneisintheSayPhoneV2andisverysensitivebutitwillnotworkif
youareoutsideyourhome.TheControlCentreoperatorcanincreasethevolumeifyouhavedifficulty
hearingthem.

4.Theoperatorwillcancelthecallforyou,thefrontlampwillreturntoGREENwhenthecallisended.
tynetec

“Alarmtype”
“Pleasewait,diallingfor
assistance”
”You’rethroughtoCareLine,
howcanIhelpyou?”

‐7‐
7.WHATHAPPENSIFIMAKEANACCIDENTALCALL?

IfanemergencycallismadebyaccidentitcanbecancelledbypressingtheGREENbuttononce,the
unitwillannounce“AlarmCancelled”andthefrontlampwillreturntoGREEN.







However,oncetheSayPhoneV2startstodialtheControlCentrethecallcannotbecancelled.

Don’tworryifyoudonotmanagetocancelanaccidentalcall–whentheControlCentreanswers
simplytellthemwhatyouhavedone.Thestaffwillbepleasedthattheyhavetalkedtoyouandthey
willcancelthecallinthenormalway.
8.ANSWERINGANINCOMINGTELEPHONECALL
TheSayPhoneV2canalsobeusedtoansweranormalincomingtelephonecall…

ThefrontlampwillFLASHRED
whenthetelephoneisringing…


RING





RING


Toanswerthetelephonecall…


PresstheREDbuttononyourPersonalPendant.

Youcannowhaveahands‐freeconversationwithyourcaller.


ToendthetelephonecallsimplypresstheREDbuttononyourPersonalPendantonceagain.

“Alarmcancelled”
tynetec
E
F
X
Y
Z
N
O
9
6
3
#
C B
A
T
U V
J
K
L
8
5
P
Q
R
G
H
I
7
4
S
2
1
0
*
W
M
D

‐8‐
9.ACTIVITYMONITORINGANDTHEAWAYMODE
IfyouhaveoptionalmovementdetectorsinstalledwithyourSayPhoneV2theControlCentrewill
knowyouare“upandabout”eachday.

Ifyougoawayfromhomeformorethanonedayyoumustselect“AwayMode”topreventin‐activity
callsbeingsenttotheControlCentre.

1.PressandHOLDtheGREENbuttonuntiltheunitannounces…







2.RELEASEtheGREENbutton… 

ThefrontlampwillFLASHGREEN
andtheunitwillannounce… 




 TheunitisnowinAwayModeand
 youractivitymonitoringisturnedoff.


IMPORTANT:whenyoureturnhomeyoumustremembertoturntheAwayModeoff...


1.PressandHOLDtheGREENbuttonuntiltheunitannounces…







2.RELEASEtheGREENbutton… 

ThefrontlampwillgosteadyGREEN
andtheunitwillannounce… 




 Theunitisnowbackinnormalmode
 andyouractivitymonitoringwillbe
 workingagain.
“AwayMode”
“Enabled”
“Disabled”
“AwayMode”

‐9‐
10.USINGTHEINTRUDERMODE
Ifyouhavetheoptionalmovementdetectorsfittedforactivitymonitoringyoucanusethesedevices
asabasicintruderalarmwhenyougoout.

1.PressandHOLDtheGREENbuttonuntiltheunitannounces…



2.KeepHOLDINGGREENuntiltheunitannounces…




3.RELEASEtheGREENbuttonandtheunitwillannounce…





4.Younowhave30secondstoleaveyourhome.
YoucancancelIntruderModeduringthis
periodbypressingtheGREENbutton.

5.Whentheexittimeexpiresthedouble‐beepwillstop…

ThefrontlampwillgoAMBER
andintrudermodeisset.

Whenyoureturnhomeandactivatea
movementdetectortheentrytimewillstart.

Younowhave15secondstodisablethe
intrudermode.


6.ToDISABLEintrudermodepresstheGREENbuttononyourPERSONALPENDANT…


ThefrontlampwillgoGREEN
andtheunitwillannounce…




Failuretodisabletheintrudermodeduring
theentrytimewillsenda“silent”alarmcall
totheControlCentre.
“AwayMode”
“Enabled”‐“Beep‐Beep”
“Beep‐Beep”…..
“IntruderMode”
“Intrudermodedisabled”
tynetec

‐10‐
11.MAINSPOWERFAILUREALERT
TheSayPhoneV2willmakeyouawareifyourmainselectricityisofforifthePowerLeadhasbeen
accidentlyunplugged...
ThefrontlampwillFLASHAMBER
andtheunitwillannounce…







Themessagewillrepeat3timesevery4hours
untilthemainspowerisrestored.

Tosilencethemessageandpreventitrepeatingagain,presstheGREENbuttononce.






TheSayPhoneV2willcontinuetooperateonitsbatteriesforupto24hours.



12.TELEPHONELINEFAILUREALERT
TheSayPhoneV2willmakeyouawareifyourtelephonelinehasafaultoriftheTelecomLeadhas
beenaccidentlyunplugged...
ThefrontlampwillFLASHAMBER
andtheunitwillannounce…







Themessagewillrepeat3timesevery4hours
untilthetelephonelineisrestored.

Tosilencethemessageandpreventitrepeatingagain,presstheGREENbuttononce.






IMPORTANT:youcannotmakeanemergencycallwhenyourtelephonelineisdisconnected.


“Yourmainspoweris
disconnected”

“Yourtelephonelineis
disconnected”

‐11‐
13.BATTERYFAILUREALERT
TheSayPhoneV2willmakeyouawareifitsbatteriesarebeginningtolosecharge…

ThefrontlampwillFLASHAMBER
andtheunitwillannounce…






Themessagewillrepeat3timesevery4hours
untilthebatteriesarereplaced.


Tosilencethemessageandpreventitrepeatingagain,presstheGREENbuttononce.






Takenofurtheraction,thelowbatteryconditionisautomaticallyreportedtotheControlCentreand
theywillarrangetovisitandreplacethebatteriesforyou.



14.REPLACINGTHEBATTERIES
Innormalusethebatteriesshouldnotneedreplacingforabout5years.Replacementbatteriesmust
beidenticaltothoseoriginallyfittedandshouldonlybechangedbyacompetentperson.

1.Turntheunitoff(asdescribedinsection5).

2.Removethescrewfromthebatterycompartmentcover.

3.Payspecialattentiontothepolaritywhenrefittingnewbatteries.
Replacementbatteriesmustbe:

5offRechargeableDuracell1.2V1700mAhNiMH
AA/HR6/DC1500

Order5offTynetecPartNo.F00146


“Systembatterylow”
+
+
+
++

‐12‐
QUICKGUIDE


Frontlampcolour/pattern:  SteadyGreen=Normal

FlashingGreen=AwayMode

SteadyRed=EmergencyCall

FlashingRed=IncomingTelephoneCall

SteadyAmber=IntruderMode

FlashingAmber=Fault


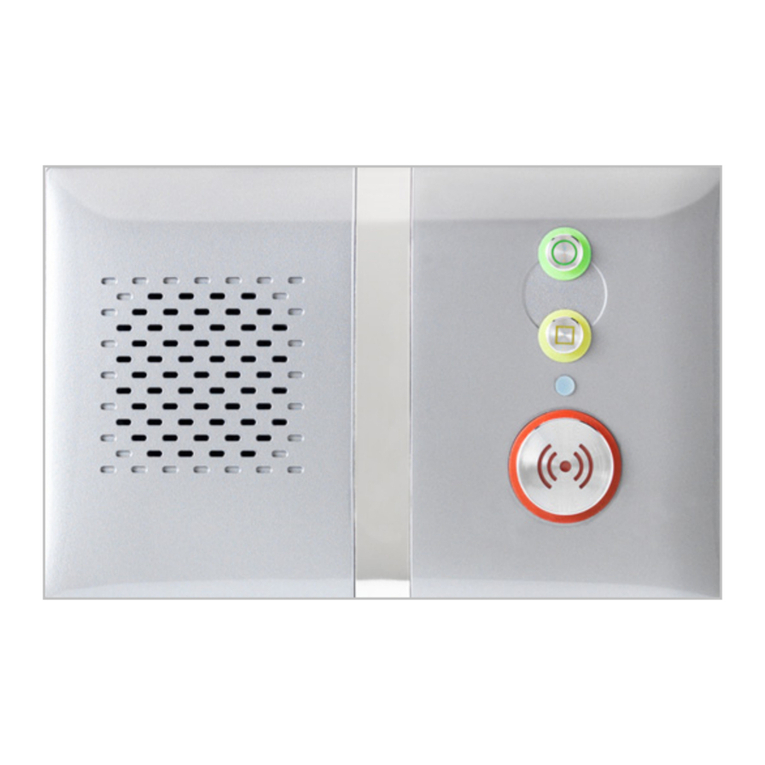

 PresstheGREENbuttonto   
CANCELanaccidentalcall  PresstheREDbuttonto
 (orsilenceafaultmessage)  makeanEMERGENCYCALL

    Ð  Ð













Trusted Technology. Caring for People
CowleyRoad,BlythRiversideBusinessPark,
Blyth,Northumberland,NE245TF
Tel:01670352371Fax:01670362807
Email:[email protected]
Website:www.tynetec.co.uk
DocNo.FM0545issueA
