UNIS JETBALL ALLEY G4K User manual

IMPORTANT
G4K Version
Operation Manual

Jetball Alley Single GMP(G4K) Manual
07/23/2021
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]
When contacting Service, you will need the following information
and the name of your authorized distributor.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 7
3. PART NAME............................................................................................................8
4. SET UP & INSTALLATION...................................................................................... 9
5.HOW TO PLAY....................................................................................................... 17
6. GAME OPTION..................................................................................................... 18
7. TROUBLESHOOTING............................................................................................23
8.MAINTENANCE & INSPECTION...........................................................................26
9.OVERALL CONSTRUCTION...................................................................................31
10.WIRING DIAGRAM............................................................................................. 55

Jetball Alley Single GMP(G4K) Manual
07/23/2021
3
Thank you for purchasing Jetball Alley Single GMP(G4K). We hope you enjoy
the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
5
1. SPECIFICATIONS
Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz
Min. Power consumption: 300W
Max. Power consumption: 350W
Dimension: W28.44×D122.11×H87.92in
W722.4×D3101.5×H2233 (mm)
Weight：Approximately 601.8 lb/273kg
Model No: C-678
Part No: J140
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
6

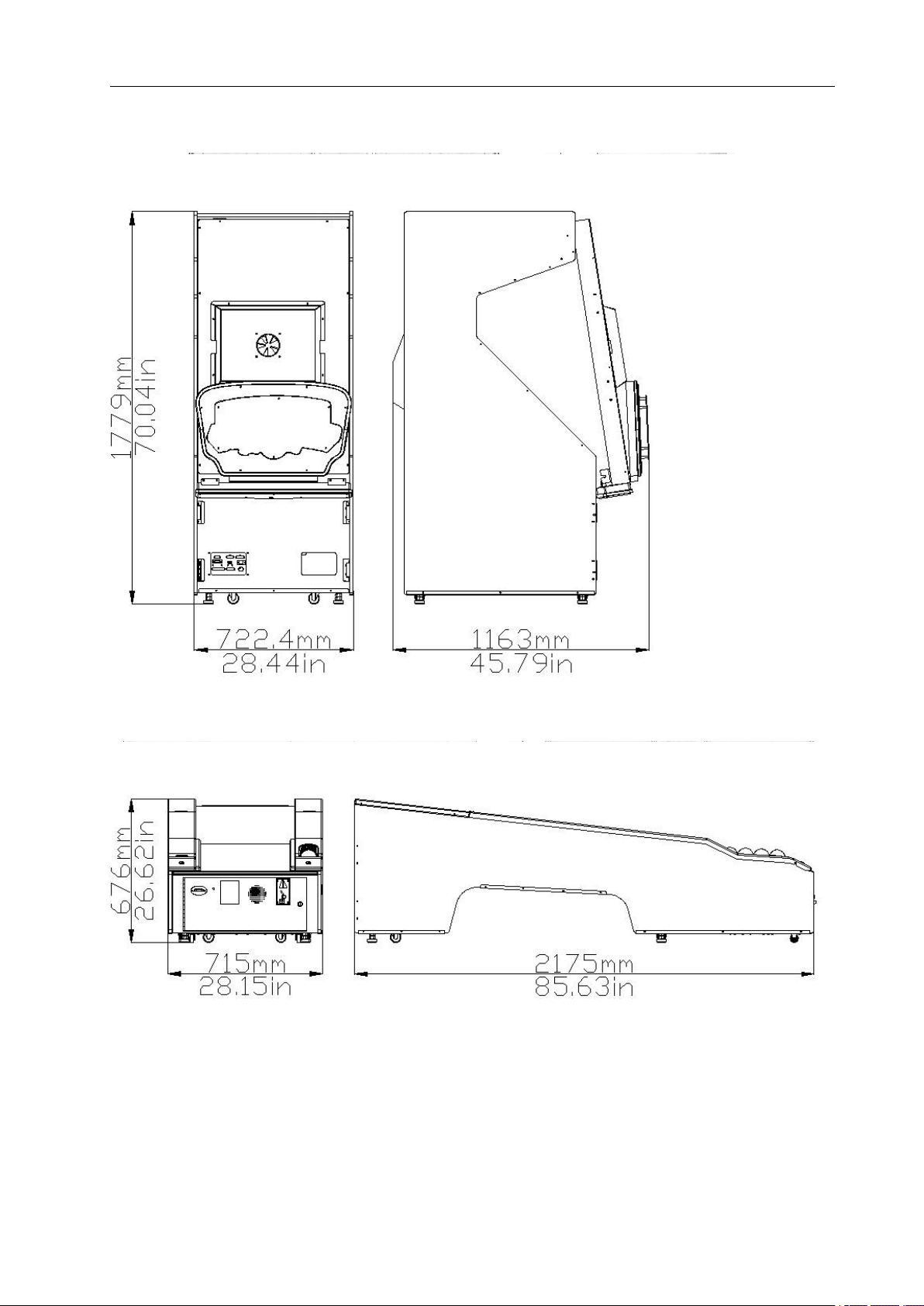

This machine will be divided into two parts during transportation.
Back Cabinet: W28.44×D45.79×H70.04 in
W722.4 ×D1163 ×H1779 mm
Ally part: W28.15×D85.63×H26.62 in
W715 ×D2175 ×H676 mm
Note: Game specifications are subject to change without notice.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
7

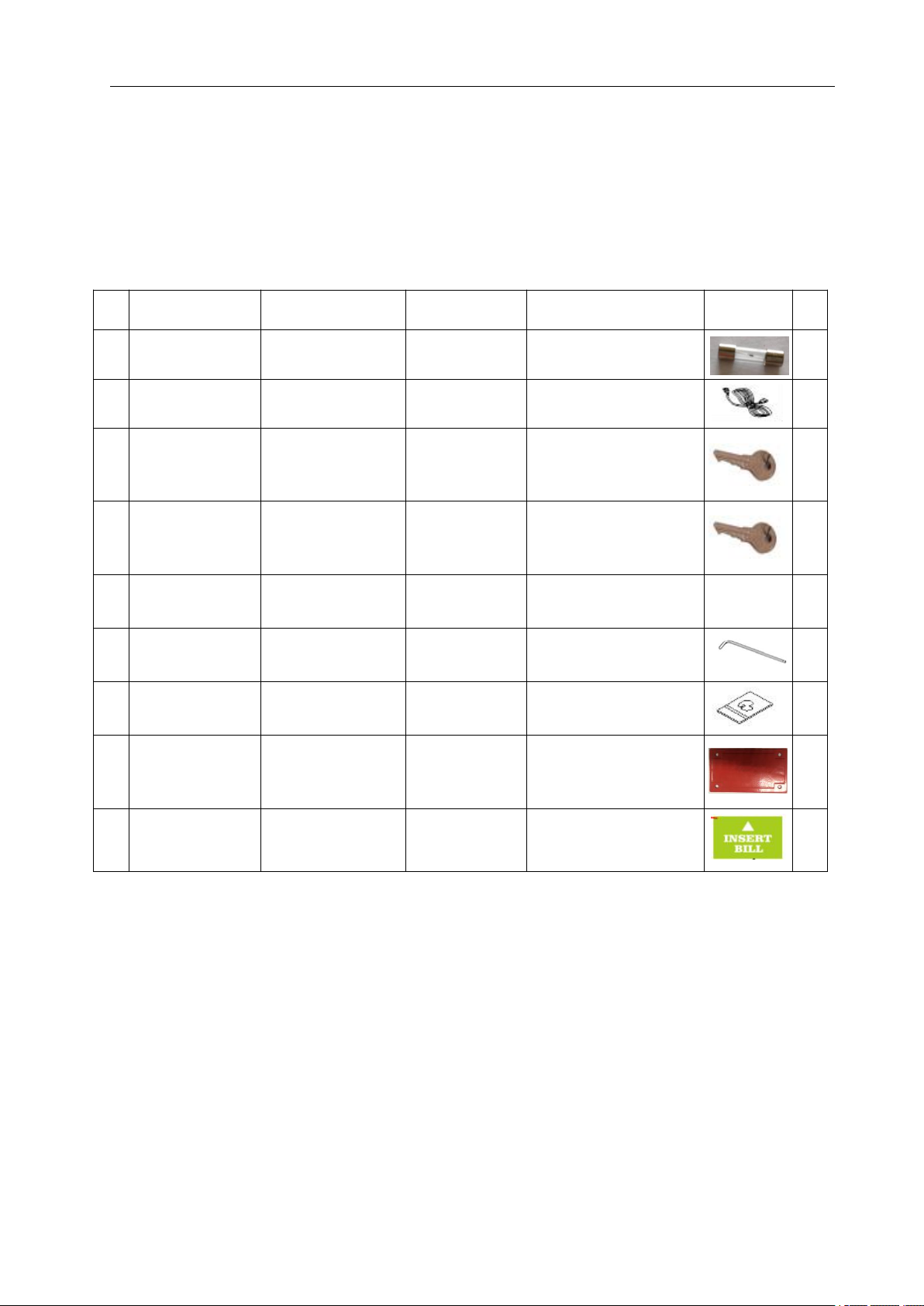

2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
Following accessories
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
SPEC
Qty
1
J140-426-000
21901000013
Fuse
Φ5×20mm T10A
250VAC
2
2
J140-803-000
23301010020
Power cord
3×16AWG 1.8M
1
3
J140-804-000
25300171002
Key
171
2
4
J140-805-000
25300172002
Key
171B
1
5
J140-110-001
20611904A002
Ball
Red 3556C 80HA
/
6
6
J140-801-000
40607000012
Allen wrench
CR-V5mm
2
7
J140-806-000
4.14.40000413
Manual
GMP(G4K)
1
8
J140-170-000
20211904047
Blanking
plate
δ1.5 red 3556C
1
9
J140-716-000
20511904016
DBV decal
72X48
1

Jetball Alley Single GMP(G4K) Manual
07/23/2021
8
Marquee Assembly
Lane
Ticket Dispenser
Monitor
Coin Mechanism
Ball Exit
3. PART NAME
Key Components

Jetball Alley Single GMP(G4K) Manual
07/23/2021
9
Levele
About 0.2 in/5mm
We do not recommend using power tools as they may cause damage.
NOTICE
Make sure the machine is level.
NOTICE
Leveler
Leveler
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.

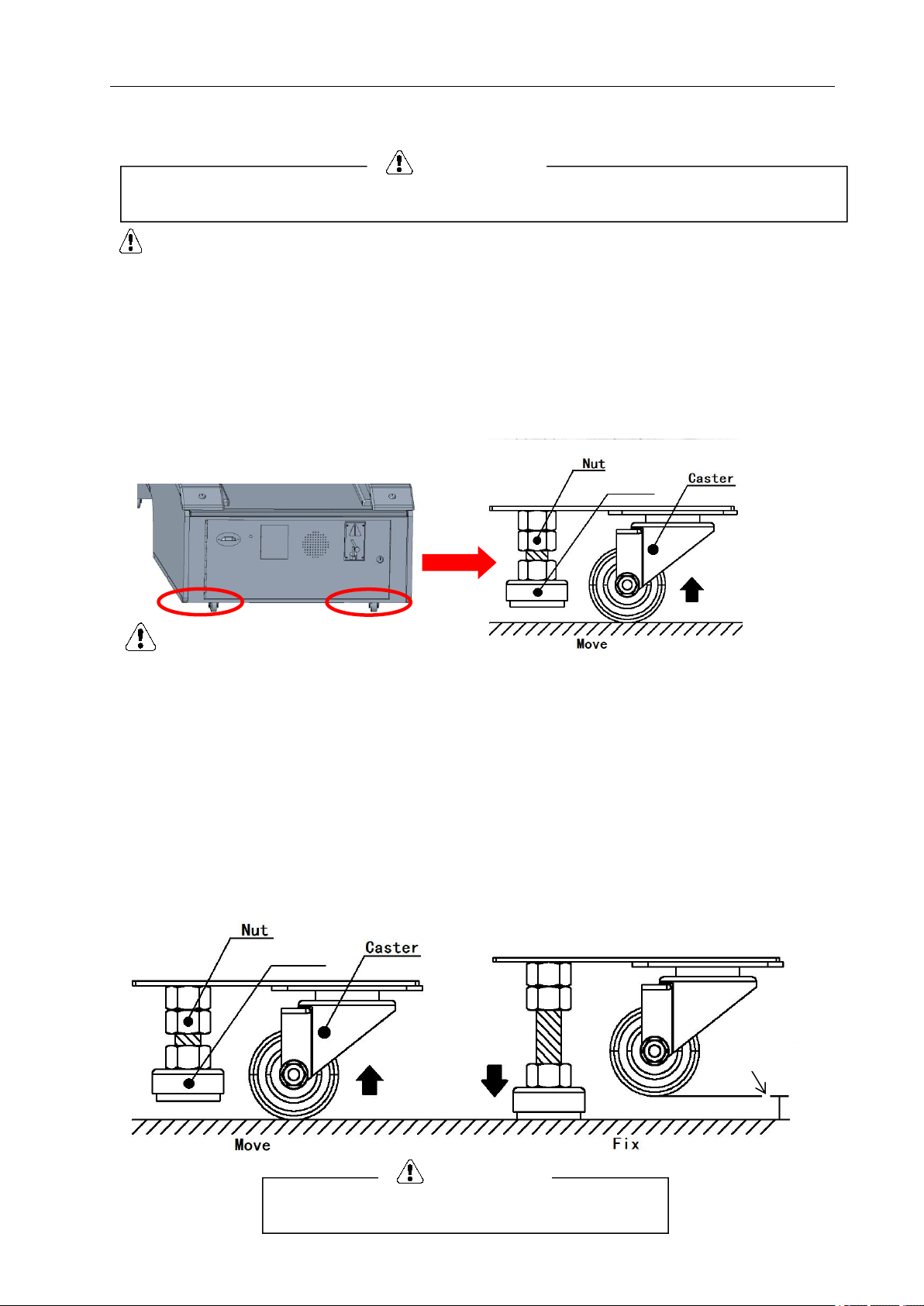

4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
10
Your unit must be leveled to operate properly.
NOTICE
Service area
Play area
4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in

Jetball Alley Single GMP(G4K) Manual
07/23/2021
11
Main cabinet
Marquee short bracket
Lane assembly
Baffle plate
Net A
Net B

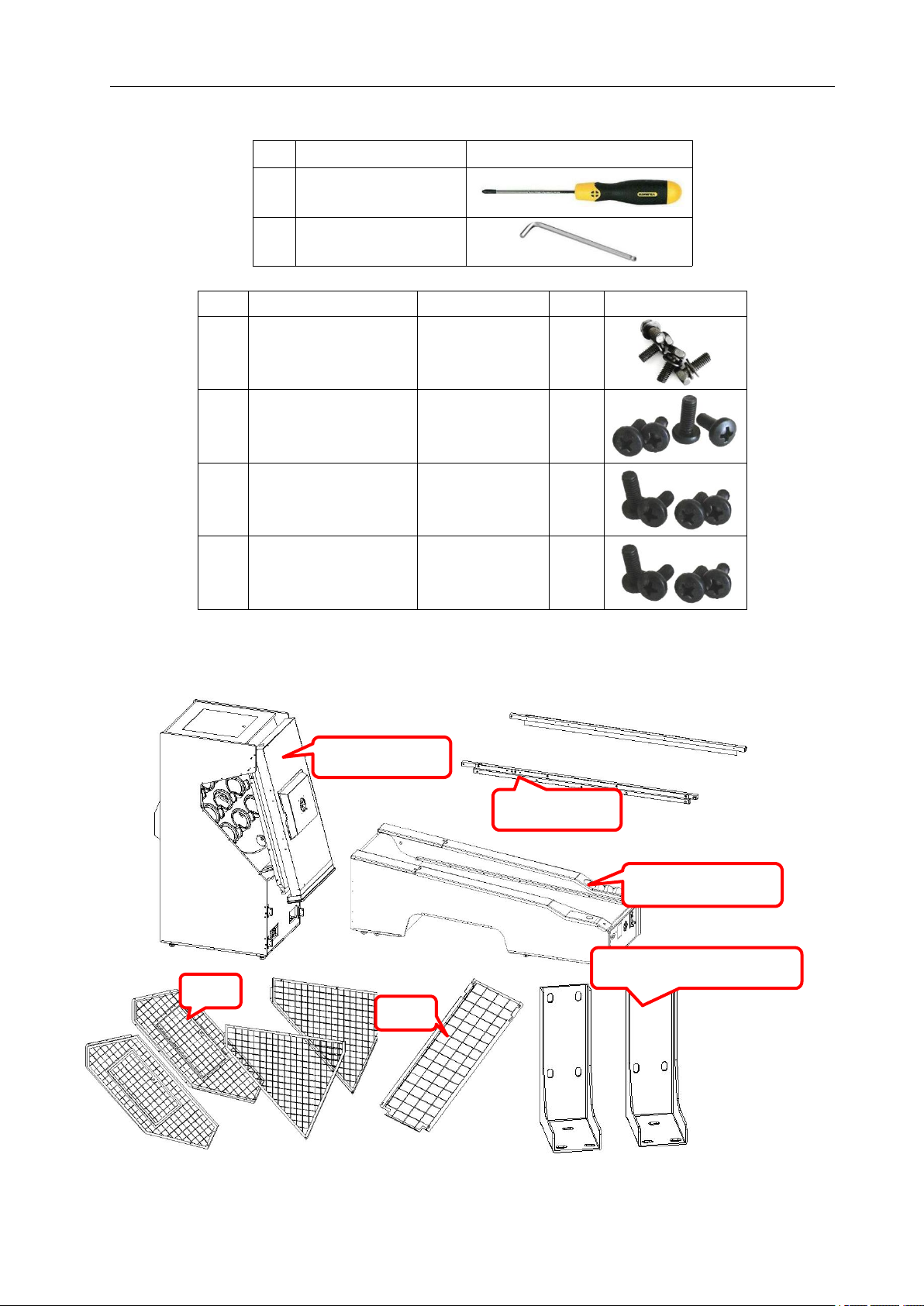

4.4 Machine Installation
Before processing with assembly assure you have the following tools.
No.
Name
1
Phillips screwdriver
2
Allen wrench
Kit list:
No.
Name
Size
Qty
1
Cross recessed
hexagon screw set
M6×16 black
14
2
Cross recessed
pan head screw
M4×20 black
14
3
Cross recessed
pan head screw
M4×35 black
6
4
Cross recessed
pan head screw
M4×25 black
6
This machine is divided into 6 parts: Main cabinet(1 pcs); Lane assembly(1 pcs); Baffle
plate(2 pcs); Net A(4 pcs); Net B(1 pcs); Marquee short brackets(2 pcs). Please contact
UNIS Service in case of any abnormality.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
12
Baffle plate
Mounting metal plate
Erection column
Main
cabinet
Lane assembly
Glass frame
Monitor assembly
Step 1 Turn the Monitor assembly horizontal as shown below.
Turn the Glass frame to the position shown below.
Note: Staffs need to hold the Monitor assembly and the Glass frame during the installation.
Step 2 Align the Main cabinet with the Lane assembly. Utilize Allen wrench to lock the Main
cabinet with the Lane assembly together as shown below.
Note: Staffs need to hold the Monitor assembly and the Glass frame during the installation.
Step 3 Place the Baffle plates horizontally beneath the Monitor assembly and install the
side indicated by oval to the Monitor assembly as shown below.
4 ends of the Baffle plates are with erection columns. Stick 2 erection columns in 2
mounting metal plates.
Note: Staffs need to hold the monitor assembly and the glass frame during the installation.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
13
Glass
Mounting
metal plate
Lock
Lane side plate
Lane side plate
Lock
Step 4 Locate Lane assembly. Unlock and remove 2 Lane side plates. Locate Monitor
assembly. Place the other side of the Baffle frame downward as shown below and stick 2
erection columns in 2 mounting metal plates on the Lane assembly. Install two lane side
plates back.
Step 5 Locate the Glass frame. Stick the Glass frame on the mounting metal plates screws
and tighten the screws.
Step 6 Install 4 Nets on the machine. Utilize Phillips screwdriver to tighten screws to secure
the Nets.
Note: Here is the number of screws used on one side, the other side is the same.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
14
Fixed bracket
Rectangle: 3 black cross
recessed pan head screws
Irregular circle: 7 black cross
recessed pan head screws
(M4×20)
Circle: 3 black cross recessed
pan head screws (M4×35)
Net B
Baffle plate
Block
Step 7 Place Net B on the Baffle plate. 4 ends of the Net B are with blocks. Baffle plate
screws are attached. Stick Net B block in 4screws on the Baffle plate.
Step 8 Lift the marquee and place the Fixed brackets on the back of marquee. Utilize
Phillips screwdriver to tighten 14 cross recessed hexagon screw sets (M6×16) on the fixed
brackets to secure the marquee.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
15

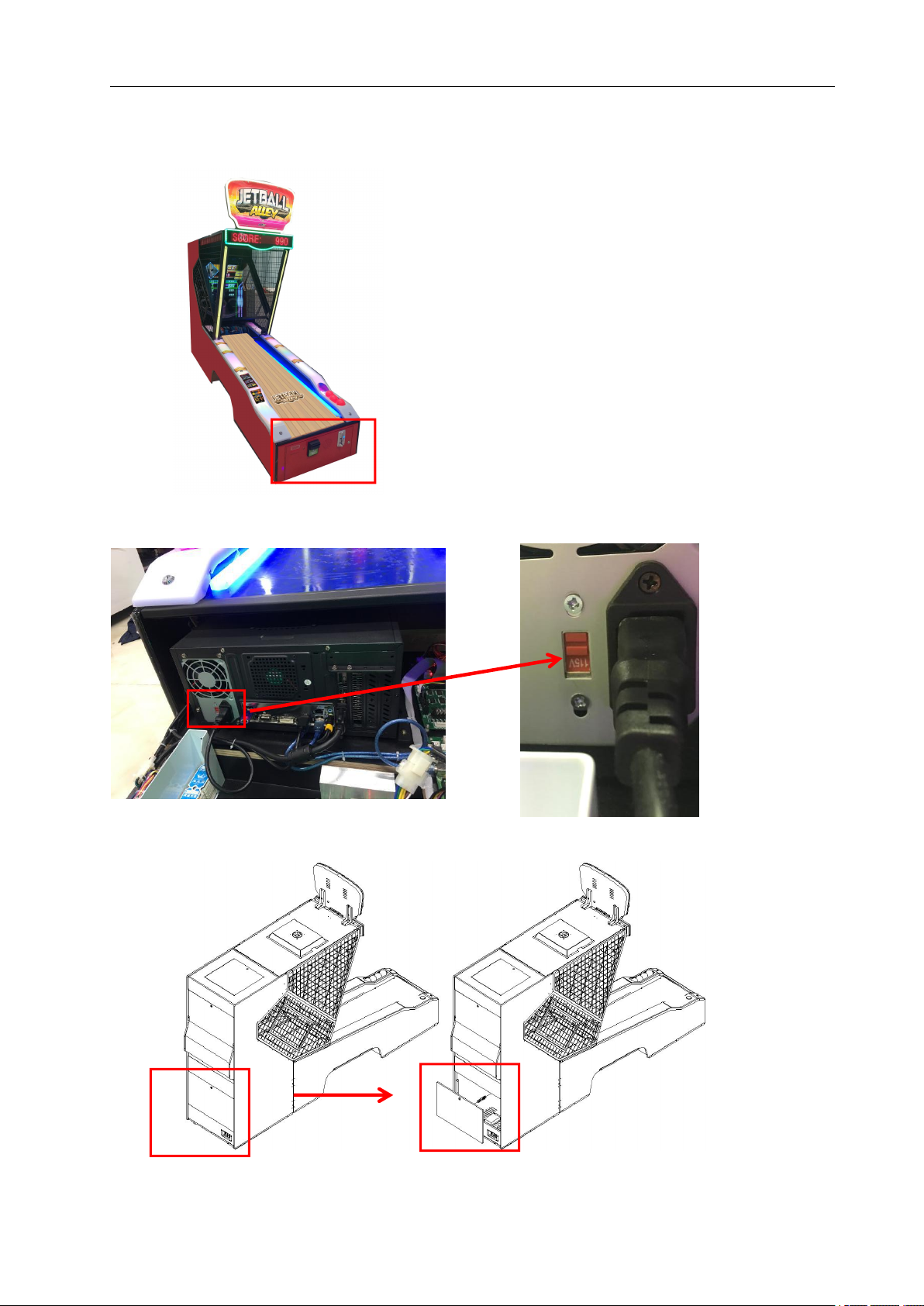

4.5 Voltage Conversion (110V convert to 220V)
Step 1 Power off the machine.
Step 2 Locate the Front door and open the Front door.
Step 3 Pull the Electrical component base plate out. Locate the PC. Toggle the switch from
115V to 230V on the PC.
Step 4 Locate the Back bottom door and open the door.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
16
Step 5 Locate the power supply. Toggle the switch from 115V to 230V on the Power supply.
4.6 Card Reader Installation Safety Notice
Take precaution to assure that all wiring voltages are confirmed prior to installation
of card reader. All warranties are void if not properly installed resulting in logic board
damage.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
17
5.HOW TO PLAY
5.1 Insert coins to play/Swipe card/
Insert cash to play.
5.3 Hit different holes and achieve different combinations(Combo;High Score
Combo;Highest Score Combo). The higher combination, the higher reward.
5.4 Achieve the Highest Score Combo to enter the BULLET TIME.
5.5 Reach 6 or more different combinations when time up can enter JETPRIZE round to get
higher score and break the record!
5.6 Reach the required score when time up can get BONUS Ticket prize.
5.2 Roll the ball to hit the hole. The ball
hits the hole and the player gets score.

Jetball Alley Single GMP(G4K) Manual
07/23/2021
18
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Options
Basic Setting
Customized Setting
Ticket Setting
Calibration
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
Bookkeeping
Daily Record
About This Game
Back to Game
Settings
ON-OFF
- Volume+
Options
Adjustment Value
Memory Save
ON/OFF
Free Play
ON/OFF
Coins Per Game
1-100
Pay Mode
Coins/Card/Insert Coins
/Tap card
Attract Mode
ON/OFF
Volume
1-10
Back&Save
Back
6.2.2 Basic Setting
Open the coin door and there is a
meter panel. Press Settings button to
enter the setting menu.
Reset
Test

Jetball Alley Single GMP(G4K) Manual
07/23/2021
19
6.2.3 Customized Setting
Options
Adjustment Value
Instruction
Photo Restore
ON/OFF
Save photo or not
Photo Time
1_3_5_10
Game Time
30_45_60_75_90
Basic Score
10_20_30_40_50
Game start hole score
Bottom Hole Score
0_5
Base bottom hole score
Combo Multiple
3_4_5_6_7_8_9_10
Combo score
High Score Combo Multiple
5_10_15_20_25_30_35_
40_45_50
High Score Combo score
Highest Score Combo
10_20_30_40_50_60_70
_80_90_100
Highest Score Combo score
Bullet Time Basic Score
10_20_30_40_50_60_70
_80_90_100
Bullet Time Increasing
Score
5_10_15_20_25_30_35_
40_45_50
JetPrize Round1 Score
500_600_700_800_900_
1000_1500_2000
JetPrize Round2 Score
500_600_700_800_900_
1000_1500_2000_2500_
3000
JetPrize Round3 Score
500_600_700_800_900_
1000_1500_2000_2500_
3000_3500_4000_4500_
5000
Bonus Score
1000_1500_2000_2500_
3000_3500_4000_4500_
5000_6000_7000_8000_
9000_10000_20000_
30000_40000_50000
Bonus Ticket
10_20_30_40_50_60_70
_80_90_100
Back&Save
Back
