UNIS Fantasy Soccer User manual

www.universal-space.com
Operation Manual
IMPORTANT

Fantasy Soccer GMP Manual
08/27/2018
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Fantasy Soccer GMP Manual
08/27/2018
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS........................................................................ 3
1. SPECIFICATIONS ..................................................................................................... 5
2. CONTENTS OF THE ACCESSORY KIT .................................................................... 7
3. PART NAME.............................................................................................................. 8
4. SET UP & INSTALLATION........................................................................................ 9
5. HOW TO PLAY ........................................................................................................11
6. GAME OPTION .......................................................................................................16
7. TROUBLE SHOOTINGS ..........................................................................................22
8. MAINTENANCE & INSPECTION ...........................................................................25
9. OVERALL CONSTRUCTION ...................................................................................26
10. WIRING DIAGRAM ..............................................................................................41

Fantasy Soccer GMP Manual
08/27/2018
3
Thank you for purchasing Fantasy Soccer. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Fantasy Soccer GMP Manual
08/27/2018
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Fantasy Soccer GMP Manual
08/27/2018
5
1. SPECIFICATIONS
Rated power supply: AC110V 50/60Hz; AC220V ~240V 50/60Hz
Min. Power consumption: 330W
Max. Power consumption: 580W
Dimension: W1898.6×D1706.9×H2660.8 mm
W74.75×D67.21×H104.76 in
Weight: Approximately 343 kg
Approximately 756.2 lb
Part No: F152
Model No: C-531
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Fantasy Soccer GMP Manual
08/27/2018
6
Back Cabinet: W69.44×D27.01×H104.76 in
W1763.6×D686×H2660.8 mm
Connective part: W31.50×D18.98×H15.59 in
W800×D482.1×H396 mm
Control panel: W74.75×D30.20×H42.98 in
W1898.6×D767.1×H1091.6 mm

Fantasy Soccer GMP Manual
08/27/2018
7
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
1. Following accessories
No. Part No. Code Name Picture Qty
1 F152-801-000 25300171002
Key 2
2 F152-802-000 25300172002
Key 2
3 F152-803-000 41440000254A
Manual 1
4 F152-804-000 21301000006
Router 1 for 2 units
( For linking only)
5 F152-805-000 23302000014
Network cable
2 for 2 units
( For linking only)
6 F152-806-000 23301010020
Power cord 1
7 F152-412-000 21901000013
Fuse 2

Fantasy Soccer GMP Manual
08/27/2018
8
3. PART NAME
Key Components
Ball assy.
Coin mech.
Marquee assy.
Monitor
Control panel
assy.
Joystick
Top monitor
DBV

Fantasy Soccer GMP Manual
08/27/2018
9
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid
Place the unit on a dry level surface
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game
. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 0.2 in. Repeat the same for all levelers.
Leveler Caster
Move
F
Caster Leveler
About 0.2 in
Move Fi
x
NOTICE
Make sure the machine is level.
We do not recommend using power tools as they may cause damage.
NOTICE

Fantasy Soccer GMP Manual
08/27/2018
10
4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
Service area
Play area

Fantasy Soccer GMP Manual
08/27/2018
11
4.4 Machine Installation
4.4.1 Connective part
Before processing with assembly ensure you have the following tools.
1) Utilize Phillips screwdriver to loosen the screws to remove the connective part door
plate.
2) Guide the cable from Box A to Box B through a rectangle hole so that the cable can
reach to the control panel.
3) Align Box A and Box B, utilize Phillips screwdriver to fix them as indicated by the red
circle.
No. Part No. Code Name Picture Qty
1 F152-318-000 20104023004 Cross recessed hexagon bolt 8
2 / / Phillips screwdriver 1
Connective part
door plate
Box A
Box B

Fantasy Soccer GMP Manual
08/27/2018
12
4.4.2 Control panel assy.
1) Guide the cable mentioned in the last step to connect to the bottom of the control panel.
2) Align control panel and Box B and fix the metal brackets indicated by the red circle on
both sides.
No. Part No. Code Name Picture Qty
1 F152-343-000 20104010004 Cross recessed hexagon bolt 16
2 / / Phillips screwdriver
1
Box B

Fantasy Soccer GMP Manual
08/27/2018
13

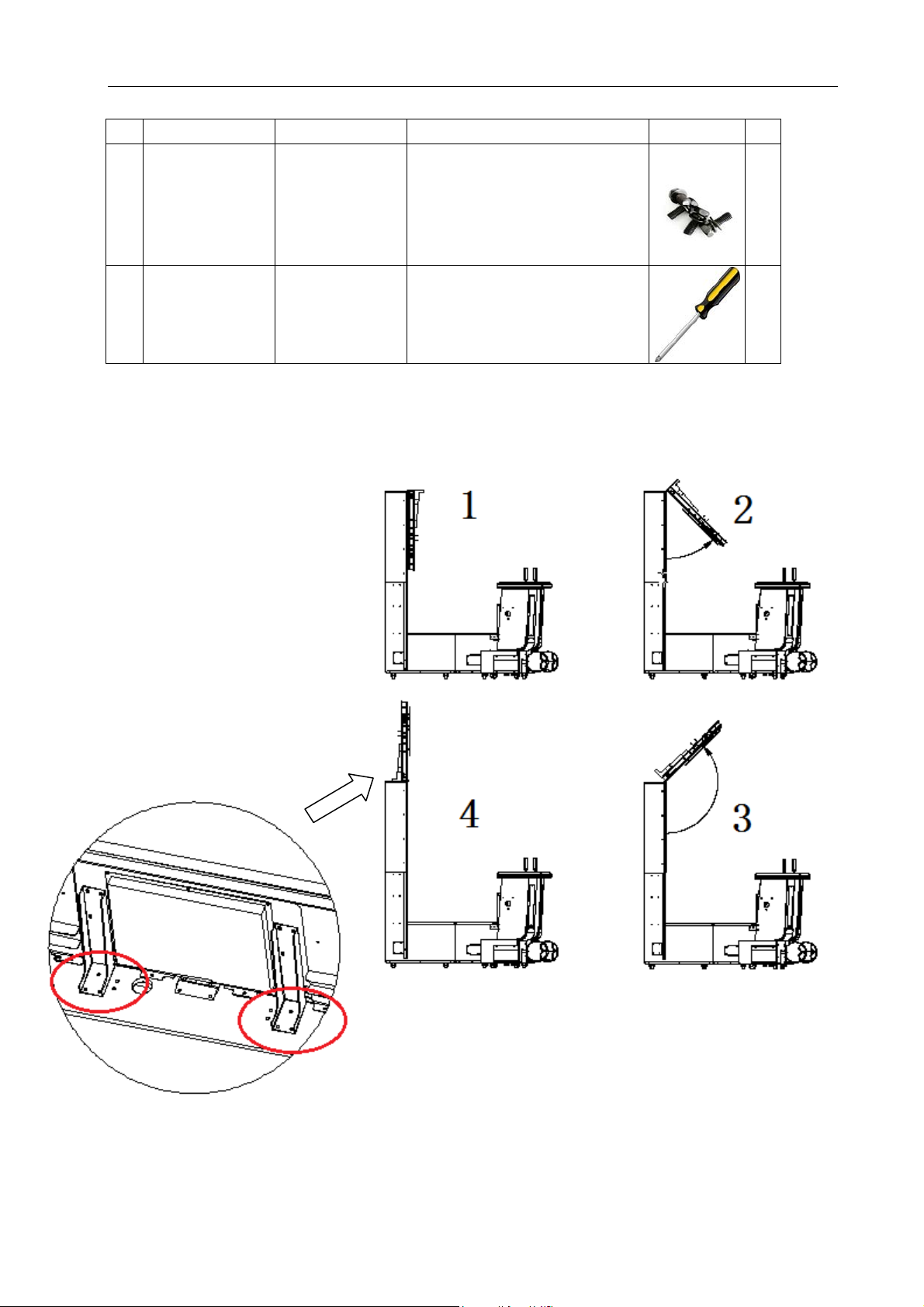

4.4.3 Marquee assy.
1) Raise the marquee upright by following pictures 1-4.
2) Utilize Phillips screwdriver to fix 6 screws indicated by the red circle to fix the marquee.
Note: The marquee is high, please be careful when installing.
Finish!
No. Part No. Code Name Picture Qty
1 F152-343-000 20104010004 Cross recessed hexagon bolt 6
2 / / Phillips screwdriver
1

Fantasy Soccer GMP Manual
08/27/2018
14
5. HOW TO PLAY
1. Insert coins, press any button to start.
2. Control the joystick to move the player.
3. Kick the ball with your feet to shoot and tackle.
4. Press SWTICH PLAYERS to switch your won side available player.

Fantasy Soccer GMP Manual
08/27/2018
15
5. Press ACCELERATE to speed up the player.
6. To ensure customers’ safety, please pay attention to this Caution.

Fantasy Soccer GMP Manual
08/27/2018
16
6. GAME OPTION
6.1 Adjustment button instruction
6.2 Setting menu
6.2.1 Main menu
Options
Basic Setting
Customized Setting
Camera Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Language/语言
About This Game
Bookkeeping
Back to game
Open the coin door and there is a
meter panel. Press Settings button to
enter into the setting menu.
Settin
g
s Test Reset
6.2.2Basic Setting
Options Parameter
Free play ON/OFF
Coins per game 1-99
Volume 0-10
Demo music ON/OFF
Difficulty Easy/Normal/Difficult
Coin memory ON/OFF
Pay mode Coin/Swipe Card/
Back & Save
Back

Fantasy Soccer GMP Manual
08/27/2018
17
6.2.3 Customized setting
Options Parameter
Half game time 60/90/120/150/180 Sec
Ball color ON/OFF
Ultimate skill ON/OFF
Join current game Join only in first half/ Cannot join only in extra time/
Cannot join overall
Health index ON/OFF
Local network linking ON/OFF
Match Mode ON/OFF
Longest matching time 20/25/30/35/40/45/50/55/60 Sec
Team show time 5/8/10/12/15/18 Sec
Shooting special effect ON/OFF
Extra-time ON/OFF
Extra time duration 30/60 Sec
Take a photo time 5/10/15/20/30 Sec
Select mode time 5/10/15/20/30 Sec
Select team time 5/10/15/20/30 Sec
Back & Save
Back
6.2.4 Camera Setting
Options Parameter
Take photo or not? ON/OFF
Camera Pos Adjustment
Back & Save
Back

Fantasy Soccer GMP Manual
08/27/2018
18
6.2.5 Input Test
Options Parameter
1P Coin 0-999
2P Coin 0-999
3P Coin 0-999
4P Coin 0-999
1P Button
2P Button
3P Button
4P Button
1P Ball sensor Front /Behind
2P Ball sensor Front /Behind
6.2.6 Output Test
Options Parameter
Monitor left light
Light Strips Off/Multi-color Flashing/
Red Light On/Red Light Blink/Red/Light Breath/
Green Light On/Green Light Blink/Green Light Breath/
Blue Light On/Blue Light Blink/Blue Light Breath/
Yellow Light On/Yellow Light Blink/Yellow Light Breath
Monitor right light
1P control panel light
2P control panel light
3P control panel light
4P control panel light
Back
6.2.7 Game Reset
Options Parameter
Factory Restore Ok/Cancel
Reset Basic Setting Ok/Cancel
Reset Customized Setting Ok/Cancel
Clear Bookkeeping Ok/Cancel
Clear Owed Ticket Ok/Cancel
Back
3P Ball sensor Front /Behind
4P Ball sensor Front /Behind
1P Joystick Calibration Completed
2P Joystick Calibration Completed
3P Joystick Calibration Completed
4P Joystick Calibration Completed
1P Ball Signal Calibration Completed
2P Ball Signal Calibration Completed
3P Ball Signal Calibration Completed
4P Ball Signal Calibration Completed
Back

Fantasy Soccer GMP Manual
08/27/2018
19
6.2.8 Date/Time Setting
6.3.0 About This Game
Options Parameter
Year 1970-2118
Month 1-12
Day 1-31
Hour 0-24
Min 0-59
Sec 0-59
Back & Save
Back
Options
CPU
Motherboard
Memory
Display Adapter
Resolution
Version
Back
6.2.9 Language/语言
Options
中文
English
Back
6.3.1Bookkeeping
Date Weekday Fixedplay Runtime Coins
2018/6/11 Mon 11 00:21:00 4
2018/6/9 Sat 23 00:33:00 1
Total 34 2day(s) 5
Pre Page
Next Page
Back
