UNIS Zombie Night User manual

www.universal-space.com
Operation Manual
IMPORTANT

Zombie Night GMP Manual
03/27/2020
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email:[e-mail]
When contacting Service, you will need the following information
and the name of your authorized distributor.

Zombie Night GMP Manual
03/27/2020
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2.CONTENTS OF THE ACCESSORY KIT.................................................................... 7
3. PART NAME............................................................................................................8
4. SET UP & INSTALLATION...................................................................................... 9
5. HOW TO PLAY......................................................................................................16
6. GAME OPTION..................................................................................................... 17
7. TROUBLESHOOTING............................................................................................21
8. MAINTENANCE & INSPECTION.......................................................................... 24
9. OVERALL CONSTRUCTION..................................................................................31
10. WIRING DIAGRAM............................................................................................ 56

Zombie Night GMP Manual
03/27/2020
3
Thank you for purchasing Zombie Night. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Zombie Night GMP Manual
03/27/2020
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Zombie Night GMP Manual
03/27/2020
5
1. SPECIFICATIONS
Rated power supply: AC110V~ 50/60 Hz; AC220-240V~ 50/60 Hz
Min. Power consumption: 270W
Max. Power consumption: 500W
Dimension: W41.34×D105.12×H82.68 in
W1050×D2670×H2100 mm
Weight：Approximately 694.5 lb/315kg
Part No: Z116
Model No: C-558
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Zombie Night GMP Manual
03/27/2020
6

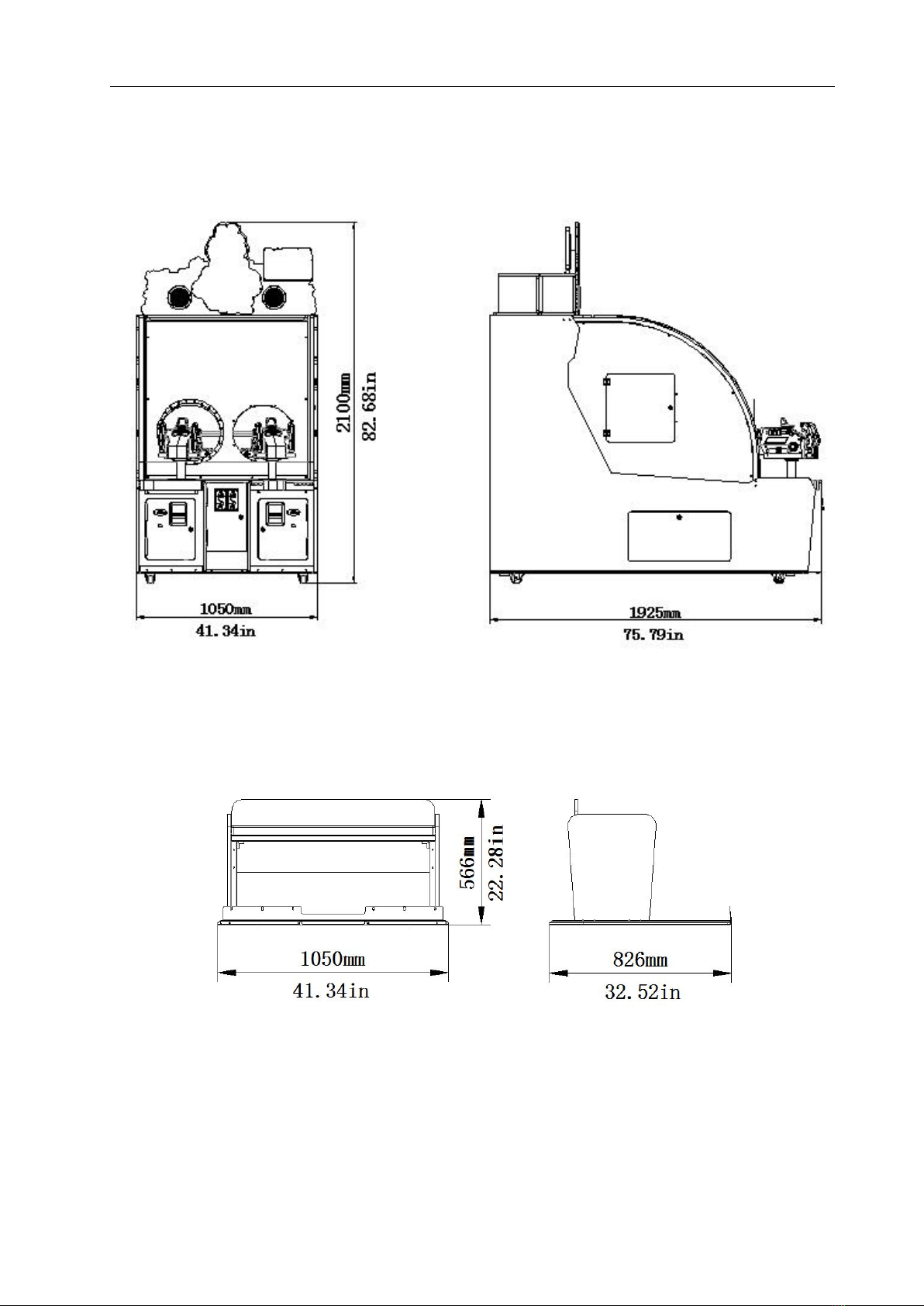

This machine will be divided into two parts during transportation.
Cabinet part: W41.34×D75.79×H82.68 in
W1050×D1925×H2100 mm
Seat part: W41.34×D32.52×H22.28 in
W1050×D826×H566 mm
Note: Game specifications are subject to change without notice.

Zombie Night GMP Manual
03/27/2020
7

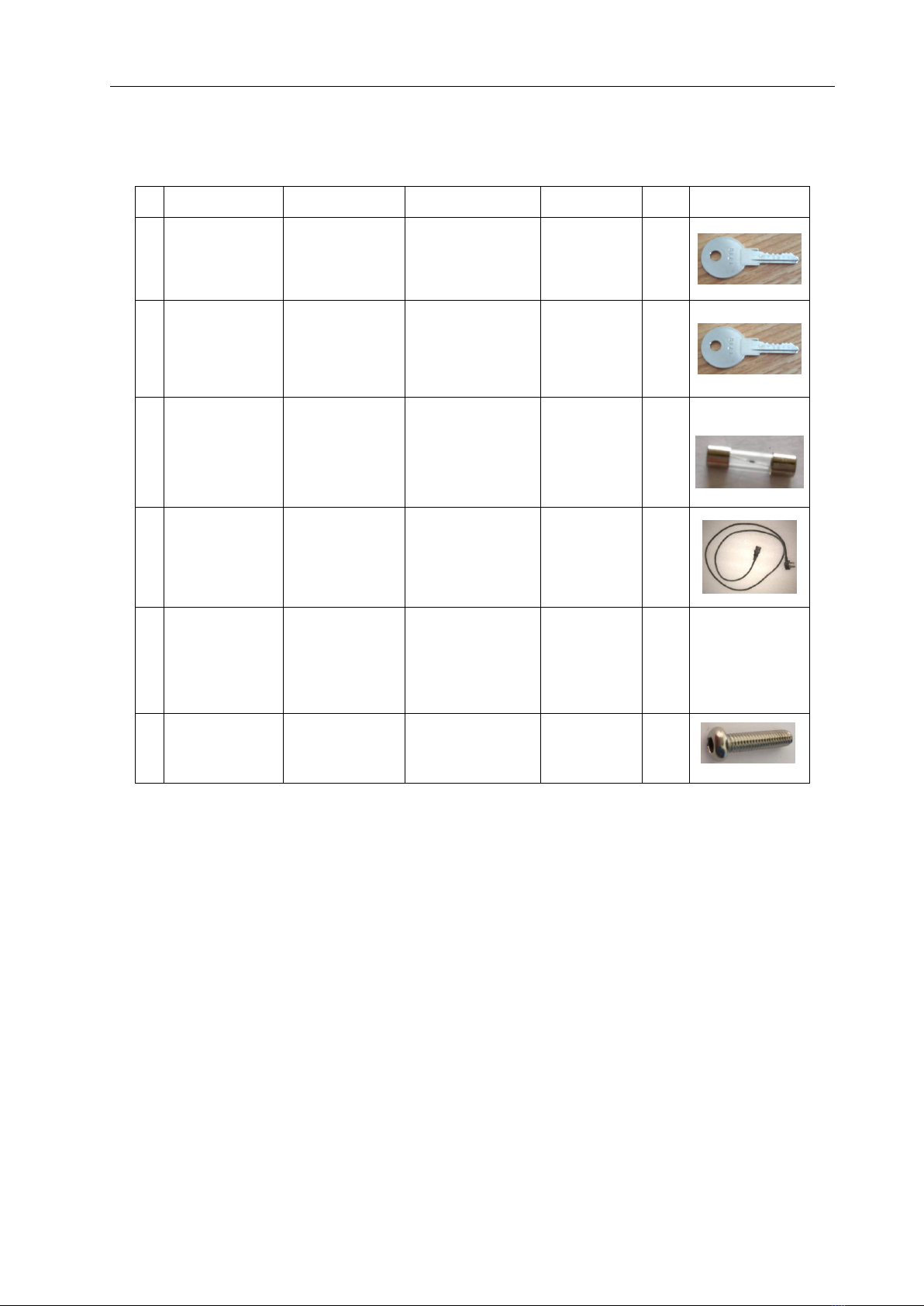

2.CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
No.
Part No.
Code
Name
SPEC
Qty
1
Z116-802-000
25300171002
Key
171
2
2
Z116-803-000
25300172002
Key
171B
2
3
Z116-421-000
21901000013
Fuse
Φ5×20
T10A/250V
1
4
Z116-463-000
23301000001
Power cord
10A/250V-
1.8M
1
5
Z116-801-000
41440000287
Manual
/
1
/
6
Z116-362-000
20101008016
Hexagon socket
button screw
M5×45
4
NOTE: Part models are subject to change without notice.

Zombie Night GMP Manual
03/27/2020
8
3. PART NAME
Key Components
Ticket Dispenser
Seat Assembly
Zombie Toy
Assembly
Marquee Assembly
Gun Assembly
Coin Mechanism
Monitor Assembly

Zombie Night GMP Manual
03/27/2020
9
L
4. SET UP & INSTALLATION
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.

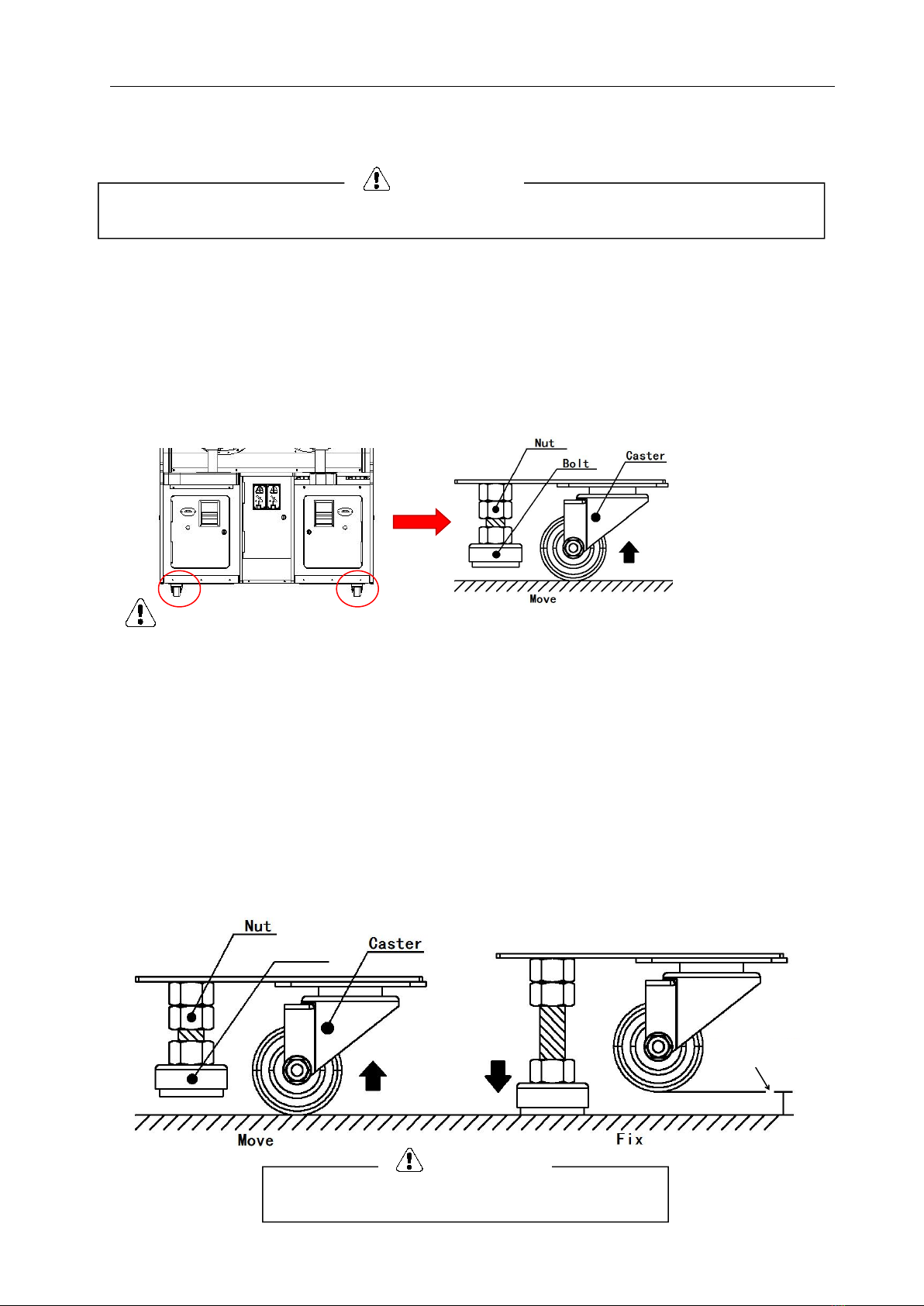

4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.
Leveler
About 0.2 in/5mm
Make sure the machine is level.
NOTICE
We do not recommend using power tools as they may cause damage.
NOTICE

Zombie Night GMP Manual
03/27/2020
10

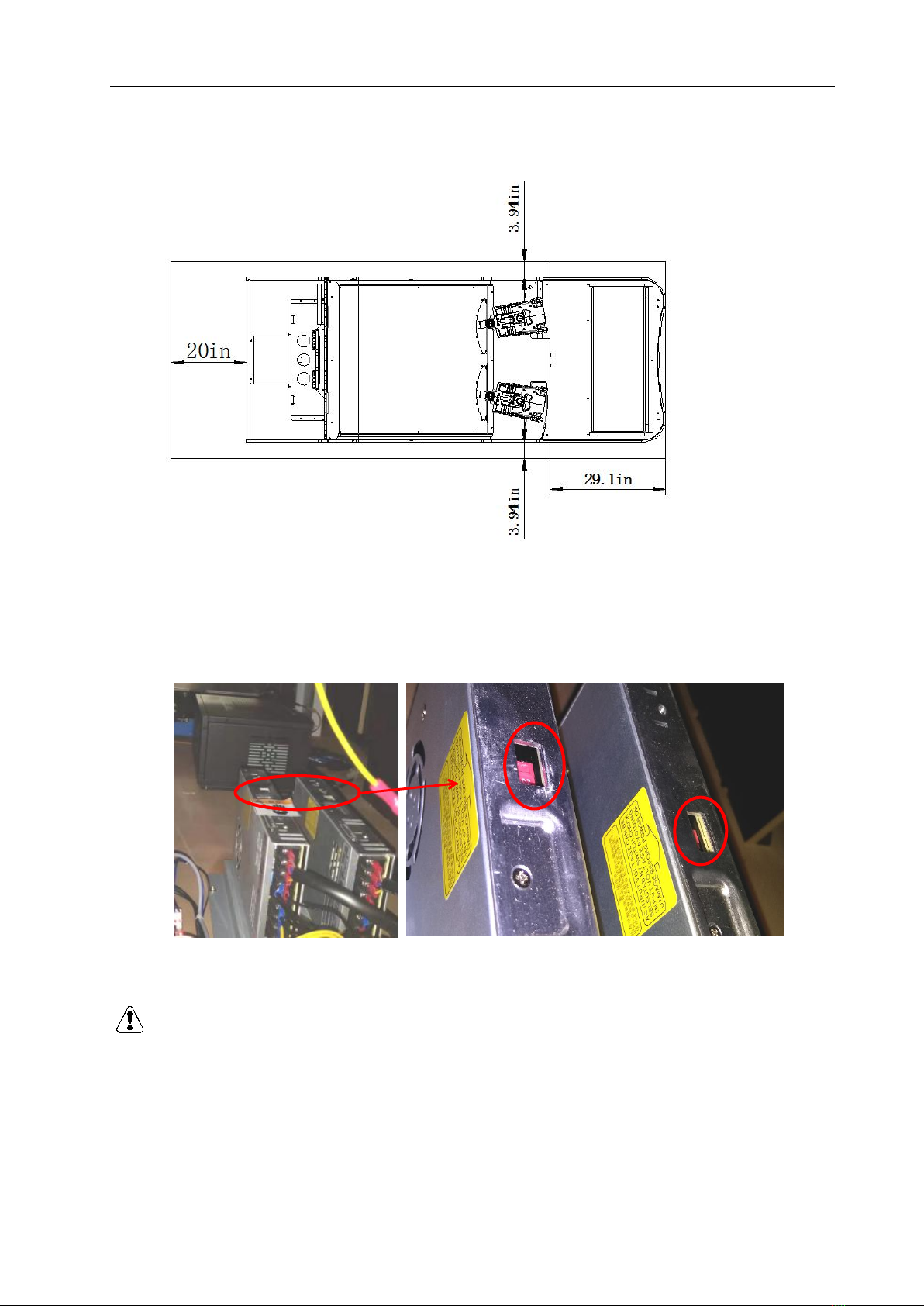

4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in
4.4 Voltage Conversion (110V convert to 220V)
Step 1 Power off the machine.
Step 2 Locate the power supplies inside the back box.
Step 3 Toggle the switches from 115V to 230V on the power supplies.
Step 4 Power on the machine.
4.5 Card Reader Installation Safety Notice
Take precaution to assure that all wiring voltages are confirmed prior to installation
of card reader. All warranties are void if not properly installed resulting in logic board
damage.

Zombie Night GMP Manual
03/27/2020
11
4.6 Machine Installation
Before processing with assembly assure you have the following tools.
4.6.1 Seat Assembly Installation
Step 1 Utilize Phillips screwdriver to tighten 4 screws to fix 2 Seat side plates to the base
plate.
No.
Name
1
Phillips screwdriver
2
Allen wrench
Name
Cross recessed hexagon
screw set
SPEC
M6X40
Qty
4
Seat side plate
Seat side plate
Base plate

Zombie Night GMP Manual
03/27/2020
12
Step 2 Utilize Phillips screwdriver to tighten 4 screws to fix the Seat frame to 2 Seat side
plates.
Name
Cross recessed hexagon
screw set
SPEC
M6X12
Qty
4
Seat frame
Seat side plate
Seat side plate

Zombie Night GMP Manual
03/27/2020
13
Step 3 Utilize Allen wrench to tighten 7 screws to fix the Seat back plate to 2 Seat side
plates.
Step 4 Utilize Phillips screwdriver to tighten 4 screws to fix the Seat back plate and 2 Seat
side plates together.
Name
Hexagon flat round
head screw
SPEC
M6X25
Qty
7
Name
Cross recessed pan head
screw set
SPEC
M4X12
Qty
4
Seat side plate
Seat side plate
Seat back plate
Seat side plate
Seat side plate
Seat back plate
Seat back plate

Zombie Night GMP Manual
03/27/2020
14

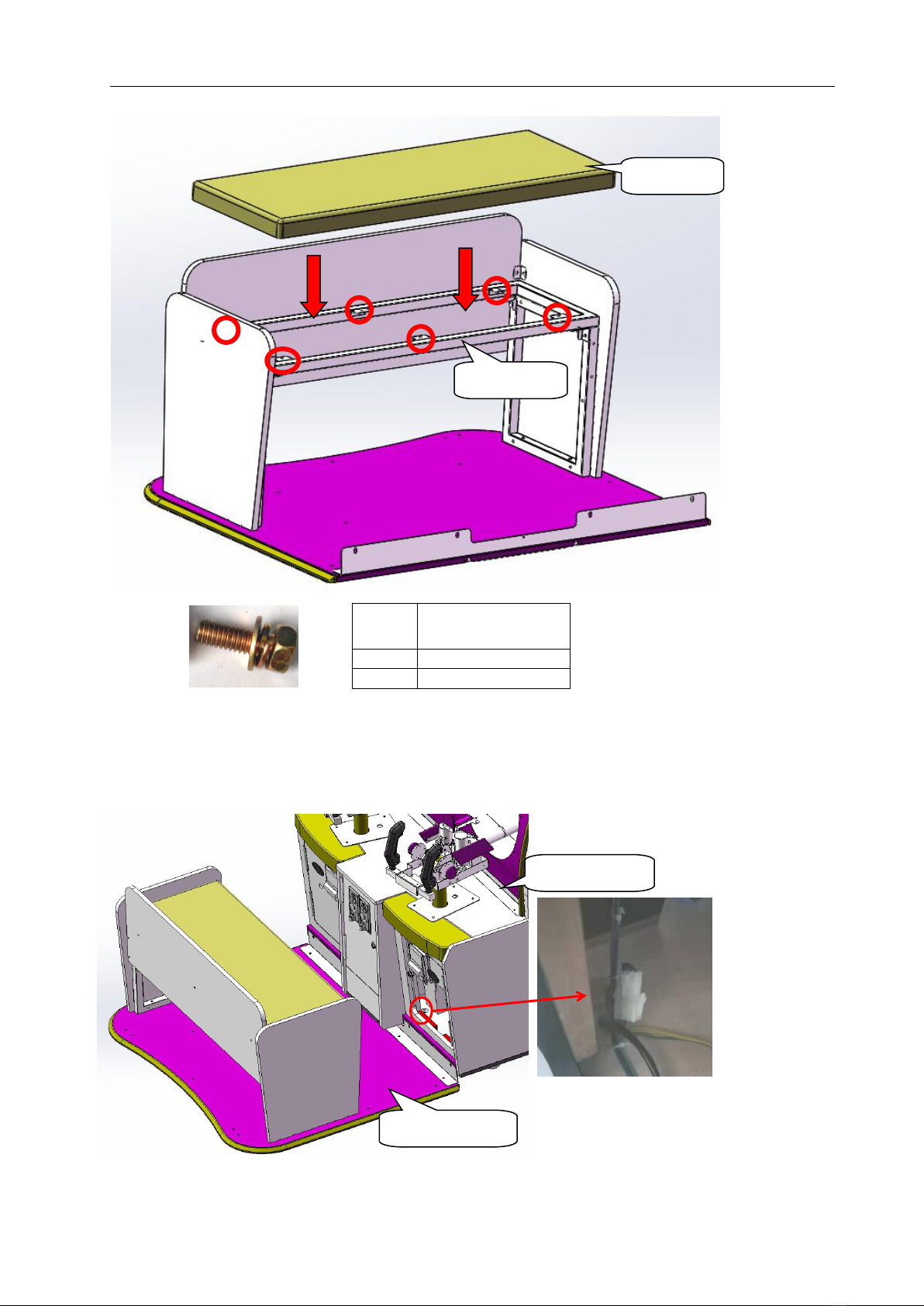

Step 5 Utilize Allen wrench to tighten 6 screws to fix the Seat plate to the Seat frame.
4.6.2 Combination Instruction
Step 1 Route the cable from the Seat assembly through the hole indicated into the Main
cabinet and connect.
Name
Hexagon flat round
head screw
SPEC
M6X16
Qty
6
Seat frame
Seat plate
Seat assembly
Main cabinet

Zombie Night GMP Manual
03/27/2020
15

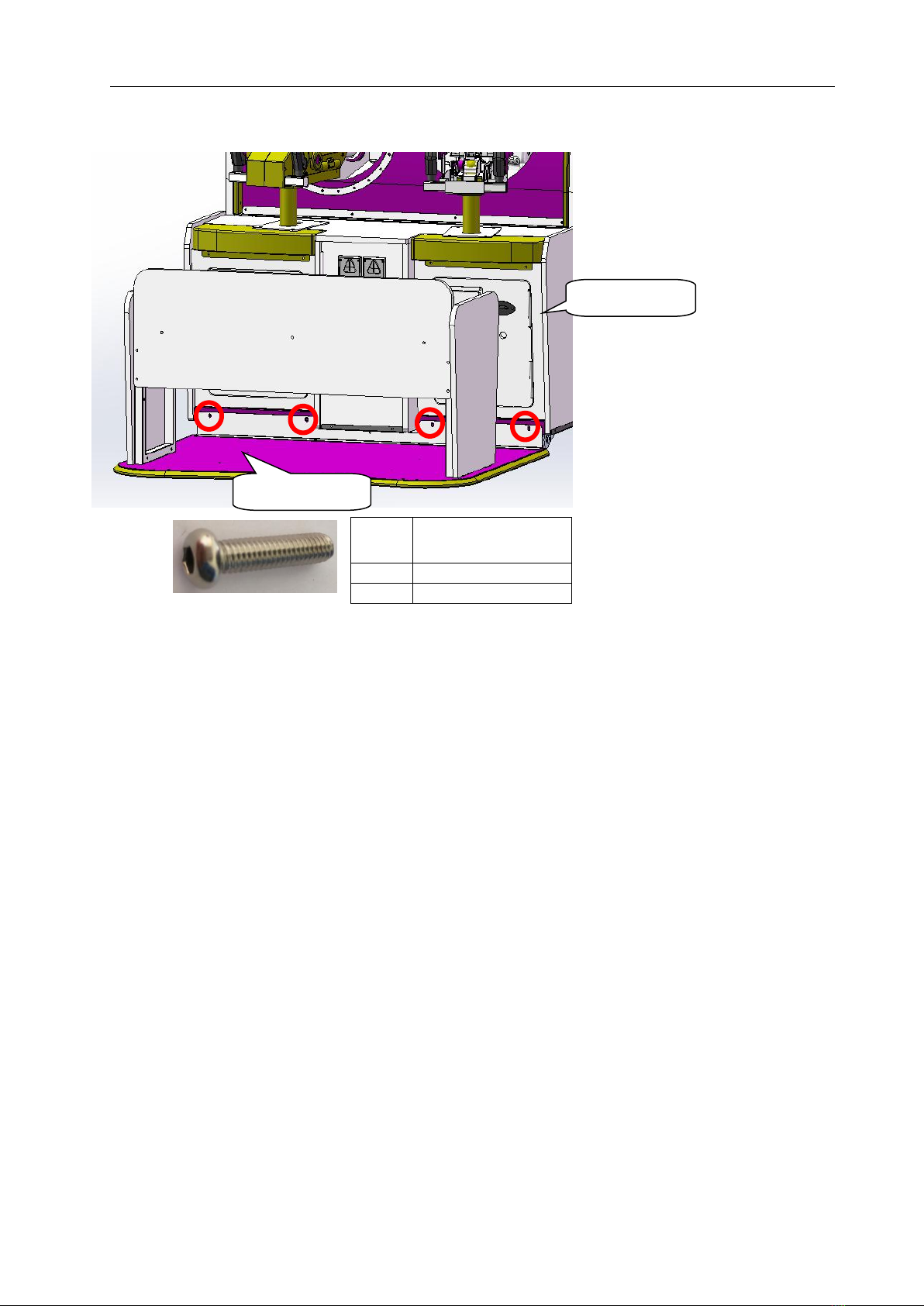

Step 2 Utilize Allen wrench to tighten 4 screws to fix the Seat assembly to the Main
cabinet.
Finish!
Name
Hexagon flat round
head screw
SPEC
M5X45
Qty
4
Seat assembly
Main cabinet

Zombie Night GMP Manual
03/27/2020
16
5. HOW TO PLAY
1.Insert coins, choose character and stage to play.
2.Pull triggers to shoot the zombies,coins, other items on the screen and zombie toys.
3.Press Energy buttons(the upper two buttons) to activate Flame Attack.
4.Get high score to unlock the following stages.

Zombie Night GMP Manual
03/27/2020
17
6. GAME OPTION
6.1 Adjustment button instruction
6.2.1 Main Menu 6.2.2 Basic Setting
Basic Setting
Input Test
Output Test
Game Reset
Date/Time Setting
Customized Setting
About This Game
Language/语言
Bookkeeping
DailyRecord
Gun Calibration
Back to game
Free Play
YES_NO
Tickets Out
YES_NO
Demo music
YES_NO
Memory Save
YES_NO
Volume
0-10
Coins Per Game
1-200
Out of Tickets
YES_NO
Back&Save
Back
Reset
Open the coin door and there is a
meter panel. Press Settings button to
enter the setting menu.
Settings
Test

Zombie Night GMP Manual
03/27/2020
18
6.2.3 Input Test
6.2.4 Output Test
1P TicketDriver
2P TicketDriver
1 Toy Lamp
2 Toy Lamp
3 Toy Lamp
4 Toy Lamp
1 Toy Lamp G
2 Toy Lamp G
3 Toy Lamp G
4 Toy Lamp G
1P Coin
2P Coin
1P Shoot Key
2P Shoot Key
1P Energy Key
2P Energy Key
1 Track Sensor Front
2 Track Sensor Front
3 Track Sensor Front
4 Track Sensor Front
1 Track Sensor Back
2 Track Sensor Back
3 Track Sensor Back
4 Track Sensor Back
1 Toy Sensor
2 Toy Sensor
3 Toy Sensor
4 Toy Sensor
1P Send Ball
2P Send Ball
1P X
1P Y
2P X
2P Y
Back
1 Toy Lamp R
2 Toy Lamp R
3 Toy Lamp R
4 Toy Lamp R
Side Lamp R
Side Lamp G
Side Lamp B
1P Gun Lamp R
1P Gun Lamp G
1P Gun Lamp B
2P Gun Lamp R
2P Gun Lamp G
2P Gun Lamp B
Doll Lighting W
1 Track Motor
2 Track Motor
3 Track Motor
4 Track Motor
Back

Zombie Night GMP Manual
03/27/2020
19
6.2.5 Game Reset
Factory restore
YES_NO
Reset Basic Setting
YES_NO
Reset Customized Setting
YES_NO
Clear all records
YES_NO
Clear owed ticket
YES_NO
Clear unused coin
YES_NO
Back
6.2.6 Date/Time Setting
6.2.7 Customized Setting
6.2.8 About This Game 6.2.9 Bookkeeping
CPU
MainBoard
HDD
RAM
Monitor
Screen
Version
Press the Test Button to Go Back
Year
2010-2100
Month
1-12
Day
1-31
Hour(24)
0-23
Minute
0-59
Second
0-59
Back&Save
Back
Player
Coins
Payout Tickets
NON RESETTABLE POINTS
NON RESETTABLE TICKETS
Back
Fixed Ticket
YES_NO
Bonus Score
5000-15000
Bonus
10-9999
Level A Ticket
0-10
Level B Ticket
0-10
Level C Ticket
0-10
Level D Ticket
0-10
Back & Save
Back
